SE-134

FRONT SEAT

FRONT SEAT

PFP:87000

Removal and Installation

NIS000IN

CAUTION:

Do not disassembly the component parts of only front passenger seat in the dotted lines shown in the
figure below.

FRONT SEAT

SE-135

C

D

E

F

G

H

J

K

L

M

A

B

SE

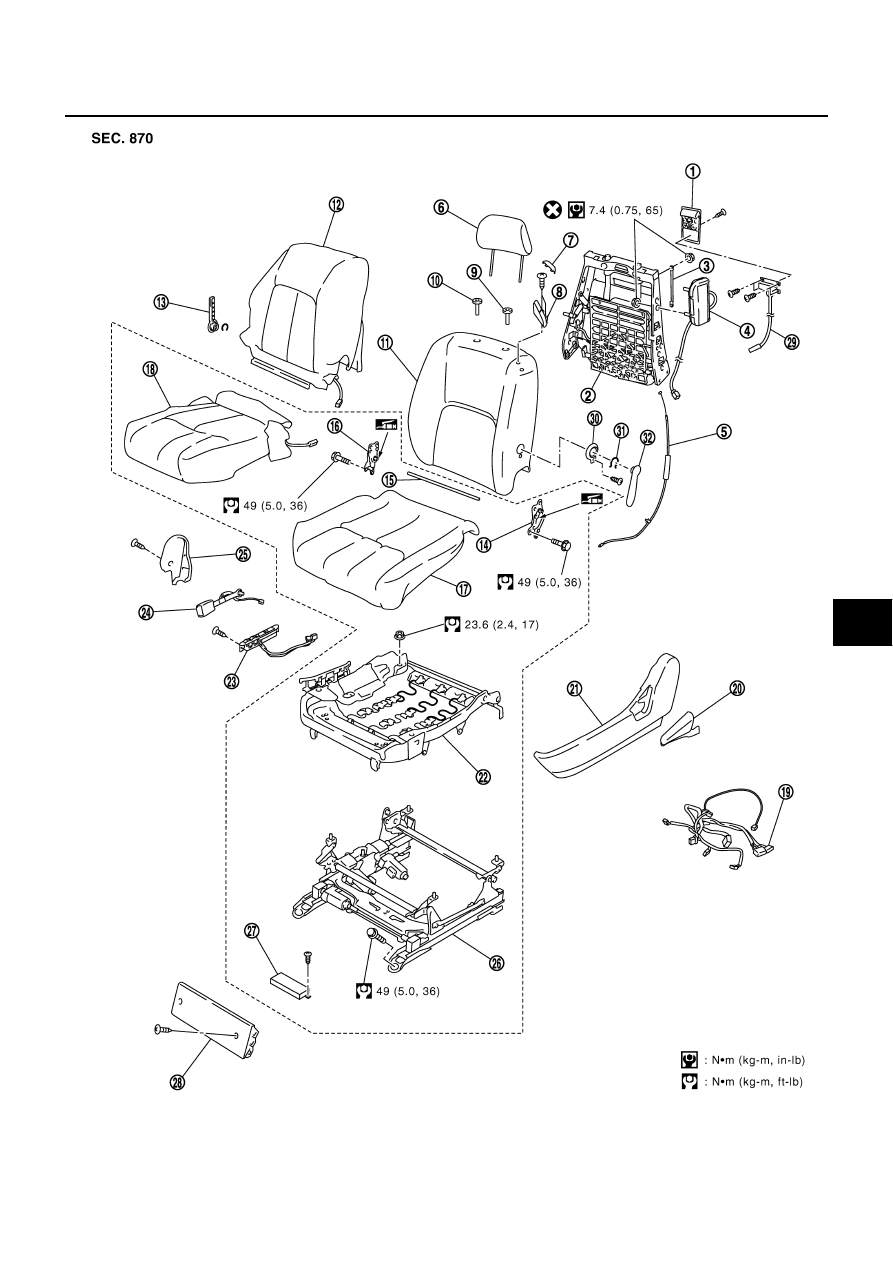

1.

Walk-in lever

2.

Seatback frame assembly

3.

Inner cloth stay

4.

Side air bag module

5.

Walk-in control cable

6.

Headrest

7.

Seat belt hook finisher

8.

Seat belt hook

9.

Headrest holder (locked)

PIIB7397E

SE-136

FRONT SEAT

REMOVAL

When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.

CAUTION:

Before removing the front seat, turn the ignition switch off, disconnect both battery cables and
wait and least 3 minutes.

When checking the power seat circuit for continuity using a circuit tester, do not confuse its con-
nector with the side air bag module connector. Such an error may cause the air bag to deploy.

Do not drop, tilt, or bump the side air bag module installing in the seat. Always handle it with care.

1.

Remove the front leg cover and rear leg cover. (LH/RH)

NOTE:

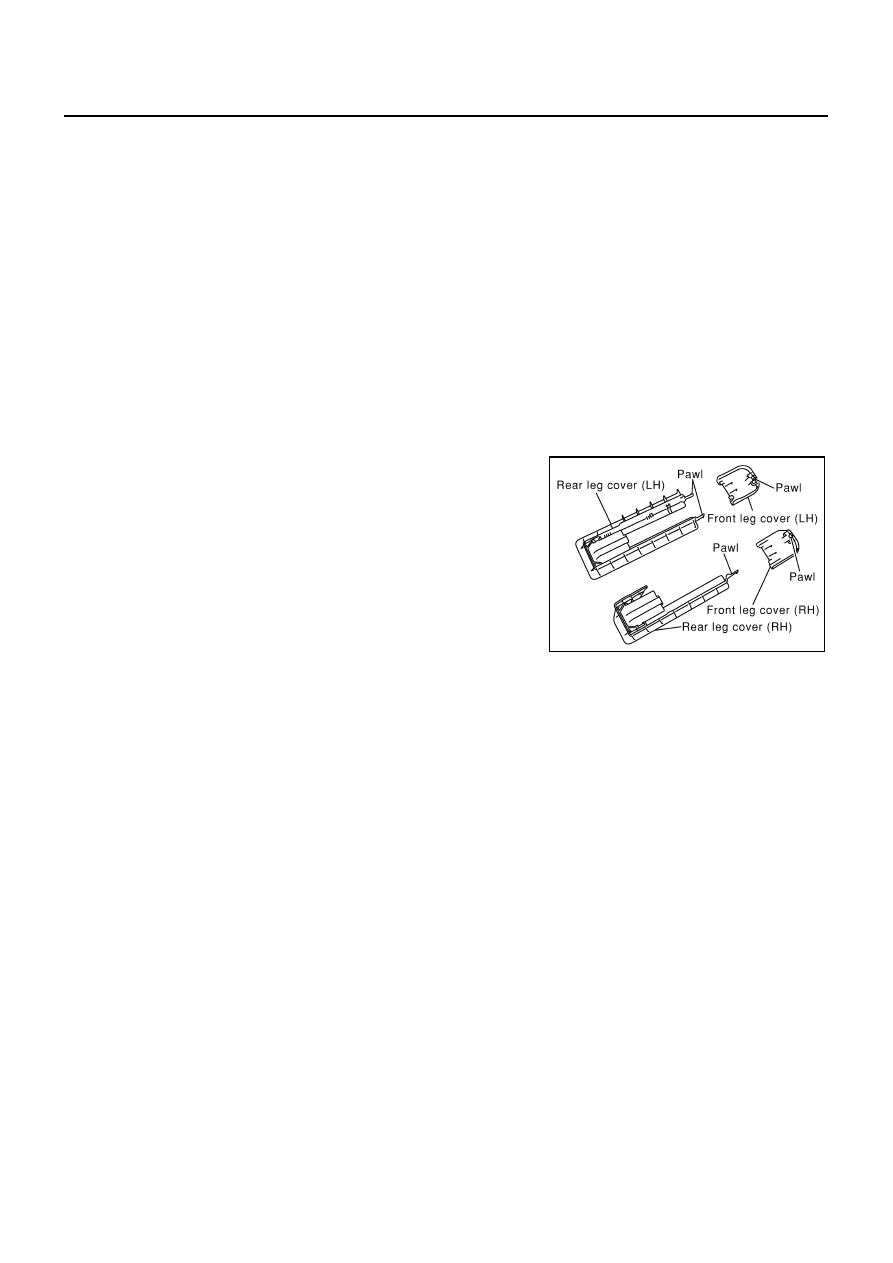

1. Slide the seat backward, and disconnect the front tabs on the front leg cover. Then move the cover

toward the rear of the vehicle, and pull up to remove.

2. Slide the seat forward, then disengage the tabs on the front LH/RH of the rear leg cover and tabs

engaged into the rail. Then pull the cover toward the rear of the vehicle.

2.

Slide the seat until the body mounting bolts are visible and a tool can be inserted.

NOTE:
When disassembling the driver seat after removal, set the front/rear cushion lifter to the top position.

3.

Remove the body mounting bolts.

4.

Disconnect both battery cables.

5.

Remove the harness connector for the side air bag module.

6.

Remove the power seat harness connector and vehicle harness fixing clip out of the vehicle.

NOTE:
When removing and installing, using clothes, protect the parts from damage where it may interfere with
others.

INSTALLATION

Install in the reverse order of removal.

NOTE:
Be sure to insert the rear end tab of the rear leg cover under the rail.

10.

Headrest holder (free)

11. Seatback pad

12. Seatback trim and heater

13.

Lumber support lever knob

14. Reclining device (LH)

15. Reclining device rod

16.

Reclining device (RH)

17. Seat cushion pad

18. Seat cushion trim and heater

19.

Power seat harness

20. Reclining lever

21. Seat cushion outer finisher

22.

Seat cushion outer finisher

23. Power seat switch

24. Seat belt buckle

25.

Seat cushion inner finisher

26. Seat cushion rail assembly

27. Power seat control unit

28.

Seat cushion front finisher

29. Seatback switch

30. Walk-in side lever finisher

31.

Snap ring

32. Walk-in side lever

PIIA1154E

FRONT SEAT

SE-137

C

D

E

F

G

H

J

K

L

M

A

B

SE

Disassembly and Assembly

NIS000IO

SEATBACK TRIM AND PAD

CAUTION:

Do not disassemble front passenger seat cushion assembly.
Always replace as an assembly.
For front passenger seat service parts, refer to the service part catalogue.

NOTE:
Be sure to set the front/rear cushion lifter to the top position.

Disassembly

1.

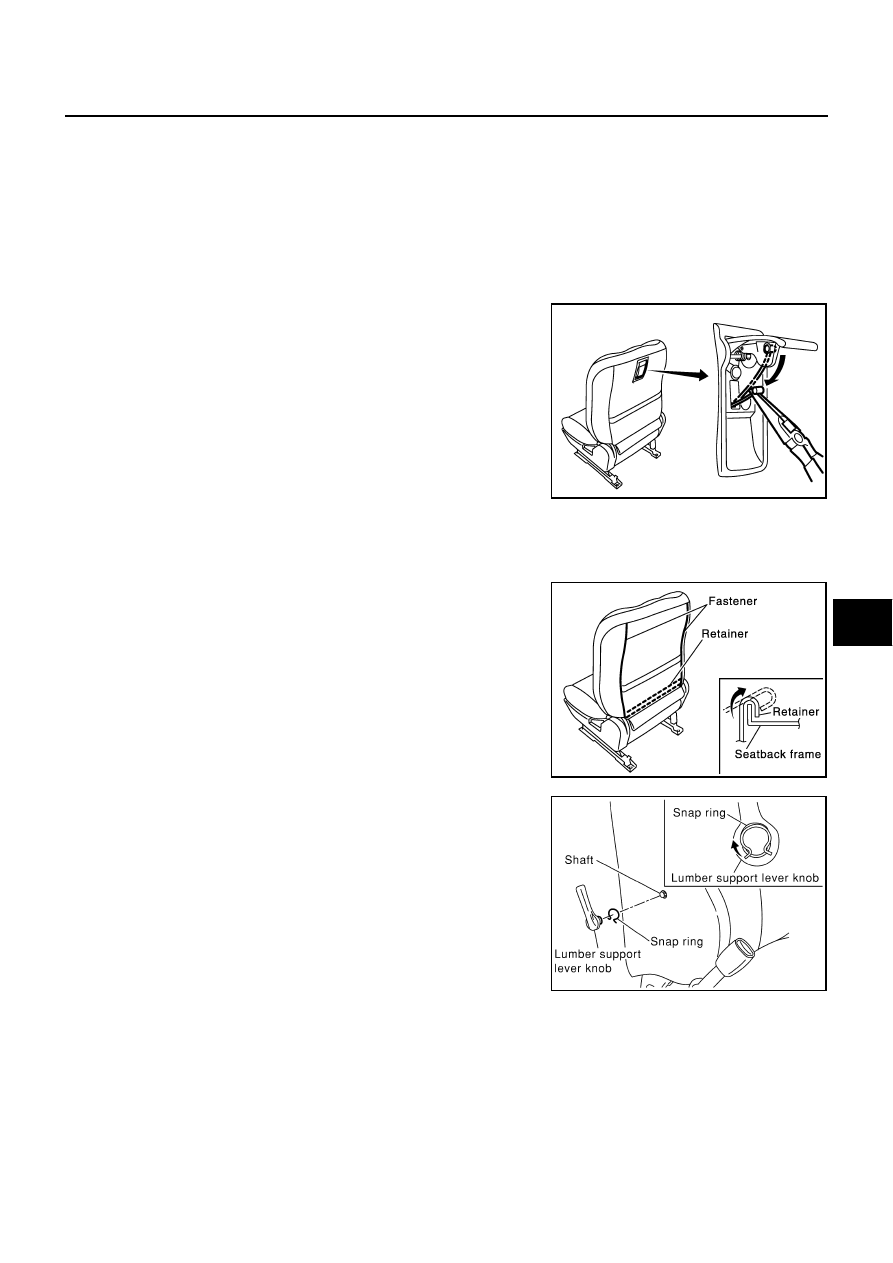

Remove screw, and then remove walk-in lever.

2.

Disconnect the harness connector, and then remove seatback switch.

3.

Remove seat belt hook finisher.

4.

Remove screw, and then remove seat belt hook.

5.

Open fastener on back of seatback, and remove retainer from
seatback frame.

6.

Pull snap ring upward, and remove lumber support lever knob
from seatback frame.

PIIA3654E

PIIA3655E

PIIA1156E
