Infiniti G35 (V35). Manual - part 761





SRS-6

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Front Seat Belt Pre-tensioner With Load Limiter

NHS0001J

The seat belt pre-tensioner system with load limiter is installed for
both the driver's seat and the front passenger's seat. It operates
simultaneously with the SRS air bag system in the event of a frontal
collision with an impact exceeding a specified level.
When the frontal collision with an impact exceeding a specified level
occurs, seat belt slack resulting from clothing or other factors is
immediately taken up by the pre-tensioner. Vehicle passengers are
securely restrained.
When passengers in a vehicle are thrown forward in a collision and
the restraining force of the seat belt exceeds a specified level, the
load limiter permits the specified extension of the seat belt by the
twisting of the ELR shaft, and a relaxation of the chest-area seat belt
web tension while maintaining force.

Front Side Air Bag

NHS0001K

Front side air bag is built-in type.
The front seatbacks with built-in type side air bag have the labels as
shown.

Side Curtain Air Bag

NHS0001L

The side curtain air bags have the labels as shown.

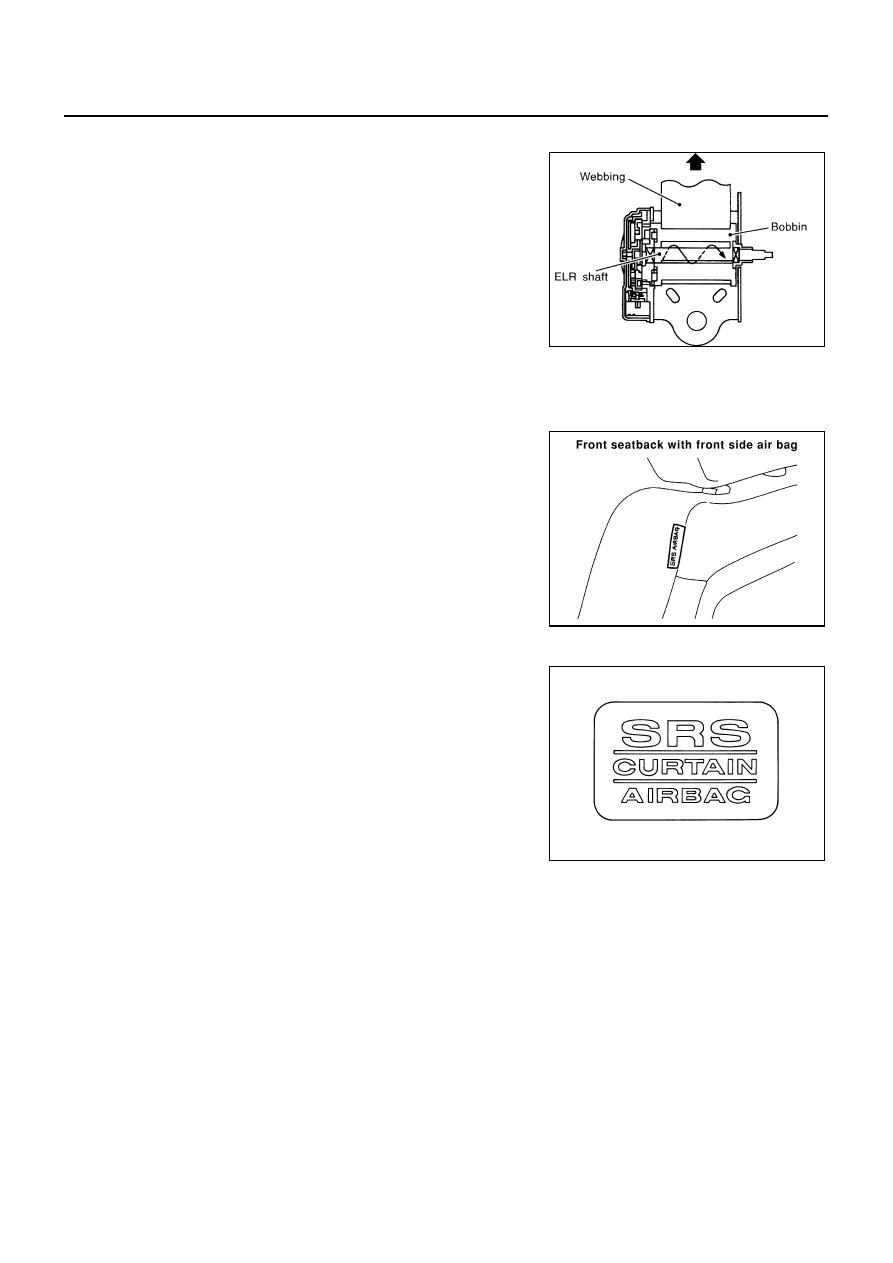

SRS444

SHIA0170E

BF-2006D

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS-7

C

D

E

F

G

I

J

K

L

M

A

B

SRS

Occupant Classification System (OCS)

NHS0006G

The occupant classification system identifies different size occupants, out of position occupants, and detects if
child seat is present in the front passenger seat. The occupant classification system receives inputs from the
occupant classification sensor (located inside the passenger seat cushion assembly) and belt tension sensor
(part of the passenger front seat belt assembly and located at the belt anchor location). Depending on classifi-
cation of passenger, the occupant classification system sends a signal to the diagnosis sensor unit. The diag-
nosis sensor unit uses this signal to determine full, partial, or non deployment of passenger front air bag in the
event of a collision. Depending on the signal received, the diagnosis sensor unit can disable the passenger
front air bag completely.

NOTE:
In case of customer concern, CONSULT-ll can be used to confirm the passenger air bag status (readiness).

Passenger Air Bag Status Condition

NHS0006H

NOTE:
Passenger does not meet Ocuupant classification System specifications for passenger air bag activation.

Component Parts of Occupant Classification System

NHS0006I

Front Passenger Seat

(Condition)

PASS AIR BAG OFF Indicator

(Status)

Passenger Air Bag Status

(Readiness)

CONSULT-ll Display

Seat occupied

OFF

Active (enabled)

ON

seat occupiedNOTE

ON

Deactivated (disabled)

OFF

Seat empty

OFF

Deactivated (disabled)

OFF

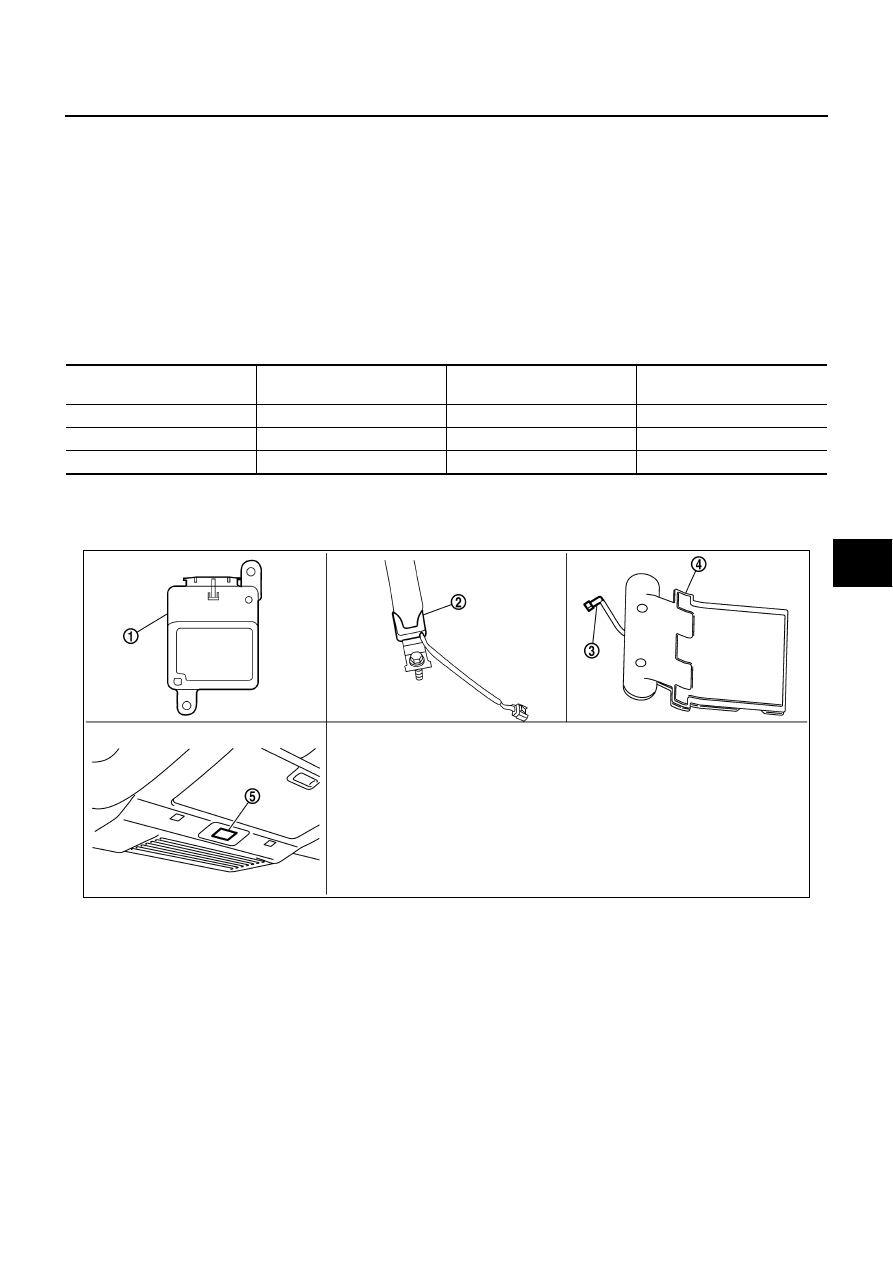

PHIA1177E

1.

Occupant classification system con-
trol unit

2.

Belt tension sensor

3.

Occupant classification system sen-
sor

4.

Bladder

5.

Front passenger air bag OFF indica-
tor (Cutoff telltaile)

SRS-8

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Passenger Seatbelt Warning Systemlt

NHS0006J

SYSTEM DESCRIPTION
This system warns when passenger seatbelt is not fasten.

This system is composed of the following items.

Seatbelt warning lamp.

Seatbelt buckle switch (passenger side).

Air bag diagnosis sensor unit.

Occupant classification system.

Seatbelt warning lamp is used for both driver seatbelt warning and passenger seatbelt warning.
Seatbelt warning lamp turns ON when all conditions below are met.

Driver seatbelt is fastened.

Occupant is on passenger seat.

Passenger seatbelt is not fasten.

TROUBLE DIAGNOSIS

SRS-9

C

D

E

F

G

I

J

K

L

M

A

B

SRS

TROUBLE DIAGNOSIS

PFP:00004

Trouble Diagnosis Introduction

NHS0001N

CAUTION:

Do not use electrical test equipment on any circuit related to the SRS unless instructed in this Ser-
vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Do not repair, splice or modify the SRS wiring harness. If the harness is damaged, replace it with a
new one.

Keep ground portion clean.

DIAGNOSIS FUNCTION

The SRS self-diagnostic results can be read by using “AIR BAG” warning lamp and/or CONSULT-II.
The User mode is exclusively prepared for the customer (driver). This mode warns the driver of a system mal-
function through the operation of the “AIR BAG” warning lamp.
The Diagnosis mode allows the technician to locate and inspect the malfunctioning part.
The mode applications for the “AIR BAG” warning lamp and CONSULT-II are as follows:

HOW TO PERFORM TROUBLE DIAGNOSIS FOR QUICK AND ACCURATE REPAIR

A good understanding of the malfunction conditions can make troubleshooting faster and more accurate.
In general, each customer feels differently about a malfunction. It is important to fully understand the symp-
toms or conditions for a customer complaint.

Information from Customer

WHAT..... Vehicle model
WHEN..... Date, Frequencies
WHERE..... Road conditions
HOW..... Operating conditions, Symptoms

Preliminary Check

Make sure the following parts are in good order.

Battery (Refer to

SC-4, "How to Handle Battery"

 .)

Fuse (Refer to

SRS-13, "Wiring Diagram — SRS —"

 .)

System component-to-harness connections.

User mode

Diagnosis mode

Display type

“AIR BAG” warning lamp

X

X

ON-OFF operation

CONSULT-II

X

Monitoring
