PB-6

PARKING BRAKE CONTROL

PARKING BRAKE CONTROL

PFP:36010

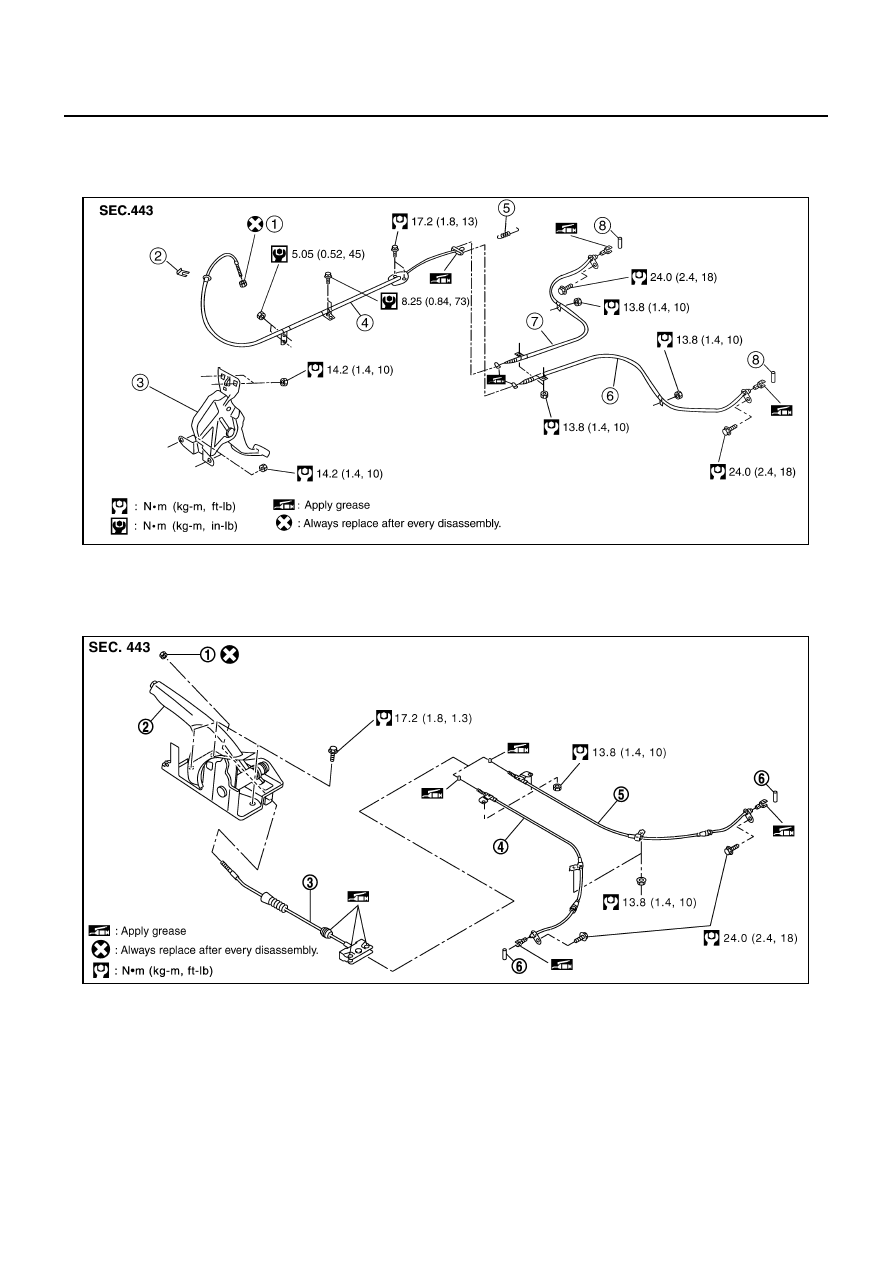

Components

NFS00069

PEDAL TYPE

LEVER TYPE

SFIA1258E

1.

Adjusting nut

2.

Lock plate

3.

Device assembly

4.

Front cable

5.

Return spring

6.

LH rear cable

7.

RH rear cable

8.

Pin

PFIA0720E

1.

Adjusting nut

2.

Device assembly

3.

Front cable

4.

LH rear cable

5.

RH rear cable

6.

Pin

PARKING BRAKE CONTROL

PB-7

C

D

E

G

H

I

J

K

L

M

A

B

PB

Removal and Installation

NFS0006A

REMOVAL

1.

Remove instrument driver lower panel (pedal type). Refer to

IP-13, "(J) Instrument Driver Lower Panel"

 .

2.

Remove center console. Refer to

IP-15, "(Y) Center Console Assembly"

 .

3.

Remove adjusting nut from device assembly.

4.

Remove rear tires from vehicle with a power tool.

5.

Remove rear disc caliper and disc rotor. Refer to

BR-28, "Removal and Installation of Caliper Assembly"

  .

6.

Remove parking brake shoe, and remove rear cable from toggle lever. Refer to

PB-8, "Removal and

Installation"

 .

7.

Remove rear cable mounting nuts and bolts.

8.

Remove right and left rear cable from vehicle.

9.

Remove diagnosis sensor unit with sensor mount bracket. Refer to

SRS-52, "REMOVAL"

 .

10. Remove front cable mounting nuts and bolts (pedal type), and remove front cable from vehicle.

11. Remove mounting bolts of device assembly, and remove device assembly from vehicle.

INSTALLATION

1.

Installation is in the reverse order of the removal. Tighten mounting bolts and nuts to the specified torque.
Refer to

PB-6, "Components"

 .

CAUTION:

Do not reuse adjusting nut.

2.

Adjust clearance of parking brake shoes. Refer to

PB-4, "Inspection and Adjustment (Pedal Type)"

 or

PB-

4, "Inspection and Adjustment (Lever Type)"

 .

Inspection

NFS0006B

●

Check device assembly for bend, damage, and cracks. Replace if there are.

●

Check cable for wear and damage.

●

Check brake warning lamp switch. Replace if malfunction is detected.

●

Check each part for deformation, or damage by contact with other parts. Replace if there are.

PB-8

PARKING BRAKE SHOE

PARKING BRAKE SHOE

PFP:44060

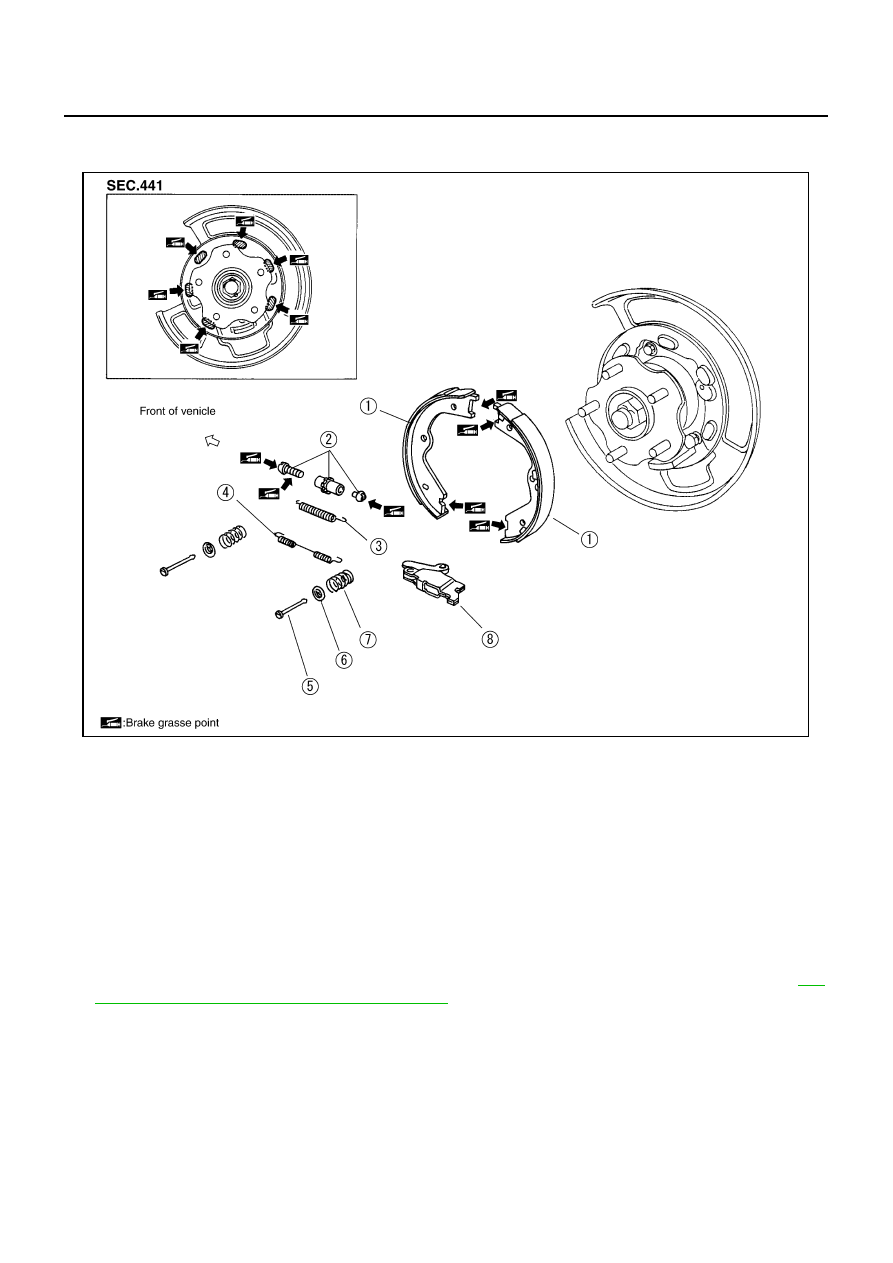

Components

NFS0006C

Removal and Installation

NFS0006D

REMOVAL

WARNING:

Clean brakes with a vacuum dust collector to minimize the hazard of air borne particles or other mate-
rials.

CAUTION:

When removing rear disc rotor, put matching marks on both rear disc rotor and wheel hub.
Be careful of the following:

●

Remove wheel, and remove disc rotor with parking brake pedal or lever completely returned. Refer to

BR-

28, "Removal and Installation of Caliper Assembly"

 .

●

If disc rotor cannot be removed, remove as follows.

SFIA1103E

1.

Shoe

2.

Adjuster

3.

Adjuster spring

4.

Return spring

5.

Anti-rattle pin

6.

Retainer

7.

Anti-rattle spring

8.

Toggle lever

PARKING BRAKE SHOE

PB-9

C

D

E

G

H

I

J

K

L

M

A

B

PB

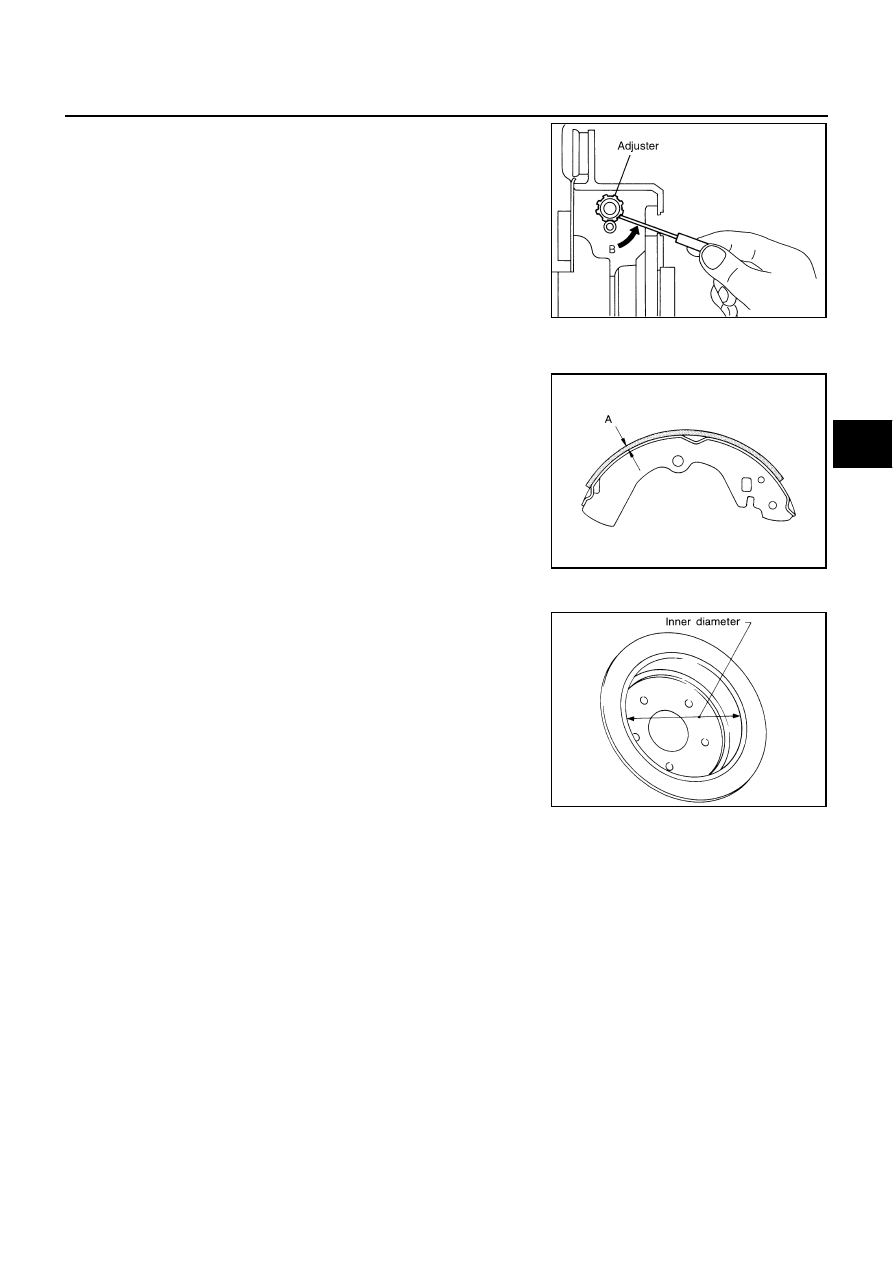

1.

Secure disc rotor in place with wheel nuts.

2.

Remove adjuster hole plug.

3.

Insert flat-bladed screwdriver through adjuster hole. Turn
adjuster in direction “B”, make clearance between brake shoe
and drum.

INSPECTION AFTER REMOVAL

Lining Thickness Inspection

●

Visually check lining for excessive wear, damage, and peeling.

●

Using a scale, check the thickness of lining.

Drum Inner Diameter Inspection

●

Check the inner diameter of drum.

Other Inspections

●

Check shoe sliding surface for excessive wear and damage.

●

Check anti-rattle pin for excessive wear and corrosion.

●

Check return spring for sagging.

●

Check adjuster for rough operation.

●

Visually check the inside of drum for excessive wear, damage, and cracks. Using a pair of vernier calipers,
check the inside of drum.

PFIA0309E

Standard thickness “A”

: 3.2 mm (0.126 in)

Repair limit thickness “A”

: 1.5 mm (0.059 in)

SBR021A

Standard inner diameter

: 172.0 mm (6.77 in) dia.

Maximum inner diameter

: 173.0 mm (6.81 in) dia.
