Infiniti G35 (V35). Manual - part 651





PB-10

PARKING BRAKE SHOE

INSTALLATION

Install all parts in the reverse order of while taking care of the following.

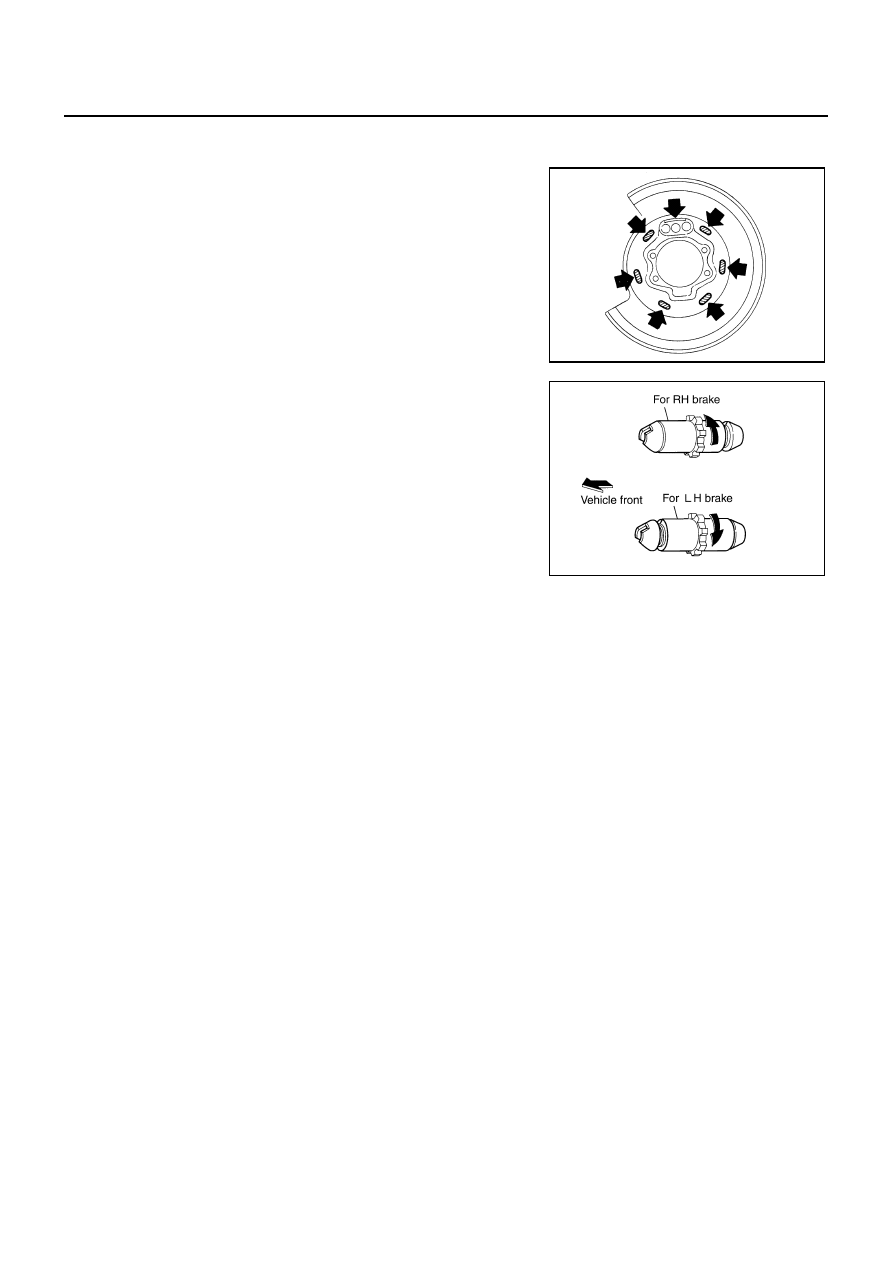

Apply brake grease to the contact areas shown in the figure.

The orientation of adjuster is different from left to right. Assem-
ble adjuster so that the threaded part is expanded when rotating
it to the direction shown by the arrow. Shorten adjuster to
assemble. When disassembling adjuster, apply brake grease to
the thread.

Adjust parking brake pedal or lever stroke to the specified
amount.

After replacing shoe or disc rotor, or if brake does not function
well, perform the break-in operation as follows.

BREAKING IN DRUM AND LINING

CAUTION:

Do not perform the break-in procedure excessively, because it may cause the uneven wear or prema-
ture wear of lining.
When a new disc rotor and/or parking brake shoe is installed, or when braking performance is poor, perform
the following break-in procedure.
1.

Drive the unloaded vehicle on a safe, level and dry road.

2.

Perform parking brake break-in (drag run) operation by driving the vehicle under the following conditions:

CAUTION:

To prevent lining from getting too hot, allow a cool off period of approximately 5 minutes after
every break-in operation.

3.

After the break-in procedure, check parking brake pedal or lever stroke of parking brake. If it is out of the
specification, adjust again.

SBR047C

SFIA0153E

Drive forward

Vehicle speed:

Approx. 30 km/h (19 MPH) set (forward)

Parking brake operating force:

Approx. 294 N (30 kg, 66 lb) set

Repeat steps three times:

Approx. 35sec.

SERVICE DATA AND SPECIFICATIONS (SDS)

PB-11

C

D

E

G

H

I

J

K

L

M

A

B

PB

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

Parking Drum Brake

NFS0006E

Parking Brake Control

NFS0006F

Brake lining

Standard thickness

3.2 mm (0.126 in)

Repair limit thickness

1.5 mm (0.059 in)

Drum (disc)

Standard inner diameter

172 mm (6.77 in) dia.

Maximum inner diameter

173 mm (6.81 in) dia.

Control type

Pedal type / Lever type

Number of notches [under a force of 200 N (20 kg,45 lb)]

Pedal type

2 – 3 notches

Number of notches [under a force of 196 N (20 kg,44 lb)]

Lever type

6 – 7 notches

Number of notches when warning lamp comes on

1 notch

PB-12

SERVICE DATA AND SPECIFICATIONS (SDS)
