MT-24

TRANSMISSION ASSEMBLY

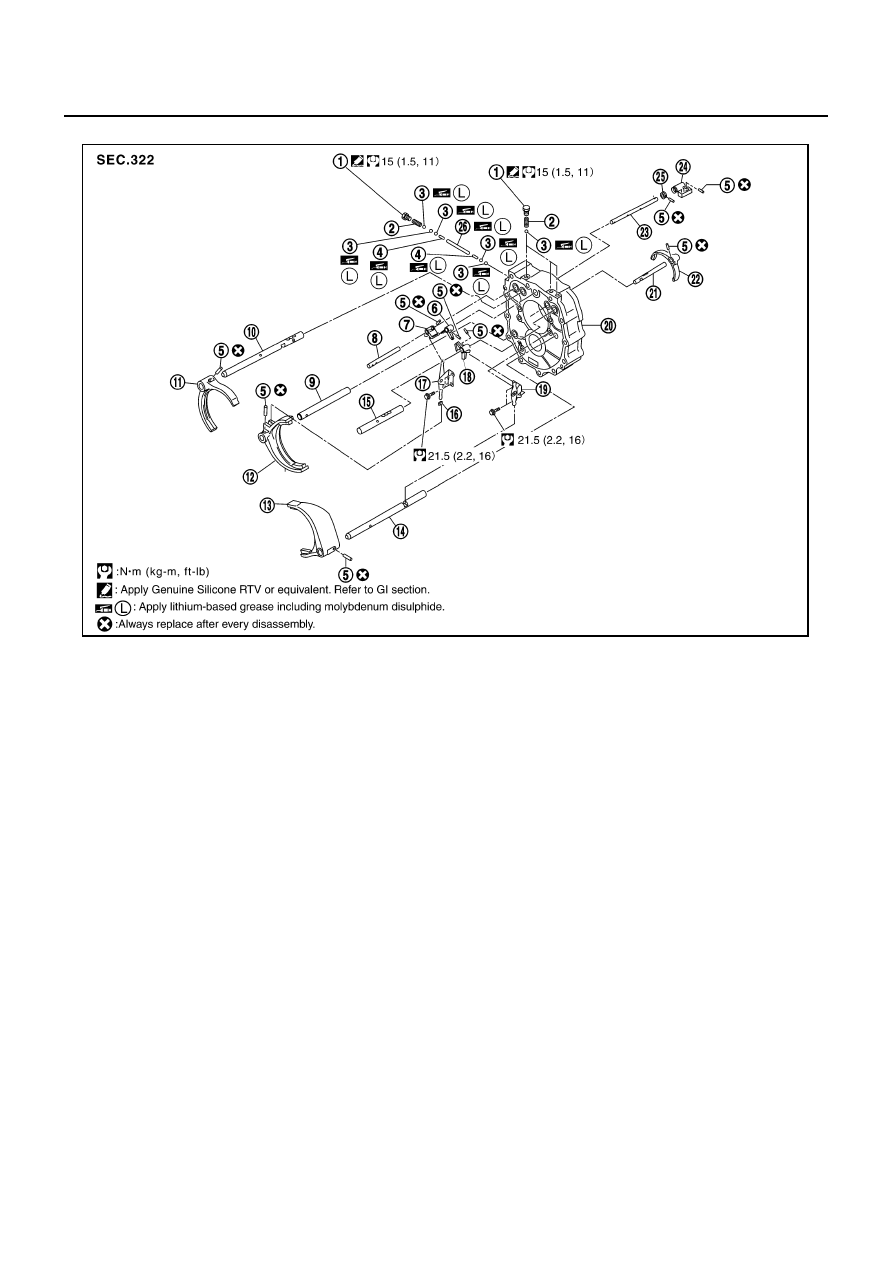

Shift Control Components

1.

Check ball plug

2.

Check ball spring

3.

Check ball

4.

Interlock pin

5.

Retaining pin

6.

Striking lever

7.

3rd-4th fork rod bracket

8.

3rd-4th fork rod

9.

3rd-4th fork rod (reversal side)

10. 1st-2nd fork rod

11.

1st-2nd shift fork

12. 3rd-4th shift fork

13. 5th-6th shift fork

14. 5th-6th fork rod (reversal side)

15. 5th-6th fork rod

16. Shifter cap

17. 3rd-4th control lever

18. 5th-6th fork rod bracket

19. 5th-6th control lever

20. Adapter plate

21. Reverse fork rod

22. Reverse shift fork

23. Striking rod

24. Low/high control lever

25. Stopper ring

26. Interlock plunger

PCIB0902E

TRANSMISSION ASSEMBLY

MT-25

D

E

F

G

H

I

J

K

L

M

A

B

MT

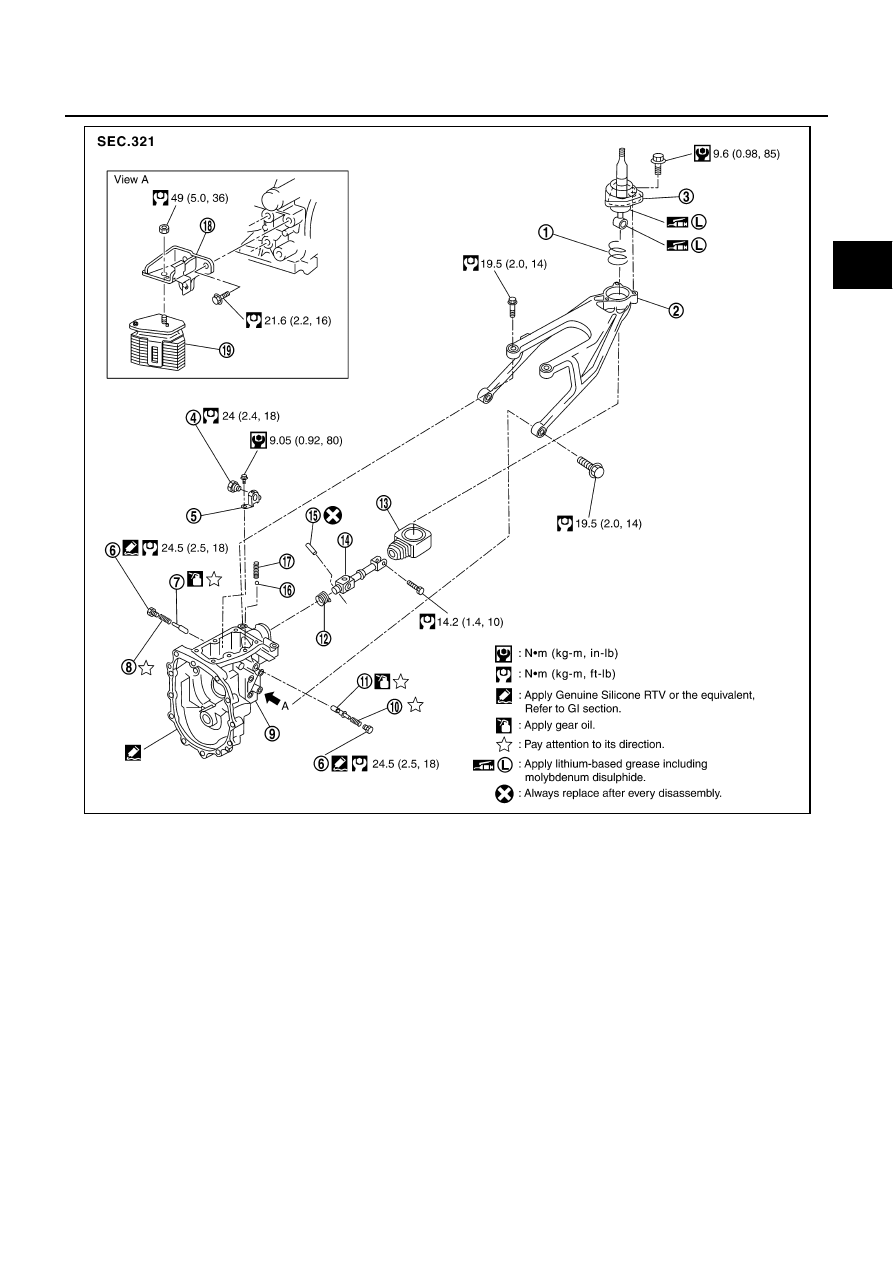

1.

Control lever spring

2.

Control lever housing

3.

Control lever assembly

4.

Check shift pin

5.

Control bracket

6.

Return spring plug

7.

Return spring plunger

8.

Return spring

9.

Rear extension

10. Return spring

11.

Return spring plunger

12. Boot

13. Boot

14. Control rod

15. Retaining pin

16. Check ball

17. Check select spring

18. Dynamic damper bracket

19. Dynamic damper

PCIB1433E

MT-26

TRANSMISSION ASSEMBLY

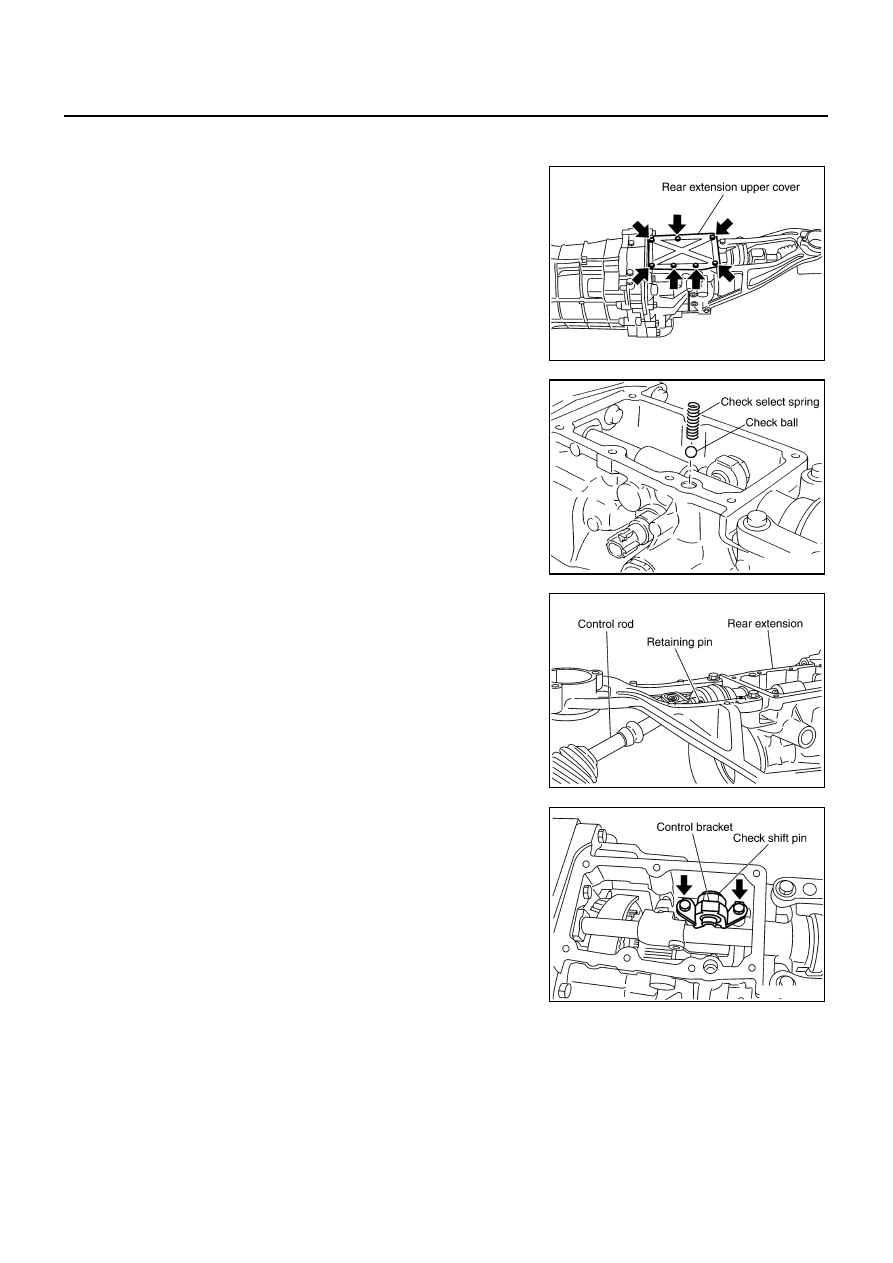

DISASSEMBLY
Case Components

1.

Remove rear extension upper cover mounting bolts, rear exten-
sion upper cover and rear extension upper cover gasket from
rear extension.

2.

Remove check select spring and check ball from rear extension.

3.

Drive out retaining pin using a pin punch [6 mm (0.24 in) dia.],
and remove control rod.

4.

Remove PNP switch, plunger and back-up lamp switch from
rear extension.

5.

Remove control bracket mounting bolts. Then remove check
shift pin and control bracket as one unit from rear extension.

PCIB0708E

PCIB0599E

PCIB0709E

PCIB0710E

TRANSMISSION ASSEMBLY

MT-27

D

E

F

G

H

I

J

K

L

M

A

B

MT

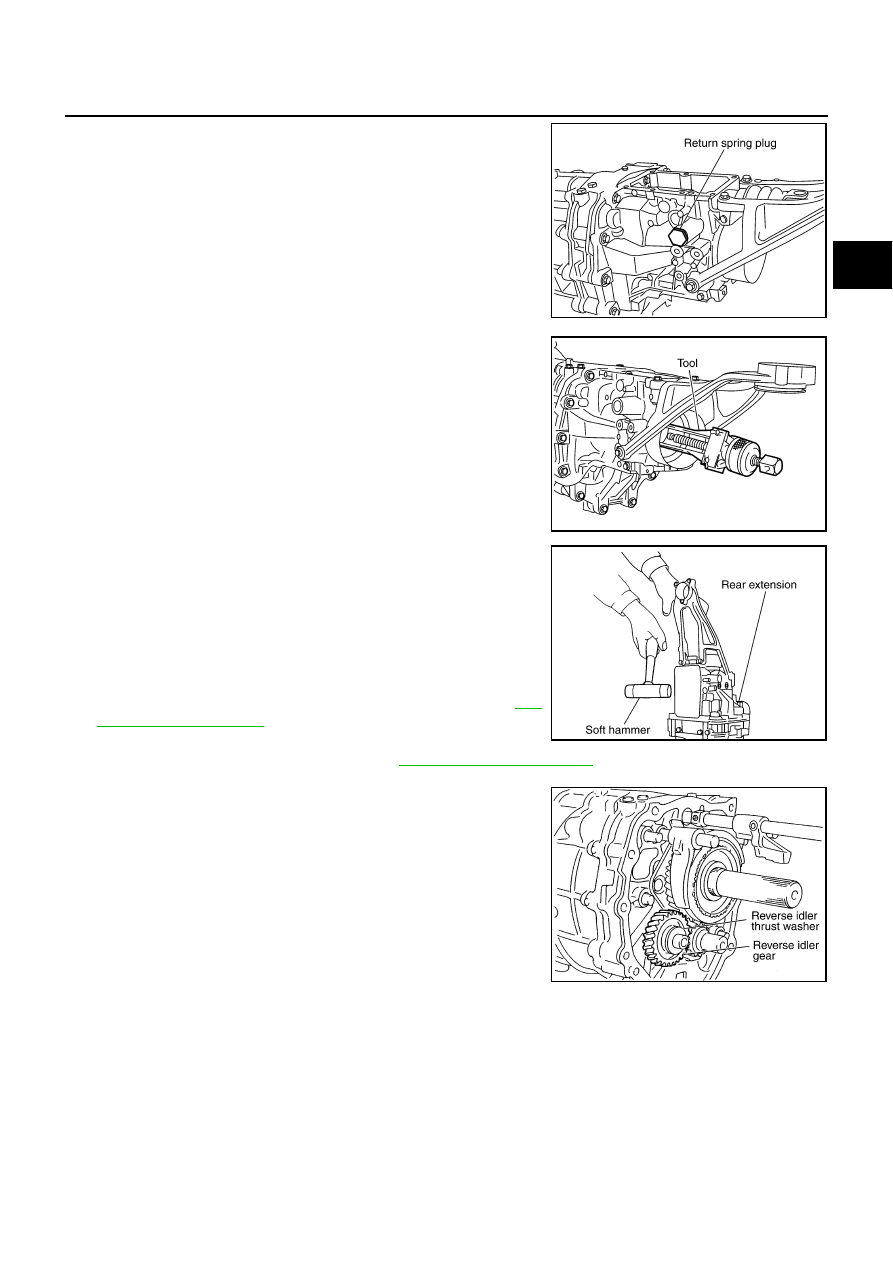

6.

Remove right and left return spring plugs. Then remove return
spring and return spring plunger from rear extension.

CAUTION:

Return springs and return spring plungers have different
lengths for right and left sides. Identify right and left side
and then store.

7.

Remove rear oil seal from rear extension using the oil seal
puller.

8.

Remove rear extension mounting bolts. Using a soft hammer,
tap rear extension assembly to remove.

CAUTION:

Do not hold control lever housing to prevent bushing of
control lever housing from deformation when moving trans-
mission assembly.

9.

Remove control lever housing mounting bolts and control lever
housing from rear extension.

10. Remove striking rod oil seal from rear extension. Refer to

MT-

21, "Case Components"

 .

11. Remove rear extension oil gutter mounting bolt and rear exten-

sion oil gutter from rear extension. Refer to

MT-21, "Case Components"

 .

12. Remove reverse idler thrust washer, reverse idler gear and

reverse idler needle bearing from reverse idler shaft.

13. Remove reverse idler shaft from adapter plate.

PCIB0711E

Tool number

: KV381054S0 (

—

)

PCIB0196E

PCIB0712E

PCIB0713E
