SHIFT CONTROL

INSPECTION AFTER INSTALLATION

After installing, confirm the following items:

●

When control lever assembly is shifted to each position, make sure there is no binding or disconnection in
each boot.

●

When shifted to each position, make sure there is no noise, binding, and backlash. Especially when con-
trol lever assembly is shifted to 5th, 6th without pressing downward, check for binding.

●

When control lever assembly is shifted to 1st, 2nd side and 5th, 6th side, confirm control lever assembly
returns to neutral position smoothly.

●

In any position other than reverse, confirm that control lever assembly can be pressed downward.

●

With control lever assembly pressed downward, confirm that it can be shifted to reverse.

●

When shifted from reverse to neutral position, confirm control lever assembly returns to neutral position
smoothly with spring power.

●

Without control lever assembly pressed downward, confirm that it cannot be shifted to reverse.

AIR BREATHER HOSE

MT-17

D

E

F

G

H

I

J

K

L

M

A

B

MT

AIR BREATHER HOSE

PFP:31098

Removal and Installation

NCS000AR

Refer to the figure for air breather hose removal and installation information.

CAUTION:

●

Make sure there are no pinched or blocked areas on the air breather hose caused by bending
when installing it.

●

Insert overlap width of air breather hose as far as it will go.

1.

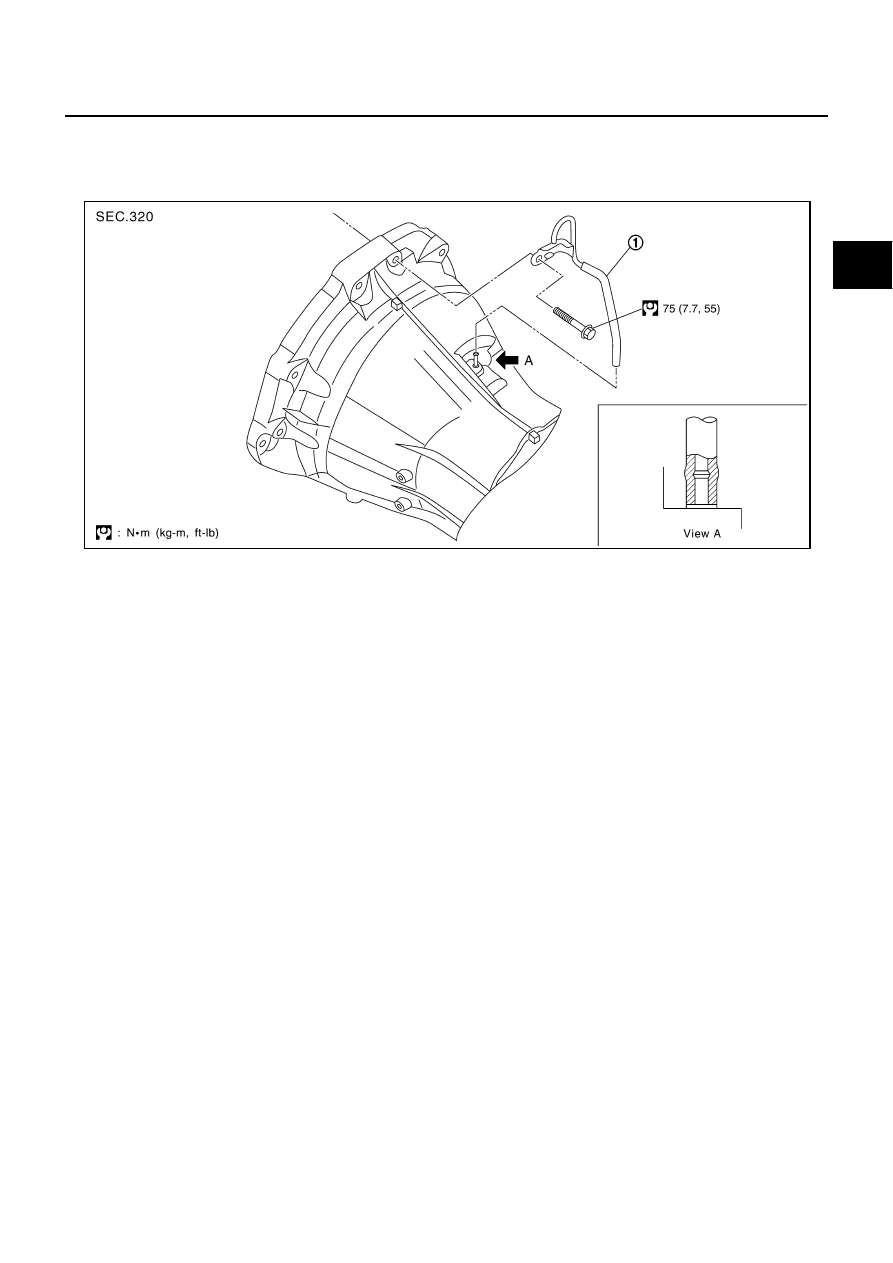

Air breather hose

PCIB0690E

MT-18

TRANSMISSION ASSEMBLY

TRANSMISSION ASSEMBLY

PFP:32010

Removal and Installation

NCS001AG

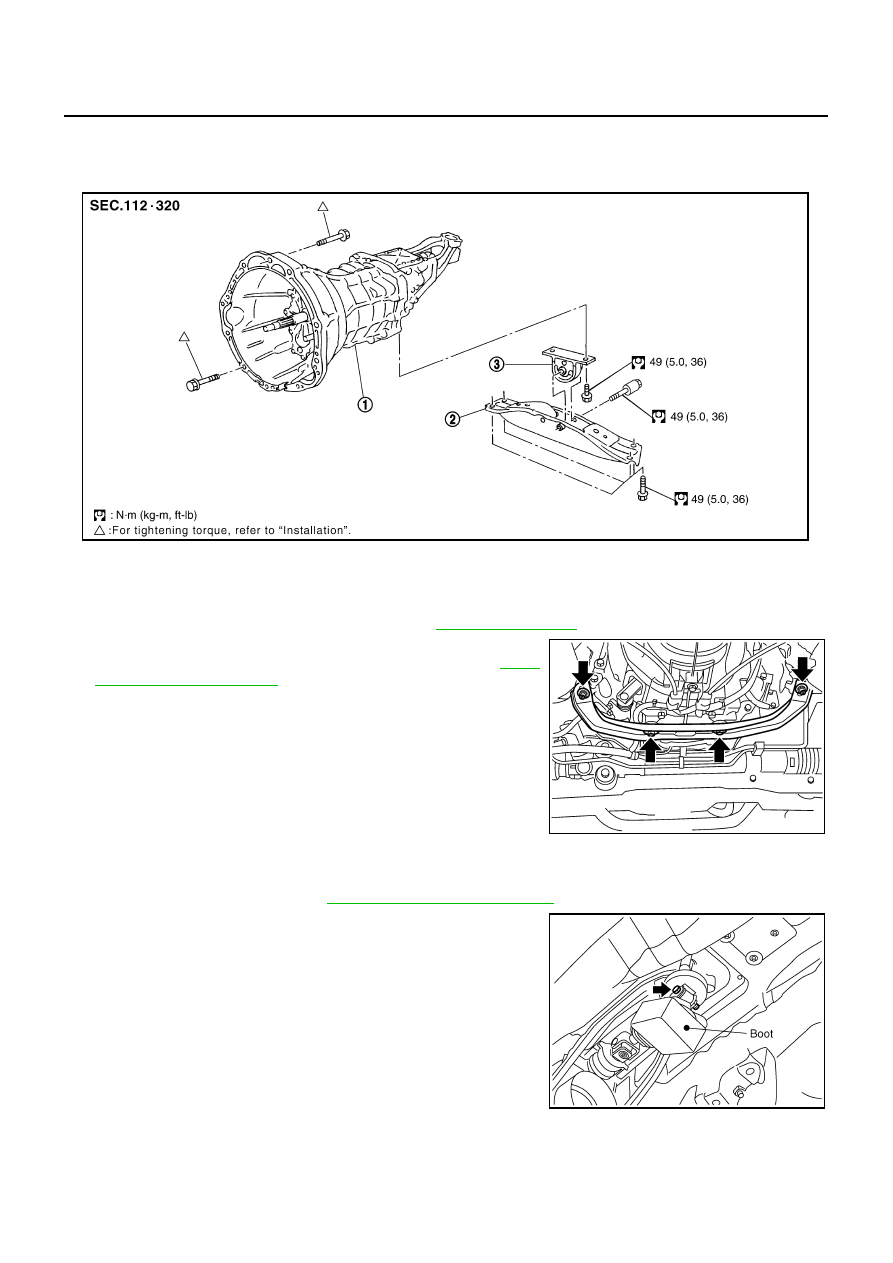

COMPONENTS

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Remove front cross bar with power tool. Refer to

FSU-9, "REMOVAL"

 .

3.

Remove catalytic converter stay mounting nuts and bolts, and
then remove exhaust mounting bracket. Refer to

EX-3,

"Removal and Installation"

 .

4.

Remove nut connecting catalytic converter to exhaust manifold, and then remove three way catalyst and
exhaust front tube as one unit.

5.

Remove propeller shaft. Refer to

PR-4, "Removal and Installation"

 .

6.

Remove control rod mounting bolts and then separate control
lever assembly from the control rod assembly.

1.

Transmission case

2.

Rear engine mounting member

3.

Insulator

PCIB0691E

SCIA1471E

SCIA1364E

TRANSMISSION ASSEMBLY

MT-19

D

E

F

G

H

I

J

K

L

M

A

B

MT

7.

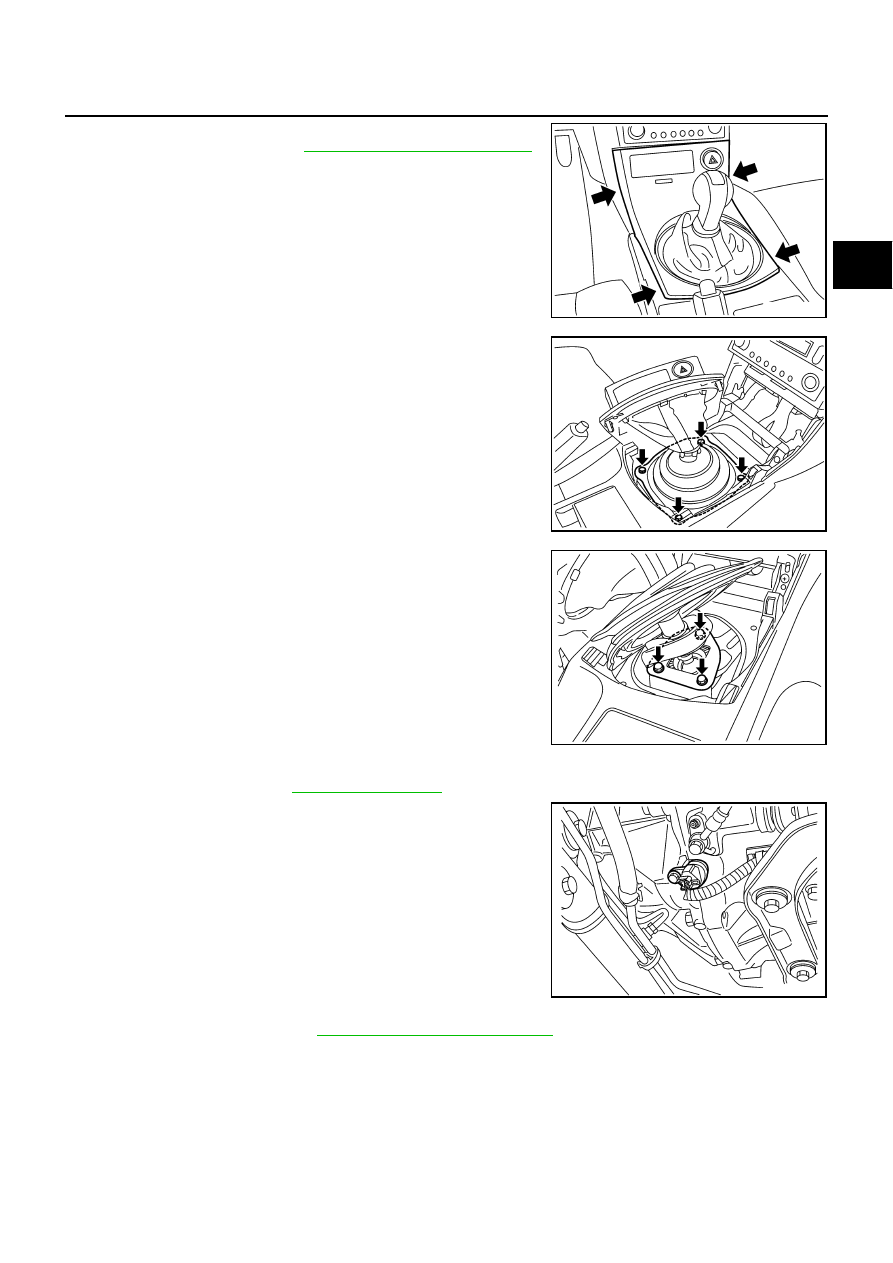

Using a suitable tool, release claws and separate console boot
from center console. Refer to

IP-11, "Removal and Installation"

 .

8.

Remove hole cover mounting bolts and then separate hole
cover from the floor panel.

9.

Separate control lever boot from guide plate.

10. Remove guide plate mounting bolts and then separate control

lever assembly from the control lever housing.

11. Remove clutch operating cylinder mounting bolts and then separate clutch operating cylinder from the

transmission case. Refer to

CL-11, "Components"

 .

12. Remove crankshaft position sensor (POS).

CAUTION:

●

Do not subject it to impact by dropping or hitting.

●

Do not disassemble.

●

Do not allow iron dust, etc., to get on the sensor's front
edge magnetic area.

●

Do not place in an area affected by magnetism.

13. Disconnect PNP switch and back-up lamp switch.

14. Separate heated oxygen sensor 2 wire harness, crankshaft

position sensor (POS) wire harness, back-up lamp switch wire
harness and PNP switch wire harness from the transmission.

15. Remove starter motor. Refer to

SC-19, "Removal and Installation"

 .

16. Set transmission jack to the transmission.

CAUTION:

When setting transmission jack, be careful so that it does not contact with the switch.

PCIB0063E

PCIB0064E

SCIA1591E
