CENTER MUD GUARD

PFP:76850

Removal and Installation

NIS000GT

REMOVAL

1.

Remove center mud guard finisher. Refer to

EI-31, "BODY SIDE TRIM"

 .

2.

Remove screws on front, rear and lower side of center mud guard.

3.

Disconnect clips on back side of center mud guard.

4.

Remove center mud guard.

INSTALLATION

Install in the reverse order of removal.

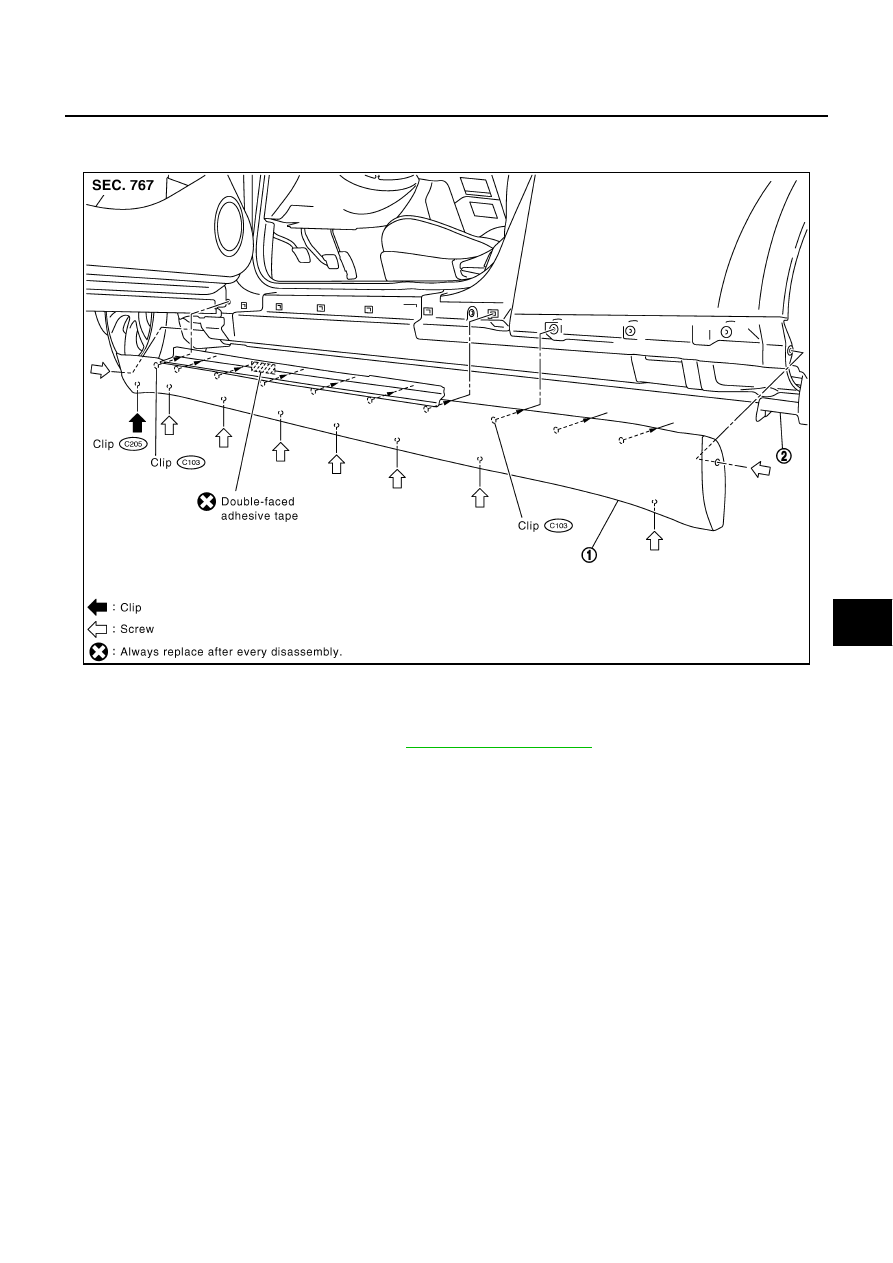

PIIA3582E

1.

Center mud guard

2.

Center mud guard rear

EI-24

WINDSHIELD MOLDING

WINDSHIELD MOLDING

PFP:72700

Removal and Installation

NIS000GU

REMOVAL

Remove windshield molding. Refer to

GW-11, "WINDSHIELD GLASS"

  .

NOTE:

●

Apply protective tape around circumference of windshield.

●

Guiding a cutter knife along glass, cut surface of molding.

●

Using pliers, draw out all remaining molding left in flanged area of body, and remove it completely from
adhering surface on glass.

INSTALLATION

Install windshield molding. Refer to

GW-11, "WINDSHIELD GLASS"

  .

NOTE:

●

Align matching marks on body and glass. Install glass to body.

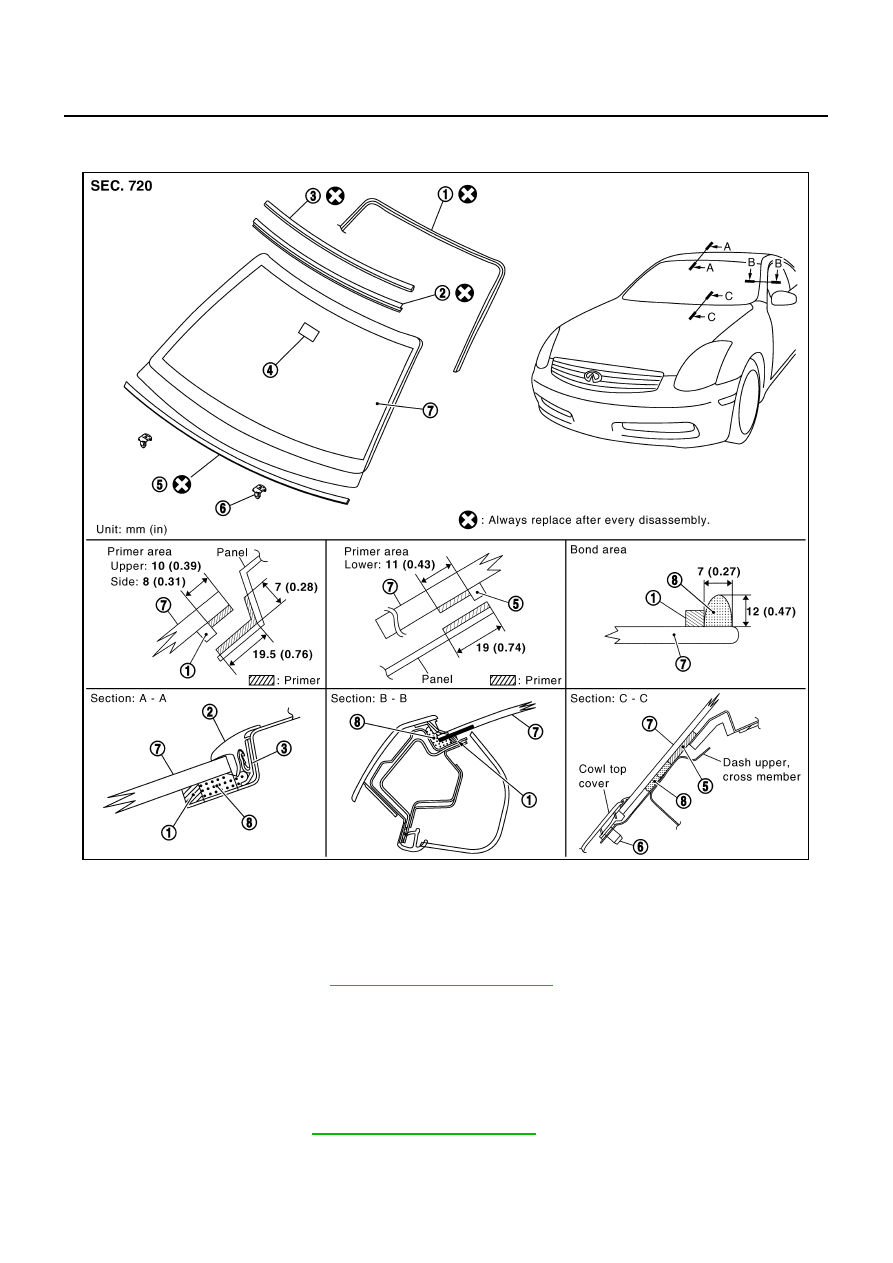

PIIB0098E

1.

Dam rubber

2.

Molding (upper)

3.

Fastener

4.

Mirror base

5.

Insulator

6.

Spacer

7.

Windshield glass

8.

Bond

WINDSHIELD MOLDING

EI-25

C

D

E

F

G

H

J

K

L

M

A

B

EI

●

Press entire surface of glass lightly to fit it completely.

 Using a spatulaq, repair any adhesive overflow or shortage to make surface smooth. Position windshield
moldings and allow their adhesion.

CAUTION:

●

Be sure to install windshield molding before adhesive hardens.

●

After installing glass, keep door windows open and avoid driving vehicle until adhesive has com-
pletely cured.

EI-26

REAR WINDOW MOLDING

REAR WINDOW MOLDING

PFP:79762

Removal and Installation

NIS000GV

REMOVAL

Remove rear window molding. Refer to

GW-13, "REAR WINDOW GLASS AND MOLDING"

  .

NOTE:
Apply a strip of protective tape along the contour of rear window glass (molding) to prevent paint surface from
being damaged.

INSTALLATION

Install rear window molding. Refer to

GW-13, "REAR WINDOW GLASS AND MOLDING"

  .

NOTE:

●

Clean adhesive portion of rear window glass and around circumference with white gasoline.

●

Apply dam rubber to upper and lower surfaces of glass.

●

Attach rear window molding to side face of glass.

●

Rear window molding should not overlap on the surface of rear window glass.

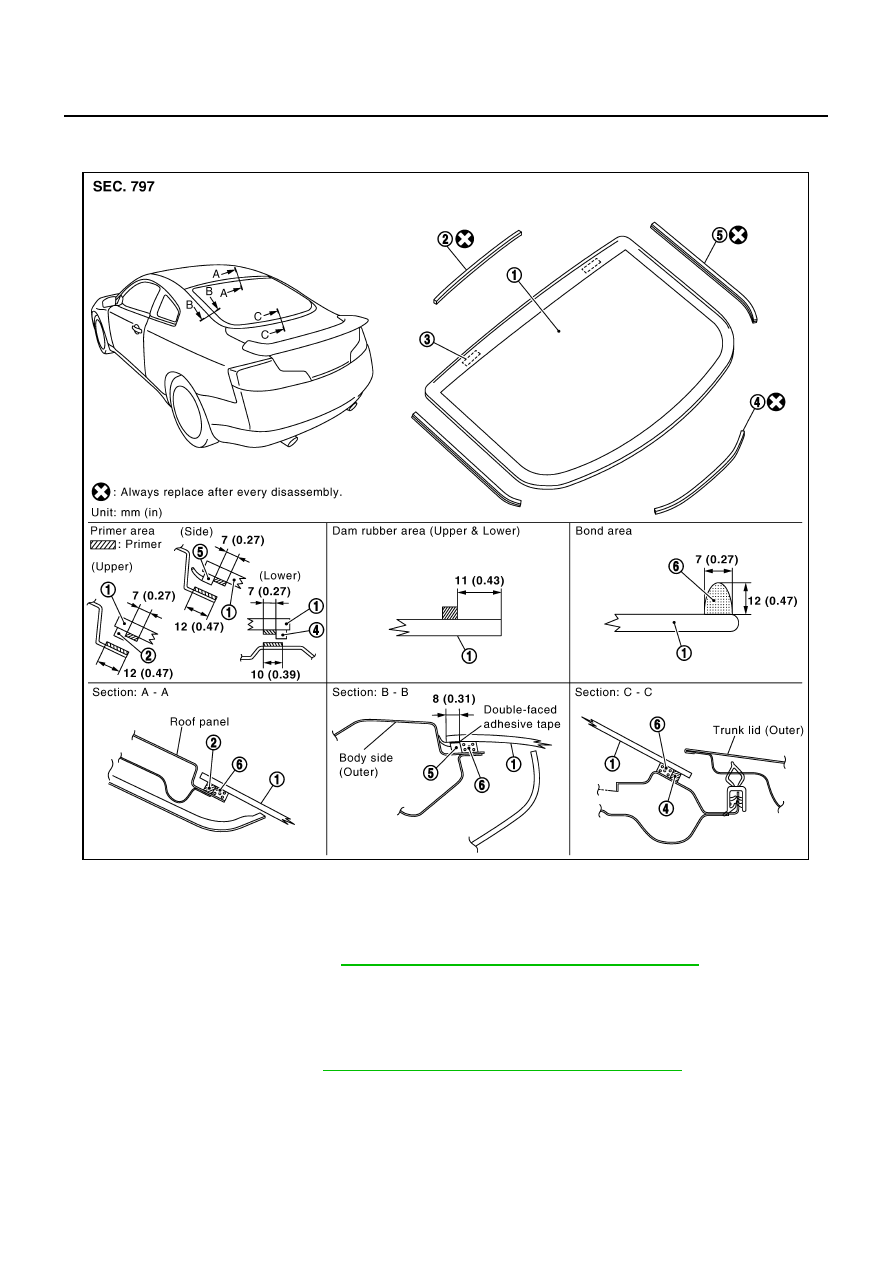

PIIA3454E

1.

Rear window glass

2.

Dam rubber (upper)

3.

Spacer

4.

Dam rubber (lower)

5.

Molding (side)

6.

Bond
