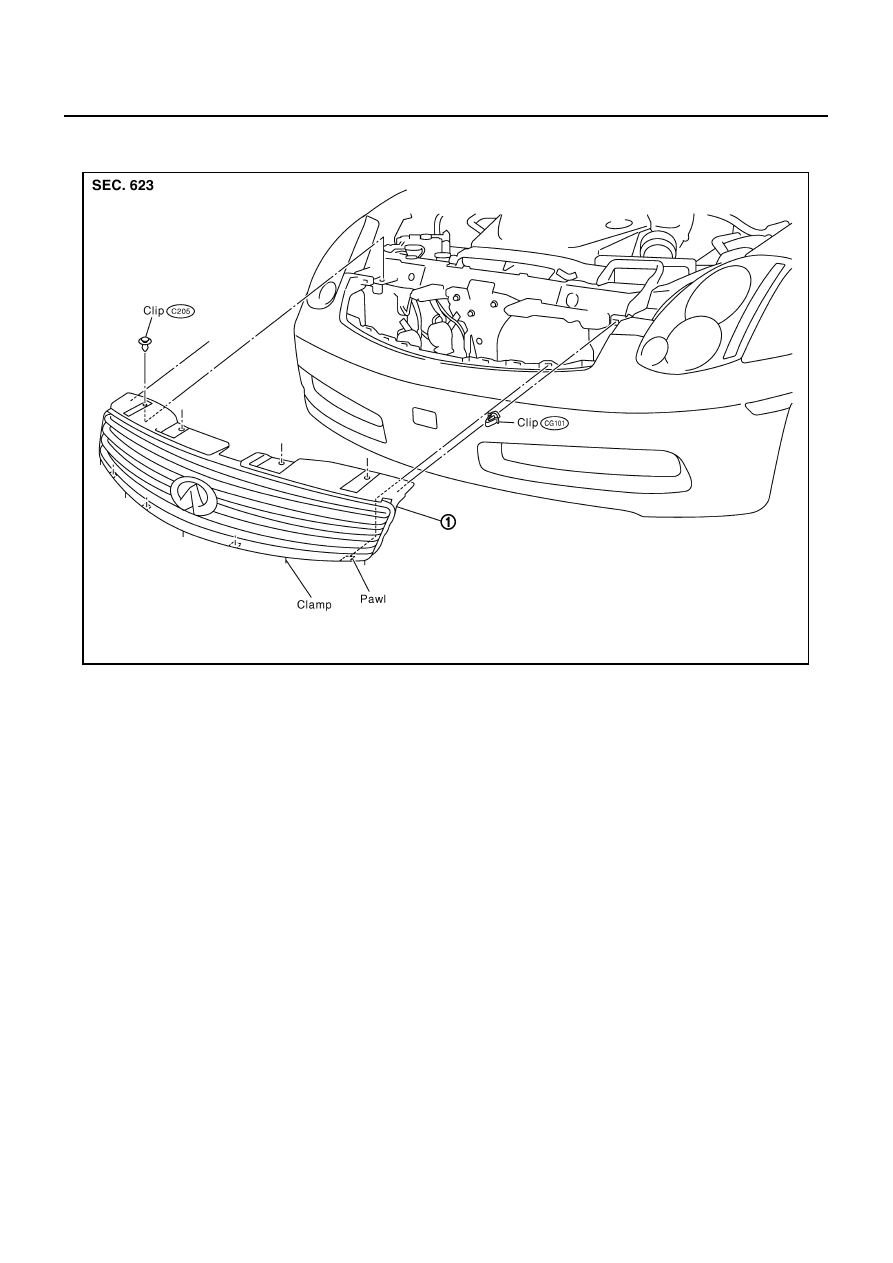

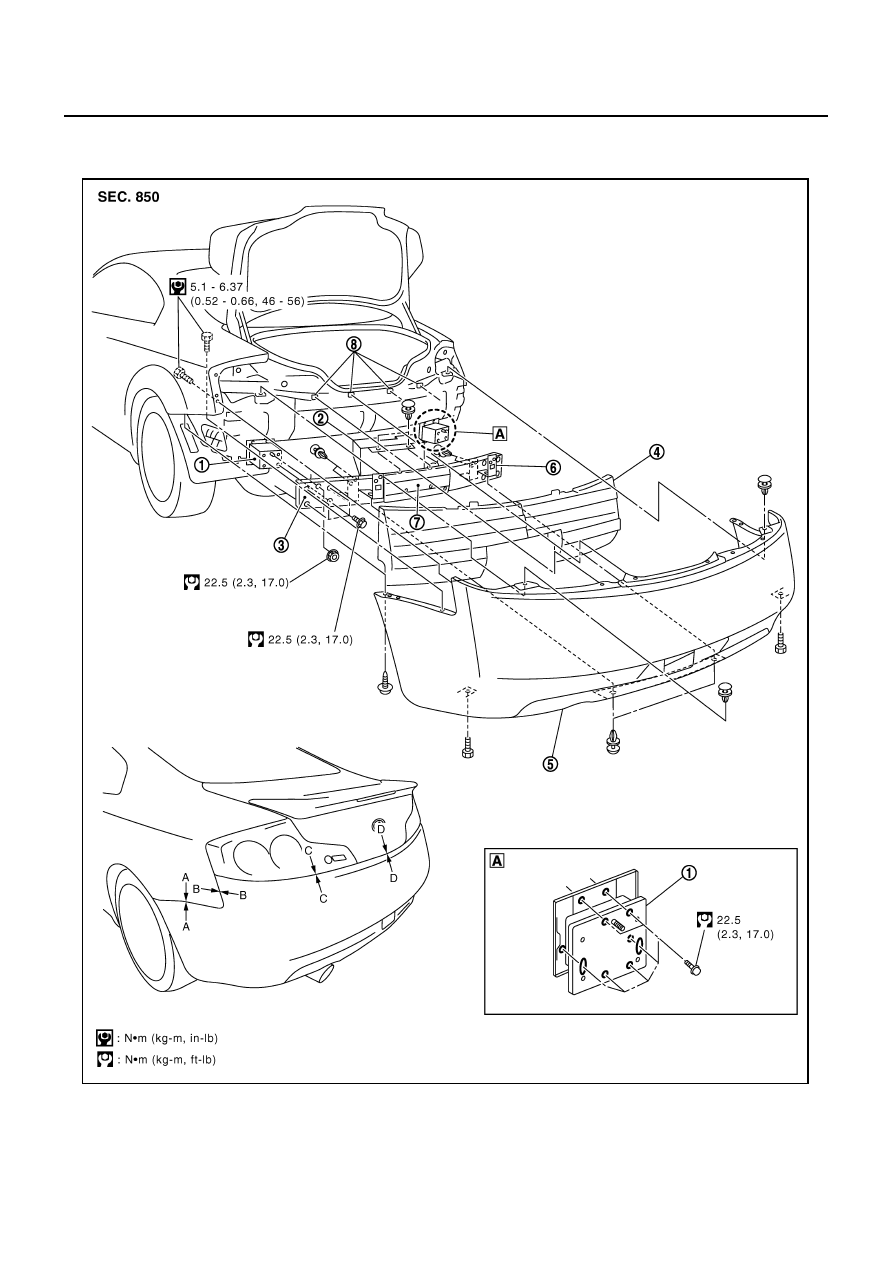

FRONT BUMPER EI-15 C D E F G H J K L M A B EI CAUTION: Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with REMOVAL 1. Remove bumper clips, front grille clips, and remove front grille. Refer to 2. Remove screws of front air spoiler and remove front air spoiler. 3. Remove bolts on lower side of bumper. 4. Remove screws and clips of both right/left fender protectors on front side. Refer to . 5. Remove screws of both right/left fender. 6. Disconnect front side marker lamp harness connector. 7. Remove bumper fascia assembly. 8. Remove energy absorber. 9. Remove bolts and nuts of bumper reinforcement and remove bumper reinforcement. 10. Remove bolts and clips of bumper stay and remove bumper stay. INSTALLATION Install in the reverse order of removal. NOTE: Portion Clearance Front bumper – Front grille A – A 1.0 – 3.0 mm (0.039 – 0.118 in) Front bumper – Hood B – B 3.0 – 7.0 mm (0.118 – 0.276 in) Front bumper – Headlamp C – C 2.5 – 5.5 mm (0.098 – 0.217 in) Front bumper – Headlamp D – D 1.5 – 4.5 mm (0.059 – 0.177 in) Front bumper – Front fender E – E 0.0 – 0.5 mm (0.000 – 0.020 in) |
