COWL TOP

PFP:66100

Removal and Installation

NIS000GP

REMOVAL

1.

Remove hood ledge cover.

2.

Remove wiper arms of both side. Refer to

WW-4, "FRONT WIPER AND WASHER SYSTEM"

  .

3.

Remove cowl top seal rubber.

4.

Remove clips of cowl top cover and remove cowl top cover (right).

5.

Remove clips, caps, screws and remove cowl top cover (left).

6.

Remove washer tube joint and hose from cowl top cover.

INSTALLATION

Install in the reverse order of removal.

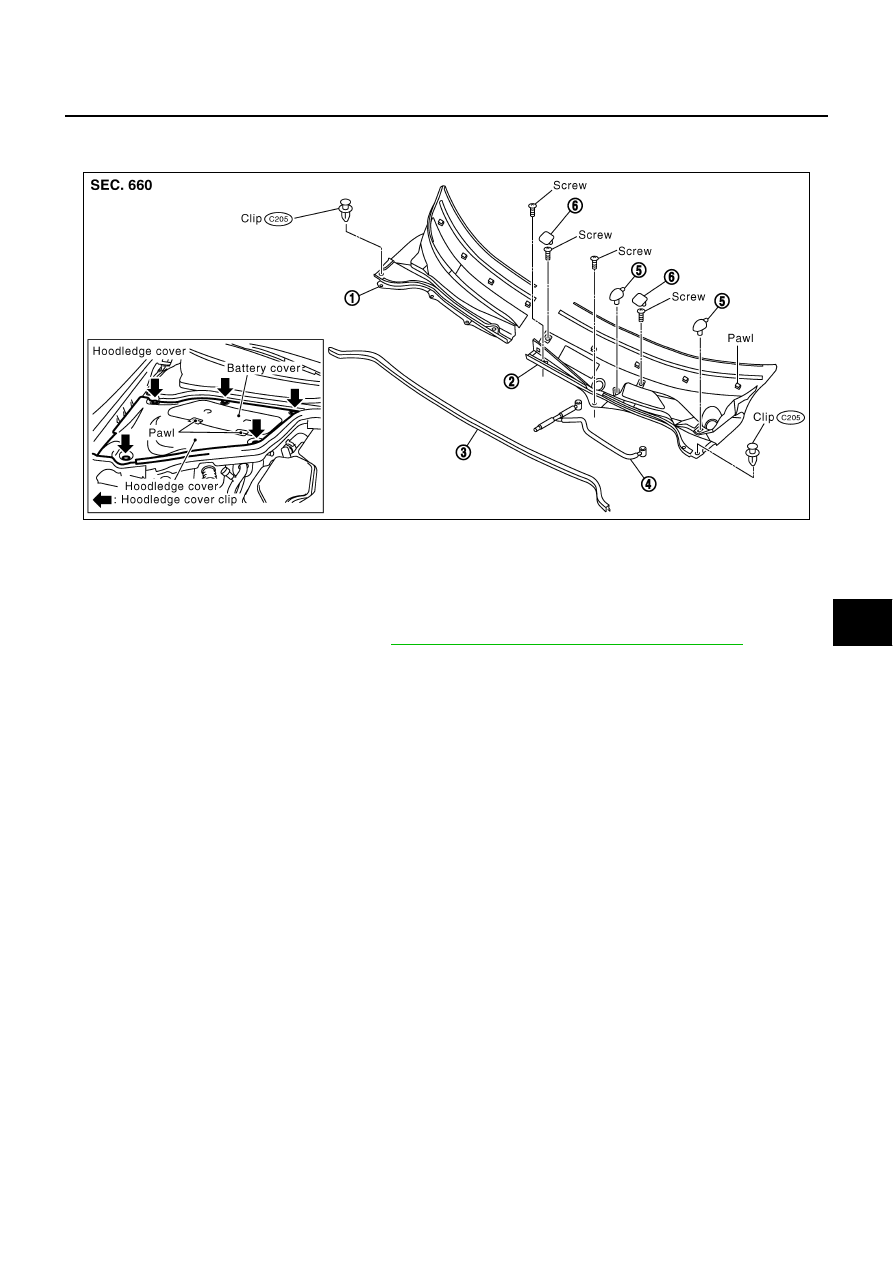

PIIA3566E

1.

Cowl top cover (right)

2.

Cowl top cover (left)

3.

Cowl top seal rubber

4.

Washer tube

5.

Washer joint

6.

Cap

EI-20

FENDER PROTECTOR

FENDER PROTECTOR

PFP:63840

Removal and Installation

NIS000GQ

REMOVAL

1.

Remove screws and clips of fender protector.

2.

Remove fender protector (front/rear).

INSTALLATION

Install in the reverse order of removal.

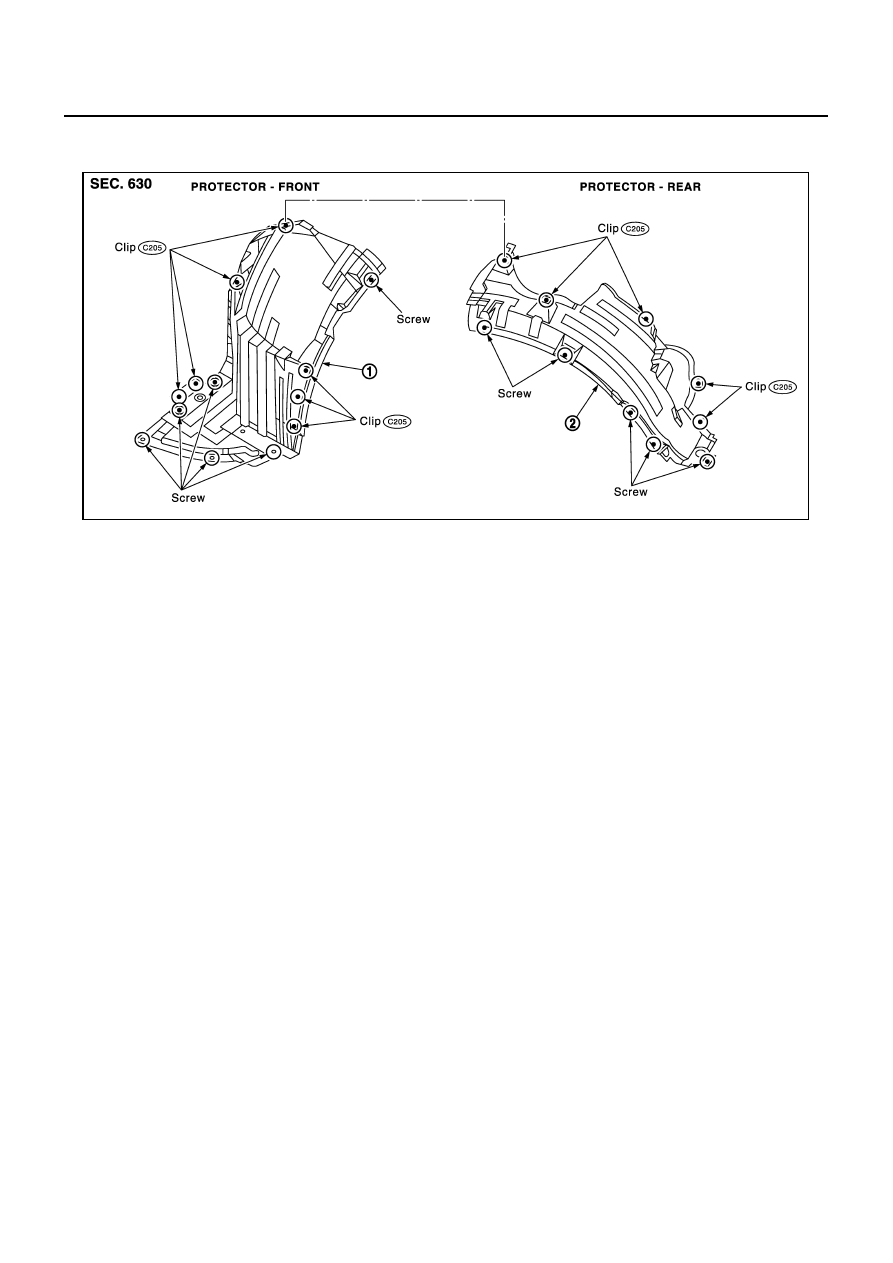

PIIA3567E

1.

Fender protector (front)

2.

Fender protector (rear)

DOOR OUTSIDE MOLDING

EI-21

C

D

E

F

G

H

J

K

L

M

A

B

EI

DOOR OUTSIDE MOLDING

PFP:82820

Removal and Installation

NIS000GR

REMOVAL

1.

Open windows fully.

2.

Disconnect rear edge of molding.

3.

Lift up molding to upper side and remove molding assembly.

INSTALLATION

Install in the reverse order of removal.

1.

Door outside molding

2.

Door panel (outer)

3.

Door glass

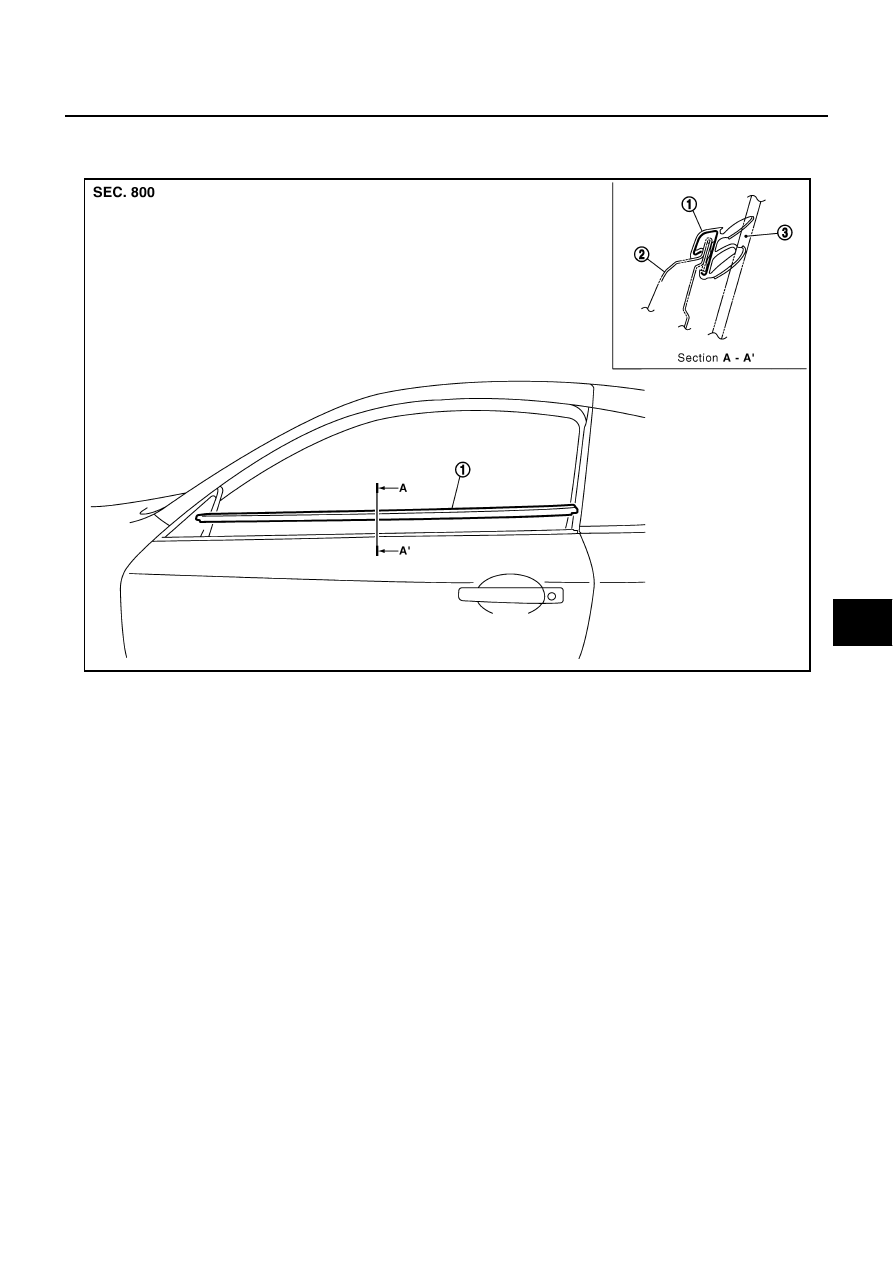

PIIA3568E

EI-22

FRONT PILLAR FINISHER

FRONT PILLAR FINISHER

PFP:76836

Removal and Installation

NIS000GS

REMOVAL

1.

Remove clip and double-faced adhesive tapes of body side weatherstrip.

2.

Remove body side weatherstrip.

3.

Remove screw of retainer body side weatherstrip.

4.

Remove screw and clip of front pillar finisher.

5.

Remove front pillar finisher.

INSTALLATION

Install in the reverse order of removal.

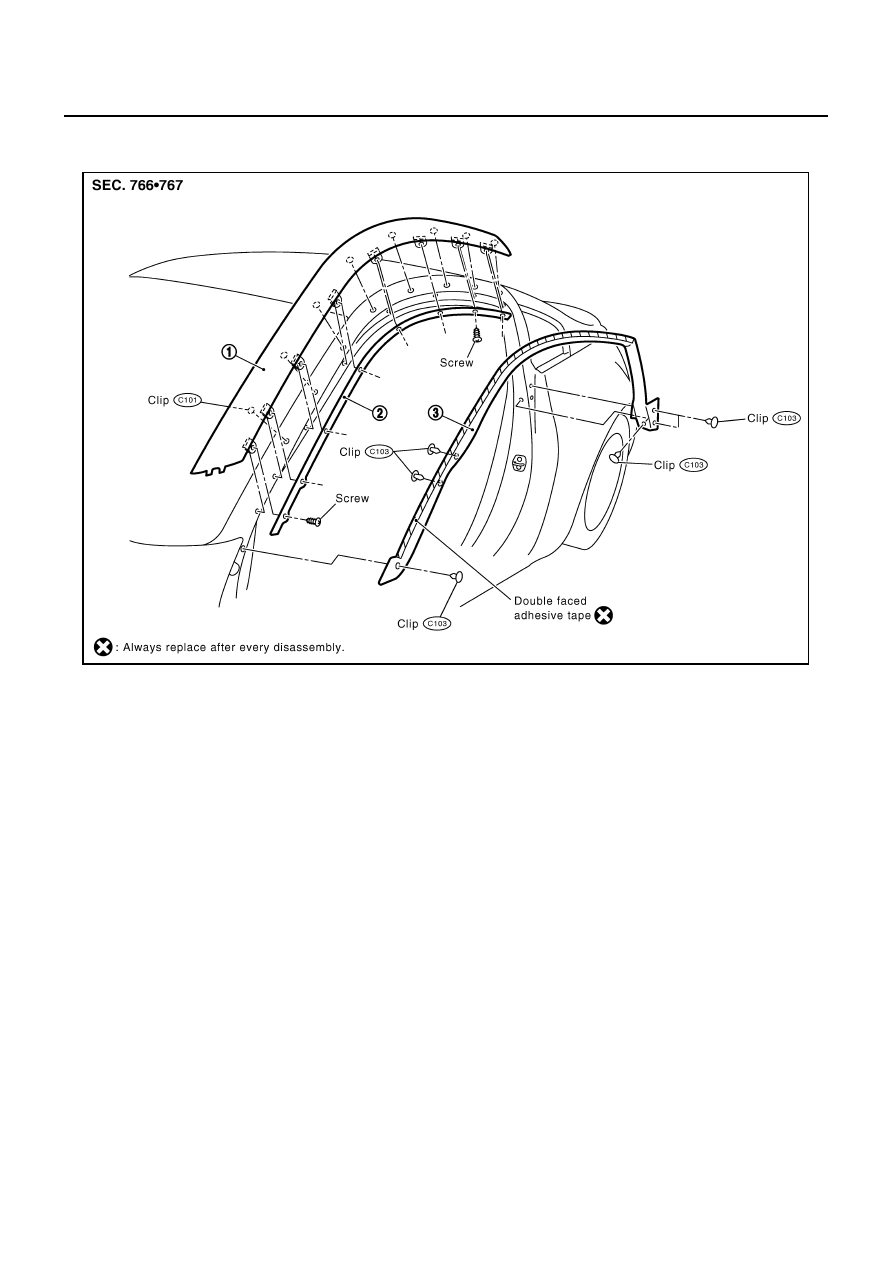

PIIA3571E

1.

Front piller finisher

2.

Retainer body side weatherstrip

3.

Body side weatherstrip
