Calibration Procedure for Compass

NKS000L3

The difference between magnetic North and geographical North can sometimes be great enough to cause
false compass readings.
In order for the compass to operate accurately in a particular zone, it must be calibrated using the following
procedure.

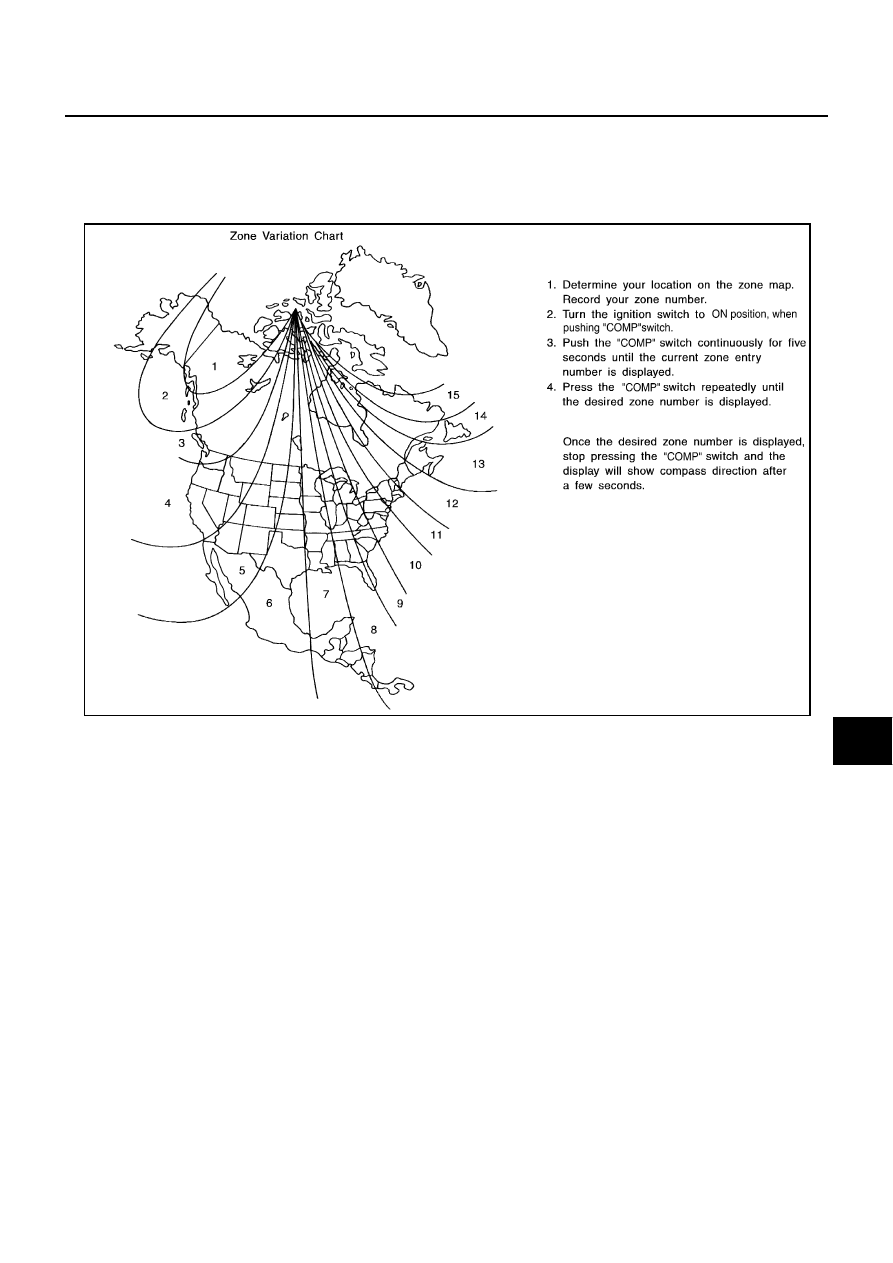

SKIA2076E

DI-64

COMPASS

CORRECTION FUNCTIONS OF COMPASS

If the direction is not shown correctly, perform initial correction.

INITIAL CORRECTION PROCEDURE FOR COMPASS

1.

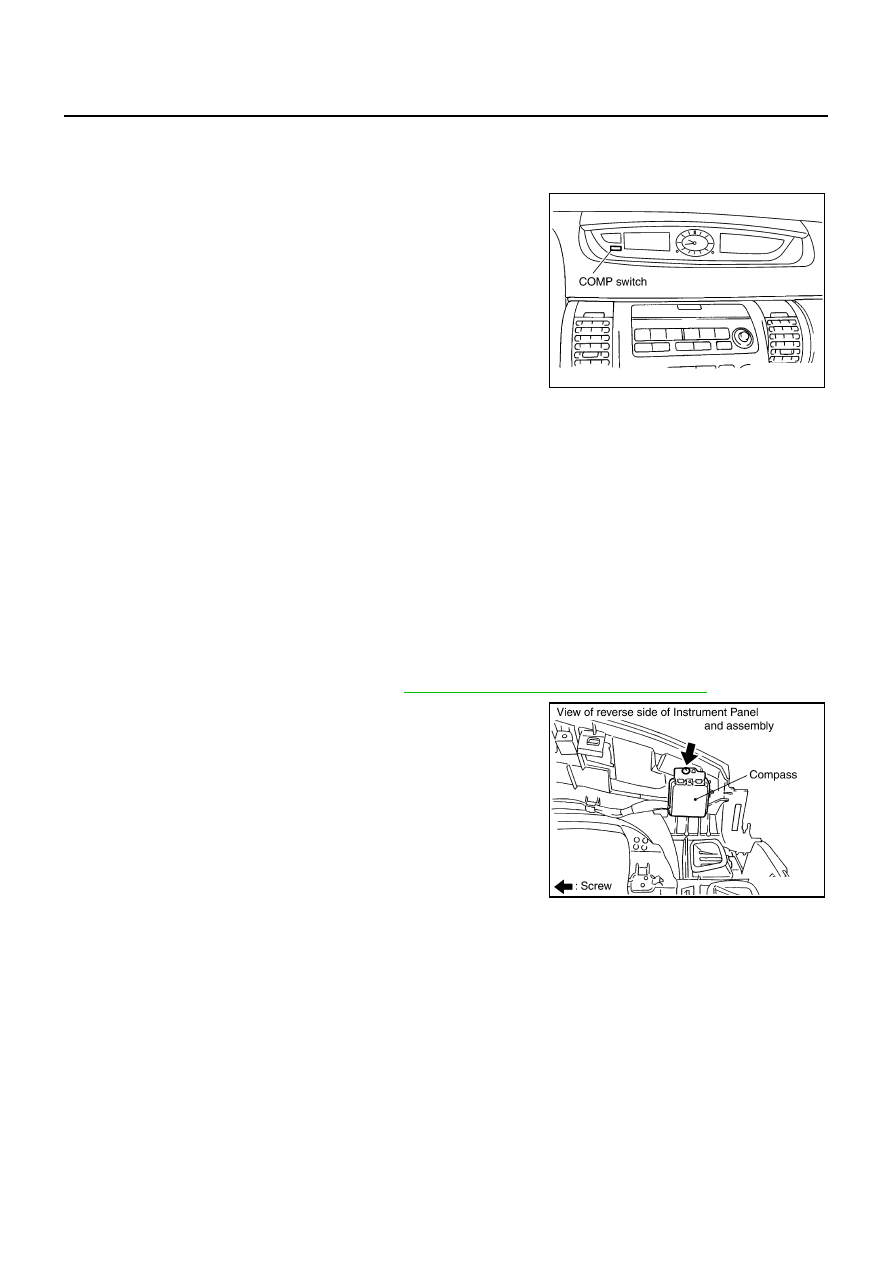

Pushing the “COMP” switch for about 10 seconds will enter the
initial correction mode. The direction bar starts blinking.

2.

Turn off all electrical equipment (turn signals, hazard signal, A/
C, lights, etc.). In a broad, flat, and safe location, drive the vehi-
cle slowly [approximately 5 km/h (3 MPH) or less], and turn the
vehicle 360

°

 or more several times. When the direction appears

on the display, correction is complete.

NOTE:
The correct direction may not be shown in locations where the
earth's magnetic field is disrupted, such as those listed below.

Elevated bridges

Railroad crossings

Streets lined with large buildings

Iron bridges

Tunnels

Locations above subways

Underground parking areas

Near large vehicles

Electric power substations

If display correction is performed in any of the above locations, accurate correction may not be possible.

When heater or A/C fan speed is at maximum, the direction indicator display may move. This is not a mal-
function. It will return to normal when the heater or A/C fan speed is reduced.

Removal and Installation of Compass

NKS000L4

REMOVAL

1.

Remove instrument panel and pad. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

2.

Remove screw (1), and remove compass.

INSTALLATION

Installation is the reverse order of removal.

PKIB3830E

PKIA2379E

CLOCK

DI-65

C

D

E

F

G

H

I

J

L

M

A

B

DI

CLOCK

PFP:25820

Removal and Installation of Clock

NKS000LQ

REMOVAL

1.

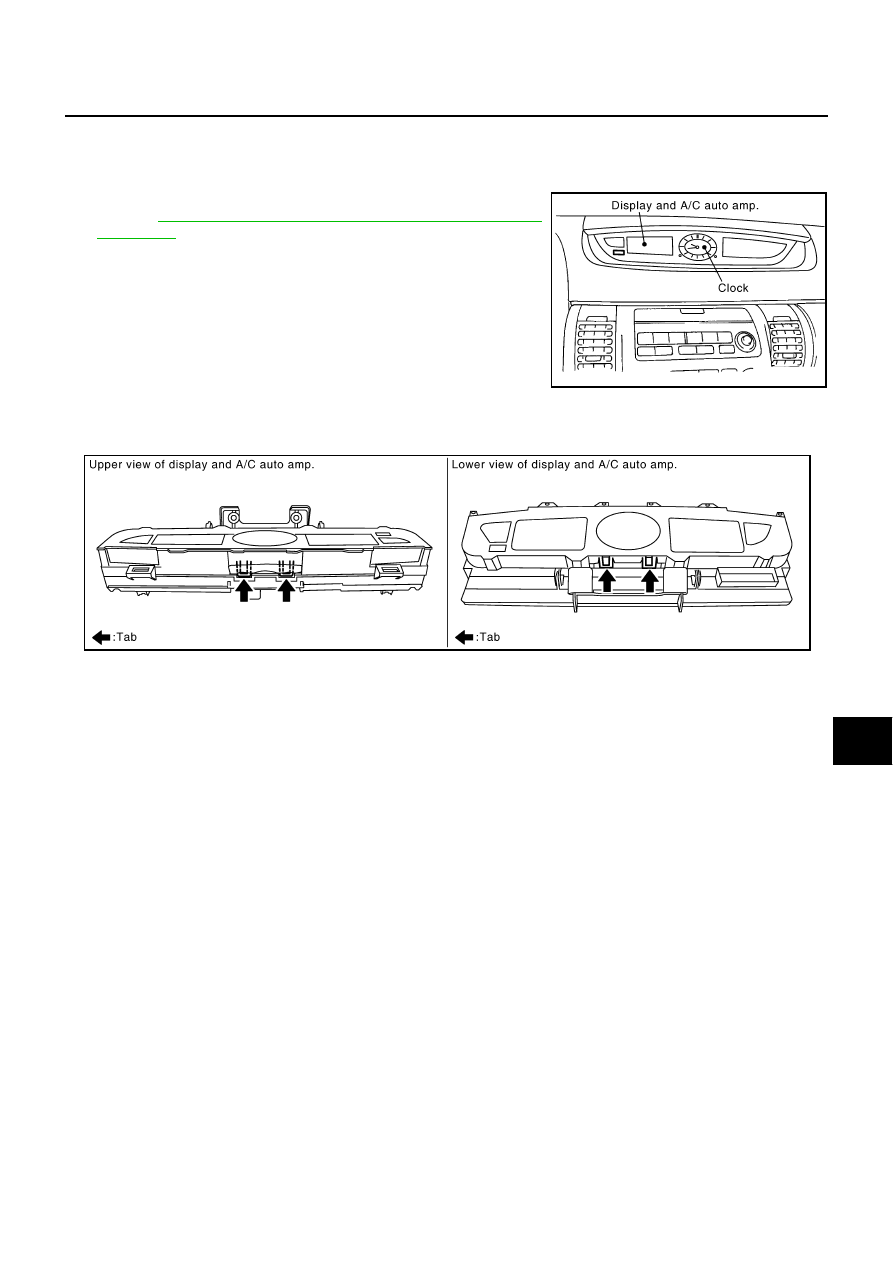

Remove the display and A/C auto amp. and clock assembly.
