Infiniti G35 (V35). Manual - part 264





PRECAUTION

DI-3

C

D

E

F

G

H

I

J

L

M

A

B

DI

PRECAUTION

PFP:00011

Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”

NKS000K8

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.

WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.

Precautions for Battery Service

NKS000K9

Before disconnecting the battery, lower both the driver and passenger windows. This will prevent any interfer-
ence between the window edge and the vehicle when the door is opened/closed. During normal operation, the
window slightly raises and lowers automatically to prevent any window to vehicle interference. The automatic
window function will not work with the battery disconnected.

DI-4

COMBINATION METERS

COMBINATION METERS

PFP:24814

System Description

NKS000KB

UNIFIED METER CONTROL UNIT

Speedometer, odo/trip meter, tachometer, fuel gauge and water temperature gauge are controlled by the
unified meter control unit, which is built into the combination meter.

Shift-up indicator is adopted in the combination meter (M/T models). Setting of shift-up engine speed
(rpm) can be set with odo/trip meter.

Odo/trip meter and A/T indicator segments can be checked in self-diagnosis mode.

Meters/gauges can be checked in self-diagnosis mode.

POWER SUPPLY AND GROUND CIRCUIT

Power is supplied at all times

through 10A fuse [No. 19, located in the fuse block (J/B)]

to combination meter terminal 21.

With the ignition switch in the ON or START position, power is supplied

through 10A fuse [No. 14, located in the fuse block (J/B)]

to combination meter terminals 22 and 23.

With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to combination meter terminal 18.

Ground is supplied

to combination meter terminals 1, 24 and 25

through grounds M30 and M66.

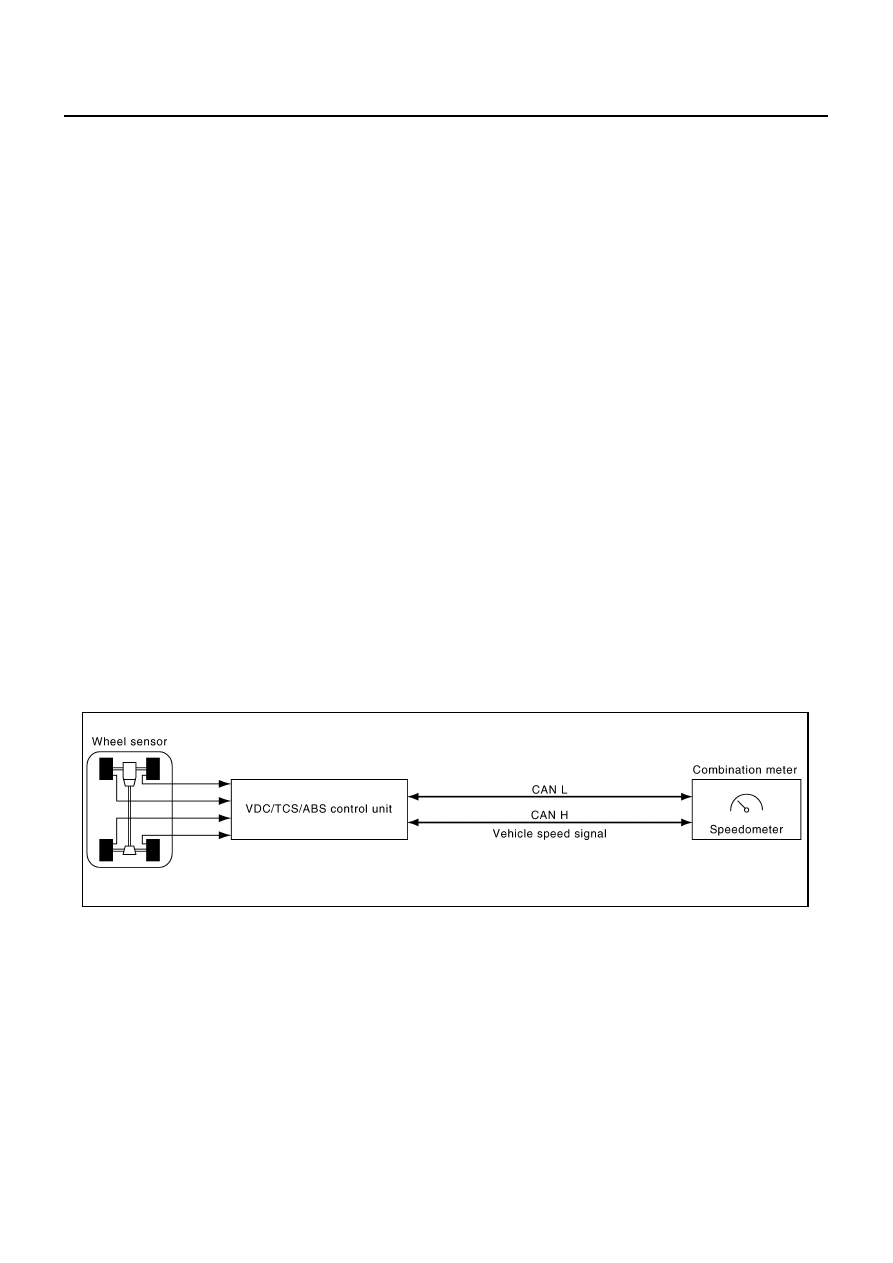

SPEEDOMETER

The speedometer indicates the vehicle speed.

VDC/TCS/ABS control unit provides a vehicle speed signal to combination meter with CAN communica-
tion.

Combination meter indicates the vehicle speed according to vehicle speed signal.

SKIB6901E

COMBINATION METERS

DI-5

C

D

E

F

G

H

I

J

L

M

A

B

DI

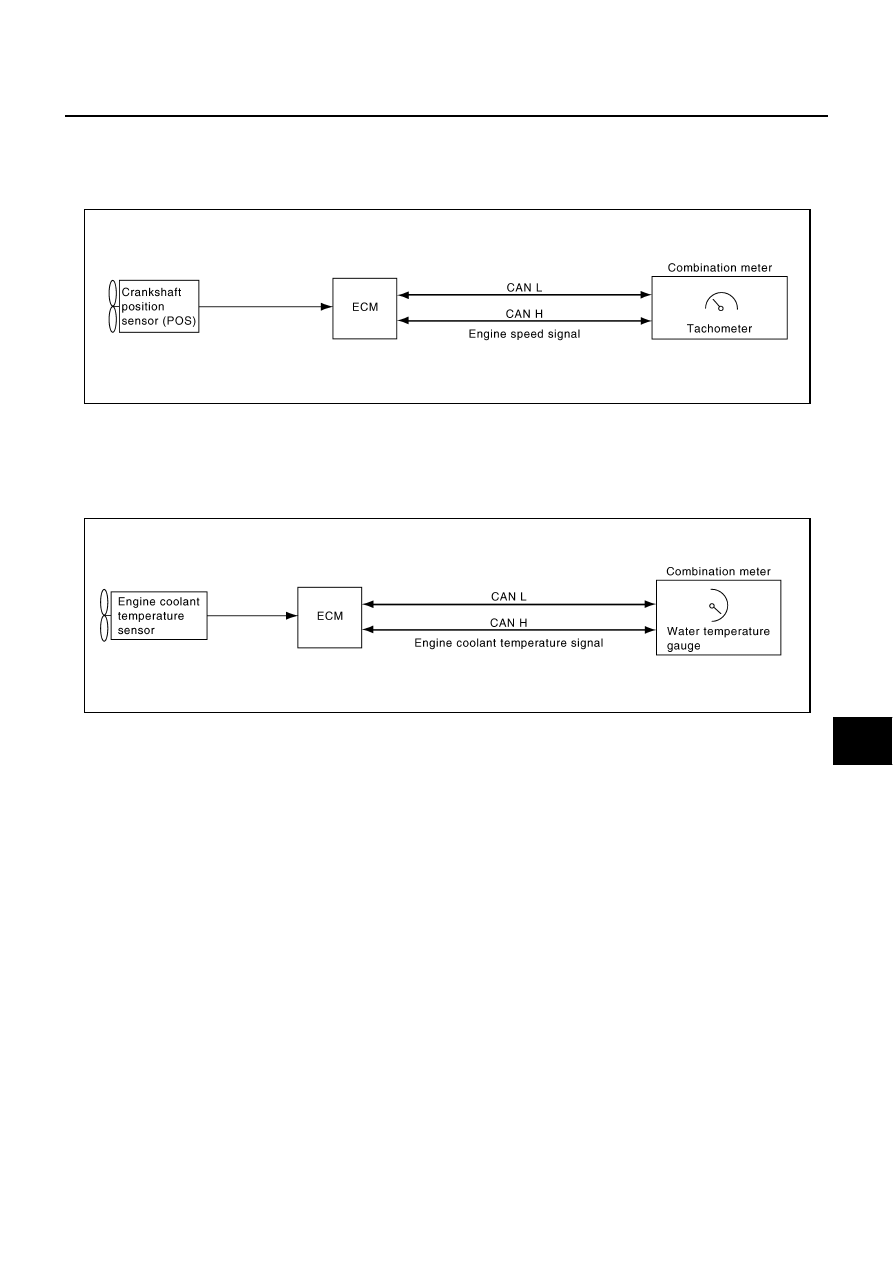

TACHOMETER

The tachometer indicates engine speed in revolutions per minute (rpm).

ECM provides engine speed signal to combination meter with CAN communication.

Combination meter indicates the engine speed according to engine speed signal.

WATER TEMPERATURE GAUGE

The water temperature gauge indicates the engine coolant temperature.

ECM provides engine coolant temperature signal to combination meter with CAN communication.

Combination meter indicates the engine coolant temperature according to engine coolant temperature
signal.

FUEL GAUGE

The fuel gauge indicates the approximate fuel level in the fuel tank.

Combination meter reads a resister signal from fuel level sensor.

Signal is supplied

through grounds M30 and M66

through terminals 5 and 2 of the fuel level sensor unit and fuel pump (main) and

through terminals 2 and 1 of the fuel level sensor unit (sub)

to combination meter terminal 7 for the fuel gauge.

Combination meter indicates the approximate fuel level according to the resister signal from fuel level
sensor.

SKIB6904E

SKIB6905E

DI-6

COMBINATION METERS

ODO/TRIP METER

VDC/TCS/ABS control unit provides a vehicle speed signal to combination meter with CAN communica-
tion.

Combination meter converts the vehicle speed signal to the 8-pulse signal.

Combination meter uses the 8-pulse signal to calculate the mileage, and displays it.

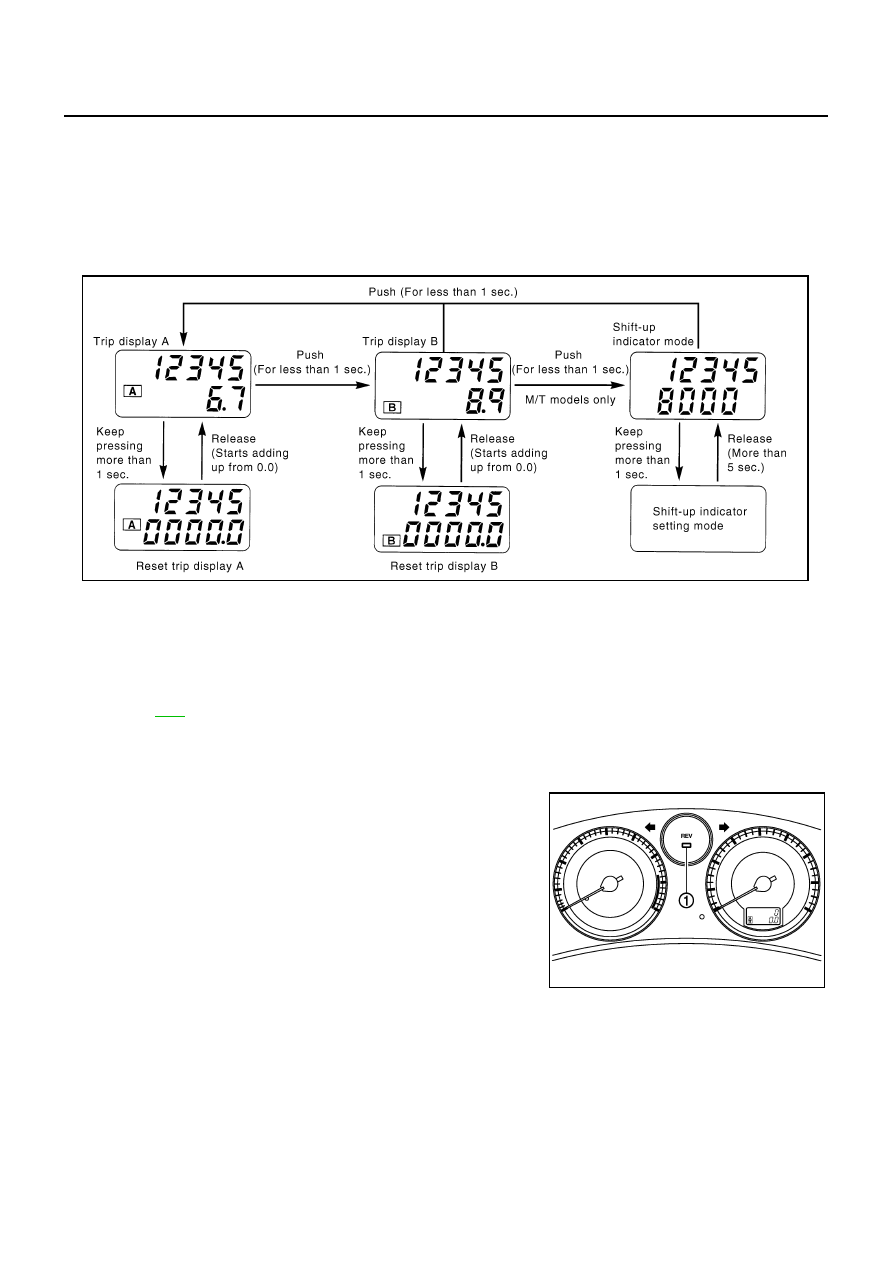

How to Change The Display For Odo/trip Meter

Operating the odo/trip meter switch allows switching the mode in the following order.

Switching odo/trip meter display to the setting of engine speed (rpm) (M/T models) and reset of trip can be
changed by time while pressing odo/trip switch.

When resetting with “trip A” displayed, only “trip A” display is reset.

NOTE:

The record of the odo meter is kept even if the battery cable is disconnected. The record of the trip meter
is erased when the battery cable is disconnected.

Refer to

DI-7

  for the operation and setting of shift-up indicator.

SHIFT-UP INDICATOR

Shift-up indicator can be used when shifting up at a constant engine speed from any gear while driving. It
becomes a guide for shift-up timing.

Combination meter receives engine speed signal (CAN commu-
nication signal) from ECM.

Shift-up indicator (1) flashes before reaching engine speed set,
approximately 500 rpm before, then it illuminates when reaching
the engine speed set.

SKIB3739E

SKIB3740E
