b.

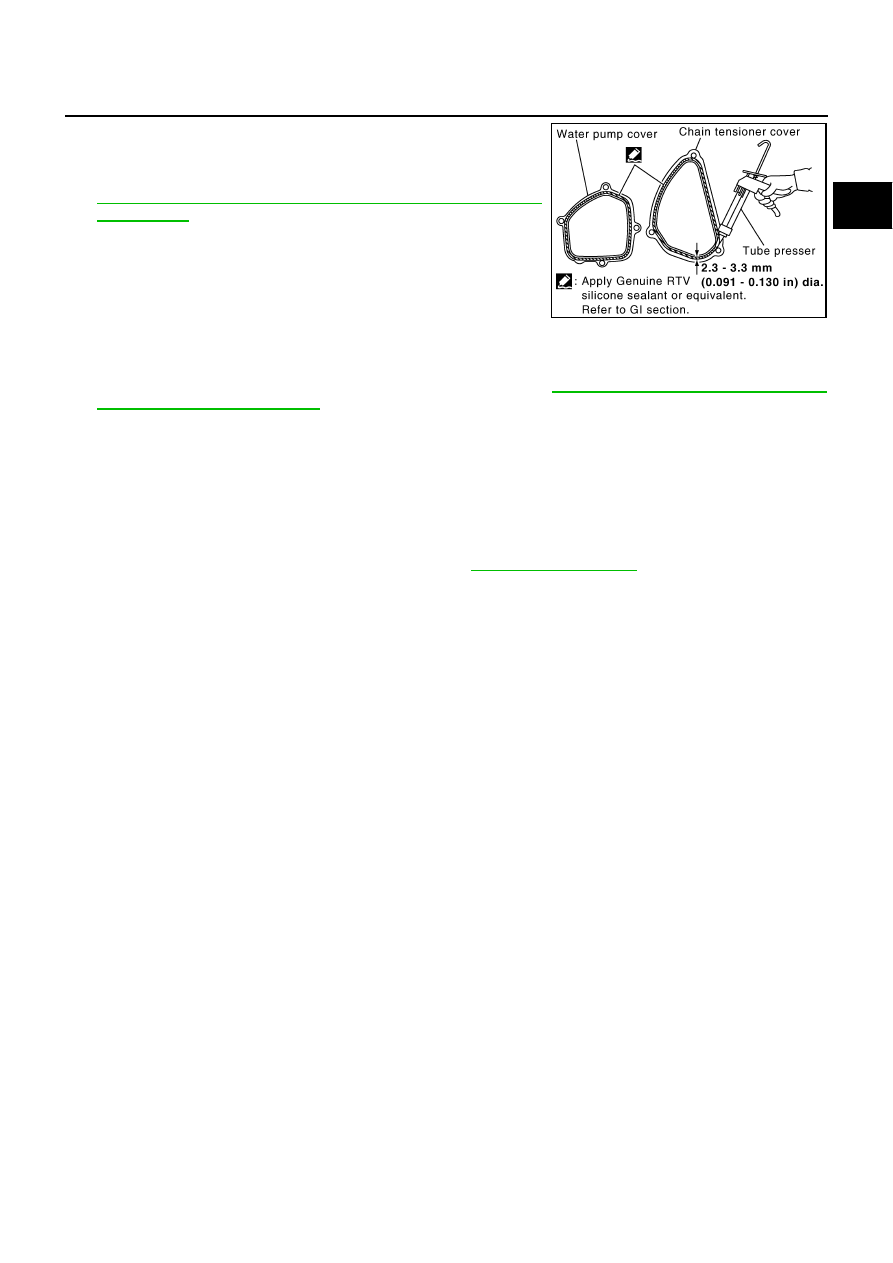

Apply a continuous bead of liquid gasket with tube presser [SST:
WS39930000 (

—

)] to mating surface of chain tensioner

cover and water pump cover.
Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-46, "RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS"

 .

CAUTION:

Attaching should be done within 5 minutes after coating.

c.

Tighten mounting bolts.

5.

Install water drain plug (front) on water pump side of cylinder block.

●

Apply liquid gasket to the thread of water drain plug (front).

Use Genuine RTV silicone sealant or equivalent. Refer to

GI-46, "RECOMMENDED CHEMICAL

PRODUCTS AND SEALANTS"

.

6.

Install in the reverse order of removal after this step.

●

After starting engine, let idle for three minutes, then rev engine up to 3,000 rpm under no load to
purge air from the high-pressure chamber of timing chain tensioner (primary). Engine may pro-
duce a rattling noise. This indicates that air still remains in the chamber and is not a matter of
concern.

INSPECTION AFTER INSTALLATION

●

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J33984-A)] and
radiator cap tester (commercial service tool). Refer to

CO-10, "LEAK CHECK"

 .

●

Start and warm up engine. Visually make sure that there is no leaks of engine coolant and A/T fluid (A/T
models).

PBIC2663E

CO-28

WATER INLET AND THERMOSTAT ASSEMBLY

WATER INLET AND THERMOSTAT ASSEMBLY

PFP:21200

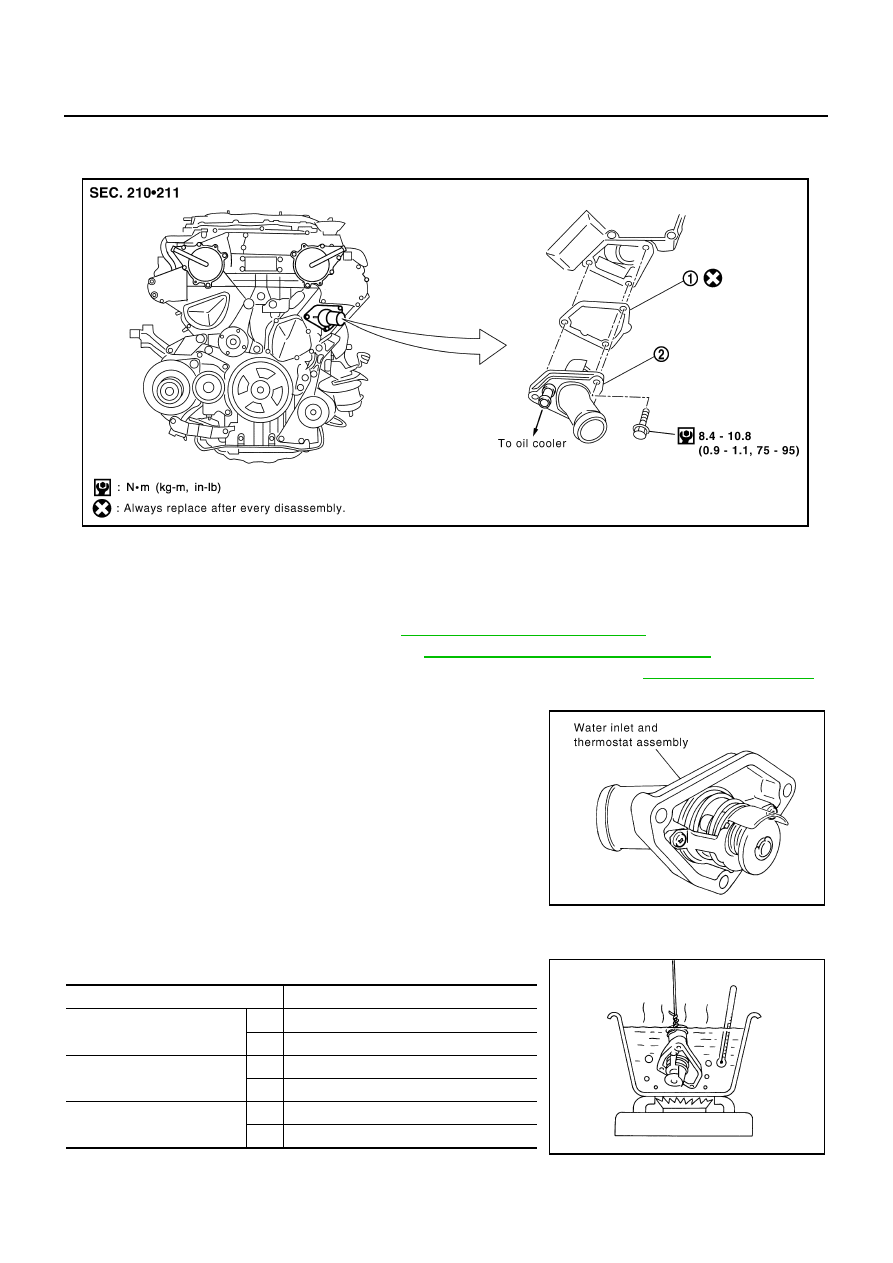

Components

NBS000LX

Removal and Installation

NBS000LY

REMOVAL

1.

Remove undercover with power tool.

2.

Drain engine coolant from radiator. Refer to

CO-10, "Changing Engine Coolant"

 .

3.

Remove air duct and air cleaner case. Refer to

EM-16, "AIR CLEANER AND AIR DUCT"

 .

4.

Remove water drain plug (front) on water pump side of cylinder block. Refer to

CO-23, "WATER PUMP"

 .

5.

Disconnect radiator hose (lower) and oil cooler hose from water inlet and thermostat assembly.

6.

Remove water inlet and thermostat assembly.

●

Do not disassemble water inlet and thermostat assembly.
Replace them as a unit, if necessary.

INSPECTION AFTER REMOVAL

1.

Check valve seating condition at ordinary room temperatures. It should seat tightly.

2.

Check valve operation.

1.

Gasket

2.

Water inlet and thermostat assembly

PBIC1937E

SLC962AB

Thermostat

Standard

Valve opening temperature

M/T

76 - 79

°

C (169 - 174

°

F)

A/T

80.5 - 83.5

°

C (177 - 182

°

F)

Maximum open valve lift

M/T

8.6 mm/90

°

C (0.339 in/194

°

F)

A/T

8.6 mm/95

°

C (0.339 in/203

°

F)

Valve closing temperature

M/T

More than 71

°

C (160

°

F)

A/T

More than 77

°

C (171

°

F)

SLC949A

WATER INLET AND THERMOSTAT ASSEMBLY

CO-29

C

D

E

F

G

H

I

J

K

L

M

A

CO

3.

Then check if valve closes at 5

°

C (41

°

F) below valve opening temperature.

INSTALLATION

Note the following, and install in the reverse order of removal.

●

Be careful not to spill engine coolant over engine room. Use rag to absorb engine coolant.

INSPECTION AFTER INSTALLATION

●

Check for leaks of engine coolant using radiator cap tester adapter [SST: EG17650301 (J33984-A)] and
radiator cap tester (commercial service tool). Refer to

CO-10, "LEAK CHECK"

 .

●

Start and warm up engine. Visually make sure that there is no leaks of engine coolant and A/T fluid (A/T
models).

CO-30

WATER OUTLET AND WATER PIPING

WATER OUTLET AND WATER PIPING

PFP:11060

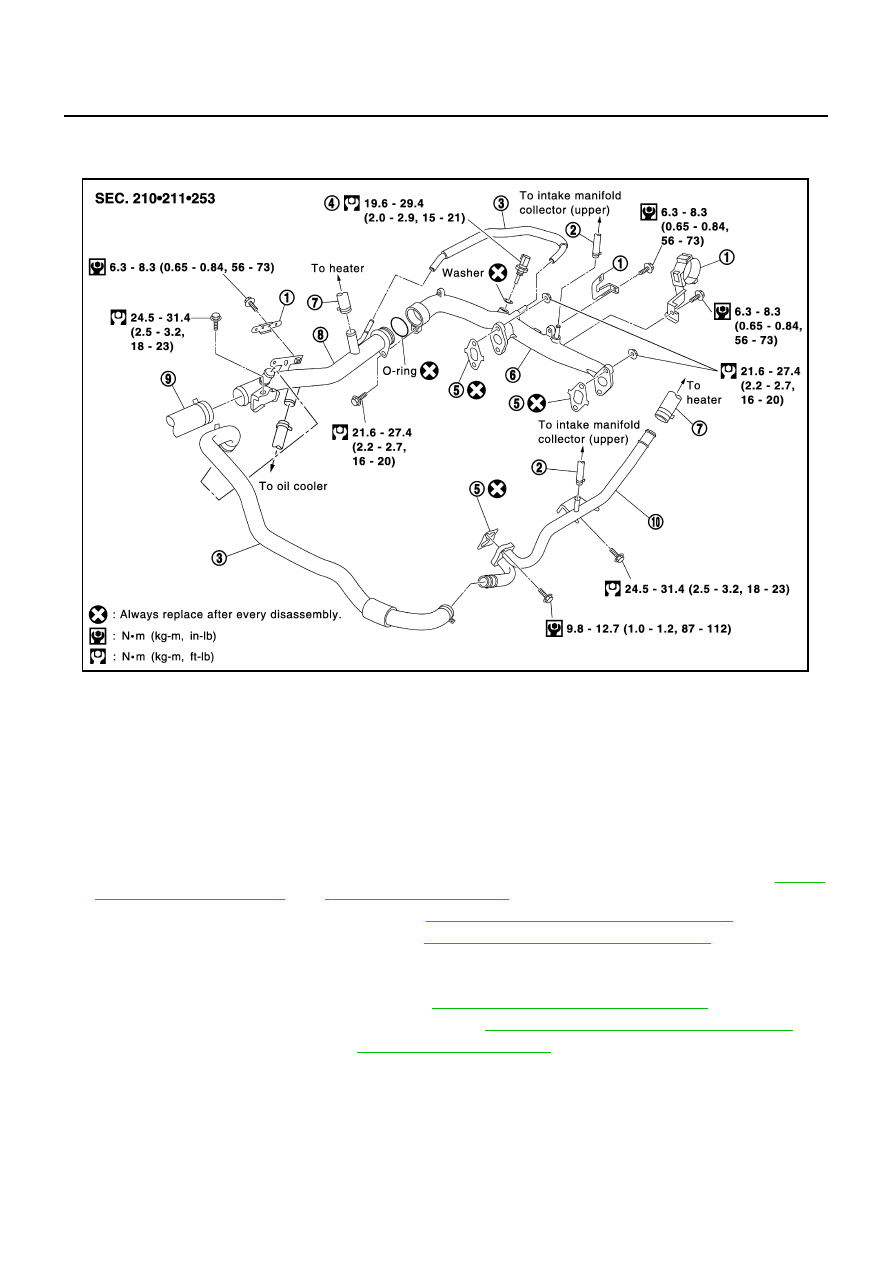

Components

NBS000LZ

NOTE:
Figure shows the example of the shape of part labeled 3. being used except for A/T models.

Removal and Installation

NBS000M0

REMOVAL

1.

Remove undercover with power tool.

2.

Drain engine coolant from drain plugs on radiator and both sides of cylinder block. Refer to

CO-10,

"Changing Engine Coolant"

  and

EM-138, "DISASSEMBLY"

 .

3.

Remove engine cover with power tool. Refer to

EM-18, "INTAKE MANIFOLD COLLECTOR"

 .

4.

Remove air duct and air cleaner case. Refer to

EM-16, "AIR CLEANER AND AIR DUCT"

 .

5.

Remove radiator hose (upper) and heater hose.

6.

Remove the following parts, when remove water outlet.

●

A/T fluid charging pipe (A/T models). Refer to

AT-251, "TRANSMISSION ASSEMBLY"

 .

●

Intake manifold collectors (upper and lower). Refer to

EM-18, "INTAKE MANIFOLD COLLECTOR"

 .

●

Rocker cover (right bank). Refer to

EM-44, "ROCKER COVER"

 .

INSTALLATION

Note the following, and install in the reverse order of removal.

●

Securely insert each hose, and install clamp at a position where it does not interfere with the pipe bulge.

●

When inserting water pipe into water outlet, apply neutral detergent to O-ring.

1.

Harness bracket

2.

Water hose

3.

Water bypass hose

4.

Engine coolant temperature sensor

5.

Gasket

6.

Water outlet

7.

Heater hose

8.

Water pipe

9.

Radiator upper hose

10. Heater pipe

PBIC1060E
