WATER PUMP

PFP:21020

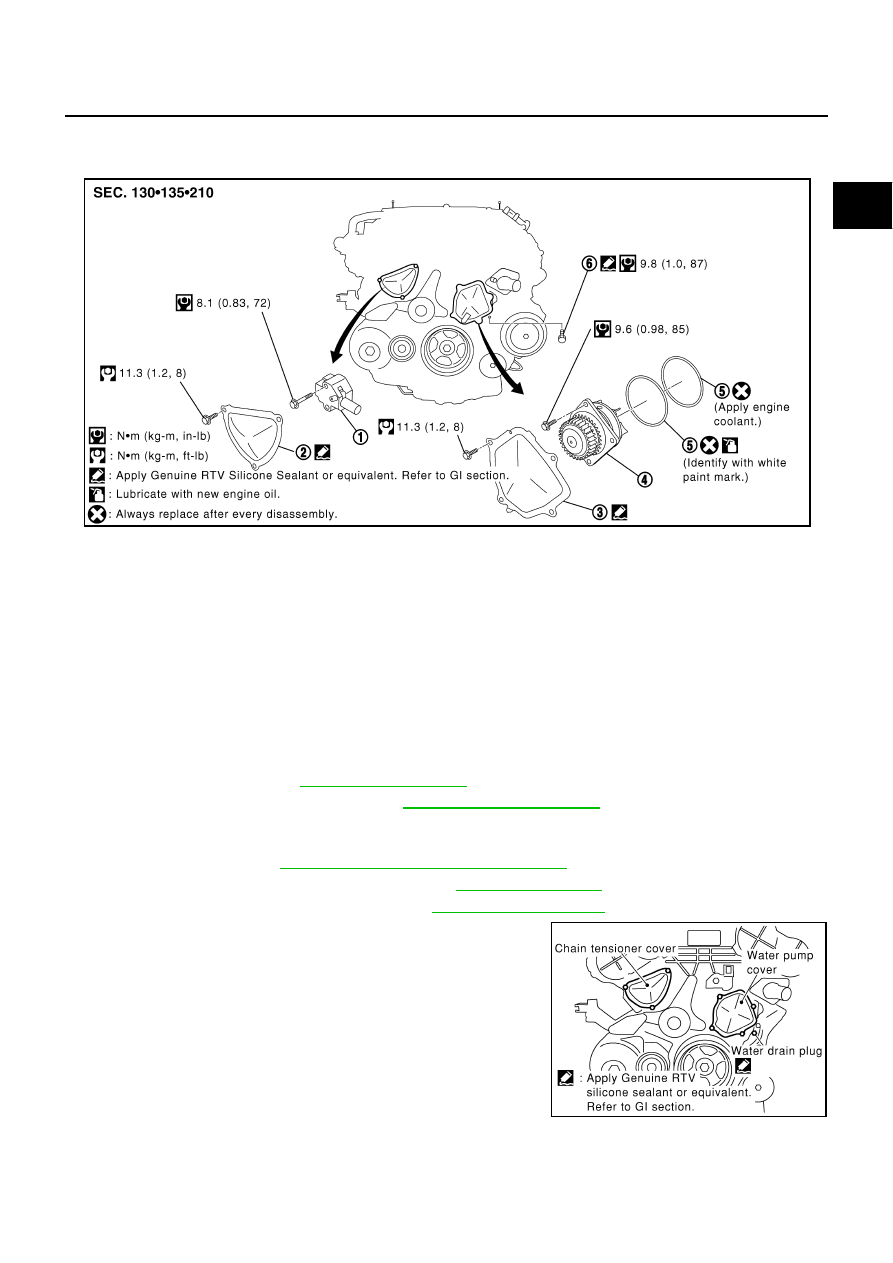

Components

NBS002VC

Removal and Installation

NBS002VD

CAUTION:

●

When removing water pump assembly, be careful not to get engine coolant on drive belt.

●

Water pump cannot be disassembled and should be replaced as a unit.

●

After installing water pump, connect hose and clamp securely, then check for leaks using radiator
cap tester (commercial service tool) and radiator cap tester adapter [SST: EG17650301 (J33984-
A)].

REMOVAL

1.

Remove undercover with power tool.

2.

Remove drive belts. Refer to

EM-14, "DRIVE BELTS"

 .

3.

Drain engine coolant from radiator. Refer to

LU-9, "Changing Engine Oil"

 .

CAUTION:

Perform this step when engine is cold.

4.

Remove air duct. Refer to

EM-16, "AIR CLEANER AND AIR DUCT"

 .

5.

Remove radiator hoses (upper and lower). Refer to

CO-13, "RADIATOR"

 .

6.

Remove radiator cooling fan assembly. Refer to

CO-21, "COOLING FAN"

 .

7.

Remove water drain plug on water pump side of cylinder block.

8.

Remove chain tensioner cover and water pump cover from front timing chain case.

●

Use seal cutter [SST: KV10111100 (J37228)] or equivalent tool to cut liquid gasket for remove.

1.

Timing chain tensioner (primary)

2.

Chain tensioner cover

3.

Water pump cover

4.

Water pump

5.

O- ring

6.

Water drain plug (front)

PBIC3488E

PBIC0846E

CO-24

WATER PUMP

9.

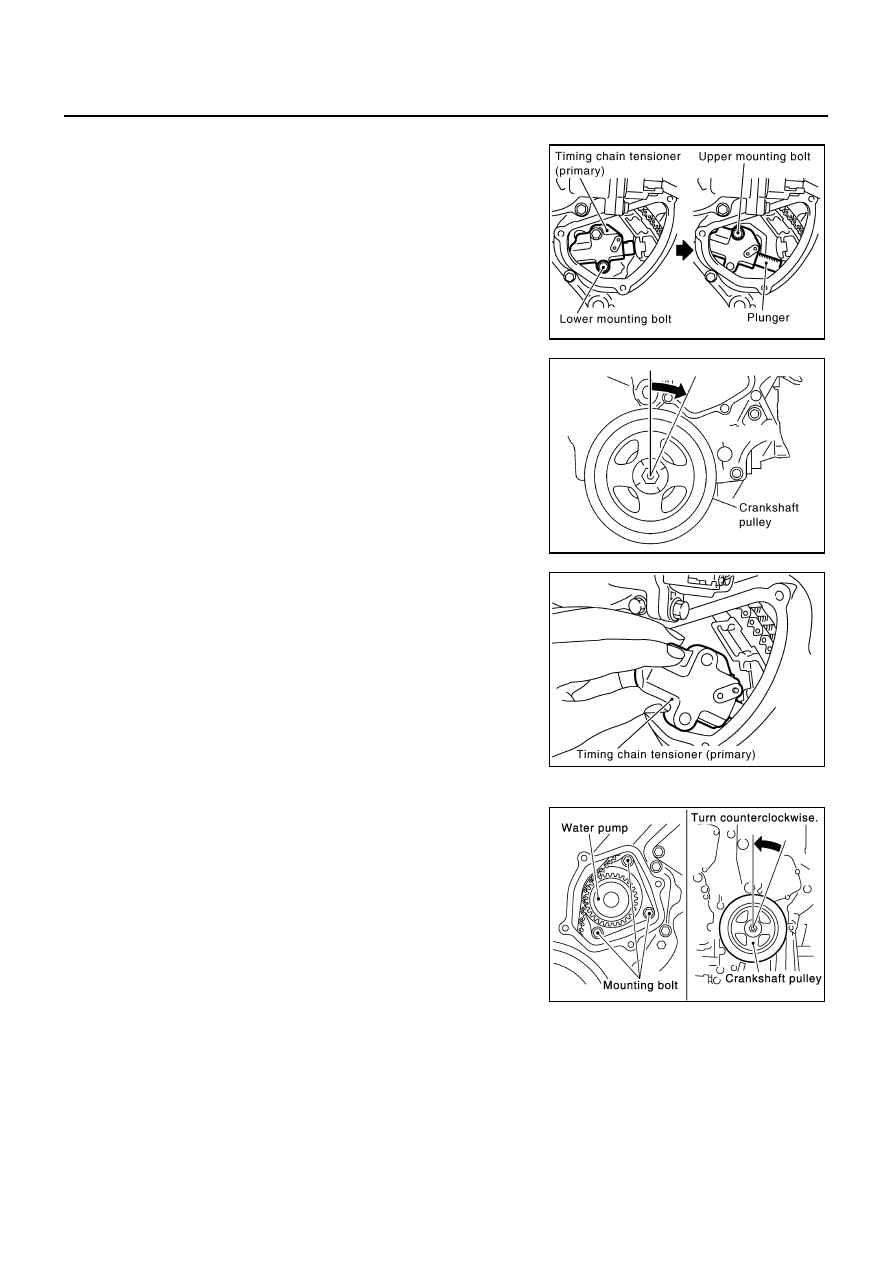

Remove timing chain tensioner (primary) as follows:

a.

Remove lower mounting bolt.

CAUTION:

Be careful not to drop mounting bolt inside timing chain
case.

b.

Loosen upper mounting bolt slowly, and then turn chain ten-
sioner (primary) on the mounting bolt so that plunger is fully
expanded.

NOTE:
Even if plunger is fully expanded, it is not dropped from the body
of timing chain tensioner (primary).

c.

Turn crankshaft pulley clockwise so that timing chain on the tim-
ing chain tensioner (primary) side is loose.

d.

Remove upper mounting bolt, and then remove timing chain ten-
sioner (primary).

CAUTION:

Be careful not to drop mounting bolt inside timing chain
case.

10. Remove water pump as follows:

a.

Remove three water pump mounting bolts. Secure a gap
between water pump gear and timing chain, by turning crank-
shaft pulley counterclockwise until timing chain looseness on
water pump sprocket becomes maximum.

PBIC3575E

PBIC4820E

PBIC3576E

PBIC1193E

WATER PUMP

CO-25

C

D

E

F

G

H

I

J

K

L

M

A

CO

b.

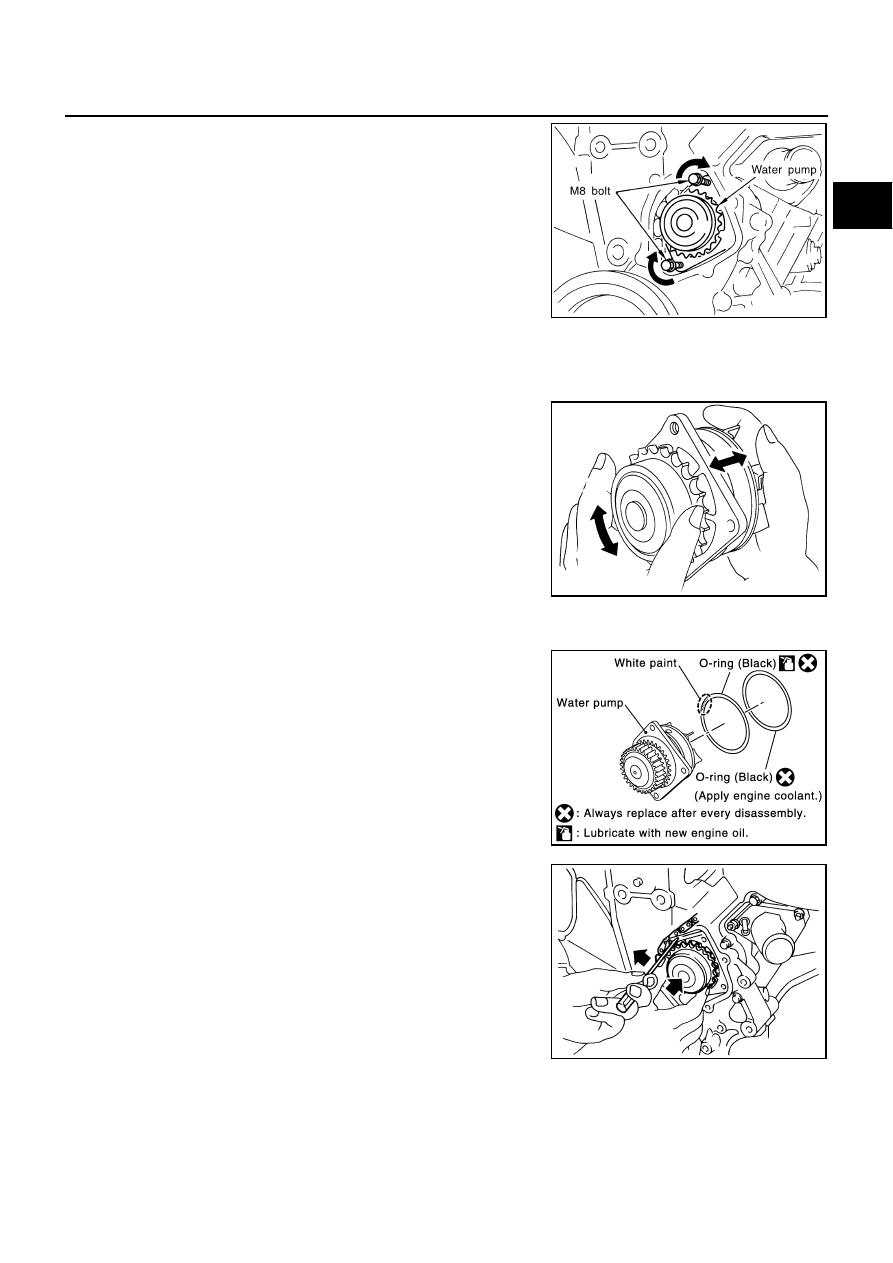

Screw M8 bolts [pitch: 1.25 mm (0.049 in) length: approx. 50
mm (1.97 in)] into water pumps upper and lower mounting bolt
holes until they reach rear timing chain case. Then, alternately
tighten each bolt for a half turn, and pull out water pump.

CAUTION:

●

Pull straight out while preventing vane from contacting
socket in installation area.

●

Remove water pump without causing sprocket to contact
timing chain.

c.

Remove M8 bolts and O-rings from water pump.

CAUTION:

Do not disassemble water pump.

INSPECTION AFTER REMOVAL

●

Check for badly rusted or corroded water pump body assembly.

●

Check for rough operation due to excessive end play.

●

Replace water pump, if necessary.

INSTALLATION

1.

Install new O-rings to water pump.

●

Apply engine oil and engine coolant to O-rings as shown in
the figure.

●

Locate the O-ring with white paint mark to engine front side.

2.

 Install water pump.

CAUTION:

Do not allow cylinder block to nip O-rings when install
water pump.

●

Make sure that timing chain and water pump sprocket are
engaged.

●

Insert water pump by tightening mounting bolts alternately
and evenly.

3.

Install timing chain tensioner (primary) as follows:

JLC357B

SLC943A

PBIC1397E

PBIC1058E

CO-26

WATER PUMP

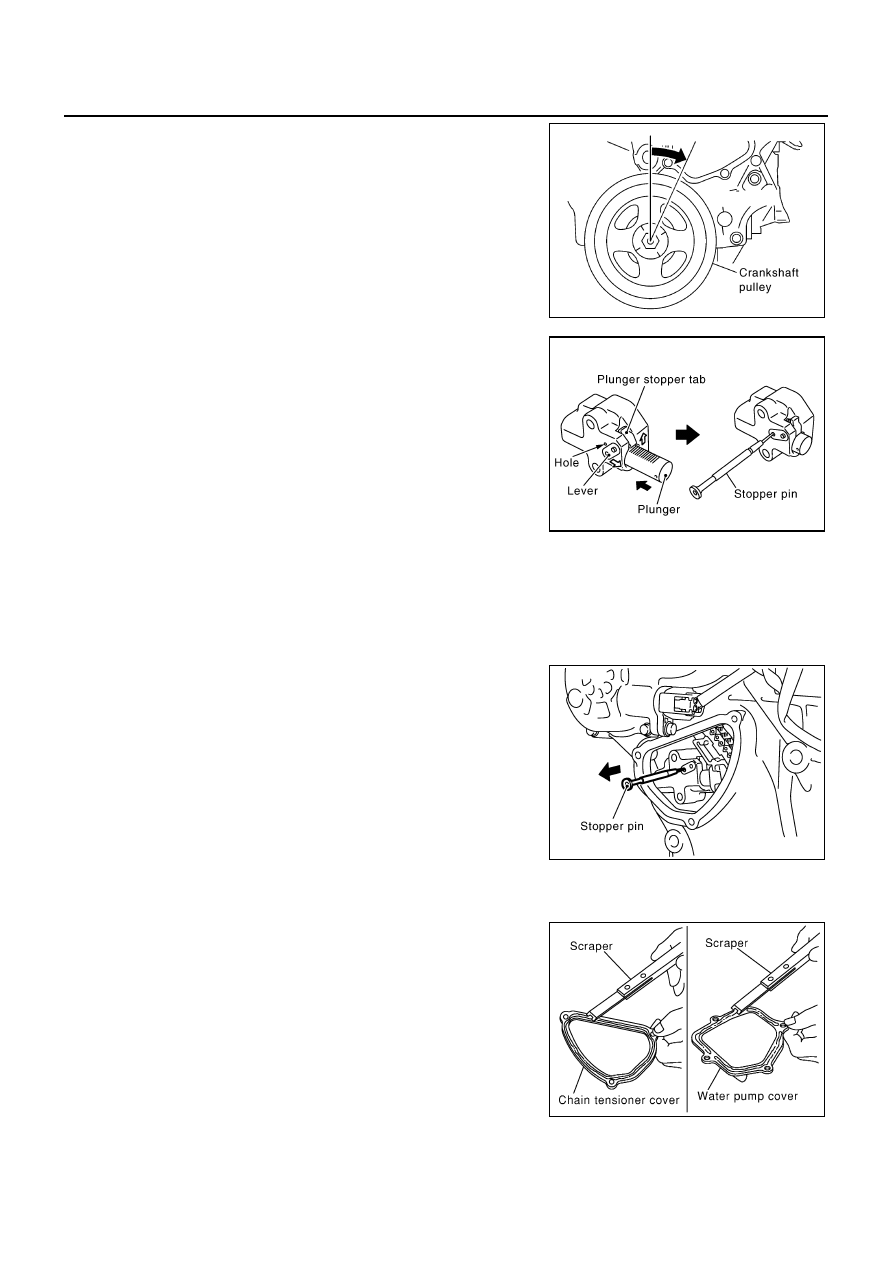

a.

Turn crankshaft pulley clockwise so that timing chain on the tim-
ing chain tensioner (primary) side is loose.

b.

Pull plunger stopper tab up (or turn lever downward) so as to
remove plunger stopper tab from the ratchet of plunger.

NOTE:
Plunger stopper tab and lever are synchronized.

c.

Push plunger into the inside of tensioner body.

d.

Hold plunger in the fully compressed position by engaging
plunger stopper tab with the tip of ratchet.

e.

To secure lever, insert stopper pin through hole of lever into ten-
sioner body hole.

●

The lever parts and the tab are synchronized. Therefore, the
plunger will be secured under this condition.

NOTE:
Figure shows the example of 1.2 mm (0.047 in) diameter thin screwdriver being used as the stopper pin.

f.

Install timing chain tensioner (primary).

●

Remove dust and foreign material completely from backside of timing chain tensioner (primary) and
from installation area of rear timing chain case.

g.

Remove stopper pin.

h.

Make sure again that timing chain and water pump sprocket are engaged.

4.

Install chain tensioner cover and water pump cover as follows:

a.

Before installing, remove all traces of old liquid gasket from mat-
ing surface of water pump cover and chain tensioner cover
using scraper. Also remove traces of old liquid gasket from the
mating surface of front timing chain case.

PBIC4820E

PBIC3568E

PBIC3577E
