Infiniti G35 (V35). Manual - part 260

RADIATOR (ALUMINUM TYPE)

CO-19

C

D

E

F

G

H

I

J

K

L

M

A

CO

2.

Install sealing rubber while pushing it with fingers.

CAUTION:

Be careful not to twist sealing rubber.

3.

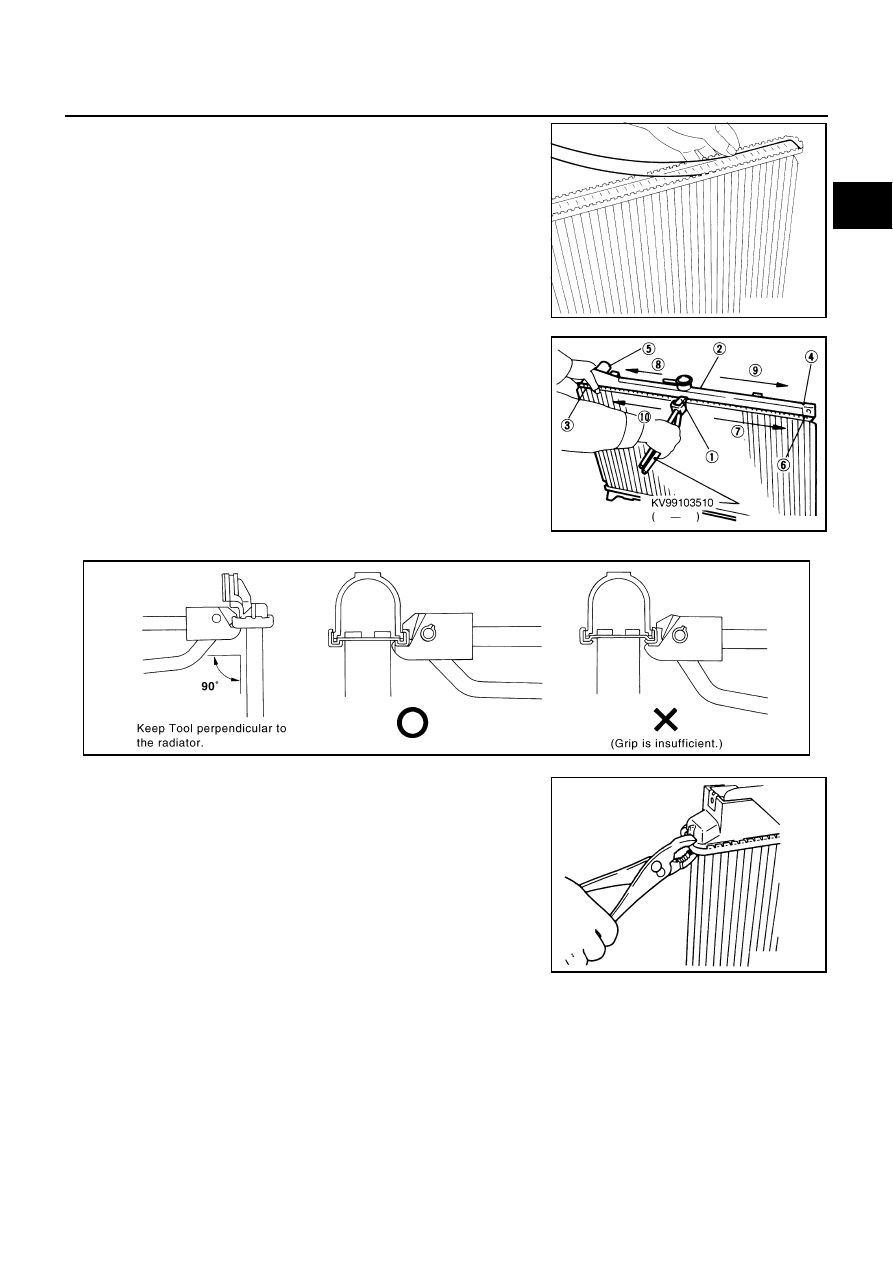

Caulk tank in numerical order as shown in the figure with radia-
tor plate pliers A (SST).

●

Use pliers in the locations where radiator plate pliers A [SST:
KV99103510 (

—

)] cannot be used.

SLC917A

SLC904-A

PBIC2076E

SLC897

CO-20

RADIATOR (ALUMINUM TYPE)

4.

Make sure that the rim is completely crimped down.

5.

Make sure that there is no leakage. Refer to

CO-20, "INSPEC-

TION"

 .

INSPECTION

1.

Apply pressure with radiator cap tester adapter (SST) and radia-
tor cap tester (commercial service tool).

WARNING:

To prevent the risk of hose coming undone while under
pressure, securely fasten it down with hose clamp.

CAUTION:

Attach hose to A/T fluid cooler to seal its inlet and outlet. (A/
T models)

2.

Check for leakage by soaking radiator in water container with
the testing pressure applied.

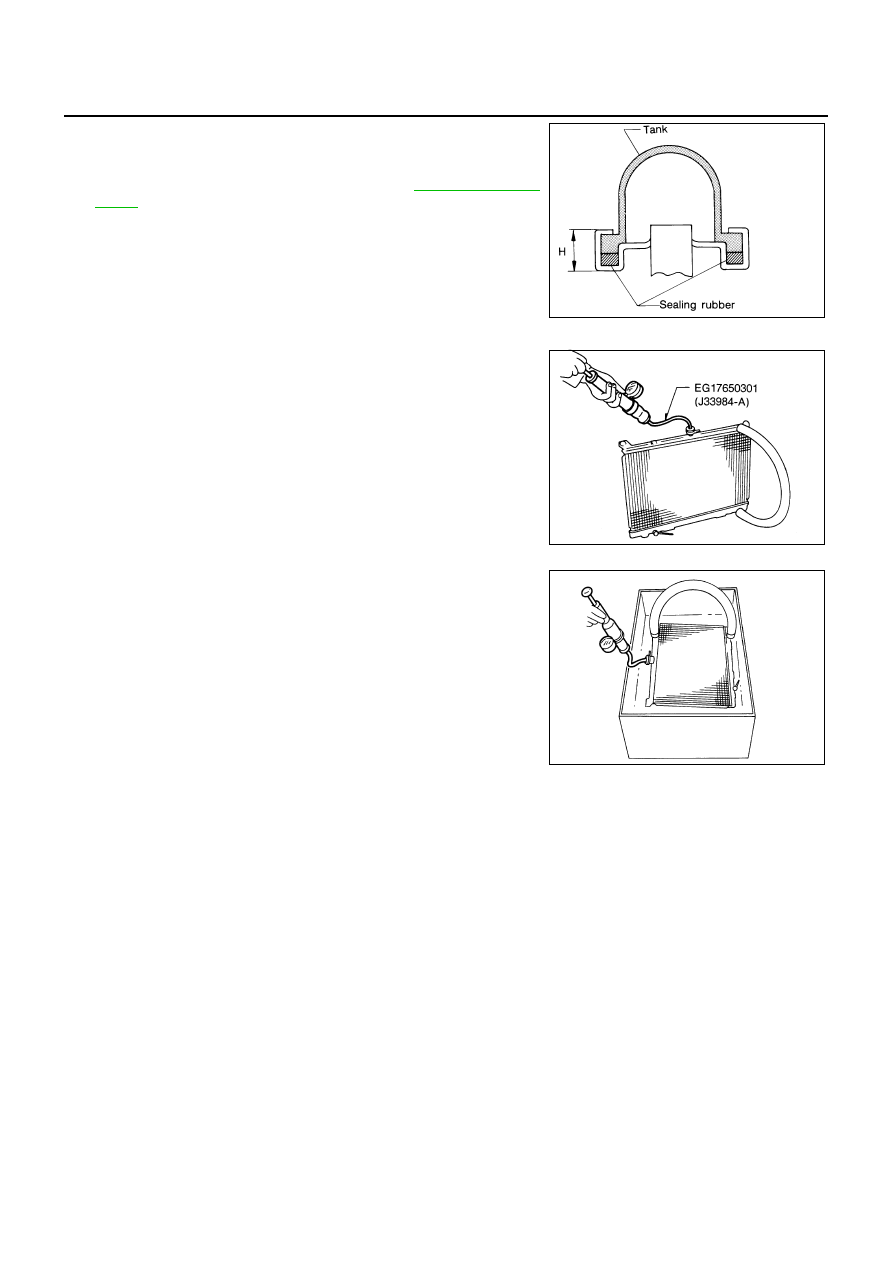

Standard height “H”

: 8.0 - 8.4 mm (0.315 - 0.331 in)

SLC554A

Testing pressure

: 157 kPa (1.6 kg/cm

2

 , 23 psi)

SLC933-A

SLC934

COOLING FAN

CO-21

C

D

E

F

G

H

I

J

K

L

M

A

CO

COOLING FAN

PFP:21140

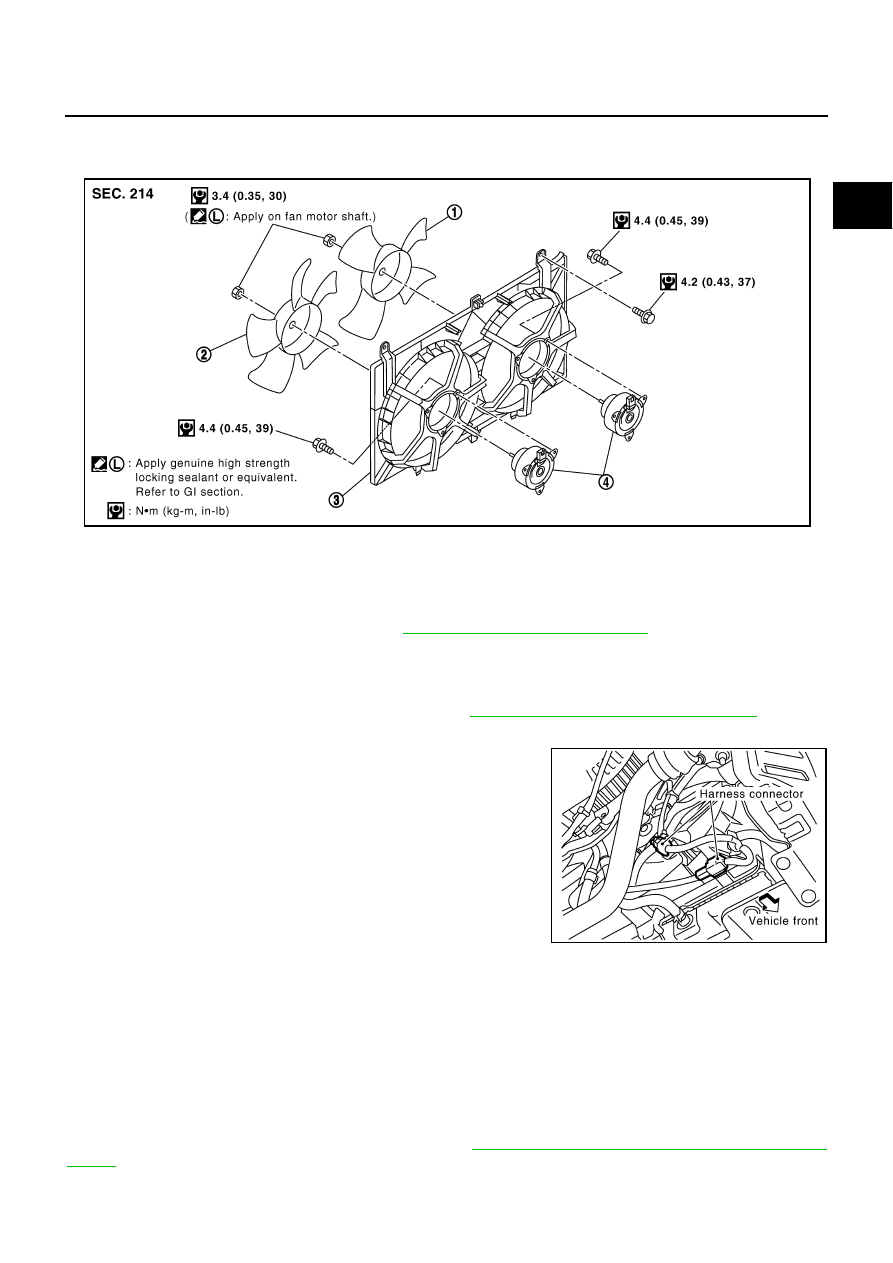

Components

NBS002VA

Removal and Installation

NBS002VB

REMOVAL

1.

Drain engine coolant from radiator. Refer to

CO-10, "Changing Engine Coolant"

 .

CAUTION:

●

Perform this step when engine is cold.

●

Do not spill engine coolant on drive belts.

2.

Remove air duct (inlet) and air cleaner case. Refer to

EM-16, "AIR CLEANER AND AIR DUCT"

 .

3.

Disconnect radiator hose (upper) at radiator side.

4.

Disconnect fan motor harness connectors at the right-lower por-
tion of fan shroud.

5.

Remove radiator cooling fan assembly.

CAUTION:

Be careful not to damage or scratch on radiator core.

INSTALLATION

Installation is the reverse order of removal.

INSPECTION AFTER INSTALLATION

Make sure that fan motors operate normally.

NOTE:
Cooling fans are controlled by ECM. For details, refer to

EC-523, "DTC P1217 ENGINE OVER TEMPERA-

TURE"

 .

1.

Cooling fan (RH)

2.

Cooling fan (LH)

3.

Fan shroud

4.

Fan motor

PBIC2609E

PBIC1935E

CO-22

COOLING FAN

DISASSEMBLY AND ASSEMBLY
Disassembly

1.

Remove cooling fans from fan motors.

2.

Remove fan motors from fan shroud.

Assembly

Assembly in the reverse order of disassembly.

CAUTION:

Cooling fans are different between RH and LH. Be careful not to misassemble them.
