COMBINATION METERS
DI-7
C
D
E
F
G
H
I
J
L
M
A
B
DI

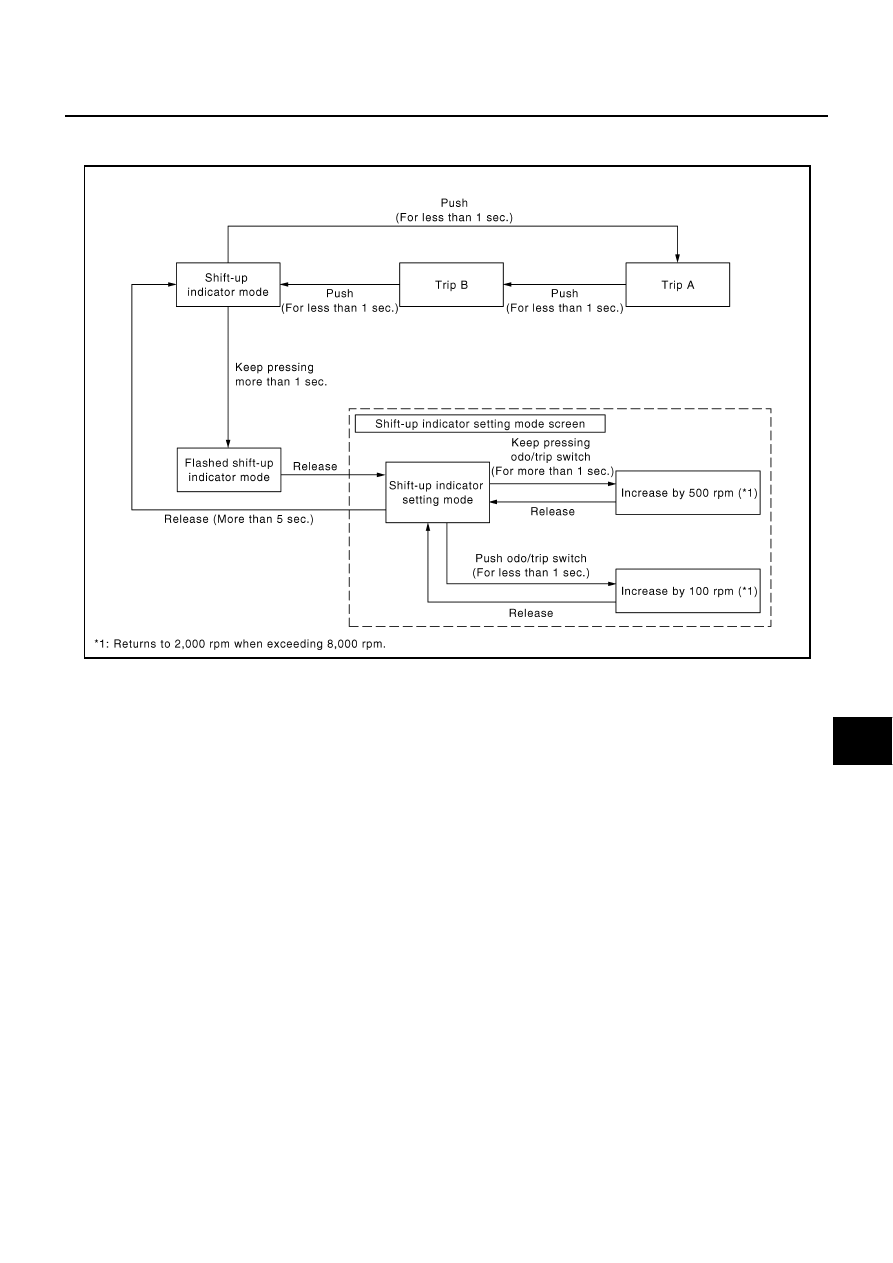

Setting Procedure of Shift-up Engine Speed (rpm)
Setting of shift-up engine speed with odo/trip meter.
1.
Push odo/trip switch (for less than 1 sec.) to change trip meter display to “trip A”
→
“trip B”
→
shift-up indi-
cator mode.
2.
Keep pressing odo/trip switch (for more than 1 sec.), then release odo/trip switch (display flashes and
changes to shift-up indicator setting mode).
3.
Set according to the following.
a.
Keep pressing odo/trip switch (for more than 1 sec.): Increase setting engine speed by 500 rpm.
b.
Push odo/trip switch (for less than 1 sec.): Increase setting engine speed by 100 rpm.
NOTE:
The range of engine speed is 2,000 - 8,000 rpm (Pushing odo/trip switch when exceeding 8,000 rpm
returns to 2,000 rpm).
4.
Stop the flash when not pushing odo/trip switch for more than 5 sec. (Shift-up engine speed is set.)
NOTE:
Setting is 8,000 rpm (the initial setting rpm) when disconnecting the battery cable.
SKIB3748E
