REFRIGERANT LINES

ATC-143

C

D

E

F

G

H

I

K

L

M

A

B

ATC

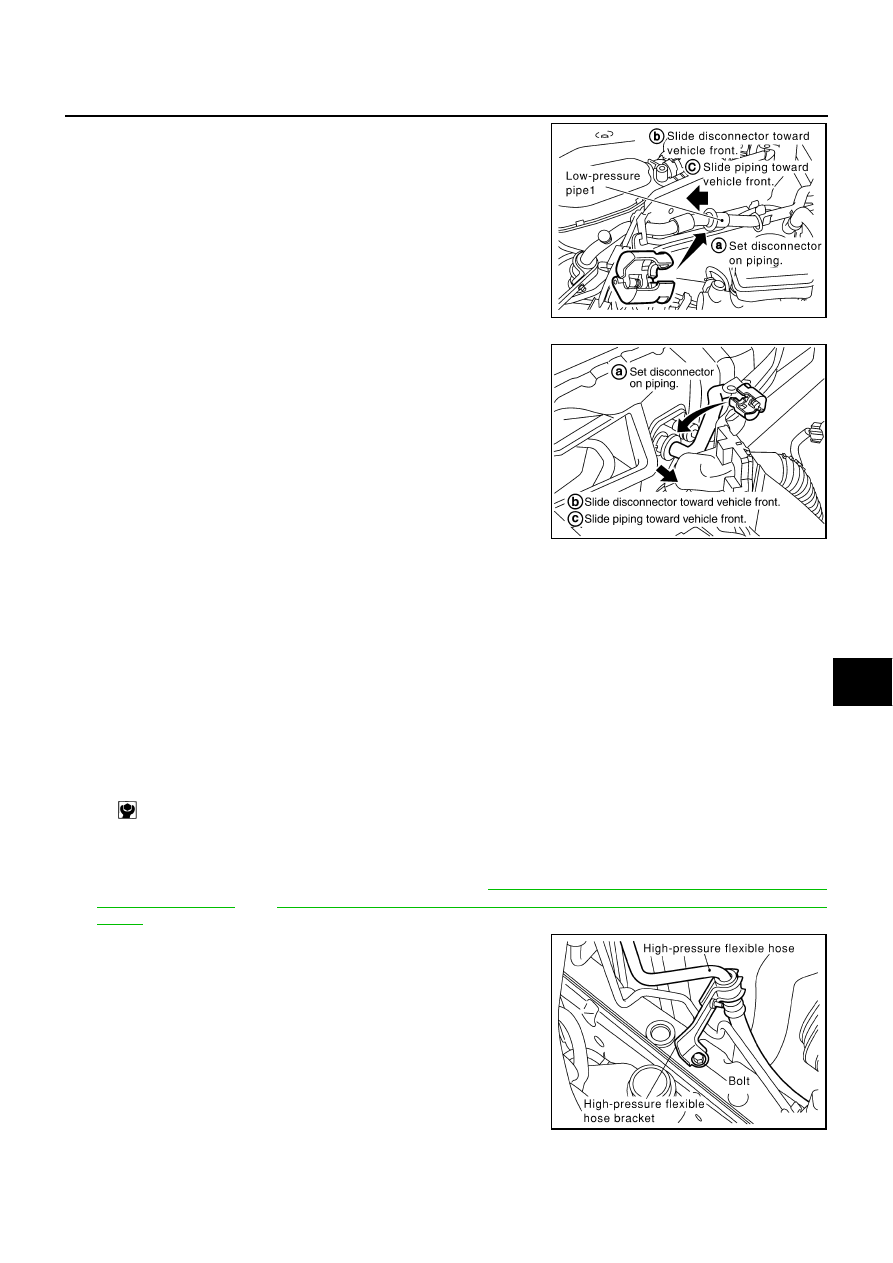

4.

Disconnect one-touch joints.

a.

Set a disconnector (SST: 9253089916) on A/C piping.

b.

Slide a disconnector toward vehicle front until it clicks.

c.

Slide A/C piping toward vehicle front and disconnect it.

CAUTION:

Cap or wrap the joint of low-pressure pipe 1 and low-pres-
sure flexible hose with suitable material such as vinyl tape
to avoid the entry of air.

5.

Remove low-pressure pipe 1.

CAUTION:

Cap or wrap the joint of low-pressure pipe 1 and 2 with suit-
able material such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

●

Replace O-rings of low-pressure pipe 1 with new ones, and then apply compressor oil to it when
installing it.

●

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

●

Insert piping securely until a click is heard.

●

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

●

When recharging refrigerant, check for leaks.

Removal and Installation of High-pressure Pipe 1 (Engine Compartment)

NJS0004J

REMOVAL

1.

Remove low-pressure flexible hose and pipe 1. Refer to

ATC-140, "Removal and Installation of Low-pres-

sure Flexible Hose"

  and

ATC-142, "Removal and Installation of Low-pressure Pipe 1 (Engine Compart-

ment)"

 .

2.

Remove mounting bolt from high-pressure flexible hose bracket.

3.

Remove high-pressure pipe 1 from vehicle clips.

4.

Disconnect one-touch joints of high-pressure pipe 1.

a.

Set a disconnector (SST: 9253089908) on A/C piping.

RJIA0938E

RJIA1619E

Low-pressure flexible hose bracket mounting bolt

: 4.2 N·m (0.43 kg-m, 37 in-lb)

RJIA0446E

ATC-144

REFRIGERANT LINES

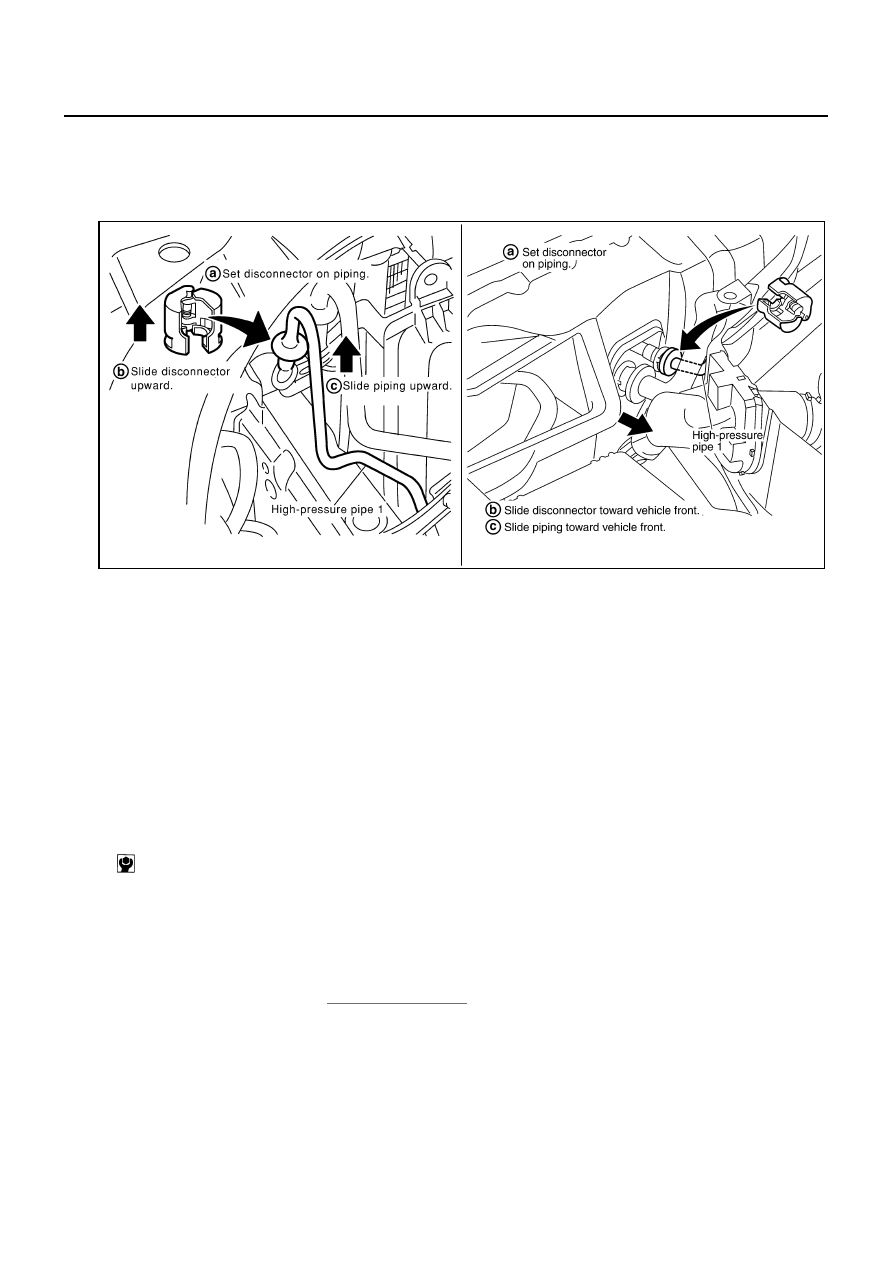

b.

Slide a disconnector toward (or upward) vehicle front until it clicks.

c.

Slide A/C piping toward (or upward) vehicle front and disconnect it.

CAUTION:

Cap or wrap the joint of condenser and high-pressure pipe with suitable material such as vinyl
tape to avoid the entry of air.

5.

Remove high-pressure pipe 1.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

●

Replace O-rings of high-pressure pipe 1 with new ones, and then apply compressor oil to it when
installing it.

●

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

●

Insert piping securely until a click is heard.

●

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

●

When recharging refrigerant, check for leaks.

Removal and Installation of Low-pressure Pipe 2 and High-pressure Pipe 2

NJS0004K

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Set the temperature control dial (passenger side) at 18

°

C (60

°

F), and then disconnect the battery cable

from the negative terminal.

3.

Remove cowl top cover. Refer to

EI-19, "COWL TOP"

 .

RJIA1621E

High-pressure flexible hose bracket mounting bolt

: 4.2 N·m (0.43 kg-m, 37 in-lb)

REFRIGERANT LINES

ATC-145

C

D

E

F

G

H

I

K

L

M

A

B

ATC

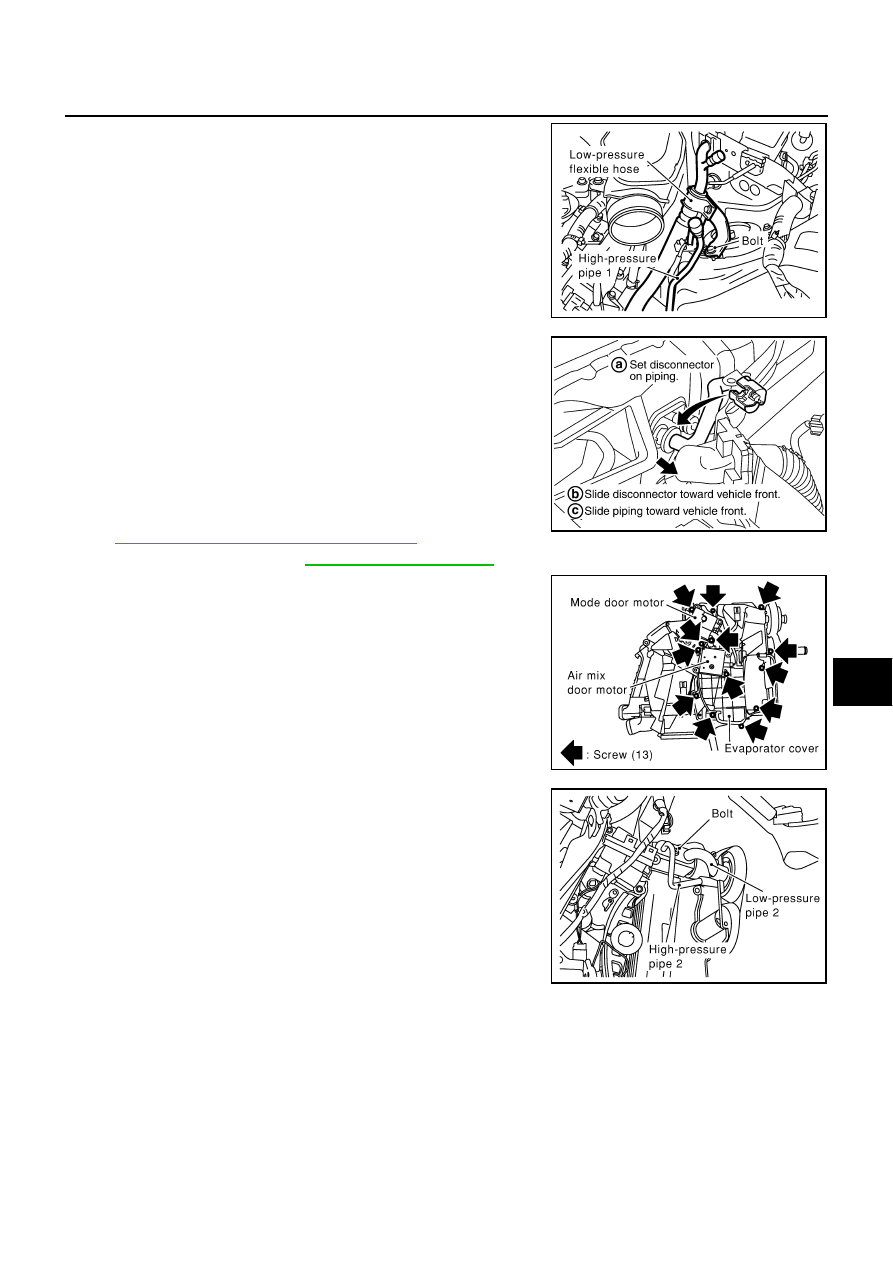

4.

Remove mounting bolt from low-pressure flexible hose bracket.

5.

Remove high-pressure pipe 1 from vehicle clips.

6.

Disconnect one-touch joints.

a.

Set a disconnector [high-pressure side (SST: 9253089908), low-
pressure side (SST: 9253089916)] on A/C piping.

b.

Slide a disconnector toward vehicle front until it clicks.

c.

Slide A/C piping toward vehicle front and disconnect it.

CAUTION:

Cap or wrap the joint of low-pressure pipe 1 and high-pres-
sure pipe 1 with suitable material such as vinyl tape to
avoid the entry of air.

7.

Remove instrument passenger lower panel and glove box. Refer
to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

8.

Remove blower unit. Refer to

ATC-119, "BLOWER UNIT"

 .

9.

Remove mounting screws, and then remove air mix door motor
(passenger side) and mode door motor.

10. Remove mounting screws, and then remove evaporator cover.

11. Remove mounting bolt, and then remove low-pressure pipe 2

and high-pressure pipe 2.

CAUTION:

Cap or wrap the joint of expansion valve with suitable mate-
rial such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

●

Replace O-rings of low-pressure pipe 1, 2 and high-pressure pipe 1, 2 with new ones, and then
apply compressor oil to it when installing it.

●

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

●

Insert piping securely until a click is heard.

RJIA3593E

RJIA1619E

RJIA0940E

RJIA0941E

ATC-146

REFRIGERANT LINES

●

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

●

When recharging refrigerant, check for leaks.

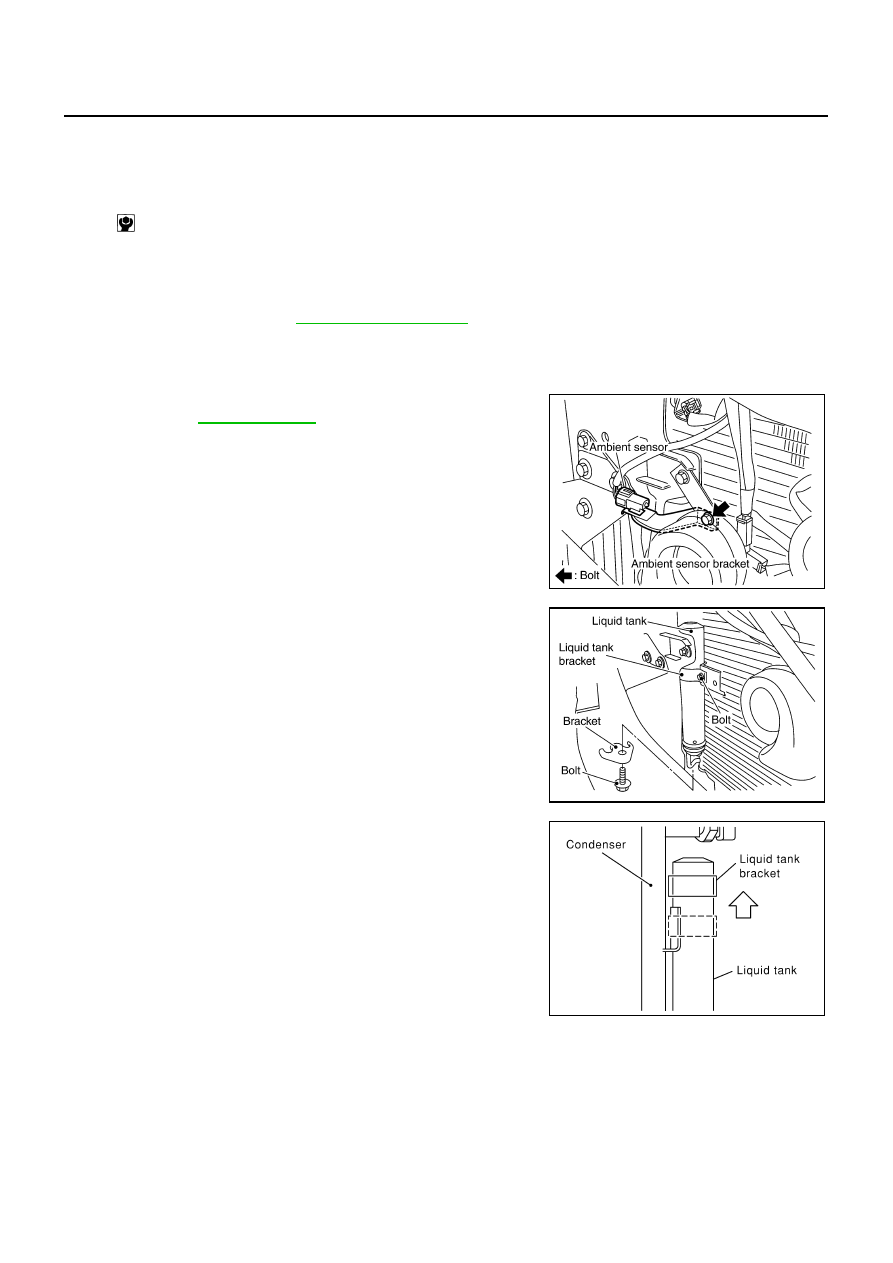

Removal and Installation of Liquid Tank

NJS0004L

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove front grille. Refer to

EI-18, "FRONT GRILLE"

 .

3.

Clean liquid tank and its surrounding area, and remove dust and rust from liquid tank.

CAUTION:

Be sure to clean carefully.

4.

Remove ambient sensor bracket after removing horn (right
side). Refer to

WW-44, "HORN"

 .

5.

Remove mounting bolts from liquid tank.

6.

Lift liquid tank bracket upward. Remove liquid tank bracket from
protruding part of condenser.

7.

Slide liquid tank upward, and then remove liquid tank.

Low-pressure flexible hose bracket mounting bolt

: 4.2 N·m (0.43 kg-m, 37 in-lb)

RJIA1869E

RJIA3594E

RJIA0672E
