INSTALLATION

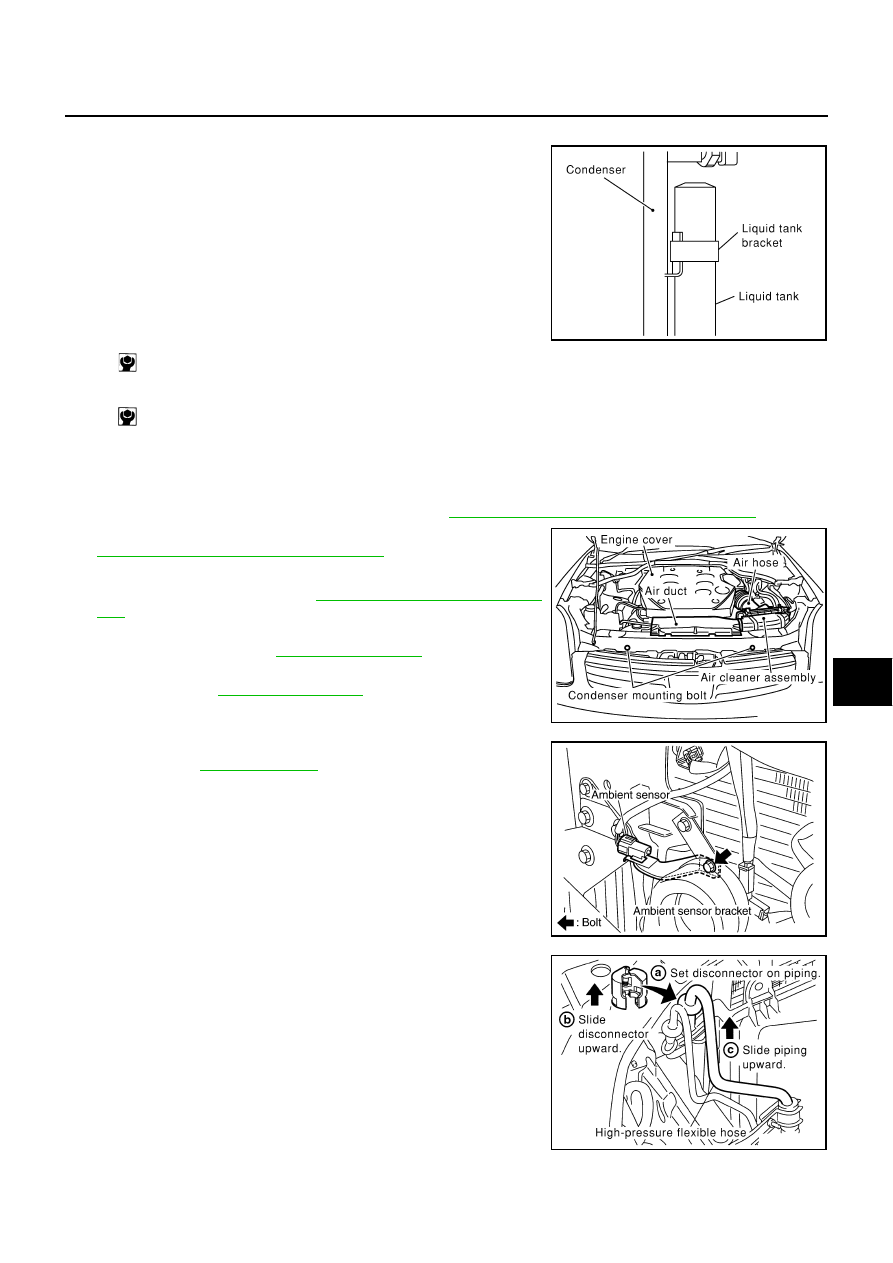

 Install liquid tank, and then install liquid tank bracket on condenser.

CAUTION:

●

Make sure liquid tank bracket is securely installed at protru-
sion of condenser.

●

Make sure liquid tank bracket does not move to a position
below center of liquid tank.

●

Replace O-rings of A/C piping with new ones, and then
apply compressor oil to it when installing it.

●

When recharging refrigerant, check for leaks.

Removal and Installation of Condenser

NJS0004M

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove engine cover, using power tools. Refer to

EM-18, "INTAKE MANIFOLD COLLECTOR"

 .

3.

Remove air cleaner assembly, air hose and air duct. Refer to

EM-16, "AIR CLEANER AND AIR DUCT"

 .

4.

Remove engine under cover, using power tools.

5.

Drain engine coolant. Refer to

CO-10, "Changing Engine Cool-

ant"

 .

6.

Remove radiator fan shroud with cooling fan after removing radi-
ator upper hose. Refer to

CO-13, "RADIATOR"

 .

7.

Remove radiator reservoir tank and radiator reservoir tank
bracket. Refer to

CO-13, "RADIATOR"

 .

8.

Remove ambient sensor bracket after removing horn (right
side). Refer to

WW-44, "HORN"

 .

9.

Disconnect high-pressure flexible hose and high-pressure pipe
1 from condenser.

a.

Set a disconnector [condenser outlet (SST: 9253089908), con-
denser inlet (SST: 9253089912)] on A/C piping.

b.

Slide a disconnector upward until it clicks.

c.

Slide A/C piping upward and disconnect it.

CAUTION:

Cap or wrap the joint of condenser, high-pressure flexible
hose and high-pressure pipe 1 with suitable material such
as vinyl tape to avoid the entry of air.

10. Remove mounting bolts from condenser.

Liquid tank bracket mounting bolt (upper side)

: 3.4 N·m (0.34 kg-m, 30 in-lb)

Liquid tank bracket mounting bolt (lower side)

: 5.7 N·m (0.58 kg-m, 50 in-lb)

RJIA0673E

RJIA0450E

RJIA1869E

RJIA0967E

ATC-148

REFRIGERANT LINES

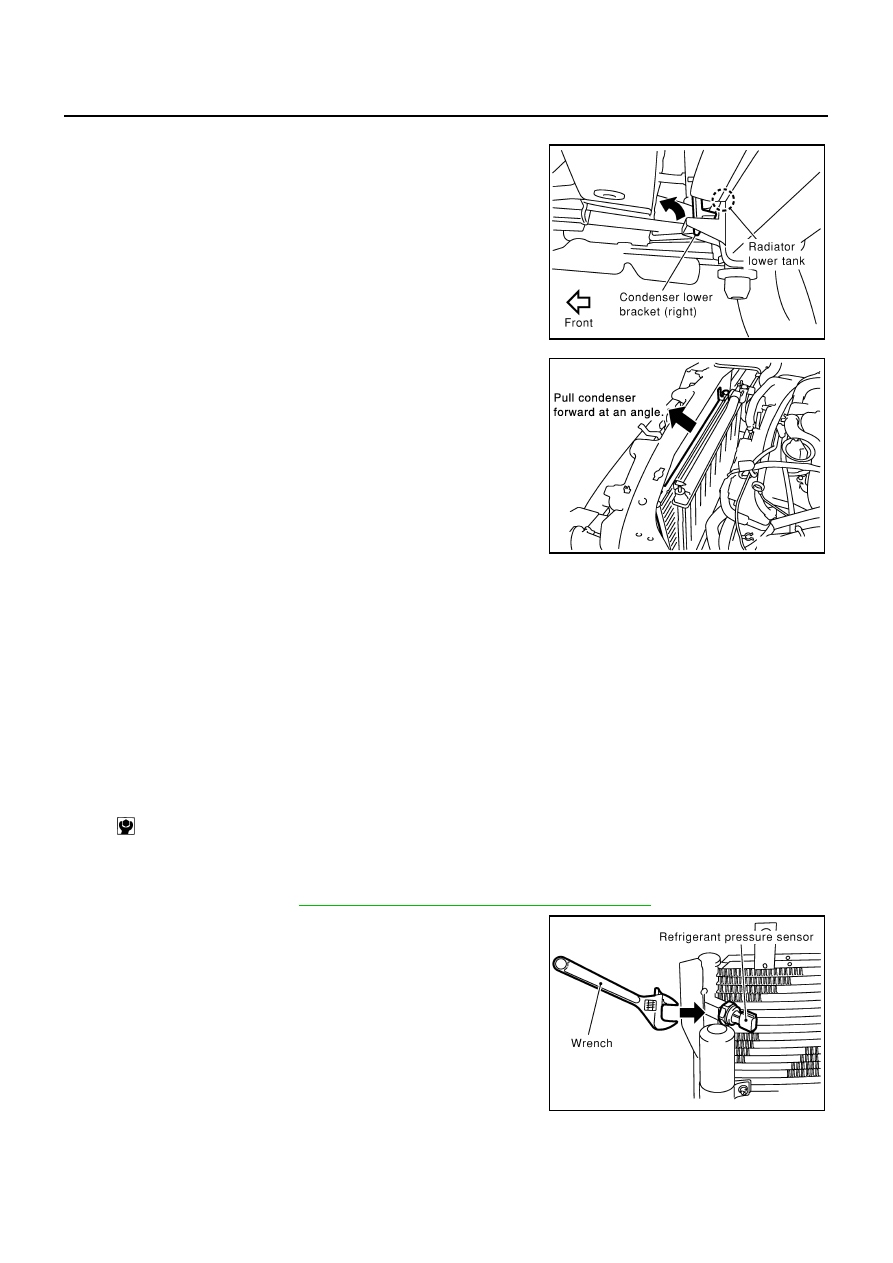

11. Remove radiator upper mount, move radiator and condenser to the engine side.

12. Lift condenser up slightly and tilt it toward front of vehicle. (This

is because condenser lower bracket is on bottom of radiator
tank.)

13. Pull condenser forward at an angle. Remove condenser from

radiator.

CAUTION:

Be careful not to damage the core surface of condenser and
radiator.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

●

Replace O-rings of high-pressure flexible hose and high-pressure pipe 1 with new ones, and then
apply compressor oil to it when installing it.

●

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

●

Insert piping securely until a click is heard.

●

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

●

When recharging refrigerant, check for leaks.

Removal and Installation of Refrigerant Pressure Sensor

NJS0004N

REMOVAL

1.

Remove condenser. Refer to

ATC-147, "Removal and Installation of Condenser"

 .

2.

Remove refrigerant pressure sensor from condenser.

CAUTION:

When working, be careful not to damage the condenser.

RJIA0669E

RJIA0670E

Condenser mounting bolt

: 6.1 N·m (0.62 kg-m, 54 in-lb)

RJIA0668E

REFRIGERANT LINES

ATC-149

C

D

E

F

G

H

I

K

L

M

A

B

ATC

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

Apply compressor oil to O-ring of refrigerant pressure sensor when installing it.

Removal and Installation of Evaporator

NJS0004O

REMOVAL

1.

Remove low-pressure pipe 2 and high-pressure pipe 2. Refer to

ATC-144, "Removal and Installation of

Low-pressure Pipe 2 and High-pressure Pipe 2"

 .

CAUTION:

Cap or wrap the joint of evaporator, low-pressure pipe 1, 2 and high-pressure pipe 1, 2 with suit-
able material such as vinyl tape to avoid the entry of air.

2.

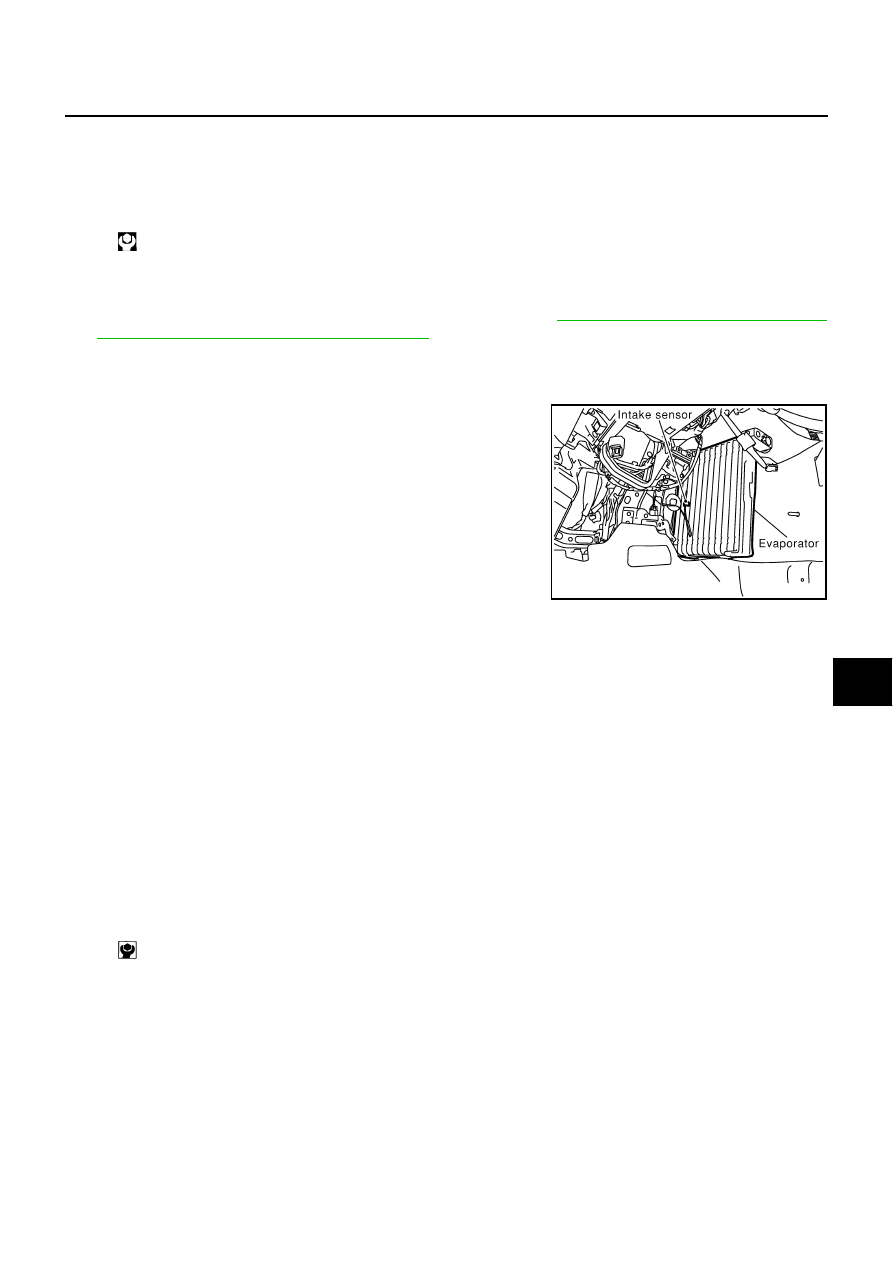

Slide evaporator, and then remove it from heater & cooling unit
assembly.

3.

Remove intake sensor from evaporator, and then remove evap-
orator.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

●

Replace O-rings of evaporator, low-pressure pipe 1, 2 and high-pressure pipe 1, 2 with new ones,
and then apply compressor oil to it when installing it.

●

Female-side piping connection is thin and easy to deform. Slowly insert the male-side piping
straight in axial direction.

●

Insert piping securely until a click is heard.

●

After piping connection is completed, pull male-side piping by hand to make sure that connection
does not come loose.

●

O-rings are different from low-pressure pipe 1 (high-pressure pipe 1) and low-pressure pipe 2
(high-pressure pipe 2).

●

Mark the mounting position of intake sensor bracket prior to removal so that the reinstalled sen-
sor can be located in the same position.

●

When recharging refrigerant, check for leaks.

Refrigerant pressure sensor

: 10.8 N·m (1.1 kg-m, 8.0 ft-lb)

RJIA0928E

Low-pressure flexible hose bracket mounting bolt

: 4.2 N·m (0.43 kg-m, 37 in-lb)

ATC-150

REFRIGERANT LINES

Removal and Installation of Expansion Valve

NJS0004P

REMOVAL

1.

Remove evaporator. Refer to

ATC-149, "Removal and Installation of Evaporator"

 .

2.

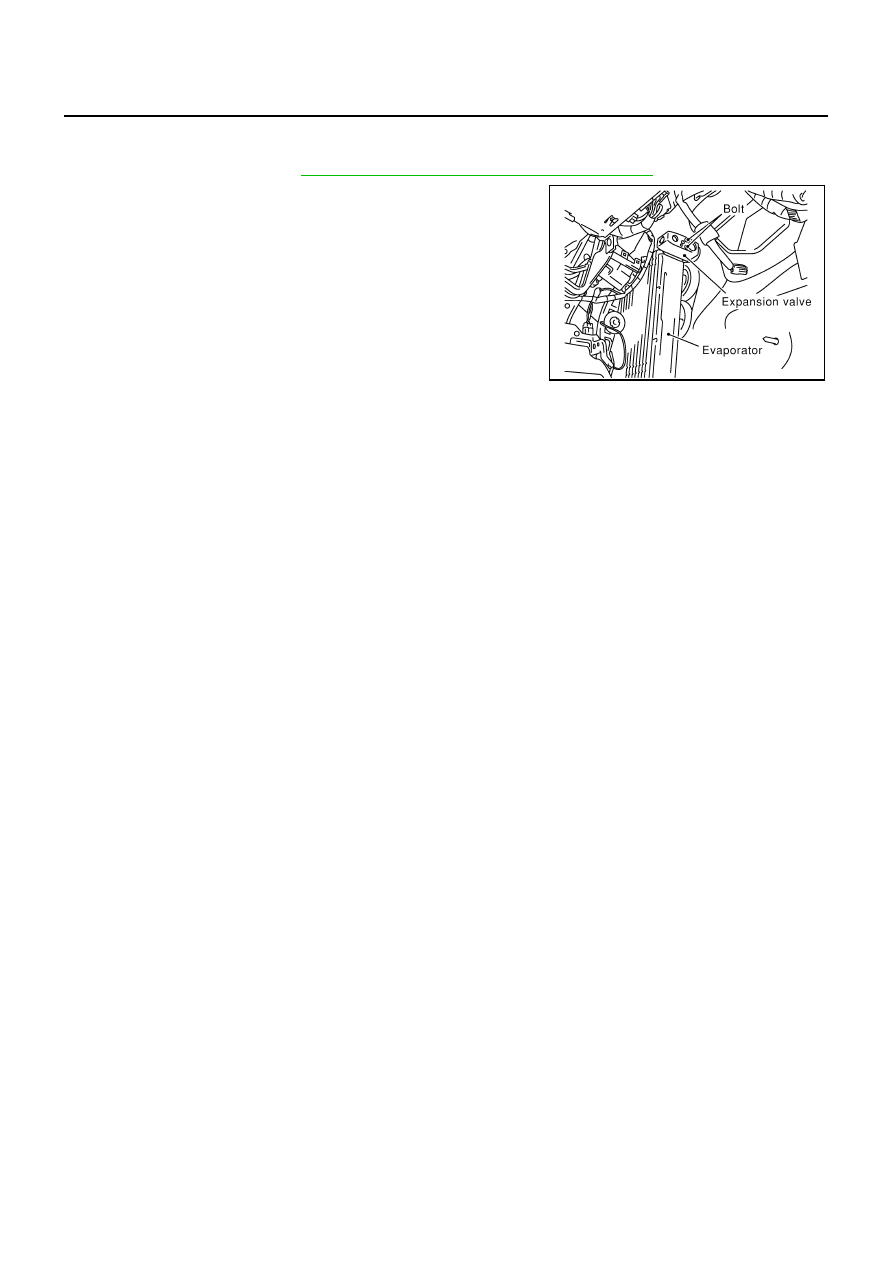

Remove mounting bolts, and then remove expansion valve.

CAUTION:

Cap or wrap the joint of evaporator with suitable material
such as vinyl tape to avoid the entry of air.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

●

Replace O-rings of evaporator with new ones, and then apply compressor oil to it when installing
it.

●

O-rings are different from low-pressure pipe 1 (high-pressure pipe 1) and low-pressure pipe 2
(high-pressure pipe 2).

●

When recharging refrigerant, check for leaks.
