REFRIGERANT LINES

ATC-135

C

D

E

F

G

H

I

K

L

M

A

B

ATC

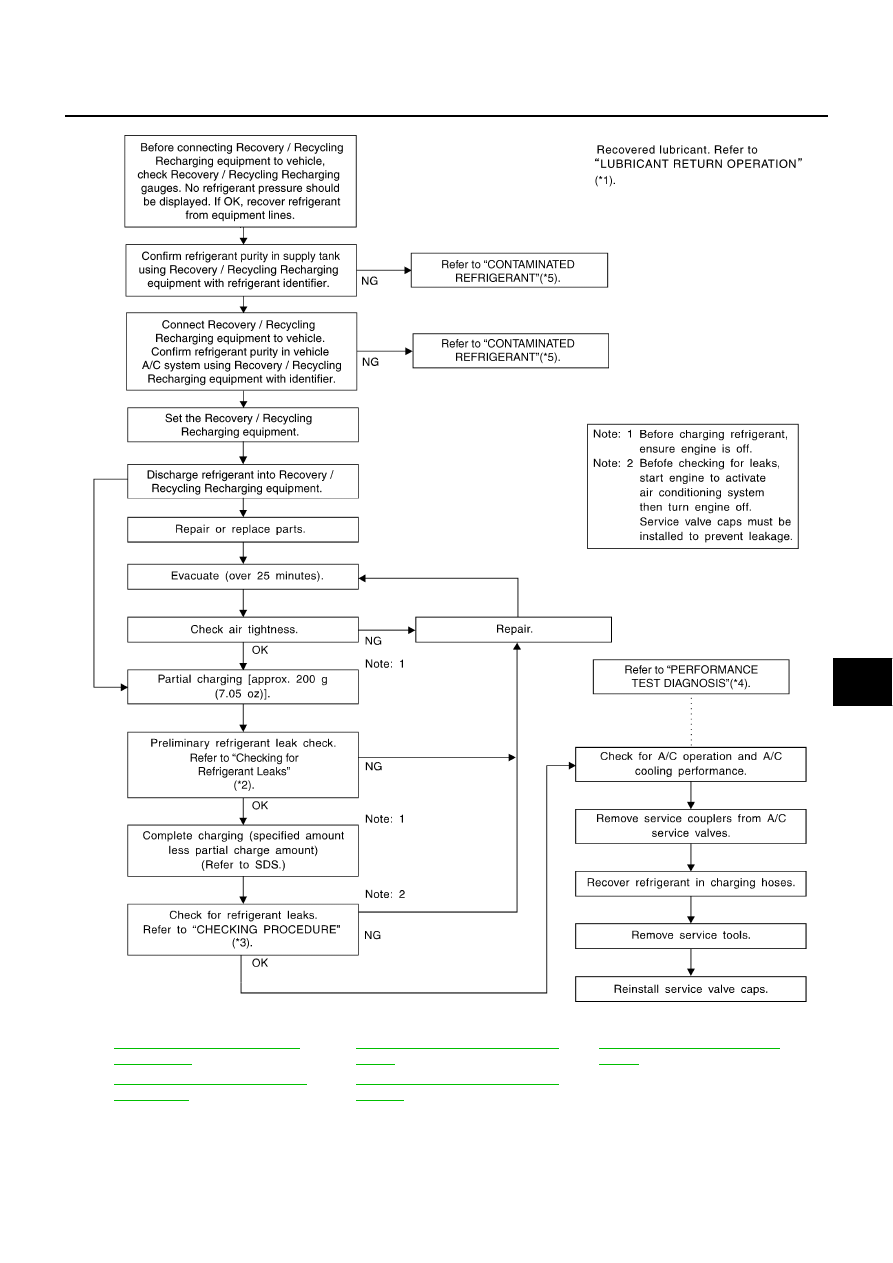

*1

ATC-25, "LUBRICANT RETURN
OPERATION"

*2

ATC-151, "Checking for Refrigerant
Leaks"

*3

ATC-153, "CHECKING PROCE-
DURE"

*4

ATC-90, "PERFORMANCE TEST
DIAGNOSIS"

*5

ATC-6, "CONTAMINATED REFRIG-
ERANT"

SJIA1275E

ATC-136

REFRIGERANT LINES

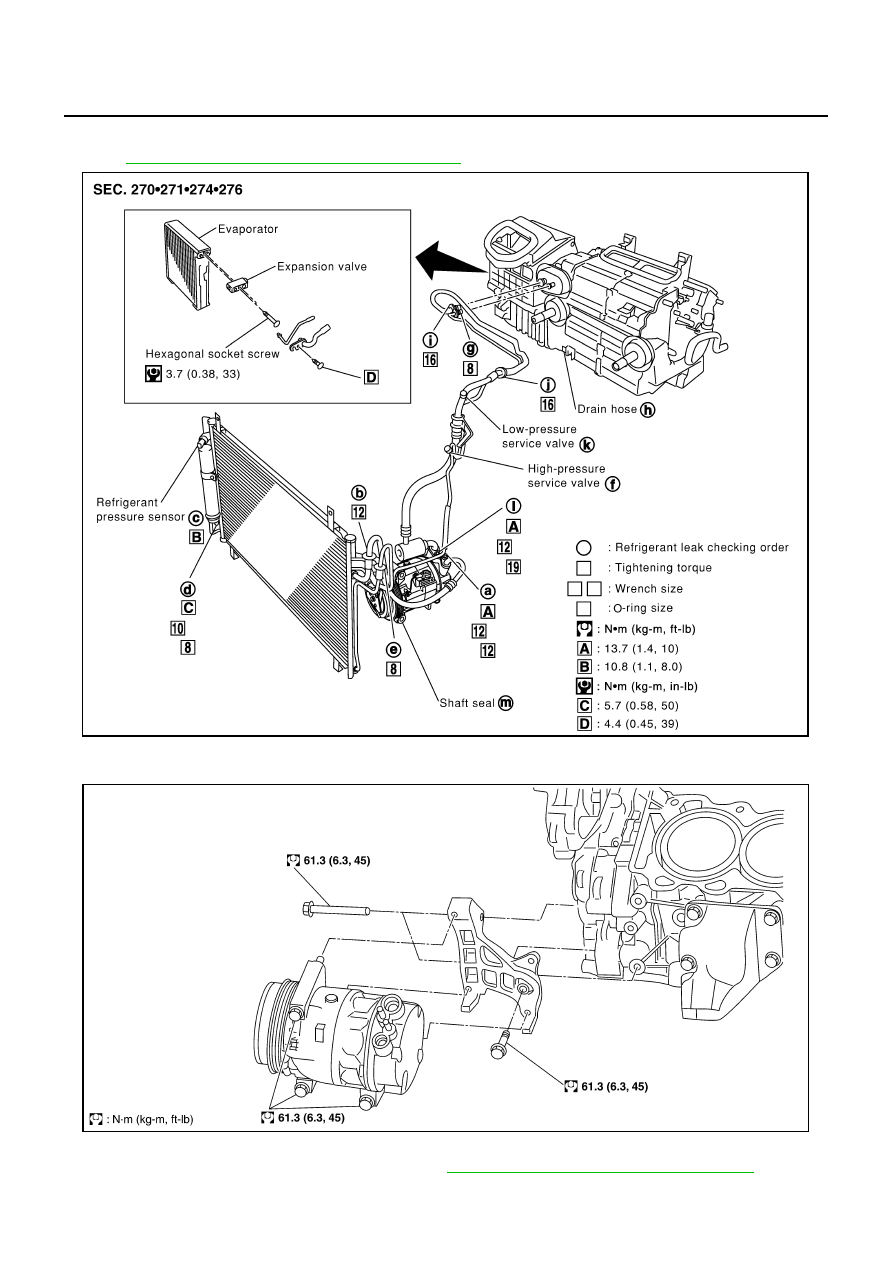

Components

NJS0004D

Refer to

ATC-7, "Precautions for Refrigerant Connection"

 .

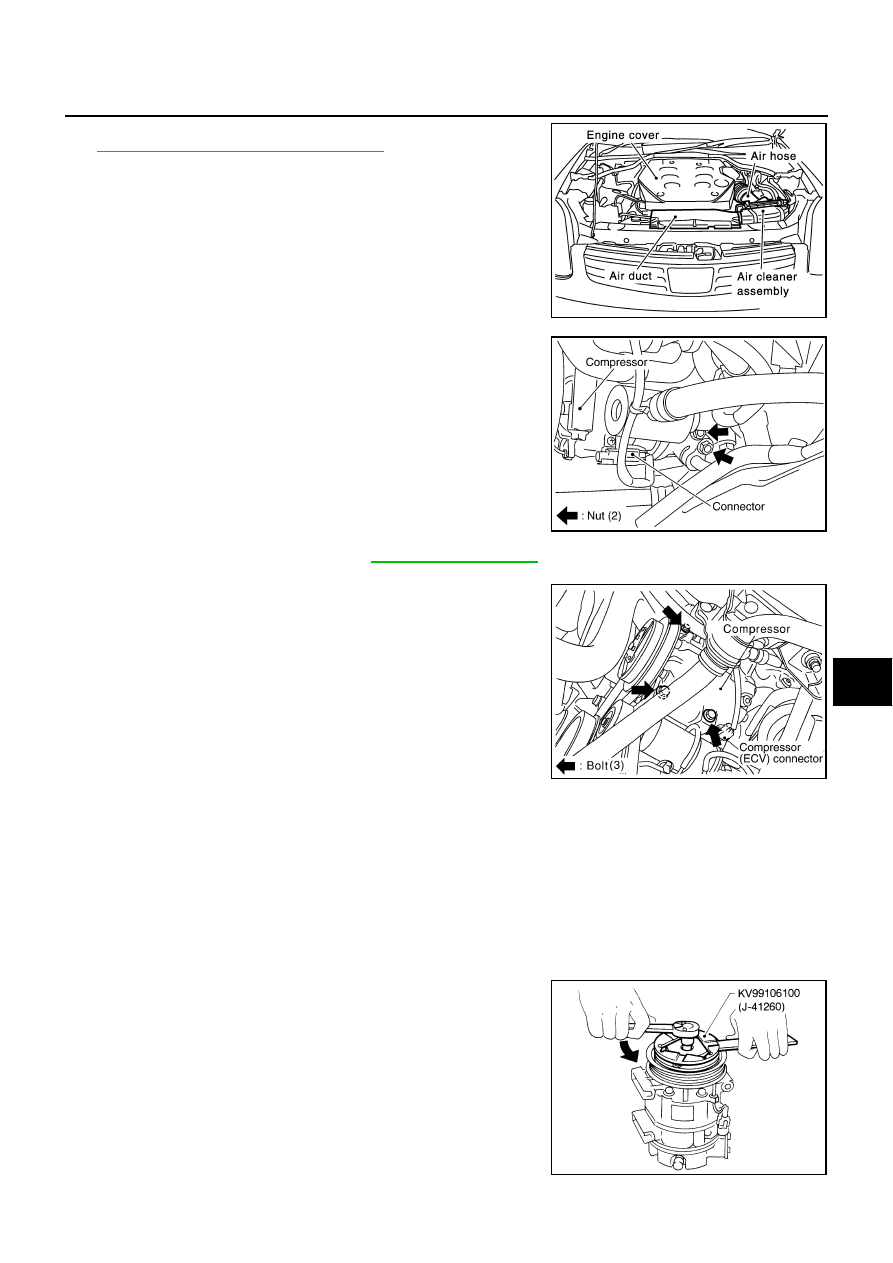

Removal and Installation of Compressor

NJS0004E

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant.

2.

Remove engine cover, using power tools. Refer to

EM-18, "INTAKE MANIFOLD COLLECTOR"

 .

PJIA0156E

SJIA0506E

REFRIGERANT LINES

ATC-137

C

D

E

F

G

H

I

K

L

M

A

B

ATC

3.

Remove air duct, air cleaner assembly and air hose. Refer to

EM-16, "AIR CLEANER AND AIR DUCT"

 .

4.

Remove front air spoiler.

5.

Remove engine under cover, using power tools.

6.

Remove mounting nuts from low-pressure and high-pressure
flexible hose.

CAUTION:

Cap or wrap the joint of compressor, low-pressure flexible
hose and high-pressure flexible hose with suitable material
such as vinyl tape to avoid the entry of air.

7.

Disconnect compressor (magnet clutch) connector.

8.

Remove A/C compressor belt. Refer to

EM-14, "DRIVE BELTS"

 .

9.

Disconnect compressor (ECV) connector.

10. Remove mounting bolts from compressor, using power tools.

11. Remove compressor downward of the vehicle.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

●

Replace O-rings of low-pressure flexible hose and high-pressure flexible hose with new ones, and
then apply compressor oil to it when installing it.

●

When recharging refrigerant, check for leaks.

Removal and Installation of Compressor Clutch

NJS0004F

REMOVAL
Overhaul

1.

When removing center bolt, hold clutch disc with a clutch disc
wrench (SST).

RJIA0442E

RJIA3592E

RJIA1888E

RHA136EB

ATC-138

REFRIGERANT LINES

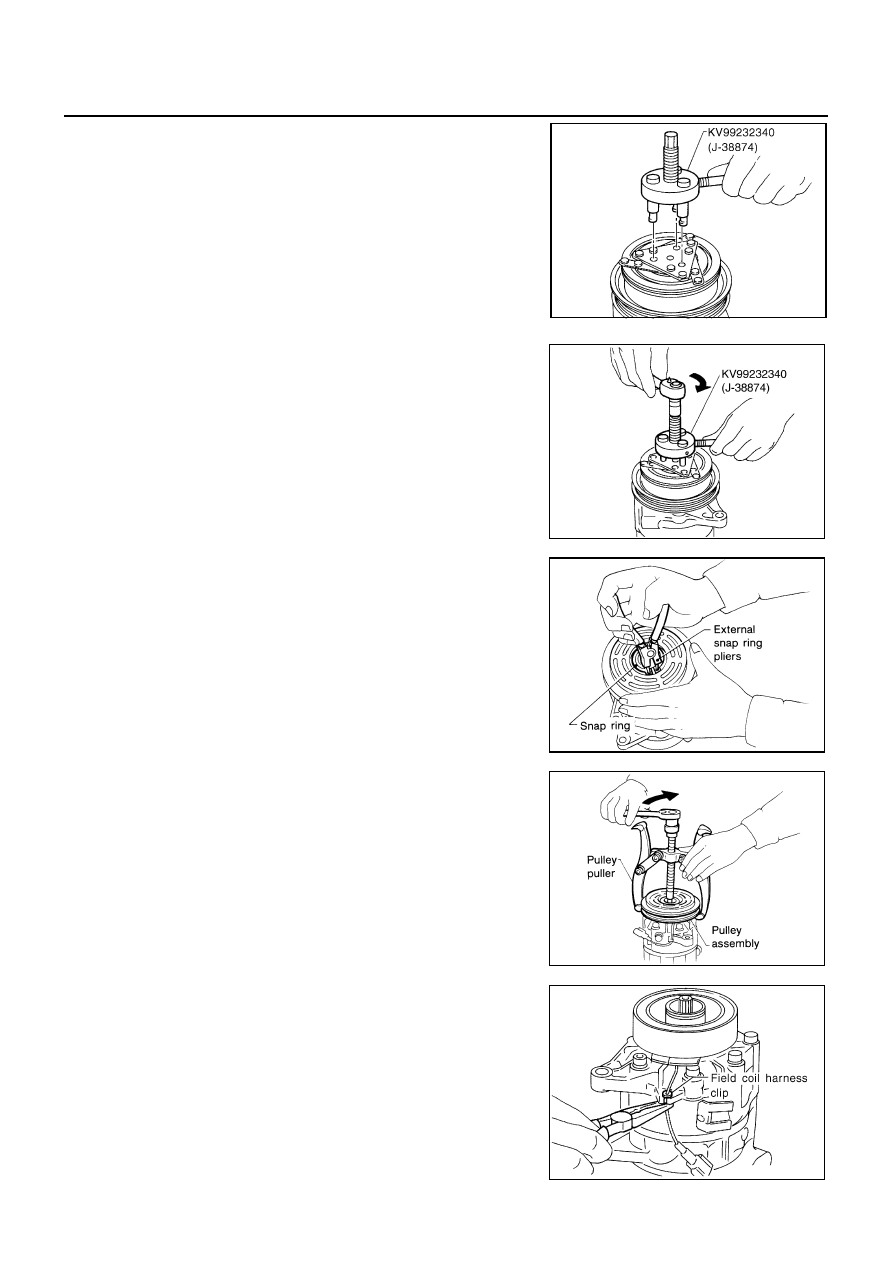

2.

Remove clutch disc using a clutch disc puller (SST).

3.

Remove snap ring using external snap ring pliers.

4.

Position center pulley puller on the end of drive shaft, and
remove pulley assembly using any commercially available pul-
ley puller.
To prevent pulley groove from being deformed, puller claws
should be positioned into the edge of pulley assembly.

5.

Remove field coil harness clip using a pair of pliers.

RHA399F

SJIA1277E

RHA138E

RHA139E

RHA125F
