HEATER & COOLING UNIT ASSEMBLY

ATC-127

C

D

E

F

G

H

I

K

L

M

A

B

ATC

*: With left and right ventilation temperature separately control system.

19.

Insulator

20.

Heater case (right)

21.

Low-pressure pipe 2

22.

O-ring

23.

High-pressure pipe 2

24.

Expansion valve

25.

Evaporator

26.

Heater case (left)

27.

Foot duct (left)

28.

Center case*

29.

Max. cool door (left)

*

30.

Ventilator door

31.

Side link

32.

Mode door motor

33.

Max. cool door
(Without left and right ventilation tem-
perature separately control system)

34.

Defroster door

35.

Max. cool door (right)

*

36.

Defroster door lever

37.

Defroster door link

: N·m (kg-m, in-lb)

: Always replace after every disassembly

ATC-128

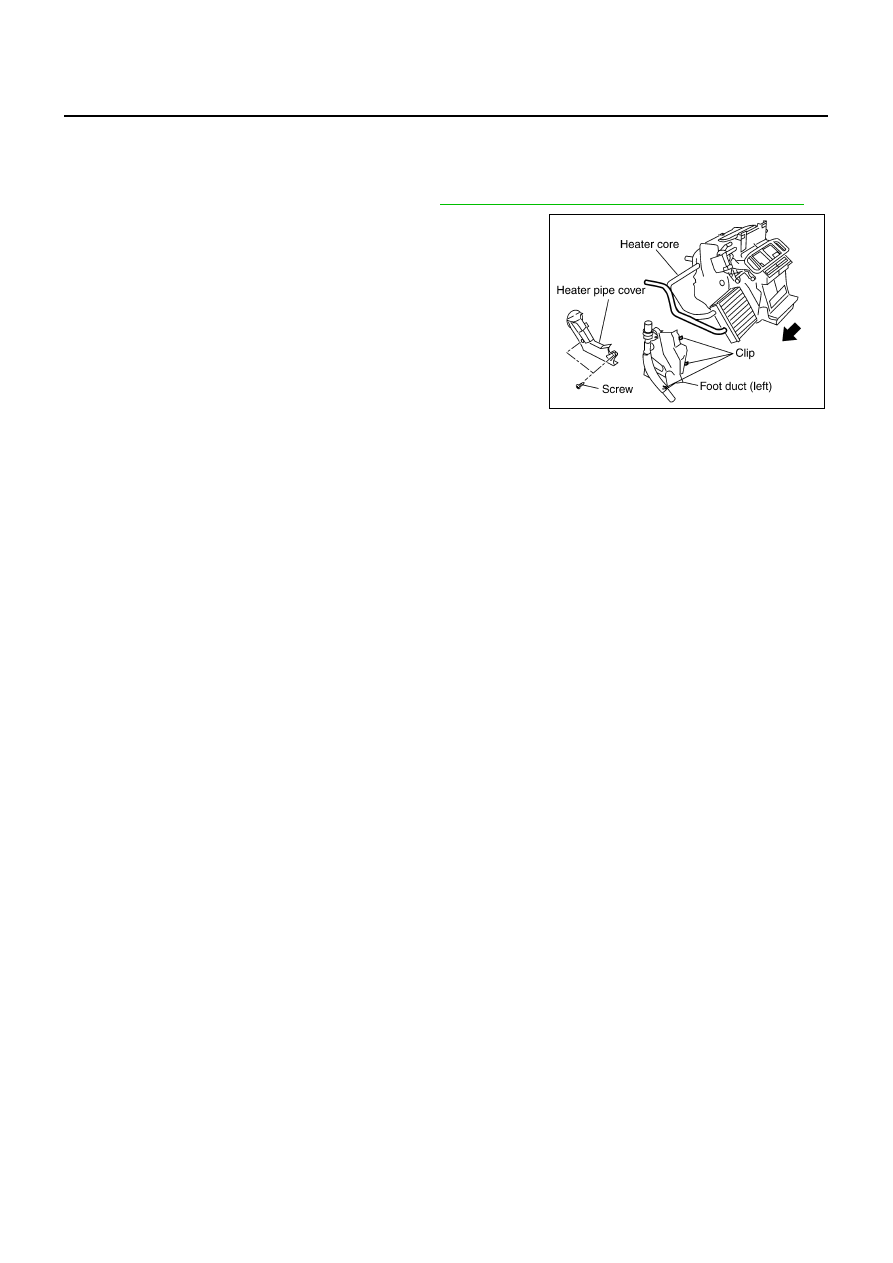

HEATER CORE

HEATER CORE

PFP:27140

Removal and Installation

NJS00048

REMOVAL

1.

Remove heater & cooling unit assembly. Refer to

ATC-124, "HEATER & COOLING UNIT ASSEMBLY"

 .

2.

Remove mounting screws, and then remove heater pipe cover.

3.

Remove mounting clips, and then remove foot duct (left).

4.

Slide heater core to leftward.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA4205E

MODE DOOR MOTOR

ATC-129

C

D

E

F

G

H

I

K

L

M

A

B

ATC

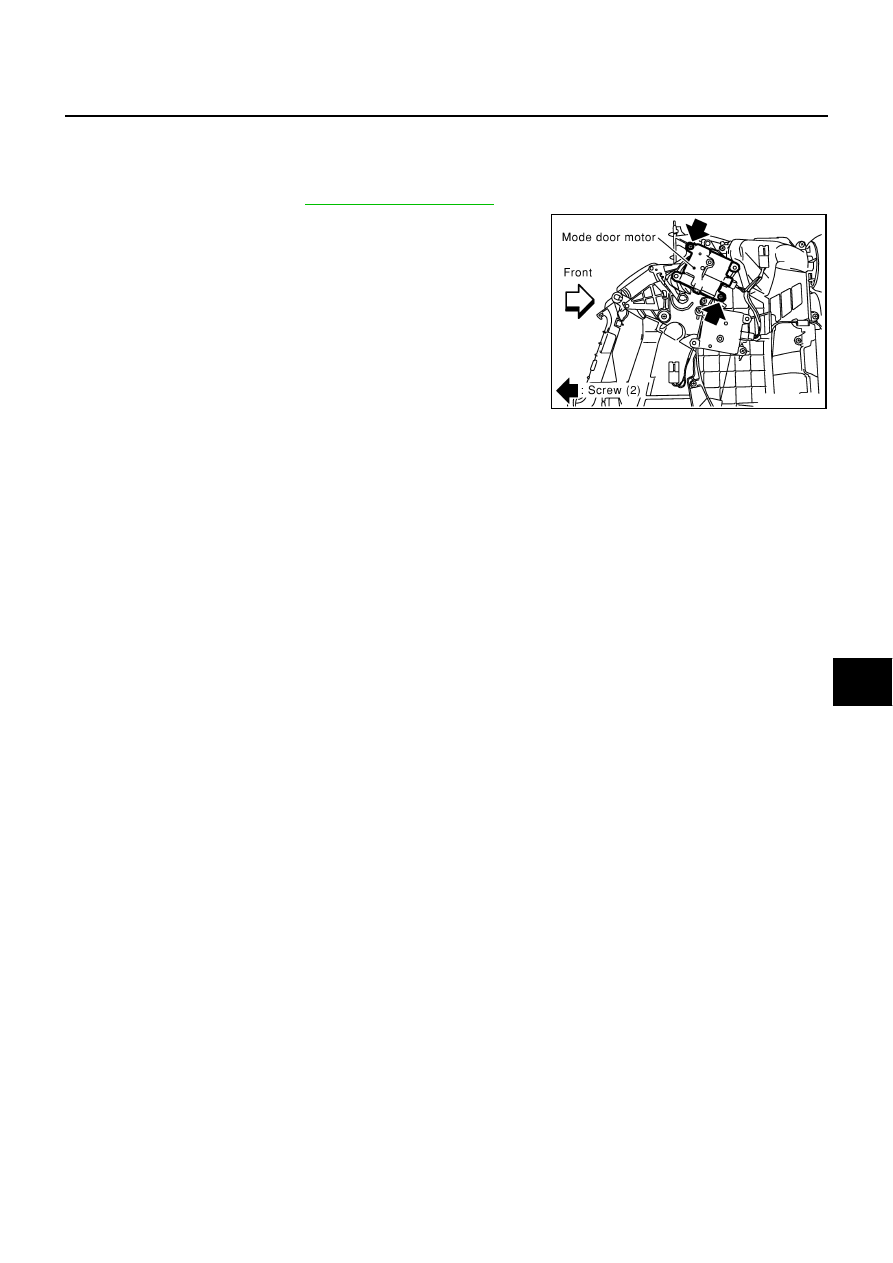

MODE DOOR MOTOR

PFP:27731

Removal and Installation

NJS00049

REMOVAL

1.

Remove blower unit. Refer to

ATC-119, "BLOWER UNIT"

 .

2.

Remove mounting screws, and then remove mode door motor.

3.

Disconnect mode door motor connector.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0954E

ATC-130

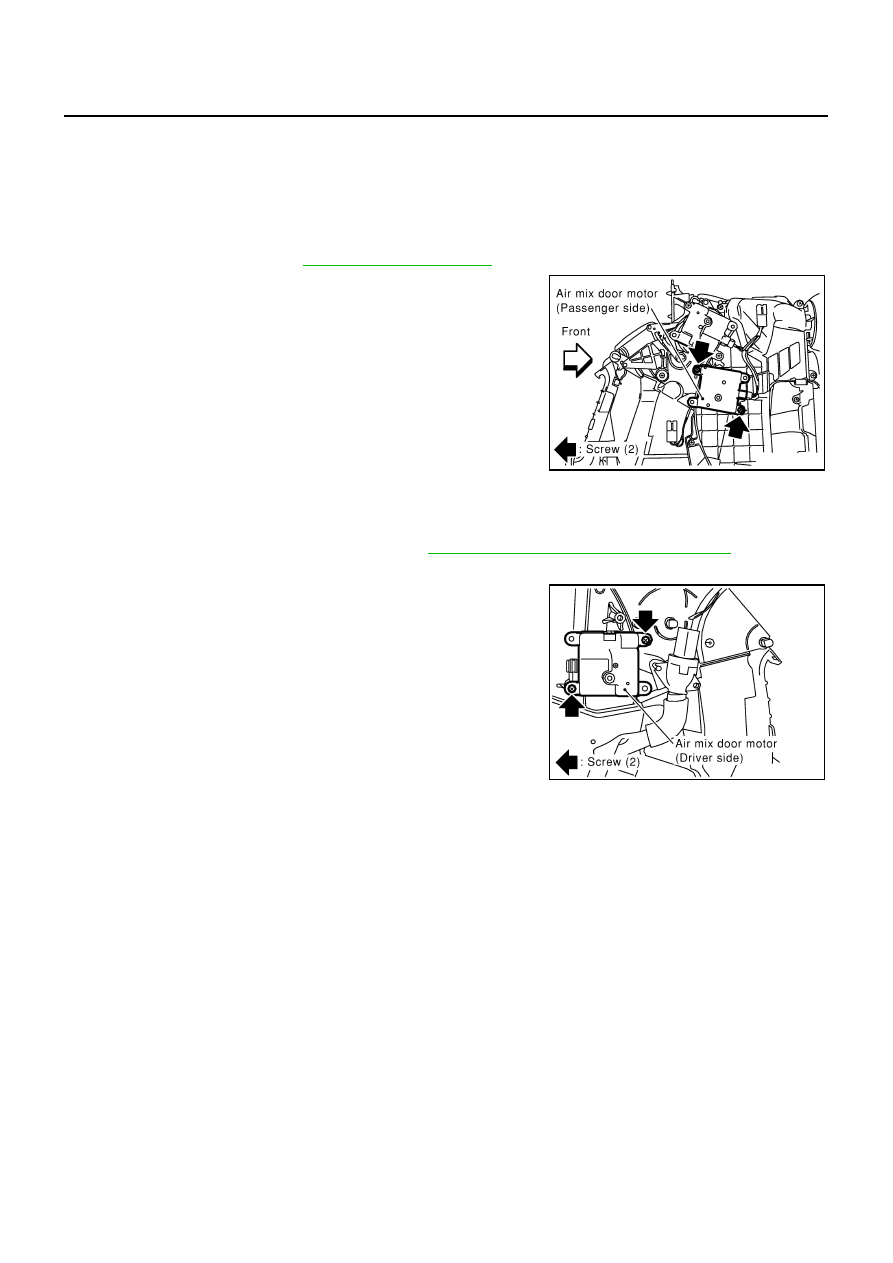

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR

PFP:27732

Removal and Installation

NJS0004A

REMOVAL
Passenger Side

1.

Set the temperature control dial (passenger side) at 18

°

C (60

°

F), and then disconnect the battery cable

from the negative terminal.

2.

Remove blower unit. Refer to

ATC-119, "BLOWER UNIT"

 .

3.

Remove mounting screws, and then remove air mix door motor.

4.

Disconnect air mix door motor connector.

Driver Side (With Left and Right Ventilation Temperature Separately Control System)

1.

Set the temperature control dial (driver side) at 18

°

C (60

°

F), and then disconnect the battery cable from

the negative terminal.

2.

Remove instrument driver lower panel. Refer to

IP-10, "INSTRUMENT PANEL ASSEMBLY"

 .

3.

Disconnect accelerator pedal position sensor connector.

4.

Remove mounting screws, and then remove air mix door motor.

5.

Disconnect air mix door motor connector.

INSTALLATION

Installation is basically the reverse order of removal.

RJIA0955E

RJIA0956E
