ASSEMBLY

AT-311

D

E

F

G

H

I

J

K

L

M

A

B

AT

b.

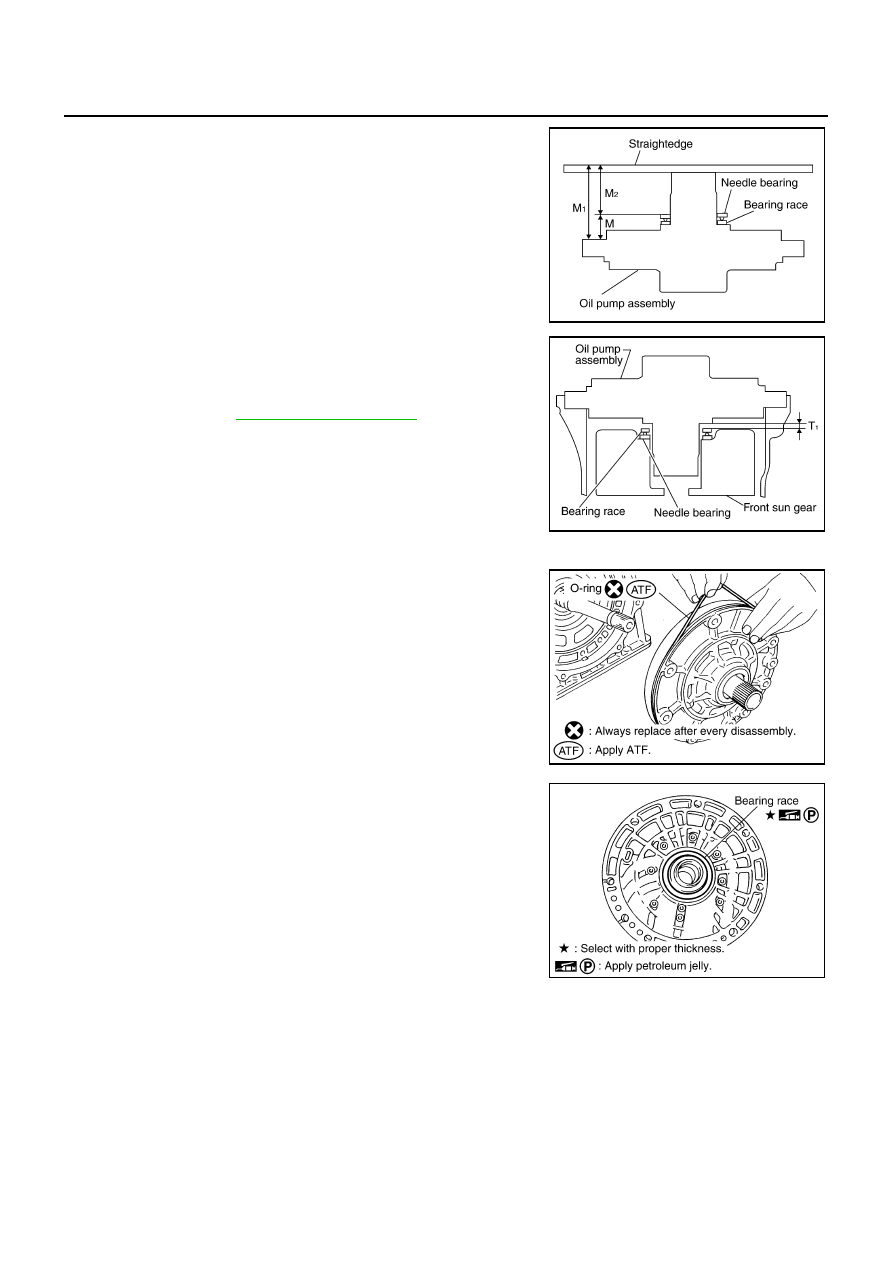

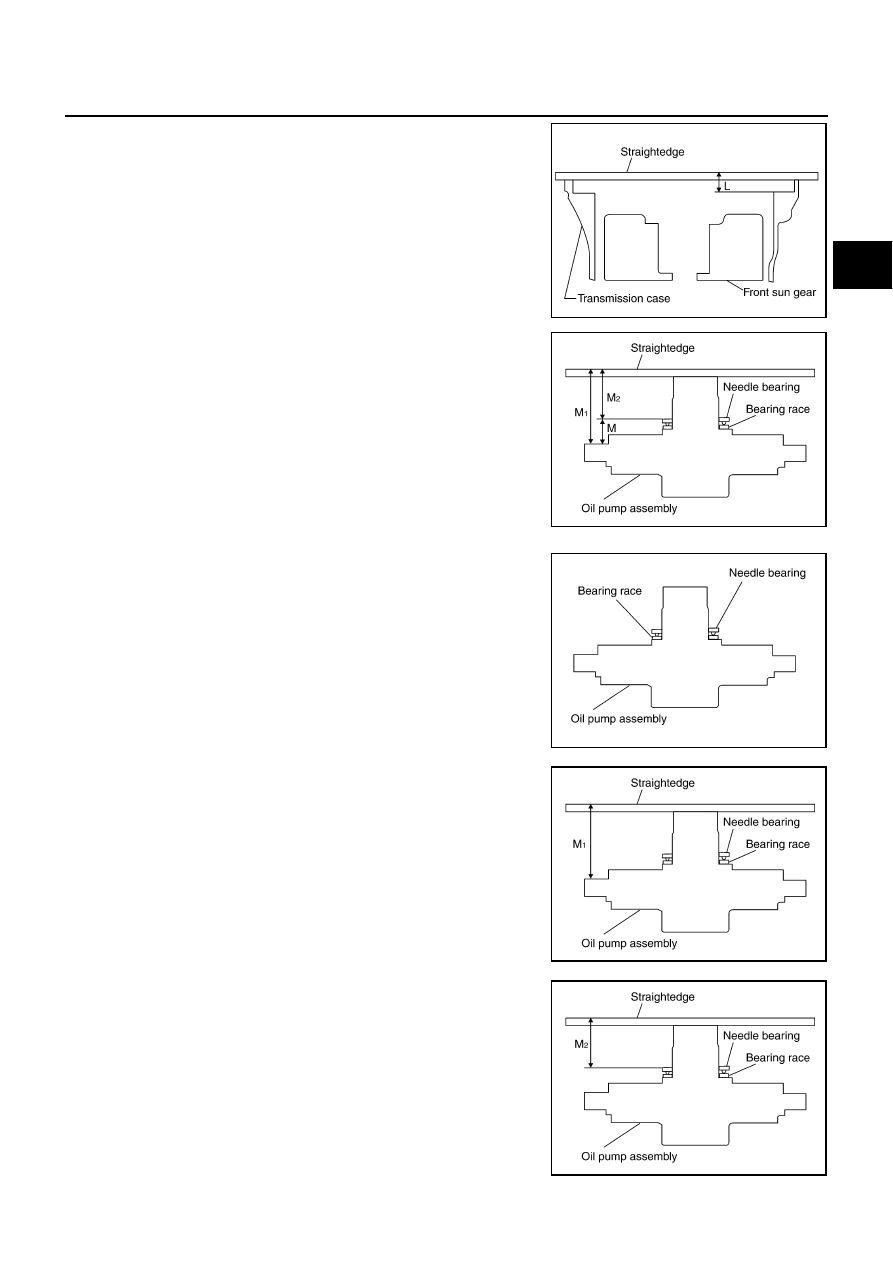

Measure dimension “L”.

c.

Calculate dimension “J”.

2.

Measure dimensions “M

1

 ” and “M

2

 ” and then calculate dimen-

sion “M”.

a.

Place bearing race and needle bearing on oil pump assembly.

b.

Measure dimension “M

1

 ”.

c.

Measure dimension “M

2

 ”.

“J”:

Distance between oil pump fitting surface of
transmission case and needle bearing mating
surface of front sun gear.

J = K – L

SCIA5352E

SCIA3125E

SCIA3124E

SCIA3126E

SCIA3127E

AT-312

ASSEMBLY

d.

Calculate dimension “M”.

3.

Adjust total end play “T

1

 ”.

●

Select proper thickness of bearing race so that total end play
is within specifications. Refer to “Parts Information” for bear-
ing race selection.

Assembly (2)

NCS000JD

1.

Install O-ring to oil pump assembly.

CAUTION:

●

Do not reuse O-ring.

●

Apply ATF to O-ring.

2.

Install bearing race to oil pump assembly.

CAUTION:

Apply petroleum jelly to bearing race.

“M”:

“M”: Distance between transmission case fit-
ting surface of oil pump and needle bearing on
oil pump.

M = M

1

  – M

2

SCIA3125E

T

1

  = J – M

Total end play “T

1

 ”

: Refer to

AT-320, "Total End Play"

 .

SCIA2810E

SCIA5172E

SCIA6529E

ASSEMBLY

AT-313

D

E

F

G

H

I

J

K

L

M

A

B

AT

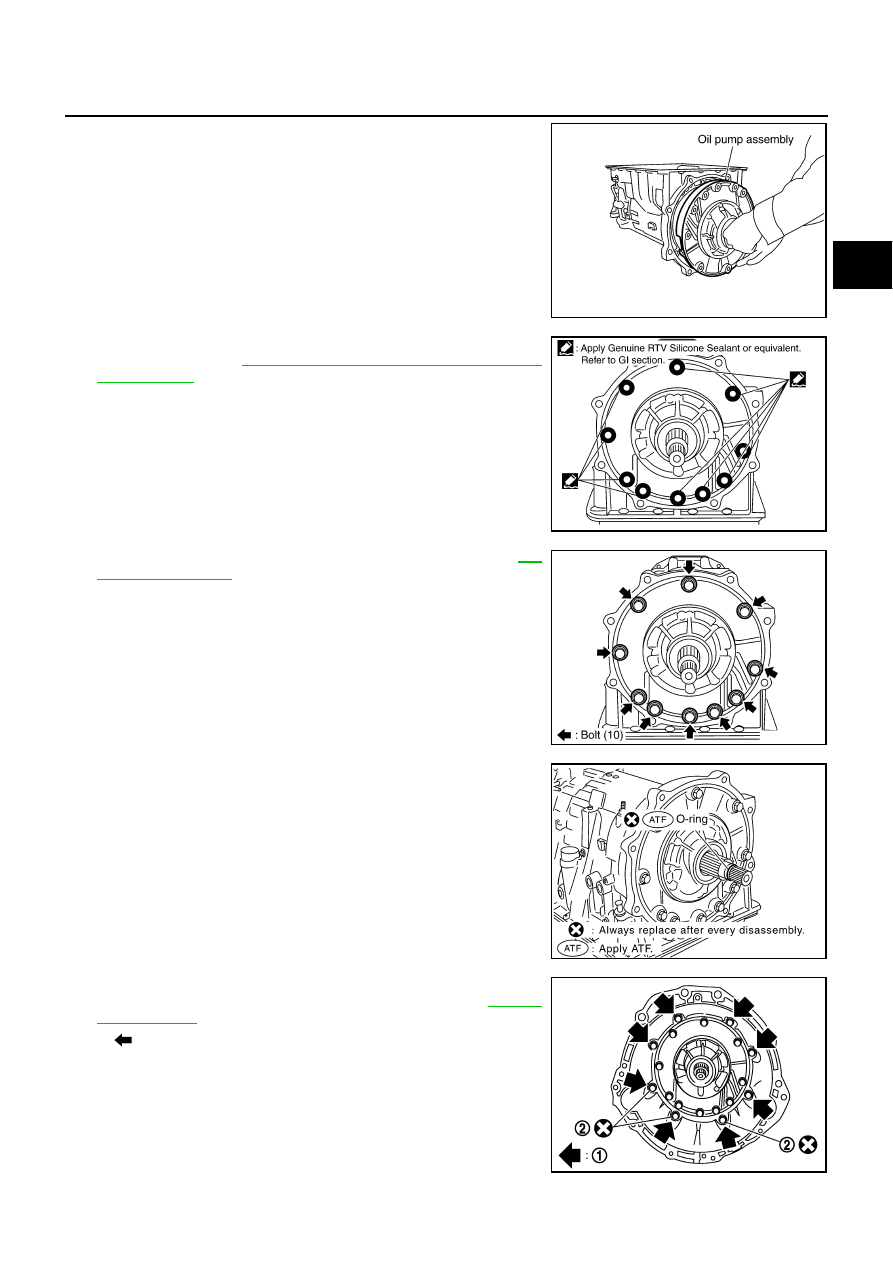

3.

Install oil pump assembly in transmission case.

CAUTION:

Apply ATF to oil pump bearing.

4.

Apply recommended sealant (Genuine RTV Silicone Sealant or
equivalent. Refer to

GI-46, "Recommended Chemical Products

and Sealants"

 .) to oil pump assembly as shown in the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
From the oil pump mounting bolts and oil pump mounting
bolt mounting surfaces.

5.

Tighten oil pump mounting bolts to specified torque. Refer to

AT-

255, "Components"

CAUTION:

Apply ATF to oil pump bushing.

6.

Install O-ring to input clutch assembly.

CAUTION:

●

Do not reuse O-ring.

●

Apply ATF to O-ring.

7.

Install converter housing to transmission case. Tighten con-
verter housing bolts to the specified torque. Refer to

AT-255,

"Components"

 .

●

: Bolt (8)

CAUTION:

Do not reuse self-sealing bolt (2).

SCIA2811E

SCIA5321E

SCIA2300E

SCIA5011E

SCIA8029E

AT-314

ASSEMBLY

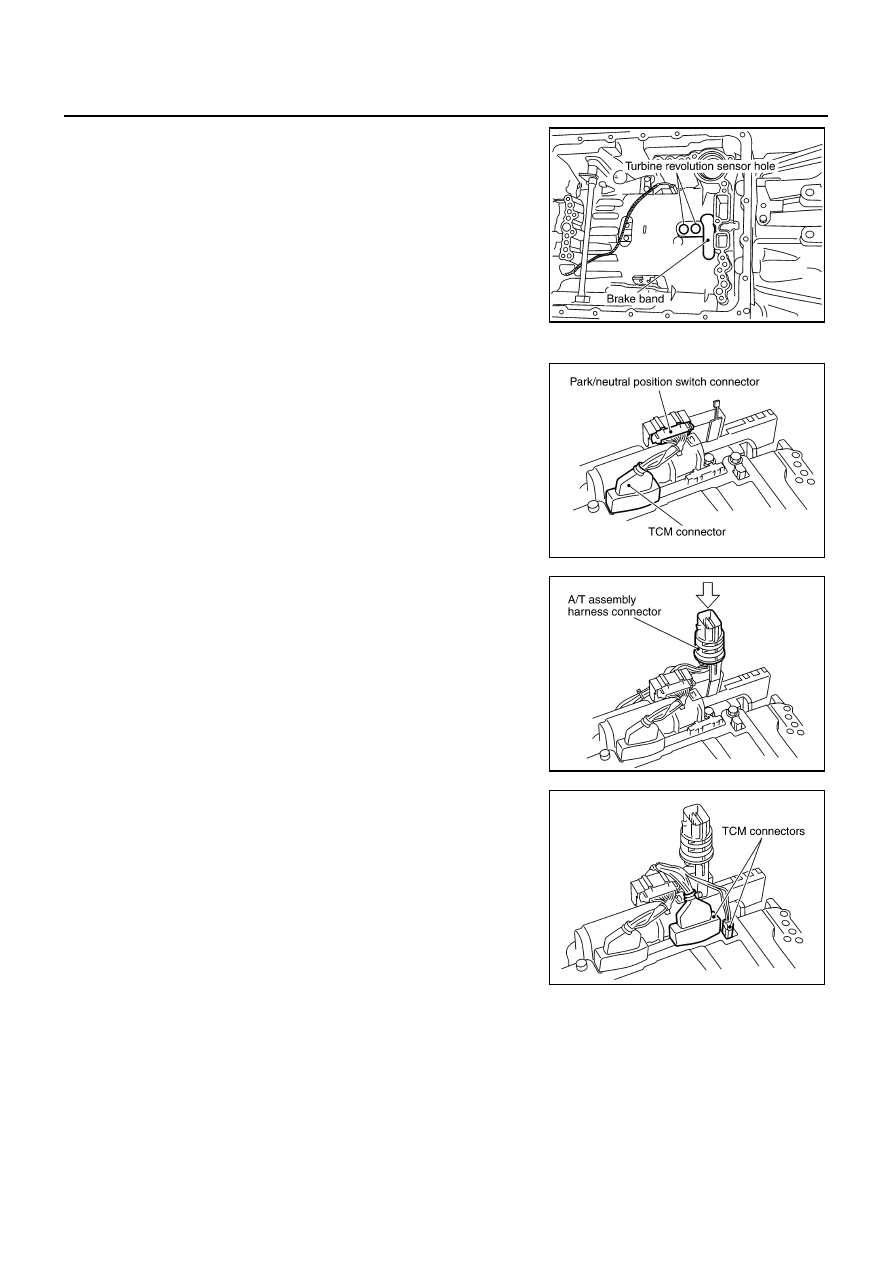

8.

Make sure that brake band does not close turbine revolution
sensor hole.

9.

Install control valve with TCM.

a.

Connect TCM connector and park/neutral position switch con-
nector.

b.

Install A/T assembly harness connector from control valve with
TCM.

c.

Connect TCM connectors.

SCIA5034E

SCIA5449E

SCIA5450E

SCIA5447E
