Infiniti G35 (V35). Manual - part 78

ASSEMBLY

AT-303

D

E

F

G

H

I

J

K

L

M

A

B

AT

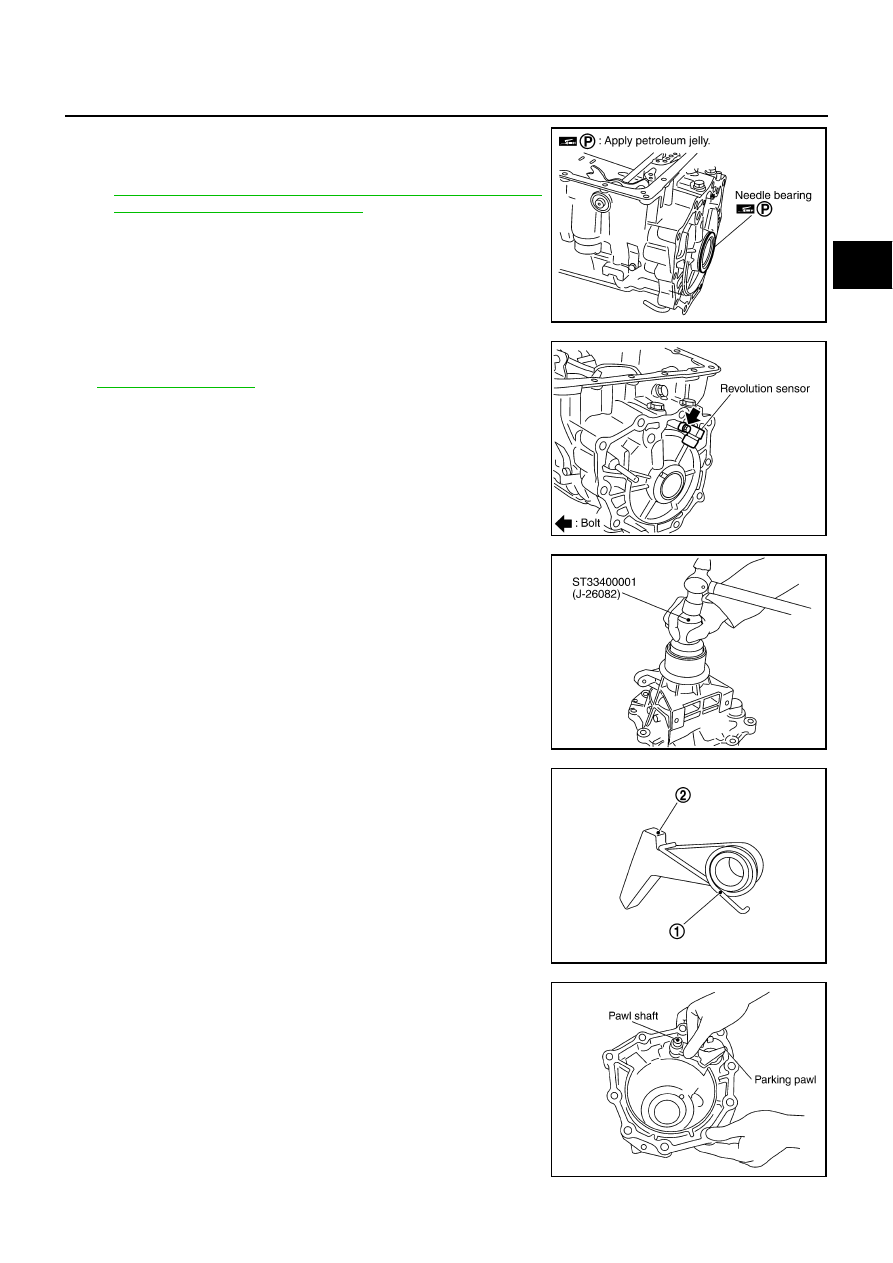

23. Install needle bearing to transmission case.

CAUTION:

●

Take care with the direction of needle bearing. Refer to

AT-262, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

 .

●

Apply petroleum jelly to needle bearing.

24. Install revolution sensor to transmission case, and then tighten

revolution sensor mounting bolt to the specified torque. Refer to

AT-255, "Components"

 .

CAUTION:

●

Do not subject it to impact by dropping or hitting it.

●

Do not disassemble.

●

Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.

●

Do not place in an area affected by magnetism.

25. As shown in the figure, use a drift to drive rear oil seal into the

rear extension until it is flush.

CAUTION:

●

Do not reuse rear oil seal.

●

Apply ATF to rear oil seal.

26. Install return spring (1) to parking pawl (2).

27. Install parking pawl (with return spring) and pawl shaft to rear

extension.

SCIA5031E

SCIA2320E

SCIA5311E

SCIA6180J

SCIA3424E

AT-304

ASSEMBLY

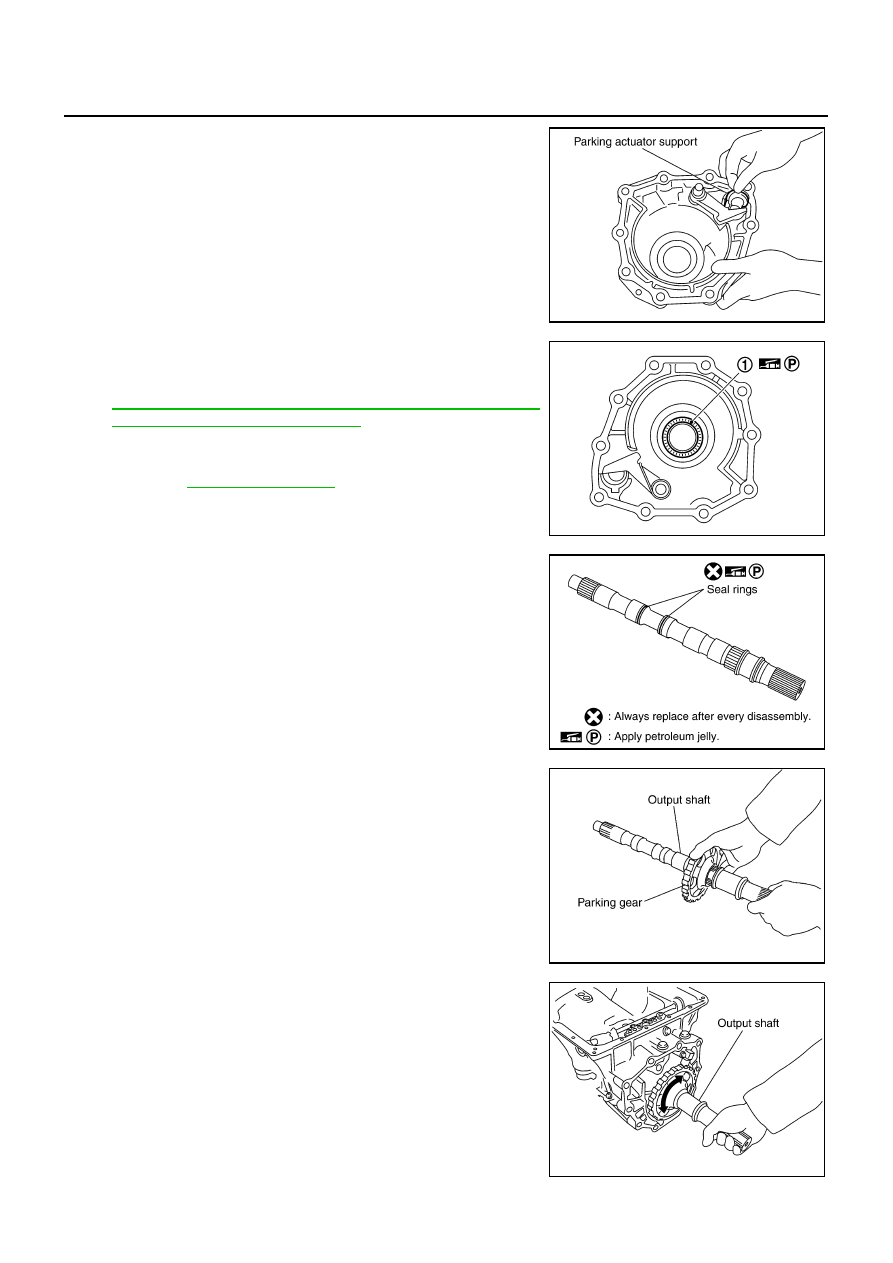

28. Install parking actuator support to rear extension.

29. Install needle bearing (1) to rear extension.

CAUTION:

●

Take care with the direction of needle bearing. Refer to

AT-262, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

 .

●

Apply petroleum jelly to needle bearing.

Refer to GI section to make sure icons (symbol marks) in the fig-
ure. Refer to

GI-10, "Components"

 .

30. Install seal rings to output shaft.

CAUTION:

●

Do not reuse seal rings.

●

Apply petroleum jelly to seal rings.

31. Install parking gear to output shaft.

32. Install output shaft in transmission case.

CAUTION:

Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)

SCIA3423E

SCIA6179J

SCIA5209E

SCIA5247E

SCIA5030E

ASSEMBLY

AT-305

D

E

F

G

H

I

J

K

L

M

A

B

AT

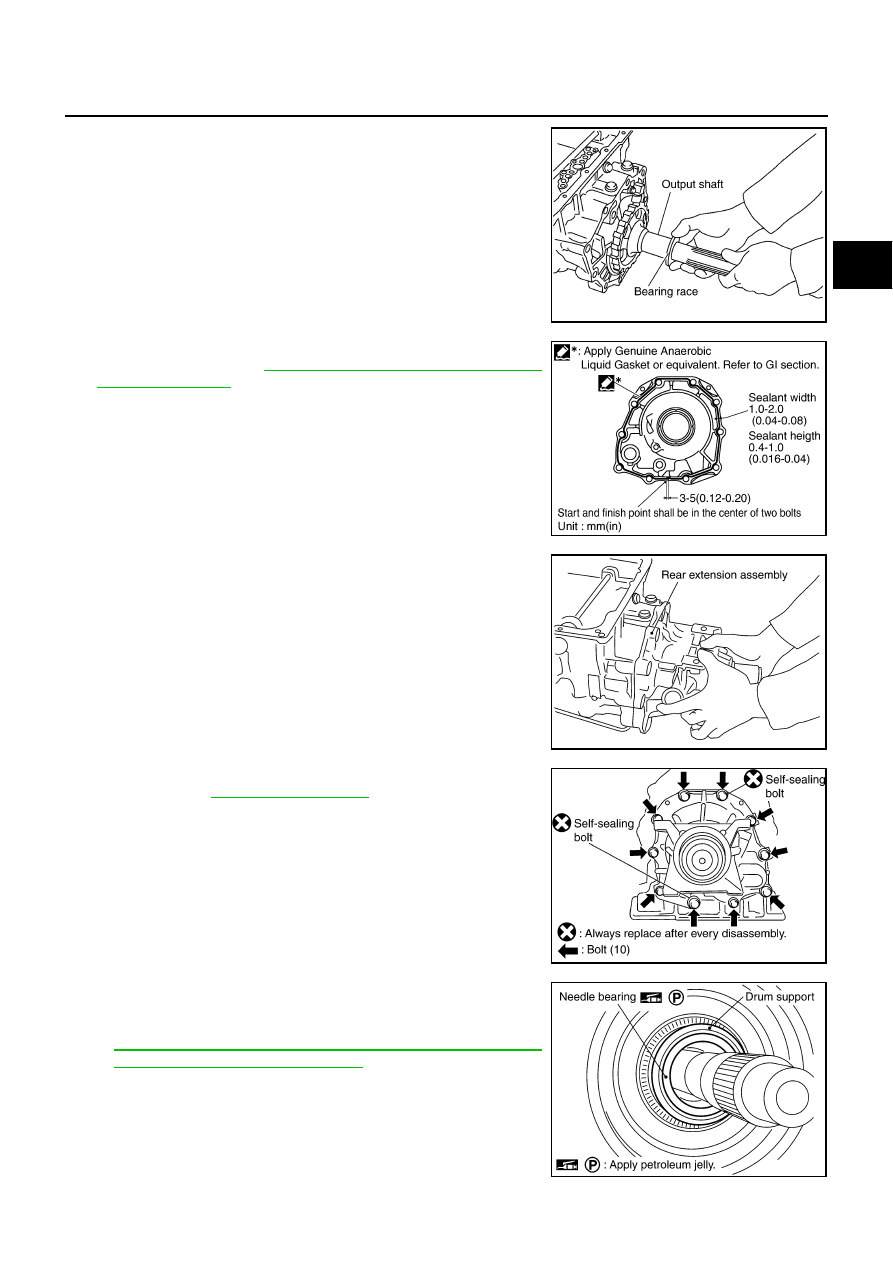

33. Install bearing race to output shaft.

34. Apply recommended sealant (Genuine Anaerobic Liquid Gasket

or equivalent. Refer to

GI-46, "Recommended Chemical Prod-

ucts and Sealants"

 .) to rear extension assembly as shown in

the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.

35. Install rear extension assembly to transmission case.

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

36. Tighten rear extension assembly mounting bolts to the specified

torque. Refer to

AT-255, "Components"

 .

CAUTION:

Do not reuse self-sealing bolts.

37. Install needle bearing in drum support.

CAUTION:

●

Take care with the direction of needle bearing. Refer to

AT-262, "Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings"

 .

●

Apply petroleum jelly to needle bearing.

SCIA5245E

SCIA8228E

SCIA5029E

SCIA6941E

SCIA5198E

AT-306

ASSEMBLY

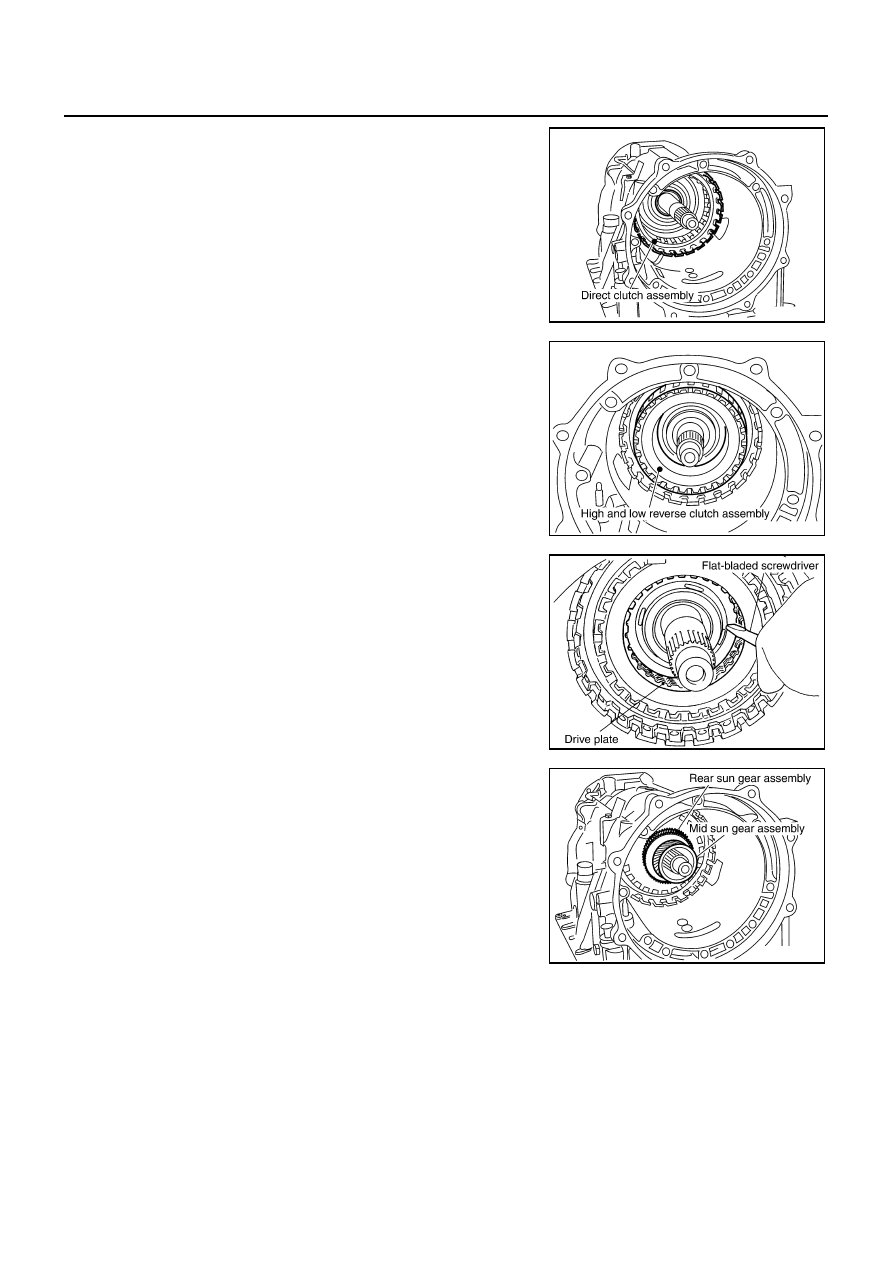

38. Install direct clutch assembly in reverse brake.

CAUTION:

Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.

39. Install high and low reverse clutch assembly in direct clutch.

40. Using a flat-bladed screwdriver, adjust the drive plate.

41. Install high and low reverse clutch hub, mid sun gear assembly

and rear sun gear assembly as a unit.

SCIA5019E

SCIA2306E

SCIA3169E

SCIA5018E
