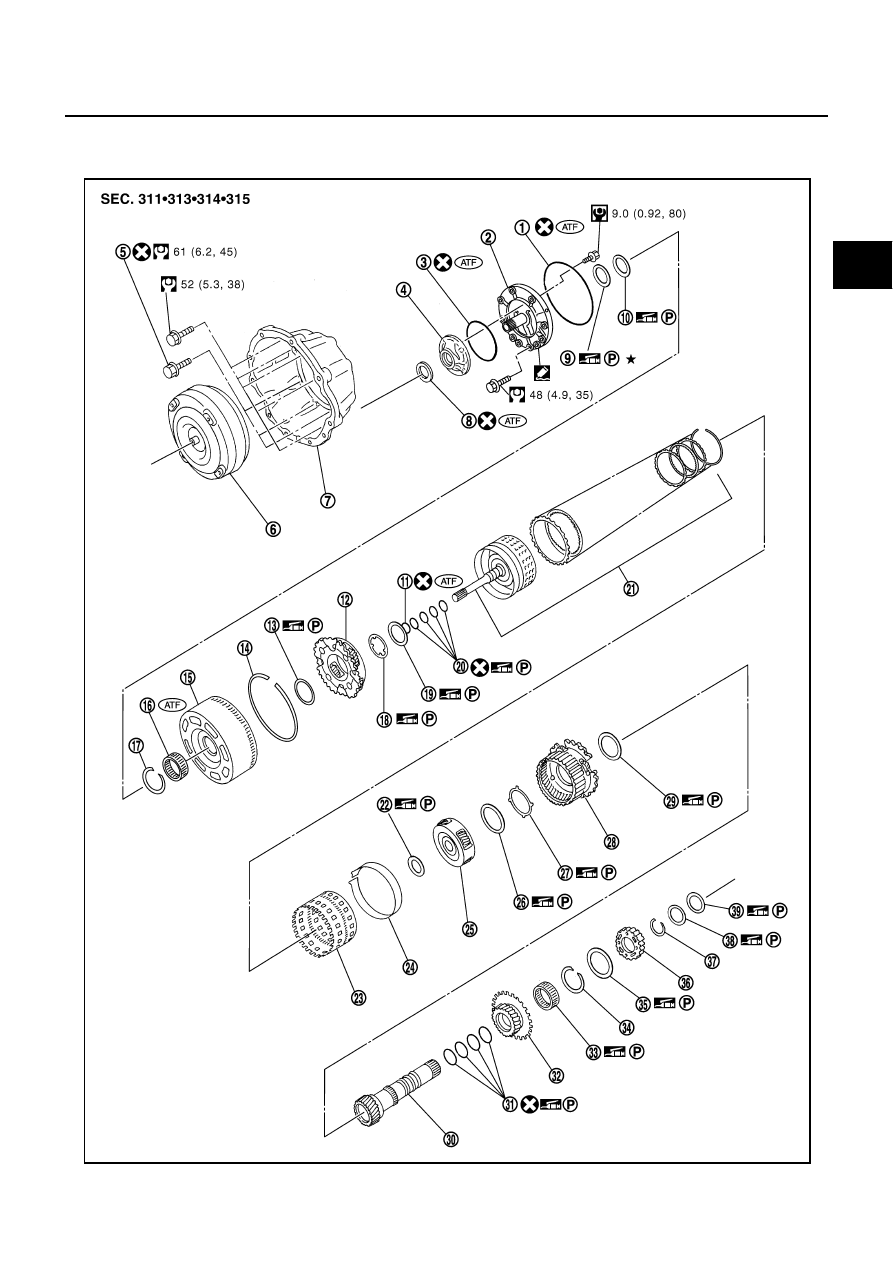

Components

NCS000J1

SCIA7983E

AT-256

OVERHAUL

1.

O-ring

2.

Oil pump cover

3.

O-ring

4.

Oil pump housing

5.

Self-sealing bolt

6.

Torque converter

7.

Converter housing

8.

Oil pump housing oil seal

9.

Bearing race

10.

Needle bearing

11.

O-ring

12.

Front carrier assembly

13.

Needle bearing

14.

Snap ring

15.

Front sun gear

16.

3rd one-way clutch

17.

Snap ring

18.

Bearing race

19.

Needle bearing

20.

Seal ring

21.

Input clutch assembly

22.

Needle bearing

23.

Rear internal gear

24.

Brake band

25.

Mid carrier assembly

26.

Needle bearing

27.

Bearing race

28.

Rear carrier assembly

29.

Needle bearing

30.

Mid sun gear

31.

Seal ring

32.

Rear sun gear

33.

1st one-way clutch

34.

Snap ring

35.

Needle bearing

36.

High and low reverse clutch hub

37.

Snap ring

38.

Bearing race

39.

Needle bearing

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-10, "Components"

 .

However, refer to the following symbols for others.

: Apply Genuine RTV silicone sealant or equivalent. Refer to

GI-46, "Recommended Chemical Products and Sealants"

 .

OVERHAUL

AT-257

D

E

F

G

H

I

J

K

L

M

A

B

AT

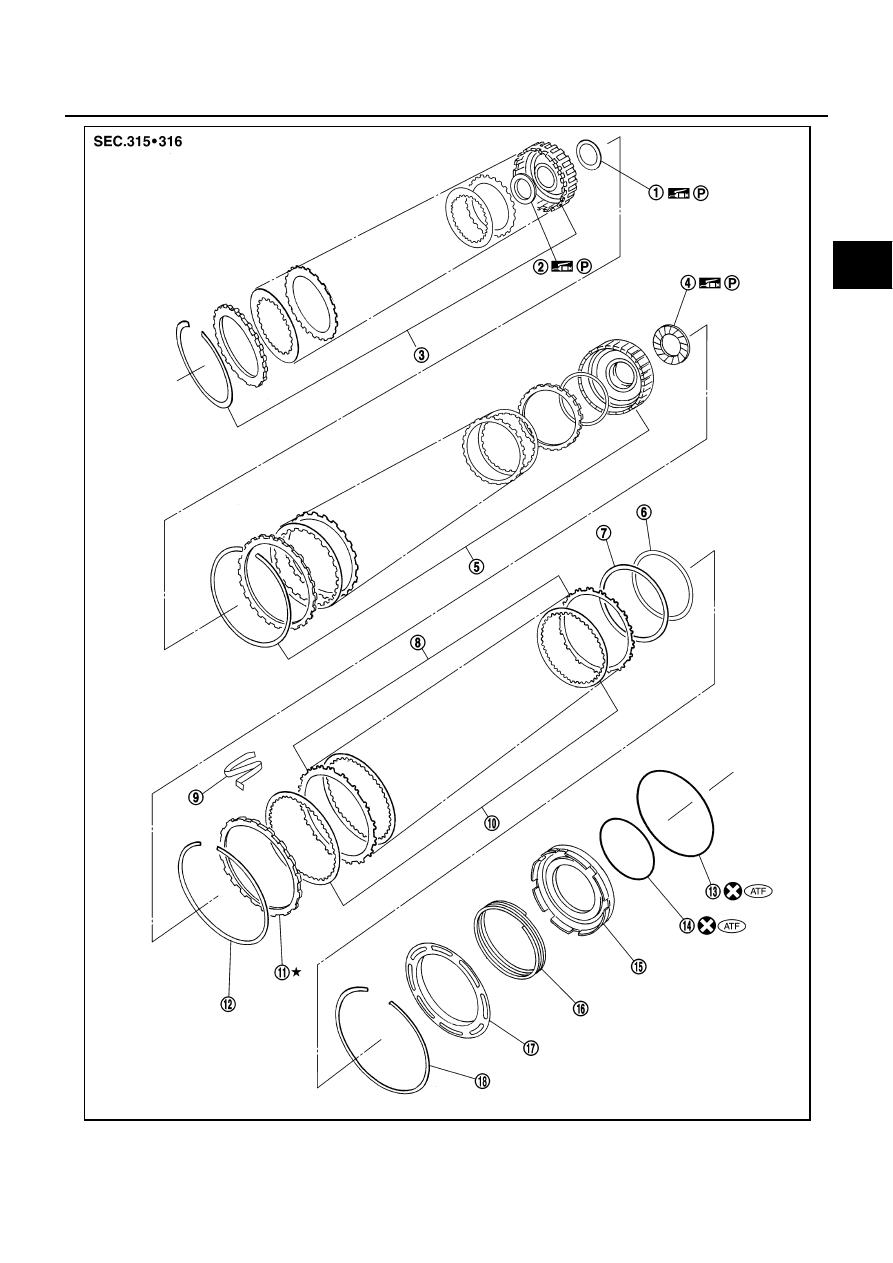

1.

Needle bearing

2.

Bearing race

3.

High and low reverse clutch assembly

4.

Needle bearing

5.

Direct clutch assembly

6.

Reverse brake dish plate

7.

Reverse brake dish plate

8.

Reverse brake driven plate

9.

N-spring

SCIA7001E

AT-258

OVERHAUL

10. Reverse brake drive plate

11.

Reverse brake retaining plate

12. Snap ring

13. D-ring

14. D-ring

15. Reverse brake piston

16. Return spring

17. Spring retainer

18. Snap ring

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-10, "Components"

 .
