2-19

Items

Weight of volume

Classification

Refrigerant

oz. (g)

HEV

Front

19.40 (550) ± 0.88 (25)

R-1234yf

PHEV

22.92 (650) ± 0.88 (25)

Compressor lubricant

oz. (g)

Front

5.29 (150) ± 0.35 (10)

POE

Contact an authorized HYUNDAI dealer.

92/80($1':(,*+7

Items

Smartstream

G1.6 T-GDi HEV

Smartstream

G1.6 T-Gdi PHEV

AWD

Gross vehicle weight

lbs. (kg)

4,861 (2,205)

5,247 (2,380)

Luggage volume

Items

HEV

PHEV

SAE

FXIWŢ

BEHIND 1ST ROW

74.5 (2,108)

66.3 (1,877)

BEHIND 2ND ROW

38.7 (1,097)

31.9 (903)

$,5&21',7,21,1*6<67(0

Vehicle Information, Consumer Information and Reporting Safety Defects

2-20

To help achieve proper engine and powertrain performance and durability, use only

lubricants of the proper quality. The correct lubricants also help promote engine

efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.

Lubricant

Volume

Classification

Engine oil

(drain and refill)

Recommends

86TWŢ

SAE 0W-20, API SN PLUS/SP or

ILSAC GF-6

Automatic transmission fluid

86TWŢ

SK ATF SP4M-1, MICHANG ATF

SP4M-1, S-OIL ATF SP4M-1,

Hyundai Genuine ATF SP4M-1

Coolant

86TWŢ

Mixture of antifreeze and water

(Phosphate-based Ethylene glycol

coolant for aluminum radiator)

Inverter Coolant

HEV

86TWŢ

PHEV

86TWŢ

Contact an authorized Hyundai

dealer/service partner

Rear differential oil (AWD)

0.56 ~ 0.67 US qt.

aŢ

HYPOID GEAR OIL API GL-5, SAE

75W/85 (SK HCT-5 GEAR OIL

75W/85 or EQUIVALENT)

Transfer case oil (AWD)

0.65 ~ 0.71 US qt.

aŢ

Brake fluid

As required

SAE J1704 DOT-4 LV, FMVSS 116

DOT-4, ISO4925 CLASS-6

Fuel

HEV

86JDOŢ

Refer to “Fuel requirements” in

chapter 1.

PHEV

86JDOŢ

*1 :

Refer to the recommended SAE viscosity numbers on the next page.

*2 :

Requires <API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade

engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine

oil filter must be replaced as indicated severe maintenance condition.

*3 :

To maintain the best braking performance and ABS/ESC performance, use genuine brake

fluid that conform to specifications.

5(&200(1'('/8%5,&$176$1'&$3$&,7,(6

2-21

Recommended SAE Viscosity Number

NOTICE

Always be sure to clean the area around any filler plug, drain plug, or dipstick

before checking or draining any lubricant. This is especially important in dusty or

sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug

and dipstick areas will prevent dirt and grit from entering the engine and other

mechanisms that could be damaged.

Never add any additives to the engine oil. Engine oil additives can change the

properties of engine oil and may cause serious engine failure.

Engine oil viscosity (thickness) has an effect on fuel economy and cold weather

operating (engine start and engine oil flowability). Lower viscosity engine oils can

provide better fuel economy and cold weather performance, however, higher viscosity

engine oils are required for satisfactory lubrication in hot weather. Using oils of any

viscosity other than those recommended could result in engine damage.

When choosing an oil, consider the range of temperature your vehicle will be operated

in before the next oil change. Proceed to select the recommended oil viscosity from

the chart.

Temperature Range for SAE Viscosity Numbers

Temperature

°C

-30

-20

-10

(°F)

-10

100 120

Smartstream G 1.6

T-GDi HEV/PHEV

0W-20

An engine oil displaying this API Certification Mark conforms to

the international Lubricant Specification Advisory Committee

(ILSAC). It is recommended to only use engine oils that uphold

this API Certification Mark.

Vehicle Information, Consumer Information and Reporting Safety Defects

2-22

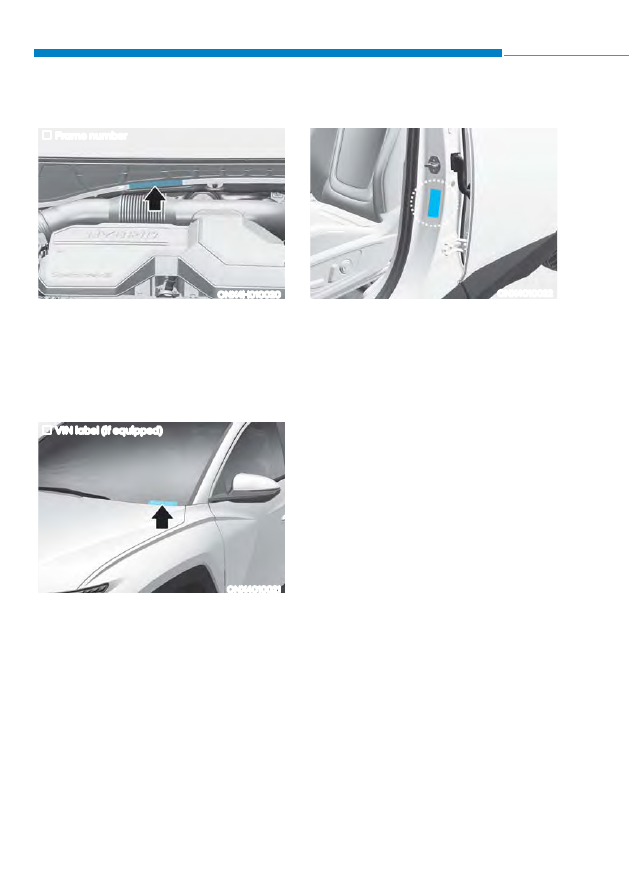

9(+,&/(,'(17,),&$7,21
180%(5ǣ9,1Ǥ

Frame number

ONX4H010020

The vehicle identification number (VIN)

is the number used in registering your

vehicle and in all legal matters pertaining

to its ownership, etc.
The number is punched on the engine

compartment frame and back side of the

engine.

VIN label (if equipped)

ONX4010021

The VIN is also on a plate attached to

the top of the left side dashboard. The

number on the plate can easily be seen

through the windshield from outside.

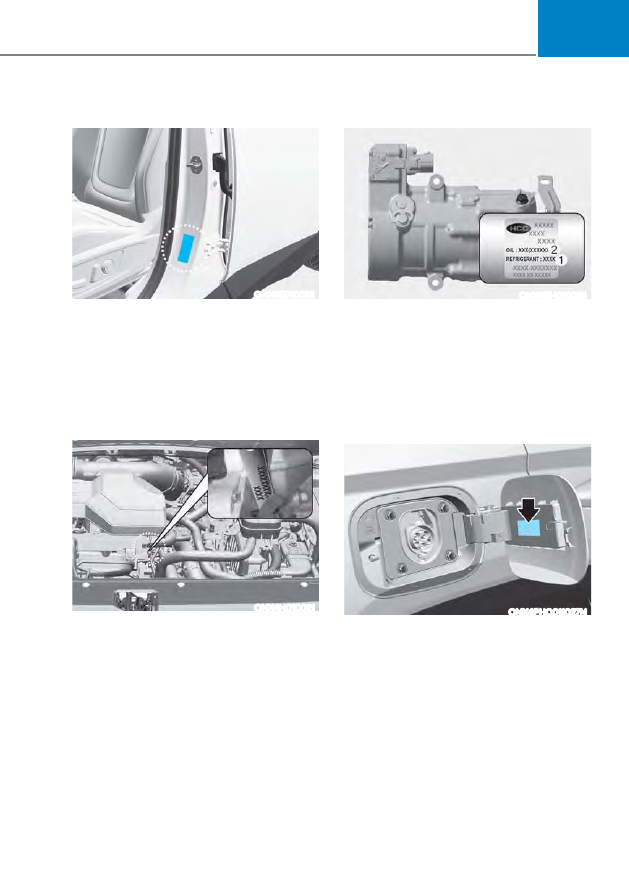

9(+,&/(&(57,),&$7,21
/$%(/

ONX4010022

The vehicle certification label attached

on the driver’s (or front passenger’s)

side center pillar gives the vehicle

identification number (VIN).

2-23

7,5(63(&,),&$7,21$1'
35(6685(/$%(/

ONX4E010022

The tires supplied on your new

vehicle are chosen to provide the best

performance for normal driving.
The tire label located on the driver’s

side center pillar gives the tire pressures

recommended for your vehicle.

(1*,1(180%(5

ONX4H010021

The engine number is stamped on the

engine block as shown in the drawing.

$,5&21',7,21(5
&2035(6625/$%(/

ONX4EH010023

A compressor label informs you the type

of compressor your vehicle is equipped

with such as model, supplier part

number, production number, refrigerant

(1) and refrigerant oil (2).

&+$5*,1*/$%(/

ǣ,)(48,33('Ǥ

ONX4PHQ011027N

Charging label is located on the charging

inlet cover’s inside. For more details,

refer to “Charging the plug-in hybrid

vehicle” in the chapter 1.

Vehicle Information, Consumer Information and Reporting Safety Defects

2-24

$,5&21',7,21,1*
5()5,*(5$17/$%(/

This vehicle contains software with open

source licenses.
Open source software information

including the source code, copyright

notices and referred license terms may

be obtained on the website
https://www.hyundai.com/worldwide/

opensource

Hyundai Motor Company will provide

the open source code to you in storage

medium such as CD-ROM for minimum

charge covering the cost of performing

source distribution upon email request

to opensource@hyundai.com within

a period of 3 years from the date of

product purchase.

23(16285&(62)7:$5(
127,&(ǣ)253/8*ǘ,1
+<%5,'9(+,&/(Ǥ

ONX4050071

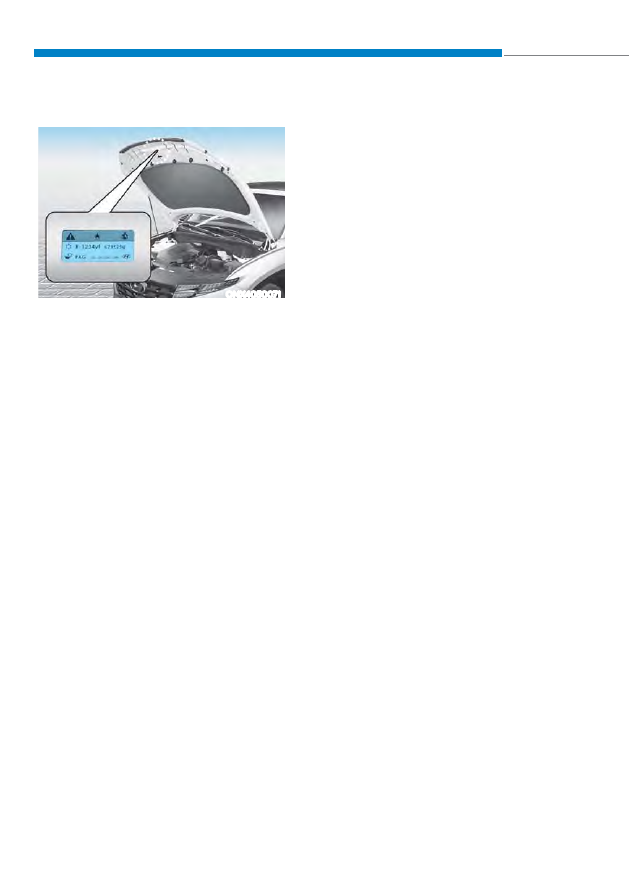

You can find out which air conditioning

refrigerant is applied to your vehicle on
the label located inside of the hood.

2-25

This consumer information has been prepared in accordance with regulations issued

by the National Highway Traffic Safety Administration of the U.S. Department of

Transportation.Your HYUNDAI dealer will help answer any questions you may have as

you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all

applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in

this Owner’s Manual, particularly the information under the headings “

NOTICE

”,

“

CAUTION

” and “

WARNING

”.

If, after reading this manual, you have any questions regarding the operation of your

vehicle, please contact the Hyundai Customer Care Center:

Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraffairs@hmausa.com

Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available

Monday through Friday between 6:30 AM and 3:00 PM PST.

&21680(5,1)250$7,21

Vehicle Information, Consumer Information and Reporting Safety Defects

2-26

If you believe that your vehicle has a defect which could cause a crash or

could cause injury or death, you should immediately inform the National

Highway Traffic Safety Administration (NHTSA) in addition to notifying

HYUNDAI MOTOR AMERICA.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-

327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;

or write to: Administrator, NHTSA

1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.

You can also obtain other information about motor vehicle safety from

http://www.safercar.gov.

If NHTSA receives similar complaints, it may open an investigation, and if it

finds that a safety defect exists in a group of vehicles, it may order a recall and

remedy campaign. However, NHTSA cannot become involved in individual

problems between you, your dealer, or HYUNDAI MOTOR AMERICA.

5(3257,1*6$)(7<'()(&76

3. Seats & Safety System

Important Safety Precautions ...........................................................................3-2

Always Wear Your Seat Belt .........................................................................................3-2

Restrain All Children .....................................................................................................3-2

Air Bag Hazards ............................................................................................................3-2

Driver Distraction .........................................................................................................3-2

Control Your Speed ......................................................................................................3-2

Keep Your Vehicle in Safe Condition ...........................................................................3-2

Seats .................................................................................................................. 3-3

Safety Precautions .......................................................................................................3-4

Front Seats ....................................................................................................................3-5

Rear Seats .................................................................................................................... 3-11

Head Restraint ............................................................................................................ 3-14

Seat Warmers ............................................................................................................. 3-18

Air Ventilation Seat .....................................................................................................3-20

Seat Belts ..........................................................................................................3-22

Seat Belt Safety Precautions ..................................................................................... 3-22

Seat Belt Warning Light .............................................................................................3-23

Seat Belt Restraint System ........................................................................................3-24

Additional Seat Belt Safety Precautions ...................................................................3-29

Care of Seat Belts ........................................................................................................3-31

Child Restraint System (CRS) ......................................................................... 3-32

Our Recommendation: Children Always in the Rear ...............................................3-32

Selecting a Child Restraint System (CRS) .................................................................3-33

Installing a Child Restraint System (CRS) .................................................................3-35

Air Bag - Supplemental Restraint System ..................................................... 3-43

Where are the Air Bags? .............................................................................................3-45

How does the Air Bags System Operate? ................................................................ 3-49

What to Expect after an Air Bag Inflates ...................................................................3-52

Occupant Classification System (OCS) .....................................................................3-53

Why didn’t my air bag go off in a collision? ..............................................................3-59

SRS Care .................................................................................................................... 3-64

Additional Safety Precautions ...................................................................................3-65

Air Bag Warning Labels ..............................................................................................3-65

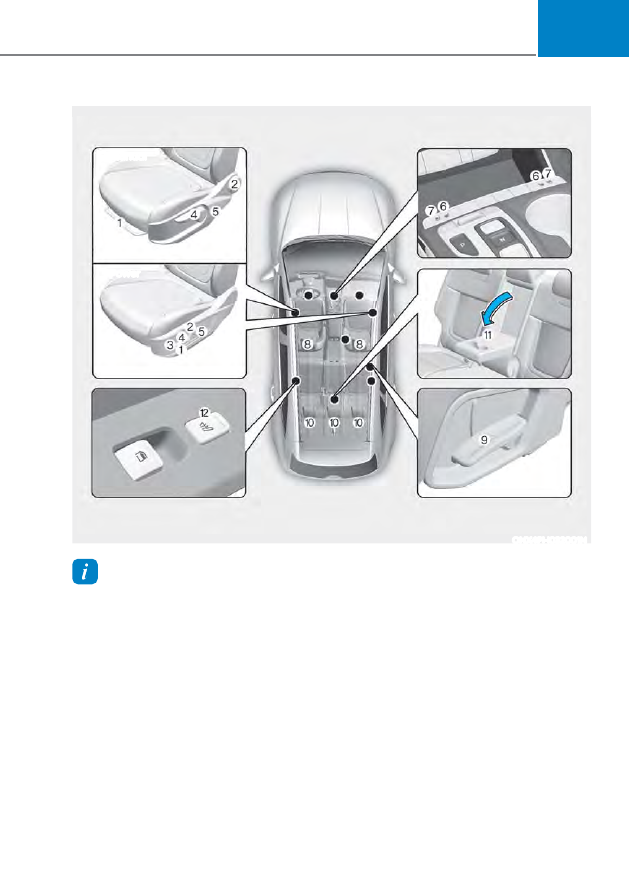

This chapter provides you with important information about how to protect yourself and your

passengers. It explains how to properly use your seats and seat belts, and how your air bags work.

Additionally, this chapter explains how to properly restrain infants and children in your vehicle.

Seats & Safety System

3-2

You will find many safety precautions

and recommendations throughout this

section, and throughout this manual.

The safety precautions in this section are

among the most important.

Always Wear Your Seat Belt

A seat belt is your best protection in all

types of accidents. Air bags are designed

to supplement seat belts, not to replace

them. So even though your vehicle is

equipped with air bags, ALWAYS make

sure you and your passengers wear your

seat belts, and wear them properly.

Restrain All Children

All children under age 13 should ride

in your vehicle properly restrained in a

rear seat, not the front seat. Infants and

small children should be restrained in

an appropriate Child Restraint System.

Larger children should use a booster

seat with the lap/shoulder belt until they

can use the seat belt properly without a

booster seat.

Air Bag Hazards

While air bags can save lives, they can

also cause serious or fatal injuries to

occupants who sit too close to them, or

who are not properly restrained. Infants,

young children, and short adults are at

the greatest risk of being injured by an

inflating air bag. Follow all instructions

and warnings in this manual.

Driver Distraction

Driver distraction presents a serious and

potentially deadly danger, especially for

inexperienced drivers. Safety should be

the first concern when behind the wheel

and drivers need to be aware of the wide

array of potential distractions, such as

drowsiness, reaching for objects, eating,

personal grooming, other passengers,

and using mobile phones.

Drivers can become distracted when

they take their eyes and attention off

the road or their hands off the wheel to

focus on activities other than driving.

To reduce your risk of distraction and an

accident:

Set up your mobile devices (for

example, MP3 players, phones,

navigation units, etc.) ONLY when

your vehicle is parked or safely

stopped.

ONLY use your mobile device when

allowed by laws and conditions

permit safe use. NEVER text or email

while driving. Most states have laws

prohibiting drivers from texting. Some

states and cities also prohibit drivers

from using handheld phones.

NEVER let the use of a mobile device

distract you from driving. You have a

responsibility to your passengers and

others on the road to always drive

safely, with your hands on the wheel

as well as your eyes and attention on

the road.

Control Your Speed

Excessive speed is a major factor in crash

injuries and deaths. Generally, the higher

the speed, the greater the risk, but

serious injuries can also occur at lower

speeds. Never drive faster than is safe

for current conditions, regardless of the

maximum speed posted.

Keep Your Vehicle in Safe

Condition

Having a tire blowout or a mechanical

failure can be extremely hazardous. To

reduce the possibility of such problems,

check your tire pressures and condition

frequently, and perform all regularly

scheduled maintenance.

IMPORTANT SAFETY PRECAUTIONS

Seats & Safety System

3-4

Safety Precautions

Adjusting the seats so that you are sitting

in a safe and comfortable position plays

an important role for the safety of the

driver and passengers, as much as seat

belts and air bags when in an accident.

WARNING

Do not use a cushion that reduces

friction between the seat and the

passenger. The passenger’s hips may

slide under the lap portion of the seat

belt during an accident or a sudden

stop.
Serious or fatal internal injuries could

result because the seat belt cannot

operate properly.

Air bags

You can take steps to reduce the risk

of being injured by an inflating air bag.

Sitting too close to an air bag greatly

increases the risk of injury in the event

the air bag inflates.
The National Highway Traffic Safety

Administration (NHTSA) recommends

that drivers allow at least 10 inches

(25cm) between the center of the

steering wheel and their chest.

WARNING

To reduce the risk of serious injury or

death from an inflating air bag, take the

following precautions:

Adjust the driver’s seat as far to the

rear as possible while maintaining

the ability to control the vehicle.

Adjust the front passenger seat as far

to the rear as possible.

Hold the steering wheel by the rim

with your hands at the 9 o’clock and

3 o’clock positions to minimize the

risk of injuries to your hands and

arms.

NEVER place anything or anyone

between you and the air bag.

Do not allow the front passenger to

place feet or legs on the dashboard

to minimize the risk of leg injuries.

3-5

Seat belts

Always fasten your seat belt before

starting any trip. At all times, passengers

should sit upright and be properly

restrained. Infants and small children

must be restrained in appropriate Child

Restraint Systems. Children who have

outgrown a booster seat and adults must

be restrained using the seat belts.

WARNING

Take the following precautions when

adjusting your seat belt:

NEVER use one seat belt for more

than one occupant.

Always position the seatback upright

with the lap portion of the seat belt

snug and low across the hips.

NEVER allow children or small infants

to ride on a passenger’s lap.

Do not route the seat belt across your

neck, across sharp edges, or reroute

the shoulder strap away from your

body.

Do not allow the seat belt to become

caught or jammed.

Front Seats

WARNING

Take the following precautions when

adjusting your seat:

NEVER attempt to adjust the seat

while the vehicle is moving. The seat

could respond with unexpected

movement and may cause loss

of vehicle control resulting in an

accident.

Do not place anything under the

front seats. Loose objects in the

driver’s foot area could interfere

with the operation of the foot pedals,

causing an accident.

Do not allow anything to interfere

with the normal position and proper

locking of the seatback.

Do not place a cigarette lighter on

the floor or seat. When you operate

the seat, gas may exit out of the

lighter causing a fire.

Use extreme caution when picking

up small objects trapped under the

seats or between the seat and the

center console. Your hands might be

cut or injured by the sharp edges of

the seat mechanism.

If there are occupants in the rear

seats, be careful while adjusting the

front seat position.

Make sure that the seat is locked in

place after the adjustment. If not,

the seat might move unexpectedly

resulting in an accident.

CAUTION

To prevent injury:

Do not adjust your seat while

wearing your seat belt. Moving the

seat cushion forward may cause

strong pressure on your abdomen.

Do not allow your hands or fingers to

get caught in the seat mechanisms

while the seat is moving.

Seats & Safety System

3-6

Manual adjustment

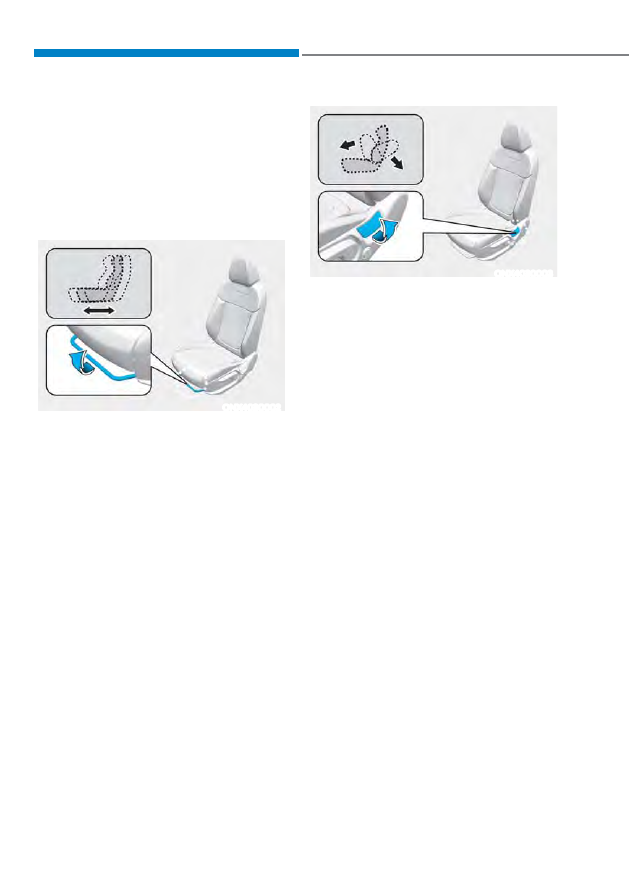

The front seat can be adjusted by using

the levers located underneath the seat

cushion. Before driving, adjust the seat

to the proper position so that you can

easily control the steering wheel, foot

pedals and controls on the instrument

panel.

ONX4030002

Forward and rearward adjustment

To move the seat forward or rearward:
1. Pull up the seat slide adjustment lever

and hold it.

2. Slide the seat to the position you

desire.

3. Release the lever and make sure the

seat is locked in place. Move forward

and rearward without using the lever.

If the seat moves, it is not locked

properly.

ONX4030003

Seatback angle

To recline the seatback:
1. Lean forward slightly and lift up the

seatback lever.

2. Carefully lean back on the seat and

adjust the seatback to the position

you desire.

3. Release the knob and make sure the

seatback is locked in place.

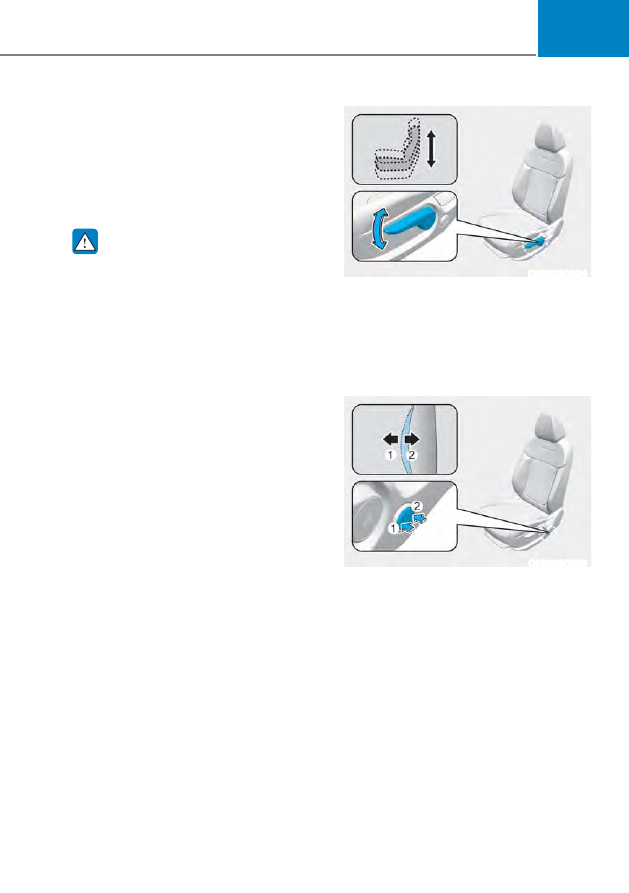

3-7

Reclining seatback

Sitting in a reclined position when the

vehicle is in motion can be dangerous.

Even when buckled up, the protections

of your restraint system (seat belts

and/or air bags) is greatly reduced by

reclining your seatback.

WARNING

NEVER ride with a reclined seatback

when the vehicle is moving.
Riding with a reclined seatback

increases your chance of serious or fatal

injuries in the event of a collision or

sudden stop.
Drivers and passengers should ALWAYS

sit well back in their seats, properly

belted, and with the seatbacks upright.

Seat belts must be snug against your

hips and chest to work properly. When

the seatback is reclined, the shoulder

belt cannot do its job because it will not

be snug against your chest. Instead,

it will be in front of you. During an

accident, you could be thrown into the

seat belt, causing neck or other injuries.
The more the seatback is reclined,

the greater chance the passenger’s

hips will slide under the lap belt or the

passenger’s neck will strike the shoulder

belt.

ONX4030004

Seat height (if equipped)

To change the height of the seat:

Push down the lever several times, to

lower the seat.

Pull up the lever several times, to raise

the seat.

ONX4030005

Lumbar support
(for driver’s seat, if equipped)

The lumbar support can be adjusted

by pressing the lumbar support

switch.

Press the front portion of the switch

(1) to increase support or the rear

portion of the switch (2) to decrease

support.

Seats & Safety System

3-8

Power adjustment (if equipped)

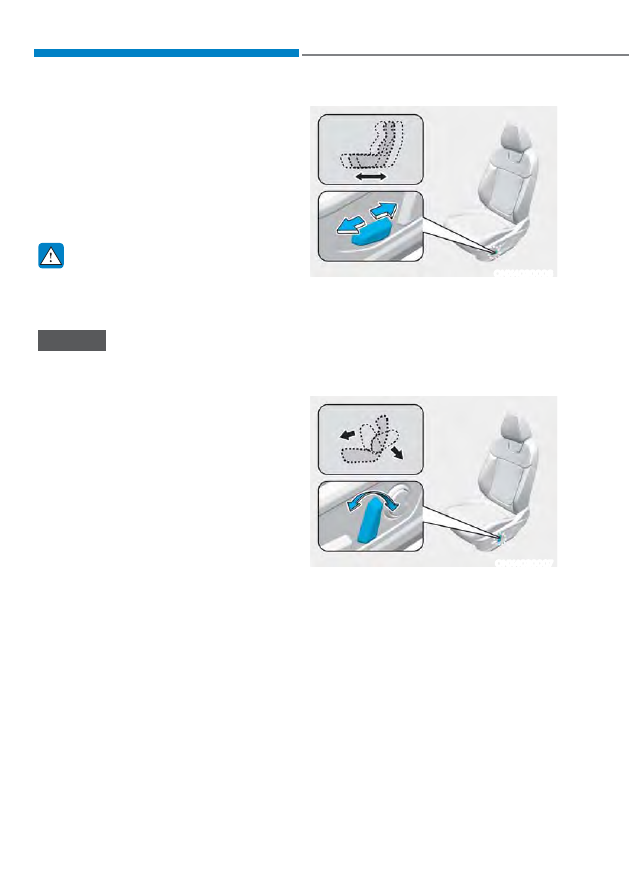

The front seat can be adjusted by using

the control switches located on the

outside of the seat cushion. Before

driving, adjust the seat to the proper

position so that you can easily control

the steering wheel, foot pedals and

controls on the instrument panel.

WARNING

NEVER allow children in the vehicle

unattended. The power seats are

operable when the vehicle is turned off.

NOTICE

To prevent damage to the seats:

Always stop adjusting the seats when

the seat has been adjusted as far

forward or rearward as possible.

Do not adjust the seats longer than

necessary when the vehicle is turned

off. This may result in unnecessary

battery drain.

Do not operate two or more seats at

the same time. This may result in an

electrical malfunction.

ONX4030006

Forward and rearward adjustment

To move the seat forward or rearward:
1. Push the control switch forward or

rearward.

2. Release the switch once the seat

reaches the desired position.

ONX4030007

Seatback angle adjustment

To recline the seatback:
1. Push the control switch forward or

rearward.

2. Release the switch once the seatback

reaches the desired position.

3-9

Reclining seatback

Sitting in a reclined position when the

vehicle is in motion can be dangerous.

Even when buckled up, the protections

of your restraint system (seat belts and

air bags) is greatly reduced by reclining

your seatback.

WARNING

NEVER ride with a reclined seatback

when the vehicle is moving.
Riding with a reclined seatback

increases your chance of serious or fatal

injuries in the event of a collision or

sudden stop.
Driver and passengers should ALWAYS

sit well back in their seats, properly

belted, and with the seatbacks upright.

Seat belts must be snug against your

hips and chest to work properly. When

the seatback is reclined, the shoulder

belt cannot do its job because it will not

be snug against your chest. Instead,

it will be in front of you. During an

accident, you could be thrown into the

seat belt, causing neck or other injuries.
The more the seatback is reclined,

the greater chance the passenger’s

hips will slide under the lap belt or the

passenger’s neck will strike the shoulder

belt.

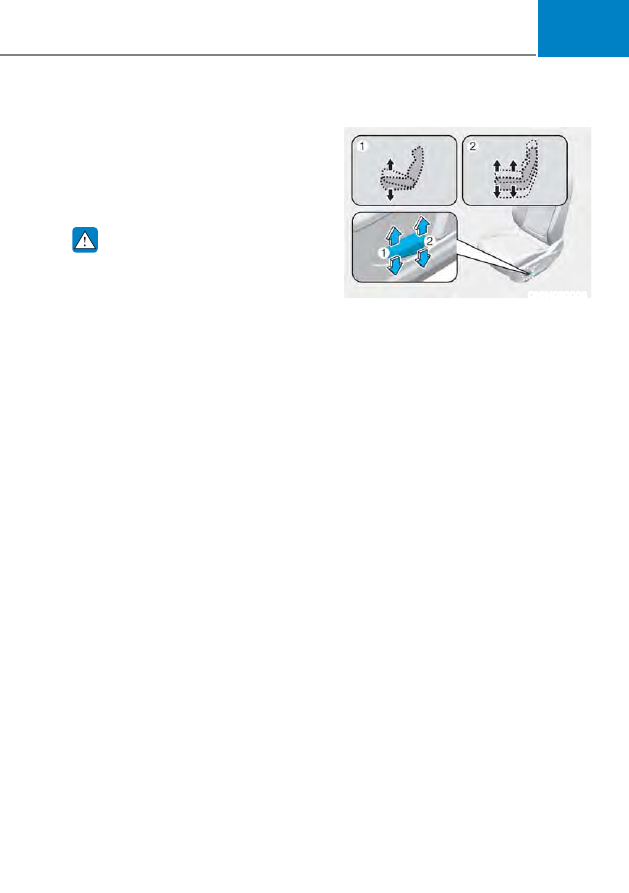

Seat cushion tilt/height adjustment

ONX4030008

Seat cushion tilt (1) (1, if equipped)

To change the angle of the front part of

the seat cushion:
Push the front portion of the control

switch up to raise or down to lower the

front part of the seat cushion.
Release the switch once the seat reaches

the desired position.

Seat height (2)

To change the height of the seat cushion:
Push the rear portion of the control

switch up to raise or down to lower the

height of the seat cushion.
Release the switch once the seat reaches

the desired position.

Seats & Safety System

3-10

ONX4030009

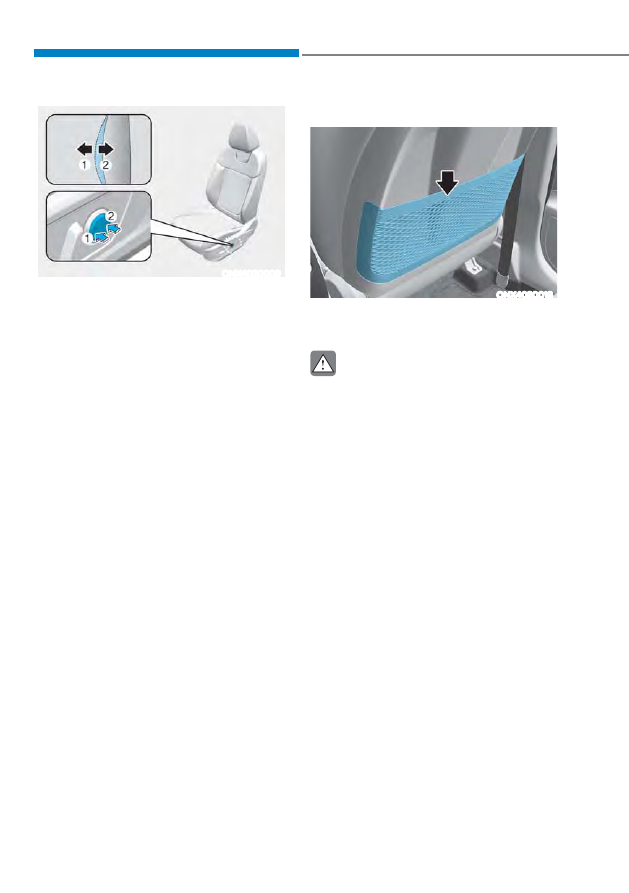

Lumbar support (for driver’s seat, if
equipped)

To adjust the lumbar support:
1. Press the front portion of the switch

(1) to increase support or the rear

portion of the switch (2) to decrease

support.

2. Release the switch once the lumbar

support reaches the desired position.

Seatback pocket

ONX4030018

The seatback pocket is provided on the

back of the front seatbacks.

CAUTION

Do not put heavy or sharp objects in the

seatback pockets. In an accident they

could come loose from the pocket and

injure occupants.

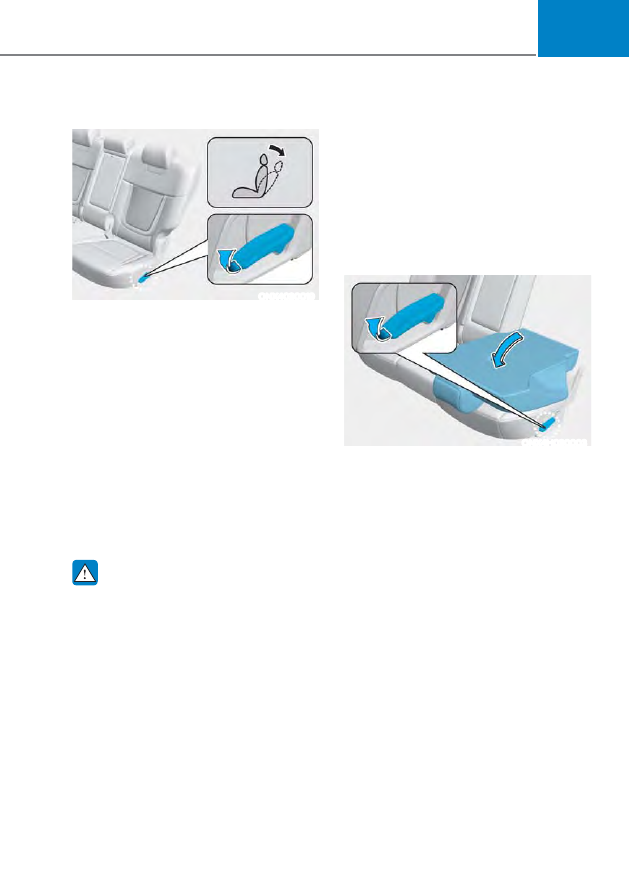

3-11

Rear Seats

ONX4030019

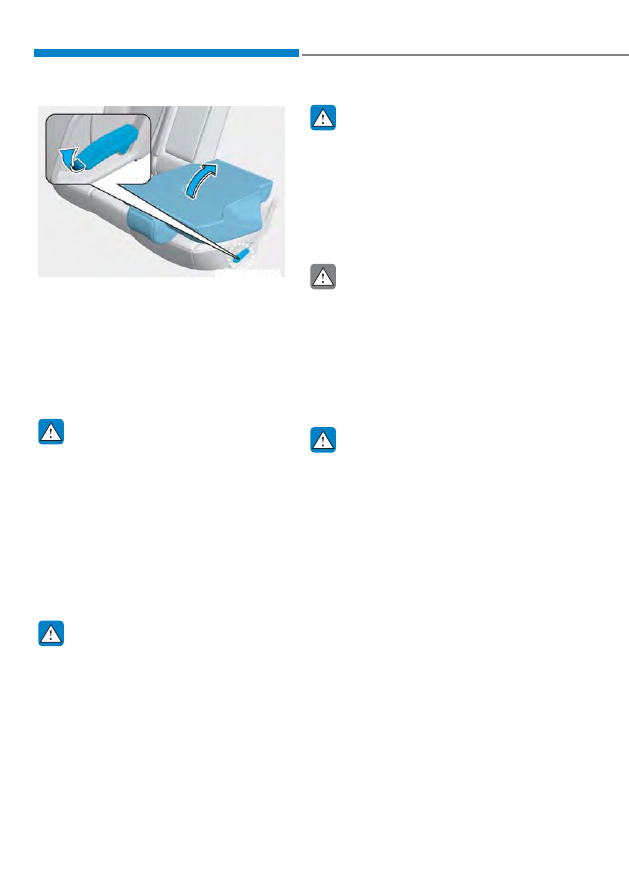

Seatback angle (2nd row seat)

To recline the seatback:
1. Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback

of the seat to the position you desire.

3. Release the lever and make sure the

seatback is locked in place. (The lever

MUST return to its original position for

the seatback to lock.)

Folding the rear seat

The rear seatbacks can be folded to

facilitate carrying long items or to

increase the luggage capacity of the

vehicle.

WARNING

Never allow passengers to sit on top

of the folded down seatback while

the vehicle is moving. This is not a

proper seating position and no seat

belts are available for use. This could

result in serious injury or death in

case of an accident or sudden stop.

Objects carried on the folded down

seatback should not extend higher

than the top of the front seatbacks.

This could allow cargo to slide

forward and cause injury or damage

during sudden stops.

To fold down the rear seatback:
1. Set the front seatback to the upright

position and if necessary, slide the

front seat forward.

2. Lower the rear head restraints to the

lowest position.

3. Route the seat belt webbing through

the rear seat belt guides to prevent

the belts from being trapped behind

or under the seats.

ONX4H030003

4. Pull on the seatback folding lever (2nd

row seat), then fold the seat toward

the front of the vehicle. When you

return the seatback to its upright

position, always be sure it has locked

into position by pushing on the top of

the seatback.

Seats & Safety System

3-12

ONX4H030004

5. To use the rear seat, lift and pull the

seatback backward by pulling the

folding lever or the strap. Pull the

seatback firmly until it clicks into

place. Make sure the seatback is

locked in place.

6. Return the rear seat belt to the proper

position.

WARNING

When returning the rear seatback from

a folded to an upright position, hold the

seatback and return it slowly. Ensure

that the seatback is completely locked

into its upright position by pushing on

the top of the seatback. In an accident

or sudden stop, the unlocked seatback

could allow cargo to move forward with

great force and enter the passenger

compartment, which could result in

serious injury or death.

WARNING

Do not place objects in the rear seats,

since they cannot be properly secured

and may hit vehicle occupants in a

collision causing serious injury or death.

WARNING

Make sure the engine is off, the gear

shifted to P (Park), and the parking

brake is securely applied whenever

loading or unloading cargo. Failure

to take these steps may allow the

vehicle to move if the shift button

is inadvertently pressed to another

position.

CAUTION

Be careful when loading cargo

through the rear passenger seats

to prevent damage to the vehicle

interior.

When cargo is loaded through the

rear passenger seats, ensure the

cargo is properly secured to prevent

it from moving while driving.

WARNING

Cargo should always be secured to

prevent it from being thrown about the

vehicle in a collision and causing injury

to the vehicle occupants. Do not place

objects in the rear seats, since they

cannot be properly secured and may hit

the front seat occupants in a collision.

3-13

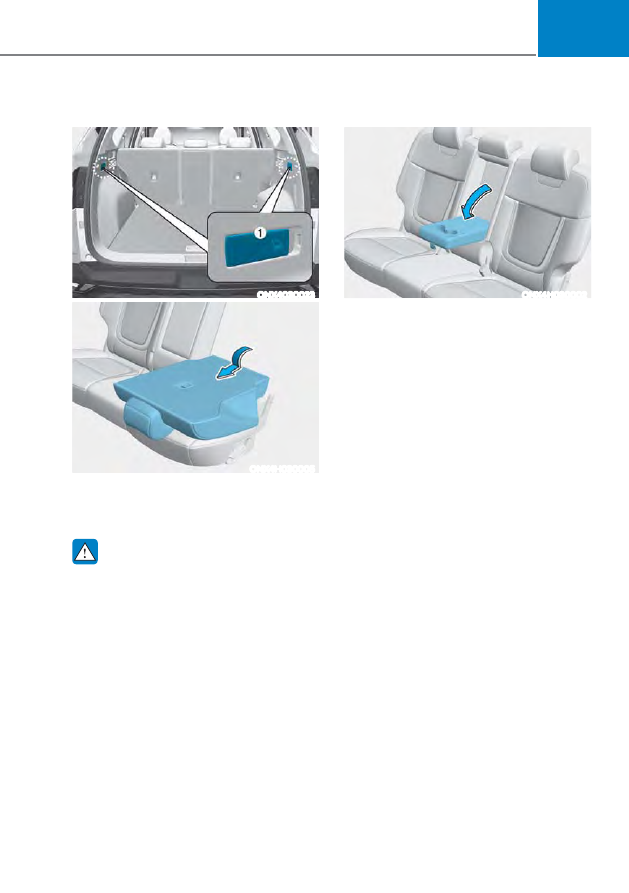

Seatback remote folding/unfolding

ONX4030023

ONX4H030005

Push the rear seats back folding switch

(1) located in the both sides in the cargo

area.

WARNING

Rear seat folding
Do not fold the rear seats when

occupied with passengers, pets, or

luggage. Injury or damage may occur.

Armrest

ONX4H030002

The armrest is located in the center of

the rear seat. Pull the armrest down from

the seatback to use it.

Rear occupant alert system (rear

seats) (if equipped)

This function alerts the driver when he or

she gets out of a car with passengers still

remaining in the rear seats.
If the front door is opened while

passengers are in the rear seats, a

warning message will appear on the

cluster panel as a reminder to check to

rear seats. If movement is detected in

the rear seats after locking all doors, a

second warning will alert the driver.
Make sure to check for passengers in the

rear seats before leaving the vehicle.

For more information, refer to the “Rear

occupant alert system” in chapter 3.

Seats & Safety System

3-14

Head Restraint

The vehicle’s front and rear seats

have adjustable head restraints. The

head restraints provide comfort for

passengers, but more importantly they

are designed to help protect passengers

from whiplash and other neck and spinal

injuries during an accident, especially in

a rear impact collision.

WARNING

To help reduce, the risk of serious

injury or death in an accident, take the

following precautions when adjusting

your head restraints:

Always properly adjust the head

restraints for all passengers BEFORE

starting the vehicle.

NEVER let anyone ride in a seat

with the head restraint removed or

reversed.

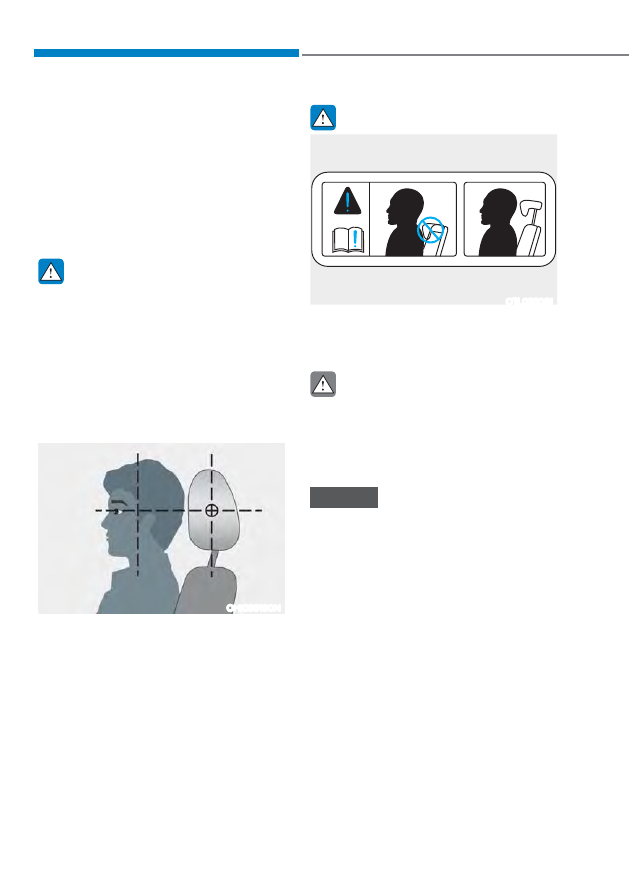

OHI039190N

Adjust the head restraints so the

middle of the head restraint is at the

same height as the height of the top

of the eyes.

NEVER adjust the head restraint

position of the driver’s seat when the

vehicle is in motion.

Adjust the head restraint as close to

the passenger’s head as possible. Do

not use a seat cushion that holds the

body away from the seatback.

Make sure the head restraint locks

into position after adjusting it.

WARNING

OTL035061

When sitting on the rear seat, do not

adjust the height of the head restraint

to the lowest position.

CAUTION

When there is no occupant in the rear

seats, adjust the height of the head

restraint to the lowest position. The

rear seat head restraint can reduce the

visibility of the rear area.

NOTICE

To prevent damage, NEVER hit or pull

on the head restraints.

3-15

Front seat head restraints

ONX4E030035

The driver’s and front passenger’s seats

are equipped with adjustable head

restraints for the passengers safety and

comfort.

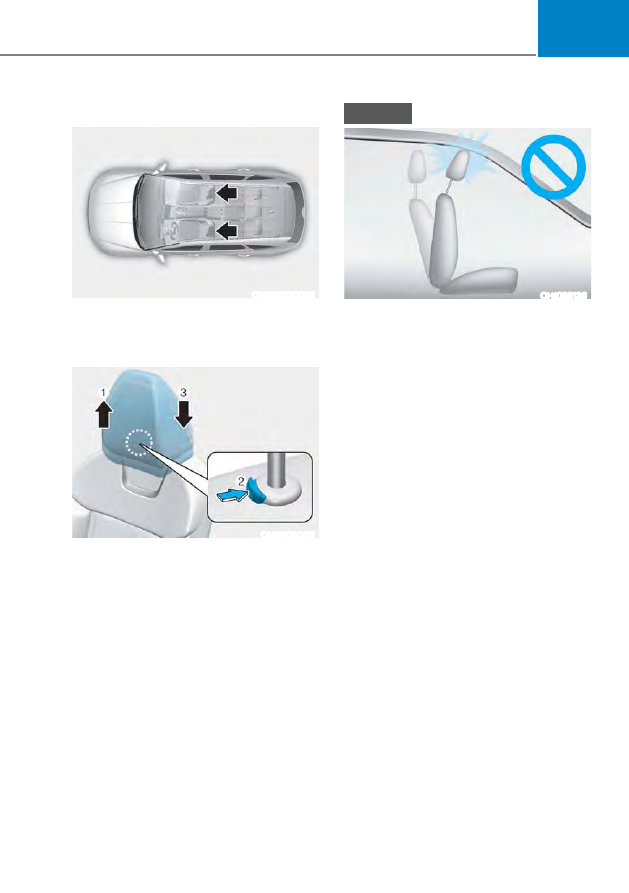

ONX4030011

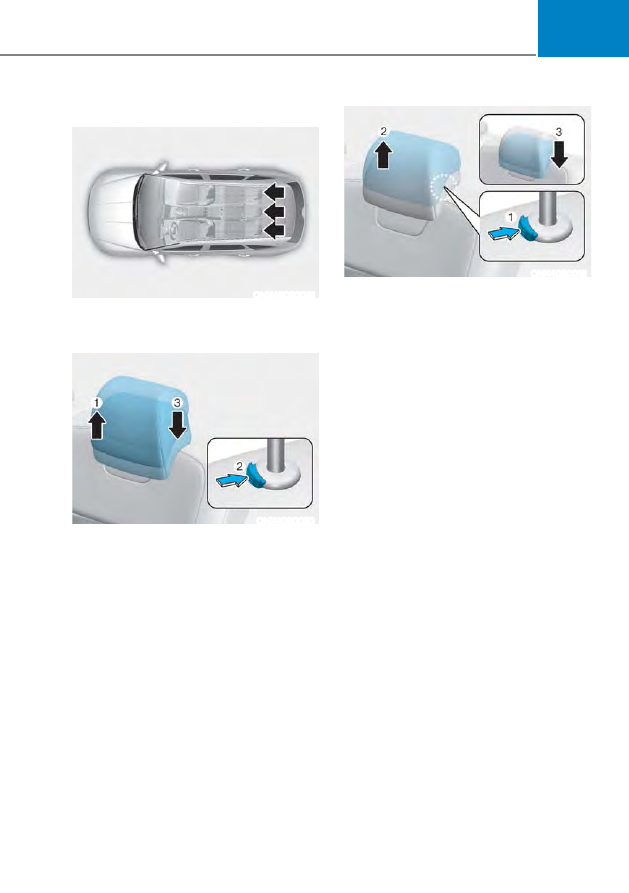

Adjusting the height up and down

To raise the head restraint:
1. Pull it up to the desired position (1).

To lower the head restraint:
1. Push and hold the release button (2)

on the head restraint support.

2. Lower the head restraint to the

desired position (3).

NOTICE

OHI038136

If you recline the seatback towards the

front with the head restraint and seat

cushion raised, the head restraint may

come in contact with the sunvisor or

other parts of the vehicle.

Seats & Safety System

3-16

Type A

ONX4030012

Type B

ONX4030013

Removal/Reinstall

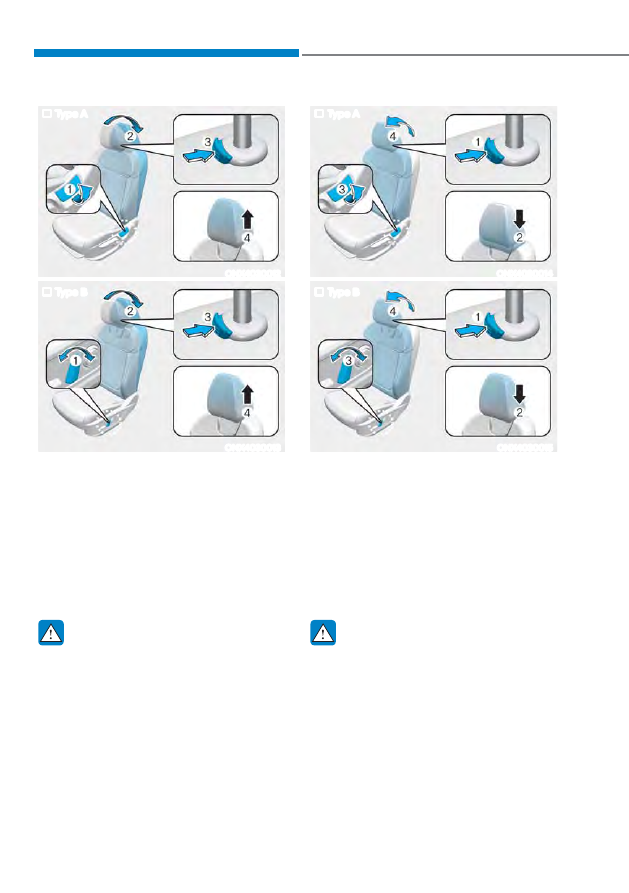

To remove the head restraint:
1. Recline the seatback (2) with using

the seatback angle knob or switch (1).

2. Raise the head restraint as far as it can

go.

3. Press the head restraint release button

(3) while pulling the head restraint up

(4).

WARNING

NEVER allow anyone to travel in a seat

with the head restraint removed.

Type A

ONX4030014

Type B

ONX4030015

To reinstall the head restraint :
1. Recline the seatback.
2. Put the head restraint poles (2) into

the holes while pressing the release

button (1).

3. Adjust the head restraint to the

appropriate height.

4. Recline the seatback (4) with the

seatback angle knob or switch (3).

WARNING

Always make sure the head restraint

locks into position after reinstalling and

adjusting it properly.

3-17

Rear seat head restraints

ONX4E030061

The rear seats are equipped with head

restraints in all the seating positions for

the passenger’s safety and comfort.

ONX4030020

Adjusting the height up and down

To raise the head restraint:
1. Pull it up to the desired position (1).

To lower the head restraint:
1. Push and hold the release button (2)

on the head restraint support.

2. Lower the head restraint to the

desired position (3).

ONX4030016

Removal/Reinstallation

To remove the head restraint:
1. Raise the head restraint as far as it can

go.

2. Press the head restraint release button

(1) while pulling the head restraint up

(2).

To reinstall the head restraint:
1. Put the head restraint poles into the

holes (3) while pressing the release

button (1).

2. Adjust the head restraint to the

appropriate height.

Seats & Safety System

3-18

Seat Warmers (if equipped)

Seat warmers are provided to warm the

seats during cold weather.
During mild weather or under conditions

where the operation of the seat warmer

is not needed, keep the seat warmers

OFF.

WARNING

The seat warmers can cause a SERIOUS

BURN, even at low temperatures and

especially if used for long periods of

time.
Passengers must be able to feel if the

seat is becoming too warm so they can

turn it off, if needed.
People who cannot detect temperature

change or pain to the skin should

use extreme caution, especially the

following types of passengers:

Infants, children, elderly or disabled

persons, or hospital outpatients.

People with sensitive skin or who

burn easily.

Fatigued individuals.

Intoxicated individuals.

People taking medication that can

cause drowsiness or sleepiness.

WARNING

NEVER place anything on the seat

that insulates against heat when the

seat warmer is in operation, such as a

blanket or seat cushion. This may cause

the seat warmer to overheat, causing a

burn or damage to the seat.

NOTICE

To prevent damage to the seat warmers

and seats:

Never use a solvent such as paint

thinner, benzene, alcohol or gasoline

to clean the seats.

Do not place heavy or sharp objects

on seats equipped with seat

warmers.

Do not change the seat cover. It may

damage the seat warmer.

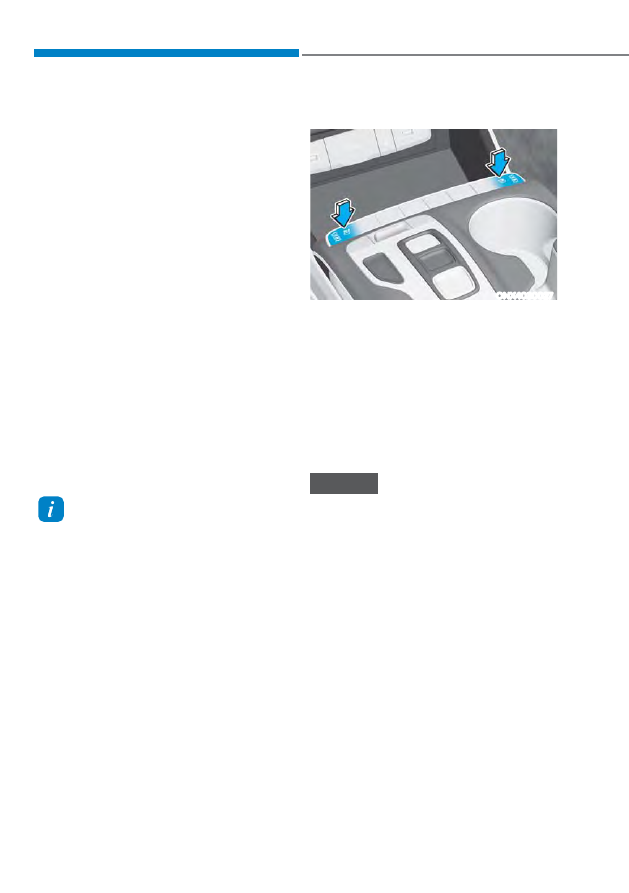

3-19

Front seat

ONX4030025

Rear seat (if equipped)

ONX4030026

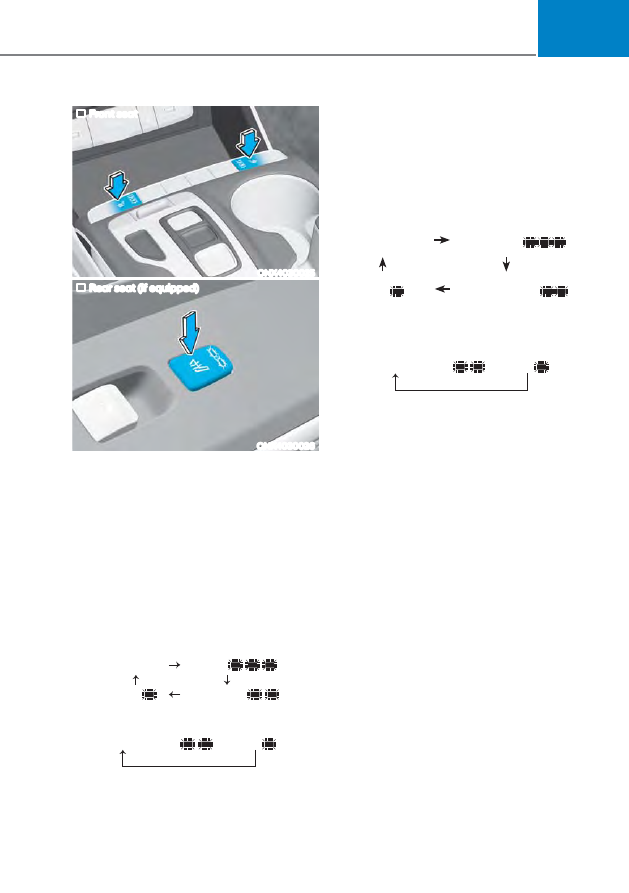

While the engine is running, push either

of the switches to warm the driver's seat

or front passenger's seat.
During mild weather or under conditions

where the operation of the seat warmer

is not needed, keep the switches in the

OFF position.

Manual temperature control
Each time you push the switch, the

temperature setting of the seat is

changed as follows :

- Front seat

OFF

LOW ( )

HIGH ( )

MEDIUM ( )

- Rear seat

OFF

HIGH ( )

LOW ( )

Automatic temperature control
The seat warmer starts to

automatically control the seat

temperature in order to prevent

low-temperature burns after being

manually turned ON.

- Front seat

OFF

HIGH (

)

30 MIN

LOW ( )

MEDIUM (

)

60 MIN

- Rear seat

OFF

HIGH ( )

LOW ( )

30 MIN

If HIGH temperature is manually

selected again, the temperature will

be controlled automatically.

When pressing the switch for more

than 1.5 seconds with the seat warmer

operating, the seat warmer will turn

OFF.

The seat warmer defaults to the OFF

position whenever the ignition switch

is ON.

Seats & Safety System

3-20

Auto Comfort Control (for driver’s

seat) (if equipped)

- The seat warmer automatically

controls the seat temperature

depending on the ambient

temperature and the set climate

control temperature when the

engine is running. If the seat

warmer switch is pushed, the seat

warmer will have to be controlled

manually.
To use this function, it must be

activated from the Settings menu in

the infotainment system screen.

- The seat warmer defaults to the

OFF position whenever the ignition

switch is ON. However, if the Auto

Comfort Control function is ON, the

driver’s seat warmer will turn on

and off depending on the ambient

temperature and the set climate

control temperature.

For more details, refer to the separately

supplied Infotainment manual with

your vehicle.

Information

With the seat warmer switch in the ON
position, the heating system in the seat
turns off or on automatically depending on
the seat temperature.

Air Ventilation Seat (if equipped)

ONX4030027

The air ventilation seats are provided

to cool the front seats by blowing air

through small vent holes on the surface

of the seat cushions and seatbacks.
When the operation of the air ventilation

seat is not needed, keep the switches in

the OFF position.
While the engine is running, push the

switch to cool the driver's seat or the

front passenger's seat (if equipped).

NOTICE

To prevent damage to the air ventilation

seats:

Never use a solvent such as paint

thinner, benzene, alcohol or gasoline

to clean the seats.

Avoid spilling liquids on the surface

of the front seats and seatbacks; this

may cause the air vent holes to block

and not work properly.

Do not place materials such as

plastic bags or newspapers under

the seats. They may block the air

intake causing the malfunction of the

air vent.

Do not change the seat covers. It may

damage the air ventilation seat.

If the air vents do not operate, restart

the vehicle. If there is no change,

Have your vehicle inspected by an

authorized HYUNDAI dealer.

3-21

Each time you push the switch, the

airflow changes as follows:

OFF

LOW ( )

HIGH ( )

MEDIUM ( )

When pressing the switch for

more than 1.5 seconds with the

air ventilation seat operating, the

operation will turn OFF.

The air ventilation seat defaults to the

OFF position whenever the ignition

switch is placed to the ON position.

Auto Comfort Control (for driver’s

seat) (if equipped)

- The air ventilation seat

automatically controls the seat

temperature depending on the

ambient temperature and the set

climate control temperature when

the engine is running. If the air

ventilation seat switch is pushed,

the air ventilation seat will have to

be controlled manually.
To use this function, it must be

activated from the Settings menu in

the infotainment system screen.

- The air ventilation seat defaults

to the OFF position whenever the

ignition switch is ON. However, if

the Auto Comfort Control function

is ON, the air ventilation seat will

turn on and off depending on the

ambient temperature and the set

climate control temperature.

For more details, refer to the separately

supplied Infotainment manual with

your vehicle.

Seats & Safety System

3-22

This section describes how to use the

seat belts properly. It also describes

some of the things not to do when using

seat belts.

Seat Belt Safety Precautions

Always fasten your seat belt and make

sure all passengers have fastened their

seat belts before starting any trip. Air

bags are designed to supplement the

seat belt as an additional safety device,

not a replacement. Most states require all

occupants of a vehicle to wear seat belts.

WARNING

Seat belts must be used by ALL

passengers whenever the vehicle is

moving. Take the following precautions

when adjusting and wearing seat belts:

Children under the age of 13 should

be properly restrained in the rear

seats.

Never allow children to ride in the

front passenger seat, unless the air

bag is deactivated. If a child is seated

in the front passenger seat, move the

seat as far back as possible. And the

child must always be restrained in

the seat properly.

NEVER allow an infant or child to be

carried on an occupant’s lap.

NEVER ride with the seatback

reclined when the vehicle is moving.

Do not allow children to share a seat

or seat belt.

Do not wear the shoulder belt under

your arm or behind your back.

NEVER wear a seat belt over fragile

objects. If there is a sudden stop or

impact, the seat belt can damage it.

Do not use the seat belt if it is

twisted. A twisted seat belt will not

protect you properly in an accident.

Do not use a seat belt if the webbing

or hardware is damaged.

Do not latch the seat belt into the

buckles of other seats.

NEVER unfasten the seat belt

while driving. This may cause loss

of vehicle control resulting in an

accident.

Make sure there is nothing in the

buckle interfering with the seat

belt latch mechanism, because any

materials in the buckle can cause the

seat belt not to be fastened securely.

No modifications or additions

should be made by the user which

will either prohibit the seat belt

adjusting devices from operating to

remove slack, or prohibit the seat

belt assembly from being adjusted to

remove slack.

WARNING

Damaged seat belts and seat belt

assemblies will not operate properly.

Always replace:

Frayed, contaminated, or damaged

webbing.

Damaged hardware.

The entire seat belt assembly after it

has been worn in an accident, even

if damage to webbing or assembly is

not apparent.

SEAT BELTS

3-23

Seat Belt Warning Light

Driver’s seat belt warning

Instrument cluster

1GQA2083

As a reminder to the driver, the seat

belt warning light will illuminate for

approximately 6 seconds each time the

ignition is ON position regardless of belt

fastening. At this time, if the seat belt is

not fastened a warning chime will sound

for 6 seconds.
If you continue not to fasten the seat belt

and you drive over 6 mph (9 km/h), the

warning light will stay illuminated.
If you continue not to fasten the seat belt

and you drive over 12 mph (20 km/h),

the seat belt warning chime will sound

for approximately 100 seconds and the

corresponding warning light will blink.
If you unfasten the seat belt while driving

under 12 mph (20 km/h), the seat belt

warning light will illuminate until the seat

belt is fastened.
If you unfasten the seat belt while

driving over 12 mph (20 km/h), the

seat belt warning chime will sound for

approximately 100 seconds and the

corresponding warning light will blink.

Front passenger’s seat belt warning

As a reminder to the front passenger,

the front passenger’s seat belt warning

lights will illuminate for approximately 6

seconds each time you place the ignition

switch to the ON position regardless of

belt fastening.
If you continue not to fasten the seat belt

and you drive over 6 mph (9 km/h), the

warning light will stay illuminated.
If you continue not to fasten the seat belt

and you drive over 12 mph (20 km/h),

the seat belt warning chime will sound

for approximately 100 seconds and the

corresponding warning light will blink.
If you unfasten the seat belt while driving

under 12 mph (20 km/h), the seat belt

warning light will illuminate until the seat

belt is fastened.
If you unfasten the seat belt while

driving over 12 mph (20 km/h), the

seat belt warning chime will sound for

approximately 100 seconds and the

corresponding warning light will blink.

Seats & Safety System

3-24

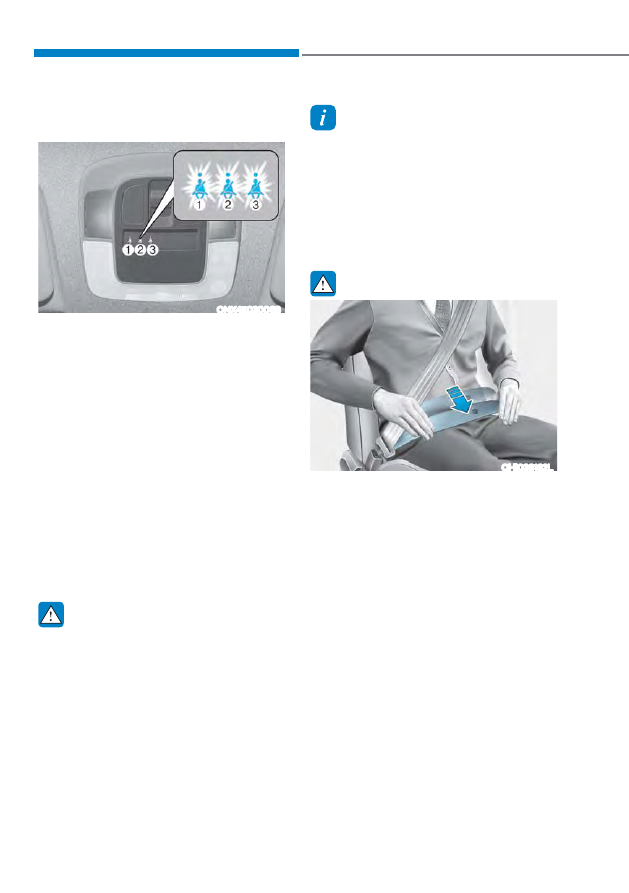

Seat belt warning light (for rear

passenger’s seat)

ONX4E030068

With the ignition switch ON, if the rear

passenger’s seat belt is not fastened, the

corresponding seat belt warning light

will illuminate for 70 seconds. But, if the

seatbelt is fastened after 6 seconds, the

corresponding seat belt warning light will

immediately turn off.
If the seat belt is fastened, and then

unfastened while driving below 12 mph

(20 km/h), the corresponding seat

belt warning light will illuminate for 70

seconds.
If the seat belt is fastened, and then

unfastened while driving above 12 mph

(20 km/h), the corresponding seat belt

warning light will blink and the warning

chime will sound for approximately 35

seconds.

WARNING

Riding in an improper position

adversely affects the front passenger’s

seat belt warning system. It is important

for the driver to instruct the passenger

to be seated properly as instructed in

this manual.

Information

Although the front passenger seat is not
occupied, the seat belt warning light
will blink or illuminate for 6 seconds.

The front passenger’s seat belt warning
may operate when luggage is placed on
the front passenger seat.

Seat Belt Restraint System

WARNING

OHI038182L

Improperly positioned seat belts may

increase the risk of serious injury

in an accident. Take the following

precautions when adjusting the seat

belt:

Position the lap portion of the seat

belt as low as possible across your

hips, not on your waist, so that it

fits snugly. This allows your strong

pelvic bones to absorb the force of

the crash, reducing the chance of

internal injuries.

Position one arm under the shoulder

belt and the other over the belt, as

shown in the illustration.

Always position the shoulder belt

anchor into the locked position at the

appropriate height.

Never position the shoulder belt

across your neck or face.

Hyundai Tucson Plug-in Hybrid (2024 year). Manual in english - page 4
