Driver Assistance System

Smart Parking, Remote Smart

function with the gear shifted to N

Parking

(Neutral).

The parking function includes Smart

Parking using the Parking/View (

)

2. Searching for parking space

button and Remote Smart Parking using a

smart key.

4EVOMRK 7TEGI

Operating order

Parking function operates in the following

order:

1. Getting ready for parking

2. Searching for parking space

(VMZI JSV[EVH WPS[P] ERH OIITMRK GPSWIV XS XLI WMHI SR [LMGL ]SY

3. Select parking type and operating

[ERX XS TEVO

mode

B7008902

4. Smart Parking

Slowly drive forward maintaining the

distance of about 40 in. (100 cm) from the

5. Remote Smart Parking

parked vehicles.

Searches for a parking space by detecting

1. Getting ready for parking

the parking lines or the spaces next to or

in front and behind the parked vehicles.

When searching for a parking space is

complete, a message will appear on the

infotainment system with an audible

sound to notify the search is complete.

Select Parking Type will be displayed on

the infotainment system and the selected

parking space will appear on Top View

screen of Surround View Monitor.

Information

B7008901

• Remote Smart Parking Assist can only

1. With the vehicle turned on, depress the

search for parking spaces when parking

brake pedal and shift the gear to D

lines are visible or when there are

(Drive) or N (Neutral).

parked vehicles, and the empty spaces

2. Press and hold the Parking/View (

)

created after driving or the empty

button to turn on Remote Smart

spaces in front of a vehicle that has not

Parking Assist.

yet been driven cannot be searched as

the a parking space.

Information

• While searching for a parking space,

• Agree must be selected on the

when vehicle speed is above 12 mph (20

infotainment system and the

km/h), a message will appear on the

infotainment system has to operate

infotainment system informing you to

properly to use Parking function.

slow down. When vehicle speed is

• If you drive above 3 mph (5 km/h) with

above 18 mph (30 km/h), Parking

the vehicle on, you may use the Parking

function will turn off.

7-148

• Searching for a parking space will be

3. Select parking type and operating

completed when there is enough space

mode

to move the vehicle in addition to the

parking space.

4EVOMRK 8]TI

• Even if an audible sound is heard to

notify that searching for a parking

space is complete, search completion

can be cancelled immediately

depending on surroundings.

B7008904

Information

• Parking type - Perpendicular reverse

(Left/Right), Parallel reverse

(Left/Right)

With the vehicle stopped by depressing

the brake pedal, touch the infotainment

MRGLIW

system to select the desired parking

type.

Information

• If you continue to drive without

stopping after the parking type

B7008903

selection screen appears, Remote

Smart Parking Assist will return to the

• If the distance is below 20 in. (50 cm) or

previous stage and search for a parking

over 59 in. (150 cm), Remote Smart

space.

Parking Assist may not be able to

search for a parking space.

• If Parking function is cancelled

unintentionally by pressing the

• If you do not maintain a certain

Parking/View (

) button before the

distance from the parked vehicle, the

parking type is selected, you can return

performance to search for a parking

to the parking type selection stage by

space may reduce.

pressing and holding the button again

• Due to abnormal performance of the

while the vehicle is stopped.

ultrasonic sensor or the influence of the

surroundings, Parking function may not

be able to search for a parking space

even if there is a parking space, or may

WARNING

search for a space that is not suitable

Before selecting the Parking type, the

for parking.

driver should check whether the parking

• If the parking space is on a incline or is

space is suitable.

diagonal, the parking type displayed

If the searched parking space by Remote

may be different from the actual

Smart Parking Assist is narrow or

parking type which should be selected.

unsuitable for parking, do not select the

If this occurs, do not select the parking

Parking type and move the vehicle to

type, and search for another parking

search for another parking space.

space.

7-149

Driver Assistance System

4. Smart Parking

3TIVEXMRK 1SHI

6IQSXI

7QEVX

B7008905

•

Operating mode - Remote Parking,

Smart Parking

B7008907

After selecting a parking type, the

infotainment system will guide you

with Remote Smart Parking function

and Smart Parking function. Follow the

instructions to operate Remote Smart

Parking Assist.

Information

•

Operating instructions will be displayed

on the screen for each desired function

you select.

•

Do not take your foot off the brake

B7008908

pedal during the Parking function

1. Press the Parking/View (

) button

guide. When the vehicle moves,

when the vehicle is stopped by

Remote Smart Parking Assist will turn

depressing the brake pedal.

off.

2. Release the brake pedal while pressing

the Parking/View (

) button.

• Remote Smart Parking Assist will

Information

automatically control the steering

wheel, vehicle speed and gearshift.

7QEVX

• While Smart Parking function is

operating, if you do not hold down

the Parking/View (

) button, the

function will stop and function

control will pause. The function will

start operating again when the

Parking/View (

) button is pressed

4EVOMRK :MI[

and held again.

B7008906

If Remote Smart Parking Assist cannot

activate Remote Smart Parking function,

only the Smart Parking guide will be

displayed on the infotainment system.

7-150

3. Press and hold the Parking/View (

)

5. Remote Smart Parking

button until parking is completed.

6IQSXI

• When the vehicle reaches the target

parking position, a message will

appear on the infotainment system to

inform you that parking is complete.

The vehicle will automatically shift to

P (Park) and engage EPB (Electronic

Parking Brake).

0IEZI ZILMGPI OIIT XLI WQEVX OI] 'PSWI EPP HSSVW

4VIWW ERH LSPH XLI *SV[EVH SV &EGO[EVH FYXXSR SR XLI WQEVX OI]

4. If you need to change the vehicle's

position or location, manually complete

B7008909

parking your vehicle.

1. Depress the brake pedal and shift the

gear to P (Park).

Information

2. Get out of the vehicle with the smart

• Smart Parking function will not operate

key, and close all doors.

if the door is open or the seat belt is not

3. Press one of the Forward (

) or

fastened.

Backward (

) button on the smart key.

• The parking location indicator is

• While pressing the button, Remote

displayed on Surround View Monitor

Smart Parking Assist will

screen and is displayed until the vehicle

automatically control the steering

enters the parking space for the first

wheel, vehicle speed and gearshift.

time by Smart Parking function.

• While Remote Smart Parking

• Vehicle speed can be adjusted by

function is operating, if you do not

depressing the brake pedal while Smart

hold down the button, the vehicle will

Parking function is operating. However,

stop and function control will pause.

the vehicle does not accelerate even

The function will start operating

when the accelerator pedal is

again when the button is pressed and

depressed.

held again.

• Depending on parking environments, if

4. Press and hold the Forward (

) or

the vehicle is stopped by a stopper,

Backward (

) button until parking is

parking may be completed.

completed.

• When the vehicle reaches the target

parking position, a message will

appear on the infotainment system to

inform you that parking is complete.

The vehicle will automatically shift to

P (Park), engage EPB (Electronic

Parking Brake) and the vehicle will

turn off.

7-151

Driver Assistance System

5. If you need to change the vehicle's

position or location, manually complete

parking your vehicle.

Information

•

When operating Remote Smart Parking

function, make sure all smart keys are

outside of the vehicle.

•

Remote Smart Parking function will

operate only when the smart key is

within 13 ft. (4 m) from the vehicle. If

there is no vehicle movement even

when the Remote Forward or Backward

button is pressed on the smart key,

check the distance to the vehicle and

press the button again.

•

The detecting range of the smart key

may vary depending on the

surroundings that are affected by radio

waves such as transmission tower,

broadcast station, etc.

•

The parking location indicator is

displayed on Surround View Monitor

screen and is displayed until the vehicle

enters the parking space for the first

time by Remote Smart Parking

function.

•

Depending on parking environments, if

the vehicle is stopped by a stopper,

parking may be completed.

WARNING

• When using Remote Smart Parking

function, make sure that all passengers

have gotten out of the vehicle.

• After ending or turning off Remote

Smart Parking function, before leaving

the vehicle, close windows and

sunroofs, and make sure the vehicle is

off before locking the doors.

7-152

Parking function operation status

•

Smart Parking function

Operation Status

Turn Signal

The turn signal of the parking direction blinks until the first reverse

Under control

is complete.

•

Smart Parking function

Hazard Warning

Operation Status

Smart Key LED

Turn Signal

Light

The turn signal of the

Green LED

parking direction

Under control

continuously blinks

blinks until the first

reverse is complete.

Red LED

Pause

Blinks

continuously blinks

Red LED illuminates

Blinks 3 times and

Off

for 4 seconds and

turns off

then turns off

Green LED

illuminates for 4

Blinks 1 time and

Complete

seconds and then

turns off

Information

•

Operation status by the hazard warning light and turn signal may not be available

based on the regulation of your state.

•

If the smart key is not within the operating range from the vehicle (about 13 ft. (4 m)),

the smart key LED will not illuminate or blink. Use the smart key within the operating

range.

7-153

Driver Assistance System

How to turn off Parking function

The function will pause in the

while operating

following conditions when:

• Press the Parking/View (

) button in

•

Smart Parking

the following stage:

- There is a pedestrian, animal or

- Searching for parking space

object in the direction the vehicle is

moving

- Select parking type

- The door or trunk is open

• Shift the gear to R (Reverse) in the

following stage:

- The driver’s seat belt is not fastened

- Searching for parking space

- Blind-Spot Collision-Avoidance

Assist or Rear-Cross Traffic

- Select parking type

Collision-Avoidance Assist operates

- Select operating mode

while the vehicle is being controlled

• Press the Parking Safety (

) button or

in the reverse direction

select Cancel on the infotainment

- The Parking/View (

) button is not

system to turn off Parking function.

continuously pressed

• While Smart Parking function is

- The vehicle is stopped by depressing

operating:

the brake pedal

- If the vehicle is stopped by

•

Remote Smart Parking

depressing the brake pedal, and the

- There is a pedestrian, animal or

gear is shifted, Parking function will

object in the direction the vehicle is

turn off. At this time, EPB (Electronic

moving

Parking Brake) will not be engaged.

- The door or trunk is open

• While Remote Smart Parking function is

operating:

- The Forward (

) or Backward (

)

button is not continuously pressed

- Press the Remote Start (

) button on

the smart key. Parking function will

- Simultaneously pressing multiple

turn off.

buttons on a smart key

- The smart key is not operated within

Information

13 ft. (4 m) from the vehicle

Get on the vehicle with the smart key.

- Button of another smart key is

Parking function will turn off. At this time,

pressed in addition to the operating

the vehicle will remain on.

smart key

- Blind-Spot Collision-Avoidance

Assist, Rear-Cross Traffic

Collision-Avoidance Assist, or

Parking Collision-Avoidance Assist

operates

When Parking function is paused, the

vehicle will automatically stop. If the

condition that made the function to

pause disappears, the function may

operate again.

The function will cancel in the

• Smart Parking

following conditions when:

- The steering wheel is steered

7-154

The gear is shifted while the vehicle is

•

Remote Smart Parking

moving

The steering wheel is steered

Operating EPB while the vehicle is

The gear is shifted

moving

Operating EPB while the vehicle is

The hood is open

moving

The driver opens the door with the

The hood is open

seatbelt unfastened

The brake pedal or accelerator pedal

Rapid acceleration occurs

is depressed when all the doors are

Vehicle skid occurs

closed

The wheel is stuck by an obstacle and

The smart key is outside the vehicle

cannot move

when the brake pedal is depressed

while the driver's door is open

There are pedestrians, animals or

objects at the front and rear of the

Rapid acceleration occurs

vehicle at the same time

Vehicle skid occurs

About 3 minutes and 50 seconds

The wheel is stuck by an obstacle and

have past after Smart Parking

cannot move

function has started to operate

There are pedestrians, animals or

The slope of the road exceeds the

objects at the front and rear of the

operational range

vehicle at the same time

The function is paused for more than

About 3 minutes and 50 seconds

1 minute

have past after Remote Smart

The steering wheel, gearshift,

Parking function has started to

braking, and drive controls are not

operate

working properly

The slope of the road exceeds the

ABS, TCS or ESC system operates due

operational range

to slippery road conditions

The function is paused for more than

The charging door is open

1 minute

When Smart Parking function is canceled,

The steering wheel, gearshift,

the vehicle will automatically stop, shift

braking, and drive controls are not

the gear to P (Park) and engage EPB

working properly

(Electronic Parking Brake).

There is a problem with the smart key

or the smart key battery is low

ABS, TCS or ESC system operates due

to slippery road conditions

The alarm of the Theft Alarm System

sounds

The charging door is open

When Remote Smart Parking function is

canceled, the vehicle will automatically

stop, shift the gear to P (Park) and engage

EPB (Electronic Parking Brake).

7-155

Driver Assistance System

Smart Exit

2. Checking space

Operating order

7TEGI

Smart Exit function operates in the

following order:

1. Getting ready for exit

2. Checking space

3. Select exit direction

/IIT XLI ZILMGPI WXEXMSREV]

4. Smart Exit

B7009402

1. Getting ready for exit

When the vehicle is stopped by

depressing the brake pedal, the vehicle

sensors will detect the distance from

nearby objects and check for space to

exit.

When checking for space is complete, a

message will appear on the infotainment

system with an audible sound to notify

the search is complete.

WARNING

• While checking for space, if there is a

B7009401

risk of collision with pedestrian, animal

or object in the direction of vehicle exit,

1. With the vehicle turned on, depress the

for your safety, Smart Exit function can

brake pedal and shift the gear to P

be turned off.

(Park) or N (Neutral).

• Even if check for space is completed,

2. Press and hold the Parking/View (

)

objects in the blind spot area cannot be

button to turn on Remote Smart

detected by the sensors. The driver

Parking Assist.

must directly check the blind spot area

and continue using the function.

Information

• Agree must be selected on the

infotainment system and the

infotainment system has to operate

Information

properly to use Smart Exit function.

Due to abnormal performance of the

• Drive below 3 mph (5 km/h) with the

ultrasonic sensor or the influence of the

vehicle on and shift the gear to P (Park)

surroundings, Parking function may not

or N (Neutral), Smart Exit function can

be able to search for a parking space even

be used.

if there is a parking space, or may search

• If the function is turned on again after

for a space that is not suitable for parking.

parallel parking is completed by

For more information, refer to the

Remote Smart Parking Assist, Smart

"Limitations of Remote Smart Parking

Exit function can be used.

Assist" section in this chapter.

7-156

3. Select exit direction

• While Smart Exit function is

operating, if you do not hold down

)\MX (MVIGXMSR

the Parking/View (

) button, the

vehicle will stop and function control

will pause. The function will start

operating again when the

Parking/View (

) button is pressed

and held again.

3. Press and hold the Parking/View (

)

1YWX FI WXSTTIH XS WIPIGX I\MX HMVIGXMSR

button until exiting is completed.

B7009403

• When the vehicle reaches the target

With the vehicle stopped by depressing

exit location, a message will appear

the brake pedal, touch the infotainment

on the infotainment system to inform

system to select the desired exit

you that exit is completed.

direction.

Information

WARNING

•

Smart Exit function will not operate if

Before selecting the Exit Direction, the

the door is open or the seat belt is not

driver should check whether the space for

fastened.

exit is suitable.

•

Vehicle speed can be adjusted by

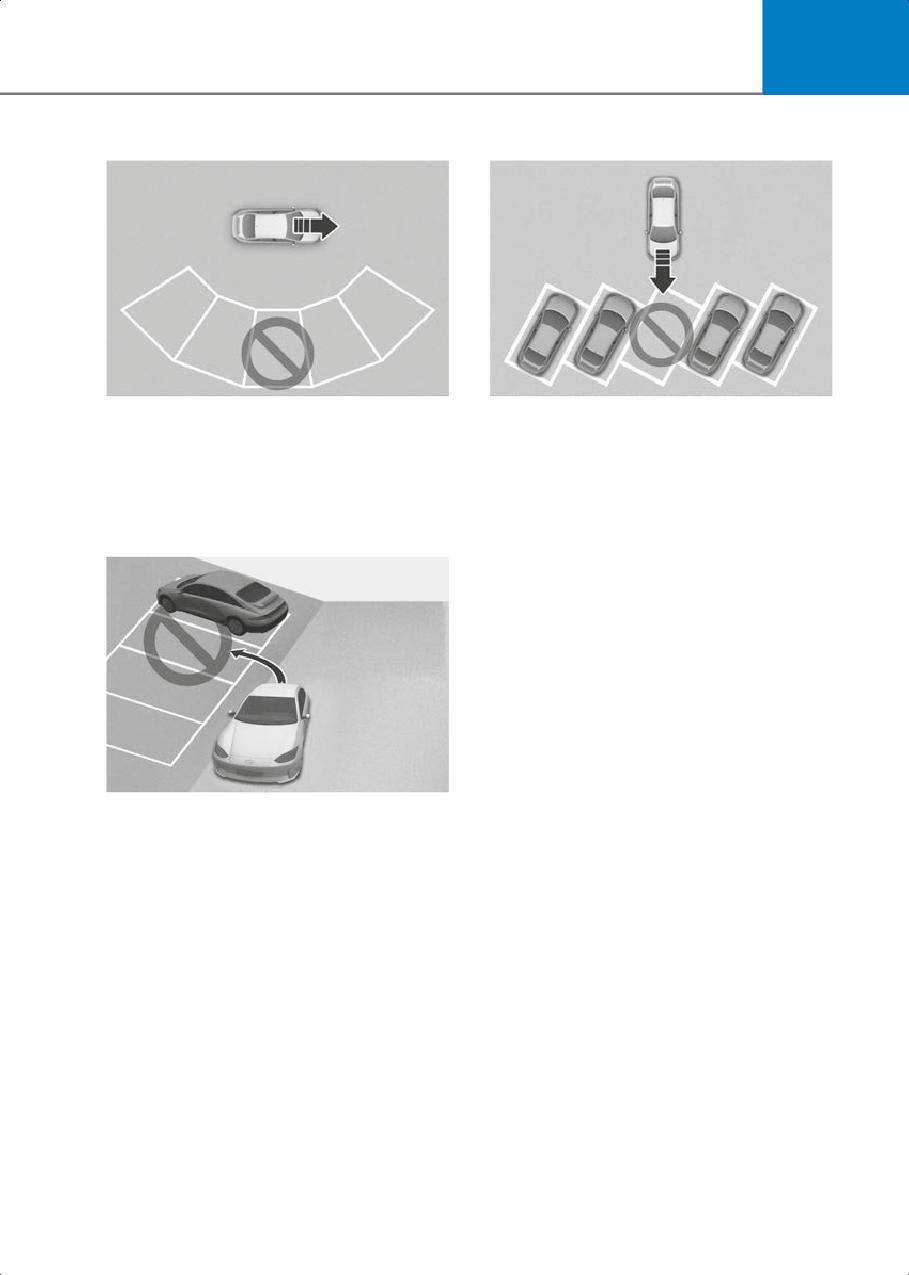

If the searched exit space by Remote

depressing the brake pedal while Smart

Smart Parking Assist is narrow or

Exit function is operating. However, the

unsuitable (surrounding vehicles are

vehicle does not accelerate even when

parked vertically, etc.), do not use the

the accelerator pedal is depressed.

Smart Exit function.

•

If exit is completed while depressing

the brake pedal, Smart Exit function will

complete with the gear in D (Drive).

4. Smart Exit

•

If exit is completed while depressing

the accelerator pedal, you must take

7QEVX )\MX -RWXVYGXMSRW

your foot off the accelerator pedal once

for the accelerator pedal to operate.

•

If there is no vehicle operation such as

depressing the brake pedal or

accelerator pedal within 4 seconds

after exit is complete, the vehicle will

automatically shift to P (Park) and

4EVOMRK :MI[

engage EPB (Electronic Parking Brake).

B7009404

•

After Exit function is complete, always

1. Press the Parking/View (

) button

check the surroundings before driving.

when the vehicle is stopped by

depressing the brake pedal.

2. When the Parking/View (

) button is

pressed, release the brake pedal

according to the instructions.

• Remote Smart Parking Assist will

automatically control the steering

wheel, vehicle speed and gearshift.

7-157

Driver Assistance System

Smart Exit operation status

When Exit function is paused, the vehicle

will stop. If the condition that made the

Operation

function to pause disappears, the

Turn Signal

Status

function may operate again.

The turn signal of the exit

The function will cancel in the following

Under

direction blinks until the

conditions when:

control

exit is complete or Smart

Exit is canceled.

• Smart Exit

The steering wheel is steered

How to turn off Smart function while

The gear is shifted while the vehicle is

operating

moving

• Press the Parking/View (

) button in

Operating EPB while the vehicle is

the following stage:

moving

- Checking space

The hood is open

- Select exit direction

The driver opens the door with the

seatbelt unfastened

• Shift the gear to R (Reverse) in the

following stage:

Rapid acceleration occurs

- Checking space

Vehicle skid occurs

- Select exit direction

The wheel is stuck by an obstacle and

cannot move

• Press the Parking Safety (

) button or

select Cancel on the infotainment

There are pedestrians, animals or

system to turn off Exit function.

objects at the front and rear of the

vehicle at the same time

• While Smart Exit function is operating,

if the vehicle is stopped by depressing

About 3 minutes and 50 seconds

the brake pedal, and the gear is shifted,

have past after Smart Exit function

Exiting function will turn off. At this

has started to operate

time, EPB (Electronic Parking Brake)

The slope of the road exceeds the

will not be engaged.

operational range

The function was paused for more

The function will pause in the following

than 1 minute

conditions when:

The steering wheel, gearshift,

• There is a pedestrian, animal or object

braking, and drive controls are not

in the direction the vehicle is moving

working properly

• The door or trunk is open

ABS, TCS or ESC system operates due

• The driver’s seat belt is not fastened

to slippery road conditions

• Blind-Spot Collision-Avoidance Assist

The charging door is open

or Rear-Cross Traffic

When Smart Exit function is canceled, the

Collision-Avoidance Assist operates

vehicle will automatically stop, shift the

while the vehicle is being controlled in

gear to P (Park) and engage EPB

the reverse direction

(Electronic Parking Brake).

• The Parking/View (

) button is not

continuously pressed

• The vehicle is stopped by depressing

the brake pedal

7-158

Remote Smart Parking Assist

Remote Smart Parking Assist standby

Malfunction and Limitations

'SRHMXMSRW 2SX 1IX

Remote Smart Parking Assist

malfunction

Remote Smart Parking Assist check

XS XLI S[RIV W QERYEP

B7009503

The ‘Parking Assist Conditions Not Met’

message will appears in the following

circumstances:

• When ‘Parking Assist Conditions Not

:MWMX E HIEPIV SV RIEVF] WIVZMGI GIRXIV

Met’ message appears when

B7009501

Parking/View (

) button has been

pressed and held while Remote Smart

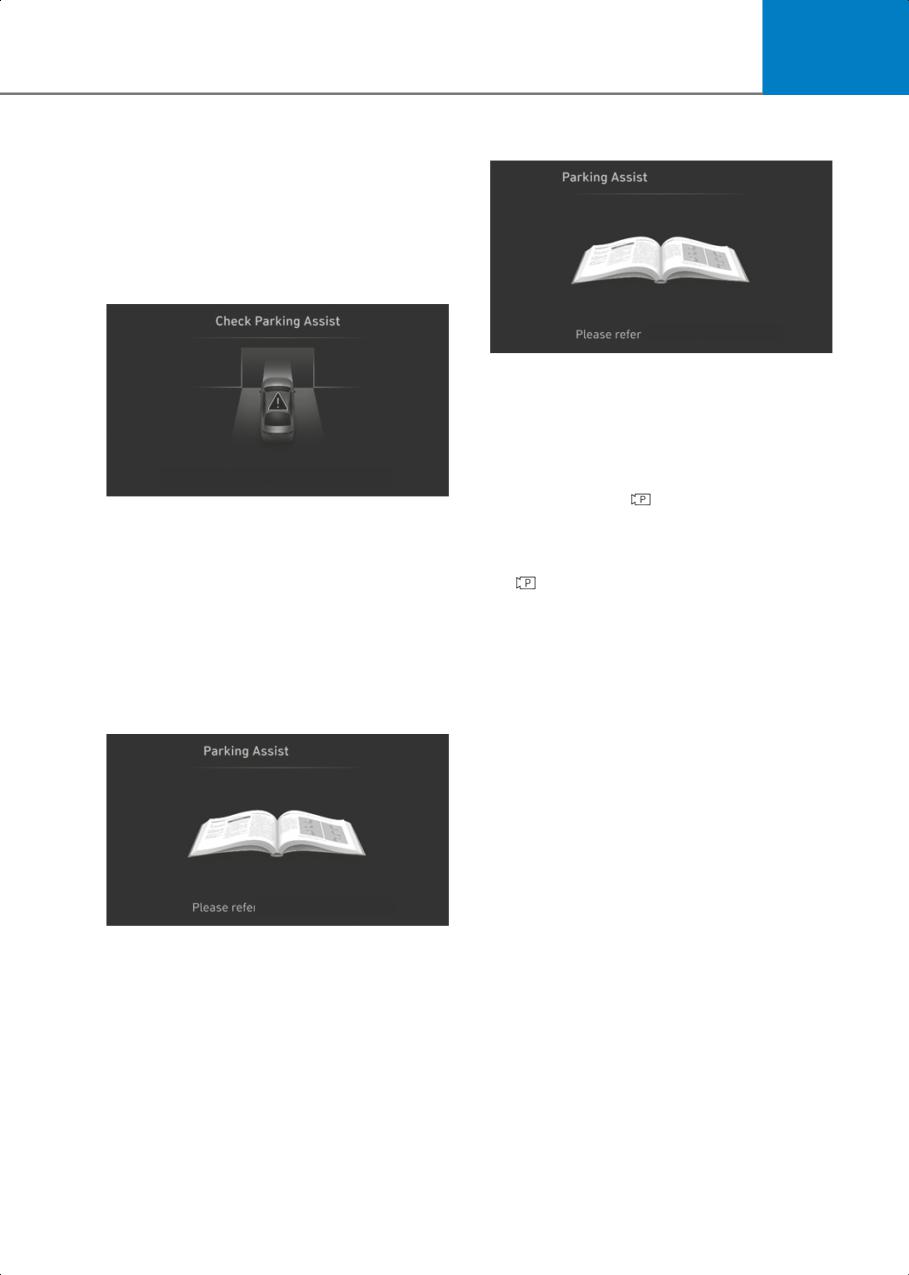

When Remote Smart Parking Assist is not

Parking Assist is in standby. After a

working properly, the ‘Check Parking

while, press and hold the Parking/View

Assist’ warning message will appear on

(

) button again to see if Remote

the infotainment system. If the message

Smart Parking Assist works.

appears, stop using Remote Smart

Parking Assist, and have the vehicle

• When the smart key's battery is low.

inspected by an authorized HYUNDAI

Check the smart key battery level.

dealer.

• It does not work even when the EV

mode is in the Utility mode. For related

Remote Smart Parking Assist canceled

information, refer to the "Setting Utility

Mode" section in chapter 1.

'ERGIPIH

Limitations of Remote Smart Parking

Assist

In the following circumstances, Remote

Smart Parking Assist performance to park

or exit the vehicle may be limited, there

XS XLI S[RIV W QERYEP

may be a risk of collision, or Remote

Smart Parking Assist may turn off. Park or

B7009502

exit the vehicle manually if necessary.

When Remote Parking Assist is operating,

• An object is attached to the steering

the function can be canceled, and the

wheel

‘Parking Assist Canceled’ warning

message may appear regardless of the

• The vehicle is installed with a snow

parking order. Other messages may

chain, spare tire or different size wheel

appear depending on the situations.

• Tire pressure is lower or higher than the

Follow the instructions provided on the

standard tire pressure

infotainment system while parking your

• Your vehicle is loaded with cargo longer

vehicle with Remote Parking Assist.

or wider than your vehicle or a trailer is

Always look around and pay attention

connected to your vehicle

when using Remote Smart Parking Assist.

7-159

Driver Assistance System

•

There is a problem with the wheel

•

The performance of the ultrasonic

alignment

sensor is affected by extremely hot or

cold weather

•

Your vehicle is leaned severely to one

side

•

The ultrasonic sensor is covered with

snow or water

•

Your vehicle is equipped with a trailer

hitch

•

An object that generates ultrasonic

waves is nearby

•

The license plate is installed differently

from the original location

•

A wireless device with a transmission

function operates near the ultrasonic

•

There is a person, animal or object

sensors

above or below the ultrasonic sensor

when Remote Smart Parking Assist is

•

Your vehicle is affected by another

activated

vehicle’s Parking Distance Warning

•

The parking space is curved or diagonal

•

The sensor is mounted or positioned

incorrectly by an impact to the bumper

•

There is an obstacle such as a person,

animal or object (trash can, bicycle,

•

The cameras is improperly mounted or

motorcycle, shopping cart, narrow

out of position due to side view mirror

pillar, etc.) near the parking space

damage

•

There is a circular pillar or narrow pillar,

•

The ultrasonic sensor cannot detect the

or a pillar surrounded by objects such

following objects when:

as fire extinguisher, etc., near the

- Sharp or slim objects, such as ropes,

parking space

chains or small poles

•

The road surface is bumpy (curbstone,

- Objects smaller than 40 in. (100 cm)

speed bump, etc.)

in length and narrower than 6 in. (14

•

The road is slippery

cm) in diameter

•

The parking space is near a vehicle with

- Objects which tend to absorb sensor

higher ground clearance or big, such as

frequency, such as clothes, spongy

a truck, etc.

material or snow

•

The parking space is Inclined

- A narrow object such as a corner of a

square pillar

•

The road surface of parking space with

lines is wet due to snow, puddles, or

- Person, animal or object near the

there is a road marker inside the

ultrasonic sensor

parking space

•

The cameras may not properly

•

The road surface of the parking space

recognize or may not recognize the

with lines is bumpy due to road cracks

parking line and objects when:

•

The parking line is too thin or thick

- There are small objects (curb, etc.),

sharp objects, or thin objects (rope,

•

The parking line is partially erased or

etc.) around

blurred

- People, animals or objects are too

•

The parking line is obscured by people,

close or too far from the vehicle

animals, or objects such as snow,

boxes, etc.

- Objects are on a higher position, such

as pickup trucks

•

There is heavy wind

- The camera is obscured by dirt or

•

Operating Remote Smart Parking Assist

moisture

on uneven roads, gravel roads, bushes,

etc.

- The camera is exposed to bright light

7-160

- The surrounding is too dark

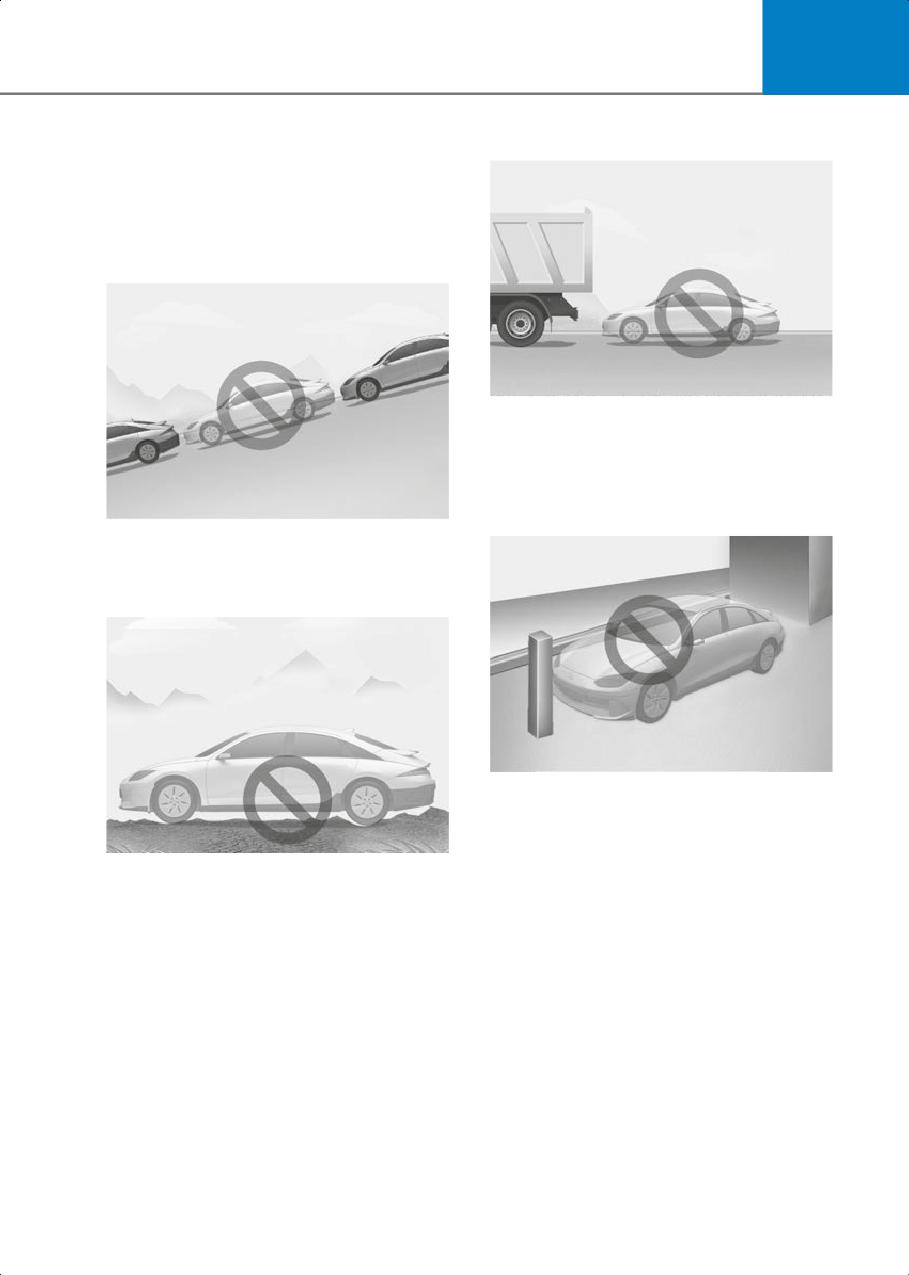

• Parking behind a truck

- The light is reflected from the surface

Remote Smart Parking Assist may not

operate properly under the following

circumstances:

• Parking on inclines

B7009506

Do not use Remote Smart Parking

Assist around vehicles with higher

ground clearance, such as a bus, truck,

etc. It may lead to an accident.

B7009504

• Parking near a pillar

Park or exit manually when the vehicle

is on inclines.

• Parking on uneven road

B7009507

Remote Smart Parking Assist

performance may reduce or collision

with an obstacle may occur when there

B7009505

is a narrow object, circular pillar, square

Remote Smart Parking Assist may

pillar, or a pillar surrounded by objects

cancel when the vehicle slips, or the

such as a fire extinguisher, etc., near

vehicle cannot move due to road

the parking space. The driver should

conditions such as pebbles or

park the vehicle manually.

fragmented stones.

7-161

Driver Assistance System

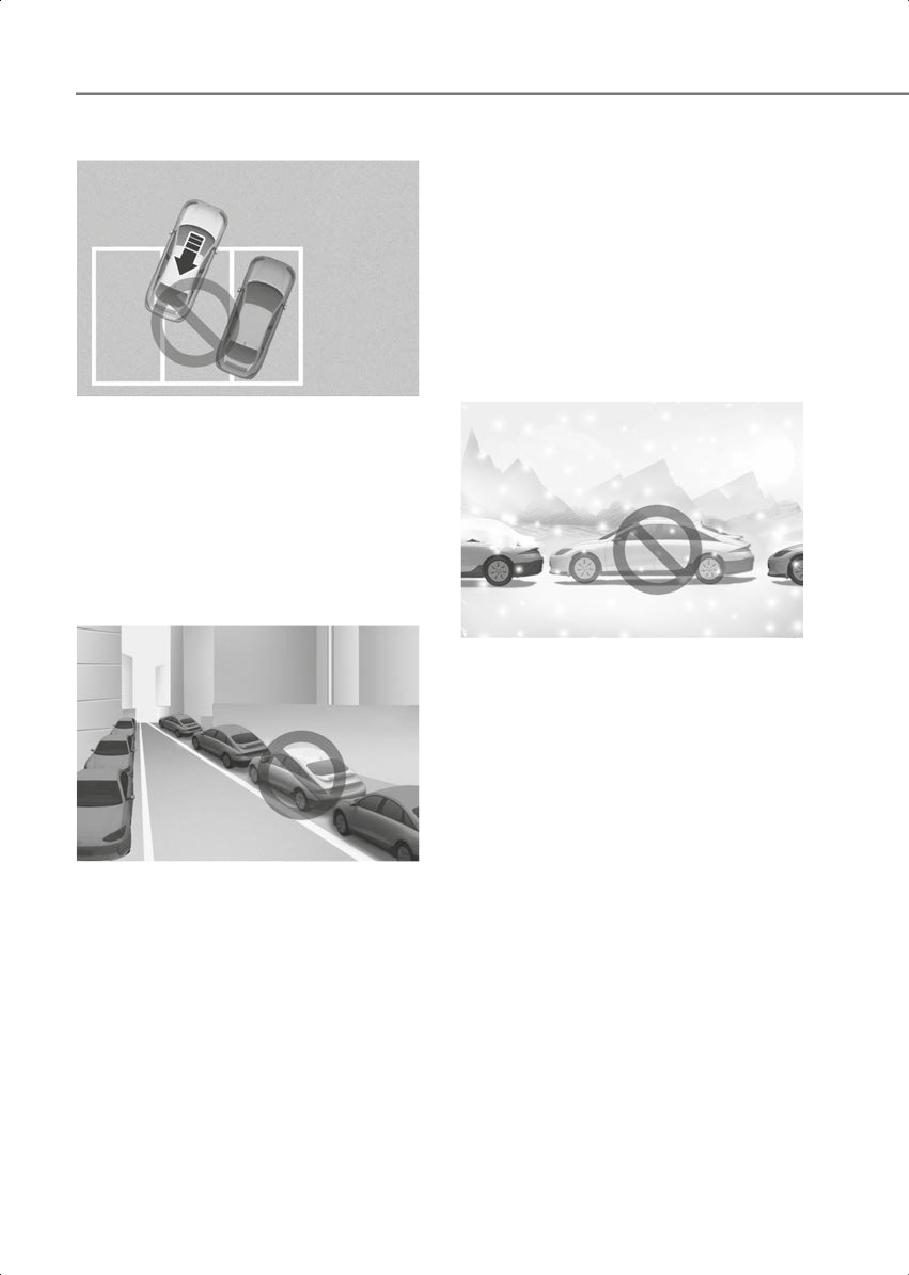

• Parking next to a misaligned vehicle

- For your safety, Remote Smart

Parking Assist does not search for

parking spaces at areas with narrow

parking spaces that are narrower

than the minimum space required for

parking.

Remote Smart Parking Assist may not

operate properly when parking in a

narrow space. Always check for

pedestrians, animals, objects while

parking.

• Parking in snow

B7009508

If Remote Smart Parking Assist is used

when parking in a space next to

misaligned vehicles, your vehicle may

not be parked side by side.

However, if there is a parking line and it

is detected properly, your vehicle will

park side by side with the parking line.

• Leaving a parking space near a wall or

parking in a narrow space

B7009511

Snow may interfere with the operation

of the ultrasonic sensor and wide view

camera, or Remote Smart Parking

Assist may cancel if the road is slippery

while parking.

B7009509

- Remote Smart Parking Assist may not

operate properly when leaving a

parking space that is narrow and near

a wall. Always check for pedestrians,

animals, objects while leaving.

7-162

Driver Assistance System

• If Remote Smart Parking Assist does

WARNING

not operate properly, have the vehicle

Take the following precautions when

inspected by an authorized HYUNDAI

using Remote Smart Parking Assist:

dealer.

•

The driver is responsible for safe

parking and exit when using Remote

Smart Parking Assist.

NOTICE

•

When using Remote Smart Parking

•

If the 3rd stage warning (continuous

Assist, stay out of the way in the

beep) of the Forward/Reverse Parking

direction the vehicle moves for your

Distance Warning sounds while

safety.

Remote Smart Parking Assist is

•

Always check surroundings when using

operating, it means the obstacle

Remote Smart Parking Assist. You may

detected is close to your vehicle. At this

collide with pedestrians, animals, or

time, Remote Smart Parking Assist will

objects if they are near the sensor or are

temporarily stop operating. Make sure

in the sensor’s blind spot area.

there are no pedestrians, animals, or

•

A collision may occur if a pedestrian,

objects around your vehicle.

animal, or object suddenly appears

•

Depending on brake operation, the

while Remote Smart Parking Assist is

stop lights may come on while the

operating.

vehicle is moving.

•

Do not use Remote Smart Parking

•

If the vehicle is remotely started that

Assist when under the influence of

has been parked in cold weather for a

alcohol.

long time, the operation of Remote

•

Do not let children or other people to

Smart Parking function may be delayed

use the smart key.

or canceled depending on vehicle

condition.

•

If Remote Smart Parking Assist is used

continuously for a long period, it may

adversely affect Remote Smart Parking

Assist performance.

•

Remote Smart Parking Assist may not

operate properly if the vehicle needs

wheel alignment adjustment such as

when the vehicle tilts to one side. Have

the vehicle inspected by an authorized

HYUNDAI dealer.

•

Noise may be heard when braking

occurs by Remote Smart Parking Assist

or when the brake pedal is depressed

by the driver.

•

Remote Smart Parking Assist may

suddenly apply the brake to avoid

collision with pedestrian, animal, or

object.

•

Use Remote Smart Parking Assist only

in a parking space that is large enough

for the vehicle to move safely.

7-164

• For Canada

Declaration Of

Conformity

Model: MRR-30

if equipped

IC: 27992-MRR30

This device complies with Industry Canada

Front Radar

licence-

exempt RSS standard(s). Opera on is

The radio frequency components (front

subject to the following two condi ons:

radar) complies:

(1) this device may not cause interference, and

• For USA

(2) this device must accept any interference,

including interference that may cause undesired

opera on of the device.

Le présent appareil est conforme aux CNR

d'Industrie Canada applicables aux appareils

radio exempts de licence. L'exploita on est

autorisée

aux deux condi ons suivantes:

(1) l'appareil ne doit pas produire de brouillage,

(2) l'u lisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le

brouillage est suscep ble d'en comprome re

le fonc onnement.

FCC ID

: 2A3OZ-MRR30

This device complies with Part 15 of the FCC

OANATEL327

Rules. Opera on is subject to the following two

condi ons:

(1) this device may not cause harmful

interference, and

(2) this device must accept any interference

received, including interference that may cause

undesired opera on.

CAUTION TO USERS

Changes or modifica ons not expressly

approved by the party responsible for

compliance could void the user`s authority to

operate the equipment.

OANATEL351

7-165

Driver Assistance System

Front Corner Radar/Rear

Corner Radar

The radio frequency components (Front

corner radar/Rear corner radar) complies:

• For USA

FCC ID : LTQH5TR

This device complies with Part 15 of the FCC

Rules. Opera on is subject to the following two

condi ons:

(1) this device may not cause harmful

interference, and

FCC ID : LTQ2H5TR

(2) this device must accept any interference

received, including interference that may cause

This device complies with Part 15 of the FCC

undesired opera on.

Rules. Opera on is subject to the following two

condi ons:

CAUTION TO USERS

(1) this device may not cause harmful

Changes or modifica ons not expressly

interference, and

approved by the party responsible for

(2) this device must accept any interference

compliance could void the user`s authority to

received, including interference that may cause

operate the equipment.

undesired opera on.

OANATEL320_1

CAUTION TO USERS

Changes or modifica ons not expressly

approved by the party responsible for

compliance could void the user`s authority to

operate the equipment.

OANATEL320

7-166

• For Canada

Model: 2H5TR

IC: 3659A-2H5TR

This device complies with Industry Canada

licence-

exempt RSS standard(s). Opera on is

subject to the following two condi ons:

(1) this device may not cause interference, and

(2) this device must accept any interference,

including interference that may cause undesired

opera on of the device.

Le présent appareil est conforme aux CNR

d'Industrie Canada applicables aux appareils

radio exempts de licence. L'exploita on est

autorisée

aux deux condi ons suivantes:

(1) l'appareil ne doit pas produire de brouillage,

(2) l'u lisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le

brouillage est suscep ble d'en comprome re

le fonc onnement.

OANATEL317

Model: H5TR

IC: 3659A-H5TR

This device complies with Industry Canada

licence-

exempt RSS standard(s). Opera on is

subject to the following two condi ons:

(1) this device may not cause interference, and

(2) this device must accept any interference,

including interference that may cause undesired

opera on of the device.

Le présent appareil est conforme aux CNR

d'Industrie Canada applicables aux appareils

radio exempts de licence. L'exploita on est

autorisée

aux deux condi ons suivantes:

(1) l'appareil ne doit pas produire de brouillage,

(2) l'u lisateur de l'appareil doit accepter tout

brouillage radioélectrique subi, même si le

brouillage est suscep ble d'en comprome re

le fonc onnement.

OANATEL317_1

7-167

8. Emergency Situations

Hazard Warning Flasher

8-2

In Case Of An Emergency While Driving

8-2

If the Vehicle Stalls While Driving

8-2

If the Vehicle Stalls at A Crossroad or Crossing

8-2

If You Have a Flat Tire While Driving

8-3

If The Vehicle Will Not Start

8-3

Confirm the EV Battery is not Low on the Charge Gauge

8-3

Jump Starting (12 V Battery)

8-4

Tire Pressure Monitoring System (TPMS)

8-7

Check Tire Pressure

8-7

Tire Pressure Monitoring System

8-8

Low Tire Pressure Warning Light

8-9

Low Tire Pressure Position and Tire Pressure Telltale

8-9

Changing a Tire with TPMS

8-10

If You Have A Flat Tire (with Tire Mobility Kit)

8-12

Introduction

8-12

Notes on the Safe Use of the Tire Mobility Kit

8-12

Components of the Tire Mobility Kit

8-13

Using the Tire Mobility Kit When a Tire is Flat

8-14

How to Adjust Tire Pressure

8-17

Towing

8-18

Towing Service

8-18

Removable Towing Hook

8-19

Emergency Situations

Hazard Warning Flasher

In Case Of An Emergency

While Driving

If the Vehicle Stalls While

Driving

• Reduce the vehicle speed gradually,

keeping a straight line. Move cautiously

off the road to a safe place.

• Turn on your hazard warning flasher.

• Try to start the vehicle again. If your

B8000201

vehicle does not start, contact an

The hazard warning flasher warns other

authorized HYUNDAI dealer or seek

drivers to exercise extreme caution when

other qualified assistance.

approaching, overtaking, or passing your

vehicle. It should be used whenever

making emergency repairs or when

If the Vehicle Stalls at A

stopped near the edge of a roadway.

Crossroad or Crossing

To turn on or off the hazard warning

If the vehicle stalls at a crossroad or

flasher, press the hazard warning flasher

intersection, if safe to do so, shift the gear

button with the Start/Stop button in any

to N (Neutral) and then push the vehicle

position. The hazard warning flasher

to a safe location.

button is located in the center fascia

panel. All turn signal lights flash

simultaneously.

• The hazard warning flasher operates

whether your vehicle is running or not.

• The turn signals do not work when the

hazard flasher is on.

8-2

If You Have a Flat Tire While

If The Vehicle Will Not

Driving

Start

If a tire goes flat while you are driving:

• Take your foot off the accelerator pedal

and let the vehicle slow down while

Confirm the EV Battery is not

driving straight ahead. Do not apply the

Low on the Charge Gauge

brakes immediately or attempt to pull

• Be sure the gear is in P (Park). The

off the road because this may cause

vehicle starts only when the gear is in P

loss of vehicle control resulting in a

(Park).

collision. When the vehicle has slowed

to such a speed that it is safe to do so,

• Check the 12 V battery connections to

brake carefully and pull off the road.

be sure they are clean and tight.

Drive off the road as far as possible and

• Turn on the interior light. If the light

park on a firm, level ground. If you are

dims or goes out when you operate the

on a divided highway, do not park in the

starter, the 12 V battery is drained.

median area between the two traffic

lanes.

NOTICE

• When the vehicle is stopped, press the

Starting the vehicle by pushing or pulling

hazard warning flasher button, shift the

may cause vehicle damage.

gear to P (Park), apply the parking

brake, and press the Start/Stop button

to the OFF position.

• Have all passengers get out of the

vehicle. Make sure they all get out on

the side of the vehicle that is away from

traffic.

• When you have a flat tire, refer to the "If

You Have A Flat Tire (with Tire Mobility

Kit)" section in this chapter.

8-3

Emergency Situations

Jump Starting (12 V

Battery)

Jump starting can be dangerous if done

incorrectly. Follow the jump starting

procedure in this section to avoid serious

injury or damage to your vehicle. If in

WL_TakingCareOfBatteryWarning_3

doubt about how to properly jump start

Hydrogen gas is always present in battery

your vehicle, have a service technician or

cells. It is highly combustible, and may

towing service do it for you.

explode if ignited.

WARNING

To prevent SERIOUS INJURY or DEATH to

you or bystanders, always follow these

precautions when working near or

handling the battery:

WL_TakingCareOfBatteryWarning_4

Keep batteries out of reach of children.

WL_TakingCareOfBatteryWarning

Always read and follow instructions

carefully when handling a battery.

WL_TakingCareOfBatteryWarning_5

Batteries contain sulfuric acid that is

highly corrosive. Do not allow acid to

contact your eyes, skin, or clothing. If acid

gets into your eyes, flush your eyes with

clean water for at least 15 minutes and get

immediate medical attention. If acid gets

WL_TakingCareOfBatteryWarning_6

on your skin, thoroughly wash the area. If

Wear eye protection designed to protect

you feel pain or a burning sensation, get

the eyes from acid splashes.

medical attention immediately.

• When lifting a plastic-cased battery,

excessive pressure on the case may

cause battery acid to leak. Lift with a

battery carrier or with your hands on

opposite corners.

• Do not attempt to jump start your

vehicle if your battery is frozen.

WL_TakingCareOfBatteryWarning_2

• NEVER attempt to recharge the battery

Keep all flames, sparks, or smoking

when the vehicle’s battery cables are

materials away from the battery.

connected to the battery.

8-4

• The electrical ignition system works

CAUTION

with high voltage.

NEVER touch these components with

Before jump starting, make sure to

the vehicle running or when the

correctly identify the positive (+) and

Start/Stop button is in the ON position.

negative (-) terminals to avoid reverse

polarity connections.

• The electrical ignition system works

with high voltage. NEVER touch these

components Start/Stop button in the

ON or START position.

• Do not allow the (+) and (-) jumper

cables to touch. It may cause sparks.

• The battery may rupture or explode

when you jump start with a low or

frozen battery.

• Do not directly connect the (-) to the

jump cable. Connect the (-) to the one

of the metallic parts located far from

the jump cable in the vehicle. The direct

(-) connection to the jump cable may

B8001501

cause an explosion.

7. Connect the jumper cables in the exact

sequence shown in the illustration. First

connect one jumper cable to the red,

Jump starting procedure

positive (+) jumper terminal of your

vehicle (1).

Information

8.Connect the other end of the jumper

When you jump start your vehicle, use the

cable to the red, positive (+)

jumper terminal in the motor

battery/jumper terminal of the

compartment.

assisting vehicle (2).

9. Connect the second jumper cable to

the black, negative (-) battery/jumper

1. Position the vehicles close enough that

terminal of the assisting vehicle (3).

the jumper cables will reach. Do not

10.Connect the other end of the second

allow the vehicle body parts to contact.

jumper cable to the black, negative (-)

2. Avoid fans or any moving parts in the

chassis ground of your vehicle (4).

motor compartment at all times, even

Do not allow the jumper cables to

when the vehicles are turned off.

contact anything except the correct

3. Turn off all electrical devices such as

battery or jumper terminals or the

radios, lights, air conditioning, etc. Put

correct ground. Do not lean over the

the vehicles in P (Park) and apply the

battery when making connections.

parking brake. Turn both vehicles OFF.

4. Open the hood.

WARNING

5. Remove the battery cover located

Do not connect the jumper cable to the

inside of the front trunk.

negative (-) jumper terminal of the

6.Remove the motor compartment fuse

discharged battery. A spark could

box cover.

cause the battery to explode and lead

to a personal injury or vehicle damage.

8-5

Emergency Situations

11.Start the assisting vehicle and let it run

Information

for a few minutes. Then start your

vehicle.

12.Keep your vehicle operating for at least

30 minutes at idle or driving to assure

your battery receives enough charge to

be able to start on its own after the

vehicle is shut off. A completely

discharged battery may require as long

WL_TakingCareOfBatteryWarning_7

as 60 minutes runtime to fully recharge

An inappropriately disposed battery can

it. If the vehicle is run for less, battery

be harmful to the environment and

may not restart.

human health. Dispose of the battery

If your vehicle does not start after a few

according to your local law(s) or

attempts, it probably requires service.

regulations.

Have your vehicle inspected by an

authorized HYUNDAI dealer.

Disconnect the jumper cables in the exact

NOTICE

reverse order you connected them:

1. Disconnect the jumper cable from the

To prevent damage to your vehicle:

chassis ground of your vehicle (4).

• Only use a 12 V power supply (battery or

2. Disconnect the other end of the jumper

jumper system) to jump start your

cable from battery/chassis ground of

vehicle.

the assisting vehicle (3).

• Do not attempt to jump start your

3. Disconnect the second jumper cable

vehicle by push-starting.

from the red, positive (+)

battery/jumper terminal of the

assisting vehicle (2).

4. Disconnect the other end of the jumper

cable from the red, positive (+) jumper

terminal of your vehicle (1).

8-6

Tire Pressure Monitoring

Check Tire Pressure

System (TPMS)

5JSF 1SFTTVSF

B8002001

• You can check the tire pressure in the

B8001801

Utility view on the instrument cluster.

For more information, refer to the

“View Modes” section in chapter 4.

• Tire pressure is displayed after a few

-PX UJSF QSFTTVSF

minutes of driving after initial vehicle

start up.

-PX

• If tire pressure is not displayed when

the vehicle is stopped, "Drive to

-PX

display" message appears. After

driving, check the tire pressure.

• The displayed tire pressure values may

B8001802

differ from those measured with a tire

(1) Low Tire Pressure Telltale/TPMS

pressure gauge.

Malfunction Indicator

• You can change the tire pressure unit

(2) Low Tire Pressure Position Telltale and

from the Settings menu in the

Tire Pressure Telltale (Shown on the

infotainment system.

cluster display)

Select Setup > General > Unit > Tire Air

Pressure Unit > psi/kPa/bar.

Information

The infotainment system may change

after software updates. For more

information, refer to the user's manual

provided in the infotainment system and

the quick reference guide.

8-7

Emergency Situations

Tire Pressure Monitoring

Your vehicle has also been equipped with

a TPMS malfunction indicator to indicate

System

when the system is not operating

properly. The TPMS malfunction indicator

WARNING

is combined with the low tire pressure

Over-inflation or under-inflation can

telltale. When the system detects a

reduce tire life, adversely affect vehicle

malfunction, the telltale will flash for

handling, and lead to sudden tire failure

about one minute and then remain

that may cause loss of vehicle control

continuously illuminated. This sequence

resulting in an accident.

will continue upon subsequent vehicle

start-ups as long as the malfunction

exists.

Each tire, including the spare (if

When the malfunction indicator is

provided), should be checked monthly

illuminated, the system may not be able

when cold and inflated to the inflation

to detect or signal low tire pressure as

pressure recommended by the vehicle

intended. TPMS malfunctions may occur

manufacturer on the vehicle placard or

for a variety of reasons, including the

tire inflation pressure label. (If your

installation of replacement or alternate

vehicle has tires of a different size than

tires or wheels on the vehicle that prevent

the size indicated on the vehicle placard

the TPMS from functioning properly.

or tire inflation pressure label, you should

determine the proper tire inflation

Always check the TPMS malfunction

pressure for those tires.)

telltale after replacing one or more tires or

wheels on your vehicle to ensure that the

As an added safety feature, your vehicle

replacement or alternate tires and wheels

has been equipped with a tire pressure

allow the TPMS to continue to function

monitoring system (TPMS) that

properly.

illuminates a low tire pressure telltale

when one or more of your tires is

NOTICE

significantly under-inflated. Accordingly,

when the low tire pressure telltale

If any of the below happens, have the

illuminates, you should stop and check

system inspected by an authorized

your tires as soon as possible, and inflate

HYUNDAI dealer.

them to the proper pressure. Driving on a

1. The Low Tire Pressure Telltale/TPMS

significantly under-inflated tire causes

Malfunction Indicator does not

the tire to overheat and can lead to tire

illuminate for 3 seconds when the

failure.

Start/Stop button is pressed to the ON

Under-inflation also reduces energy

position or when the vehicle is running.

efficiency and tire tread life, and may

2. The TPMS Malfunction Indicator

affect the vehicle’s handling and stopping

remains illuminated after blinking for

ability.

about 1 minute.

Please note that the TPMS is not a

3. The Low Tire Pressure Position Telltale

substitute for proper tire maintenance,

remains illuminated.

and it is the driver’s responsibility to

maintain correct tire pressure, even if

under-inflation has not reached the level

to trigger illumination of the TPMS low

tire pressure telltale.

8-8

Low Tire Pressure Warning

The Low Tire Pressure Telltale will remain

on and the TPMS Malfunction Indicator

Light

may blink for one minute and then remain

illuminated (when the vehicle is driven

about 10 minutes at speed above 15.5

mph (25 km/h)) until you have the low

pressure tire repaired and replaced on the

vehicle.

CAUTION

WL_TPMSWarningLamp

In winter or cold weather, the Low Tire

Pressure Telltale may be illuminated if the

Low Tire Pressure Position

tire pressure was adjusted to the

and Tire Pressure Telltale

recommended tire inflation pressure in

warm weather. It does not mean your

TPMS is malfunctioning because the

decreased temperature leads to a

-PX UJSF QSFTTVSF

proportional lowering of tire pressure.

When you drive your vehicle from a warm

-PX

area to a cold area or from a cold area to a

warm area, or the outside temperature is

-PX

greatly higher or lower, you should check

the tire inflation pressure and adjust the

tires to the recommended tire inflation

pressure.

B8002102

When the tire pressure monitoring

system warning indicators are illuminated

WARNING

and a warning message displayed on the

cluster display, one or more of your tires is

Low pressure damage

significantly under-inflated. The Low Tire

Significantly low tire pressure makes the

Pressure Position Telltale will indicate

vehicle unstable and can contribute to

which tire is significantly underinflated by

loss of vehicle control and increased

illuminating the corresponding parking

braking distances.

light.

Continued driving on low pressure tires

If either telltale illuminates, immediately

can cause the tires to overheat and fail.

reduce your speed, avoid hard cornering

and anticipate increased stopping

distances. You should stop and check

your tires as soon as possible. Inflate the

tires to the proper pressure as indicated

on the vehicle’s placard or tire inflation

pressure label located on the driver’s side

center pillar outer panel.

If you cannot reach a service station or if

the tire cannot hold the newly added air,

replace the low pressure tire with the

spare tire.

8-9

Emergency Situations

TPMS (Tire Pressure Monitoring System)

Changing a Tire with TPMS

Malfunction Indicator

If you have a flat tire, the Low Tire

Pressure and Position telltales will come

on. Have the flat tire repaired by an

authorized HYUNDAI dealer as soon as

possible or replace the flat tire with the

spare tire.

NOTICE

It is recommended that you do not use a

puncture-repairing agent not approved

by an authorized HYUNDAI dealer or the

equivalent specified for your vehicle to

B8001801_1

repair and/or inflate a low pressure tire.

The TPMS Malfunction Indicator will

Tire sealant not approved by an

illuminate after it blinks for about one

authorized HYUNDAI dealer or the

minute when there is a problem with the

equivalent specified for your vehicle may

Tire Pressure Monitoring System.

damage the tire pressure sensor.

Have the system inspected by an

authorized HYUNDAI dealer as soon as

possible.

The spare tire (if equipped) does not

come with a tire pressure monitoring

NOTICE

sensor. When the low pressure tire or the

flat tire is replaced with the spare tire, the

If there is a malfunction with the TPMS,

Low Tire Pressure Telltale will remain on.

the Low Tire Pressure Position Telltale will

Also, the TPMS Malfunction Indicator will

not be displayed even though the vehicle

illuminate after blinking for one minute if

has an under-inflated tire.

the vehicle is driven at speed above 15.5

mph (25 km/h) for about 10 minutes.

Once the original wheel equipped with a

NOTICE

tire pressure monitoring sensor is

reinflated to the recommended pressure

The TPMS Malfunction Indicator may

and reinstalled on the vehicle, the Low

illuminate after blinking for one minute if

Tire Pressure Telltale and TPMS

the vehicle is near electric power supply

Malfunction Indicator will go off within a

cables or radio transmitters such as police

few minutes of driving.

stations, government and public offices,

broadcasting stations, military

If the indicators do not extinguish after a

installations, airports, transmitting

few minutes, consult an authorized

towers, etc.

HYUNDAI dealer.

Additionally, the TPMS Malfunction

Each wheel is equipped with a tire

Indicator may illuminate if snow chains

pressure sensor mounted inside the tire

are used or electronic devices such as

behind the valve stem (except for the

computers, chargers, remote starters,

spare tire). You must use TPMS specific

navigation, etc. This may interfere with

wheels. It is recommended that you

normal operation of the TPMS.

always have your tires serviced by an

authorized HYUNDAI dealer.

You may not be able to identify a tire with

low pressure by simply looking at it.

8-10

Always use a good quality tire pressure

WARNING

gauge to measure. Please note that a tire

that is hot (from being driven) will have a

This device complies with Part 15 of the

higher pressure measurement than a tire

FCC rules.

that is cold.

Operation is subject to the following three

A cold tire means the vehicle has been

conditions:

sitting for 3 hours and driven for less than

1. This device may not cause harmful

1 mi. (1.6 km) in that 3 hour period.

interference.

Allow the tire to cool before measuring

2. This device must accept any

the inflation pressure. Always be sure the

interference received, including

tire is cold before inflating to the

interference that may cause undesired

recommended pressure.

operation of the device.

WARNING

3. Changes or modifications not expressly

approved by the party responsible for

• The TPMS cannot alert you to severe

compliance could void the user’s

and sudden tire damage caused by

authority to operate the device.

external factors such as nails or road

debris.

• If you feel any vehicle instability,

immediately take your foot off the

accelerator pedal, apply the brakes

gradually with light force, and slowly

move to a safe position off the road.

WARNING

Tampering with, modifying, or disabling

the Tire Pressure Monitoring System

(TPMS) components may interfere with

the system’s ability to warn the driver of

low tire pressure conditions and/or TPMS

malfunctions and may void the warranty.

8-11

Emergency Situations

If You Have A Flat Tire

Introduction

With the Tire Mobility Kit you can stay

(with Tire Mobility Kit)

mobile even after experiencing a tire

if equipped

puncture.

The compressor and sealing compound

system effectively and comfortably seals

most punctures in a passenger car tire

caused by nails or similar objects and

reinflates the tire.

After you ensure that the tire is properly

sealed you can drive cautiously on the tire

(distance up to 120 mi. (200 km)) at a max.

speed of 50 mph (80 km/h) in order to

reach a service station or tire dealer for

the tire replacement.

B8002501

It is possible that some tires, especially

For safe operation, carefully read and

with larger punctures or damage to the

follow the instructions in this manual

sidewall, cannot be sealed completely.

before use.

Air pressure loss in the tire may adversely

1. Compressor

affect tire performance.

2. Sealant bottle

For this reason, you should avoid abrupt

The tire mobility kit is a temporary fix to

steering or other driving maneuvers,

the tire, have the tire inspected by an

especially if the vehicle is heavily loaded

authorized HYUNDAI dealer or the sealant

or if a trailer is in use.

provided with the Tire Mobility Kit must

The Tire Mobility Kit is not designed or

be used for only one flat tire.

intended as a permanent tire repair

method and is to be used for one tire only.

CAUTION

This instruction shows you step by step

When two or more tires are flat, do not

how to temporarily seal the puncture

use the tire mobility kit because the

simply and reliably.

sealant provided with the Tire Mobility Kit

Read the section “Notes on the safe use

must be used for only one flat tire.

of the Tire Mobility Kit”.

Notes on the Safe Use of the

WARNING

Tire Mobility Kit

Do not use the Tire Mobility Kit to repair

• Park your vehicle at the side of the road

punctures in the tire walls. This can result

so that you can work with the Tire

in an accident due to tire failure.

Mobility Kit away from moving traffic.

• To be sure your vehicle will not move,

even when you’re on fairly level ground,

WARNING

always apply your parking brake.

Have your tire repaired as soon as

possible. The tire may lose air pressure at

any time after inflating with the Tire

Mobility Kit.

8-12

•

Only use the Tire Mobility Kit for

• In case of swallowing the sealant, rinse

sealing/inflation passenger car tires.

the mouth and drink plenty of water.

Only punctured areas located within

However, never give anything to an

the tread region of the tire can be

unconscious person and seek medical

sealed using the tire mobility kit.

attention immediately.

•

Do not use on motorcycles, bicycles or

• Long time exposure to the sealant may

any other type of tires.

cause damage to bodily tissue such as

kidney, etc.

•

When the tire and wheel are damaged,

do not use Tire Mobility Kit for your

safety.

Components of the Tire

•

Use of the Tire Mobility Kit may not be

Mobility Kit

effective for tire damage larger than

about 0.16 in. (4 mm).

•

If the tire cannot be made roadworthy

with the Tire Mobility Kit, contact an

authorized HYUNDAI dealer.

•

Do not use the Tire Mobility Kit if a tire

is severely damaged by driving run flat

or with insufficient air pressure. Only

punctured areas located within the

tread region of the tire can be sealed

using the Tire Mobility Kit.

•

Do not remove any foreign objects such

as nails or screws that have penetrated

the tire.

A8002501

•

Provided the vehicle is outdoors, leave

1. Speed-restriction label

the vehicle running. Otherwise

2. Sealant bottle and label with speed

operating the compressor may

restriction

eventually drain the car battery.

3. Filling hose

•

Never leave the Tire Mobility Kit

4. Connectors and cable for the power

unattended while it is being used.

outlet direct connection

•

Do not leave the compressor running

5. Holder for the sealant bottle

for more than 10 minutes at a time or it

may overheat.

6. Compressor

•

Do not use the Tire Mobility Kit if the

7. ON/OFF switch

ambient temperature is below -22 °F

8.Pressure gauge for displaying the tire

(-30 °C).

inflation pressure

•

In case of skin contact with the sealant,

9. Button for reducing the tire inflation

wash the area thoroughly with plenty of

pressure

water. If the irritation persists, seek

Connectors, cable and connection hose

medical attention.

are stored in the compressor housing.

•

In case of eye contact with the sealant,

Strictly follow the specified sequence,

flush your eyes for at least 15 minutes. If

otherwise the sealant may escape under

the irritation persists, seek medical

high pressure.

attention.

8-13

Emergency Situations

WARNING

Do not use the tire sealant after the

sealant has expired (the expiration date is

pasted on the sealant container). This can

increase the risk of tire failure.

WARNING

Sealant

• Keep out of reach of children.

B8002504

1. Shake the sealant bottle (2).

• Avoid contact with eyes.

• Do not swallow.

Using the Tire Mobility Kit

When a Tire is Flat

CAUTION

B8002505

2. Remove the sealant bottle (2) cap and

sealant bottle holder (5) cap and screw

the bottle onto the sealant bottle

holder.

3. Make sure the compressor valve on the

filling hose is locked.

4. Unscrew the valve cap and screw the

B8002503

filling hose (3) onto the tire valve.

Detach the speed restriction label (1) from

the sealant bottle (2), and place it in a

highly visible place inside the vehicle

such as on the steering wheel to remind

the driver not to drive too fast.

CAUTION

If only the tire pressure needs to be

adjusted, refer to the “How to Adjust Tire

Pressure” in this chapter.

B8002506

Before using the Tire Mobility Kit, be fully

aware of the explanation on the sealant.

8-14

7. Switch off the compressor.

CAUTION

8.Detach the hoses from the sealant

Securely install the sealant filling hose

bottle connector and from the tire

to the valve. If not, sealant may flow

valve.

backward, possibly clogging the filling

9. Return the Tire Mobility Kit to its

hose.

storage location in the vehicle.

5. Make sure the compressor is turned off

and plug the compressor power cord

(4) into the vehicle power outlet.

B8002508

10.Immediately drive about 4-6 mi. (7-10

km or, about 10 minutes) to evenly

distribute the sealant in the tire.

Do not exceed a speed of 50 mph (80

B8002507

km/h). If possible, do not fall below a

6.With the vehicle on (

indicator on),

speed of 12 mph (20 km/h).

switch on the compressor and let it run

for about 5-7 minutes to on sealant up

While driving, if you experience any

on proper pressure (For more

unusual vibration, ride disturbance or

information, refer to the "Tires And

noise, reduce your speed and drive with

Wheels" section in chapter 2).

caution until you can safely pull off of

the side of the road.

Be careful not to overinflate the tire and

stay away from the tire when filling it.

Call for road side service or towing.

CAUTION

Tire pressure

Do not attempt to drive your vehicle if

the tire pressure is below 29 psi (200

kPa). This could result in an accident

due to sudden tire failure.

B8002509

11.After driving about 4-6 mi. (7-10 km or

about 10 minutes), stop at a safety

location.

12.Connect the filling hose (3) of the

compressor directly to the tire valve.

8-15

Emergency Situations

13.Plug the compressor power cord into

CAUTION

the vehicle power outlet.

14.Adjust the tire inflation pressure to the

Tire pressure sensor (if equipped with

recommended tire inflation.

TPMS)

With the vehicle on (

indicator on)

The sealant on the tire pressure sensor

proceed as follows.

and wheel should be removed when you

replace the tire with a new one and

• To increase the inflation pressure:

inspect the tire pressure sensors. Have

Switch on the compressor. To check

this done at an authorized HYUNDAI

the current tire inflation pressure

dealer.

setting, briefly switch off the

compressor.

• To reduce the tire inflation pressure:

Press the button (9) on the

Information

compressor.

When reinstalling the repaired or

replaced tire and wheel on the vehicle,

Information

tighten the wheel lug nut to 79-94 lbf·ft

The pressure gauge may show higher

(11-13 kgf·m).

than actual reading when the compressor

is running. To get an accurate tire reading,

the compressor needs to be turned off.

CAUTION

If the tire inflation pressure is not

maintained, drive the vehicle a second

time, refer to step 9.

Then repeat steps 10 to 13.

Use of the TMK may be ineffectual for tire

damage larger than about 0.16 in. (4 mm).

Contact an authorized HYUNDAI dealer if

the tire cannot be made roadworthy with

the Tire Mobility Kit.

WARNING

The tire inflation pressure must be at least

32 psi (220 kPa). If it is not, do not

continue driving.

Call for road side service or towing.

8-16

How to Adjust Tire Pressure

Information

• The pressure gauge may show higher

than actual reading when the

compressor is running. To get an

accurate tire reading, the compressor

needs to be turned off.

• When reinstalling the repaired or

replaced tire and wheel on the vehicle,

tighten the wheel lug nut to 79-94 lbf·ft

(11-13 kgf·m).

B8002510

1. Park your vehicle in a safe location.

CAUTION

2. Connect the filling hose (3) of the

Do not use the sealant when the tire

compressor directly to the tire valve.

pressure only needs to be adjusted.

3. Plug the compressor power cord into

the vehicle power outlet.

4. Adjust the tire inflation pressure to the

WARNING

recommended tire inflation.

With the vehicle on (

indicator on),

The tire inflation pressure must be

proceed as follows.

Inflated to the proper pressure (For more

information, refer to the “Tires And

• To increase the inflation pressure:

Wheels” section in chapter 2). If it is not,

Switch on the compressor. To check

do not continue driving.

the current tire inflation pressure

setting, briefly switch off the

Call for road side service or towing.

compressor.

• To reduce the tire inflation pressure:

Press the button (9) on the

compressor.

8-17

Emergency Situations

Towing

CAUTION

Towing Service

B8002705

Do not tow the vehicle with the rear

wheels on the ground as this may cause

damage to the vehicle.

AWD vehicle must be towed with a wheel

lift and dollies or flatbed equipment with

all the wheels off the ground.

Precautions when moving a short

distance before towing a vehicle

B8002701

Move short distances within 33 ft. (10 m)

(1) Dollies

at a speed of 3 mph (5 km/h) or less only

when loading on a tow truck or if the

If emergency towing is necessary, have it

vehicle needs to be repositioned.

done by an authorized HYUNDAI dealer or

a commercial tow-truck service.

At this time, the gear must be in the N

(Neutral) position and the parking brake

Proper lifting and towing procedures are

must be released. If it is impossible to

necessary to prevent damage to the

operate the gear and parking brake, move

vehicle. The use of wheel dollies or

the vehicle with the rear wheel lifted.

flatbed is recommended.

2WD vehicle is acceptable to tow the

NOTICE

vehicle with the front wheels on the

Do not lift the vehicle by the tow fitting or

ground (without dollies) and the rear

body and chassis parts. Otherwise the

wheels off the ground.

vehicle may be damaged.

If any of the loaded wheels or suspension

components are damaged or the vehicle

is being towed with the rear wheels on the

ground, use a towing dolly under the rear

CAUTION

wheels.

Do not tow with sling-type equipment.

When being towed by a commercial tow

Use wheel lift or flatbed equipment.

truck and wheel dollies are not used, the

rear of the vehicle should always be lifted,

not the front.

B8002704

8-18

Removable Towing Hook

CAUTION

1. Open the trunk, and remove the towing

Make sure the towing hook is tighten

hook from the tool case.

properly. If not, during towing the towing

2. Remove the hole cover.

hook may be thrown off the vehicle

Front

resulting in serious injury or accident.

B8002801

3. Push the lower part of the bumper hole

cover.

Rear

B8002802

• Push the upper part of the bumper

hole cover.

• Pull the lower part of the bumper hole

cover.

4. Install the towing hook by turning it

clockwise into the hole until it is fully

secured.

5. Remove the towing hook and install the

cover after use.

NOTICE

Failure to properly tighten the towing

hook may result in vehicle damage and

deformation of related parts.

8-19

9. Maintenance

Motor Compartment

9-4

Maintenance Services

9-5

Owner’s Responsibility

9-5

Owner Maintenance Precautions

9-5

Owner Maintenance

9-6

Owner Maintenance Schedule

9-6

Scheduled Maintenance Services

9-8

Normal Maintenance Schedule

9-9

Normal Maintenance Schedule

9-10

Maintenance Under Severe Usage and Low Mileage Conditions

9-11

Explanation Of Scheduled Maintenance Items

9-12

Cooling System

9-12

Coolant

9-12

Gear Fluid

9-12

Brake Hoses and Lines

9-12

Brake Fluid

9-12

Brake Discs, Pads, Calipers and Rotors

9-12

Suspension Mounting Bolts

9-12

Steering Gear Box, Linkage & Boots/Lower Arm Ball Joint

9-12

Drive Shafts and Boots

9-12

Air Conditioning Refrigerant

9-12

Coolant

9-13

Changing Coolant

9-14

Brake Fluid

9-14

Checking the Brake Fluid Level

9-14

Gear Fluid

9-15

Washer Fluid

9-16

Checking the Washer Fluid Level

9-16

Cabin Air Filter

9-16

Filter Inspection

9-16

Filter Replacement

9-16

Wiper Blades

9-17

Blade Inspection

9-17

Blade Replacement

9-17

Battery (12 V)

9-19

For Best Battery Service

9-21

Battery Capacity Label

9-21

Battery Recharging

9-21

Reset Items

9-22

Tires And Wheels

9-23

Tire Care

9-23

Recommended Cold Tire Inflation Pressures

9-23

Check Tire Inflation Pressure

9-24

Tire Rotation

9-25

Wheel Alignment and Tire Balance

9-25

Tire Replacement

9-26

Wheel Replacement

9-26

Tire Traction

9-27

Tire Maintenance

9-27

Tire Sidewall Labeling

9-27

Tire Terminology and Definitions

9-30

All Season Tires

9-33

Summer Tires

9-33

Snow Tires

9-33

Radial-Ply Tires

9-33

Low Aspect Ratio Tires

9-34

Fuses

9-35

Instrument Panel Fuse Replacement

9-36

Motor compartment

9-36

Motor Compartment Panel Fuse Replacement

9-36

Fuse/Relay Panel Description

9-38

Maintenance Services

Owner Maintenance

Precautions

You should exercise the utmost care to

Inadequate, incomplete or insufficient

prevent damage to your vehicle and

servicing may result in operational

injury to yourself whenever performing

problems with your vehicle that could

any maintenance or inspection

lead to vehicle damage, an accident, or

procedures.

personal injury. This chapter provides

Have your vehicle maintained and

instructions only for the maintenance

repaired by an authorized HYUNDAI

items that are easy to perform.

dealer. An authorized HYUNDAI dealer

Your vehicle should not be modified in

meets HYUNDAI’s high service quality

any way. Such modifications may

standards and receives technical support

adversely affect the performance, safety

from HYUNDAI in order to provide you

or durability of your vehicle and may, in

with a high level of service satisfaction.

addition, violate conditions of the limited

warranties covering the vehicle.

Owner’s Responsibility

Certain modifications may also be in

Maintenance service and record

violation of regulations established by the

retention are the owner’s responsibility.

U.S. Department of Transportation and

other federal or state agencies.

You should retain documents that show

proper maintenance has been performed

NOTICE

on your vehicle in accordance with the

scheduled maintenance service charts

Improper owner maintenance during the

shown on the following pages. You need

warranty period may affect warranty

this information to establish your

coverage. For more information, read the

compliance with the servicing and

separate Owner’s Handbook & Warranty

maintenance requirements of your

Information booklet provided with the

vehicle warranties.

vehicle. If you’re unsure about any service

Detailed warranty information is provided

or maintenance procedure, have it done

in your Owner’s Handbook & Warranty

by an authorized HYUNDAI dealer.

Information booklet.

Repairs and adjustments required as a

result of improper maintenance or a lack

of required maintenance are not covered.

9-5

Maintenance

The following lists are vehicle checks and

Owner Maintenance

inspections that should be performed by

the owner or an authorized HYUNDAI

WARNING

dealer at the frequencies indicated to

Performing maintenance work on a

help ensure safe, dependable operation

vehicle can be dangerous. If you lack

of your vehicle.

sufficient knowledge and experience or

Any adverse conditions should be

the proper tools and equipment to do the

brought to the attention of your dealer as

work, we recommend that it is done by an

soon as possible.

authorized HYUNDAI dealer. ALWAYS

These Owner Maintenance vehicle

follow these precautions for performing

checks are generally not covered by

maintenance work:

warranties and you may be charged for

• Park your vehicle on level ground. Shift

labor, parts and lubricants used.

the vehicle to P (Park), apply the

The electric control system in the vehicle

parking brake, and press the Start/Stop

may cause malfunction or other negative

button to the OFF position.

impact on the artificial heart and the

• Block the tires (front and back) to

artificial internal organs. Be sure to

prevent the vehicle from moving.

inquire the impact of the electric control

Remove loose clothing or jewelry that

system on the artificial organs from the

can become entangled in moving parts.

medical product corporation.

• Keep flames, sparks, or smoking

materials away from the battery and

Owner Maintenance Schedule

motor related parts.

When you stop for charging:

• Check the coolant level in the coolant

WARNING

reservoir.

Make sure to turn the Start/Stop button to

• Check the windshield washer fluid

the OFF position to shut down the vehicle

level.

before performing maintenance work on

• Check for low or under-inflated tires.

the vehicle.

WARNING

Be careful when checking your coolant

level if the motor compartment is hot.

This may result in coolant being blown

out of the opening and cause serious

burns and other injuries.

9-6

While operating your vehicle:

At least twice a year: (for example,

every Spring and Autumn)

• Check for vibrations in the steering

wheel. Notice if there is any increased

• Check radiator, heater and air

steering effort or looseness in the

conditioning hoses for leaks or

steering wheel, or change in its

damage.

straight-ahead position.

• Check windshield washer spray and

• Notice if your vehicle constantly turns

wiper operation. Clean wiper blades

slightly or “pulls” to one side when

with a clean cloth dampened with

traveling on smooth, level road.

washer fluid.

• When stopping, listen and check for

• Check headlight alignment.

unusual sounds, pulling to one side,

• Check the seat belts for wear and

increased brake pedal travel or

function.

“hard-to-push” brake pedal.

• If any slipping or changes in the

At least once a year:

operation of your gear shift occurs,

check the shift gear fluid level.

• Clean body and door drain holes.

• Check the shift gear P (Park) function.

• Lubricate door hinges and hood hinges.

• Check the parking brake.

• Lubricate door and hood locks and

latches.

• Check for fluid leaks under your vehicle

(water dripping from the air

• Lubricate door rubber weather strips.

conditioning system during or after use

• Check the air conditioning system.

is normal).

• Inspect and lubricate shift gear linkage

and controls.

At least monthly:

• Clean the battery (12 V) and terminals.

• Check coolant level in the coolant

• Check the brake fluid level.

reservoir.

• Check the operation of all exterior

lights, including the stoplights, turn

signals and hazard warning flashers.

• Check the inflation pressures of all tires

including the spare for tires that are

worn, show uneven wear, or are

damaged.

• Check for loose wheel lug nuts.

9-7

Maintenance

Scheduled Maintenance Services

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the

following conditions apply. If any of the following conditions apply, you must follow the

Maintenance Under Severe Usage Conditions.

• Repeated driving short distance of less than 5 mi. (8 km) in normal temperature or less

than 10 mi. (16 km) in freezing temperature

• Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

• Driving in areas using salt or other corrosive materials or in very cold weather

• Driving in heavy dust condition

• Driving in heavy traffic area with the ambient temperature higher than 90 ºF (32 ºC)

while consuming more than 50% of electric energy.

• Driving on uphill, downhill, or mountain roads repeatedly

• Towing a trailer or using a camper, or driving with loads on the roof

• Driving as a patrol car, taxi, other commercial use or vehicle towing

• Frequently driving under high speed or rapid acceleration/deceleration

• Frequently driving in stop-and-go conditions

If your vehicle is operated under the above conditions, you should inspect, replace or

refill more frequently than the following Normal Maintenance Schedule. After the periods

or distance shown in the chart, continue to follow the prescribed maintenance intervals.

9-8

Normal Maintenance Schedule

The following maintenance services must be performed to ensure good vehicle

performance.

Keep receipts for all vehicle services to protect your warranty. Where both mileage and

time are shown, the frequency of service is determined by whichever occurs first.

Months

108

120

132

144

156

Miles×

MAINTENANCE

104

1,000

INTERVALS

Km×

104

117

130

143

156

169

1,000

MAINTENANCE ITEM

Cooling system

12 V auxiliary battery

condition

Brake lines, hoses, and

connections

Disc brakes and pads

Brake pedal

Steering gear rack,

linkage, and boots

Air conditioning

compressor, air

conditioner refrigerant

and performance

I: Inspect and if necessary, adjust, correct, clean or replace.

R: Replace or change.

9-9

Maintenance

Normal Maintenance Schedule

Months

108

120

132

144

156

MAINTENANCE

Miles×

104

INTERVALS

1,000

Km×

104

117

130

143

156

169

1,000

MAINTENANCE ITEM

Drive shafts and boots

Replace Climate Control

Air Filter (For Evaporator

and Blower Unit)

Gear fluid

Rotate Tires (Includes Tire

Pressure and Tread Wear

Rotate every 8,000 mi. (13,000 km) or 12 months

Inspection)

At first, replace 120,000 mi. (200,000 km) or 120 months.

Coolant ^*1

After that, replace every 24,000 mi. (40,000 km) or 24 month.

Inspect every 7,500 mi. (12,000 km) or 12 months,

Brake fluid

Replace every 60,000 mi. (96,000 km) or 48 months

*1 Consult an authorized HYUNDAI dealer, when replacing or adding coolant.

I: Inspect and if necessary, adjust, correct, clean or replace.

R: Replace or change.

9-10

Maintenance Under Severe Usage and Low Mileage Conditions

The following items must be serviced more frequently on cars mainly used under severe

driving conditions.

Refer to the chart below for the appropriate maintenance intervals.

R: Replace

I: Inspect and if necessary, adjust, correct, clean or replace

Maintenance

Driving

Maintenance item

Maintenance intervals

operation

condition

Replace every 80,000 mi.

Gear fluid

B, D, G, H

(120,000 km)

Steering gear rack,

Inspect more frequently

B, C, D, E, F

linkage and boots

depending on the condition

Front suspension ball

Inspect more frequently

B, C, D, E, F

joints

depending on the condition

Disc brakes and pads,

Inspect more frequently

B, C, D, E, F, G,

calipers and rotors

depending on the condition

H, I, J

Inspect more frequently

B, C, D, E, F, G,

Drive shaft and boots

depending on the condition

H, I

Replace more frequently

Cabin air filter

B, D, F

depending on the condition

Severe driving conditions

A. Repeatedly driving short distance of less than 5 mi. (8 km) in normal temperature or

less than 10 mi. (16 km) in freezing temperature

B. Driving on rough, dusty, muddy, unpaved, graveled or salt spread roads

C. Driving in areas using salt or other corrosive materials or in very cold weather

D. Driving in heavy dust condition

E. Driving in heavy traffic area with the ambient temperature higher than 90 ºF (32 ºC)

while consuming more than 50 % of electric energy.

F. Driving on uphill, downhill, or mountain roads repeatedly

G. Towing a trailer or using a camper, or driving with loads on the roof

H. Driving as a patrol car, taxi, other commercial use or vehicle towing

I. Frequently driving under high speed or rapid acceleration/deceleration

J. Frequently driving in stop-and-go conditions

9-11

Maintenance

Explanation Of Scheduled

Suspension Mounting Bolts

Check the suspension connections for

Maintenance Items

looseness or damage. Retighten to the

specified torque.

Cooling System

Check cooling system components, such

Steering Gear Box, Linkage &

as radiator, coolant reservoir, hoses and

Boots/Lower Arm Ball Joint

connections for leakage and damage.

With the vehicle stopped and the vehicle

Replace any damaged parts.

off, check for excessive free-play in the

steering wheel. Check the linkage for

bends or damage. Check the dust boots

Coolant

and ball joints for deterioration, cracks, or

The coolant should be changed at the

damage.

intervals specified in the maintenance

Replace any damaged parts.

schedule.

Drive Shafts and Boots

Gear Fluid

Check the drive shafts, boots and clamps

The gear fluid should be inspected and

for cracks, deterioration, or damage.

replaced according to the intervals

Replace any damaged parts and, if

specified in the maintenance schedule.

necessary, repack the grease.

Brake Hoses and Lines

Air Conditioning Refrigerant

Visually check for proper installation,

Check the air conditioning lines and

chafing, cracks, deterioration and any

connections for leakage and damage.

leakage. Replace any deteriorated or

damaged parts immediately.

Brake Fluid

Check the brake fluid level in the brake

fluid reservoir. The level should be

between the MIN and the MAX marks on

the side of the reservoir. Use only

hydraulic brake fluid conforming to DOT 4

specification.

Brake Discs, Pads, Calipers

and Rotors

Check the pads, the discs, and the rotors

for any excessive wear-out. Inspect

calipers for any fluid leakage.

9-12

Recommended coolant

Coolant

• When adding coolant, use only

deionized water, distilled water, or soft

water for your vehicle and never mix

hard water in the coolant filled at the

factory.

• An incorrect coolant mixture may result

in severe malfunction or motor

damage.

• Do not use alcohol or methanol coolant

or mix them with the specified coolant.

• Do not use a solution that contains

B9001901

more than 60% antifreeze or less than

Check the condition and connections of

35% antifreeze, which could reduce the

all cooling system hoses and heater

effectiveness of the solution.

hoses. Replace any swollen or

For mixing percentage, refer to the

deteriorated hoses.

following table:

The coolant level should be filled between

the MAX or F and the MIN or L marks on

Mixture Percentage

the side of the coolant reservoir when the

Ambient

(volume)

parts in the motor compartment is cool.

Temperature

Antifreeze

Water

If the coolant level is low, have the vehicle

inspected by an authorized HYUNDAI

5 °F (-15 °C)

dealer.

-13 °F (-25 °C)

WARNING

-31 °F (-35 °C)

-49 °F (-45 °C)

Information

If in doubt about the mix ratio, a 50 %

WL_MotorRoomHotCaution

water and 50 % antifreeze mix is the

Keep hands, clothing, and tools away

easiest to mix together because it is the

from the rotating fan blades of the

same quantity for each.

cooling fan. The cooling fan may continue

to operate even though the vehicle is

turned off and can cause serious injury.

The electric motor for the cooling fan is

controlled by vehicle coolant

temperature, refrigerant pressure and

vehicle speed. As the vehicle coolant

temperature decreases, the electric

motor will automatically shut off.

9-13

Maintenance

Changing Coolant

Brake Fluid

Have the coolant changed by an

authorized HYUNDAI dealer according to

the Maintenance Schedule.

Checking the Brake Fluid

Level

NOTICE

To prevent damage to motor parts, put a

thick towel around the coolant cap before

refilling the coolant to prevent the

coolant from overflowing into motor

parts.

B9002301

Check the fluid level in the reservoir

periodically. The fluid level should be

between MAX and MIN marks on the side

of the reservoir.

Before removing the reservoir cap and

adding brake fluid, clean the area around

the reservoir cap thoroughly to prevent

brake fluid contamination.

If the level is low, add the specified brake

fluid to the MAX level. If the fluid level is

excessively low or frequent additions are

required have the brake system inspected

by an authorized HYUNDAI dealer.

WARNING

If brake fluid comes in contact with your

eyes, flush your eyes with clean water for

at least 15 minutes and get immediate

medical attention.

9-14

NOTICE

Gear Fluid

• Do not allow brake fluid to contact the

There is no gear fluid level gauge in the

vehicle’s body paint, because paint

vehicle. Check the gear fluid every 32,000

damage may occur.

mi. (52,000 km) regularly. If the vehicle is

driven under severe condition, check the

• Never use brake fluid that has been

maintenance under severe usage

exposed to open air for an extended

condition and consult an authorized

time and dispose of it properly.

HYUNDAI dealer.

• Do not use the wrong type of brake

fluid. A few drops of mineral based oil

such as engine oil in your brake system

may damage the brake system parts.

Information

Use only the brake fluid specified in the

"Recommended Lubricants And

Capacities" section in chapter 2.

9-15

Maintenance

Washer Fluid

Cabin Air Filter

Checking the Washer Fluid

Filter Inspection

Level

The cabin air filter must be replaced

according to the Maintenance Schedule.

If the vehicle is operated in severely

air-polluted cities or on dusty rough roads

for a long period, it should be inspected

more frequently and replaced sooner.

Replace the cabin air filter by following

the procedure below and be careful to

avoid damaging other components.

Filter Replacement

B9002701

1. Open the hood.

Check the fluid level in the washer fluid

2. Lift up the front trunk cover while

reservoir and add fluid if necessary. Plain

depressing the front trunk lever (1).

water may be used if washer fluid is not

available. However, use washer solvent

with antifreeze characteristics in cold

climates to prevent freezing.

WARNING

To prevent serious injury or death, take

the following safety precautions when

using washer fluid:

• Do not use coolant or antifreeze in the

washer fluid reservoir. Coolant can

B9003602

severely obscure visibility when

3. Press and hold the lock (2) on the left

sprayed on the windshield and may

side of the cover (3).

cause loss of vehicle control resulting in

an accident or damage to paint and

body trim.

• Do not allow sparks or flame to contact

the washer fluid or the washer fluid

reservoir. Washer fluid may contain

alcohol and can be flammable.

• Do not drink washer fluid and avoid

contact with skin. Washer fluid is

harmful to humans and animals.

• Keep washer fluid away from children

and animals.

B9003603

4. Replace the cabin air filter.

9-16

5. Reassemble in the reverse order of

Wiper Blades

disassembly.

Blade Inspection

Contamination of either the windshield or

the wiper blades with foreign matter can

reduce the effectiveness of the

windshield wipers.

Common sources of contamination are

insects, tree sap, and hot wax treatments

used by some commercial car washes. If

the blades are not wiping properly, clean

both the window and the blades with a

B9003604

good cleaner or mild detergent, and rinse

• Install a new cabin air filter with the

thoroughly with clean water. Replace

arrow symbol (↓) facing down to

blades as needed.

improve effectiveness.

• Always be sure that the front trunk

NOTICE

cover is firmly closed after replacing

the cabin air filter.

To prevent damage to the wiper blades,

arms or other components, do not:

Otherwise is may cause interior

damage in the motor compartment,

• Use gasoline, kerosene, paint thinner,

noise trouble, or entrance of foreign

or other solvents on or near them.

substances.

• Attempt to move the wipers manually.

Blade Replacement

When the wipers no longer clean

adequately, the blades may be worn or

cracked. Replace the wipers with new

ones.

NOTICE

To prevent damage:

• Never use non-specified wiper blades.

• Lift the wiper arms when in the top

wiping position.

Always return the wiper arms to the

windshield before driving.

9-17

Maintenance

Front windshield wiper blade

1. Lift up the wiper blade clip. Then lift up

replacement

the wiper blade.

2. While pushing the lock (1), pull down

MIST

the wiper blade (2).

OFF

B9003901

Within 20 seconds of turning off the

vehicle, lift up and hold the wiper lever to

the MIST position for about 2 seconds

B9003904

until the wipers move to the top wipe

3. Remove the wiper blade from the wiper

position.

arm.

Lift the wipers off the windshield.

4. Install a new wiper blade assembly in

the reverse order of removal.

Type A

5. Turn the wipers to any ON position to

return the wiper arms to the bottom

resting position.

Type B

B9003902

B9003905

1. Lift up the wiper blade clip (1). Then lift

up the wiper blade.

B9003903

9-18

Battery (12 V)

WARNING

To prevent SERIOUS INJURY or DEATH to

you or bystanders, always follow these

precautions when working near or

handling the battery:

B9003906

2. Press the clip (3). Then push the blade

forward through the wiper arm to

disassemble it (4).

WL_TakingCareOfBatteryWarning

Always read and follow instructions

carefully when handling a battery.

WL_TakingCareOfBatteryWarning_6

Wear eye protection designed to protect

B9003907

the eyes from acid splashes.

3. Remove the wiper blade from the wiper

arm (5).

4. Install the new blade assembly in the

reverse order of removal.

5. Turn the wipers to any ON position to

return the wiper arms to the bottom

resting position.

WL_TakingCareOfBatteryWarning_2

Keep all flames, sparks, or smoking

materials away from the battery.

WL_TakingCareOfBatteryWarning_3

Hydrogen gas is always present in battery

cells. It is highly combustible, and may

explode if ignited.

9-19

Maintenance

WARNING

CALIFORNIA PROPOSITION 65 WARNING

Battery posts, terminals, and related

accessories contain lead and lead

compounds, chemicals known to the

State of California to cause cancer, birth

WL_TakingCareOfBatteryWarning_4

defects and reproductive harm. Batteries

Keep batteries out of reach of children.

also contain other chemicals known to

the State of California to cause cancer.

Wash hands after handling.

NOTICE

To prevent battery damage:

WL_TakingCareOfBatteryWarning_5

Batteries contain sulfuric acid that is

• When you do not use the vehicle for a

highly corrosive. Do not allow acid to

long time in a low temperature area,

contact your eyes, skin, or clothing.

disconnect the battery and keep it

indoors.

If acid gets into your eyes, flush your eyes

with clean water for at least 15 minutes

• Always fully charge the battery to

and get immediate medical attention. If

prevent battery case damage in low

acid gets on your skin, thoroughly wash

temperature areas.

the area. If you feel pain or a burning

• Prevent liquid from wetting the battery

sensation, get medical attention

terminals.

immediately.

• Do not tilt the battery.

• Lift a battery with a battery carrier or

• Never connect unauthorized devices to

with your hands on opposite corners.

the battery.

When lifting a plastic-cased battery,

excessive pressure on the case may

cause battery acid to leak.

• Do not attempt to jump start your

vehicle if your battery is frozen.

• NEVER attempt to recharge the battery

when the vehicle’s battery cables are

connected to the battery.

• The electrical ignition switch works

with high voltage. NEVER touch these

components with the Start/Stop button

in the ON or START position.

9-20

For Best Battery Service

Battery Capacity Label

B9004101

OLMB073072

•

Keep the battery securely mounted.

Information

•

Keep the battery top clean and dry.

The actual battery label in the vehicle may

•

Keep the terminals and connections

differ from the illustration.

clean, tight, and coated with petroleum

jelly or terminal grease.

•

Rinse any spilled electrolyte from the

1. CMF60L-DIN(12 v): The HYUNDAI

battery immediately with a solution of

model name of battery

water and baking soda.

2.60Ah (20 HR): The nominal capacity (in

•

If the vehicle is not going to be used for

Ampere hours)

an extended time, disconnect the

3.550 A: The cold-test current in amperes

battery cables.

by SAE / EN

4. RC 92 min: The nominal reserve

capacity (in minutes)

Battery Recharging

By battery charger

Your vehicle has a maintenance-free,

calcium-based battery.

• If the battery becomes discharged over

a short time (because, for example, the

headlights or interior lights were left on

while the vehicle was not in use),

recharge it by slow charging (trickle) for

10 hours.

• If the battery gradually discharges

because of high electrical load while

the vehicle is being used, recharge it at

20-30 A for two hours.

9-21

Maintenance

WARNING

Information

Always follow these instructions when

recharging your vehicle’s battery to avoid

the risk of SERIOUS INJURY or DEATH

from explosions or acid burns:

• Before performing maintenance or

recharging the battery, turn off all

accessories and stop the vehicle.

WL_TakingCareOfBatteryWarning_7

• Keep all flames, sparks, or smoking

An inappropriately disposed battery can

materials away from the battery.

be harmful to the environment and

• Always work outdoors or in an area with

human health. Dispose of the battery

plenty of ventilation.

according to your local law(s) or

• Wear eye protection when checking the

regulation.

battery during charging.

• The battery must be removed from the

Reset Items

vehicle and placed in a well ventilated

area.

The following items may need to be reset

after the battery has been discharged or

• Watch the battery during charging, and

the battery has been disconnected:

stop or reduce the charging rate if the

battery cells begin boiling violently.

• Drive info/After

Recharging/Accumulated info (items in

• Remove the negative battery cable first

View modes) (refer to chapter 4)

and install it last when the battery is

disconnected. Disconnect the battery

• Integrated Memory System (refer to

charger in the following order:

chapter 5)

1. Turn off the battery charger main

• Power Windows (refer to chapter 5)

switch.

• Wide Sunroof (if equipped) (refer to

2. Unhook the negative clamp from the

chapter 5)

negative battery terminal.

• Power Trunk (refer to chapter 5)

3. Unhook the positive clamp from the

• Automatic Climate Control System

positive battery terminal.

(refer to chapter 5)

• Clock (refer to the Infotainment system

manual)

By jump starting

• Infotainment System (refer to the

After a jump start from a good battery,

Infotainment system manual)

drive the vehicle for 20-30 minutes

before it is shutoff. The vehicle may not

restart if you shut it off before the battery

had a chance to adequately recharge. For

more information, refer to the "Jump

Starting (12 V Battery)" section in chapter

8 for more information on jump starting

procedures.

9-22

Tires And Wheels

Tire Care

For proper maintenance, safety, and

WARNING

maximum electric energy economy,

you must always maintain

Tire failure may cause loss of vehicle

recommended tire inflation

control resulting in an accident. To

pressures and stay within the load

reduce risk of SERIOUS INJURY or

limits and weight distribution

DEATH, take the following

recommended for your vehicle.

precautions:

•

Inspect your tires monthly for

proper inflation as well as wear and

damage.

•

The recommended cold tire

pressure for your vehicle can be

found in this manual and on the tire

label located on the driver’s side

center pillar. Always use a tire

pressure gauge to measure tire

pressure. Tires with too much or

OJK010021

too little pressure wear unevenly

All specifications (sizes and

causing poor handling.

pressures) can be found on a label

•

Check the pressure of the spare

attached to the driver’s side center

every time you check the pressure

pillar.

of the other tires on your vehicle.

•

Replace tires that are worn, show

Recommended Cold Tire

uneven wear, or are damaged.

Inflation Pressures

Worn tires can cause loss of braking

effectiveness, steering control, or

All tire pressures (including the spare)

traction.

should be checked when the tires are

cold. “Cold tires” means the vehicle

•

ALWAYS replace tires with the

has not been driven for at least three

same size, type, construction and

hours or driven less than one mile (1.6

tread pattern as each tire that was

km).

originally supplied with this vehicle.

Using tires and wheels other than

Warm tires normally exceed

the recommended sizes could

recommended cold tire pressures by

cause unusual handling

4 to 6 psi (28 to 41 kPa). Do not

characteristics, poor vehicle

release air from warm tires to adjust

control, or negatively affect your

the pressure or the tires will be

vehicle’s Anti-Lock Brake System

under-inflated. For recommended

(ABS) resulting in a serious

inflation pressure, refer to the “Tires

accident.

And Wheels” section in chapter 2.

9-23

Maintenance

Check Tire Inflation Pressure

WARNING

Check your tires, including the spare

•

Recommended pressures must be

tire, once a month or more.

maintained for the best ride,

vehicle handling, and minimum tire

How to check

wear.

Use a good quality tire pressure

•

Over-inflation or under-inflation

gauge to check tire pressure. You can

can reduce tire life, adversely affect

not tell if your tires are properly

vehicle handling, and lead to

inflated simply by looking at them.

sudden tire failure that may result

Radial tires may look properly inflated

in loss of vehicle control resulting in

when they are under-inflated.

a collision.

Remove the valve cap from the tire

•

Severe under-inflation may lead to

valve stem. Press the tire gauge

severe heat build-up, causing

firmly onto the valve to get a pressure

blowouts, tread separation, and

measurement. If the cold tire inflation

other tire failures that result in loss

pressure matches the recommended

of vehicle control resulting in a

pressure on the tire and loading

collision. This risk is much higher on

information label, no further

hot days and when driving for a

adjustment is necessary. If the

long time at high speeds.

pressure is low, add air until you

•

Under-inflation may cause

reach the recommended pressure.

excessive wear, poor handling, and

Make sure to put the valve caps back

reduced fuel economy. Wheel

on the valve stems. Without the valve

deformation is also possible. Keep

cap, dirt or moisture could get into

your tire pressures at the proper

the valve core and cause air leakage.

levels. If a tire frequently needs

If a valve cap is missing, install a new

refilling, have it inspected by an

one as soon as possible.

authorized HYUNDAI dealer.

If you overfill the tire, release air by

•

Over-inflation produces a harsh

pushing on the metal stem in the

ride, excessive wear at the center of

center of the tire valve. Recheck the

the tire tread, and a greater

tire pressure with the tire gauge. Be

possibility of damage from road

sure to put the valve caps back on the

hazards.

valve stems. Without the valve cap,

dirt or moisture could get into the

valve core and cause air leakage. If a

valve cap is missing, install a new one

as soon as possible.

9-24

Tire Rotation

WARNING

To equalize tread wear, HYUNDAI

• Do not use the compact spare tire

recommends that the tires be rotated

for tire rotation.

according to the maintenance

schedule or sooner if irregular wear

• Do not mix bias ply and radial ply

develops.

tires under any circumstances. This

may cause unusual handling

During rotation, check the tires for

characteristics that may cause loss

correct balance.

of vehicle control resulting in an

When rotating tires, check for uneven

collision.

wear and damage. Abnormal wear is

usually caused by incorrect tire

pressure, improper wheel alignment,

Wheel Alignment and Tire

out-of-balance wheels, severe

Balance

braking or severe cornering. Look for

The wheels on your vehicle were

bumps or bulges in the tread or side

aligned and balanced carefully at the

of the tire. Replace the tire if you find

factory to give you the longest tire life

any of these conditions. Replace the

and best overall performance.

tire if fabric or cord is visible. After

rotation, be sure to bring the front

In most cases, you will not need to

and rear tire pressures to

have your wheels aligned again.

specification and check wheel lug nut

However, if you notice unusual tire

tightness (proper torque is 79-94

wear or your vehicle pulling one way

lbf·ft (11-13kgf·m).

or the other, the alignment may need

to be reset.

If you notice your vehicle vibrating

when driving on a smooth road, your

wheels may need to be rebalanced.

NOTICE

Only use approved wheel weights or

your vehicle’s aluminum wheels may

be damaged.

B9005001

Disc brake pads should be inspected

for wear whenever tires are rotated.

Information

When installing an unsymmetrical

tire, install the side marked “outside”

facing out.

9-25

Maintenance

Tire Replacement

• When replacing tires (or wheels), it

is recommended to replace the two

front or two rear tires (or wheels) as

a pair. Replacing just one tire can

seriously affect your vehicle’s

handling.

• Tires degrade over time, even when

they are not being used. Regardless

of the remaining tread, HYUNDAI

recommends that tires be replaced

after six (6) years of normal service.

B9005201

• Heat caused by hot climates or

[A]Tread wear indicator

frequent high loading conditions

If the tire is worn evenly, a tread wear

can accelerate the aging process.

indicator will appear as a solid band

Failure to follow this warning may

across the tread. This shows there is

cause sudden tire failure, which

less than 1/16 in. (1.6 mm) of tread left

could lead to a loss of vehicle

on the tire. Replace the tire when this

control resulting in an accident.

happens.

Do not wait for the band to appear

across the entire tread before

WARNING

replacing the tire.

The original tire should be repaired or

replaced as soon as possible to avoid

WARNING

failure of the spare and loss of vehicle

To reduce the risk of DEATH or

control resulting in an accident. The

SERIOUS INJURY:

compact spare tire is for emergency

• Replace tires that are worn, show

use only. Do not operate your vehicle

uneven wear, or are damaged.

over 50 mph (80 km/h) when using

Worn tires can cause loss of braking

the compact spare tire.

effectiveness, steering control, and

traction.

Wheel Replacement

• Always replace tires with the same

size as each tire that was originally

When replacing the metal wheels for

supplied with this vehicle. Using

any reason, make sure the new

tires and wheels other than the

wheels are equivalent to the original

recommended sizes could cause

factory units in diameter, rim width,

unusual handling characteristics,

and offset.

poor vehicle control, or negatively

affect your vehicle’s Anti-Lock

Brake System (ABS) resulting in a

serious accident.

9-26

Tire Traction

1. Manufacturer or brand name

Tire traction can be reduced if you

Manufacturer or brand name is

drive on worn tires, tires that are

shown.

improperly inflated or on slippery

road surfaces. Tires should be

2. Tire size designation

replaced when tread wear indicators

A tire’s sidewall is marked with a tire

appear. To reduce the possibility of

size designation. You will need this

losing control, slow down whenever

information when selecting

there is rain, snow or ice on the road.

replacement tires for your car. The

following explains what the letters

and numbers in the tire size

Tire Maintenance

designation mean.

In addition to proper inflation, correct

wheel alignment helps to decrease

Example tire size designation:

tire wear. If you find a tire is worn

(These numbers are provided as an

unevenly, have your dealer check the

example only; your tire size

wheel alignment.

designator could vary depending on

When you have new tires installed,

your vehicle.)

make sure they are balanced. This will

245/40R20 99W

increase vehicle ride comfort and tire

245 - Tire width in millimeters.

life. Additionally, a tire should always

40 - Aspect ratio. The tire’s section

be rebalanced if it is removed from

height as a percentage of its width.

the wheel.

R - Tire construction code (Radial).

20 - Rim diameter in in.

Tire Sidewall Labeling

99 - Load Index, a numerical code

This information identifies and

associated with the maximum load

describes the fundamental

the tire can carry.

characteristics of the tire and also

provides the Tire Identification

W - Speed Rating Symbol. See the

Number (TIN) for safety standard

speed rating chart in this section for

certification. The TIN can be used to

additional information.

identify the tire in case of a recall.

B9005401

9-27

Maintenance

Wheel size designation

3. Checking tire life (TIN: Tire

Identification Number)

Wheels are also marked with

important information that you need

Any tires that are over six years old,

if you ever have to replace one. The

based on the manufacturing date,

following explains what the letters

(including the spare tire) should be

and numbers in the wheel size

replaced by new ones. You can find

designation mean.

the manufacturing date on the tire

sidewall (possibly on the inside of the

Example wheel size designation:

wheel), displaying the DOT Code. The

8.5 X 20

DOT Code is a series of numbers on a

8.5 - Rim width in inches.

tire consisting of numbers and

English letters. The manufacturing

J - Rim contour designation.

date is designated by the last four

20 - Rim diameter in inches.

digits (characters) of the DOT code.

Tire speed ratings

DOT: XXXX XXXX OOOO

The chart below lists many of the

The front part of the DOT shows a

different speed ratings currently

plant code number, tire size and

being used for passenger vehicle

tread pattern and the last four

tires. The speed rating is part of the

numbers indicate week and year

tire size designation on the sidewall

manufactured.

of the tire. This symbol corresponds

For example:

to that tire’s designed maximum safe

DOT XXXX XXXX 1523 represents that

operating speed.

the tire was produced in the 15th

week of 2023.

Speed Rating

Maximum Speed

Symbol

4. Tire ply composition and material

112 mph (180 km/h)

The number of layers or plies of

rubber-coated fabric in the tire. Tire

118 mph (190 km/h)

manufacturers also must indicate the

materials in the tire, which include

130 mph (210 km/h)

steel, nylon, polyester, and others.

149 mph (240 km/h)

The letter “R” means radial ply

construction; the letter “D“ means

168 mph (270 km/h)

diagonal or bias ply construction; and

the letter “B” means belted-bias ply

186 mph (300 km/h)

construction.

9-28

5. Maximum permissible inflation

The relative performance of tires

pressure

depends upon the actual conditions

This number is the greatest amount

of their use, however, and may depart

of air pressure that should be put in

significantly from the norm due to

the tire. Do not exceed the maximum

variations in driving habits, service

permissible inflation pressure. Refer

practices and differences in road

to the Tire and Loading Information

characteristics and climate.

label for recommended inflation

These grades are molded on the

pressure.

sidewalls of passenger vehicle tires.

The tires available as standard or

6. Maximum load rating

optional equipment on your vehicle

may vary with respect to grade.

This number indicates the maximum

load in kilograms and lbs. that can be

Traction - AA, A, B & C

carried by the tire. When replacing

the tires on the vehicle, always use a

The traction grades, from highest to

tire that has the same load rating as

lowest, are AA, A, B and C. Those

the factory installed tire.

grades represent the tire’s ability to

stop on wet pavement as measured

Uniform tire quality grading

under controlled conditions on

specified government test surfaces

Quality grades can be found where

of asphalt and concrete. A tire

applicable on the tire sidewall

marked C may have poor traction

between tread shoulder and

performance.

maximum section width.

For example:

WARNING

TREADWEAR 200

The traction grade assigned to this

TRACTION AA

tire is based on straight ahead

TEMPERATURE A

braking traction tests, and does not

include acceleration, cornering,

Tread wear

hydroplaning, or peak traction

characteristics.

The tread wear grade is a

comparative rating based on the

wear rate of the tire when tested

under controlled conditions on a

specified government test course.

For example, a tire graded 150 would

wear one-and-a-half times (1½) as

well on the government course as a

tire graded 100.

9-29

Maintenance

Temperature - A, B & C

Accessory weight

The temperature grades are A (the

This means the combined weight of

highest), B and C representing the

optional accessories. Some examples

tire’s resistance to the generation of

of optional accessories are gear,

heat and its ability to dissipate heat

power seats, and air conditioning.

when tested under controlled

conditions on a specified indoor

Aspect ratio

laboratory test wheel.

The relationship of a tire’s height to

Sustained high temperature can

its width.

cause the material of the tire to

degenerate and reduce tire life, and

Belt

excessive temperature can lead to

A rubber coated layer of cords that is

sudden tire failure. Grades B and A

located between the plies and the

represent higher levels of

tread. Cords may be made from steel

performance on the laboratory test

or other reinforcing materials.

wheel than the minimum required by

law.

Bead

WARNING

The tire bead contains steel wires

The temperature grade for this tire is

wrapped by steel cords that hold the

established for a tire that is properly

tire onto the rim.

inflated and not overloaded.

Excessive speed, under-inflation,

Bias ply tire

over-inflation, or excessive loading,

A pneumatic tire in which the plies

either separately or in combination,

are laid at alternate angles less than

can cause heat build-up and possible

90 degrees to the centerline of the

sudden tire failure. This may cause

tread.

loss of vehicle control resulting in an

accident.

Cold tire pressure

The amount of air pressure in a tire,

Tire Terminology and

measured in lbs. per square in. (psi) or

Definitions

kilopascals (kPa) before a tire has

built up heat from driving.

Air pressure

The amount of air inside the tire

Curb weight

pressing outward on the tire. Air

This means the weight of a motor

pressure is expressed in lbs. per

vehicle with standard and optional

square in. (psi) or kilopascal (kPa).

equipment including the maximum

capacity of fuel, oil and coolant, but

without passengers and cargo.

9-30

DOT markings

Load index

A code molded into the sidewall of a

An assigned number ranging from 1 to

tire signifying that the tire is in

279 that corresponds to the load

compliance with the U.S. Department

carrying capacity of a tire.

of Transportation motor vehicle

safety standards. The DOT code

Maximum inflation pressure

includes the Tire Identification

The maximum air pressure to which a

Number (TIN), an alphanumeric

cold tire may be inflated. The

designator which can also identify

maximum air pressure is molded onto

the tire manufacturer, production

the sidewall.

plant, brand and date of production.

Maximum load rating

GVWR

The load rating for a tire at the

Gross Vehicle Weight Rating

maximum permissible inflation

pressure for that tire.

GAWR FRT

Gross Axle Weight Rating for the

Maximum loaded vehicle weight

Front Axle.

The sum of curb weight; accessory

weight; vehicle capacity weight; and

GAWR RR

production options weight.

Gross Axle Weight Rating for the Rear

axle.

Normal occupant weight

The number of occupants a vehicle is

Intended outboard sidewall

designed to seat multiplied by 150

The side of an asymmetrical tire, that

lbs. (68 kg).

must always face outward when

mounted on a vehicle.

Occupant distribution

Designated seating positions.

Kilopascal (kPa)

The metric unit for air pressure.

Outward facing sidewall

An asymmetrical tire has a particular

Light Truck (LT) tire

side that faces outward when

A tire designated by its manufacturer

mounted on a vehicle. The outward

as primarily intended for use on

facing sidewall bears white lettering

lightweight trucks or multipurpose

or bears manufacturer, brand, and/or

passenger vehicles.

model name molding that is higher or

deeper than the same moldings on

the inner facing sidewall.

Load ratings

The maximum load that a tire is rated

to carry for a given inflation pressure.

9-31

Maintenance

Passenger (P-Metric) tire

Sidewall

A tire used on passenger cars and

The portion of a tire between the

some light duty trucks and

tread and the bead.

multipurpose vehicles.

Speed rating

Ply

An alphanumeric code assigned to a

A layer of rubber-coated parallel

tire indicating the maximum speed at

cords.

which a tire can operate.

Pneumatic tire

Traction

A mechanical device made of rubber,

The friction between the tire and the

chemicals, fabric and steel or other

road surface. The amount of grip

materials, that, when mounted on an

provided.

automotive wheel provides the

traction and contains the gas or fluid

Tread

that sustains the load.

The portion of a tire that comes into

contact with the road.

Pneumatic options weight

The combined weight of installed

Treadwear indicators

regular production options weighing

Narrow bands, sometimes called

over 5 lbs. (2.3 kg) in excess of the

“wear bars”, that show across the

standard items which they replace,

tread of a tire when only 1/16 in. of

not previously considered in curb

tread remains.

weight or accessory weight,

including heavy duty breaks, ride

levelers, roof rack, heavy duty

UTQGS

battery, and special trim.

Uniform Tire Quality Grading

Standards is a tire information system

that provides consumers with ratings

Recommended inflation pressure

for a tire’s traction, temperature and

Vehicle manufacturer’s

treadwear. Ratings are determined

recommended tire inflation pressure

by tire manufacturers using

as shown on the tire placard.

government testing procedures. The

ratings are molded into the sidewall

Radial ply tire

of the tire.

A pneumatic tire in which the ply

cords that extend to the beads are

Vehicle capacity weight

laid at 90 degrees to the centerline of

The number of designated seating

the tread.

positions multiplied by 150 lbs. (68

kg) plus the rated cargo and luggage

Rim

load.

A metal support for a tire and upon

which the tire beads are seated.

9-32

Vehicle maximum load on the tire

Snow Tires

Load on an individual tire due to curb

If you equip your car with snow tires,

and accessory weight plus maximum

they should be the same size and

occupant and cargo weight.

have the same load capacity as the

original tires. Snow tires should be

Vehicle normal load on the tire

installed on all four wheels;

otherwise, poor handling may result.

Load on an individual tire that is

Snow tires should carry 4 psi (28 kPa)

determined by distributing to each

more air pressure than the pressure

axle its share of the curb weight,

recommended for the standard tires

accessory weight, and normal

on the tire label on the driver’s side of

occupant weight and dividing by 2.

the center pillar, or up to the

maximum pressure shown on the tire

Vehicle placard

sidewall, whichever is less. Do not

A label permanently attached to a

drive faster than 75 mph (120 km/h)

vehicle showing the original

when your vehicle is equipped with

equipment tire size and

snow tires.

recommended inflation pressure.

Radial-Ply Tires

All Season Tires

Radial-ply tires provide improved

HYUNDAI specifies all season tires on

tread life, road hazard resistance and

some models to provide good

smoother high speed ride. The

performance for use all year round,

radial-ply tires used on this vehicle

including snowy and icy road

are of belted construction, and are

conditions. All season tires are

selected to complement the ride and

identified by ALL SEASON and/or

handling characteristics of your

M+S (Mud and Snow) on the tire

vehicle. Radial-ply tires have the

sidewall. Snow tires have better snow

same load carrying capacity, as

traction than all season tires and may

bias-ply or bias belted tires of the

be more appropriate in some areas.

same size, and use the same

recommended inflation pressure.

Mixing of radial-ply tires with bias-ply

Summer Tires

or bias belted tires is not

HYUNDAI specifies summer tires on

recommended. Any combinations of

some models to provide superior

radial-ply and bias-ply or bias belted

performance on dry roads. Summer

tires when used on the same vehicle

tire performance is substantially

will seriously deteriorate vehicle

reduced in snow and ice. Summer

handling. The best rule to follow is:

tires do not have the tire traction

Identical pairs of radial-ply tires

rating M+S (Mud and Snow) on the

should always be used as a set for the

tire side wall. If you plan to operate

front tires and a set for the rear tires.

your vehicle in snowy or icy

conditions, HYUNDAI recommends

the use of snow tires or all season

tires on all four wheels.

9-33

Maintenance

Longer wearing tires can be more

NOTICE

susceptible to irregular tread wear. It

is very important to follow the tire

Low-aspect wheels and tires are

rotation interval in this chapter to

easily damaged. To reduce the risk of

achieve the tread life potential of

damage:

these tires. Cuts and punctures in

•

When driving on rough roads,

radial-ply tires are repairable only in

passing over a pothole, speed

the tread area, because of sidewall

bump, manhole, or curb stone,

flexing. Consult your tire dealer for

drive the vehicle slowly not to

radial-ply tire repairs.

damage the tires and wheels.

Damage is not covered by your

WARNING

vehicle warranty.

Do not mix bias ply and radial ply tires

•

Inspect the tire condition and

under any circumstances. This may

pressure every 8,000 mi. (13,000

cause unusual handling

km).

characteristics that may cause loss of

•

It is difficult to visually inspect for

vehicle control resulting in an

tire damage with your eyes. If any

accident.

damage is found, contact your

authorized HYUNDAI dealer to

replace the tire.

Low Aspect Ratio Tires

if equipped

The aspect ratio is lower than 50 on

low aspect ratio tires.

Because low aspect ratio tires are

optimized for handling and braking,

their sidewall is a little stiffer than a

standard tire. Also, low aspect ratio

tires tend to be wider so that they

consequently have increased contact

with the road surface. In some

instances, low aspect ratio tires may

generate more road noise compared

with standard tires.

9-34

If any of your vehicle’s lights, accessories,

Fuses

or controls do not work, check the

Blade type

appropriate circuit fuse. If a fuse has

blown, the element inside the fuse will be

melted or broken.

If the electrical system does not work,

first check the driver’s side fuse panel.

Before replacing a blown fuse, turn the

vehicle and all switches off, and then

disconnect the negative battery cable.

Always replace a blown fuse with one of

the same rating.

If the replacement fuse blows, this

indicates an electrical problem. Avoid

B9005601

using the system involved. Consult an

Cartridge type

authorized HYUNDAI dealer.

WARNING

NEVER replace a fuse with anything but

another fuse of the same rating.

• A higher capacity fuse may cause

damage and possibly cause a fire.

• Do not install a wire or aluminum foil

instead of the proper fuse - even as a

temporary repair. It may cause

B9005602

extensive wiring damage and possibly a

Multi type

fire.

NOTICE

Do not use a screwdriver or any other

metal object to remove fuses because it

may cause a short circuit and damage the

system.

B9005603

A vehicle’s electrical system is protected

from electrical overload damage by fuses.

This vehicle has 5 fuse panels, one

located in the driver’s side panel bolster,

the other in the vehicle compartment.

9-35

Maintenance

Instrument Panel Fuse

In an emergency, if you do not have a

spare fuse, use a fuse of the same rating

Replacement

from a circuit you may not need for

Driver’s side

operating the vehicle.

If the headlights or other electrical

components do not work and the fuses

are undamaged, check the fuse panel in

the motor compartment.

Motor Compartment Panel

Fuse Replacement

Blade fuse/Cartridge fuse

B9005701

Blade type fuse

1. Turn off the vehicle.

2. Turn off all other switches.

3. Open the fuse panel cover.

4. Refer to the label on the inside of the

fuse panel cover to locate the

suspected fuse location.

Motor compartment

B9005901

Cartridge type fuse

B9005702

5. Pull the suspected fuse straight out.

Use the removal tool (1) provided in the

motor compartment fuses panel.

6.Check the removed fuse and replace it

if it is blown. Spare fuses are provided in

B9005902

the instrument panel fuse panels (or in

1. Turn off the vehicle.

the motor compartment fuse panel).

2. Turn off all other switches.

7. Push in a new fuse of the same rating,

3. Remove the fuse panel cover by

and make sure it fits tightly in the clips.

pressing the tap and pulling up.

If it is not tight, contact consult an

authorized HYUNDAI dealer.

9-36

Instrument panel fuse panel

Fuse Name

Fuse Rating

Circuit Protected

AFCU

10 A

Driver/Passenger Door Outside Handle

EPCU3

10 A

Rear Inverter

START

7.5 A

IBU, VCU

In-car Temperature Sensor, A/C Control Module, A/C

IG3 8

10 A

PTC Heater, Instrument Cluster, CCU, AVNT Head Unit

MEMORY 2

10 A

Instrument Cluster, ADAS Unit (Parking)

MULTIMEDIA

15 A

AVNT Head Unit

AIRBAG2

10 A

SRS Control Module

P/SEAT PASS

30 A

Passenger Power Seat Switch, Passenger Seat Unit

ADAS DRV

10 A

Not Used

CLUSTER

7.5 A

Instrument Cluster, Head-Up Display

Data Link Connector, Electro Chromic Mirror, AVNT

Head Unit, IFS Unit, Wireless Charger Unit, Head Light

LH/RH, AMP, Driver IMS Module, Front Air Ventilation

MODULE5

10 A

Seat Control Module, Front Seat Warmer Control

Module, Passenger Seat Unit, Rear Seat Warmer

Control Module, ADP Unit (Acoustic Design Processor)

IG3 11

10 A

Electronic A/C Compressor

IG3 9

10 A

Rear Inverter, BMU

wireless DCU1

10 A

Not Used

CCU

10 A

CCU

Data Link Connector, Hazard Switch, Multifunction

Switch, Rain Sensor, Driver Power Window Switch,

Dashboard Mood Light, A/C Control Module, Outside

MODULE1

10 A

Mirror Switch, UIP Sensor, UIP Siren, Power Trunk Unit,

Driver/Passenger Door Mood Light #1/#2, Rear Door

Mood Light LH/RH #1/#2

SBCM DRV

20 A

Driver Side Body Control Module

Front Air Ventilation Seat Control Module,Front Seat

S/HEATER FRT

25 A

Warmer Control Module

9-39

Maintenance

Fuse Name

Fuse Rating

Circuit Protected

Front/Rear Corner Radar LH/RH, Rear Inverter

(System), Front View Camera, IBU, ADAS Unit

MODULE4

10 A

(Parking/Driving), Dashboard Switch, VESS Unit, Front

Radar

AIRBAG1

15 A

SRS Control Module

ADP Unit (Acoustic Design Processor), AMP, IBU, CCU,

DCU, P/R Junction Block (RLY. 5), AVNT Head Unit,

MODULE2

10 A

AVNT Keyboard, ADAS Unit (Parking), IAU (Identity

Authentication Unit)

WASHER

15 A

Multifunction Switch

MODULE6

7.5 A

IBU

IG3 10

10 A

SCU, Rear Electronic Oil Pump, VCMS, V2L Unit, ICCU

DCU, A/C Control Module, Head-Up Display, ADP Unit

MEMORY1

10 A

(Acoustic Design Processor), Mood Lamp Unit

IAU

10 A

IAU (Identity Authentication Unit)

IBU1

15 A

IBU

AMP

30 A

AMP

S/HEATER RR

20 A

Rear Seat Warmer Control Module

A/BAG IND

7.5 A

Overhead Console Assembly

E-SHIFTER3

10 A

Electronic Shift Switch

RR USB

25 A

Console/Rear USB Charger Connector

CHARGER

MODULE7

7.5 A

Rear Seat Warmer Control Module

A/CON

7.5 A

A/C Control Module

MODULE8

15 A

Driver IMS Module, Passenger Seat Unit

DOOR LOCK

20 A

Door Lock/Unlock Relay, Dead Lock Relay

SBCM PASS

20 A

Passenger Side Body Control Module

Rear Power Window Switch LH, Rear Safety Power

P/WINDOW LH

25 A

Window Module LH, Driver Power Window Module,

Driver/Passenger Safety Power Window Module

Stop Light Switch, Driver Power Window Switch, IAU

MODULE3

7.5 A

(Identity Authentication Unit)

9-40

Motor compartment fuse panel

Type

Fuse Name

Fuse Rating

Circuit Protected

ICCU (LDC), P/R Junction Block

LDC1

200 A

MULTI

(Fuse : POWER OUTLET1, EOP1, EOP2, LDC2)

FUSE-1

MDPS1

100 A

MDPS Unit

COOLING

80 A

Cooling Fan Motor

FAN

PCB Block (Main Relay,

MULTI

B+5

50 A

Fuse : VCU2, EPCU1, WIPER1, B/A HORN,

FUSE-2

HORN)

ICU Junction Block (Fuse : IPS5, IPS7, IPS8,

B+2

50 A

IPS9)

RR HTD

60 A

P/R Junction Block (RLY. 10)

IEB1

60 A

IEB Unit

IEB2

50 A

IEB Unit

ICU Junction Block (Fuse : IPS1, IPS2, IPS3,

B+1

50 A

IPS4, IPS6)

MULTI

FUSE-3

BLOWER

50 A

P/R Junction Block (RLY. 9)

ICU Junction Block (Fuse : F1, F2, F12, F13, F23,

B+3

60 A

F24, F34, F35, F43, F44, F49, F50, F55)

IG1

40 A

P/R Junction Block (RLY. 1, RLY. 3)

IG2

40 A

P/R Junction Block (RLY. 2)

9-43

Maintenance

Type

Fuse Name

Fuse Rating

Circuit Protected

ICU Junction Block (Long Term Load Latch

Relay,

B+4

40 A

Fuse : F10, F11, F21, F22, F33, F41, F42, F47, F48,

F52, F53)

E-SHIFTER1

40 A

P/R Junction Block (RLY. 8, Fuse : F13)

AMS

10 A

12 V Battery

EWP1

20 A

Electronic Water Pump #1 (HV Battery)

EWP2

20 A

Electronic Water Pump #2 (HV Battery)

VESS

10 A

VESS Unit

VCU1

40 A

VCU

FUSE

POWER

40 A

P/R Junction Block (RLY. 5)

OUTLET1

EOP1

40 A

Rear Electronic Oil Pump

EOP2

40 A

Front Electronic Oil Pump

SCU, Electronic Shift Switch, P/R Junction

E-SHIFTER2

10 A

Block (RLY. 8)

POWER

20 A

Rear Power Outlet

OUTLET3

POWER

20 A

Front Power Outlet

OUTLET2

9-44

Fuse Name

Fuse Rating

Circuit Protected

IG3 1

20 A

ICU Junction Block (Fuse: F7, F18, F19, F30)

IG3 2

15 A

Front Inverter (AWD)

IG3 3

15 A

Electronic Water Pump

IG3 4

10 A

VCU

IG3 5

10 A

A/C Coolant Valve, Electronic Water Pump Batt #1, #2

IG3 6

10 A

BMS Coolant 3Way Valve

IG3 7

10 A

Cooling Fan Motor, Front Electronic Oil Pump (AWD)

EPCU1

10 A

Front Inverter (AWD)

EPCU2

10 A

Front Inverter (AWD)

VCU2

10 A

VCU

VCU3

10 A

VCU

WIPER1

30 A

PCB Block (Wiper Main Relay)

WIPER2

7.5 A

IBU

HORN

10 A

PCB Block (Horn Relay)

IEB3

10 A

IEB Unit

MDPS2

10 A

MDPS Unit

9-45

Maintenance

Light Bulbs

Information

Consult an authorized HYUNDAI dealer to

Headlight desiccant

replace most vehicle light bulbs. It is

This vehicle is equipped with desiccant to

difficult to replace vehicle light bulbs

reduce fogging inside the headlight due

because other parts of the vehicle must

to moisture. The desiccant is consumable

be removed before you can get to the

and its performance may change based

bulb. This is especially true for removing

on the used period or environment. If

the headlight assembly to get to the

fogging inside the headlight due to

bulb(s).

moisture continues for a long time,

Removing/installing the headlight

contact an authorized HYUNDAI dealer.

assembly can result in damage to the

vehicle.

WARNING

Information

• Prior to replacing a light bulb, depress

The headlight and tail light lenses could

the brake pedal, shift to P (Park), apply

appear to have condensation inside if the

the parking brake, press the Start/Stop

vehicle is washed after driving or if the

button to the OFF position, and take the

vehicle is driven in wet weather. This

key with you when leaving the vehicle

condition is caused by a higher

to avoid sudden movement of the

temperature inside the light and a cooler

vehicle and to prevent possible electric

outside temperature. Moisture that

shock.

condenses in the light is removed after

driving with the light on. If the moisture is

• Be aware the bulbs may be hot and may

not removed, contact an authorized

burn your fingers.

HYUNDAI dealer.

NOTICE

Information

Be sure to replace the burned-out bulb

• A normally functioning light may flicker

with one of the same wattage to prevent

momentarily to stabilize the vehicle’s

damage to the fuse or electrical wiring

electrical control system. However, if

system.

the light goes out after flickering

momentarily, or continues to flicker,

have the system inspected by an

NOTICE

authorized HYUNDAI dealer.

• The parking light may not turn on when

To prevent damage, do not clean the

the parking light switch is turned on,

headlight lens with chemical solvents or

but the parking light and headlight

strong detergents.

switch may turn on when the headlight

switch is turned on. This may be caused

by network failure or vehicle electrical

control system malfunction. If this

occurs, contact an authorized

HYUNDAI dealer.

9-46

Side Repeater Light

Information

Replacement

Adjust the headlight aim after an accident

or the headlight is replaced.

Headlight, Parking Light, Turn

Signal Light, Daytime Running

Light (DRL) Replacement

B9006301

If the LED light (1) does not operate,

contact an authorized HYUNDAI dealer

for replacement.

The LED light cannot be replaced as a

single unit. A skilled technician should

check or repair the LED light, for it may

B9006202

damage related parts of the vehicle.

1. Headlight (Low)

2. Headlight (High)

3. Parking light/Daytime running

light/Turn signal light

4. Front side marker

If the LED light does not operate, contact

an authorized HYUNDAI dealer for

replacement.

The LED light cannot be replaced as a

single unit. A skilled technician should

check or repair the LED light, for it may

damage related parts of the vehicle.

9-47

Maintenance

Rear Combination Light

High Mounted Stop Light

Replacement

B9006501

B9006601

1. Stop light

If the LED light (1) does not operate,

contact an authorized HYUNDAI dealer

2. Tail light/Stop light

for replacement.

3. Tail light/Stop light/Turn signal light

The LED light cannot be replaced as a

4. Turn signal light/Stop light

single unit. A skilled technician should

5. Reverse light

check or repair the LED light, for it may

6.Rear side marker

damage related parts of the vehicle.

If the LED light does not operate, contact

an authorized HYUNDAI dealer for

License Plate Light

replacement.

Replacement

The LED light cannot be replaced as a

single unit. A skilled technician should

check or repair the LED light, for it may

damage related parts of the vehicle.

B9006701

If the LED light (1) does not operate,

contact an authorized HYUNDAI dealer

for replacement.

The LED light cannot be replaced as a

single unit. A skilled technician should

check or repair the LED light, for it may

damage related parts of the vehicle.

9-48

Maintenance

Glove box lamp

Appearance Care

Exterior Care

NOTICE

If you park your vehicle near a stainless

steel sign or glass facade building, the

vehicle’s exterior plastic parts such as a

bumper, spoiler, garnish, light or side

view mirror might be damaged due to

B9006903

sunlight reflected from the sign or

If the LED light does not operate, contact

building. To prevent damage of the

an authorized HYUNDAI dealer for

exterior plastic parts, you should avoid

replacement.

parking in areas where light may be

reflected or use a car cover. (The exterior

The LED light cannot be replaced as a

plastic parts applied to your vehicle may

single unit. A skilled technician should

vary.)

check or repair the LED light, for it may

damage related parts of the vehicle.

Exterior general caution

It is very important to follow the label

directions when using any chemical

cleaner or polish. Read all warning and

caution statements that appear on the

label.

Finish maintenance

Washing

To help protect your vehicle’s finish from

rust and deterioration, wash it thoroughly

and frequently at least once a month with

lukewarm or cold water.

If you use your vehicle for off-road

driving, you should wash it after each

off-road trip. Pay special attention to the

removal of any accumulation of salt, dirt,

mud, and other foreign materials. Make

sure the drain holes in the lower edges of

the doors and rocker panels are kept clear

and clean.

Insects, tar, tree sap, bird droppings,

industrial pollution and similar deposits

can damage your vehicle’s finish if not

removed immediately.

9-50

Even prompt washing with plain water

• To prevent damage to the plastic parts,

may not completely remove all these

do not clean with chemical solvents or

deposits. A mild soap, safe for use on

strong detergents.

painted surfaces, should be used.

• Water washing in the motor

After washing, rinse the vehicle

compartment including high pressure

thoroughly with lukewarm or cold water.

water washing may cause the failure of

Do not allow soap to dry on the finish.

electrical circuits located in the vehicle

compartment.

High-pressure washing

• When using high-pressure washers,

make sure to maintain sufficient

distance from the vehicle.

Insufficient clearance or excessive

pressure can lead to component

damage or water penetration.

• Do not spray the camera, sensors or its

surrounding area directly with a high

pressure washer. Shock applied from

high pressure water may cause the

B9007101

device to not operate normally.

• Never allow water or other liquids to

• Do not bring the nozzle tip close to

come in contact with

boots (rubber or plastic covers) or

electrical/electronic components

connectors as they may be damaged if

inside the vehicle as water or other

they come into contact with high

liquids may flow in to the motor

pressure water.

compartment through the front trunk

and damage electrical/electronic

WARNING

components.

After washing the vehicle, test the brakes

while driving slowly to see if they have

been affected by water before getting on

the road. If braking performance is

impaired, dry the brakes by applying

them lightly while maintaining a slow

forward speed.

NOTICE

• Do not use strong soap, chemical

detergents or hot water, and do not

wash the vehicle in direct sunlight or

when the body of the vehicle is warm.

• Be careful when washing the side

windows of your vehicle.

• Especially, with high-pressure water,

water may leak through the windows

and wet the interior.

9-51

Maintenance

NOTICE

Matte paint finish vehicle (if equipped)

• Wiping dust or dirt off the body with a

dry cloth will scratch the finish.

Automatic car wash which uses rotating

brushes should not be used as this can

• Do not use steel wool, abrasive

damage the surface of your vehicle. A

cleaners, or strong detergents

steam cleaner which washes the vehicle

containing highly alkaline or caustic

surface at high temperature may result

agents on chrome-plated or anodized

the oil to adhere and leave stains that is

aluminum parts. This may result in

difficult to remove.

damage to the protective coating and

cause discoloration or paint

Use a soft cloth (for example, microfiber

deterioration.

towel or sponge) when washing your

vehicle and dry with a microfiber towel.

When you hand wash your vehicle, you

should not use a cleaner that finishes with

NOTICE

wax. If the vehicle surface is too dirty

(sand, dirt, dust, contaminant, etc.), clean

Matte paint finish vehicle (if equipped)

the surface with water before washing

Do not use any polish protector such as a

the car.

detergent, an abrasive and a polish. In

case wax is applied, remove the wax

immediately using a silicon remover and

Waxing

if any tar or tar contaminant is on the

A good coat of wax is a barrier between

surface use a tar remover to clean.

your paint and contaminate. Keeping a

However, be careful not to apply too

good coat of wax on your vehicle will help

much pressure on the painted area.

protect it.

Wax the vehicle when water will no longer

Finish damage repair

bead on the paint.

Deep scratches or stone chips in the

Always wash and dry the vehicle before

painted surface must be repaired

waxing. Use a good quality liquid or paste

promptly. Exposed metal will quickly rust

wax, and follow the manufacturer’s

and may develop into a major repair

instructions. Wax all metal trim to protect

expense.

it and to maintain its luster.

Removing oil, tar, and similar materials

NOTICE

with a spot remover will usually strip the

wax from the finish. Be sure to re-wax

If your vehicle is damaged and requires

these areas even if the rest of the vehicle

any metal repair or replacement, be sure

does not yet need waxing.

the body shop applies anti-corrosion

materials to the parts repaired or

replaced.

9-52

Underbody maintenance

NOTICE

Corrosive materials used for ice and snow

Matte paint finish vehicle (if equipped)

removal and dust control may collect on

In case of matte paint finish vehicles, it is

the underbody. If these materials are not

impossible to modify only the damaged

removed, accelerated rusting can occur

area and repair of the whole part is

on underbody parts such as the frame and

necessary. If the vehicle is damaged and

floor pan, even though they have been

painting is required, have your vehicle

treated with rust protection.

maintained and repaired by an authorized

Thoroughly flush the vehicle underbody

HYUNDAI dealer. Take extreme care, as it

and wheel openings with lukewarm or

is difficult to restore the quality after the

cold water once a month, after off-road

repair.

driving and at the end of each winter. Pay

special attention to these areas because it

is difficult to see all the mud and dirt. It

Bright-metal maintenance

will do more harm than good to wet down

• To remove road tar and insects, use a

the road grime without removing it. The

tar remover, not a scraper or other

lower edges of doors, rocker panels, and

sharp object.

frame members have drain holes that

should not be allowed to clog with dirt;

• To protect the surfaces of bright metal

trapped water in these areas can cause

parts from corrosion, apply a coating of

rusting.

wax or chrome preservative and rub to

a high luster.

WARNING

• During winter weather or in coastal

areas, cover the bright metal parts with

After washing the vehicle, test the brakes

a heavier coating of wax or

while driving slowly to see if they have

preservative. If necessary, coat the

been affected by water. If braking

parts with non-corrosive petroleum

performance is impaired, dry the brakes

jelly or other protective compound.

by applying them lightly while

maintaining a slow forward speed.

Aluminum wheel maintenance

The aluminum wheels are coated with a

clear protective finish.

• Do not use abrasive cleaner, polishing

compound, solvent, or wire brushes on

aluminum wheels.

• Clean the wheel when it has cooled.

• Use only a mild soap or neutral

detergent, and rinse thoroughly with

water. Also, clean the wheels after

driving on salted roads.

• Do not wash the wheels with

high-speed car wash brushes.

• Do not use any cleaners containing acid

or alkaline detergents.

9-53

Maintenance

Corrosion protection

High temperatures can also accelerate

corrosion of parts that are not properly

Protecting your vehicle from corrosion

ventilated so the moisture can be

dispersed. For all these reasons, it is

By using the most advanced design and

particularly important to keep your

construction practices to combat

vehicle clean and free of mud or

corrosion, HYUNDAI produces vehicles of

accumulations of other materials. This

the highest quality. However, this is only

applies not only to the visible surfaces but

part of the job. To achieve the long-term

particularly to the underside of the

corrosion resistance your vehicle can

vehicle.

deliver, the owner’s cooperation and

assistance is also required.

To help prevent corrosion

Common causes of corrosion

Keep your vehicle clean

The most common causes of corrosion on

The best way to prevent corrosion is to

your vehicle are:

keep your vehicle clean and free of

corrosive materials. Attention to the

• Road salt, dirt and moisture that is

underside of the vehicle is particularly

allowed to accumulate underneath the

important.

vehicle.

• If you live in a high-corrosion area -

• Removal of paint or protective coatings

where road salts are used, near the

by stones, gravel, abrasion or minor

ocean, areas with industrial pollution,

scrapes and dents which leave

acid rain, etc., -, you should take extra

unprotected metal exposed to

care to prevent corrosion. In winter,

corrosion.

hose off the underside of your vehicle

at least once a month and be sure to

High-corrosion areas

clean the underside thoroughly when

If you live in an area where your vehicle is

winter is over.

regularly exposed to corrosive materials,

• When cleaning underneath the vehicle,

corrosion protection is particularly

pay particular attention to the

important. Some of the common causes

components under the fenders and

of accelerated corrosion are road salts,

other areas that are hidden from view.

dust control chemicals, ocean air and

Do a thorough job; just dampening the

industrial pollution.

accumulated mud rather than washing

it away will accelerate corrosion rather

Moisture breeds corrosion

than prevent it. Water under high

Moisture creates the conditions in which

pressure and steam are particularly

corrosion is most likely to occur. For

effective in removing accumulated

example, corrosion is accelerated by high

mud and corrosive materials.

humidity, particularly when temperatures

• When cleaning lower door panels,

are just above freezing. In such

rocker panels and frame members, be

conditions, the corrosive material is kept

sure that drain holes are kept open so

in contact with the vehicle surfaces by

that moisture can escape and not be

moisture that is slow to evaporate.

trapped inside to accelerate corrosion.

Mud is particularly corrosive because it is

slow to dry and holds moisture in contact

with the vehicle. Although the mud

appears to be dry, it can still retain

moisture and promote corrosion.

9-54

Keep your garage dry

Interior Care

Don’t park your vehicle in a damp, poorly

ventilated garage. This creates a

Interior general precautions

favorable environment for corrosion. This

Prevent caustic solutions such as

is particularly true if you wash your

perfume and cosmetic oil, from

vehicle in the garage or drive it into the

contacting the interior parts because they

garage when it is still wet or covered with

may cause damage or discoloration. If

snow, ice or mud. Even a heated garage

they do contact the interior parts, wipe

can contribute to corrosion unless it is

them off immediately. See the

well ventilated so moisture is dispersed.

instructions for the proper way to clean

vehicle interior surfaces.

Keep paint and trim in good condition

Scratches or chips in the finish should be

NOTICE

covered with “touch-up” paint as soon as

possible to reduce the possibility of

• Never allow water or other liquids to

corrosion. If bare metal is showing

come in contact with

through, the attention of a qualified body

electrical/electronic components

and paint shop is recommended.

inside the vehicle as this may damage

them.

Bird droppings are highly corrosive and

may damage painted surfaces in just a

• When cleaning leather products

few hours. Always remove bird droppings

(steering wheel, seats etc.), use neutral

as soon as possible.

detergents or low alcohol content

solutions. If you use high alcohol

content solutions or acid/alkaline

detergents, the color of the leather may

fade or the surface may get stripped

off.

Cleaning the upholstery and interior

trim

Vehicle interior surfaces

if equipped

Remove dust and loose dirt from interior

surfaces with a whisk broom or a vacuum

cleaner. If necessary, clean interior

surfaces with a mixture of warm water

and mild non-detergent cleaner (test all

cleaners on a concealed area before use).

9-55

Maintenance

Fabric

NOTICE

if equipped

•

Wrinkles or abrasions which appear

Remove dust and loose dirt from fabric

naturally from usage are not covered by

with a whisk broom or vacuum cleaner.

warranty.

Clean with a mild soap solution

recommended for upholstery or carpets.

•

Belts with metallic accessories, zippers

Remove fresh spots immediately with a

or keys inside the back pocket may

fabric spot cleaner. If fresh spots do not

damage the seat fabric.

receive immediate attention, the fabric

•

Make sure not to wet the seat. It may

can be stained and its color can be

change the nature of natural leather.

affected. Also, its fire-resistant properties

•

Jeans or clothes which could bleach

can be reduced if the material is not

may contaminate the surface of the

properly maintained.

seat covering fabric.

NOTICE

Using anything but recommended

•

Caring for the leather seats

cleaners and procedures may affect the

- Vacuum the seat periodically to

fabric’s appearance and fire-resistant

remove dust and sand on the seat. It

properties.

will prevent abrasion or damage of

the leather and maintain its quality.

- Wipe the natural leather seat cover

Leather

often with dry or soft cloth.

if equipped

- Use of proper leather protector may

• Features of seat leather

prevent abrasion of the cover and

- Leather is made from the outer skin

helps maintain the color. Be sure to

of an animal, which goes through a

read the instructions and consult a

special process to be available for

specialist when using leather coating

use. Since it is a natural product, each

or protective agent.

part differs in thickness or density.

- Light colored (beige, cream beige)

Wrinkles may appear as a natural

leather is easily contaminated and

result of stretching and shrinking

the stain is noticeable. Clean the

depending on the temperature and

seats frequently.

humidity.

- Avoid wiping with wet cloth. It may

- The seat is made of stretchable fabric

cause the surface to crack.

to improve comfort.

- The parts contacting the body are

curved and the side supporting area

is high which provides driving

comfort and stability.

- Wrinkles may appear naturally from

usage. It is not a fault of the products.

9-56

• Cleaning the leather seats

California Perchlorate

- Remove all contaminations instantly.

Notice

Refer to instructions below for

removal of each contaminant.

Perchlorate Material-special handling

- Cosmetic products (sunscreen,

may apply, See:

foundation, etc.)

www.dtsc.ca.gov/perchlorate.

Apply cleansing cream on a cloth and

Notice to California Vehicle Dismantlers:

wipe the contaminated spot. Wipe

Perchlorate containing materials, such as

off the cream with a wet cloth and

airbag inflators, seatbelt pretensioners

remove water with a dry cloth.

and keyless remote entry batteries, must

- Beverages (coffee, soft drink, etc.)

be disposed of according to Title 22

California Code of Regulations Section

Apply a small amount of neutral

67384.10 (a).

detergent and wipe until

contaminations do not smear.

- Oil

Remove oil instantly with absorbable

cloth and wipe with stain remover

used only for natural leather.

- Chewing gum

Harden the gum with ice and remove

gradually.

Cleaning the seat belt webbing

Clean the belt webbing with any mild

soap solution recommended for cleaning

upholstery or carpet. Follow the

instructions provided with the soap. Do

not bleach or re-dye the webbing

because this may weaken the seat belt.

Cleaning the interior window glass

If the interior glass surfaces of the vehicle

become fogged (that is, covered with an

oily, greasy or waxy film), they should be

cleaned with glass cleaner. Follow the

directions on the glass cleaner container.

NOTICE

Do not scrape or scratch the inside of the

rear window. This may result in damage

to the rear window defroster grid.

9-57

Hyundai Ioniq 6 (2024 year). Manual in english - page 6
