Maintenance

9-42

Ply

A layer of rubber-coated parallel

cords.

Pneumatic tire

A mechanical device made of rubber,

chemicals, fabric and steel or other

materials, that, when mounted on

an automotive wheel provides the

traction and contains the gas or fluid

that sustains the load.

Pneumatic options weight

The combined weight of installed

regular production options weighing

over 5 lb. (2.3 kg) in excess of the

standard items which they replace,

not previously considered in

curb weight or accessory weight,

including heavy duty breaks, ride

levelers, roof rack, heavy duty

battery, and special trim.

Recommended Inflation Pressure

Vehicle manufacturer’s

recommended tire inflation pressure

as shown on the tire placard.

Radial Ply Tire

A pneumatic tire in which the ply

cords that extend to the beads are

laid at 90 degrees to the centerline

of the tread.

Rim

A metal support for a tire and upon

which the tire beads are seated.

Sidewall

The portion of a tire between the

tread and the bead.

Speed Rating

An alphanumeric code assigned to a

tire indicating the maximum speed

at which a tire can operate.

Traction

The friction between the tire and

the road surface. The amount of grip

provided.

Tread

The portion of a tire that comes into

contact with the road.

Treadwear Indicators

Narrow bands, sometimes called

“wear bars”, that show across the

tread of a tire when only 1/16 inch of

tread remains.

UTQGS

Uniform Tire Quality Grading

Standards is a tire information

system that provides consumers

with ratings for a tire’s traction,

temperature and treadwear.

Ratings are determined by tire

manufacturers using government

testing procedures. The ratings are

molded into the sidewall of the tire.

Vehicle Capacity Weight

The number of designated seating

positions multiplied by 150 lbs. (68

kg) plus the rated cargo and luggage

load.

Vehicle Maximum Load on the Tire

Load on an individual tire due to curb

and accessory weight plus maximum

occupant and cargo weight.

Vehicle Normal Load on the Tire

Load on an individual tire that is

determined by distributing to each

axle its share of the curb weight,

accessory weight, and normal

occupant weight and dividing by 2.

Vehicle Placard

A label permanently attached

to a vehicle showing the

original equipment tire size and

recommended inflation pressure.

09

9-43

All Season Tires

HYUNDAI specifies all season

tires on some models to provide

good performance for use all year

round, including snowy and icy

road conditions. All season tires

are identified by ALL SEASON and/

or M+S (Mud and Snow) on the tire

sidewall. Snow tires have better

snow traction than all season tires

and may be more appropriate in

some areas.

Summer Tires

HYUNDAI specifies summer tires on

some models to provide superior

performance on dry roads. Summer

tire performance is substantially

reduced in snow and ice. Summer

tires do not have the tire traction

rating M+S (Mud and Snow) on

the tire side wall. If you plan to

operate your vehicle in snowy or icy

conditions, HYUNDAI recommends

the use of snow tires or all season

tires on all four wheels.

Snow Tires

If you equip your car with snow

tires, they should be the same size

and have the same load capacity as

the original tires. Snow tires should

be installed on all four wheels;

otherwise, poor handling may result.

Snow tires should carry 4 psi (28 kPa)

more air pressure than the pressure

recommended for the standard

tires on the tire label on the driver’s

side of the center pillar, or up to the

maximum pressure shown on the tire

sidewall, whichever is less. Do not

drive faster than 75 mph (120 km/h)

when your vehicle is equipped with

snow tires.

Radial-Ply Tires

Radial-ply tires provide improved

tread life, road hazard resistance

and smoother high speed ride. The

radial-ply tires used on this vehicle

are of belted construction, and are

selected to complement the ride

and handling characteristics of your

vehicle.
Radial-ply tires have the same load

carrying capacity, as bias-ply or

bias belted tires of the same size,

and use the same recommended

inflation pressure. Mixing of radial-

ply tires with bias-ply or bias belted

tires is not recommended. Any

combinations of radial-ply and bias-

ply or bias belted tires when used

on the same vehicle will seriously

deteriorate vehicle handling. The

best rule to follow is: Identical pairs

of radial-ply tires should always be

used as a set for the front tires and a

set for the rear tires.
Longer wearing tires can be more

susceptible to irregular tread wear.

It is very important to follow the tire

rotation interval in this chapter to

achieve the tread life potential of

these tires. Cuts and punctures in

radial-ply tires are repairable only in

the tread area, because of sidewall

flexing. Consult your tire dealer for

radial-ply tire repairs.

 WARNING

Do not mix bias ply and radial ply

tires under any circumstances.

This may cause unusual handling

characteristics that may cause loss

of vehicle control resulting in an

accident.

Maintenance

9-44

Low Aspect Ratio Tires

The aspect ratio is lower than 50 on

low aspect ratio tires.
Because low aspect ratio tires are

optimized for handling and braking,

their sidewall is a little stiffer than

a standard tire. Also low aspect

ratio tires tend to be wider and

consequently have a greater contact

patch with the road surface. In some

instances they may generate more

road noise compared with standard

tires.

 CAUTION

Because the sidewall of a low

aspect ratio tire is shorter than

a standard tire, the rim of the

wheel and the tire itself is more

easily susceptible to damage. Use

caution when driving and follow the

guidelines below to help minimize

damage to the wheel and tire:

•

When driving on a rough road

or off road, drive cautiously

because tires and wheels may

be damaged. And after driving,

inspect tires and wheels.

•

When passing over a pothole,

speed bump, manhole, or curb

stone, drive slowly so that

the tires and wheels are not

damaged.

•

If the tire is subjected to a severe

impact, have the tire and wheel

inspected by an authorized

HYUNDAI dealer.

•

Inspect the tire condition and

pressure every 1,800 miles

(3,000km).

 CAUTION

•

It is not easy to recognize tire

damage with your own eyes. But

if there is the slightest hint of tire

damage, have the tire checked

or replaced because the tire

damage may cause air leakage

from the tire.

•

If the tire is damaged by driving

on a rough road, off road,

pothole, manhole, or curb stone,

it will not be covered by the

warranty.

09

9-45

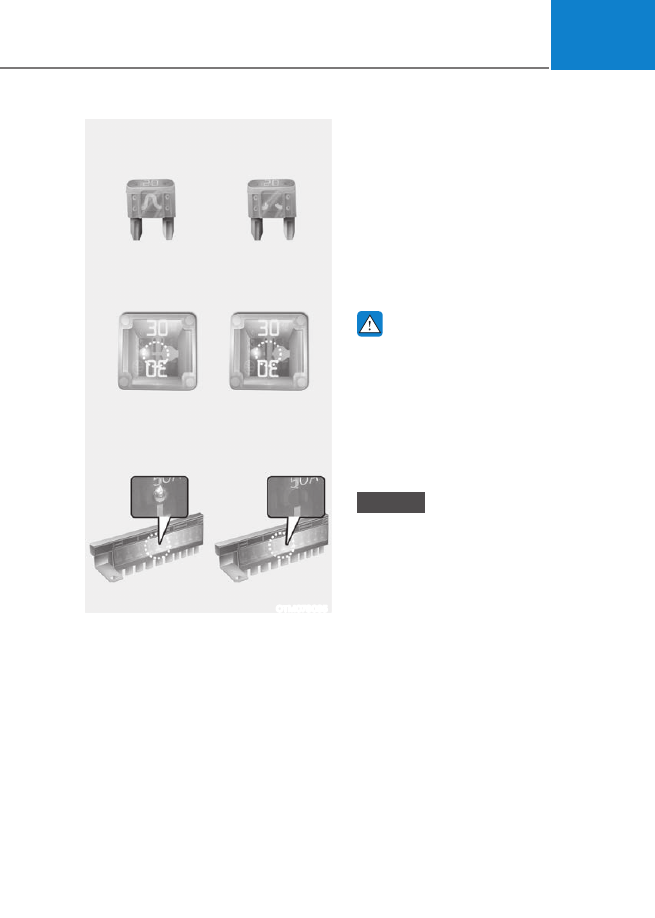

 Cartridge type

 Blade type

 Multi fuse

Normal

Blown

Normal

Blown

Normal

Blown

OTM078035

A vehicle’s electrical system is protected

from electrical overload damage by

fuses.
This vehicle has 2 (or 3) fuse panels, one

located in the driver’s side panel bolster,

the other in the engine compartment

near the battery.
If any of your vehicle’s lights,

accessories, or controls do not work,

check the appropriate circuit fuse. If a

fuse has blown, the element inside the

fuse will be melted or broken.

If the electrical system does not work,

first check the driver’s side fuse panel.

Before replacing a blown fuse, turn the

engine and all switches off, and then

disconnect the battery connector. Always

replace a blown fuse with one of the

same rating.
If the replacement fuse blows, this

indicates an electrical problem.

Avoid using the system involved and

immediately consult an authorized

HYUNDAI dealer.

 WARNING

NEVER replace a fuse with anything but

another fuse of the same rating.

•

A higher capacity fuse could cause

damage and possibly cause a fire.

•

Do not install a wire or aluminum

foil instead of the proper fuse -

even as a temporary repair. It may

cause extensive wiring damage and

possibly a fire.

NOTICE

Do not use a screwdriver or any other

metal object to remove fuses because

it may cause a short circuit and damage

the system.

FUSES

Maintenance

9-46

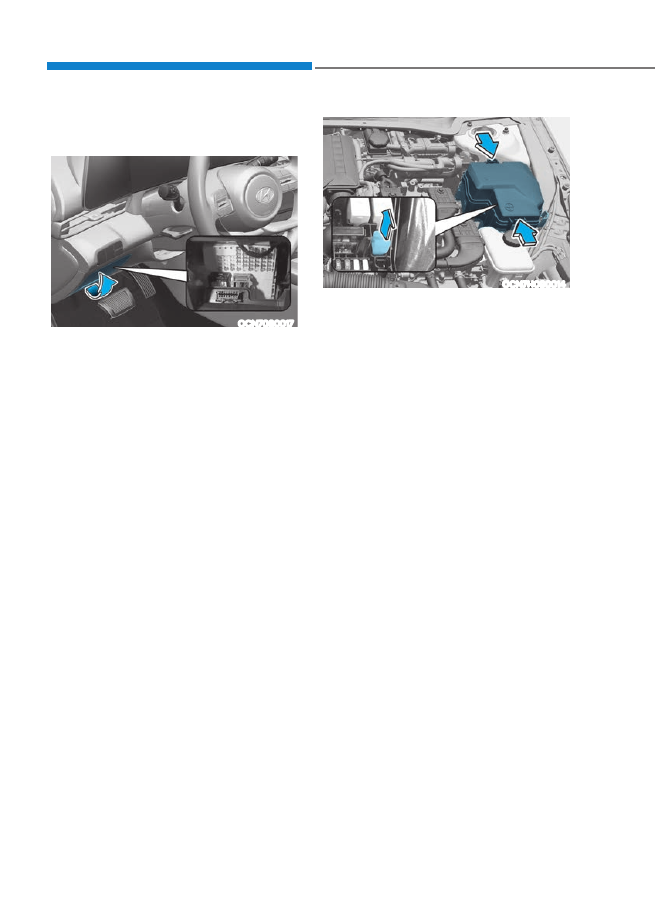

Instrument Panel Fuse

Replacement

OCN7080017

1.  Turn the vehicle off.
2.  Turn all other switches OFF.
3.  Open the fuse panel cover.
4.  Refer to the label on the inside of

the fuse panel cover to locate the

suspected fuse location.

OCN7H090014

5.  Pull the suspected fuse straight out.

Use the removal tool provided in the

engine compartment fuse panel.

6.  Check the removed fuse; replace it if

it is blown. Spare fuses are provided in

the engine compartment fuse panel.

7.  Push in a new fuse of the same

rating, and make sure it fits tightly in

the clips. If it fits loosely, consult an

authorized HYUNDAI dealer.

In an emergency, if you do not have a

spare fuse, use a fuse of the same rating

from a circuit you may not need for

operating the vehicle.
If the other electrical components do

not work and the fuses are undamaged,

check the fuse panel in the engine

compartment. If a fuse is blown, it must

be replaced with the same rating.
If the headlight, turn signal lamp, tail

lamp, interior lamp doesn’t work and

the fuses are undamaged, consult an

authorized HYUNDAI dealer.

09

9-47

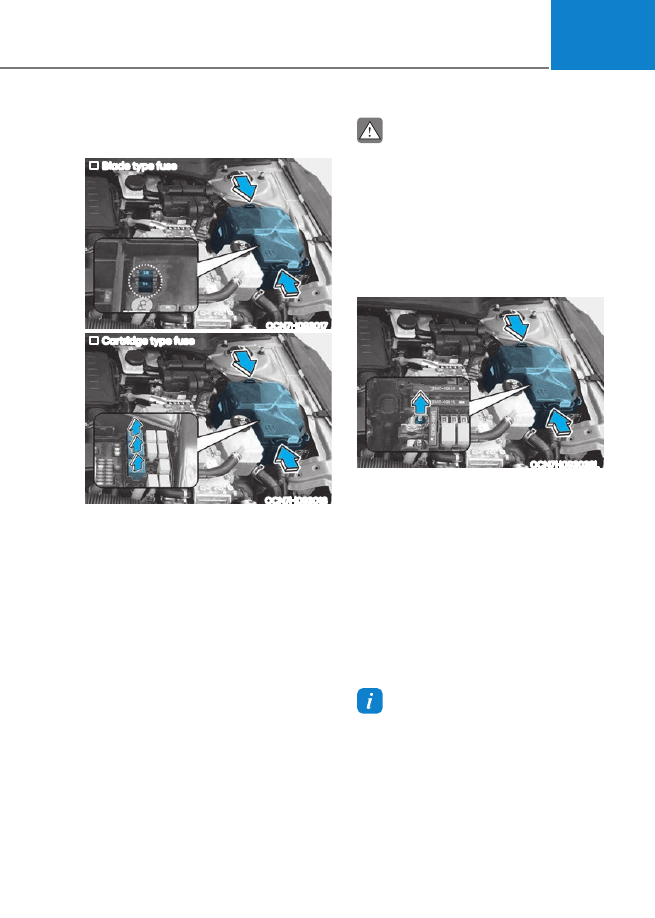

Engine Compartment Panel Fuse

Replacement

„

„

Blade type fuse

OCN7H093017

„

„

Cartridge type fuse

OCN7H093018

1.  Turn the engine off.
2.  Turn all other switches OFF.
3.  Remove the fuse panel cover by

pressing the tap and pulling up.

4.  Check the removed fuse; replace it if it

is blown. To remove or insert the fuse,

use the removal tool in the engine

compartment fuse panel.

5.  Push in a new fuse of the same

rating, and make sure it fits tightly in

the clips. If it fits loosely, consult an

authorized HYUNDAI dealer.

 CAUTION

After checking the fuse box in the

engine compartment securely close

the fuse box cover inside the engine

compartment, until it clicks.
If the fuse box is not closed properly,

water may leak in side, possibly causing

a malfunction with the electrical

system.

Multi fuse (Main fuse)

OCN7H093038L

If the multi fuse is blown, it must be

removed as follows:
1.  Turn off the engine.
2.  Disconnect the battery connector.
3.  Remove the fuse panel cover by

pressing the tab and pulling it up.

4.  Remove the nuts shown in the picture

above.

5.  Replace the fuse with a new one of

the same rating.

6.  Reinstall in the reverse order of

removal.

 Information

If the multi fuse is blown, consult an

authorized HYUNDAI dealer.

Maintenance

9-48

OCN7H093027N

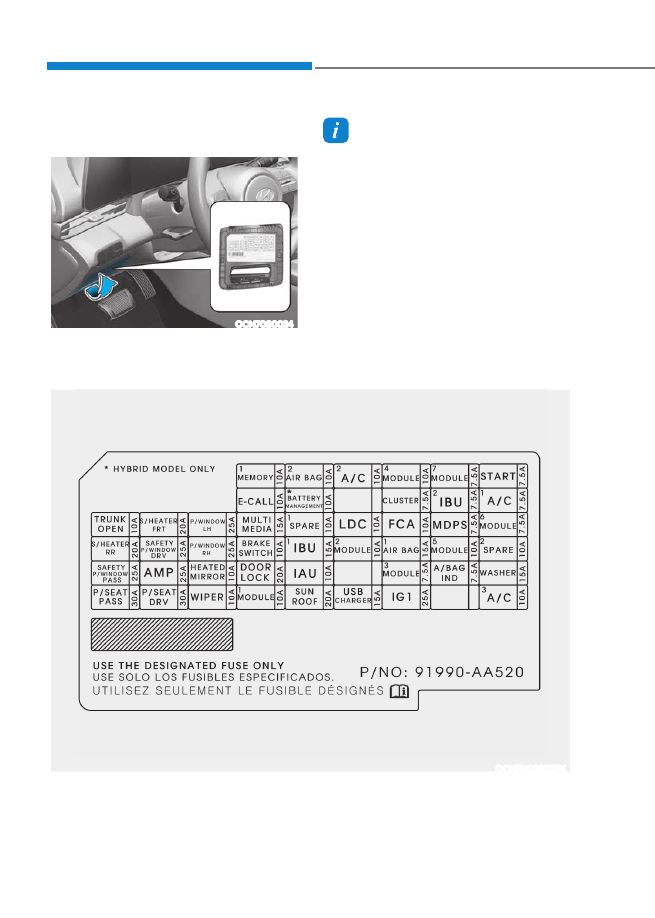

Fuse/Relay Panel Description

Instrument panel fuse panel

OCN7080024

Inside the fuse/relay box cover, you can

find the fuse/relay label describing fuse/

relay names and ratings.

 Information

Not all fuse panel descriptions in this

manual may be applicable to your vehicle;

the information is accurate at the time of

printing. When you inspect the fuse box on

your vehicle, refer to the fuse box label.

09

9-49

Driver’s side fuse panel

Fuse Name

Fuse Rating

Circuit Protected

MEMORY1

10A

A/C Controller, Instrument Cluster,

A/C Control Module, ADAS_PRK_SVM

AIR BAG2

10A

SRS Control Module

MODULE4

10A

IBU, Front Console Switch, ADAS Unit, Crash Pad Switch,

LKA Unit, VESS Unit

MODULE7

7.5A

Rear Seat Wamer Control Module

START

7.5A

Burglar Alarm Relay, Transaxle Range Switch, IBU, HPCU

BATTERY

MANAGEMENT

10A

BMS Control Module

CLUSTER

7.5A

Instrument Cluster (IG1)

IBU2

7.5A

IBU

A/C1

7.5A

A/C Controller, A/C Control Module,

E/R Junction Block (Blower Relay, PTC Heater1/2 Relay),

Electronic A/C Compressor

TRUNK

10A

Trunk Lid Latch

S/HEATER FRT

20A

Front Ventilation Seat Control Module,

Front Seat Warmer Control Module

P/WINDOW LH

25A

Power Window Main Switch

MULTIMEDIA

15A

Audio, A/V & Navigation Head Unit

SPARE 1 (B+)

10A

Not Used (Black Box)

FCA

10A

Front Radar

MDPS

7.5A

MDPS Unit

MODULE6

7.5A

IBU, IAU

SAFETY P/

WINDOW DRV

25A

Driver Safety Power Window Module

P/WINDOW RH

25A

Passenger Power Window Switch,

Power Window Main Switch

BRAKE SWITCH

10A

IBU, Stop Lamp Switch

IBU1

15A

IBU, Sport Mode Switch

SAFETY

P/WINDOW

PASS

25A

SAFETY ECU PASS

Maintenance

9-50

Driver’s side fuse panel

Fuse Name

Fuse Rating

Circuit Protected

MODULE2

10A

A/V & Navigation Head Unit, AMP, ADAS Unit,

BMS Control Module, Power Outside Mirror Switch,

IBU, IAU, Audio, E/R Junction Block (Power Outlet Relay)

AIR BAG1

15A

Passenger Occupant Detection Sensor,

SRS Control Module

MODULE5

10A

Data Link Connector, Audio, ATM Shift Lever Indicator,

A/V & Navigation Head Unit, Wireless Charger, AMP,

A/C Control Module, Electro Chromic Mirror,

A/C Controller, Front Ventilation Seat Control Module,

Front Seat Wamer Control Module,

Driver IMS Control Module

SPARE 2 (IG2)

10A

Not Used (Black Box)

AMP

25A

AMP

HEATED MIRROR

10A

A/C Controller, Driver/Passenger Outside Mirror heated

DOOR LOCK

20A

Lock/Unlock Actuator, Two Turn Unlock Relay

IAU

10A

IAU, Driver/Passenger Door NFC Module

MODULE3

7.5A

IAU, Stop Lamp Switch, Sport Mode Switch

A/BAG IND

7.5A

Instrument Cluster, Overhead Console Lamp

WASHER

15A

Multifunction Switch

P/SEAT DRV

30A

Driver Power Seat Switch

WIPER

10A

IBU, ECM, Front Wiper Motor,

PCB Block (Front Wiper (LOW) Relay)

MODULE1

10A

Data Link Connector, Hazard Switch, Key Interlock,

Driver/Passenger Smart Key Outside Handle,

VESS, Driver IMS Control Module

SUNROOF

20A

Sunroof Motor

USB CHARGER

15A

Front USB Charger, Console USB Charger

IG1

25A

PCB Block (Fuse - IEB 4/ECU 3/TCU 2/EWP 3)

09

9-51

OCN7H093024N

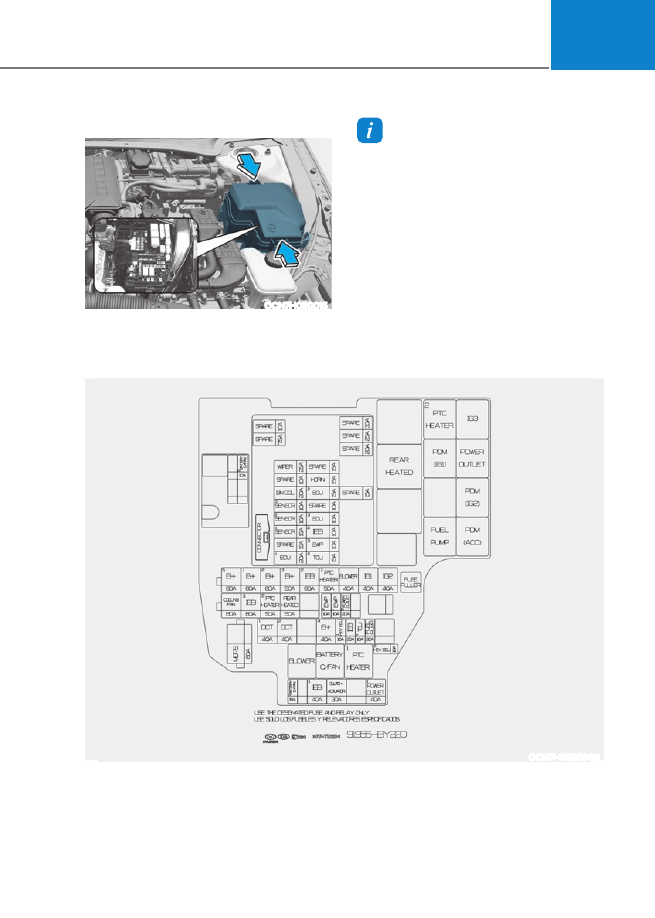

Engine compartment fuse panel

OCN7H090015

Inside the fuse/relay box cover, you can

find the fuse/relay label describing fuse/

relay names and ratings.

 Information

Not all fuse panel descriptions in this

manual may be applicable to your vehicle;

the information is accurate at the time of

printing. When you inspect the fuse panel

in your vehicle, refer to the fuse panel

label.

Maintenance

9-52

Engine compartment fuse panel

Type

Fuse Name

Fuse Rating

Circuit Protected

MULTI

FUSE-3

MDPS

80A

MDPS Unit

MULTI

FUSE-2

COOLING FAN

60A

Cooling Fan Motor

IEB 3

60A

IDB Unit

PTC HEATER 2

50A

PTC Heater 2 Relay

REAR HEATED

50A

Rear Glass Heated

MULTI

FUSE-1

B+5

60A

PCB Block (Engine Control Relay, Fuse -

ECU 2/HORN/WIPER)

B+1

60A

ICU Junction Block (IPS2/IPS3/IPS5/IPS6/

IPS7)

B+2

60A

ICU Junction Block (IPS1/IPS4/IPS8/IPS9/

IPS10)

B+3

50A

Fuse - EWP 2, ICU Junction Block (Fuse

- SAFETY P/WINDOW DRV, SAFETY P/

WINDOW PASS, TRUNK, AMP, P/SEAT

DRV, P/SEAT PASS, S/HEATER FRT, Long

Term Load Latch Relay (Fuse - MEMORY 1/

MULTIMEDIA))

IEB 2

60A

IDB Unit

PTC HEATER 1

50A

PTC Heater

BLOWER

40A

Blower Motor, Multipurpose Check

Connector

IG1

40A

Ignition Switch, PDM (IG1/ACC) Relay

IG2

40A

Ignition Switch, PDM (IG2) Relay

09

9-53

Engine compartment fuse panel

Type

Fuse Name

Fuse Rating

Circuit Protected

FUSE

BATTERY C/

FAN 1

15A

Battery C/Fan

IEB1

40A

IDB Unit, Multipurpose Check Connector

CLUTCH

ACTUATOR

30A

Clutch Actuator

POWER

OUTLET 1

40A

Power Outlet

EWP 2

10A

Auxiliary Electric Water Pump

EWP 1

10A

Electric Water Pump

POWER

OUTLET 2

20A

Front Power Outlet

DCT 1

40A

TCM

DCT 2

40A

TCM

B+4

40A

ICU Junction Block (Power Window Relay,

Fuse - AIR BAG 2, IBU 1, BRAKE SWITCH,

DOOR LOCK, MODULE 1, SUNROOF, IAU,

BMS)

HEV ECU 1

10A

HPCU

IG3

20A

IG3 Relay

TCU 1

10A

TCM

FUEL PUMP

20A

Fuel Pump Motor

HEV ECU 2

10A

HPCU, BMS Control Module

Sub Block

FUSE

BATTERY C/

FAN 2

10A

Battery C/Fan Relay

Maintenance

9-54

Engine compartment fuse panel

Fuse Name

Fuse Rating

Circuit Protected

WIPER

25A

Wiper Motor

HORN

15A

Horn

IGN COIL

20A

Ignition Coil #1 ~ #4

ECU2

15A

ECM

SENSOR3

10A

E/R Junction Block (Fuel Pump Relay)

SENSOR2

10A

Camshaft Position Sensor #1/#2 (Intake/Exhaust), Mass

Air Flow Sensor, ELCM, Oil Control Valve #1/#2 (Intake/

Exhaust), Cooling Fan, Purge Control Solenoid Valve

ECU3

10A

ECM, HPCU, Clutch Actuator

SENSOR1

15A

Oxygen Sensor (Up/Down)

IEB 4

10A

IDB Unit, Multipurpose Check Connector

EWP 3

10A

Auxiliary Electric Water Pump

ECU1

20A

ECM

TCU2

15A

Transaxle Range Switch, TCM

09

9-55

Consult an authorized HYUNDAI dealer

to replace most vehicle light bulbs. It is

difficult to replace vehicle light bulbs

because other parts of the vehicle must

be removed before you can get to the

bulb. This is especially true for removing

the headlight assembly to get to the

bulb(s).
Removing/installing the headlight

assembly can result in damage to the

vehicle.

 Information

The headlight and tail lamp lenses could

appear frosty if the vehicle is washed after

driving or the vehicle is driven at night in

wet weather. This condition is caused by

temperature difference between the lamp

inside and outside and does not indicate

a problem with your vehicle. When

moisture condenses in the lamp, it will be

removed after driving with the headlight

on. The removable level may differ

depending on lamp size, lamp position

and environmental condition. However, if

moisture is not removed, have the vehicle

inspected by an authorized HYUNDAI

dealer.

 WARNING

•

Prior to replacing a lamp, depress the

foot brake, move the shift lever into P

(Park) apply the parking brake, place

the ignition switch to the LOCK/OFF

position, and take the key with you

when leaving the vehicle to avoid

sudden movement of the vehicle and

to prevent possible electric shock.

•

Be aware the bulbs may be hot and

may burn your fingers.

•

When the bulb is disconnected or the

lamp connector is removed while the

lamp is operating normally, the fuse

box electronics may recognize the

lamp as a malfunction. Therefore, a

fault record for the lamp may remain

in the Diagnostic Trouble Code (DTC)

recorded in the fuse box.

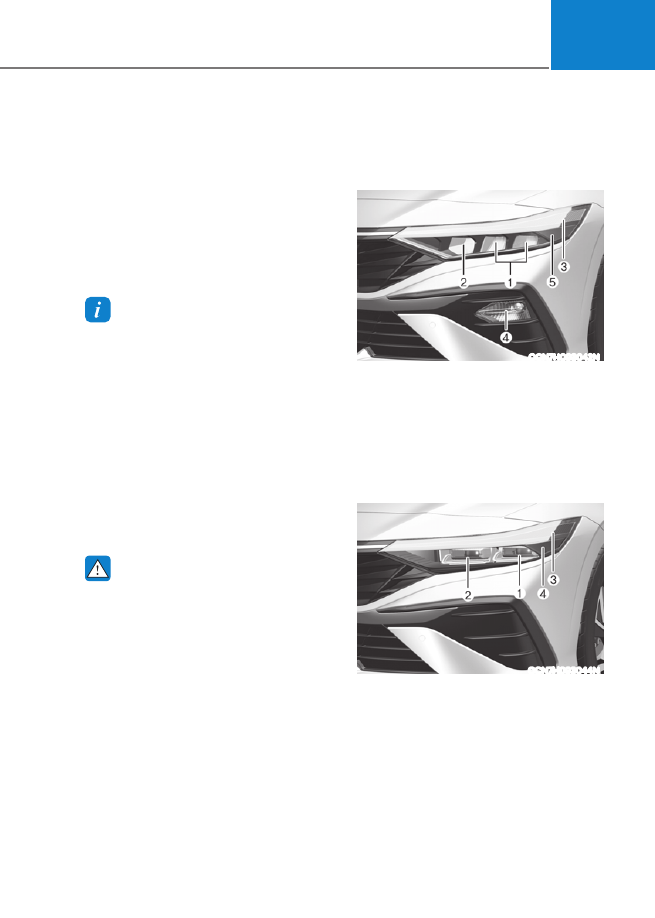

Headlight, Parking Lamp,

Daytime Running Light, Turn

Signal Lamp and Side Marker

Type A

OCN7H093042N

(1)  Headlight (Low)
(2)  Headlight (High)
(3)  Daytime running lamp (DRL)/

Parking lamp

(4)  Turn signal lamp
(5)  Side marker

Type B

OCN7H093044N

(1)  Headlight (Low)
(2)  Headlight (High)
(3)  Daytime running lamp (DRL)/Parking

lamp/Turn signal lamp

(4)  Side marker

LIGHT BULBS

Maintenance

9-56

 Information

The headlight aiming should be adjusted

after an accident or after the headlight

assembly is reinstalled at an authorized

HYUNDAI dealer.

Headlight/Daytime running light (DRL) /

Parking lamp (LED type)

If the lamp (LED) does not operate, have

the system checked by an authorized

HYUNDAI dealer.
The LED lamps cannot be replaced as

a single unit because it is an integrated

unit. The LED lamps have to be replaced

with the unit.
A skilled technician should check or

repair the LED lamp, for it may damage

related parts of the vehicle.

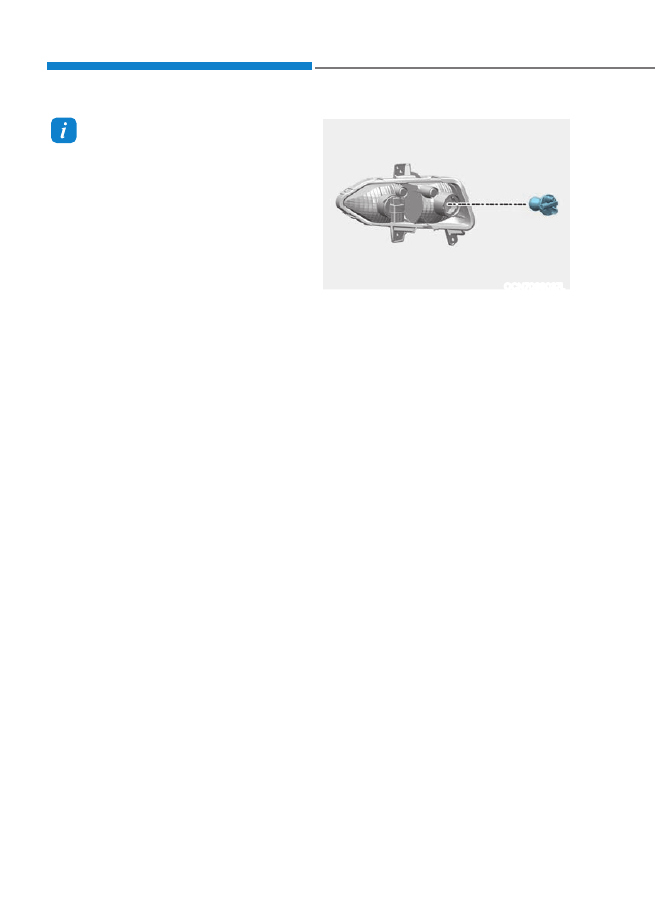

OCN7093037L

Turn signal lamp (Bulb type)

1.  Open the hood.
2.  Remove the front bumper.
3.  Disconnect the battery connector.
4.  Remove the socket from

the assembly by turning the

socketcounterclockwise until the

tabs on the socket align with the slots

onthe assembly.

5.  Remove the bulb from the socket

by pressing it in and rotating

itcounterclockwise until the tabs on

the bulb align with the slots in the

socket. Pull the bulb out of the socket.

6.  Insert a new bulb by inserting it into

the socket and rotating it until it locks

into place.

7.  Install the socket in the assembly by

aligning the tabs on the socket with

the slots in the assembly.

8.  Push the socket into the assembly and

turn the socket clockwise.

09

9-57

Turn signal lamp (LED type)

If the lamp (LED) does not operate have

the system be checked by an authorized

HYUNDAI dealer.
The LED lamps cannot be replaced as

a single unit because it is an integrated

unit. The LED lamps has to be replaced

with the unit.
A skilled technician should check or

repair the LED lamp, for it may damage

related parts of the vehicle.

Side marker (LED type)

If the LED lamp does not operate, have

the vehicle checked by an authorized

HYUNDAI dealer.

Side Repeater Lamp

Replacement (if equipped)

OCN7080074L

If the LED lamp (1) does not operate,

have the vehicle checked by an

authorized HYUNDAI dealer.

Rear Combination Lamp Bulb

Replacement

„

„

Type A

OCN7H090026N

„

„

Type B

OCN7H090025N

(1)  Stop lamp (LED or bulb)
(2)  Tail lamp (LED)
(3)  Turn signal lamp
(4)  Reverse lamp
(5)  Rear side marker (LED or bulb)

Maintenance

9-58

Tail/Stop lamp/Turn signal lamp/

Side marker (Outer lamp) (Bulb type)

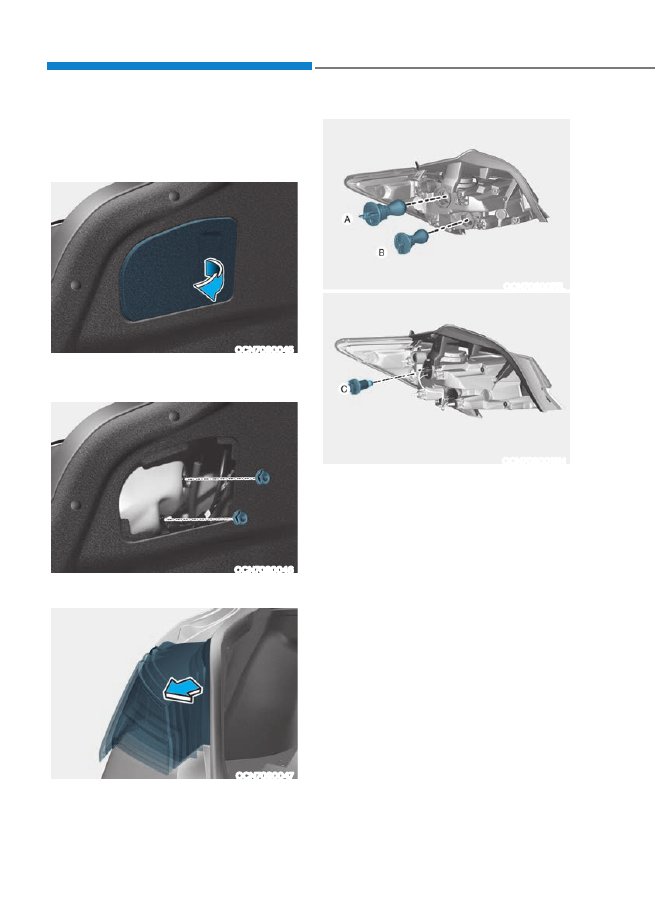

1.  Open the trunk lid.

OCN7080045

2.  Remove the service cover by pulling

out the service cover.

OCN7080046

3.  Loosen the assembly retaining nuts.

OCN7080047

4.  Remove the rear combination light

assembly from the body of the

vehicle.

OCN7080075L

OCN7090019N

[A] : Tail/Stop lamp, [B] : Turn signal lamp,
[C] : Rear side marker

5.  Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on the

assembly.

6.  Remove the bulb from the socket

by pressing it in and rotating it

counterclockwise until the tabs on the

bulb align with the slots in the socket.

Pull the bulb out of the socket.

7.  Insert a new bulb by inserting it into

the socket and rotating it until it locks

into place.

8.  Install the socket in the assembly by

aligning the tabs on the socket with

the slots in the assembly. Push the

socket into the assembly and turn the

socket clockwise.

09

9-59

Reverse lamp (Inner lamp)

(Bulb type)

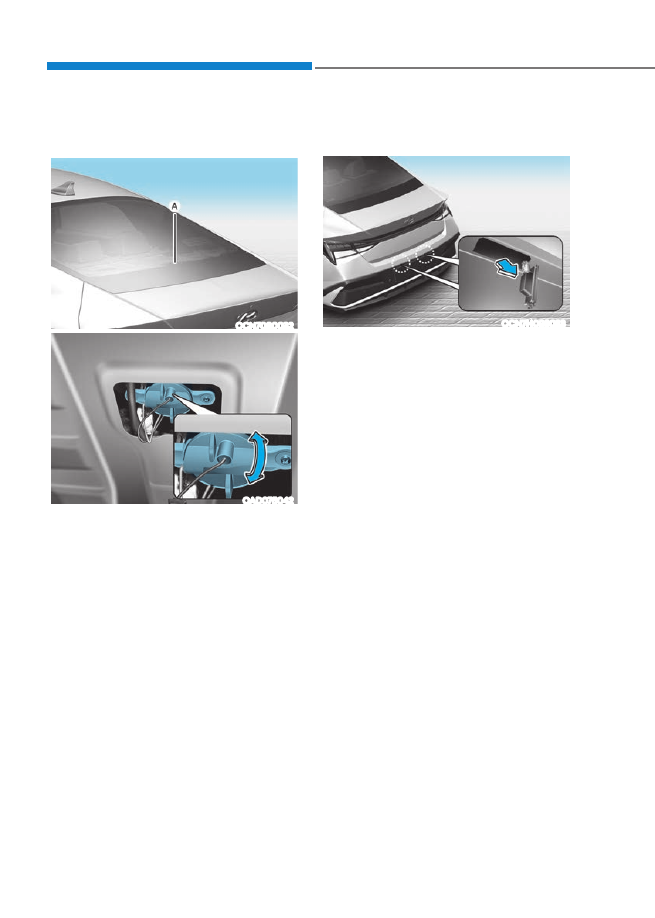

1.  Open the trunk.

OCN7080049

2.  Loosen the retaining screw of the

trunk lid cover and then remove the

cover.

3.  Disconnect the connector and then

remove the nuts by turning the nuts

counter clockwise.

4.  Take the light assembly out.

OCN7080053

5.  Remove the socket from the

assembly by turning the socket

counterclockwise until the tabs on

the socket align with the slots on the

assembly.

6.  Remove the bulb by pulling it out.
7.  Insert a new bulb by inserting it into

the socket.

8.  Install the light assembly to the trunk.
9.  Reinstall the trunk lid cover by

pushing in the screw.

Stop/Tail lamp and rear side marker

(LED type)

If the LED lamp does not operate, have

the vehicle checked by an authorized

HYUNDAI dealer.

Maintenance

9-60

High Mounted Stop Lamp

Replacement

OCN7080032

OAD075042

[A] : High mounted stop lamp

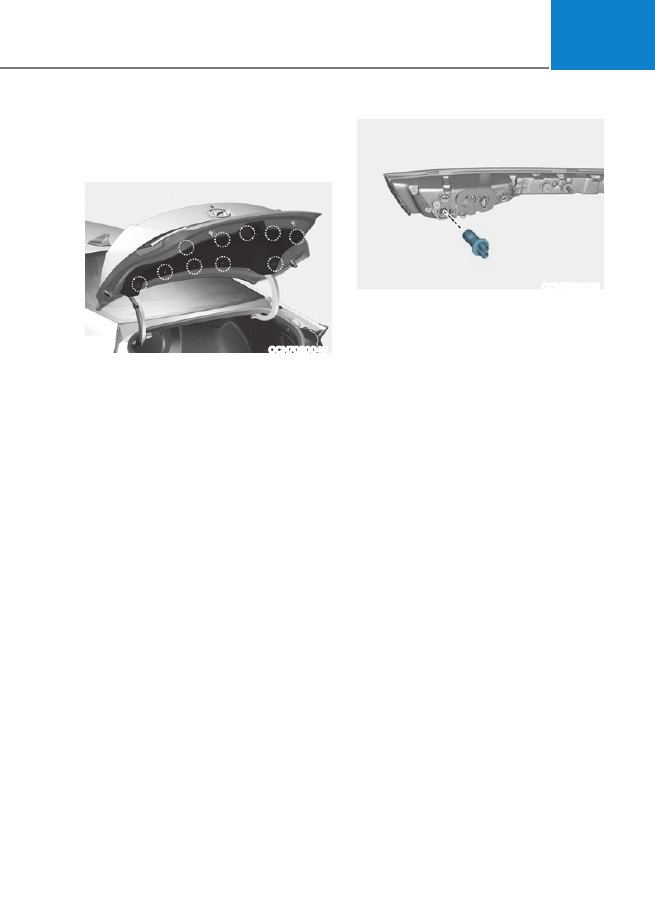

1.  Open the trunk.
2.  Remove the socket by turning it

counterclockwise until the tabs on the

socket align with the slots.

3.  Remove the bulb from the socket

by pressing it in and rotating it

counterclockwise until the tabs on the

bulb align with the slots in the socket.

Pull the bulb out of the socket.

4.  Insert a new bulb by inserting it into

the socket and rotating it until it locks

into place.

5.  Install the socket in the assembly by

aligning the tabs on the socket with

the slots in the assembly.
Push the socket into the assembly and

turn the socket clockwise.

License Plate Light Bulb

Replacement

OCN7H093033

1.  Using a flat-blade screwdriver gently

pry the lens cover from the lamp

housing.

2.  Remove the bulb by pulling it straight

out.

3.  Install a new bulb.
4.  Reinstall in the reverse order.

09

9-61

Interior Light Bulb Replacement

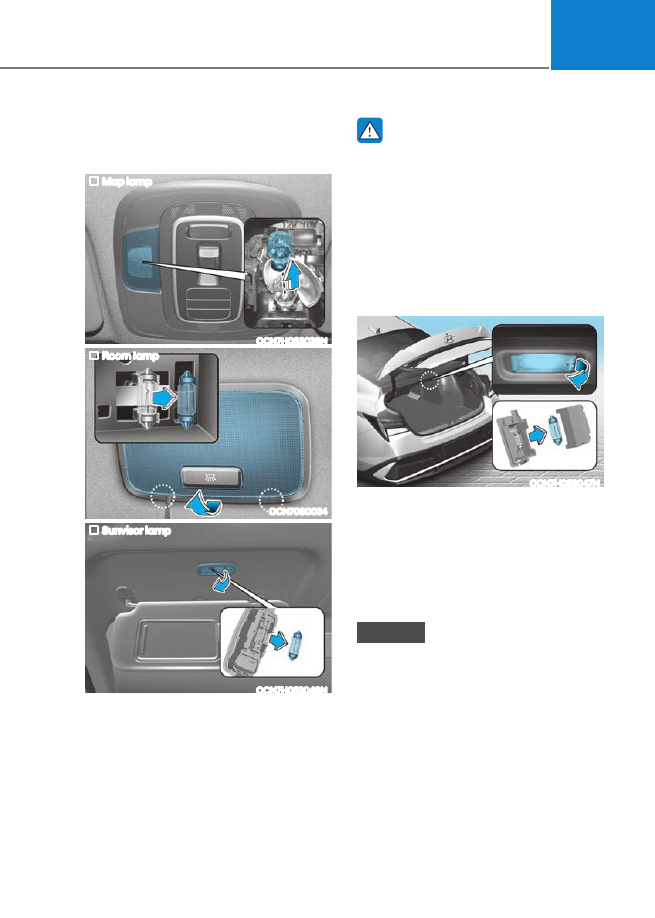

Map lamp/Room lamp/Sunvisor

lamp (bulb type)

„

„

Map lamp

OCN7H083028N

„

„

Room lamp

OCN7080034

„

„

Sunvisor lamp

OCN7H053048N

1.  Using a flat-blade screwdriver, gently

pry the lens or assembly from the

interior lamp housing.

2.  Remove the bulb by pulling it straight

out.

 WARNING

Prior to working on the Interior Lights,

ensure that the “OFF” button is

depressed to avoid burning your fingers

or receiving an electric shock.

3.  Install a new bulb in the socket.
4.  Align the lens tabs with the interior

lamp housing notches and snap the

lens into place.

Trunk room lamp (bulb type)

OCN7H053047N

1.  Using a flat-blade screwdriver gently

pry the assembly from the lamp

housing.

2.  Remove the lamp cover, then pull the

bulb straight out it.

3.  Install a new bulb.
4.  Reinstall in the reverse order.

NOTICE

Use care not to dirty or damage lens,

lens tab, and plastic housings.

Maintenance

9-62

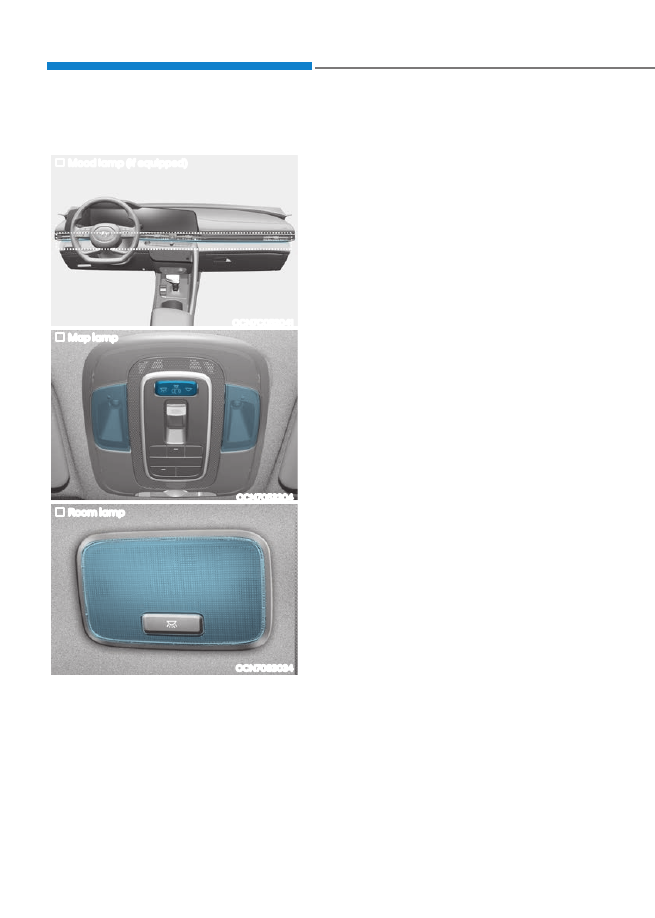

Mood lamp/Map lamp/Room lamp

(LED type)

„

„

Mood lamp (if equipped)

OCN7C052041

„

„

Map lamp

OCN7053204

„

„

Room lamp

OCN7083034

If the LED lamp does not operate, have

the system checked by an authorized

HYUNDAI dealer.
The LED lamps cannot be replaced as

a single unit because it is an integrated

unit. The LED lamps has to be replaced

with the unit. A skilled technician should

check or repair the LED lamp, for it may

damage related parts of the vehicle.

09

9-63

APPEARANCE CARE

Exterior Care

NOTICE

If you park your vehicle near a stainless

steel sign or glass facade building, the

vehicle’s exterior plastic parts such

as a bumper, spoiler, garnish, lamp or

side view mirror might be damaged

due to sunlight reflected from the

sign or building. To prevent damage of

the exterior plastic parts, you should

avoid parking in areas where light may

be reflected or use a car cover. (The

exterior plastic parts applied to your

vehicle may vary.)

Exterior general caution

It is very important to follow the label

directions when using any chemical

cleaner or polish. Read all warning and

caution statements that appear on the

label.

High-pressure washing

•

When using high-pressure washers,

make sure to maintain sufficient

distance from the vehicle. Insufficient

clearance or excessive pressure can

lead to component damage or water

penetration.

•

Do not spray the camera, sensors or

its surrounding area directly with a

high pressure washer. Shock applied

from high pressure water may cause

the device to not operate normally.

•

Do not bring the nozzle tip close to

boots (rubber or plastic covers) or

connectors as they may be damaged

if they come into contact with high

pressure water.

•

Do not use any high-pressure nozzles,

which induce either one-direct water

stream or water swirling.

Protecting your vehicle’s finish

Washing

To help protect your vehicle’s finish from

rust and deterioration, wash it thoroughly

and frequently at least once a month

with lukewarm or cold water.
If you use your vehicle for off-road

driving, you should wash it after each

off-road trip. Pay special attention to the

removal of any accumulation of salt, dirt,

mud, and other foreign materials. Make

sure the drain holes in the lower edges

of the doors and rocker panels are kept

clear and clean.
Insects, tar, tree sap, bird droppings,

industrial pollution and similar deposits

can damage your vehicle’s finish if not

removed immediately.
Even prompt washing with plain water

may not completely remove all these

deposits. A mild soap, safe for use on

painted surfaces, should be used.
After washing, rinse the vehicle

thoroughly with lukewarm or cold water.

Do not allow soap to dry on the finish.

High-pressure washing

•

When using high-pressure washers,

make sure to maintain sufficient

distance from the vehicle. Insufficient

clearance or excessive pressure can

lead to component damage or water

penetration.

•

Do not spray the camera, sensors or

its surrounding area directly with a

high pressure washer. Shock applied

from high pressure water may cause

the device to not operate normally.

•

Do not bring the nozzle tip close to

boots (rubber or plastic covers) or

connectors as they may be damaged

if they come into contact with high

pressure water.

Maintenance

9-64

 WARNING

After washing the vehicle, test the

brakes while driving slowly to see

if they have been affected by water

before getting on the road. If braking

performance is impaired, dry the

brakes by applying them lightly while

maintaining a slow forward speed.

NOTICE

•

Do not use strong soap, chemical

detergents or hot water, and do not

wash the vehicle in direct sunlight

or when the body of the vehicle is

warm.

•

Be careful when washing the side

windows of your vehicle.
Especially, with high-pressure water,

water may leak through the windows

and wet the interior.

•

To prevent damage to the plastic

parts, do not clean with chemical

solvents or strong detergents.

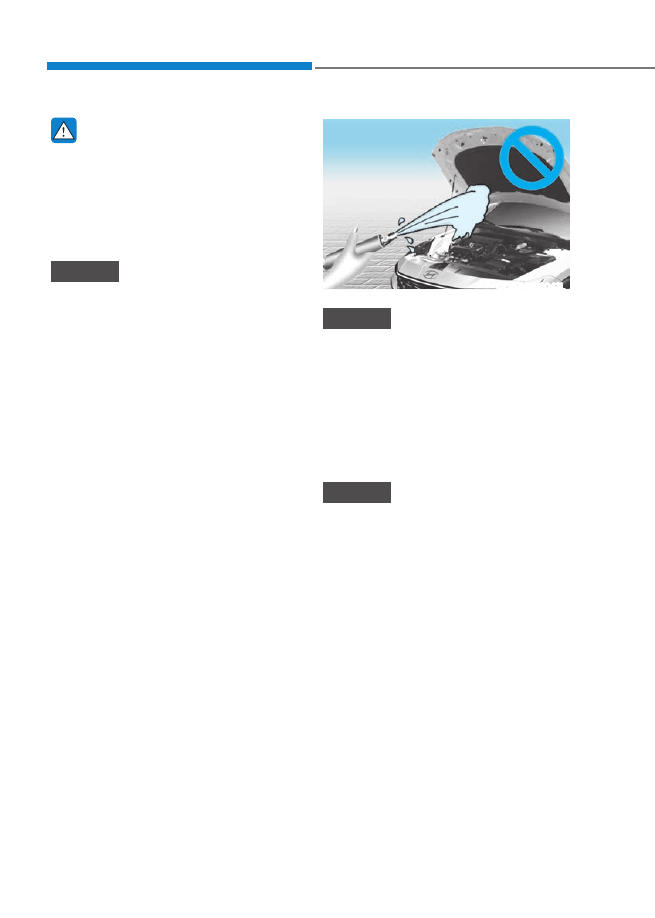

OCN7H093043L

NOTICE

•

Water washing in the engine

compartment including high

pressure water washing may cause

the failure of electrical circuits

located in the engine compartment.

•

Never allow water or other liquids

to come in contact with electrical/

electronic components inside the

vehicle as this may damage them.

NOTICE

Matte paint finish vehicle (if equipped)
Automatic car wash which uses rotating

brushes should not be used as this can

damage the surface of your vehicle. A

steam cleaner which washes the vehicle

surface at high temperature may cause

oil to adhere and leave stains that is

difficult to remove.
Use a soft cloth (e.g. microfiber towel

or sponge) when washing your vehicle

and dry with a microfiber towel. When

you hand wash your vehicle, you should

not use a cleaner that finishes with wax.

If the vehicle surface is too dirty (sand,

dirt, dust, contaminant, etc.), clean the

surface with water before washing the

car.

09

9-65

Waxing

A good coat of wax provides a barrier

between your paint and environmental

contamination.
Keeping a good coat of wax on your

vehicle will help protect it.
Wax the vehicle when water will no

longer bead on the paint.
Always wash and dry the vehicle before

waxing. Use a good quality liquid or

paste wax, and follow the manufacturer’s

instructions. Wax all metal trim to protect

it and to maintain its luster.
Removing oil, tar, and similar materials

with a spot remover will usually strip the

wax from the finish. Be sure to re-wax

these areas even if the rest of the vehicle

does not yet need waxing.

NOTICE

•

Wiping dust or dirt off the body with

a dry cloth will scratch the finish.

•

Do not use steel wool, abrasive

cleaners, or strong detergents

containing highly alkaline or

caustic agents on chrome-plated or

anodized aluminum parts. This may

result in damage to the protective

coating and cause discoloration or

paint deterioration.

NOTICE

Matte paint finish vehicle (if equipped)
Do not use any polish protector such as

a detergent, an abrasive and a polish.

In case wax is applied, remove the wax

immediately using a silicon remover

and if any tar or tar contaminant is on

the surface use a tar remover to clean.

However, be careful not to apply too

much pressure on the painted area.

Repairing your vehicle’s finish

Deep scratches or stone chips in the

painted surface must be repaired

promptly. Exposed metal will quickly

rust and may develop into a major repair

expense.

NOTICE

If your vehicle is damaged and requires

any metal repair or replacement,

be sure the body shop applies anti-

corrosion materials to the parts

repaired or replaced.

NOTICE

Matte paint finish vehicle (if equipped)
In case of matte paint finish vehicles,

it is impossible to modify only the

damaged area and repair of the whole

part is necessary. If the vehicle is

damaged and painting is required,

we recommend that you have your

vehicle maintained and repaired by

an authorized HYUNDAI dealer. Take

extreme care, as it is difficult to restore

the quality after the repair.

Bright-metal maintenance

•

To remove road tar and insects, use

a tar remover, not a scraper or other

sharp object.

•

To protect the surfaces of bright metal

parts from corrosion, apply a coating

of wax or chrome preservative and rub

to a high luster.

•

During winter weather or in coastal

areas, cover the bright metal parts

with a heavier coating of wax or

preservative. If necessary, coat the

parts with non-corrosive petroleum

jelly or other protective compound.

Maintenance

9-66

Underbody maintenance

Corrosive materials used for ice and

snow removal and dust control may

collect on the underbody. If these

materials are not removed, accelerated

rusting can occur on underbody parts

such as the fuel lines, frame, floor pan

and exhaust system, even though they

have been treated with rust protection.
Thoroughly flush the vehicle underbody

and wheel openings with lukewarm or

cold water once a month, after off-road

driving and at the end of each winter. Pay

special attention to these areas because

it is difficult to see all the mud and dirt.

It will do more harm than good to wet

down the road grime without removing

it. The lower edges of doors, rocker

panels, and frame members have drain

holes that should not be allowed to clog

with dirt; trapped water in these areas

can cause rusting.

 WARNING

After washing the vehicle, test the

brakes while driving slowly to see if

they have been affected by water. If

braking performance is impaired, dry

the brakes by applying them lightly

while maintaining a slow forward

speed.

Aluminum wheel maintenance

The aluminum wheels are coated with a

clear protective finish.

NOTICE

•

Do not use abrasive cleaner,

polishing compound, solvent, or wire

brushes on aluminum wheels.

•

Clean the wheel when it has cooled.

•

Use only a mild soap or neutral

detergent, and rinse thoroughly with

water. Also, clean the wheels after

driving on salted roads.

•

Do not wash the wheels with high-

speed car wash brushes.

•

Do not use any cleaners containing

acid or alkaline detergents.

09

9-67

Corrosion protection

Protecting your vehicle from corrosion

By using the most advanced design

and construction practices to combat

corrosion, HYUNDAI produces vehicles

of the highest quality. However, this is

only part of the job. To achieve the long-

term corrosion resistance your vehicle

can deliver, the owner’s cooperation and

assistance is also required.

Common causes of corrosion

The most common causes of corrosion

on your vehicle are:

•

Road salt, dirt and moisture that is

allowed to accumulate underneath

the vehicle.

•

Removal of paint or protective

coatings by stones, gravel, abrasion

or minor scrapes and dents which

leave unprotected metal exposed to

corrosion.

High-corrosion areas

If you live in an area where your vehicle is

regularly exposed to corrosive materials,

corrosion protection is particularly

important. Some of the common causes

of accelerated corrosion are road salts,

dust control chemicals, ocean air and

industrial pollution.

Moisture breeds corrosion

Moisture creates the conditions in

which corrosion is most likely to occur.

For example, corrosion is accelerated

by high humidity, particularly when

temperatures are just above freezing. In

such conditions, the corrosive material is

kept in contact with the car surfaces by

moisture that is slow to evaporate.
Mud is particularly corrosive because it is

slow to dry and holds moisture in contact

with the vehicle. Although the mud

appears to be dry, it can still retain the

moisture and promote corrosion.
High temperatures can also accelerate

corrosion of parts that are not properly

ventilated so the moisture can be

dispersed. For all these reasons, it is

particularly important to keep your

vehicle clean and free of mud or

accumulations of other materials. This

applies not only to the visible surfaces

but particularly to the underside of the

vehicle.

Maintenance

9-68

To help prevent corrosion

Keep your vehicle clean

The best way to prevent corrosion is

to keep your vehicle clean and free of

corrosive materials. Attention to the

underside of the vehicle is particularly

important.

•

If you live in a high-corrosion area —

where road salts are used, near the

ocean, areas with industrial pollution,

acid rain, etc.—, you should take extra

care to prevent corrosion. In winter,

hose off the underside of your vehicle

at least once a month and be sure to

clean the underside thoroughly when

winter is over.

•

When cleaning underneath the

vehicle, pay particular attention to the

components under the fenders and

other areas that are hidden from view.

Do a thorough job; just dampening

the accumulated mud rather than

washing it away will accelerate

corrosion rather than prevent it. Water

under high pressure and steam are

particularly effective in removing

accumulated mud and corrosive

materials.

•

When cleaning lower door panels,

rocker panels and frame members, be

sure that drain holes are kept open so

that moisture can escape and not be

trapped inside to accelerate corrosion.

Keep your garage dry

Don’t park your vehicle in a damp,

poorly ventilated garage. This creates

a favorable environment for corrosion.

This is particularly true if you wash your

vehicle in the garage or drive it into the

garage when it is still wet or covered with

snow, ice or mud. Even a heated garage

can contribute to corrosion unless it is

well ventilated so moisture is dispersed.

Keep paint and trim in good condition

Scratches or chips in the finish should

be covered with “touch-up” paint as

soon as possible to reduce the possibility

of corrosion. If bare metal is showing

through, the attention of a qualified body

and paint shop is recommended.
Bird droppings are highly corrosive and

may damage painted surfaces in just a

few hours. Always remove bird droppings

as soon as possible.

09

9-69

Interior Care

Interior general precautions

Prevent caustic solutions such as

perfume and cosmetic oil, from

contacting the interior parts because

they may cause damage or discoloration.

If they do contact the interior parts,

wipe them off immediately. See the

instructions for the proper way to clean

vehicle interior surfaces.

NOTICE

•

Never allow water or other liquids

to come in contact with electrical/

electronic components inside the

vehicle as this may damage them.

•

When cleaning leather products

(steering wheel, seats etc.), use

neutral detergents or low alcohol

content solutions. If you use high

alcohol content solutions or acid/

alkaline detergents, the color of the

leather may fade or the surface may

get stripped off.

Cleaning the upholstery and interior

trim

Vehicle interior surfaces (if equipped)

Remove dust and loose dirt from interior

surfaces with a whisk broom or a vacuum

cleaner.
If necessary, clean interior surfaces with

a mixture of warm water and mild non-

detergent cleaner (test all cleaners on a

concealed area before use).

Fabric (if equipped)

Remove dust and loose dirt from

fabric with a whisk broom or vacuum

cleaner. Clean with a mild soap solution

recommended for upholstery or carpets.

Remove fresh spots immediately with

a fabric spot cleaner. If fresh spots do

not receive immediate attention, the

fabric can be stained and its color can be

affected. Also, its fire-resistant properties

can be reduced if the material is not

properly maintained.

NOTICE

Using anything but recommended

cleaners and procedures may affect the

fabric’s appearance and fire-resistant

properties.

Maintenance

9-70

Leather (if equipped)

•

Features of seat leather



- Leather is made from the outer skin

of an animal, which goes through a

special process to be available for

use. Since it is a natural product,

each part differs in thickness or

density.
Wrinkles may appear as a natural

result of stretching and shrinking

depending on the temperature and

humidity.



- The seat is made of stretchable

fabric to improve comfort.



- The parts contacting the body are

curved and the side supporting

area is high which provides driving

comfort and stability.



- Wrinkles may appear naturally

from usage. It is not a fault of the

products.

 CAUTION

•

Wrinkles or abrasions which appear

naturally from usage are not covered

by warranty.

•

Belts with metallic accessories,

zippers or keys inside the back

pocket may damage the seat fabric.

•

Make sure not to wet the seat. It may

change the nature of natural leather.

•

Jeans or clothes which could bleach

may contaminate the surface of the

seat covering fabric.

•

Caring for the leather seats



- Vacuum the seat periodically to

remove dust and sand on the seat. It

will prevent abrasion or damage of

the leather and maintain its quality.



- Wipe the natural leather seat cover

often with dry or soft cloth.



- Use of proper leather protector may

prevent abrasion of the cover and

helps maintain the color. Be sure to

read the instructions and consult

a specialist when using leather

coating or protective agent.



- Light colored (beige, cream beige)

leather is easily contaminated and

the stain is noticeable. Clean the

seats frequently.



- Avoid wiping with wet cloth. It may

cause the surface to crack.

•

Cleaning the leather seats



- Remove all contaminations

instantly. Refer to instructions below

for removal of each contaminant.



- Cosmetic products (sunscreen,

foundation, etc.)
Apply cleansing cream on a cloth

and wipe the contaminated spot.

Wipe off the cream with a wet cloth

and remove water with a dry cloth.



- Beverages (coffee, soft drink, etc.)

Apply a small amount of neutral

detergent and wipe until

contaminations do not smear.



- Oil

Remove oil instantly with

absorbable cloth and wipe with

stain remover used only for natural

leather.



- Chewing gum

Harden the gum with ice and

remove gradually.

09

9-71

Cleaning the seat belt webbing

Clean the belt webbing with any

mild soap solution recommended for

cleaning upholstery or carpet. Follow

the instructions provided with the soap.

Do not bleach or re-dye the webbing

because this may weaken the seat belt.

Cleaning the interior window glass

If the interior glass surfaces of the

vehicle become hazy (that is, covered

with an oily, greasy or waxy film), they

should be cleaned with glass cleaner.

Follow the directions on the glass cleaner

container.

NOTICE

Do not scrape or scratch the inside of

the rear window. This may result in

damage to the rear window defroster

grid.

Maintenance

9-72

The emission control system of your

vehicle is covered by a written limited

warranty. Please see the warranty

information contained in the Owner’s

Handbook & Warranty Information

booklet in your vehicle.
Your vehicle is equipped with an

emission control system to meet all

applicable emission regulations. There

are three emission control systems, as

follows.

(1)  Crankcase emission control system
(2)  Evaporative emission control system
(3)  Exhaust emission control system

In order to ensure the proper function

of the emission control systems, it

is recommended that you have your

vehicle inspected and maintained

by an authorized HYUNDAI dealer in

accordance with the maintenance

schedule in this manual.

NOTICE

For the Inspection and Maintenance

Test (with Electronic Stability Control

(ESC) system)

•

To prevent the vehicle from misfiring

during dynamometer testing, turn

the Electronic Stability Control

(ESC) system off by pressing the ESC

switch (ESC OFF light illuminated).

•

After dynamometer testing is

completed, turn the ESC system back

on by pressing the ESC switch again.

1.  Crankcase Emission Control

System

The positive crankcase ventilation system

is employed to prevent air pollution

caused by blow-by gases being emitted

from the crankcase. This system supplies

fresh filtered air to the crankcase through

the air intake hose. Inside the crankcase,

the fresh air mixes with blow-by gases,

which then pass through the PCV valve

into the induction system.

2. Evaporative Emission Control

System Including Onboard

Refueling Vapor Recovery

(ORVR)

The Evaporative Emission Control System

is designed to prevent fuel vapors from

escaping into the atmosphere. The

ORVR system is designed to allow the

vapors from the fuel tank to be loaded

into a canister while refueling at the gas

station, preventing the escape of fuel

vapors into the atmosphere.

Canister

Fuel vapors generated inside the fuel

tank are absorbed and stored in the

onboard canister. When the engine is

running, the fuel vapors absorbed in the

canister are drawn into the surge tank

through the purge control solenoid valve.

Purge Control Solenoid Valve (PCSV)

The purge control solenoid valve

is controlled by the Engine Control

Module (ECM); when the engine coolant

temperature is low during idling, the

PCSV closes so that evaporated fuel

is not taken into the engine. After the

engine warms-up during ordinary

driving, the PCSV opens to introduce

evaporated fuel to the engine.

EMISSION CONTROL SYSTEM

09

9-73

3. Exhaust Emission Control

System

The Exhaust Emission Control System is

a highly effective system which controls

exhaust emissions while maintaining

good vehicle performance.
When the engine starts or fails to start,

excessive attempts to restart the engine

may cause damage to the emission

system.

Engine exhaust (carbon monoxide)

precautions

•

Carbon monoxide can be present

with other exhaust fumes. If you smell

exhaust fumes of any kind in your

vehicle, drive with all the windows

fully open. Have your vehicle checked

and repaired immediately.

 WARNING

Engine exhaust gases contain carbon

monoxide (CO). Though colorless and

odorless, it is dangerous and could be

lethal if inhaled. Follow the instructions

on this page to avoid CO poisoning.

 WARNING

CALIFORNIA PROPOSITION 65

WARNING
Engine exhaust and a wide variety of

automobile components and parts,

including components found in the

interior furnishings in a vehicle, contain

or emit chemicals known to the State

of California to cause cancer and

birth defects and reproductive harm.

In addition, certain fluids contained

in vehicles and certain products of

component wear contain or emit

chemicals known to the State of

California to cause cancer and birth

defects or other reproductive harm.

•

Do not operate the engine in confined

or closed areas (such as garages) any

more than what is necessary to move

the vehicle in or out of the area.

•

When the vehicle is stopped in an

open area for more than a short time

with the engine running, adjust the

ventilation system (as needed) to draw

outside air into the vehicle.

•

Never sit in a parked or stopped

vehicle for any extended time with the

engine running.

•

When the engine stalls or fails to

start, excessive attempts to restart

the engine may cause damage to the

emission control system.















Content      ..     15      16      17
