Seats & Safety System

3-50

OHI038118

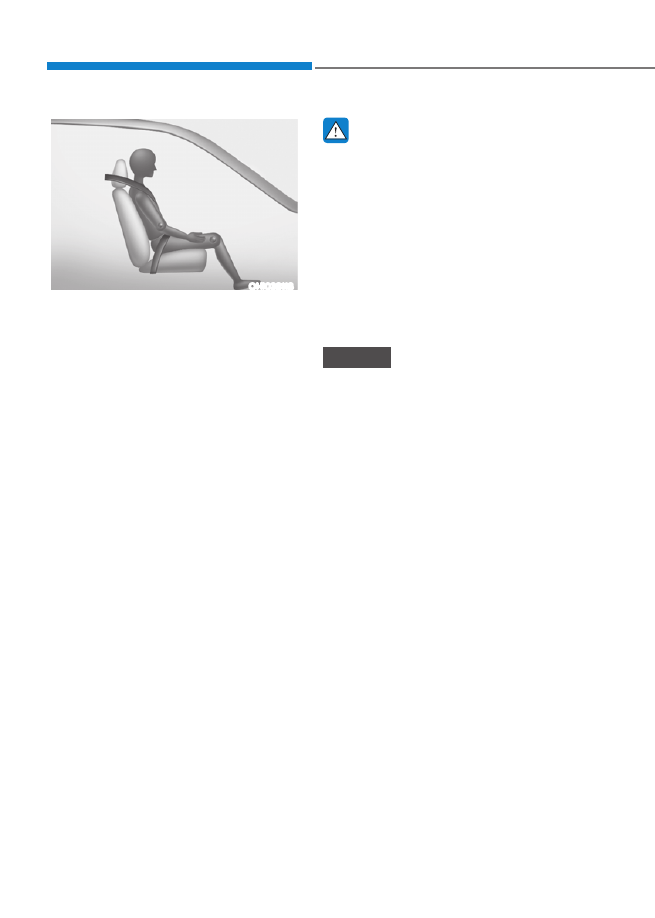

Proper seated position for OCS

If the “PASSENGER AIR BAG OFF”

indicator is on when an adult is seated

in the front passenger seat, place the

ignition switch in the LOCK/OFF position

and ask the passenger to sit properly

(sitting upright with the seat back in an

upright position, centered on the seat

cushion with their seat belt on, legs

comfortably extended and their feet

on the floor). Restart the engine and

have the person remain in that position.

This will allow the system to detect the

person and to enable the passenger

airbag. If the “PASSENGER AIR BAG OFF”

indicator is still on, ask the passenger to

move to the rear seat.

WARNING

NEVER allow an adult passenger to ride

in the front passenger seat when the

“PASSENGER AIR BAG OFF” indicator

is illuminated. During a collision, the

airbag will not inflate if the indicator

is illuminated. Have your passenger

reposition themselves in the seat. If the

“PASSENGER AIR BAG OFF” indicator

remains illuminated after the passenger

repositions themselves properly

and the vehicle is restarted, have

the passenger move to the rear seat

because the airbag will not inflate.

NOTICE

The “PASSENGER AIR BAG OFF”

indicator generally illuminates for

approximately 4 seconds after the

ignition switch is in the ON position or

after the engine is started.
However, if the ignition switch is turned

to the ON position within 3 minutes

after ignition OFF, the indicator does

not illuminate. If the front passenger

seat is occupied, the OCS will then

classify the front passenger after

several more seconds.

3-51

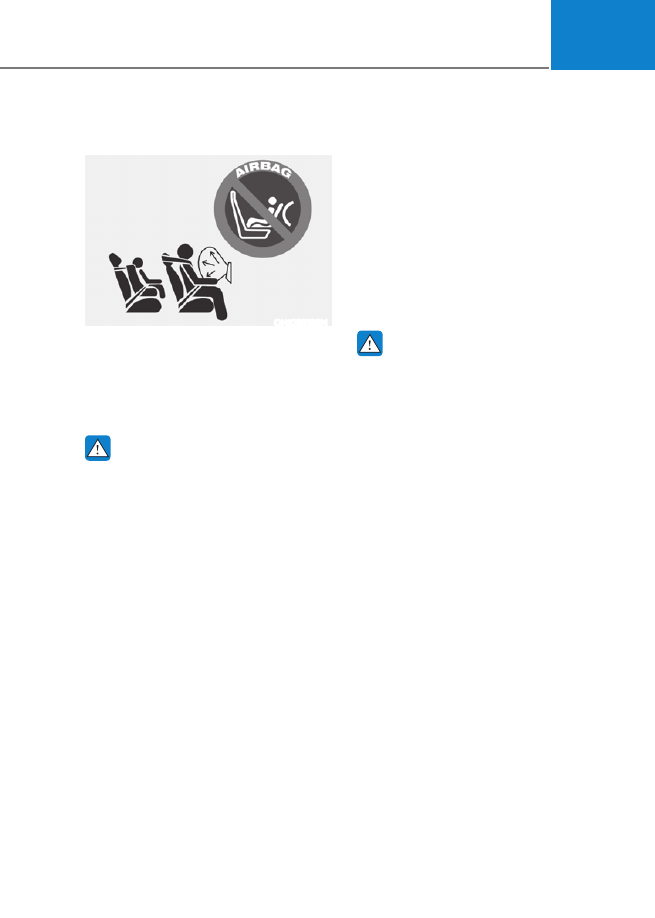

Do Not Install a Child Restraint in the

Front Passenger’s Seat

OHI039193N

Even though your vehicle is equipped

with the OCS, never install a child

restraint in the front passenger’s seat.

An inflating airbag can forcefully strike a

child or child restraint resulting in serious

or fatal injury.

WARNING

•

NEVER place a rear-facing or front-

facing child restraint in the front

passenger’s seat of the vehicle.

•

An inflating frontal airbag could

forcefully strike a child resulting in

serious injury or death.

•

Always properly restrain children in

an appropriate child restraint in the

rear seat of the vehicle.

Why Didn’t My Airbag Go Off in a

Collision?

Airbags are not designed to inflate in

every collision. There are certain types

of accidents in which the airbag would

not be expected to provide additional

protection. These include rear impacts,

second or third collisions in multiple

impact accidents, as well as low speed

impacts. Damage to the vehicle indicates

a collision energy absorption, and is not

an indicator of whether or not an airbag

should have inflated.

WARNING

To reduce the risk of an airbag

deploying unexpectedly and causing

serious injury or death:

•

Do not hit or allow any objects to

impact the locations where airbags

or sensors are installed.

•

Do not perform maintenance on or

around the airbag sensors. If the

location or angle of the sensors is

altered, the airbags may deploy

when they should not or may not

deploy when they should.

•

Do not install bumper guards or

replace the bumper with a non-

genuine HYUNDAI parts. This may

adversely affect the collision and

airbag deployment performance.

•

Place the ignition switch in the

LOCK/OFF or ACC position when the

vehicle is being towed to prevent

inadvertent airbag deployment.

•

Have all airbag repairs performed by

an authorized HYUNDAI dealer.

3-52

Seats & Safety System

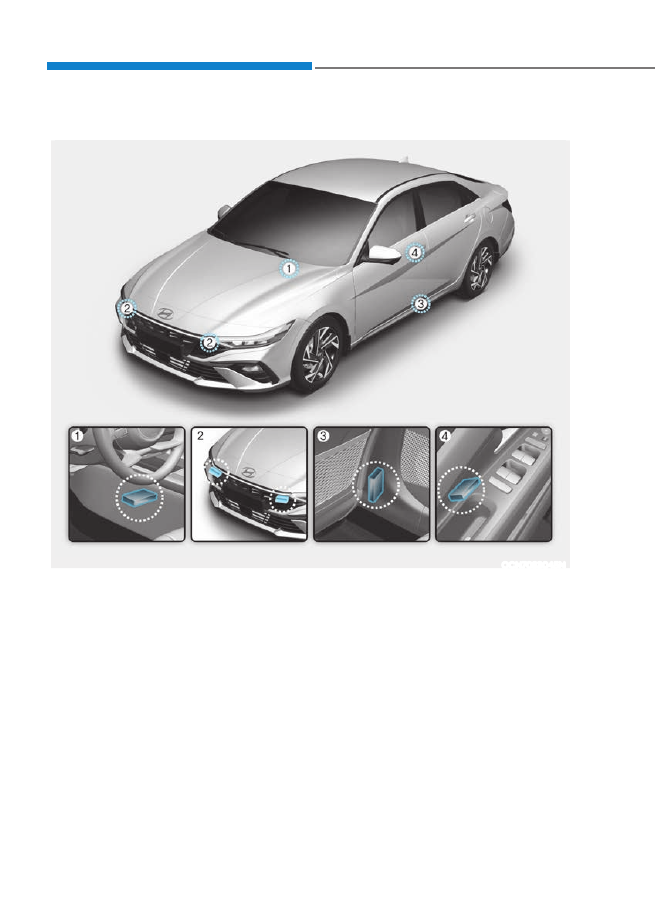

Airbag collision sensors

OCN7033045N

1.  SRS control module/Rollover sensor
2.  Front impact sensors
3.  Side impact sensors (acceleration)
4.  Side impact sensors (pressure)

3-53

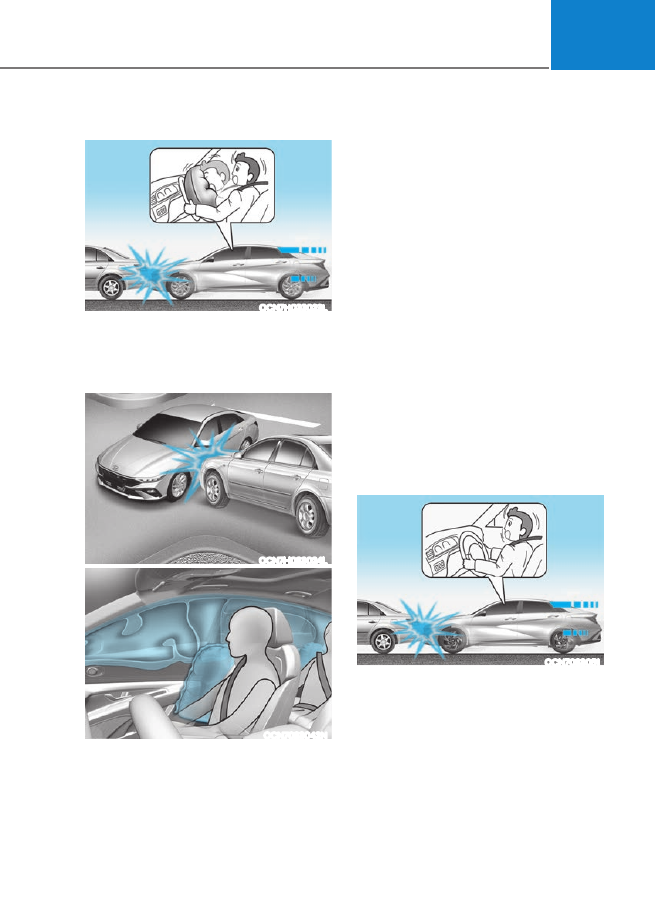

Airbag inflation conditions

OCN7H033023L

Front airbags

Front airbags are designed to inflate

in a frontal collision depending on the

severity of impact of the front collision.

OCN7H033024L

OCN7033042N

Side and curtain airbags

Side and curtain airbags are designed

to inflate when an impact is detected by

side collision sensors depending on the

severity of impact resulting from a side

impact collision.
Although the driver’s and front

passenger’s airbags are designed to

inflate only in frontal collisions, they

also may inflate in other types of

collisions if the front impact sensors

detect a sufficient impact. Side and

curtain airbags are designed to inflate

only in side impact collisions or rollover

situations, but they may inflate in other

collisions if the side impact sensors

detect a sufficient impact.
If the vehicle chassis is impacted by

bumps or objects on unimproved roads,

the airbags may deploy. Drive carefully

on unimproved roads or on surfaces not

designed for vehicle traffic to prevent

unintended airbag deployment.

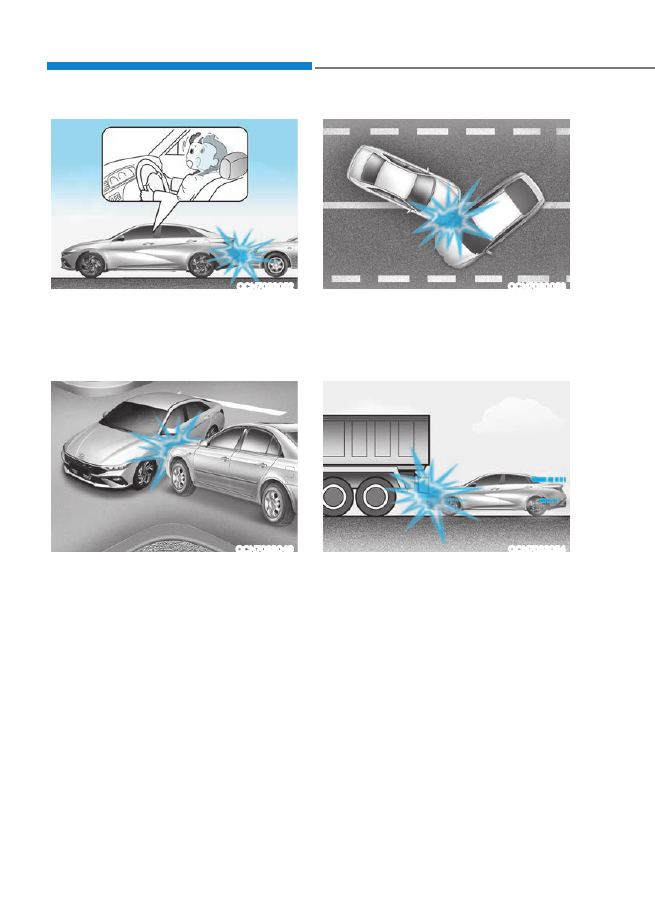

Airbag non-inflation conditions

OCN7033051

In certain low-speed collisions the

airbags may not deploy. The airbags are

designed not to deploy in such cases

because they may not provide benefits

beyond the protection of the seat belts.

Seats & Safety System

3-54

OCN7033052

Front airbags are not designed to inflate

in rear collisions, because occupants

are moved backward by the force of the

impact. In this case, inflated airbags

would not provide any additional benefit.

OCN7033049

Front airbags may not inflate in side

impact collisions, because occupants

move in the direction of the collision,

and thus in side impacts, front airbag

deployment would not provide additional

occupant protection.
However, side and curtain airbags may

inflate depending on the severity of

impact.

OCN7030053

In an angled collision, the force of impact

may direct the occupants in a direction

where the airbags would not be able to

provide any additional benefit, and thus

the sensors may not deploy any airbags.

OCN7033054

Just before impact, drivers often brake

heavily. Such heavy braking lowers the

front portion of the vehicle causing it

to “ride” under a vehicle with a higher

ground clearance. Airbags may not

inflate in this “underride” situation

because deceleration forces that are

detected by sensors may be significantly

reduced by such “underride” collisions.

3-55

OCN7033056

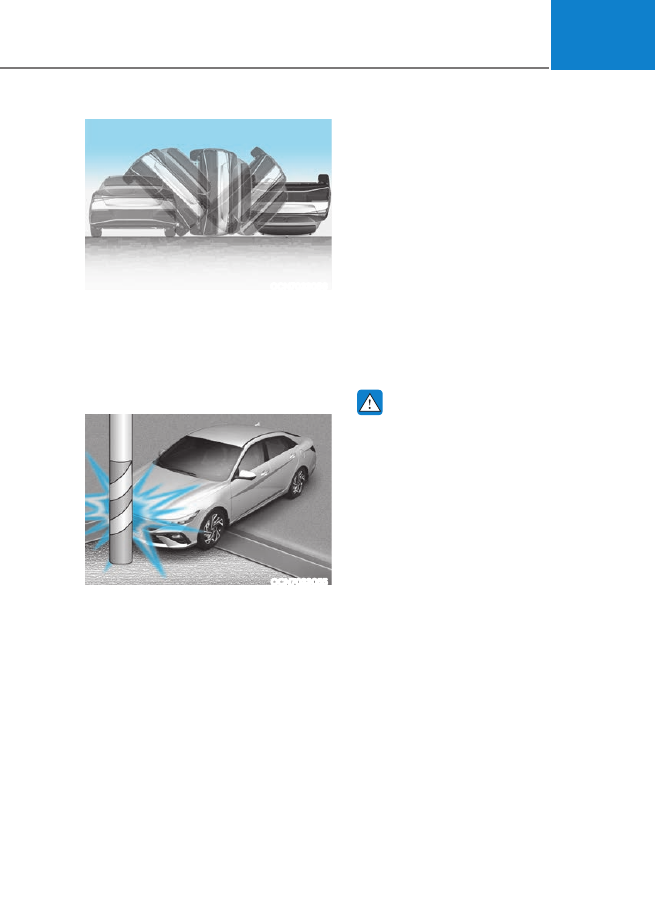

Front airbags may not inflate in rollover

accidents because airbag deployment

may not provide protection to the

occupants.
However, side and curtain airbags may

inflate when the vehicle is rolled over by

a side impact collision.

OCN7033055

Airbags may not inflate if the vehicle

collides with objects such as utility poles

or trees, where the point of impact is

concentrated and the collision energy is

absorbed by the vehicle structure.

SRS Care

The SRS is virtually maintenance-free

and there are no parts you can safely

service by yourself. If the SRS airbag

warning light does not illuminate when

the ignition switch is in the ON position,

or continuously remains on, have your

vehicle immediately inspected by an

authorized HYUNDAI dealer.
Any work on the SRS system, such as

removing, installing, repairing, or any

work on the steering wheel, the front

passenger’s panel, front seats and roof

rails must be performed by an authorized

HYUNDAI dealer. Improper handling of

the SRS system may result in serious

personal injury.

WARNING

To reduce the risk of serious injury or

death, take the following precautions:

•

Do not attempt to modify or

disconnect the SRS components or

wiring, including the addition of any

kind of badges to the pad covers or

modifications to the body structure.

•

Do not place objects over or near

the airbag modules on the steering

wheel, instrument panel, or the front

passenger’s panel above the glove box.

•

Clean the airbag pad covers with

a soft cloth moistened with plain

water. Solvents or cleaners could

adversely affect the airbag covers

and proper deployment of the

system.

•

Always have inflated airbags

replaced by an authorized HYUNDAI

dealer.

•

If components of the airbag system

must be discarded, or if the vehicle

must be scrapped, certain safety

precautions must be observed.

Consult an authorized HYUNDAI

dealer for the necessary information.

Failure to follow these precautions

could increase the risk of personal

injury.

Seats & Safety System

3-56

Additional Safety Precautions

Passengers should not move out of

or change seats while the vehicle is

moving.

A passenger who is not wearing

a seat belt during a crash or emergency

stop can be thrown against the inside of

the vehicle, against other occupants, or

be ejected from the vehicle.

Do not use any accessories on seat

belts.

Devices claiming to improve

occupant comfort or reposition the seat

belt can reduce the protection provided

by the seat belt and increase the chance

of serious injury in a crash.

Do not modify the front seats.

Modification of the front seats could

interfere with the operation of the

supplemental restraint system sensing

components or side airbags.

Do not place items under the front

seats.

Placing items under the front seats

could interfere with the operation of the

supplemental restraint system sensing

components and wiring harnesses.

Do not cause impact to the doors.

Impact to the doors when the ignition

switch is in the ON position may cause

the airbags to inflate.

Modifications to accommodate

disabilities.

If you require modification

to your vehicle to accommodate

a disability, contact the HYUNDAI

Customer Connect Center at 800-633-

5151.

Adding equipment to or modifying

your airbag equipped vehicle

If you modify your vehicle by changing

your vehicle’s frame, bumper system,

front end or side sheet metal or ride

height, this may affect the operation of

your vehicle’s airbag system.

Airbag Warning Labels

OCN7030069N

Airbag warning labels, required by the

U.S. National Highway Traffic Safety

Administration (NHTSA), are attached

to alert the driver and passengers of

potential risks of the airbag system. Be

sure to read all of the information about

the airbags that are installed on your

vehicle in this Owners Manual.

Instrument Cluster

Instrument Cluster .........................................................................................4-4

Instrument Cluster Control ...................................................................................... 4-5

Adjusting instrument cluster illumination ............................................................ 4-5

Gauges and Meters .................................................................................................. 4-5

Speedometer ......................................................................................................... 4-5

Power gauge ..........................................................................................................4-6

Hybrid battery SOC (State of Charge) gauge .......................................................4-6

Fuel gauge .............................................................................................................. 4-7

Outside temperature gauge ..................................................................................4-8

Odometer ...............................................................................................................4-8

Range ......................................................................................................................4-9

Transmission Shift Indicator ....................................................................................4-9

Dual clutch transmission shift indicator...............................................................4-9

Warning and Indicator Lights ................................................................................ 4-10

Ready indicator .................................................................................................... 4-10

EV mode indicator ............................................................................................... 4-10

Service warning light ........................................................................................... 4-10

Air Bag Warning Light .......................................................................................... 4-10

Seat Belt Warning Light ........................................................................................ 4-11

Parking Brake & Brake Fluid Warning Light ......................................................... 4-11

Regenerative brake warning light ........................................................................ 4-11

Anti-lock Brake System (ABS) Warning Light ......................................................4-12

Electronic Brake Force Distribution (EBD) System Warning Light ....................4-12

Electronic Parking Brake (EPB) Warning Light ....................................................4-12

AUTO HOLD Indicator Light .................................................................................4-13

Motor Driven Power Steering (MDPS) Warning Light ........................................4-13

Malfunction Indicator Lamp (MIL) .......................................................................4-13

Driver Attention Warning light .............................................................................4-14

Charging System Warning Light ..........................................................................4-14

Engine Oil Pressure Warning Light ......................................................................4-14

Low Fuel Level Warning Light ..............................................................................4-15

Master Warning Light ...........................................................................................4-15

Low Tire Pressure Warning Light .........................................................................4-15

Electronic Stability Control (ESC) Indicator Light ..............................................4-16

Electronic Stability Control (ESC) OFF Indicator Light .......................................4-16

Immobilizer Indicator Light ..................................................................................4-16

Immobilizer Indicator Light (with smart key) ...................................................... 4-17

Turn Signal Indicator Light ................................................................................... 4-17

Exterior Light Warning Light ................................................................................ 4-17

LED headlight warning light .................................................................................4-18

High Beam Indicator Light ...................................................................................4-18

Light ON Indicator Light .......................................................................................4-18

4. Instrument Cluster

High Beam Assist indicator light ..........................................................................4-18

Forward Collision-Avoidance Assist Warning Light ............................................4-18

Lane Safety indicator light ...................................................................................4-19

Cruise Indicator Light ...........................................................................................4-19

SPORT Mode Indicator Light ................................................................................4-19

SMART Mode Indicator Light ...............................................................................4-19

Icy Road Warning Light ........................................................................................4-19

Cluster Display Messages ......................................................................................4-20

Shift to P to start engine (for smart key system) ...............................................4-20

Shift to P (for smart key system and dual clutch transmission)........................4-20

Low key battery (for smart key system)..............................................................4-20

Press brake pedal to start engine (for smart key system and

dual clutch transmission) ....................................................................................4-20

Key not in vehicle (for smart key system) ...........................................................4-20

Key not detected (for smart key system)............................................................4-20

Press START button again (for smart key system) .............................................4-20

12 V battery discharging due to additional electrical devices ...........................4-21

Press START button with key (for smart key system) .........................................4-21

Check BRAKE SWITCH fuse (for smart key system and automatic transmission/

intelligent variable transmission) .........................................................................4-21

Door, Hood, Trunk Open Indicator.......................................................................4-21

Sunroof Open ........................................................................................................4-21

Low Pressure ........................................................................................................ 4-22

Lights Mode.......................................................................................................... 4-22

Wiper .................................................................................................................... 4-22

Heated Steering Wheel turned off ...................................................................... 4-22

Low washer fluid .................................................................................................. 4-22

Low fuel ................................................................................................................ 4-23

Engine Overheated .............................................................................................. 4-23

Check headlight ................................................................................................... 4-23

Check headlight (Low) ......................................................................................... 4-23

Check turn signal light ......................................................................................... 4-23

Check brake light ................................................................................................. 4-23

Check daytime running light ............................................................................... 4-24

Check high mounted stop light .......................................................................... 4-24

Check headlight LED ........................................................................................... 4-24

Ready to start driving .......................................................................................... 4-24

Check regenerative brakes.................................................................................. 4-24

Stop vehicle and check brakes ........................................................................... 4-24

Check Hybrid system ........................................................................................... 4-25

Stop safely and check Hybrid system ................................................................ 4-25

Check Hybrid system. Do not start engine ........................................................ 4-25

Stop safely and check power supply .................................................................. 4-25

Check virtual engine sound system.................................................................... 4-25

Refill inverter coolant .......................................................................................... 4-25

Park with engine On to charge battery .............................................................. 4-25

Start engine to avoid battery discharge ............................................................. 4-25

Cluster Display (Type A) ...............................................................................4-26

Cluster Display Control .......................................................................................... 4-26

Cluster Display Modes ........................................................................................... 4-27

Trip computer mode ............................................................................................ 4-28

Turn By Turn (TBT) mode ..................................................................................... 4-28

Driving Assist mode ............................................................................................. 4-28

Master warning mode ......................................................................................... 4-29

User Settings Mode ................................................................................................4-30

Cluster Display (Type B) ...............................................................................4-36

Cluster Display Control ..........................................................................................4-36

Cluster Display Modes ........................................................................................... 4-37

Driving Assist group .............................................................................................4-38

Trip computer group ............................................................................................4-38

Turn By Turn (TBT) group .....................................................................................4-38

Master warning group .........................................................................................4-39

Trip Computer.........................................................................................................4-40

Trip modes ............................................................................................................4-40

Since refueling ......................................................................................................4-41

Since Reset ............................................................................................................4-41

Current trip ...........................................................................................................4-42

Energy flow ..........................................................................................................4-42

Digital speedometer ............................................................................................4-42

Vehicle Settings (Infotainment System) .....................................................4-43
Setting Your Vehicle .....................................................................................4-43

4. Instrument Cluster

4-4

Instrument Cluster

The actual cluster in the vehicle may differ from the illustration.

For more information, refer to the "Gauges and Meters" in this chapter.

OCN7H043046N/OCN7H043047N

INSTRUMENT CLUSTER

1.  Hybrid system gauge
2.  Speedometer
3.  Hybrid Battery SOC (State of Charge)

gauge

4.  Fuel gauge
5.  Warning and indicator lights
6.  Cluster display

Type A

Type B

4-5

Instrument Cluster Control

Adjusting instrument cluster

illumination

OCN7040081N

When the vehicle's parking lights or

headlights are on, press the illumination

control button to adjust the brightness of

the instrument panel illumination.
When pressing the illumination control

button, the interior switch illumination

intensity is also adjustable.

•

The brightness of the instrument

panel illumination is displayed.

•

If the brightness reaches the

maximum or minimum level, a chime

will sound.

WARNING

Never adjust the instrument cluster

while driving. Doing so could lead to

driver distraction which may cause an

accident and lead to vehicle damage,

serious injury, or death.

Gauges and Meters

Speedometer

Type A

OCN7043097N

Type B

OCN7040005N

The speedometer indicates the speed of

the vehicle and is calibrated in miles per

hour (MPH) and/or kilometers per hour

(km/h).

Instrument Cluster

4-6

Power gauge

Type A

Type B

OCN7HQ013016

OCN7H040002

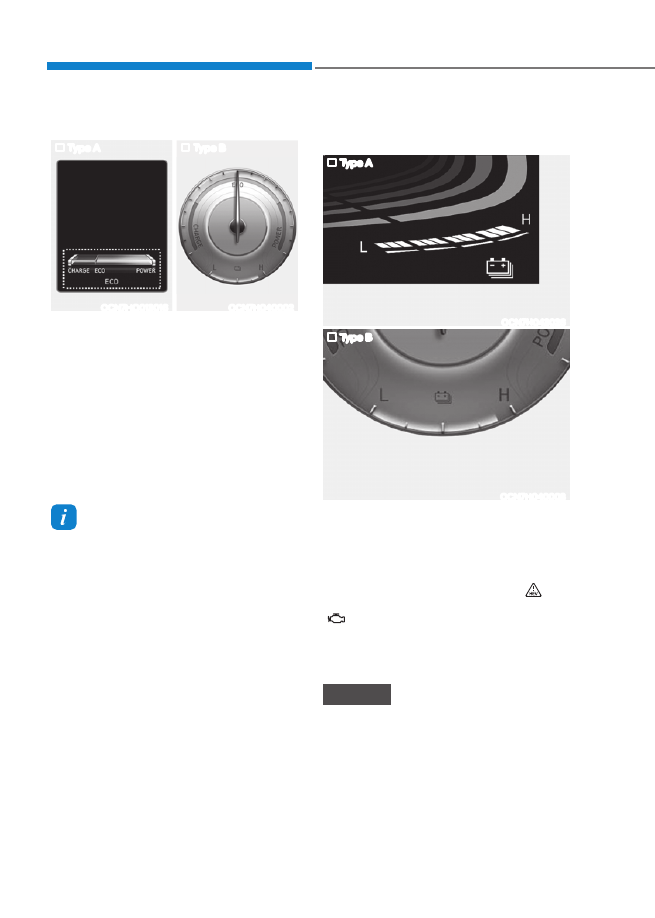

The power gauge indicates whether the

current driving condition is fuel efficient

or not.

•

CHARGE : Shows that the energy

made by the vehicle is being

converted to electrical energy.

(Regenerated energy)

•

ECO : Shows that the vehicle is being

driven in an Eco-friendly manner.

•

POWER : Shows that the vehicle is

exceeding the Eco-friendly range.

Information

Accordance to the power gauge area

the“EV” indicator comes on or off.

“EV” indicator ON : Vehicle is driven

using the electric motor or the gasoline

engine is stopped.

“EV” indicator OFF : Vehicle is driven

using the gasoline engine.

Hybrid battery SOC (State of Charge)

gauge

Type A

OCN7H043026

Type B

OCN7H040003

This gauge indicates the remaining

hybrid battery power. If the SOC is

near the “L (Low)” level, the vehicle

automatically operates the engine to

charge the battery.
However, if the Service Indicator (

)

and Malfunction Indicator Lamp (MIL)

(

) turn on when the SOC gauge is

near the “L (Low)” level, have the vehicle

checked by an authorized HYUNDAI

dealer.

NOTICE

Never try to start the vehicle if the fuel

tank is empty. In this condition, the

engine cannot charge the high voltage

battery of the hybrid system. If you

try to start the vehicle when the fuel

is empty, the high voltage battery will

become discharged and be damaged.

4-7

Fuel gauge

Type A

OAX041006

Type B

OCN7H040016N

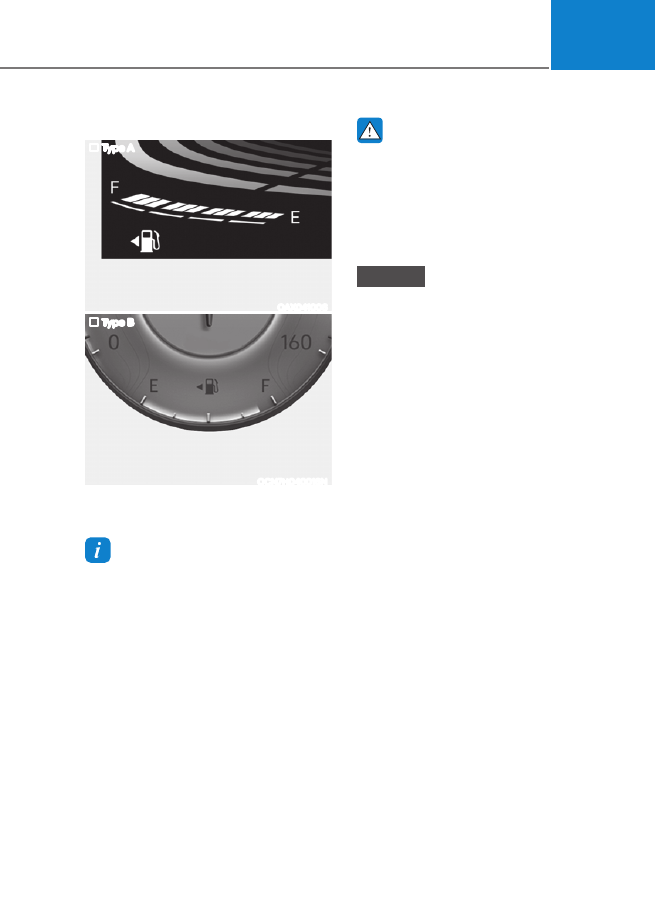

The fuel gauge indicates the approximate

amount of fuel remaining in the fuel tank.

Information

•

The fuel tank capacity is given in

chapter 2.

•

The fuel gauge is supplemented by

a low fuel warning light, which will

illuminate when the fuel tank is nearly

empty.

•

On inclines or curves, the fuel gauge

pointer may fluctuate or the low fuel

warning light may come on earlier than

usual due to the movement of fuel in

the tank.

WARNING

Running out of fuel can expose vehicle

occupants to danger.
You must stop and obtain additional

fuel as soon as possible after the

warning light comes on or when the

gauge indicator comes close to the "E

(Empty)" level.

NOTICE

Avoid driving with an extremely low

fuel level. Running out of fuel could

cause the engine to misfire and damage

the catalytic converter.

Instrument Cluster

4-8

Outside temperature gauge

Type A

OCN7043109N

Type B

ODN8A049031

The outside ambient temperature

appears in the lower portion of the

cluster display. The temperature reads in

Fahrenheit or Celsius depending on the

units selected from the Settings menu in

the instrument cluster or infotainment

system.
The temperature indicated on the

instrument cluster may not change as

quickly as the outside temperature.
Select:

User Settings

Units

Temperature

Unit

°F/°C

(for cluster type)

Setup

General

Units

Temperature Unit

°F/°C

(for

infotainment system type)

Both the temperature unit on the

instrument cluster and climate control

information screen is changed.

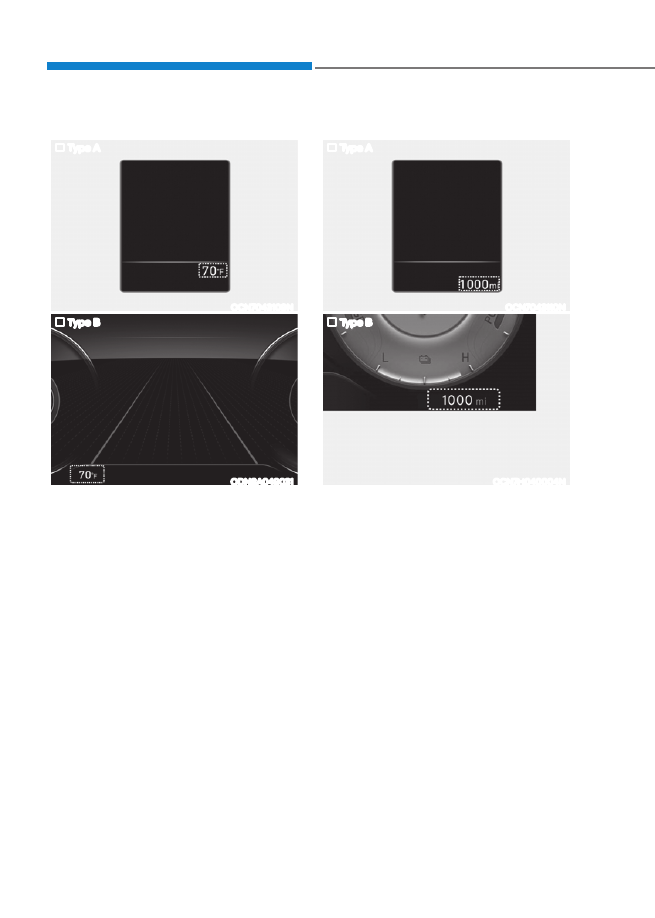

Odometer

Type A

OCN7043110N

Type B

OCN7H040004N

The odometer indicates the total

distance that the vehicle has been

driven and should be used to determine

when periodic maintenance should be

performed.

4-9

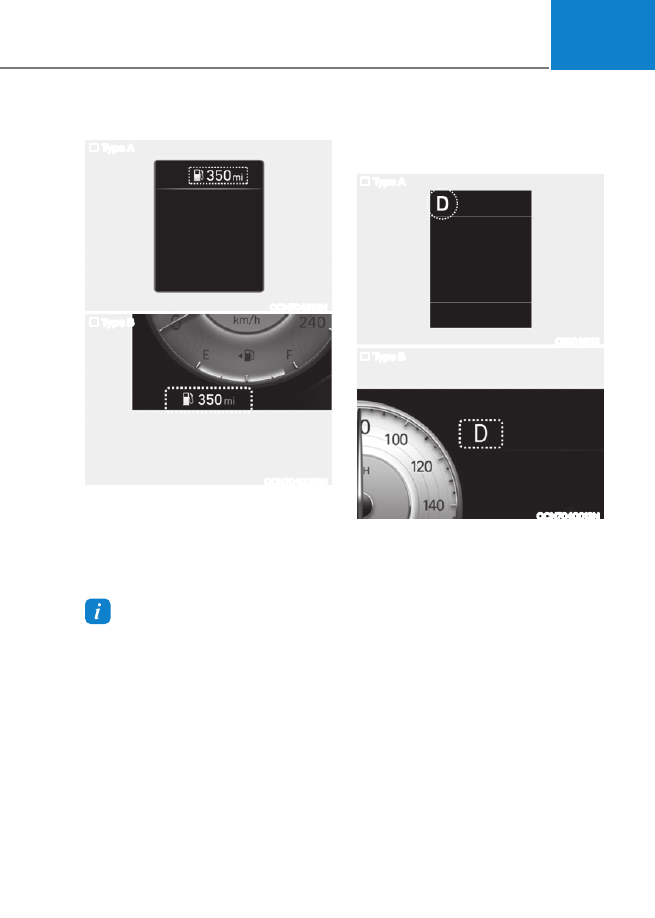

Range

Type A

OCN7043111N

Type B

OCN7040016N

•

The range is the estimated distance

the vehicle can be driven with the

remaining fuel.

•

If the estimated distance is below

1 mi. (1 km), the trip computer will

display "----" as range.

Information

•

If the vehicle is not on level ground or

the battery power has been interrupted,

the range function may not operate

correctly.

•

The range may differ from the actual

driving distance as it is only an estimate

of the available driving range for the

vehicle and driving conditions.

•

The trip computer may not register

additional fuel if less than 1.6 gallon (6

liters) of fuel are added to the vehicle.

•

The range may vary significantly based

on driving conditions, driving habits,

and condition of the vehicle.

Transmission Shift Indicator

Dual clutch transmission shift

indicator

OIG046112

OCN7040013N

Type A

Type B

This indicator displays which shift lever

position is selected.

Instrument Cluster

4-10

Warning and Indicator Lights

Information

Make sure that all warning lights are OFF

after starting the engine. If any light is still

ON, this indicates a situation that needs

attention.

Ready indicator

This indicator illuminates:

When the vehicle is ready to be driven.

- ON : Normal driving is possible.

- OFF : Normal driving is not possible,

or a problem has occurred.

- Blinking : Emergency driving.

When the ready indicator goes OFF

or blinks, there is a problem with the

system. If this occurs, have the vehicle

inspected by an authorized HYUNDAI

dealer.

EV mode indicator

This indicator illuminates:

When the vehicle is driven by the electric

motor.
Accordance to the power gauge area the

“EV” indicator comes on or off.

- “EV” indicator ON : Vehicle is driven

using the electric motor or the

gasoline engine is stopped.

- “EV” indicator OFF : Vehicle is driven

using the gasoline engine.

Service warning light

This warning light illuminates:

•

When you set the ignition switch or

the Engine Start/Stop button to the

ON position.

- The service warning light illuminates

for approximately 3 seconds and

then turns off when all checks have

been performed.

•

When there is a problem with the

hybrid vehicle control system or

hardware.

When the warning light illuminates while

driving, or does not go OFF after starting

the vehicle, have the vehicle inspected

by an authorized HYUNDAI dealer.

Air Bag Warning Light

This warning light illuminates:

•

When you place the ignition switch to

the ON position.

- The air bag warning light illuminates

for about 6 seconds and then turns

off when all checks have been

performed

•

The air bag warning light will remain

illuminated if there is a malfunction

with the Safety Restraint System (SRS)

air bag operation.
In this case, have the vehicle

inspected by an authorized HYUNDAI

dealer.

4-11

Seat Belt Warning Light

This warning light informs the driver that

the seat belt is not fastened.
For more information, refer to “Seat

Belts” in chapter 3.

Parking Brake & Brake Fluid

Warning Light

This warning light illuminates:

•

When you place the ignition switch to

the ON position.

- The parking brake light illuminates

for about 3 seconds and will then

turn off once the parking brake is

released.

•

Whenever the parking brake is

applied.

•

Whenever the brake fluid level in the

reservoir is low.

- If the warning light illuminates

with the parking brake released, it

indicates that the brake fluid level in

the reservoir is low.

If the brake fluid level in the reservoir is

low:

1. Drive carefully to the nearest safe

location and stop your vehicle.

2. With the engine stopped, check

the brake fluid level immediately

and add fluid as required (For more

information, refer to "Brake Fluid" in

chapter 9). After adding brake fluid,

check all brake components for fluid

leaks. If a brake fluid leak is found, or

if the warning light remains on, or if

the brakes do not operate properly, do

not drive the vehicle. Have the vehicle

inspected by an authorized HYUNDAI

dealer.

Dual-diagonal braking system

Your vehicle is equipped with dual-

diagonal braking systems. This means

you still have braking on two wheels even

if one of the dual systems should fail.
With only one of the dual systems

working, more than normal pedal travel

and greater pedal pressure is required to

stop the vehicle.
If the brakes fail while you are driving,

shift to a lower gear for additional engine

braking and stop the vehicle as soon as it

is safe to do so.

WARNING

Parking Brake & Brake Fluid Warning

Light
Driving the vehicle with a warning light

ON is dangerous. If the Parking Brake &

Brake Fluid Warning Light illuminates

with the parking brake released, it

indicates that the brake fluid level is

low.
In this case, have the vehicle inspected

by an authorized HYUNDAI dealer.

Regenerative brake warning

light

(yellow)

This warning light illuminates:

When the regenerative brake does not

operate and the brake does not perform

well. This causes the Brake Warning

light (red) and Regenerative Brake

Warning Light (yellow) to illuminate

simultaneously.
If this occurs, drive safely and have

the vehicle inspected by an authorized

HYUNDAI dealer.
The operation of the brake pedal may

be more difficult than normal and the

braking distance may increase.

Instrument Cluster

4-12

Anti-lock Brake System (ABS)

Warning Light

This warning light illuminates:

•

When you place the ignition switch to

the ON position.

- The ABS warning light illuminates

for about 3 seconds and then turns

off.

•

Whenever there is a malfunction with

the ABS.
Note that the hydraulic braking

system will still be operational even if

there is a malfunction with the ABS.

Electronic Brake Force

Distribution (EBD) System

Warning Light

These two warning lights illuminate at the

same time while driving:

When the ABS and regular brake system

may not work normally.
In this case, have the vehicle inspected

by an authorized HYUNDAI dealer.

WARNING

Electronic Brake Force Distribution

(EBD) System Warning Light
When both ABS and Parking Brake &

Brake Fluid Warning Lights are on, the

brake system will not work normally

and you may experience an unexpected

and dangerous situation during sudden

braking.
In this case, avoid high speed driving

and abrupt braking.
Have the vehicle inspected by an

authorized HYUNDAI dealer as soon as

possible.

Information - Electronic Brake

Force Distribution (EBD)

System Warning Light

When the ABS Warning Light is on

or both ABS and Parking Brake &

Brake Fluid Warning Lights are on, the

speedometer, odometer, or tripmeter may

not work. Also, the MDPS Warning Light

may illuminate and the steering effort may

increase or decrease.

In this case, have the vehicle inspected by

an authorized HYUNDAI dealer as soon

as possible.

Electronic Parking Brake

(EPB) Warning Light

(if equipped)

EPB

This warning light illuminates:

•

When you place the ignition switch to

the ON position.

- The EPB warning light illuminates

for approximately 3 seconds and

then turns off.

•

Whenever there is a malfunction with

the EPB.
If this occurs, have the vehicle

inspected by an authorized HYUNDAI

dealer.

Information

The Electronic Parking Brake (EPB)

Warning Light may illuminate when

the Electronic Stability control (ESC)

Indicator Light comes on to indicates that

the ESC is not working properly (This

does not indicate malfunction of the EPB).

4-13

AUTO HOLD Indicator Light

(if equipped)

This indicator light illuminates:

•

[White] When you activate the auto

hold system by pressing the AUTO

HOLD button.

•

[Green] When you stop the vehicle

completely by depressing the brake

pedal with the auto hold system

activated.

•

[Yellow] When there is a malfunction

with the auto hold system.
In this case, have the vehicle

inspected by an authorized HYUNDAI

dealer.

For more information, refer to “Auto

Hold” in chapter 6.

Motor Driven Power Steering

(MDPS) Warning Light

This warning light illuminates:

•

When you place the ignition switch to

the ON position.

- The Motor Driven Power Steering

Warning light illuminates for about 3

seconds and then goes off.

•

Whenever there is a malfunction with

the MDPS.
If this occurs, have the vehicle

inspected by an authorized HYUNDAI

dealer.

Malfunction Indicator Lamp

(MIL)

This warning light illuminates:

•

When you place the ignition switch to

the ON position.

- The malfunction indicator light

illuminates for about 3 seconds and

then goes off.

•

Whenever there is a malfunction with

either the emission control system or

the engine or the vehicle powertrain.
If this occurs, have the vehicle

inspected by an authorized HYUNDAI

dealer.

NOTICE

Driving with the Malfunction Indicator

Lamp (MIL) on may cause damage to

the emission control system which

could affect drivability and/or fuel

economy.

NOTICE

If the Malfunction Indicator Lamp

(MIL) illuminates, potential catalytic

converter damage is possible which

could result in loss of engine power.
In this case, have the vehicle inspected

by an authorized HYUNDAI dealer as

soon as possible.
If the oil pressure lowers due to

insufficient engine oil, etc., the engine

oil pressure warning light turns on

and an enhanced engine protection

system that limits the engine’s power

is activated. After that, engine warning

light turns on if driving repeatedly and

continuously.

Instrument Cluster

4-14

Driver Attention Warning

light (if equipped)

This indicator light illuminates:

•

When you set the ignition switch to

the ON position.

•

Yellow: When Driver Attention

Warning is disabled or a malfunction

is detected

If the yellow indicator light remains on

after the front view camera has been

uncovered or unblocked, have your

vehicle inspected by an authorized

HYUNDAI dealer.

This indicator light blinks:

•

Yellow: Driver Attention Warning

recommends to take a break

For more details, refer to “Driver

Attention Warning (DAW)” in chapter 7.

Charging System Warning

Light

When this warning light illuminates while

the engine is running, the battery is not

being charged. Immediately turn OFF

all electrical accessories. Try not to use

electrically operated controls, such as

the power windows. Keep the engine

running.
Have the vehicle inspected by an

authorized HYUNDAI dealer as soon as

possible.

Engine Oil Pressure Warning

Light

This warning light illuminates:

When the engine oil pressure is low.

If the engine oil pressure is low:

1. Drive carefully to the nearest safe

location and stop your vehicle.

2. Turn the engine off and check the

engine oil level (For more information,

refer to "Engine Oil" in chapter 2). If

the level is low, add oil as required.
If the warning light remains on after

adding oil or if oil is not available, have

the vehicle inspected by an authorized

HYUNDAI dealer as soon as possible.

WARNING

When oil pressure is restored to an

optimal level, the oil pressure warning

light and the protection system that

limits engine power will turn off. Even

if the oil pressure returns to normal,

check the engine once again in a safe

place.

4-15

NOTICE

•

If the engine is not turned OFF

immediately after the Engine

Oil Pressure Warning Light is

illuminated, severe damage could

occur.

•

If the warning light stays on while the

engine is running, it indicates that

there may be serious engine damage

or malfunction. In this case:

1. Stop the vehicle as soon as it is

safe to do so.

2. Turn off the engine and check the

oil level. If the oil level is low, fill

the engine oil to the proper level.

3. Start the engine again. If the

warning light stays on after the

engine has started, turn the

engine off immediately. In this

case, have the vehicle inspected

by an authorized HYUNDAI dealer.

Low Fuel Level Warning Light

This warning light illuminates:

When the fuel tank is nearly empty. Add

fuel as soon as possible.

NOTICE

Driving with the Low Fuel Level warning

light on or with the fuel level below "E"

can cause the engine to misfire and

damage the catalytic converter.

Master Warning Light

This indicator light illuminates:

When there is a malfunction in operation

in any of the following functions

- Forward Collision-Avoidance Assist

malfunction (if equipped)

- Forward Collision-Avoidance Assist

radar blocked (if equipped)

- Blind-Spot Collision-Avoidance Assist

malfunction (if equipped)

- Blind-Spot Collision-Avoidance Assist

radar blocked (if equipped)

- High Beam Assist malfunction

(if equipped)

- Lamp malfunction (if equipped)

- Smart Cruise Control malfunction

(if equipped)

- Tire Pressure Monitoring System

(TPMS) malfunction (if equipped)

To identify the details of the warning,

look at the instrument cluster.

Low Tire Pressure Warning

Light (if equipped)

This warning light illuminates:

•

When you place the ignition in the ON

position.

- It illuminates for approximately 3

seconds and then goes off.

•

When one or more of your tires are

significantly underinflated. (The

location of the underinflated tires is

displayed on the cluster display.)

For more information, refer to "Tire

Pressure Monitoring System (TPMS)" in

chapter 8.

Instrument Cluster

4-16

This warning light remains ON after

blinking for approximately 60 seconds, or

repeatedly blinks ON and OFF in 3 second

intervals:

When there is a malfunction with the

TPMS.
In this case, have the vehicle inspected

by an authorized HYUNDAI dealer as

soon as possible.
For more information, refer to "Tire

Pressure Monitoring System (TPMS)" in

chapter 8.

WARNING

Safe Stopping

•

The TPMS cannot alert you to severe

and sudden tire damage caused by

external factors.

•

If you notice any vehicle instability,

immediately take your foot off the

accelerator pedal, apply the brakes

gradually with light force, and slowly

move to a safe position off the road.

Electronic Stability Control

(ESC) Indicator Light

This indicator light illuminates:

•

When you place the ignition switch to

the ON position.

- The Electronic Stability Control

indicator light illuminates for about

3 seconds and then goes off.

•

Whenever there is a malfunction with

the ESC system.
If this occurs, have the vehicle

inspected by an authorized HYUNDAI

dealer.

This indicator light blinks:

•

While the ESC is operating.

For more information, refer to “Electronic

Stability Control (ESC)” in chapter 6.

Electronic Stability Control

(ESC) OFF Indicator Light

This indicator light illuminates:

•

When you place the ignition switch to

the ON position.

- It illuminates for approximately 3

seconds and then goes off.

•

When you deactivate the ESC system

by pressing the ESC OFF button.

For more information, refer to “Electronic

Stability Control (ESC)” in chapter 6.

Immobilizer Indicator Light

This indicator light illuminates:

•

When the vehicle detects the

immobilizer in the key with the

ignition switch in the ON position.

- At this time, you can start the engine.

- The indicator light goes off after

starting the engine.

This indicator light blinks:

•

When there is a malfunction with the

immobilizer system.

If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

4-17

Immobilizer Indicator Light

(with smart key)

(if equipped)

This indicator light illuminates for up to

30 seconds:

When the vehicle detects the smart key

in the vehicle with the Engine Start/Stop

button in the ACC or ON position.

- Once the smart key is detected, you

can start the engine.

- The indicator light goes off after

starting the engine.

This indicator light blinks for a few seconds:

When the smart key is not in the vehicle.

- If the smart key is not detected, you

cannot start the engine.

This indicator light illuminates for 2

seconds and goes off:

If the smart key is in the vehicle and the

Engine Start/Stop button is ON, but the

vehicle cannot detect the smart key.
In this case, have the vehicle inspected

by an authorized HYUNDAI dealer.

This indicator light blinks:

When there is a malfunction with the

immobilizer system.
In this case, have the vehicle inspected

by an authorized HYUNDAI dealer.

Turn Signal Indicator Light

This indicator light blinks:

When you operate the turn signal

indicator stalk.

If any of the following occur, there may be

a malfunction with the turn signal system.

- The turn signal indicator light

illuminates but does not blink

- The turn signal indicator light blinks

rapidly

- The turn signal indicator light does not

illuminate at all

If any of these conditions occur, have

your vehicle inspected by an authorized

HYUNDAI dealer.
For more details, refer to “High Beam

Assist (HBA)” in chapter 5.

Exterior Light Warning Light

(if equipped)

This warning light illuminates:

•

When one of the exterior bulbs

(headlight, DRL, turn signal light, stop

light, etc) is not operating properly.

One of the bulbs may need to be

replaced.

Information

Make sure to replace the burned out bulb

with a new one of the same wattage rating.

Instrument Cluster

4-18

LED headlight warning light

(if equipped)

This warning light illuminates:

•

When you set the ignition switch to

the ON position.

- The LED headlight warning light

illuminates for approximately 3

seconds and then goes off.

•

Whenever there is a malfunction with

the LED headlight.
If this occurs, have your vehicle

inspected by an authorized HYUNDAI

dealer.

NOTICE

Continuous driving with the LED

Headlight warning light on or blinking

can reduce LED headlight life.

High Beam Indicator Light

This indicator light illuminates:

•

When the headlights are on and in the

high beam position.

•

When the turn signal lever is pulled

into the Flash-to-Pass position.

Light ON Indicator Light

This indicator light illuminates:

When the tail lights or headlights are on.

High Beam Assist indicator

light (if equipped)

This indicator light illuminates:

When the High Beam is on with the light

switch in the AUTO light position.

•

White: When High Beam Assist is

ready to operate.

•

Green: When High Beam Assist is

operating.

If your vehicle detects oncoming or

preceding vehicles, High Beam Assist

system will switch the high beam to low

beam automatically.
For more information, refer to "High

Beam Assist (HBA)" in chapter 5.

Forward Collision-Avoidance

Assist Warning Light

(if equipped)

This warning light illuminates:

•

When you set the ignition switch to

the ON position.

- It illuminates for approximately 3

seconds and then goes off.

•

When there is a malfunction with

FCA. In this case, have your vehicle

inspected by an authorized dealer of

HYUNDAI.

For more information, refer to "Forward

Collision-Avoidance Assist (FCA)" in

chapter 6.

4-19

Lane Safety indicator light

(if equipped)

This indicator light illuminates:

•

Green: When Lane Keeping Assist

operating conditions are satisfied.

•

Grey: When Lane Keeping Assist

operating conditions are not satisfied.

•

Yellow: Whenever there is Disabled/

Malfunction with Lane Keeping Assist.

If the yellow indicator light remains on

after the front view camera has been

uncovered or unblocked, have your

vehicle inspected by an authorized

HYUNDAI dealer.

This warning light blinks:

•

Green: When Lane Keeping Assist is

operating.

For more information, refer to the "Lane

Keeping Assist (LKA)" section in chapter

Cruise Indicator Light

This indicator light illuminates:

•

When the cruise control system is

enabled.

For more details, refer to “Cruise Control

System” in chapter 6.

SPORT Mode Indicator Light

(if equipped)

This indicator light illuminates:

•

When you select “SPORT” mode as

drive mode.

For more details, refer to “Drive Mode

Integrated Control System” in chapter 6.

SMART Mode Indicator Light

(if equipped)

SMART

This indicator light illuminates:

•

When you select ‘’SMART” mode as

drive mode.

For more details, refer to “Drive Mode

Integrated Control System’’ in chapter 6.

Icy Road Warning Light (if

equipped)

This indicator light illuminates:

This warning light is to warn the driver

the road may be icy.
When the temperature on the outside

temperature gauge is approximately

below 40°F (4°C), the Icy Road Warning

Light and Outside Temperature Gauge

blinks and then illuminates. Also, the

warning chime sounds 1 time.
The Icy Road Warning function can be

activated or deactivated from the User

Settings mode in the cluster LCD display.

Information

If the icy road warning light appears while

driving, you should drive more attentively

and safely, refraining from over-speeding,

rapid acceleration, sudden braking or

sharp turning, etc.

Instrument Cluster

4-20

Cluster Display Messages

Shift to P to start engine

(for smart key system)

This message is displayed if you try to

start the engine in any other position

except P (Park).

Information

For your safety, start the engine with the

gear shifted to P (Park).

Shift to P (for smart key system and

dual clutch transmission)

This message is displayed if you try to

turn off the engine without the shift lever

in P (Park) position.
If this occurs, the Engine Start/Stop

button turns to the ACC position (If you

press the Engine Start/Stop button once

more, it will turn to the ON position).

Low key battery

(for smart key system)

This warning message is displayed if the

battery of the smart key is discharged

while changing the Engine Start/Stop

button to the OFF position.

Press brake pedal to start engine

(for smart key system and dual

clutch transmission)

This warning message is displayed if the

Engine Start/Stop button changes to

the ACC position twice by pressing the

button repeatedly without depressing

the brake pedal.
You can start the vehicle by depressing

the brake pedal and then pressing the

Engine Start/Stop button.

Key not in vehicle

(for smart key system)

This warning message is displayed if the

smart key is not in the vehicle when you

press the Engine Start/Stop button.
When attempting to start the vehicle,

always have the smart key with you.

Key not detected

(for smart key system)

This warning message is displayed if the

smart key is not detected when you press

the Engine Start/Stop button.

Press START button again

(for smart key system)

This message is displayed if you were

unable to start the vehicle when the

Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine

by pressing the Engine Start/Stop button

again.
If the warning message appears each

time you press the Engine Start/Stop

button, have your vehicle inspected by

an authorized HYUNDAI dealer.

4-21

12 V battery discharging due to

additional electrical devices

This message is displayed if the 12 V

battery voltage is weak due to any

non-factory electrical accessories (ex.

dashboard camera) while parking. Be

careful that the battery is not discharged.
If the message appears after removing

the non-factory electrical accessories,

have the vehicle inspected by an

authorized HYUNDAI dealer.

Press START button with key

(for smart key system)

This warning message is displayed if you

press the Engine Start/Stop button while

the warning message "Key not detected"

is displayed.
At this time, the immobilizer indicator

light blinks.

Check BRAKE SWITCH fuse (for

smart key system and automatic

transmission/intelligent variable

transmission)

This warning message is displayed if the

brake switch fuse is disconnected.
You need to replace the fuse with a new

one before starting the engine.
If that is not possible, you can start the

engine by pressing the Engine Start/

Stop button for 10 seconds in the ACC

position.

Door, Hood, Trunk Open Indicator

OCN7040017

This warning is displayed if any door or

the hood or the trunk is left open. The

warning will indicate which door is open

in the display.

CAUTION

Before driving the vehicle, you should

confirm that the door/hood/trunk are

fully closed. Also, check there is no

door/hood/trunk open warning light or

message displayed on the instrument

cluster.

Sunroof Open (if equipped)

OCN7040018

This warning is displayed if you turn off

the engine when the sunroof is open.
Close the sunroof securely before leaving

your vehicle.

Instrument Cluster

4-22

Low Pressure

OCN7040026L

This warning message is displayed if the

tire pressure is low. The corresponding

tire on the vehicle will be illuminated.
For more information, refer to "Tire

Pressure Monitoring System (TPMS)" in

chapter 8.

Lights Mode

OIK047145L

This indicator displays which exterior

light is selected using the lighting

control.

Wiper

OAD048579N

This indicator displays which wiper speed

is selected using the wiper control.

Heated Steering Wheel turned off (if

equipped)

This message is displayed if you turn off

the heated steering wheel.
For more details, refer to “Heated

Steering Wheel” in chapter 5.

Low washer fluid (if equipped)

This warning message is displayed if

the washer fluid level in the reservoir is

nearly empty.
Have the washer fluid reservoir refilled.

4-23

Low fuel

This warning message is displayed if the

fuel tank is almost out of fuel.
When this message is displayed, the low

fuel level warning light in the cluster will

come on.
It is recommended to look for the nearest

fueling station and refuel as soon as

possible.

NOTICE

Do not drive the vehicle with low fuel.

Hybrid battery damage may occur

when the fuel tank is completely empty.

Engine Overheated (if equipped)

This warning message is displayed

when the engine coolant temperature

is above 248°F (120°C). This means that

the engine is overheated and may be

damaged.
If your vehicle is overheated, refer to

“Overheating” in chapter 8.

Check headlight (if equipped)

This warning message is displayed if the

headlights are not operating
properly.
In addition, if a specific light (turn signal

light etc.) is not operating properly, the

warning message according to a specific

light (turn signal light etc.) is displayed.

A corresponding bulb may need to be

replaced.
Make sure to replace the burned out

bulb with a new one of the same wattage

rating.

Check headlight (Low) (if equipped)

This warning message is displayed if

the headlight (Low) are not operating

properly.
In addition, if a specific light (turn signal

light etc.) is not operating properly, the

warning message according to a specific

light (turn signal light etc.) is displayed.

A corresponding bulb may need to be

replaced.
Make sure to replace the burned out

bulb with a new one of the same wattage

rating

Check turn signal light (if equipped)

This warning message is displayed if the

turn signal lights are not operat-
ing properly. A light may need to be

replaced.
Make sure to replace the burned out

bulb with a new one of the same wattage

rating.

Check brake light (if equipped)

This warning message is displayed if the

stop lights are not operating properly. A

light may need to be replaced.
Make sure to replace the burned out

bulb with a new one of the same wattage

rating.

Instrument Cluster

4-24

Check daytime running light (if

equipped)

This warning message is displayed

if the daytime running lights are not

operating properly. A light may need to

be replaced.
Make sure to replace the burned out

bulb with a new one of the same wattage

rating.

Check high mounted stop light (if

equipped)

This warning message is displayed if

the high mounted stop light are not

operating properly. A light may need to

be replaced.
Make sure to replace the burned out

bulb with a new one of the same wattage

rating.

Check headlight LED (if equipped)

This warning message is displayed

if there is a problem with the LED

headlight. Have the vehicle inspected by

an authorized HYUNDAI dealer.

Ready to start driving

This message is displayed when the

vehicle is ready to be driven.

Check regenerative brakes

This message is displayed when the brake

performance is low or the regenerative

brake does not work properly due to a

problem in the brake system.
If this occurs, it may take longer for the

brake pedal to operate and the braking

distance may become longer.

Stop vehicle and check brakes

This message is displayed when there is

a problem in the brake system.
If this occurs, park the vehicle in a safe

location and tow your vehicle to the

nearest authorized HYUNDAI dealer and

have the vehicle inspected.

4-25

Check Hybrid system

This message is displayed when there

is a problem with the hybrid system.

Refrain from driving when the warning

message is displayed.
If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

Stop safely and check Hybrid system

This message is displayed when there is

a problem with the hybrid system. The

“

” indicator will blink and a warning

chime will sound until the problem is

solved. Refrain from driving when the

warning message is displayed.
If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

Check Hybrid system. Do not start

engine

This message is displayed when the

hybrid battery power (SOC) level is low.

A warning chime will sound until the

problem is solved. Refrain from driving

when the warning message is displayed.
If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

Stop safely and check power supply

This message is displayed when there is

a problem in the power supply system.
If this occurs, park the vehicle in a safe

location and tow your vehicle to the

nearest authorized HYUNDAI dealer and

have the vehicle inspected.

Check virtual engine sound system

This message is displayed when there is

a problem with the Virtual Engine Sound

System (VESS).
If this occurs, have the vehicle inspected

by an authorized HYUNDAI dealer.

Refill inverter coolant

This message is displayed when the

inverter coolant is nearly empty.
You should refill the inverter coolant.

Park with engine On to charge

battery

This message is displayed when the

hybrid battery power (SOC) level is low.
If this occurs, park the vehicle in a safe

location and wait until the hybrid battery

is charged.

Start engine to avoid battery

discharge

This message is displayed to inform the

driver the 12 V battery may be discharged

if the ignition switch is in ON position

(without the

indicator ON).

Set the vehicle to the ready (

) mode

to prevent the 12 V battery from being

discharged.

Content .. 2 3 4 5 ..
