Hyundai Ioniq 5 (2024 year). Manual in english - page 7

Maintenance

NOTICE

Wiper Blades

Blade Inspection

Contamination of either the windshield or

the wiper blades with foreign matter can

reduce the effectiveness of the

windshield wipers.

Common sources of contamination are

insects, tree sap, and hot wax treatments

used by some commercial car washes. If

the blades are not wiping properly, clean

OHI078055

both the window and the blades with a

good cleaner or mild detergent, and rinse

• Install a new cabin air filter in the

thoroughly with clean water.

correct direction with the arrow symbol

(↓) facing downwards, to prevent noise

NOTICE

and reduce effectiveness.

• Always be sure that the front trunk

To prevent damage to the wiper blades,

cover is firmly closed after replacing

arms or other components, do not:

the cabin air filter.

• Use gasoline, kerosene, paint thinner,

Otherwise is may cause interior

or other solvents on or near them.

damage in the motor compartment,

• Attempt to move the wipers manually.

noise trouble, or entrance of foreign

• Use non-specified wiper blades.

substances.

Information

Commercial hot waxes applied by

automatic car washes have been known

to make the windshield difficult to clean.

Information

Wiper blades are consumable items.

Normal wear of the wipers may not be

covered by your vehicle warranty.

9-16

9

Blade Replacement

Type A

When the wipers no longer clean

adequately, the blades may be worn or

cracked, and require replacement.

NOTICE

• In order to prevent damage to the hood

and the wiper arms, the wiper arms

should only be lifted when in the top

wiping position.

• Always return the wiper arms to the

windshield before driving.

OGSR076067

Front windshield wiper blade

replacement

OGSR076066

ONE1091008

1. Lift up the wiper blade clip. Then lift up

Within 20 seconds of turning off the

the wiper blade.

vehicle, lift up and hold the wiper lever to

2. While pushing the lock (1), pull down

the MIST position for about 2 seconds

the wiper blade (2).

until the wipers move to the top wipe

position.

At this time you can lift the wipers off the

windshield.

9-17

Maintenance

OHI078076

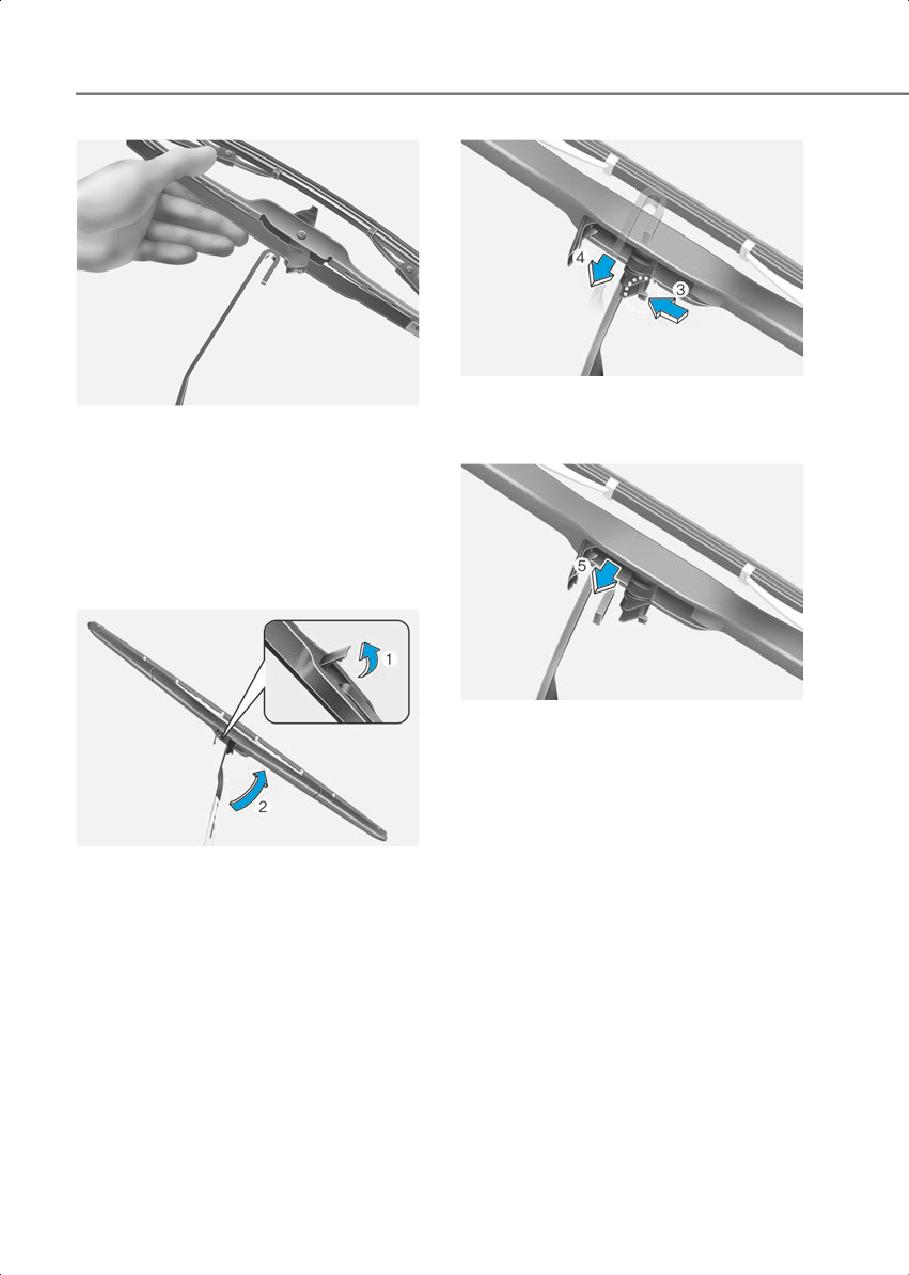

2. Press the clip (3). Then push the blade

OGSR076068

forward through the wiper arm to

3. Remove the wiper blade from the wiper

disassemble it (4).

arm.

4. Install a new wiper blade assembly in

the reverse order of removal.

5. Return the wiper arm on the

windshield.

Type B

OHI078077

3. Remove the wiper blade from the wiper

arm (5).

4. Install the new blade assembly in the

reverse order of removal.

5. Return the wiper arm on the

windshield.

OHI078075

1. Lift up the wiper blade clip (1). Then lift

up the wiper blade.

9-18

9

If acid gets into your eyes, flush your eyes

Battery (12 V)

with clean water for at least 15 minutes

and get immediate medical attention. If

WARNING

acid gets on your skin, thoroughly wash

To prevent SERIOUS INJURY or DEATH to

the area. If you feel pain or a burning

you or bystanders, always follow these

sensation, get medical attention

precautions when working near or

immediately.

handling the battery:

• When lifting a plastic-cased battery,

excessive pressure on the case may

cause battery acid to leak. Lift with a

battery carrier or with your hands on

opposite corners.

btn_HXDFL01E

Always read and follow instructions

• Do not attempt to jump start your

carefully when handling a battery.

vehicle if your battery is frozen.

• NEVER attempt to recharge the battery

when the vehicle’s battery cables are

connected to the battery.

btn_HXDFL01B

• The electrical ignition switch works

Wear eye protection designed to protect

with high voltage. NEVER touch these

the eyes from acid splashes.

components with the “

” indicator

ON or when the Start/Stop button is in

the ON position.

btn_HXDFL01A

Keep all flames, sparks, or smoking

WARNING

materials away from the battery.

CALIFORNIA PROPOSITION 65 WARNING

Battery posts, terminals, and related

accessories contain lead and lead

compounds, chemicals known to the

btn_HXDFL01F

State of California to cause cancer, birth

Hydrogen is always present in battery

defects and reproductive harm. Batteries

cells, is highly combustible, and may

also contain other chemicals known to

explode if ignited.

the State of California to cause cancer.

Wash hands after handling.

btn_HXDFL01C

Keep batteries out of reach of children.

btn_HXDFL01D

Batteries contain sulfuric acid which is

highly corrosive. Do not allow acid to

contact your eyes, skin or clothing.

9-19

Maintenance

NOTICE

For Best Battery Service

Always follow these instructions when

handling your vehicle’s battery to prevent

damage to your battery:

• When you do not use the vehicle for a

long time in a low temperature area,

disconnect the battery and keep it

indoors.

• Always charge the battery fully to

prevent battery case damage in low

temperature areas.

ONE1091009

• Prevent liquids from wetting the

• Keep the battery securely mounted.

battery terminals. The performance of

the battery may be degraded, and may

• Keep the battery top clean and dry.

cause injury. Be cautious when loading

• Keep the terminals and connections

liquids in the liftgate.

clean, tight, and coated with petroleum

• Do not tilt the battery.

jelly or terminal grease.

• If you connect unauthorized electronic

• Rinse any spilled electrolyte from the

devices to the battery, the battery may

battery immediately with a solution of

be discharged. Never use unauthorized

water and baking soda.

devices.

• If the vehicle is not going to be used for

an extended time, disconnect the

battery cables.

9-20

9

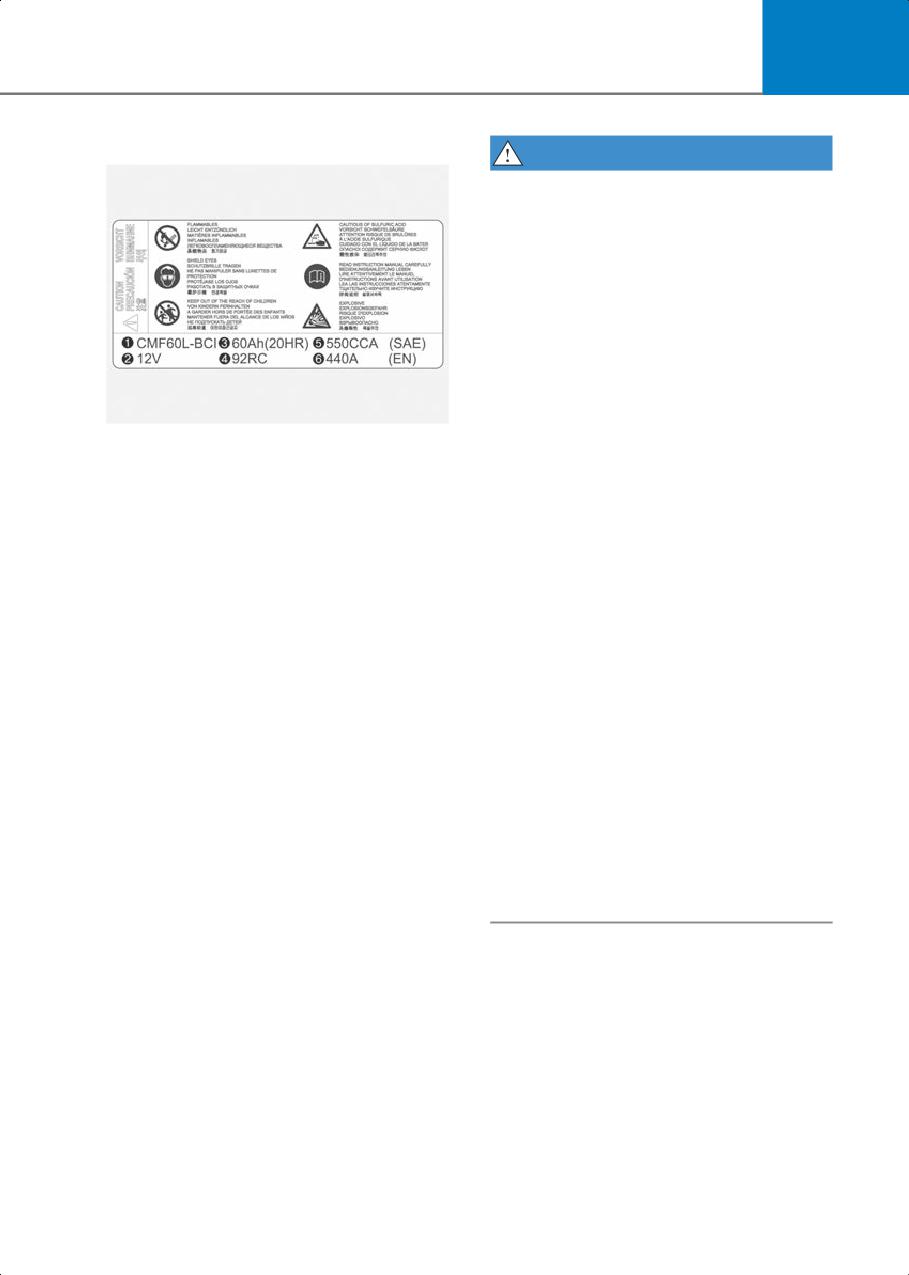

Battery Capacity Label

WARNING

Always follow these instructions when

recharging your vehicle’s battery to avoid

the risk of SERIOUS INJURY or DEATH

from explosions or acid burns:

•

Before performing maintenance or

recharging the battery, turn off all

accessories and stop the vehicle.

•

Keep all flames, sparks, or smoking

materials away from the battery.

•

Always work outdoors or in an area with

plenty of ventilation.

OLMB073072

•

Wear eye protection when checking the

* The actual battery label in the vehicle

battery during charging.

may differ from the illustration.

•

The battery must be removed from the

1. CMF60L-BCI : The HYUNDAI model

vehicle and placed in a well ventilated

name of battery

area.

2.12 V : The nominal voltage

•

Watch the battery during charging, and

3.60Ah(20HR) : The nominal capacity (in

stop or reduce the charging rate if the

Ampere hours)

battery cells begin boiling violently.

4.92RC : The nominal reserve capacity (in

•

The negative battery cable must be

min.)

removed first and installed last when

5.550CCA : The cold-test current in

the battery is disconnected. Disconnect

amperes by SAE

the battery charger in the following

order:

6.440A : The cold-test current in amperes

by EN

1. Turn off the battery charger main

switch.

2. Unhook the negative clamp from the

Battery Recharging

negative battery terminal.

3. Unhook the positive clamp from the

By battery charger

positive battery terminal.

Your vehicle has a maintenance-free,

•

Use batteries for replacement from an

calcium-based battery.

authorized HYUNDAI dealer.

• If the battery becomes discharged over

a short time (because, for example, the

headlights or interior lights were left on

while the vehicle was not in use),

recharge it by slow charging (trickle) for

10 hours.

• If the battery gradually discharges

because of high electrical load while

the vehicle is being used, recharge it at

20-30A for two hours.

9-21

Maintenance

By jump starting

Tires And Wheels

After a jump start from a good battery,

drive the vehicle for 20-30 minutes

WARNING

before it is shutoff. The vehicle may not

restart if you shut it off before the battery

Tire failure may cause loss of vehicle

had a chance to adequately recharge. See

control resulting in an accident. To

“Jump Starting” in chapter 8 for more

reduce risk of SERIOUS INJURY or

information on jump starting procedures.

DEATH, take the following

precautions:

Information

•

Inspect your tires monthly for

proper inflation as well as wear and

damage.

•

The recommended cold tire

btn_AM-BATT

pressure for your vehicle can be

An inappropriately disposed battery can

found in this manual and on the tire

be harmful to the environment and

label located on the driver’s side

human health. Dispose of the battery

according to your local law(s) or

center pillar. Always use a tire

regulation.

pressure gauge to measure tire

pressure. Tires with too much or

too little pressure wear unevenly

Reset Items

causing poor handling.

The following items may need to be reset

•

Check the pressure of the spare

after the battery has been discharged or

every time you check the pressure

the battery has been disconnected.

of the other tires on your vehicle.

• Drive info/After

•

Replace tires that are worn, show

Recharging/Accumulated info (items in

uneven wear, or are damaged.

Utility view) (see chapter 4)

Worn tires can cause loss of braking

• Integrated Memory System (see

effectiveness, steering control, or

chapter 5)

traction.

• Power Windows (see chapter 5)

•

ALWAYS replace tires with the

• Vision Roof (see chapter 5)

same size, type, construction and

• Power Liftgate (see chapter 5)

tread pattern as each tire that was

• Automatic Climate Control System (see

originally supplied with this vehicle.

chapter 5)

Using tires and wheels other than

• Clock (see Infotainment system

the recommended sizes could

manual)

cause unusual handling

• Infotainment System (see Infotainment

characteristics, poor vehicle

system manual)

control, or negatively affect your

vehicle’s Anti-Lock Brake System

(ABS) resulting in a serious

accident.

9-22

9

Tire Care

WARNING

For proper maintenance, safety, and

Recommended pressures must be

maximum electric energy economy,

maintained for the best ride, vehicle

you must always maintain

handling, and minimum tire wear.

recommended tire inflation

pressures and stay within the load

Over-inflation or under-inflation can

limits and weight distribution

reduce tire life, adversely affect

recommended for your vehicle.

vehicle handling, and lead to sudden

tire failure that could result in loss of

vehicle control resulting in an

accident.

Severe under-inflation can lead to

severe heat build-up, causing

blowouts, tread separation and other

tire failures that can result in the loss

of vehicle control resulting in an

accident. This risk is much higher on

hot days and when driving for long

OJK010021

periods at high speeds.

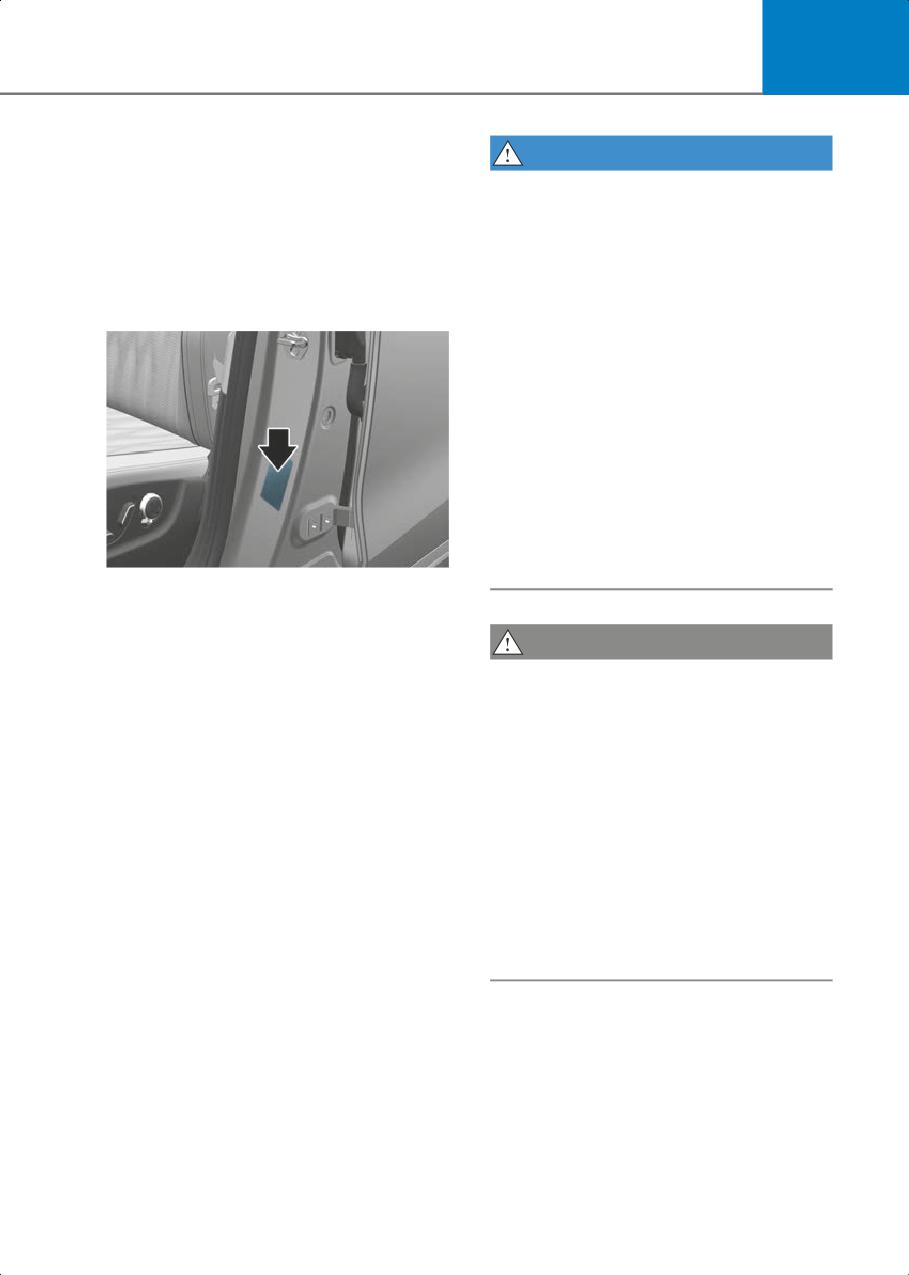

All specifications (sizes and

pressures) can be found on a label

attached to the driver’s side center

CAUTION

pillar.

• Under-inflation results in excessive

wear, poor handling and reduced

Recommended Cold Tire

electric energy economy. Wheel

Inflation Pressures

deformation is also possible. Keep

your tire pressures at the proper

All tire pressures (including the spare)

levels. If a tire frequently needs

should be checked when the tires are

refilling, have it checked by an

cold. “Cold tires” means the vehicle

authorized HYUNDAI dealer.

has not been driven for at least three

hours or driven less than one mile (1.6

• Over-inflation produces a harsh

km).

ride, excessive wear at the center of

the tire tread, and a greater

Warm tires normally exceed

possibility of damage from road

recommended cold tire pressures by

hazards.

4 to 6 psi (28 to 41 kPa). Do not

release air from warm tires to adjust

the pressure or the tires will be

under-inflated. For recommended

inflation pressure, refer to “Tires And

Wheels” section in chapter 2.

9-23

Maintenance

Check Tire Inflation Pressure

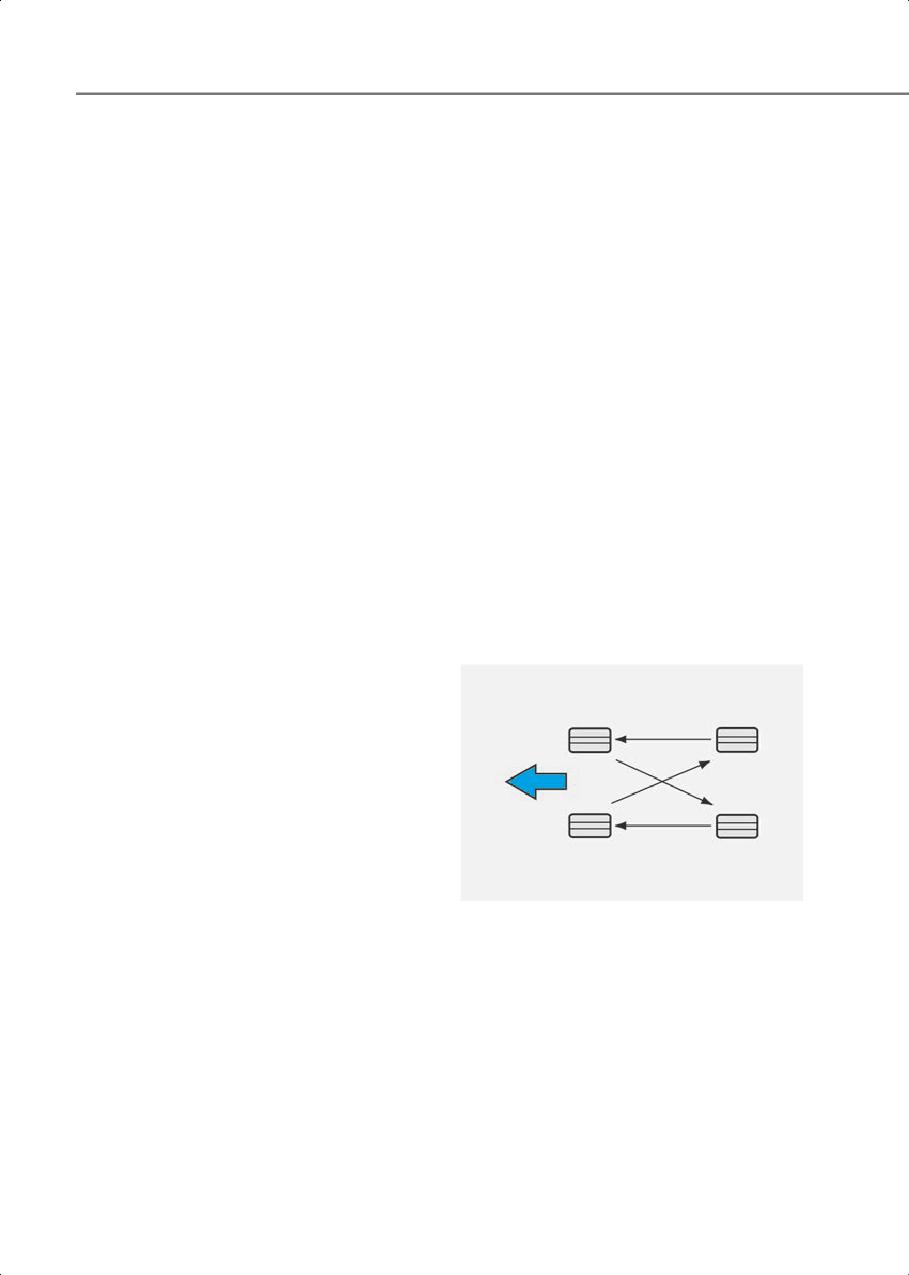

Tire Rotation

Check your tires, including the spare

To equalize tread wear, HYUNDAI

tire, once a month or more.

recommends that the tires be rotated

every 8,000 miles (13,000 km) or

sooner if irregular wear develops.

How to check

During rotation, check the tires for

Use a good quality tire pressure

correct balance.

gauge to check tire pressure. You can

not tell if your tires are properly

When rotating tires, check for uneven

inflated simply by looking at them.

wear and damage. Abnormal wear is

Radial tires may look properly inflated

usually caused by incorrect tire

when they are under-inflated.

pressure, improper wheel alignment,

out-of-balance wheels, severe

Remove the valve cap from the tire

braking or severe cornering. Look for

valve stem. Press the tire gauge

bumps or bulges in the tread or side

firmly onto the valve to get a pressure

of the tire. Replace the tire if you find

measurement. If the cold tire inflation

any of these conditions. Replace the

pressure matches the recommended

tire if fabric or cord is visible. After

pressure on the tire and loading

rotation, be sure to bring the front

information label, no further

and rear tire pressures to

adjustment is necessary. If the

specification and check wheel lug nut

pressure is low, add air until you

tightness (proper torque is 79~94

reach the recommended pressure.

lbf·ft (11~13kgf·m).

Make sure to put the valve caps back

on the valve stems. Without the valve

cap, dirt or moisture could get into

the valve core and cause air leakage.

If a valve cap is missing, install a new

one as soon as possible.

If you overfill the tire, release air by

pushing on the metal stem in the

center of the tire valve. Recheck the

tire pressure with the tire gauge. Be

sure to put the valve caps back on the

valve stems. Without the valve cap,

OHI078078

dirt or moisture could get into the

Disc brake pads should be inspected

valve core and cause air leakage. If a

for wear whenever tires are rotated.

valve cap is missing, install a new one

as soon as possible.

9-24

9

Tire Replacement

Information

The outside and inside of the

unsymmetrical tire is distinguishable.

When installing an unsymmetrical

tire, be sure to install the side marked

“outside” face the outside. If the side

marked “inside” is installed on the

outside, it will have a negative effect

on vehicle performance.

ONE1092048N

WARNING

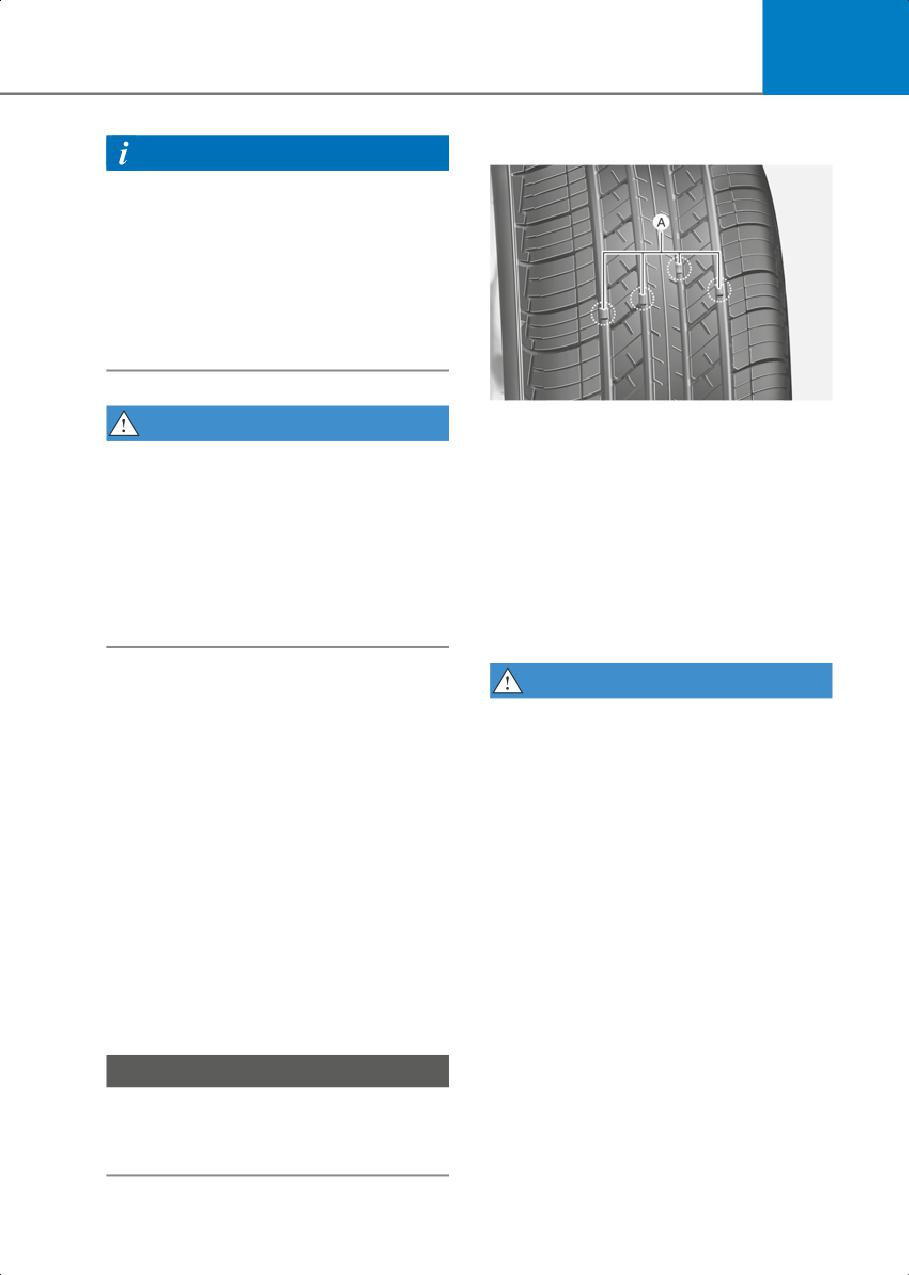

[A]: Tread wear indicator

If the tire is worn evenly, a tread wear

• Do not use the compact spare tire

indicator will appear as a solid band

for tire rotation.

across the tread. This shows there is

• Do not mix bias ply and radial ply

less than 1/16 in. (1.6 mm) of tread left

tires under any circumstances. This

on the tire. Replace the tire when this

may cause unusual handling

happens.

characteristics that may cause loss

Do not wait for the band to appear

of vehicle control resulting in an

across the entire tread before

accident.

replacing the tire.

WARNING

Wheel Alignment and Tire

Balance

To reduce the risk of DEATH or

SERIOUS INJURY:

The wheels on your vehicle were

aligned and balanced carefully at the

• Replace tires that are worn, show

factory to give you the longest tire life

uneven wear, or are damaged.

and best overall performance.

Worn tires can cause loss of braking

effectiveness, steering control, and

In most cases, you will not need to

traction.

have your wheels aligned again.

However, if you notice unusual tire

• Always replace tires with the same

wear or your vehicle pulling one way

size as each tire that was originally

or the other, the alignment may need

supplied with this vehicle. Using

to be reset.

tires and wheels other than the

recommended sizes could cause

If you notice your vehicle vibrating

unusual handling characteristics,

when driving on a smooth road, your

poor vehicle control, or negatively

wheels may need to be rebalanced.

affect your vehicle’s Anti-Lock

NOTICE

Brake System (ABS) resulting in a

serious accident.

Incorrect wheel weights can damage

your vehicle’s aluminum wheels. Use

only approved wheel weights.

9-25

Maintenance

• When replacing tires (or wheels), it

Tire Maintenance

is recommended to replace the two

In addition to proper inflation, correct

front or two rear tires (or wheels) as

wheel alignment helps to decrease

a pair. Replacing just one tire can

tire wear. If you find a tire is worn

seriously affect your vehicle’s

unevenly, have your dealer check the

handling.

wheel alignment.

• Tires degrade over time, even when

When you have new tires installed,

they are not being used. Regardless

make sure they are balanced. This will

of the remaining tread, HYUNDAI

increase vehicle ride comfort and tire

recommends that tires be replaced

life. Additionally, a tire should always

after six (6) years of normal service.

be rebalanced if it is removed from

• Heat caused by hot climates or

the wheel.

frequent high loading conditions

can accelerate the aging process.

Tire Sidewall Labeling

Failure to follow this warning may

cause sudden tire failure, which

This information identifies and

could lead to a loss of vehicle

describes the fundamental

control resulting in an accident.

characteristics of the tire and also

provides the Tire Identification

Number (TIN) for safety standard

Wheel Replacement

certification. The TIN can be used to

identify the tire in case of a recall.

When replacing the metal wheels for

any reason, make sure the new

wheels are equivalent to the original

factory units in diameter, rim width

and offset.

Tire Traction

Tire traction can be reduced if you

drive on worn tires, tires that are

improperly inflated or on slippery

road surfaces. Tires should be

ONE1092049N

replaced when tread wear indicators

appear. To reduce the possibility of

1. Manufacturer or brand name

losing control, slow down whenever

Manufacturer or brand name is

there is rain, snow or ice on the road.

shown.

9-26

9

2. Tire size designation

Tire speed ratings

A tire’s sidewall is marked with a tire

The chart below lists many of the

size designation. You will need this

different speed ratings currently

information when selecting

being used for passenger vehicle

replacement tires for your car. The

tires. The speed rating is part of the

following explains what the letters

tire size designation on the sidewall

and numbers in the tire size

of the tire. This symbol corresponds

designation mean.

to that tire’s designed maximum safe

Example tire size designation:

operating speed.

(These numbers are provided as an

Speed Rating

example only; your tire size

Maximum Speed

Symbol

designator could vary depending on

your vehicle.)

S

112 mph (180 km/h)

235/55R19 105W

T

118 mph (190 km/h)

235 - Tire width in millimeters.

H

130 mph (210 km/h)

55 - Aspect ratio. The tire’s section

height as a percentage of its width.

V

149 mph (240 km/h)

R - Tire construction code (Radial).

W

168 mph (270 km/h)

19 - Rim diameter in inches.

101 - Load Index, a numerical code

Y

186 mph (300 km/h)

associated with the maximum load

the tire can carry.

3. Checking tire life (TIN : Tire

H - Speed Rating Symbol. See the

Identification Number)

speed rating chart in this section for

Any tires that are over six years old,

additional information.

based on the manufacturing date,

(including the spare tire) should be

Wheel size designation

replaced by new ones. You can find

Wheels are also marked with

the manufacturing date on the tire

important information that you need

sidewall (possibly on the inside of the

if you ever have to replace one. The

wheel), displaying the DOT Code. The

following explains what the letters

DOT Code is a series of numbers on a

and numbers in the wheel size

tire consisting of numbers and

designation mean.

English letters. The manufacturing

Example wheel size designation:

date is designated by the last four

digits (characters) of the DOT code.

7.5J X 19

7.5 - Rim width in inches.

DOT : XXXX XXXX OOOO

J - Rim contour designation.

The front part of the DOT shows a

plant code number, tire size and

19 - Rim diameter in inches.

tread pattern and the last four

numbers indicate week and year

manufactured.

9-27

9

Tire Terminology and

WARNING

Definitions

The traction grade assigned to this

tire is based on straight ahead

Air pressure

braking traction tests, and does not

The amount of air inside the tire

include acceleration, cornering,

pressing outward on the tire. Air

hydroplaning, or peak traction

pressure is expressed in pounds per

characteristics.

square inch (psi) or kilopascal (kPa).

Temperature - A, B & C

Accessory weight

The temperature grades are A (the

This means the combined weight of

highest), B and C representing the

optional accessories. Some examples

tire’s resistance to the generation of

of optional accessories are reduction

heat and its ability to dissipate heat

gear, power seats, and air

when tested under controlled

conditioning.

conditions on a specified indoor

laboratory test wheel.

Aspect ratio

Sustained high temperature can

The relationship of a tire’s height to

cause the material of the tire to

its width.

degenerate and reduce tire life, and

excessive temperature can lead to

sudden tire failure. Grades B and A

Belt

represent higher levels of

A rubber coated layer of cords that is

performance on the laboratory test

located between the plies and the

wheel than the minimum required by

tread. Cords may be made from steel

law.

or other reinforcing materials.

WARNING

Bead

The temperature grade for this tire is

The tire bead contains steel wires

established for a tire that is properly

wrapped by steel cords that hold the

inflated and not overloaded.

tire onto the rim.

Excessive speed, under-inflation,

over-inflation, or excessive loading,

Bias ply tire

either separately or in combination,

can cause heat build-up and possible

A pneumatic tire in which the plies

sudden tire failure. This may cause

are laid at alternate angles less than

loss of vehicle control resulting in an

90 degrees to the centerline of the

accident.

tread.

9-29

9

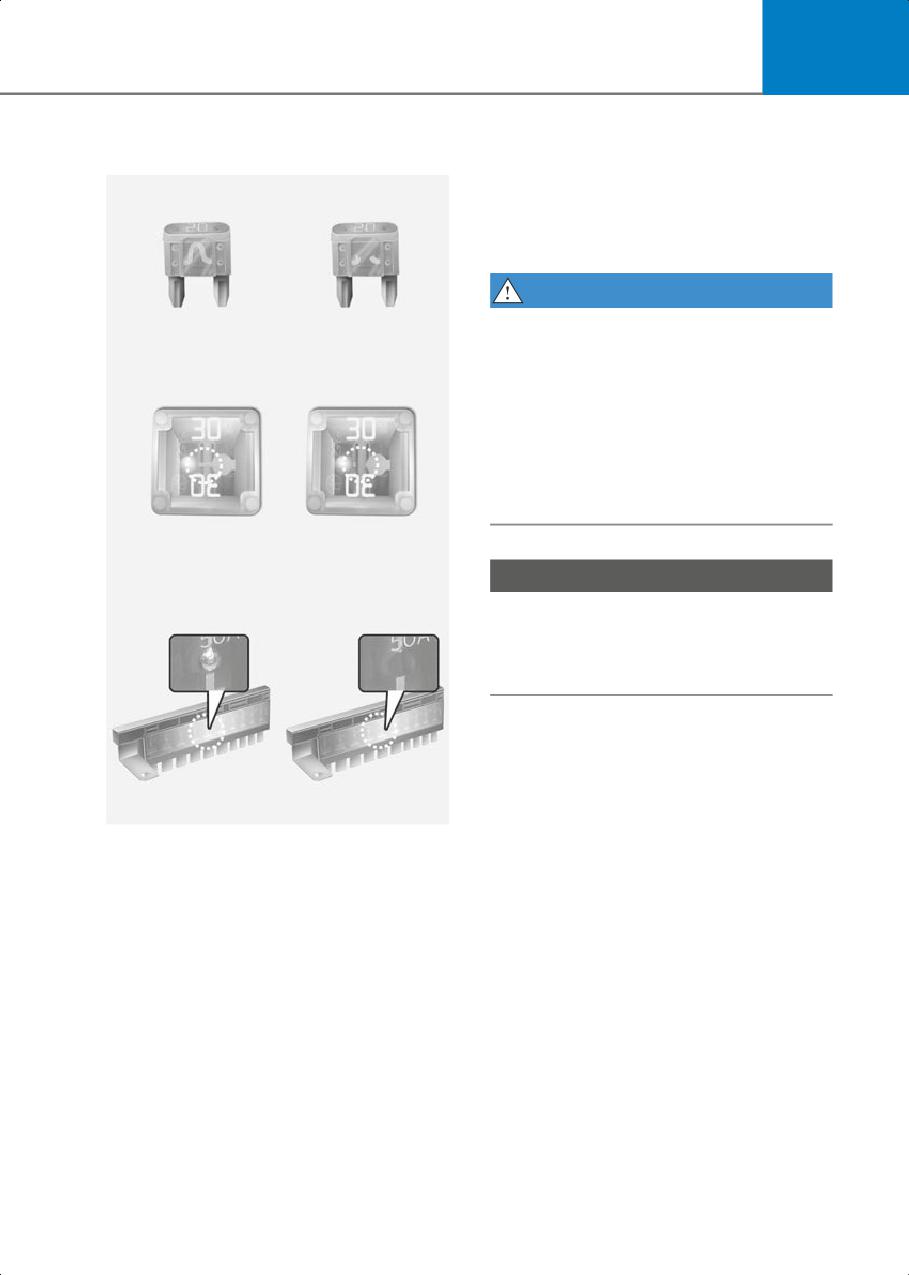

Always replace a blown fuse with one of

Fuses

the same rating.

■ Blade type

If the replacement fuse blows, this

indicates an electrical problem. Avoid

using the system involved. Consult an

authorized HYUNDAI dealer.

WARNING

Normal

Blown

NEVER replace a fuse with anything but

another fuse of the same rating.

• A higher capacity fuse could cause

■ Cartridge type

damage and possibly cause a fire.

• Do not install a wire or aluminum foil

instead of the proper fuse - even as a

temporary repair. It may cause

extensive wiring damage and possibly a

fire.

Normal

Blown

NOTICE

■ Multi type

Do not use a screwdriver or any other

metal object to remove fuses because it

may cause a short circuit and damage the

system.

Normal

Blown

Table_text_OTM078035

A vehicle’s electrical system is protected

from electrical overload damage by fuses.

This vehicle has 2 (or 3) fuse panels, one

located in the driver’s side panel bolster,

the other in the vehicle compartment.

If any of your vehicle’s lights, accessories,

or controls do not work, check the

appropriate circuit fuse. If a fuse has

blown, the element inside the fuse will be

melted or broken.

If the electrical system does not work,

first check the driver’s side fuse panel.

Before replacing a blown fuse, turn the

vehicle and all switches off, and then

disconnect the negative battery cable.

9-35

Maintenance

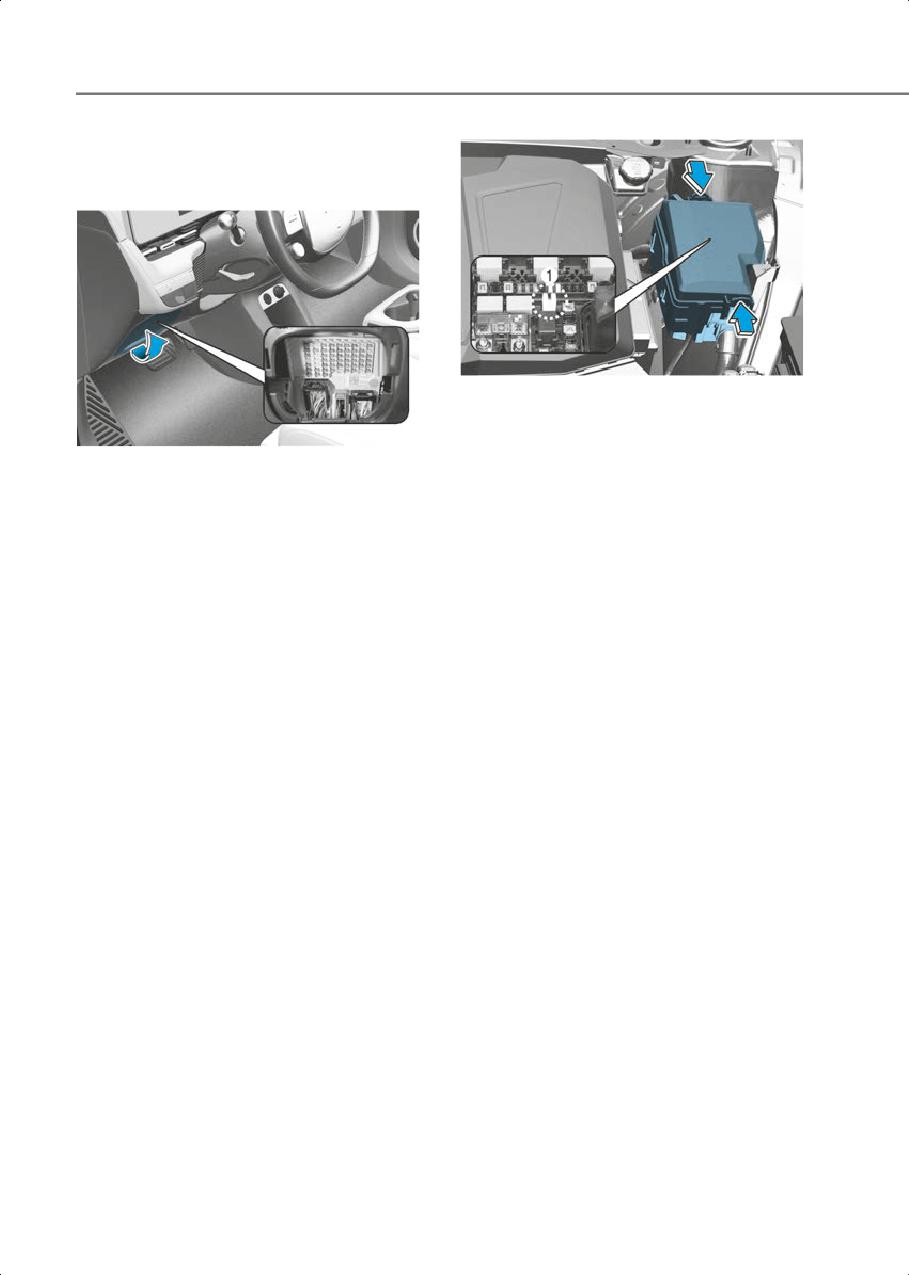

Instrument Panel Fuse

Replacement

Driver’s side

ONE1091011

5. Pull the suspected fuse straight out.

Use the removal tool (1) provided in the

ONE1091010

motor compartment fuses panel.

1. Turn the vehicle off.

6. Check the removed fuse; replace it if it

2. Turn all other switches off.

is blown. Spare fuses are provided in

the instrument panel fuse panels (or in

3. Open the fuse panel cover.

the motor compartment fuse panel).

4. Refer to the label on the inside of the

7. Push in a new fuse of the same rating,

fuse panel cover to locate the

and make sure it fits tightly in the clips.

suspected fuse location.

If it fits loosely, consult an authorized

HYUNDAI dealer.

In an emergency, if you do not have a

spare fuse, use a fuse of the same rating

from a circuit you may not need for

operating the vehicle, such as the

cigarette lighter fuse.

If the headlights or other electrical

components do not work and the fuses

are undamaged, check the fuse panel in

the motor compartment. If a fuse is

blown, it must be replaced with the same

rating.

9-36

9

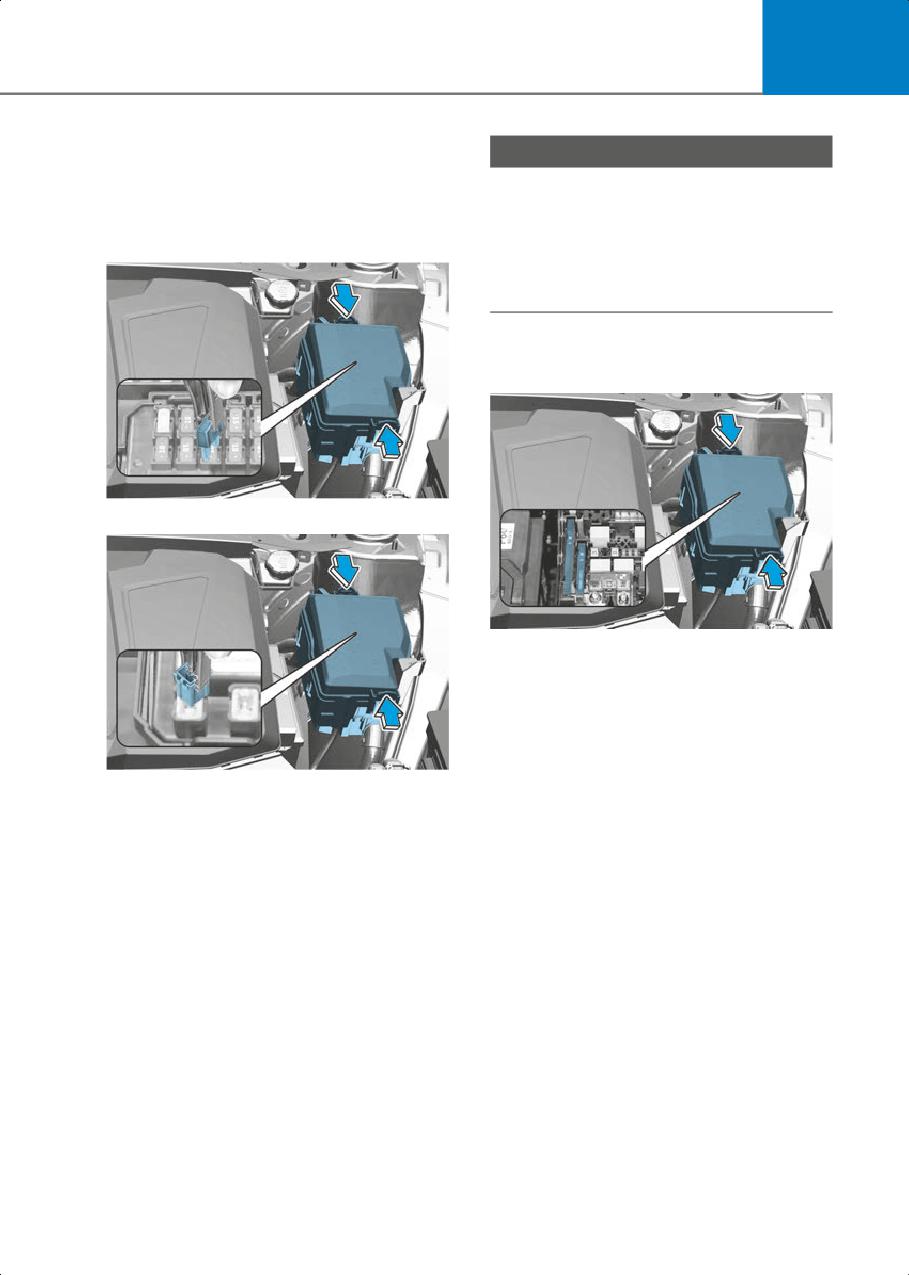

Motor Compartment Panel

NOTICE

Fuse Replacement

After checking the fuse panel in the motor

compartment, securely install the fuse

Blade fuse / Cartridge fuse

panel cover. You may hear a clicking

Blade type fuse

sound if the cover is securely latched. If it

is not securely latched, electrical failure

may occur from water contact.

Multi fuse

Multi type

ONE1091034

Cartridge type fuse

ONE1091036

If the multi fuse is blown, consult an

authorized HYUNDAI dealer.

ONE1091035

1. Turn the vehicle off.

2. Turn all other switches off.

3. Remove the fuse panel cover by

pressing the tap and pulling up.

4. Check the removed fuse; replace it if it

is blown. To remove or insert the fuse,

use the removal tool in the motor

compartment fuse panel.

5. Push in a new fuse of the same rating,

and make sure it fits tightly in the clips.

If it fits loosely, consult an authorized

HYUNDAI dealer.

9-37

Maintenance

Fuse/Relay Panel Description

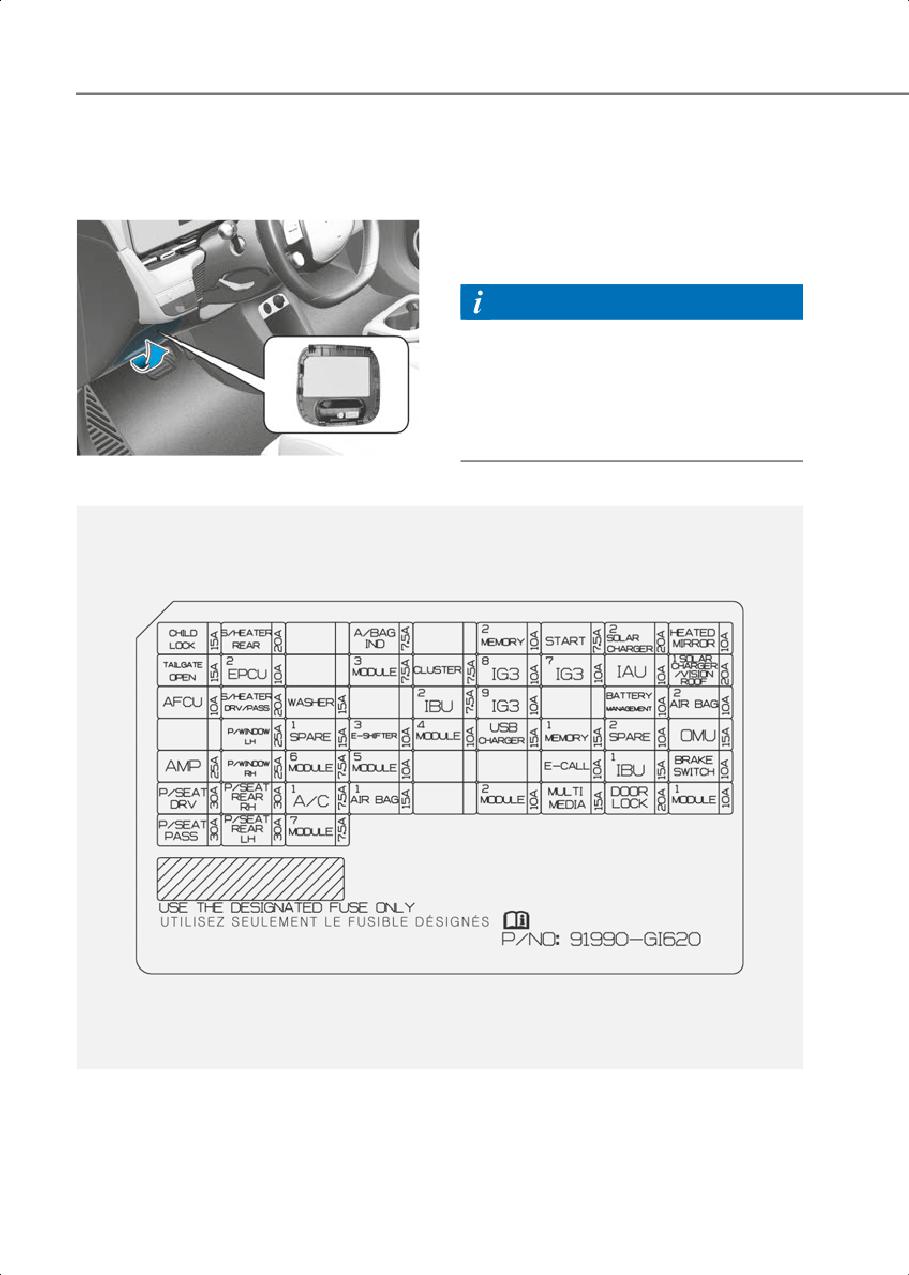

Instrument panel fuse panel

Inside the fuse/relay box cover, you can

find the fuse/relay label describing

fuse/relay names and ratings.

Information

Not all fuse panel descriptions in this

manual may be applicable to your vehicle;

the information is accurate at the time of

printing. When you inspect the fuse box

on your vehicle, refer to the fuse box

label.

ONE1091012

ONE1091046N

9-38

9

Instrument panel fuse panel

Fuse Name

Fuse Rating

Circuit Protected

Child Lock

15A

Child Lock Relay, Child Unlock Relay

A/BAG IND

7.5A

Overhead Console

MEMORY2

10A

Head-Up Display

START

7.5A

VCU, IBU

S/CHARGE2

20A

SDC

Driver Outside Mirror Unit, Passenger Outside Mirror

MIRR HTR

10A

Unit

T/GATE

15A

Liftgate Release Relay

EPCU2

10A

Rear Inverter

Multifunction Switch, IBU, Stop Lamp Switch, Driver

MODULE3

7.5A

Door Module

CLUSTER

7.5A

Head-Up Display, Instrument Cluster

V2L Unit, ICCU, VCMS, Rear Electronic Oil Pump,

IG3 8

10A

CDM

Incar Temperature Sensor, A/V & Navigation Head

IG3 7

10A

Unit, A/C PTC Heater, A/C Control Module,

Instrument Cluster, High-Voltage Charging Lamp

IAU

10A

IAU, BLE UNIT

S/CHARGER/VISION

20A

SDC, Vison Roof

ROOF

AFCU

10A

AFCU, Driver/Passenger Door Outside Handle

9-39

Maintenance

Instrument panel fuse panel

Fuse Name

Fuse Rating

Circuit Protected

Front Air Ventilation Seat Control Module, Front Seat

FRT SEAT HEATER

20A

Warmer Control Module

WASHER

15A

Multifunction Switch

IBU2

7.5A

IBU

IG3 9

10A

SCU, Rear Inverter, BMU

BMS

10A

BMU

A/BAG2

10A

SRS Control Module

Driver Safety Power Window Module, Passenger

WIN LH

25A

Safety Power, Rear Power Window Switch LH

SPARE1

15A

Not Used

E-SHIFTER3

10A

Electronic ATM Shift Lever

Front/Rear Corner Radar LH/RH, Front/Rear Inverter,

MODULE4

10A

Crash Pad Switch, ADAS Driving ECU, VESS Unit,

Front Radar, Front View Camera, ADAS Parking ECU

USB CHARGER

15A

Front USB Charger #1, Front USB Charger #2

9-40

9

Instrument panel fuse panel

Fuse Name

Fuse Rating

Circuit Protected

ICU Junction Block (Fuse F6), Instrument Cluster,

MEMORY1

15A

A/C Control Module, Mood Lamp Unit

SPARE2

10A

Not Used

Driver/Passenger Outside Mirror Unit, Driver Door

OMU

15A

Module

AMP

25A

AMP

Passenger Safety Power Window Module, Driver

WIN RH

25A

Safety Power, Rear Power Window Switch RH

MODULE6

7.5A

IBU, IAU

Data Link Connector, Electro Chromic Mirror, E-CALL

Unit, A/V & Navigation Head Unit, Crash Pad Switch,

Head Lamp LH/RH, SDC, AMP, Smart Phone Wireless

MODULE5

10A

Charger, Driver/Passenger Power Seat Module, Front

Air Ventilation Seat Control Module, Front Seat

Warmer Control, Module, Rear Power Seat LH/RH

Module

E-CALL

10A

Not Used

IBU1

15A

IBU

BRAKE SWITCH

10A

Stop Lamp Switch, IBU

Driver Power Seat Switch, Driver Power Seat Module

P/SEAT DRV

30A

(With IMS)

9-41

Maintenance

Instrument panel fuse panel

Fuse Name

Fuse Rating

Circuit Protected

P/SEAT RR RH

30A

Rear Power Seat RH Module

A/C1

7.5A

A/C Control Module

A/BAG1

15A

SRS Control Module

AMP, P/E Junction Block (Power Outlet Relay

MODULE2

10A

(RLY.11)), IBU, ADAS Unit (Parking), A/V & Navigation

Keyboard, A/V & Navigation Head Unit

MULTIMEDIA

15A

A/V & Navigation Head Unit

DR LOCK

20A

Door Lock Relay, Door Unlock Relay

Hazard Lamp Switch, Multifunction Switch, Data

Link Connector, Rain Sensor, P/R Junction Block

(Blower Relay (RLY.9)), Driver/Passenger Door

MODULE1

10A

Speaker Mood Lamp, Driver/Passenger Door Arm

Rest Mood Lamp, Rear Door Mood Lamp LH/RH,

PTG Unit, Rear Power Seat LH/RH Module,

Driver/Passenger Power Seat Module

Passenger Power Seat Switch, Passenger Power Seat

P/SEAT PASS

30A

Module

P/SEAT RR LH

30A

Rear Power Seat LH Module

9-42

9

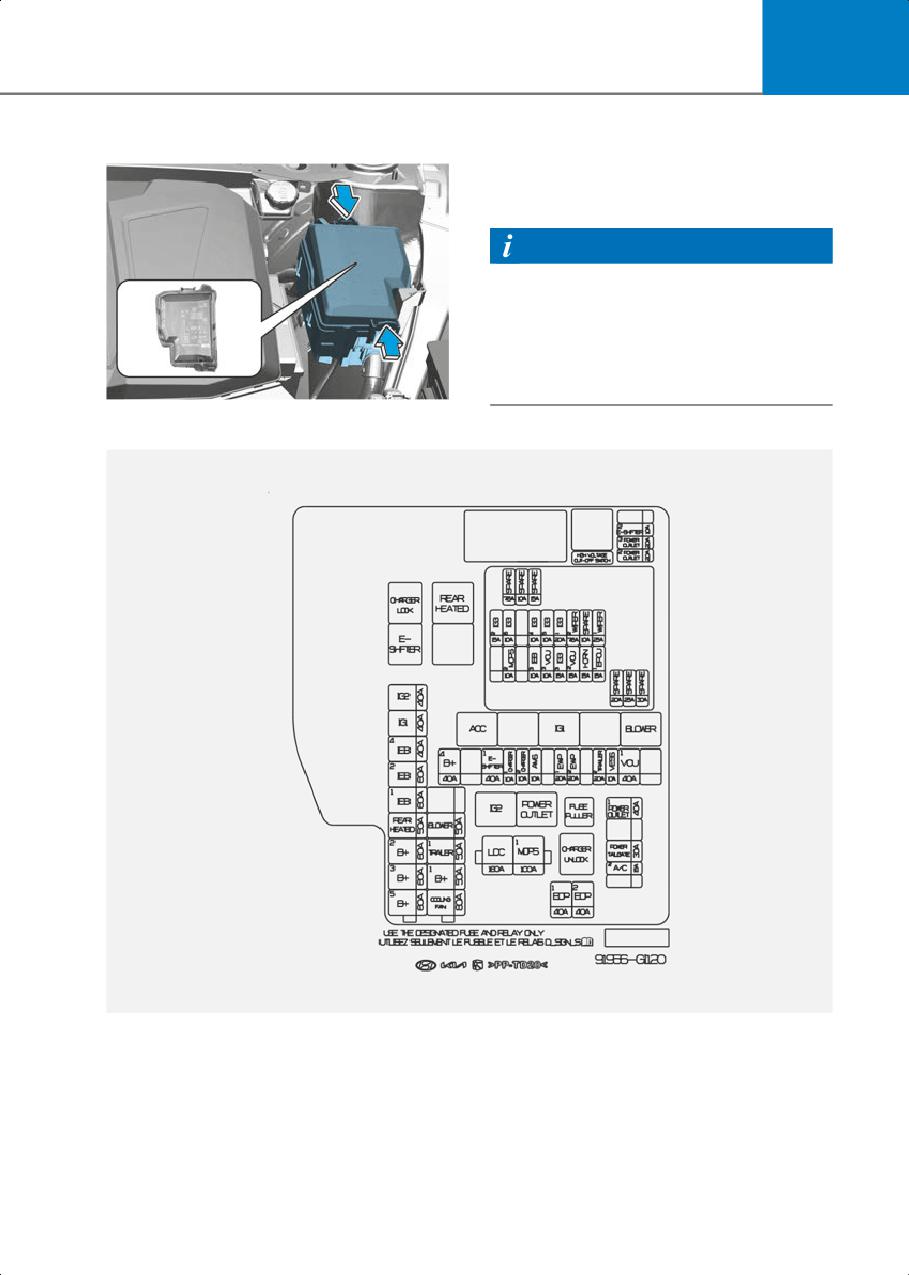

Motor compartment fuse panel

Inside the fuse/relay box cover, you can

find the fuse/relay label describing

fuse/relay names and ratings.

Information

Not all fuse panel descriptions in this

manual may be applicable to your vehicle;

the information is accurate at the time of

printing. When you inspect the fuse panel

in your vehicle, refer to the fuse panel

label.

ONE1091013

ONE1091047N

9-43

Maintenance

Motor compartment fuse panel

Type

Fuse Name

Fuse Rating

Circuit Protected

P/R Junction Block (Fuse : F15, F17, F20,

LDC

180A

F21)

MULTIFUSE-1

MDPS1

100A

MDPS Unit

PCB Block (IG3 Main Relay, Fuse : F1, F2, F3,

B+5

60A

F4, F6)

ICU Junction Block (Fuse : F1, F2, F10, F11,

B+3

60A

F19, F20,F29, F37, F38, F46, F47, F55, F56)

ICU Junction Block (IPS1, IPS4, IPS6, IPS8,

B+2

60A

IPS9, IPS10)

RR HTD

50A

P/R Junction Block (RLY.3)

MULTIFUSE-2

IEB1

60A

IEB Unit

IEB2

60A

IEB Unit

IEB4

40A

Multipurpose Check Connector

IG1

40A

P/R Junction Block (RLY.5, RLY.7)

IG2

40A

P/R Junction Block (RLY.10)

C/FAN

80A

Cooling Fan Motor

B+1

50A

ICU Junction Block (IPS2, IPS3, IPS4, IPS5)

MULTIFUSE-3

TRAILER1

50A

Trailer Connector Unit

BLOWER

50A

P/R Junction Block (RLY.9)

9-44

9

Type

Fuse Name

Fuse Rating

Circuit Protected

ICU Junction Block (Long Term Load Latch

B+4

40A

Relay, Fuse : F8, F17, F18, F26, F27, F35, F36,

F45, F44, F53, F54)

E-SHIFTER1

40A

P/R Junction Block (RLY.2, Fuse : F22)

P/R Junction Block (RLY.1, RLY.12), ICCU,

CHARGER1

10A

VCMS

CHARGER2

10A

CDM

AMS

10A

12V Battery Sensor

EWP1

20A

Electronic Water Pump #1

EWP2

20A

Electronic Water Pump #2

TRAILER2

20A

Trailer Connector Unit

FUSE

VESS

10A

VESS Unit

VCU1

40A

VCU

P/OUTLET1

40A

P/R Junction Block (RLY.11)

T/GATE

30A

PTG Unit

A/C2

15A

A/C Control Module

EOP1

40A

Rear Electronic Oil Pump

EOP2

40A

Front Electronic Oil Pump (AWD)

P/R Junction Block (RLY.2), SCU, Electronic

E-SHIFTER2

10A

ATM Shift Lever

P/OUTLET3

20A

Rear Power Outlet

P/OUTLET2

20A

Front Power Outlet

9-45

Maintenance

Fuse Name

Fuse Rating

Circuit Protected

WIPER1

25A

PCB Block (Wiper Main Relay)

EPCU1

15A

Front Inverter (AWD)

PCB Block (Horn Relay), PCB Block (Burglar Alarm

HORN

15A

Horn Relay)

WIPER2

7.5A

IBU

VCU2

15A

VCU

IG3 1

20A

ICU Junction Block (Fuse : F14, F16, F24)

IG3 3

15A

Electronic Water Pump

IG3 5

10A

BMS Coolant 3Way Valve

VCU3

10A

VCU

A/C Coolant Valve, Electronic Water Pump #1, #2,

IG3 4

10A

Electronic A/C Compressor

IEB3

10A

Multipurpose Check Connector, IEB Unit

IG3 6

10A

Cooling Fan Motor, Front Electronic Oil Pump (AWD)

MDPS2

10A

MDPS Unit

IG3 2

15A

Front Inverter (AWD), VCU

9-46

9

Light Bulbs

Information

Consult an authorized HYUNDAI dealer to

Headlight desiccant (if equipped)

replace most vehicle light bulbs. It is

This vehicle is equipped with desiccant to

difficult to replace vehicle light bulbs

reduce fogging inside the headlight due

because other parts of the vehicle must

to moisture. The desiccant is consumable

be removed before you can get to the

and its performance may change based

bulb. This is especially true for removing

on the used period or environment. If

the headlight assembly to get to the

fogging inside the headlight due to

bulb(s).

moisture continues for a long time,

Removing/installing the headlight

consult an authorized HYUNDAI dealer.

assembly can result in damage to the

vehicle.

WARNING

Information

• Prior to working on a light, depress the

The headlight and tail lamp lenses could

foot brake, shift to P (Park), apply the

appear frosty if the vehicle is washed after

parking brake, press the Start/Stop

driving or the vehicle is driven at night in

button to the OFF position and take the

wet weather. This condition is caused by

key with you when leaving the vehicle

temperature difference between the

to avoid sudden movement of the

lamp inside and outside and, it does not

vehicle and to prevent possible electric

indicate a problem with your vehicle.

shock.

When moisture condenses in the lamp, it

will be removed after driving with the

• Be aware the bulbs may be hot and may

headlight on. The removable level may

burn your fingers.

differ depending on lamp size, lamp

position and environmental condition.

However, if moisture is not removed,

NOTICE

have your vehicle inspected by an

authorized HYUNDAI dealer.

Be sure to replace the burned-out bulb

with one of the same wattage rating.

Otherwise, it may cause damage to the

fuse or electrical wiring system.

NOTICE

To prevent damage, do not clean the

headlight lens with chemical solvents or

strong detergents.

9-47

Maintenance

Headlight, Parking Lamp, Turn

Information

Signal Lamp, Daytime

• A normally functioning lamp may flicker

Running Light (DRL)

momentarily to stabilize the vehicle’s

Replacement

electrical control system. However, if

Type A

the lamp goes out after flickering

momentarily, or continues to flicker,

have the system checked by an

authorized HYUNDAI dealer.

• The Parking lamp may not turn on when

the Parking lamp switch is turned on,

but the Parking lamp and headlight

switch may turn on when the headlight

switch is turned on. This may be caused

by network failure or vehicle electrical

control system malfunction. If this

occurs, have the system checked by an

ONE1091014N

authorized HYUNDAI dealer.

(1) Headlight (High/Low)

(2) Headlight (Low)

(3) Turn signal lamp (Bulb type)

Information

(4) Parking lamp/Daytime running light

(DRL)

The headlight aiming should be adjusted

after an accident or after the headlight

(5) Front side marker (LED)

assembly is reinstalled.

Type B

ONE1092015N

(1) Headlight (Low)

(2) Headlight (High)

(3) Parking lamp/Daytime running

light/Turn signal lamp (LED) (if

equipped)

(4) Front side marker (LED) (if equipped)

(5) Garnish hidden lighting (if equipped)

(6) Charging display lamp (If equipped)

9-48

9

If the LED lamp does not operate, have

• If a bulb becomes damaged or cracked,

the system inspected by an authorized

replace it immediately and carefully

HYUNDAI dealer.

dispose of it.

The LED lamps cannot be replaced as a

• Replacing the bulb may cause damage

single unit because it is an integrated unit.

to the bulb relevant parts of the vehicle,

The LED lamps has to be replaced with

and also may cause injuries. To replace

the unit.

the turn signal lamp, visit an authorized

HYUNDAI dealer.

A skilled technician should check or repair

the LED lamp, for it may damage related

parts of the vehicle.

Side Repeater Lamp

Replacement

Turn signal lamp (bulb type)

1. Engage the parking brake and

disconnect the negative battery cable.

2. Remove wheel guard clips (under the

front bumper).

3. Push the wheel guard aside and remove

the bulb socket by turning it

counterclockwise.

4. Remove the bulb from the socket by

pressing it in and rotating it

counterclockwise until the tabs on the

bulb align with the slots in the socket.

ONE1091029

If the LED lamp (1) does not operate, have

Pull the bulb out of the socket.

the system inspected by an authorized

5. Install a new bulb by inserting it into the

HYUNDAI dealer.

socket and rotating it until it locks into

The LED lamps cannot be replaced as a

place.

single unit because it is an integrated unit.

6.Push the socket into the assembly and

The LED lamps has to be replaced with

turn the socket clockwise.

the unit.

7. Install the wheel guard in the reverse

A skilled technician should check or repair

order.

the LED lamp, for it may damage related

parts of the vehicle.

WARNING

• Wear eye protection when changing a

bulb. Allow the bulb to cool down

before handling it.

• Always handle them carefully, and

avoid scratches and abrasions. If the

bulbs are lit, avoid contact with liquids.

• Never touch the glass with bare hands.

Residual oil may cause the bulb to

overheat and burst when lit.

• A bulb should be operated only when

installed in a turn signal lamp.

9-49

Maintenance

Rear Combination Lamp

Reverse lamp (bulb type)

Replacement

1. Disconnect the negative battery cable.

Type A

2. Loosen the retaining clips under the

bumper and screws on the wheel house

trim.

3. Prey trim under the bumper toward the

vehicle.

4. Remove the socket from the assembly

by turning the socket counterclockwise

until the tabs on the socket align with

the slots on the assembly.

5. Remove the bulb by pulling it straight

out.

ONE1091017N

6. Insert a new bulb in the socket.

Type B

7. Reinstall the light assembly to the body

of the vehicle.

WARNING

•

Wear eye protection when changing a

bulb. Allow the bulb to cool down

before handling it.

•

Always handle them carefully, and

avoid scratches and abrasions. If the

bulbs are lit, avoid contact with liquids.

•

Never touch the glass with bare hands.

ONE1091018N

Residual oil may cause the bulb to

(1) Rear lamp/Stop lamp

overheat and burst when lit.

(2) Stop lamp/Turn signal lamp

•

A bulb should be operated only when

(3) Reverse lamp

installed in a turn signal lamp.

- Type A : Bulb

•

If a bulb becomes damaged or cracked,

- Type B : LED (if equipped)

replace it immediately and carefully

dispose of it.

(4) Rear side marker (LED)

•

Replacing the bulb may cause damage

If the LED lamp does not operate, have

to the bulb relevant parts of the vehicle,

the system inspected by an authorized

and also may cause injuries. To replace

HYUNDAI dealer.

the turn signal lamp, visit an authorized

The LED lamps cannot be replaced as a

HYUNDAI dealer.

single unit because it is an integrated unit.

The LED lamps has to be replaced with

the unit.

A skilled technician should check or repair

the LED lamp, for it may damage related

parts of the vehicle.

9-50

9

High Mounted Stop Lamp

A skilled technician should check or repair

the LED lamp, for it may damage related

Replacement

parts of the vehicle.

Front Trunk Lamp

Replacement

ONE1091019K

If the LED lamp (1) does not operate, have

the system inspected by an authorized

HYUNDAI dealer.

The LED lamps cannot be replaced as a

ONE1091021

single unit because it is an integrated unit.

If the LED lamp (1) does not operate, have

The LED lamps has to be replaced with

the system inspected by an authorized

the unit.

HYUNDAI dealer.

A skilled technician should check or repair

The LED lamps cannot be replaced as a

the LED lamp, for it may damage related

single unit because it is an integrated unit.

parts of the vehicle

The LED lamps has to be replaced with

the unit.

License Plate Lamp

A skilled technician should check or repair

the LED lamp, for it may damage related

Replacement

parts of the vehicle.

ONE1091020

If the LED lamp (1) does not operate, have

the system inspected by an authorized

HYUNDAI dealer.

The LED lamps cannot be replaced as a

single unit because it is an integrated unit.

The LED lamps has to be replaced with

the unit.

9-51

Maintenance

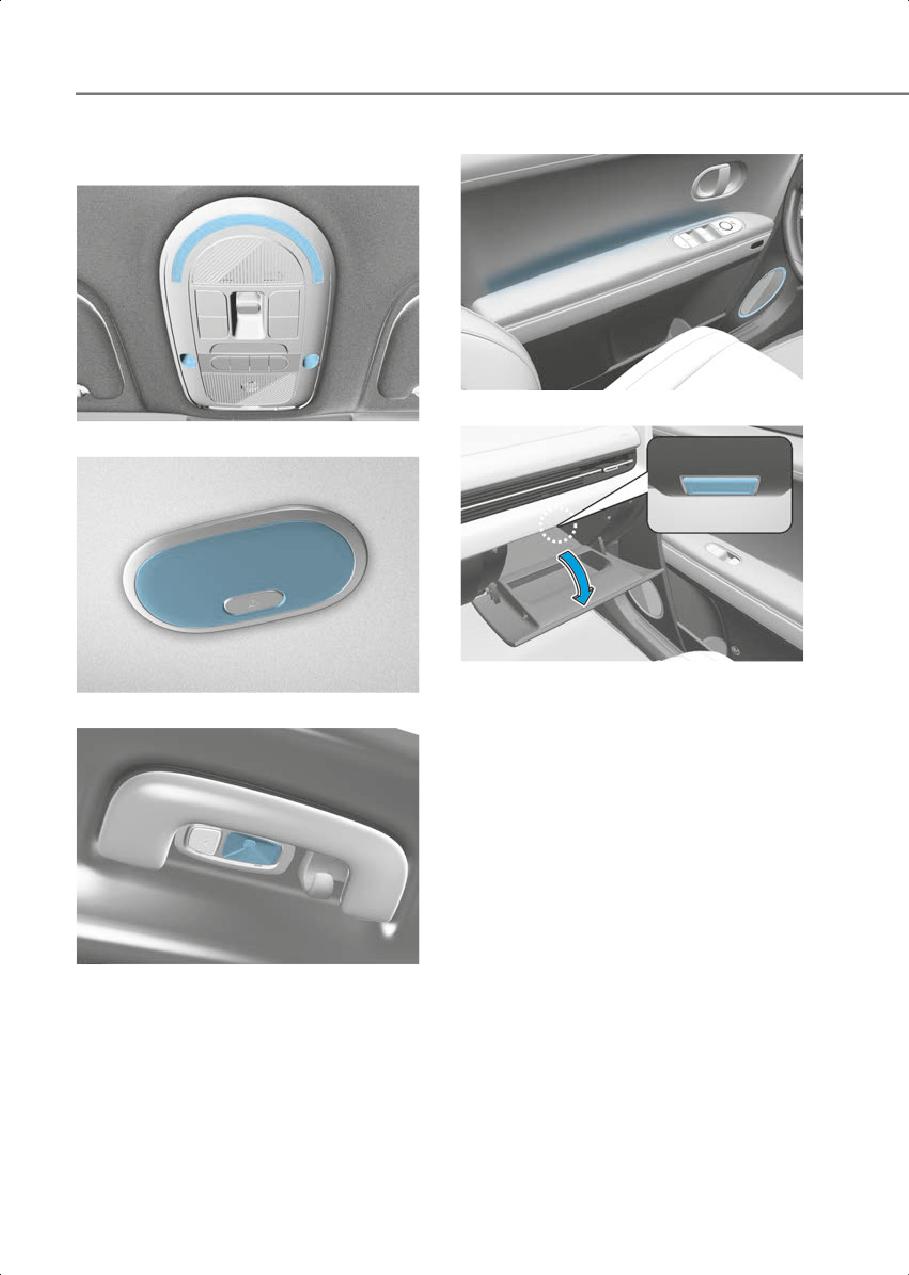

Mood lamp (if equipped)

Interior Light Replacement

First row lamp (if equipped)

ONE1091026

Glove box lamp

ONE1091022

Rear seat room lamp (without vision roof/solar roof)

ONE1091025N

If the LED lamps do not operate, have the

ONE1091023

system inspected by an authorized

Rear seat personal lamp (with vision roof/solar roof)

HYUNDAI dealer.

The LED lamps cannot be replaced as a

single unit because it is an integrated unit.

The LED lamps has to be replaced with

the unit.

A skilled technician should check or repair

the LED lamp, for it may damage related

parts of the vehicle.

ONE1091024

9-52

9

Vanity mirror lamp and luggage

Appearance Care

compartment lamp (Bulb type)

Vanity mirror lamp

Exterior Care

NOTICE

If you park your vehicle near a stainless

steel sign or glass facade building, the

vehicle’s exterior plastic parts such as a

bumper, spoiler, garnish, lamp or side

view mirror might be damaged due to

sunlight reflected from the sign or

building. To prevent damage of the

exterior plastic parts, you should avoid

parking in areas where light may be

OJS078041

reflected or use a car cover. (The exterior

Luggage compartment lamp

plastic parts applied to your vehicle may

vary.)

Exterior general caution

It is very important to follow the label

directions when using any chemical

cleaner or polish. Read all warning and

caution statements that appear on the

label.

ONE1091027

Finish maintenance

1. Apply the parking brake and place the

Start/Stop button in the OFF position.

Washing

2. Turn off the lights.

To help protect your vehicle’s finish from

rust and deterioration, wash it thoroughly

3. Using a flat-head screwdriver, gently

and frequently at least once a month with

pry the lens from the interior light

lukewarm or cold water.

housing.

If you use your vehicle for off-road

4. Remove the bulb by pulling it straight

driving, you should wash it after each

out.

off-road trip. Pay special attention to the

5. Insert a new bulb into the socket.

removal of any accumulation of salt, dirt,

6.Align the lens tabs with the interior light

mud, and other foreign materials. Make

housing notches and snap the lens into

sure the drain holes in the lower edges of

place.

the doors and rocker panels are kept clear

and clean.

NOTICE

Insects, tar, tree sap, bird droppings,

Use care not to dirty or damaged lenses,

industrial pollution and similar deposits

lens tabs, and plastic housings.

can damage your vehicle’s finish if not

removed immediately.

9-53

Maintenance

Even prompt washing with plain water

NOTICE

may not completely remove all these

deposits. A mild soap, safe for use on

• Do not use strong soap, chemical

painted surfaces, should be used.

detergents or hot water, and do not

After washing, rinse the vehicle

wash the vehicle in direct sunlight or

thoroughly with lukewarm or cold water.

when the body of the vehicle is warm.

Do not allow soap to dry on the finish.

• Be careful when washing the side

windows of your vehicle.

High-pressure washing

• Especially, with high-pressure water,

• When using high-pressure washers,

water may leak through the windows

make sure to maintain sufficient

and wet the interior.

distance from the vehicle.

• To prevent damage to the plastic parts,

Insufficient clearance or excessive

do not clean with chemical solvents or

pressure can lead to component

strong detergents.

damage or water penetration.

• Do not spray the camera, sensors or its

surrounding area directly with a high

NOTICE

pressure washer. Shock applied from

high pressure water may cause the

device to not operate normally.

• Do not bring the nozzle tip close to

boots (rubber or plastic covers) or

connectors as they may be damaged if

they come into contact with high

pressure water.

WARNING

After washing the vehicle, test the brakes

while driving slowly to see if they have

ONE1091028

been affected by water before getting on

• Water washing in the motor

the road. If braking performance is

compartment including high pressure

impaired, dry the brakes by applying

water washing may cause the failure of

them lightly while maintaining a slow

electrical circuits located in the vehicle

forward speed.

compartment.

• Never allow water or other liquids to

come in contact with

electrical/electronic components

inside the vehicle as water or other

liquids may flow in to the motor

compartment through the front trunk

and damage electrical/electronic

components.

9-54

9

NOTICE

NOTICE

Matte paint finish vehicle (if equipped)

• Wiping dust or dirt off the body with a

dry cloth will scratch the finish.

Automatic car wash which uses rotating

brushes should not be used as this can

• Do not use steel wool, abrasive

damage the surface of your vehicle. A

cleaners, or strong detergents

steam cleaner which washes the vehicle

containing highly alkaline or caustic

surface at high temperature may result

agents on chrome-plated or anodized

the oil to adhere and leave stains that is

aluminum parts. This may result in

difficult to remove.

damage to the protective coating and

cause discoloration or paint

Use a soft cloth (for example, microfiber

deterioration.

towel or sponge) when washing your

vehicle and dry with a microfiber towel.

When you hand wash your vehicle, you

should not use a cleaner that finishes with

NOTICE

wax. If the vehicle surface is too dirty

(sand, dirt, dust, contaminant, etc.), clean

Matte paint finish vehicle (if equipped)

the surface with water before washing

Do not use any polish protector such as a

the car.

detergent, an abrasive and a polish. In

case wax is applied, remove the wax

immediately using a silicon remover and

Waxing

if any tar or tar contaminant is on the

A good coat of wax is a barrier between

surface use a tar remover to clean.

your paint and contaminate. Keeping a

However, be careful not to apply too

good coat of wax on your vehicle will help

much pressure on the painted area.

protect it.

Wax the vehicle when water will no longer

Finish damage repair

bead on the paint.

Deep scratches or stone chips in the

Always wash and dry the vehicle before

painted surface must be repaired

waxing. Use a good quality liquid or paste

promptly. Exposed metal will quickly rust

wax, and follow the manufacturer’s

and may develop into a major repair

instructions. Wax all metal trim to protect

expense.

it and to maintain its luster.

Removing oil, tar, and similar materials

NOTICE

with a spot remover will usually strip the

wax from the finish. Be sure to re-wax

If your vehicle is damaged and requires

these areas even if the rest of the vehicle

any metal repair or replacement, be sure

does not yet need waxing.

the body shop applies anti-corrosion

materials to the parts repaired or

replaced.

9-55

Maintenance

Underbody maintenance

NOTICE

Corrosive materials used for ice and snow

Matte paint finish vehicle (if equipped)

removal and dust control may collect on

In case of matte paint finish vehicles, it is

the underbody. If these materials are not

impossible to modify only the damaged

removed, accelerated rusting can occur

area and repair of the whole part is

on underbody parts such as the frame and

necessary. If the vehicle is damaged and

floor pan, even though they have been

painting is required, have your vehicle

treated with rust protection.

maintained and repaired by an authorized

Thoroughly flush the vehicle underbody

HYUNDAI dealer. Take extreme care, as it

and wheel openings with lukewarm or

is difficult to restore the quality after the

cold water once a month, after off-road

repair.

driving and at the end of each winter. Pay

special attention to these areas because it

is difficult to see all the mud and dirt. It

Bright-metal maintenance

will do more harm than good to wet down

• To remove road tar and insects, use a

the road grime without removing it. The

tar remover, not a scraper or other

lower edges of doors, rocker panels, and

sharp object.

frame members have drain holes that

should not be allowed to clog with dirt;

• To protect the surfaces of brightmetal

trapped water in these areas can cause

parts from corrosion, apply a coating of

rusting.

wax or chrome preservative and rub to

a high luster.

WARNING

• During winter weather or in coastal

areas, cover the bright metal parts with

After washing the vehicle, test the brakes

a heavier coating of wax or

while driving slowly to see if they have

preservative. If necessary, coat the

been affected by water. If braking

parts with non-corrosive petroleum

performance is impaired, dry the brakes

jelly or other protective compound.

by applying them lightly while

maintaining a slow forward speed.

Aluminum wheel maintenance

The aluminum wheels are coated with a

clear protective finish.

• Do not use abrasive cleaner, polishing

compound, solvent, or wire brushes on

aluminum wheels.

• Clean the wheel when it has cooled.

• Use only a mild soap or neutral

detergent, and rinse thoroughly with

water. Also, clean the wheels after

driving on salted roads.

• Do not wash the wheels with

high-speed car wash brushes.

• Do not use any cleaners containing acid

or alkaline detergents.

9-56

9

Fabric

NOTICE

if equipped

•

Wrinkles or abrasions which appear

Remove dust and loose dirt from fabric

naturally from usage are not covered by

with a whisk broom or vacuum cleaner.

warranty.

Clean with a mild soap solution

recommended for upholstery or carpets.

•

Belts with metallic accessories, zippers

Remove fresh spots immediately with a

or keys inside the back pocket may

fabric spot cleaner. If fresh spots do not

damage the seat fabric.

receive immediate attention, the fabric

•

Make sure not to wet the seat. It may

can be stained and its color can be

change the nature of natural leather.

affected. Also, its fire-resistant properties

•

Jeans or clothes which could bleach

can be reduced if the material is not

may contaminate the surface of the

properly maintained.

seat covering fabric.

NOTICE

•

Caring for the leather seats

- Vacuum the seat periodically to

Using anything but recommended

remove dust and sand on the seat. It

cleaners and procedures may affect the

will prevent abrasion or damage of

fabric’s appearance and fire-resistant

the leather and maintain its quality.

properties.

- Wipe the natural leather seat cover

often with dry or soft cloth.

Leather

- Use of proper leather protector may

if equipped

prevent abrasion of the cover and

• Features of seat leather

helps maintain the color. Be sure to

read the instructions and consult a

- Leather is made from the outer skin

specialist when using leather coating

of an animal, which goes through a

or protective agent.

special process to be available for

use. Since it is a natural product, each

- Light colored (beige, cream beige)

part differs in thickness or density.

leather is easily contaminated and

the stain is noticeable. Clean the

Wrinkles may appear as a natural

seats frequently.

result of stretching and shrinking

depending on the temperature and

- Avoid wiping with wet cloth. It may

humidity.

cause the surface to crack.

- The seat is made of stretchable fabric

•

Cleaning the leather seats

to improve comfort.

- Remove all contaminations instantly.

- The parts contacting the body are

Refer to instructions below for

curved and the side supporting area

removal of each contaminant.

is high which provides driving

- Cosmetic products (sunscreen,

comfort and stability.

foundation, etc.)

- Wrinkles may appear naturally from

Apply cleansing cream on a cloth and

usage. It is not a fault of the products.

wipe the contaminated spot. Wipe

off the cream with a wet cloth and

remove water with a dry cloth.

9-59

Content      ..     5      6      7
