8-21

WARNING

If your vehicle is equipped with a rollover

sensor, place the ignition switch or press

Engine Start/Stop button in the

LOCK/OFF or ACC position when the

vehicle is being towed. The side impact

and curtain air bag may deploy if the

sensor detects the situation as a rollover.

When towing your vehicle in an

emergency without wheel dollies:
1. Release EPB before turning off the

engine.

2. Place the ignition switch or press the

ignition switch to ON/OFF position.

3. Change the gear to N (Neutral) while

pressing the brake pedal. For more

details, refer to “Automatic

Transmission” section in chapter 6.

4. Place the ignition switch to the ACC

position.

CAUTION

Failure to shift the gear to N (Neutral) may

cause internal damage to the

transmission.

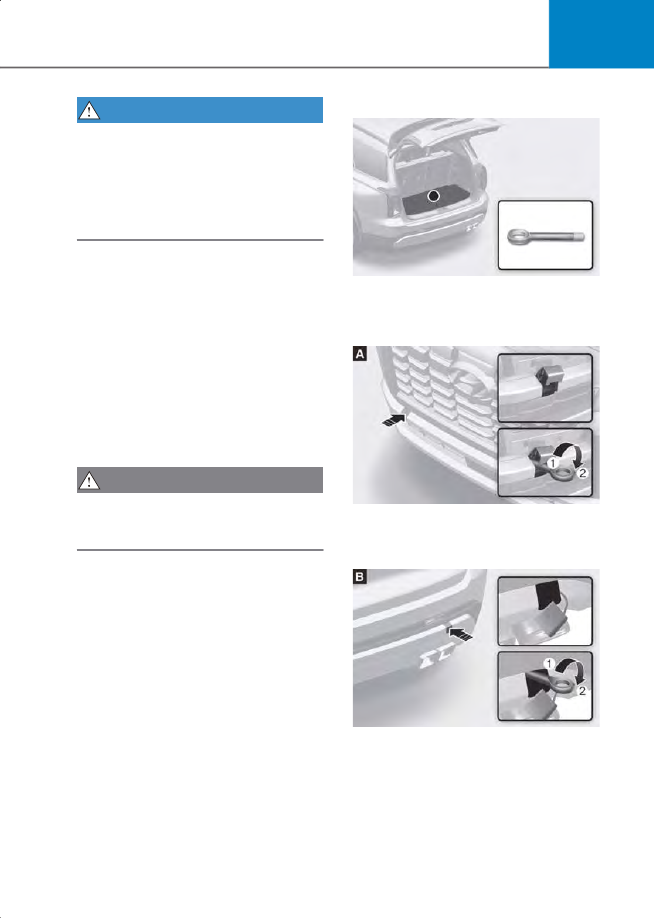

Removable Towing Hook

B0413KO01

1. Open the liftgate, and remove the

towing hook from the tool case.

2. Remove the hole cover.

B0413KO02

[A] : Front

• Push the lower part of the bumper hole

cover.

B0413KO03

[B] : Rear

• Push the left part of the bumper hole

cover.

CarManuals2.com

Emergency Situations

8-22

3. Install the towing hook by turning it

clockwise into the hole until it is fully

secured.

4. Remove the towing hook and install the

cover after use.

NOTICE

Failure to properly tighten the towing

hook may result in vehicle damage and

deformation of related parts.

CAUTION

Make sure the towing hook is tighten

properly. If not, during towing the towing

hook may be thrown off the vehicle

resulting in serious injury or accident.

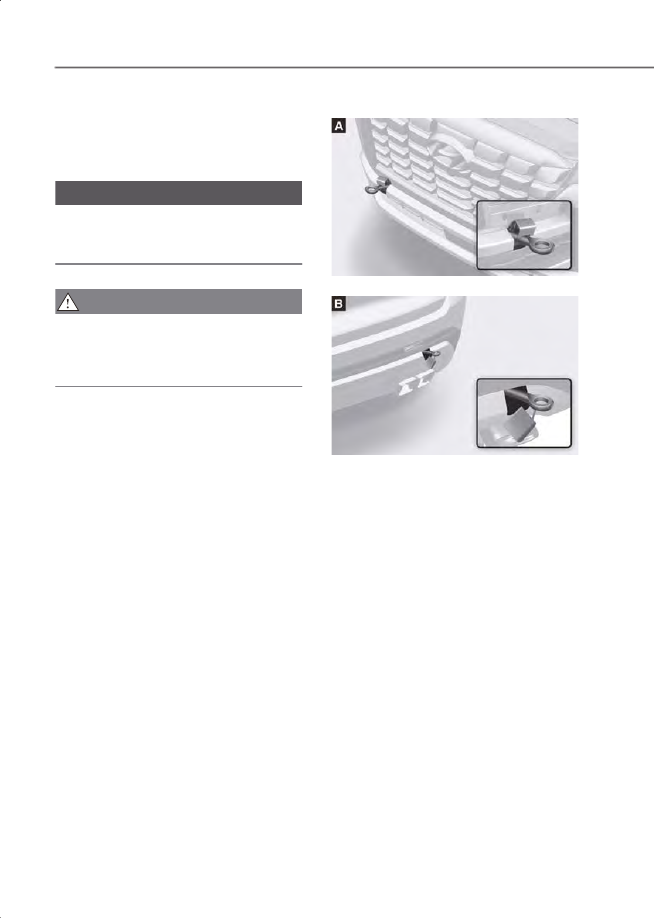

Emergency Towing

B0414KO01

B0414KO02

[A] : Front

[B] : Rear

If towing is necessary, have it done by an

authorized HYUNDAI dealer or a

commercial tow truck service.
If towing service is not available in an

emergency, your vehicle may be

temporarily towed using a cable or chain

secured to the emergency towing hook at

the front (or rear) of the vehicle.
Use extreme caution when towing the

vehicle with a cable or chain. A driver

must be in the vehicle to steer it and

operate the brakes.
Towing in this manner may be done only

on hard-surfaced roads for a short

distance and at low speeds. Also, the

wheels, axles, power train, steering and

brakes must all be in good working

condition.

CarManuals2.com

8-23

CAUTION

The driver must be in the vehicle for

steering and braking operations when the

vehicle is being towed. Passengers other

than the driver must not be in the vehicle.

Always follow these emergency towing

precautions:
• Place the ignition switch or press the

Engine Start/Stop button to the ACC

position so the steering wheel is not

locked.

• Shift the gear to N (Neutral).
• Release the parking brake.
• Depress the brake pedal with more

force than normal as you will have

reduced braking performance.

• More steering effort will be required

because the power steering system will

be disabled.

• Use a vehicle heavier than your own to

tow your vehicle.

• The drivers of both vehicles should

communicate with each other

frequently.

• Before emergency towing, check that

the hook is not broken or damaged.

• Fasten the towing cable or chain

securely to the hook.

• Do not jerk the hook. Apply steady and

even force.

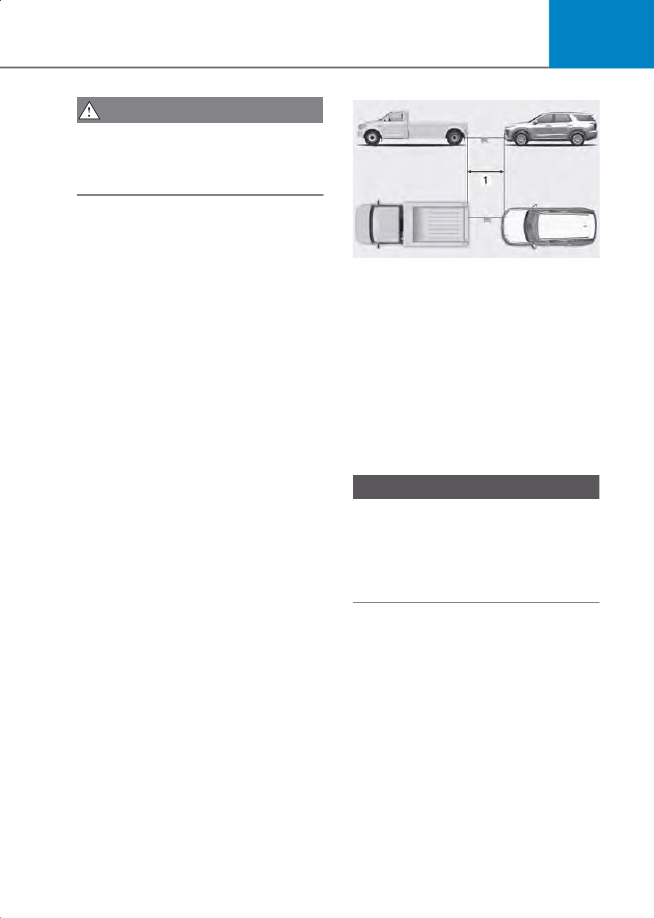

B0414EU01

(1) : Distance
• Use a towing cable or chain less than 16

ft. (5 m) long. Attach a white or red cloth

(about 12 in. (30 cm) wide) in the middle

of the cable or chain for easy visibility.

• Drive carefully so the towing cable or

chain remains tight during towing.

• Before towing, check the automatic

transmission for fluid leaks under your

vehicle. If the automatic transmission

fluid is leaking, flatbed equipment or a

towing dolly must be used.

NOTICE

Accelerate or decelerate the vehicle in a

slow and gradual manner while

maintaining tension on the tow rope or

chain to start or drive the vehicle,

otherwise tow hooks and the vehicle may

be damaged.

CarManuals2.com

Emergency Situations

8-24

NOTICE

To avoid damage to your vehicle and

vehicle components when towing:
• Always pull straight ahead when using

the towing hooks. Do not pull from the

side or at a vertical angle.

• Do not use the towing hooks to pull a

vehicle out of mud, sand or other

conditions from which the vehicle

cannot be driven out under its own

power.

• Limit the vehicle speed to 10 mph (15

km/h) and drive less than 1 mile (1.5 km)

when towing to avoid serious damage

to the automatic transmission.

CarManuals2.com

9. Maintenance

Engine Compartment Overview.....................................................................................9-4
Maintenance Services .....................................................................................................9-5

Owner’s Responsibility ................................................................................................9-5
Owner Maintenance Precautions ...............................................................................9-5

Owner Maintenance ........................................................................................................9-6

Owner Maintenance Schedule.................................................................................... 9-7

Scheduled Maintenance Services ..................................................................................9-8

Normal Maintenance Schedule ..................................................................................9-9
Normal Maintenance Schedule (Cont.).................................................................... 9-10
Normal Maintenance Schedule (Cont.)..................................................................... 9-11
Maintenance Under Severe Usage Conditions.........................................................9-12

Explanation Of Scheduled Maintenance Items........................................................... 9-14

Engine Oil ....................................................................................................................... 9-16

Checking the Engine Oil Level .................................................................................. 9-16
Checking the Engine Oil and Filter ............................................................................9-17

Engine Coolant .............................................................................................................. 9-18

Checking the Coolant Level ...................................................................................... 9-18
Changing Coolant ......................................................................................................9-20

CarManuals2.com

Brake Fluid...................................................................................................................... 9-21

Checking the Brake Fluid Level ................................................................................. 9-21

Washer Fluid...................................................................................................................9-22

Checking the Washer Fluid Level..............................................................................9-22

Air Cleaner ......................................................................................................................9-22

Filter Replacement .....................................................................................................9-22

Cabin Air Filter............................................................................................................... 9-24

Filter Inspection......................................................................................................... 9-24
Filter Replacement .................................................................................................... 9-24

Wiper Blades ................................................................................................................. 9-25

Blade Inspection........................................................................................................ 9-25
Blade Replacement ................................................................................................... 9-25

Battery ............................................................................................................................9-27

For Best Battery Service ........................................................................................... 9-28
Battery Capacity Label.............................................................................................. 9-29
Battery Recharging ................................................................................................... 9-29
Reset Items ................................................................................................................ 9-30

Tires And Wheels............................................................................................................ 9-31

Fuses .............................................................................................................................. 9-44

Instrument Panel Fuse Replacement....................................................................... 9-45

CarManuals2.com

9. Maintenance

Engine Compartment Panel Fuse Replacement .................................................... 9-46
Fuse/Relay Panel Description ...................................................................................9-47

Light Bulbs .....................................................................................................................9-56

Headlight, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL)

Appearance Care ...........................................................................................................9-62

Exterior Care...............................................................................................................9-62
Interior Care ...............................................................................................................9-67

Emission Control System ..............................................................................................9-70

1. Crankcase Emission Control System.....................................................................9-70
2. Evaporative Emission Control System including Onboard Refueling Vapor

Recovery (ORVR) .......................................................................................................9-70
3. Exhaust Emission Control System .........................................................................9-71

California Perchlorate Notice ....................................................................................... 9-72

CarManuals2.com

Maintenance

9-4

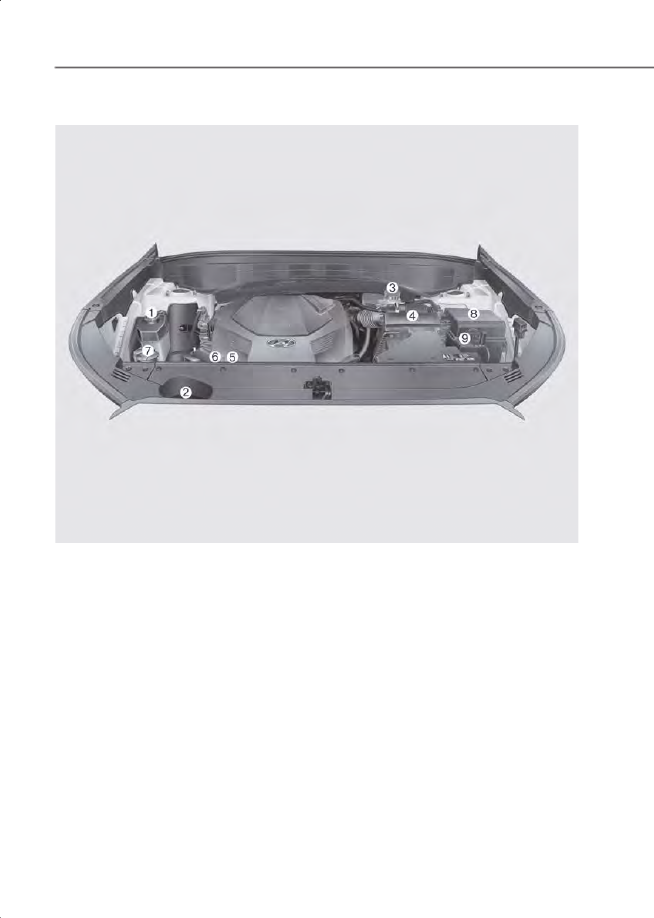

Engine Compartment Overview

A0419KO02

The actual engine compartment in the vehicle may differ from the illustration.

1. Engine coolant reservoir
2. Radiator cap
3. Brake fluid reservoir
4. Air cleaner
5. Engine oil filler cap
6.Engine oil dipstick
7. Windshield washer fluid reservoir
8.Fuse/relay box
9.Battery

CarManuals2.com

9-5

Maintenance Services

You should exercise the utmost care to

prevent damage to your vehicle and

injury to yourself whenever performing

any maintenance or inspection

procedures.
Have your vehicle maintained and

repaired by an authorized HYUNDAI

dealer. An authorized HYUNDAI dealer

meets HYUNDAI’s high service quality

standards and receives technical support

from HYUNDAI in order to provide you

with a high level of service satisfaction.

Owner’s Responsibility

Maintenance service and record

retention are the owner’s responsibility.
You should retain documents that show

proper maintenance has been performed

on your vehicle in accordance with the

scheduled maintenance service charts

shown on the following pages. You need

this information to establish your

compliance with the servicing and

maintenance requirements of your

vehicle warranties.
Detailed warranty information is provided

in your Owner’s Handbook & Warranty

Information booklet.
Repairs and adjustments required as a

result of improper maintenance or a lack

of required maintenance are not covered.

Owner Maintenance

Precautions

Inadequate, incomplete or insufficient

servicing may result in operational

problems with your vehicle that could

lead to vehicle damage, an accident, or

personal injury. This chapter provides

instructions only for the maintenance

items that are easy to perform. Several

procedures can be done only by an

authorized HYUNDAI dealer with special

tools.
Your vehicle should not be modified in

any way. Such modifications may

adversely affect the performance, safety

or durability of your vehicle and may, in

addition, violate conditions of the limited

warranties covering the vehicle.
Certain modifications may also be in

violation of regulations established by the

U.S. Department of Transportation and

other federal or state agencies.

NOTICE

Improper owner maintenance during the

warranty period may affect warranty

coverage. For details, read the separate

Owner’s Handbook & Warranty

Information booklet provided with the

vehicle. If you’re unsure about any service

or maintenance procedure, have it done

by an authorized HYUNDAI dealer.

CarManuals2.com

Maintenance

9-6

Owner Maintenance

WARNING

Performing maintenance work on a

vehicle can be dangerous. If you lack

sufficient knowledge and experience or

the proper tools and equipment to do the

work, have it done by an authorized

HYUNDAI dealer.
ALWAYS follow these precautions for

performing maintenance work:
• Park your vehicle on level ground. Shift

the vehicle to P (Park), apply the

parking brake, and place the ignition

switch to the OFF position.

• Block the tires (front and back) to

prevent the vehicle from moving.
Remove loose clothing or jewelry that

can become entangled in moving parts.

• If you must run the engine during

maintenance, do so out doors or in an

area with plenty of ventilation.

• Keep flames, sparks, or smoking

materials away from the battery and

fuel-related parts.

WARNING

Touching metal parts

Do not touch metal parts (including strut

bars) while the engine is operating or hot.

Doing so could result in serious personal

injury. Turn the engine off and wait until

the metal parts cool down to perform

maintenance work on the vehicle.

The following lists are vehicle checks and

inspections that should be performed by

the owner or an authorized HYUNDAI

dealer at the frequencies indicated to

help ensure safe, dependable operation

of your vehicle.
Any adverse conditions should be

brought to the attention of your dealer as

soon as possible.
These Owner Maintenance vehicle

checks are generally not covered by

warranties and you may be charged for

labor, parts and lubricants used.

CarManuals2.com

9-7

Owner Maintenance Schedule

When you stop for fuel:

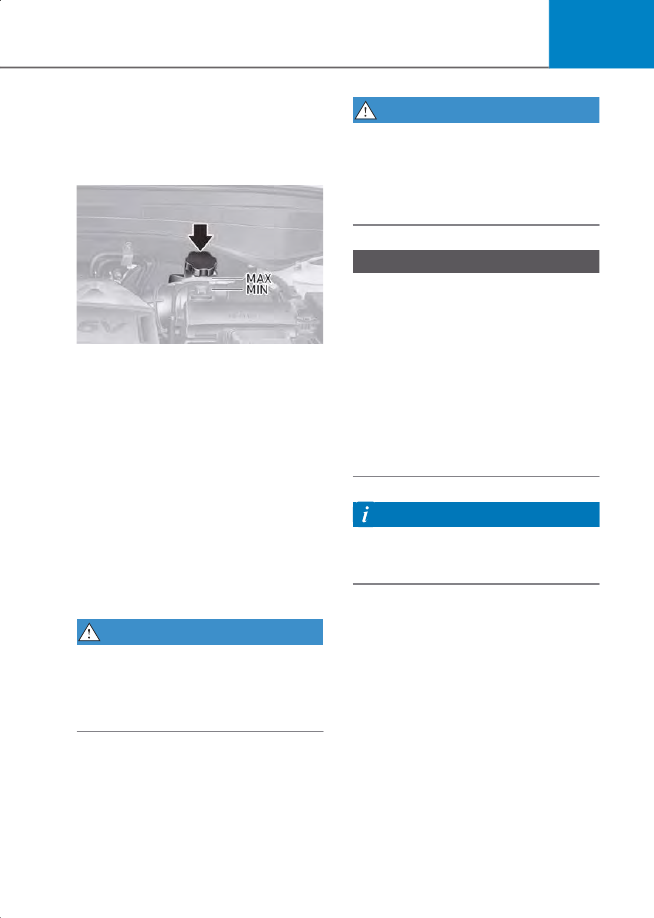

• Check the coolant level in the engine

coolant reservoir.

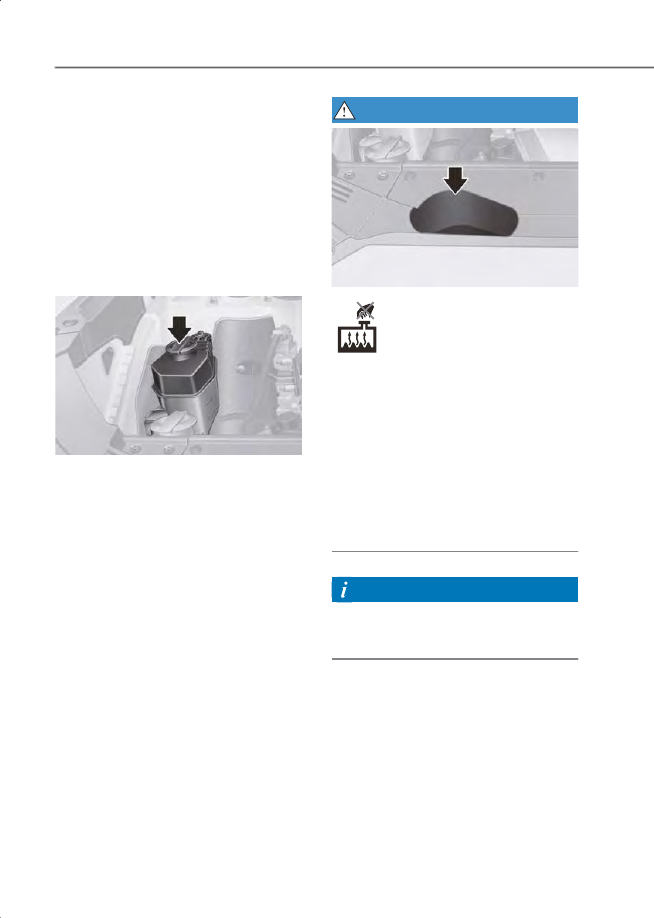

• Check the windshield washer fluid

level.

• Check for low or under-inflated tires.

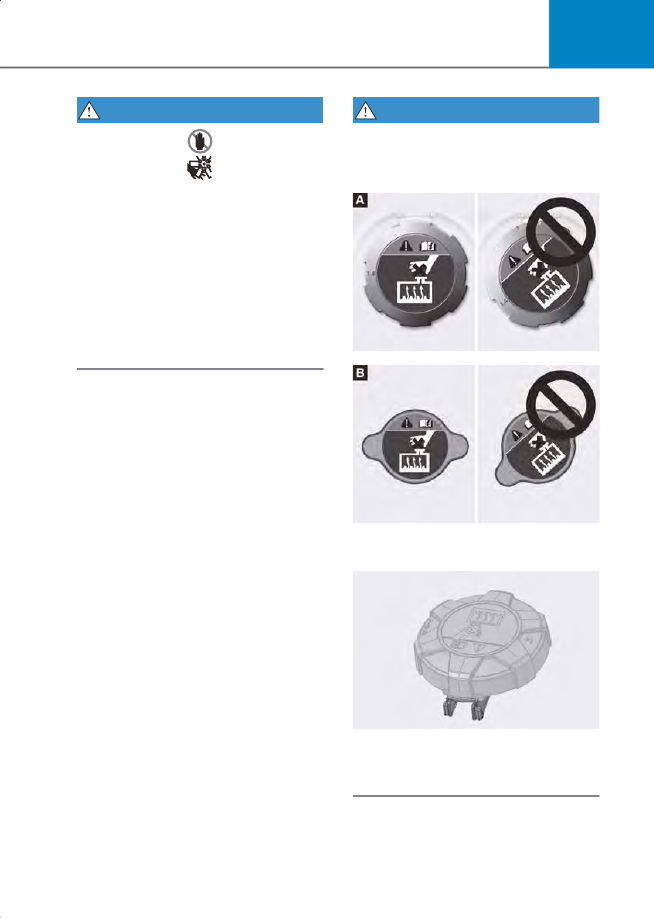

WARNING

Be careful when checking your coolant

level when the engine is hot. This may

result in coolant being blown out of the

opening and cause serious burns and

other injuries.

While operating your vehicle:

• Note any changes in the sound of the

exhaust or any smell of exhaust fumes

in the vehicle.

• Check for vibrations in the steering

wheel. Notice if there is any increased

steering effort or looseness in the

steering wheel, or change in its

straight-ahead position.

• Notice if your vehicle constantly turns

slightly or “pulls” to one side when

traveling on smooth, level road.

• When stopping, listen and check for

unusual sounds, pulling to one side,

increased brake pedal travel or

“hard-to-push” brake pedal.

• If any slipping or changes in the

operation of your transmission occurs,

check the transmission fluid level.

• Check the automatic transmission P

(Park) function.

• Check the parking brake.
• Check for fluid leaks under your vehicle

(water dripping from the air

conditioning system during or after use

is normal).

At least monthly:

• Check coolant level in the engine

coolant reservoir.

• Check the operation of all exterior

lights, including the stoplights, turn

signals and hazard warning flashers.

• Check the inflation pressures of all tires

including the spare for tires that are

worn, show uneven wear, or are

damaged.

• Check for loose wheel lug nuts.

At least twice a year: (for example,

every Spring and Autumn)

• Check radiator, heater and air

conditioning hoses for leaks or

damage.

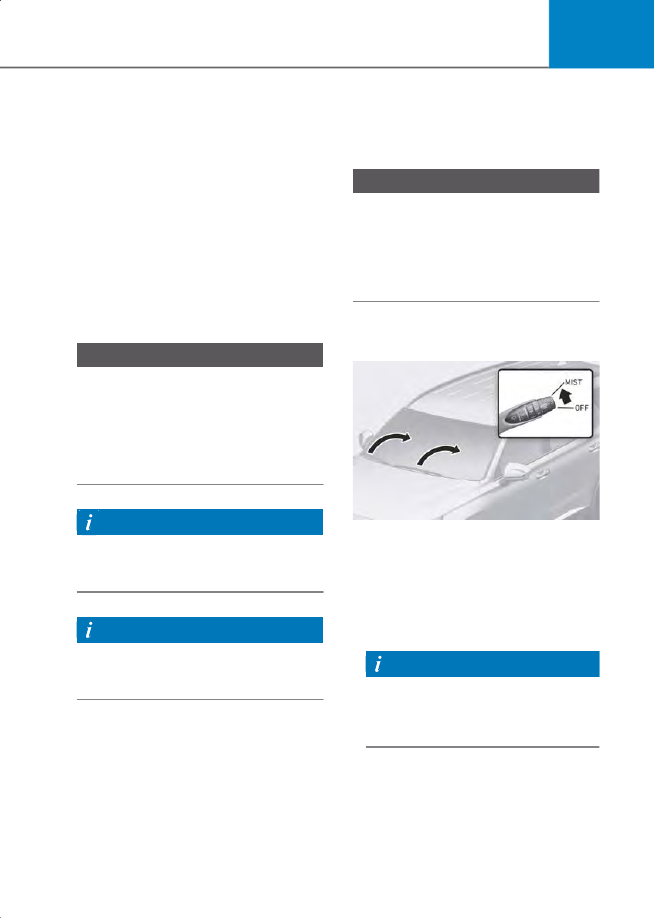

• Check windshield washer spray and

wiper operation. Clean wiper blades

with a clean cloth dampened with

washer fluid.

• Check headlight alignment.
• Check muffler, exhaust pipes, shields

and clamps.

• Check the seat belts for wear and

function.

At least once a year:

• Clean body and door drain holes.
• Lubricate door hinges and hood hinges.
• Lubricate door and hood locks and

latches.

• Lubricate door rubber weather strips.
• Check the air conditioning system.
• Inspect and lubricate automatic

transmission linkage and controls.

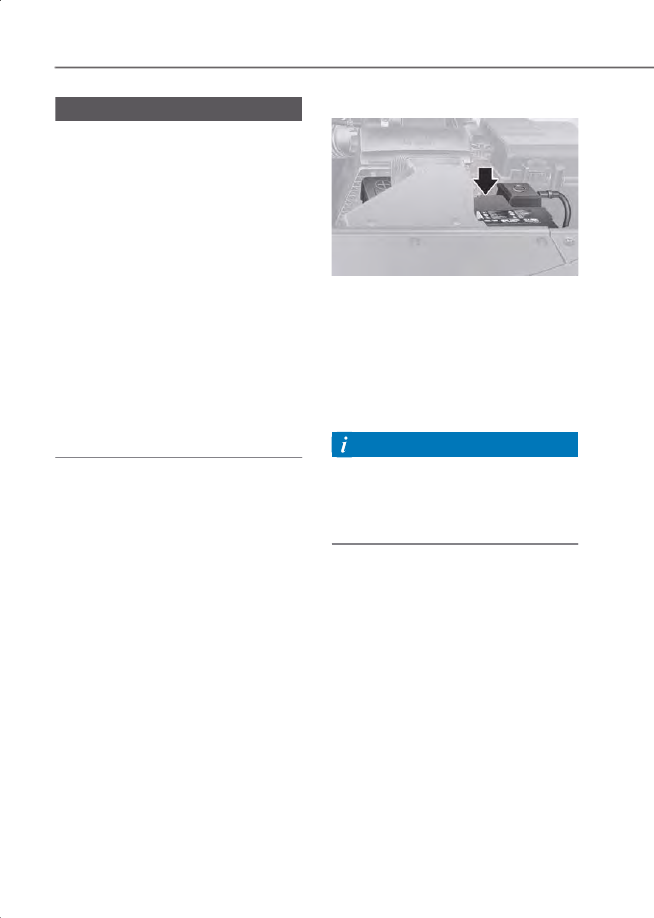

• Clean the battery and terminals.
• Check the brake fluid level.

CarManuals2.com

Maintenance

9-8

Scheduled Maintenance Services

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of the

following conditions apply. If any of the following conditions apply, you must follow the

Maintenance Under Severe Usage Conditions.
• Repeatedly driving short distances of less than 5 miles (8 km) in normal temperature or

less than 10 miles (16 km) in freezing temperature

• Extensive engine idling or low speed driving for long distances
• Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
• Driving in areas using salt or other corrosive materials or in very cold weather
• Driving in heavy dust conditions
• Driving in heavy traffic area
• Driving on uphill, downhill, or mountain road repeatedly
• Towing a trailer or using a camper, or driving with loads on the roof
• Driving as a patrol car, taxi, other commercial use or vehicle towing
• Frequently driving under high speed or rapid acceleration/deceleration
• Frequently driving in stop-and-go condition
• Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower

grade spec, etc.)

If your vehicle is operated under the above conditions, you should inspect, replace or

refill more frequently than the following Normal Maintenance Schedule. After the periods

or distance shown in the chart, continue to follow the prescribed maintenance intervals.

NOTICE

After driving more than 10 years or 100,000 miles, use severe maintenance schedule.

Information

• As it is normal for engine oil to be consumed during driving, the engine oil level should

be checked on regular basis.

• The engine oil change interval for normal operating conditions is based on the use of

the recommended engine specification. If the recommended engine oil specification

is not used, then replace the engine oil according to the maintenance schedule under

severe operating conditions.

CarManuals2.com

9-9

Normal Maintenance Schedule

*1 The drive belt should be replaced when cracks occur or tension is reduced.
*2 Never add any additives to the engine oil. Engine oil additives can change the properties of engine oil and may

cause serious engine failure.

*3 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available

from your authorized HYUNDAI dealer along with information on how to use them. Do not mix other additives.

*4 Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have an authorized HYUNDAI

dealer perform the operation.

I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.
* As it is normal for engine oil to be consumed during driving, the amount of engine oil

should be checked regularly.
* The replacement cycle of engine oil is set by the period which the performance of our

recommended engine oil is maintained. So, if recommended engine oil is not used, a

replacement is required as indicated severe usage condition.

MAINTENANCE

INTERVALS

Number of months or driving distance, whichever comes first

Months

12 24 36 48 60 72 84 96 108 120 132 144 156

MAINTENANCE

ITEM

Miles ×
1,000

16 24 32 40 48 56 64 72 80 88 96 104

Km ×
1,000

13 26 39 52 65 78 91 104 117 130 143 156 169

Drive belts

At first, inspect at 48,000 miles (78,000 km) or 72 months,

after that, inspect every 8,000 miles (13,000 km) or 12 months

Engine oil and engine oil

filter

Fuel additives

Add every 8,000 miles (13,000 km) or 12 months

Air cleaner filter

Spark plugs

Replace every 96,000 miles (156,000 km)

Valve clearance

Inspect every 64,000 miles (104,000 km) or 72 months

Rotate Tires (includes tread

wear inspection and tire

pressure check)

Rotate tires every 8,000 miles (13,000 km) or 12 months

CarManuals2.com

Maintenance

9-10

Normal Maintenance Schedule (Cont.)

I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.

MAINTENANCE

INTERVALS

Number of months or driving distance, whichever comes first

Months

12 24 36 48 60 72 84 96 108 120 132 144 156

MAINTENANCE

ITEM

Miles ×
1,000

16 24 32 40 48 56 64 72 80 88 96 104

Km ×
1,000

13 26 39 52 65 78 91 104 117 130 143 156 169

Cabin air filter (if equipped)

Vacuum hose

Engine coolant

At first, replace at 120,000 miles (200,000 km) or 120 months.

After that, replace every 24,000 miles (39,000 km) or 24

months

Battery condition

Brake lines, hoses and

connections

Disc brakes and pads

Steering gear rack, linage

and boots

Driveshaft and boots

Suspension mounting bolts

Air conditioner refrigerant

Air conditioner compressor

Propeller shaft (AWD)

Exhaust pipe and muffler

CarManuals2.com

9-11

Normal Maintenance Schedule (Cont.)

*1 Rear differential oil and transfer case oil should be changed anytime they have been submerged in water.
*2 Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended

for this maintenance schedule depends on fuel quality. If there are some important safety matters like fuel flow

restriction, surging, loss of power, hard starting problem, etc. replace the fuel filter immediately regardless of

maintenance schedule and consult an authorized HYUNDAI dealer for details.

I: Inspect and if necessary, adjust, correct, clean or replace.
R: Replace or change.

MAINTENANCE

INTERVALS

Number of months or driving distance, whichever comes first

Months 12 24 36 48 60 72 84 96 108 120 132 144 156

MAINTENANCE

ITEM

Miles ×
1,000

16 24 32 40 48 56 64 72 80 88 96 104

Km ×
1,000

13 26 39 52 65 78 91 104 117 130 143 156 169

Automatic transmission

fluid

Rear differential oil (AWD)

Transfer case oil (AWD)

Vapor hose, fuel filler cap

and fuel tank

Fuel tank air filter

Fuel lines, hoses and

connections

Parking brake

Brake fluid

At first, inspect every 8,000 miles (13,000 km) or 12 months,

after that, replace every 48,000 miles (78,000 km) or 48

months

CarManuals2.com

Maintenance

9-12

Maintenance Under Severe Usage Conditions

The following items must be serviced more frequently on cars mainly used under severe

driving conditions. Refer to the chart below for the appropriate maintenance intervals.
R: Replace
I: Inspect and if necessary, adjust, correct, clean or replace

Maintenance item

Maintenance

operation

Maintenance intervals

Driving

condition

Engine oil and engine oil

filter

Replace every 5,000 miles

(8,000 km) or 6 months

A, B, C, D, E,

F,G, H, I, J, K, L

Air cleaner filter

Replace more frequently

depending on the condition

C, E

Spark plugs

Replace more frequently

depending on the condition

A, B, F, G, H, I,

Cabin air filter

Replace more frequently

depending on the condition

C, E, G

Disc brakes and pads,

calipers and rotors

Inspect more frequently

depending on the condition

C, D, E, G, H

Steering gear rack,

linkage and boots

Inspect more frequently

depending on the condition

C, D, E, F, G, H,

Driveshaft and boots

Inspect more frequently

depending on the condition

C, D, E, F, G, H,

I, J

Suspension ball joints

Inspect more frequently

depending on the condition

C, D, E, F, G

Propeller shaft

Inspect more frequently

depending on the condition

C, D, E, F, G, H,

I, J

Automatic transmission

fluid

Replace every 60,000 miles

(100,000 km)

A, C, F, G, H, I,

J, K

Rear differential oil

Replace every 72,000 miles

(120,000 km)

C, D, E, G, H, I,

Transfer case oil (AWD)

Replace every 72,000 miles

(120,000 km)

C, D, E, G, H, I,

Parking brake

Inspect more frequently

depending on the condition

C, D, G, H

CarManuals2.com

9-13

Severe driving conditions

A. Repeatedly driving short distances of less than 5 miles (8 km) in normal temperature

or less than 10 miles (16 km) in freezing temperature

B. Extensive engine idling or low speed driving for long distances
C. Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
D. Driving in areas using salt or other corrosive materials or in very cold weather
E. Driving in heavy dust conditions
F. Driving in heavy traffic area
G. Driving on uphill, downhill, or mountain road repeatedly
H. Towing a trailer or using a camper, or driving with loads on the roof
I. Driving as a patrol car, taxi, other commercial use or vehicle towing
J. Frequently driving under high speed or rapid acceleration/deceleration
K. Frequently driving in stop-and-go conditions
L. Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower

grade spec, etc.)

CarManuals2.com

Maintenance

9-14

Explanation Of Scheduled

Maintenance Items

Engine Oil and Filter

The engine oil and filter should be

changed at the intervals specified in the

maintenance schedule. If the vehicle is

being driven in severe conditions, more

frequent oil and filter changes are

required.

Drive Belts

Inspect all drive belts for evidence of cuts,

cracks, excessive wear or oil saturation

and replace if necessary.
Drive belts should be checked

periodically for proper tension and

adjusted as necessary.

Information

When you are inspecting the belt, turn the

engine off.

Fuel Lines, Fuel Hoses and

Connections

Check the fuel lines, fuel hoses and

connections for leakage and damage.

Have an authorized HYUNDAI dealer

replace any damaged or leaking parts

immediately.

Vapor Hose and Fuel Filler Cap

The vapor hose and fuel filler cap should

be inspected at those intervals specified

in the maintenance schedule. Make sure a

new vapor hose or fuel filler cap is

correctly replaced.

Air Cleaner Filter

Have the air cleaner filter replaced by an

authorized HYUNDA dealer.

Spark Plugs

Make sure to install new spark plugs of

the correct heat range.
When assembling parts, be sure to wipe

out foreign substances inside and outside

of the boot bottom of the ignition coil and

the insulator of the spark plug with a soft

cloth to prevent contamination of the

spark plug insulator.

Cooling System

Check cooling system components, such

as radiator, coolant reservoir, hoses and

connections for leakage and damage.

Replace any damaged parts.

Engine Coolant

The coolant should be changed at the

intervals specified in the maintenance

schedule.

Automatic Transmission Fluid

The automatic transmission fluid level

does not need to be checked under

normal usage conditions.
Have the automatic transmission fluid

changed by an authorized HYUNDAI

dealer according to the maintenance

schedule.

Information

Automatic transmission fluid color is red

when new.
As the vehicle is driven, the automatic

transmission fluid will begin to look

darker.
This is a normal condition. It does not

need to be replaced based on the color

change.

CarManuals2.com

9-15

NOTICE

The use of a non-specified fluid could

result in transmission malfunction and

failure.
Use only specified automatic

transmission fluid. (Refer to

“Recommended Lubricants And

Capacities” section in chapter 2.)

Brake Hoses and Lines

Visually check for proper installation,

chafing, cracks, deterioration and any

leakage. Replace any deteriorated or

damaged parts immediately.

Brake Fluid

Check the brake fluid level in the brake

fluid reservoir. The level should be

between the MIN and the MAX marks on

the side of the reservoir. Use only

hydraulic brake fluid conforming to DOT 4

specification.

Brake Discs, Pads, Calipers

and Rotors

Check the pads, the discs and the rotors

for any excessive wear-out. Inspect

calipers for any fluid leakage.

Exhaust Pipe and Muffler

Visually inspect the exhaust pipes,

muffler and hangers for cracks,

deterioration, or damage. Start the

engine and listen carefully for any exhaust

gas leakage. Tighten connections or

replace parts as necessary.

Propeller Shaft

Check the propeller shaft, boots, clamps,

rubber couplings and center-bearing

rubber for cracks, deterioration, or

damage. Replace any damaged parts and

if necessary, repack the grease.

Suspension Mounting Bolts

Check the suspension connections for

looseness or damage. Retighten to the

specified torque.

Steering Gear Box, Linkage &

Boots/Lower Arm Ball Joint

With the vehicle stopped and the engine

off, check for excessive free-play in the

steering wheel. Check the linkage for

bends or damage. Check the dust boots

and ball joints for deterioration, cracks, or

damage.
Replace any damaged parts.

Drive Shafts and Boots

Check the drive shafts, boots and clamps

for cracks, deterioration, or damage.

Replace any damaged parts and, if

necessary, repack the grease.

Air Conditioning Refrigerant

Check the air conditioning lines and

connections for leakage and damage.

CarManuals2.com

Maintenance

9-16

Engine Oil

Checking the Engine Oil Level

Engine oil is used for lubricating, cooling,

and operating various hydraulic

components in the engine. Engine oil

consumption while driving is normal, and

it is necessary to check and refill the

engine oil regularly. Also, check and refill

the oil level within the recommended

maintenance schedule to prevent

deterioration of oil performance.

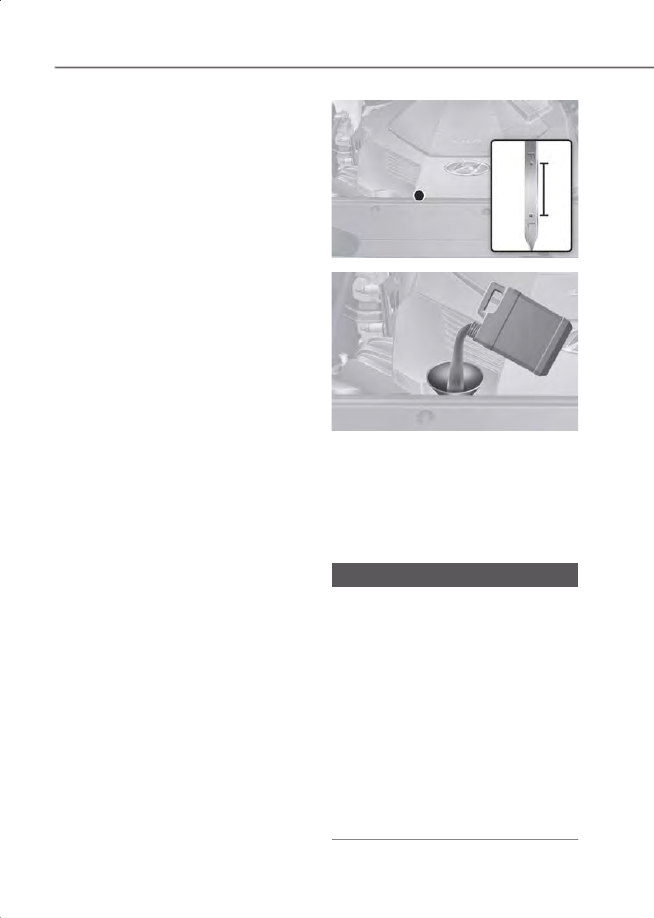

Check the engine oil following the below

procedure.
1. Follow all of the oil manufacturer’s

precautions.

2. Be sure the vehicle is on the level

ground in P (Park) with the parking

brake set. If possible, block the wheels.

3. Turn the engine on and warm the

engine up until the coolant

temperature reaches a constant normal

temperature.

4. Turn the engine off, remove the oil filler

cap and pull the dipstick out. Wait for 15

minutes for the oil to return to the oil

pan.

5. Wipe the dipstick clean and re-insert it

fully.

B0429KO01

B0429KO02

6. Pull the dipstick out again and check

the level.

7. If the oil level is below L, add enough oil

to bring the level to F.

Use only the specified engine oil (Refer to

“Recommended Lubricants And

Capacities” section in chapter 2).

NOTICE

To prevent damage to your engine:
• Do not spill engine oil when adding or

changing engine oil. Wipe off spilled oil

immediately.

• The engine oil consumption may

increase while you break in a new

vehicle and it will be stabilized after

driving 4,000 miles (6,000 km).

• The engine oil consumption can be

affected by driving habits, climate

conditions, traffic conditions, oil

quality, etc. Therefore, it is

recommended that you inspect the

engine oil level regularly and refill it if

necessary.

CarManuals2.com

9-17

Checking the Engine Oil and

Filter

OCN7092026

• Have engine oil and filter changed by

an authorized HYUNDAI dealer

according to the Maintenance

Schedule at the beginning of this

chapter.

• If the maintenance schedule to replace

engine oil is exceeded, the engine oil

performance may deteriorate, and the

engine condition may be affected.

Therefore, replace the engine oil

according to the maintenance

schedule.

• To keep the engine in optimal

condition, use the recommended

engine oil and filter. If the

recommended engine oil and filter are

not used, replace it according to the

maintenance schedule under severe

usage conditions.

• The purpose of the maintenance

schedule for engine oil replacement is

to prevent oil deterioration and it is

irrelevant to oil consumption. Check

and refill engine oil regularly.

CAUTION

The engine oil is very hot immediately

after the vehicle has been driven and can

cause burns during replacement. Replace

the engine oil after the engine oil has

cooled down.

WARNING

Used engine oil may cause irritation or

cancer of the skin if left in contact with

the skin for prolonged periods of time.

Used engine oil contains chemicals that

have caused cancer in laboratory animals.

Always protect your skin by washing your

hands thoroughly with soap and warm

water as soon as possible after handling

used oil.

WARNING

CALIFORNIA PROPOSITION 65 WARNING
Engine oil contains chemicals known to

the State of California to cause cancer,

birth defects and reproductive harm.
Used engine oil may cause irritation or

cancer of the skin if left in contact with

the skin for prolonged periods of time.
Always protect your skin by washing your

hands thoroughly with soap and warm

water as soon as possible after handling

used oil.

NOTICE

Never add any additives to the engine oil.

Engine oil additives can change the

properties of engine oil and may cause

serious engine failure.

CarManuals2.com

Maintenance

9-18

Engine Coolant

The high-pressure cooling system has a

reservoir filled with year-round antifreeze

coolant. The reservoir is filled at the

factory.
Check the antifreeze protection and

coolant level at least once a year, at the

beginning of the winter season and

before traveling to a colder climate.

Checking the Coolant Level

B0433KO01

Check the condition and connections of

all cooling system hoses and heater

hoses. Replace any swollen or

deteriorated hoses.
The coolant level should be filled between

the F and the L marks on the side of the

coolant reservoir when the engine is cool.
If the coolant level is low, add enough

distilled (deionized) water to bring the

level to the F mark, but do not overfill. If

frequent additions are required, see an

authorized HYUNDAI dealer for a cooling

system inspection.

WARNING

B0433KO02

Never remove the engine

coolant cap and/or the drain

plug while the engine and

radiator are hot. Hot coolant

and steam may blow out under

pressure, causing serious injury.
Turn the vehicle off and wait until the

engine cools down. Use extreme care

when removing the engine coolant cap.

Wrap a thick towel around it, and turn it

counterclockwise slowly. Step back while

the pressure is released from the cooling

system. When you are sure all the

pressure has been released, using a thick

towel, and continue turning

counterclockwise to remove it.

Information

The coolant level is influenced by the

engine temperature. Before checking or

refilling the coolant, turn the engine off.

CarManuals2.com

9-19

WARNING

D0420KO02

The electric motor for the cooling fan may

continue to operate or start up when the

engine is not running and can cause

serious injury. Keep hands, clothing and

tools away from the rotating fan blades of

the cooling fan.
Always turn off the vehicle unless the

vehicle has to be inspected with the

engine on. Be cautious as the cooling fan

may operate if the negative (-) battery

terminal is not disconnected.

WARNING

Make sure the coolant cap is properly

closed after refilling coolant. Otherwise

the engine could be overheated whilst

driving.

B0433EE01

B0433EE02

1. Check if the coolant cap label is straight

in front.

B0433EE03

2. Make sure that the tiny protrusions

inside the coolant cap is securely

interlocked.

CarManuals2.com

Maintenance

9-20

Recommended coolant

• When adding coolant, use only

deionized water, distilled water or soft

water for your vehicle and never mix

hard water in the coolant filled at the

factory.

• An incorrect coolant mixture can result

in severe malfunction or engine

damage.

• The engine in your vehicle has

aluminum engine parts and must be

protected by an phosphate-based

ethylene glycol coolant to prevent

corrosion and freezing.

• Do not use alcohol or methanol coolant

or mix them with the specified coolant.

• Do not use a solution that contains

more than 60% antifreeze or less than

35% antifreeze, which would reduce

the effectiveness of the solution.

For mixing percentage, refer to the

following table:

Information

If in doubt about the mix ratio, a 50%

water and 50% antifreeze mix is the

easiest to mix together as it will be the

same quantity of each. It is suitable to use

for most temperature ranges of -31 °F (-35

°C) and higher.

Changing Coolant

Have coolant changed by an authorized

HYUNDAI dealer according to the

Maintenance Schedule at the beginning

of this chapter.

WARNING

Do not use engine coolant or antifreeze in

the washer fluid reservoir.
Engine coolant can severely obscure

visibility when sprayed on the windshield

and may cause loss of vehicle control

resulting in an accident.
Engine coolant may also cause damage to

paint and body trim.

NOTICE

To prevent damage to engine parts, put a

thick towel around the engine coolant

cap before refilling the coolant to prevent

the coolant from overflowing into engine

parts, such as the alternator.

Ambient

Temperature

Mixture Percentage

(volume)

Antifreeze

Water

5 °F (-15 °C)

-13 °F (-25 °C)

-31 °F (-35 °C)

-49 °F (-45 °C)

CarManuals2.com

9-21

Brake Fluid

Checking the Brake Fluid

Level

B0436KO01

Check the fluid level in the reservoir

periodically. The fluid level should be

between MAX and MIN marks on the side

of the reservoir.
Before removing the reservoir cap and

adding brake fluid, clean the area around

the reservoir cap thoroughly to prevent

brake fluid contamination.
If the level is low, add fluid to the MAX

level. The level will fall with accumulated

mileage. This is a normal condition

associated with the wear of the brake

linings.
If the fluid level is excessively low, have

the system be checked by an authorized

HYUNDAI dealer.

WARNING

If the brake system requires frequent

additions of fluid this could indicate a leak

in the brake system. Have the vehicle

inspected by an authorized HYUNDAI

dealer.

WARNING

Do not allow brake fluid to come in

contact with your eyes. If brake fluid

comes in contact with your eyes, flush

your eyes with clean water for at least 15

minutes and get immediate medical

attention.

NOTICE

• Do not allow brake fluid to contact the

vehicle’s body paint, as paint damage

will result.

• Brake fluid, which has been exposed to

open air for an extended time should

NEVER be used as its quality cannot be

guaranteed. It should be disposed of

properly.

• Do not use the incorrect type of brake

fluid. A few drops of mineral based oil,

such as engine oil, in your brake system

can damage brake system parts.

Information

Use only the specified brake fluid (refer to

“Recommended Lubricants And

Capacities” section in chapter 2).

CarManuals2.com

Maintenance

9-22

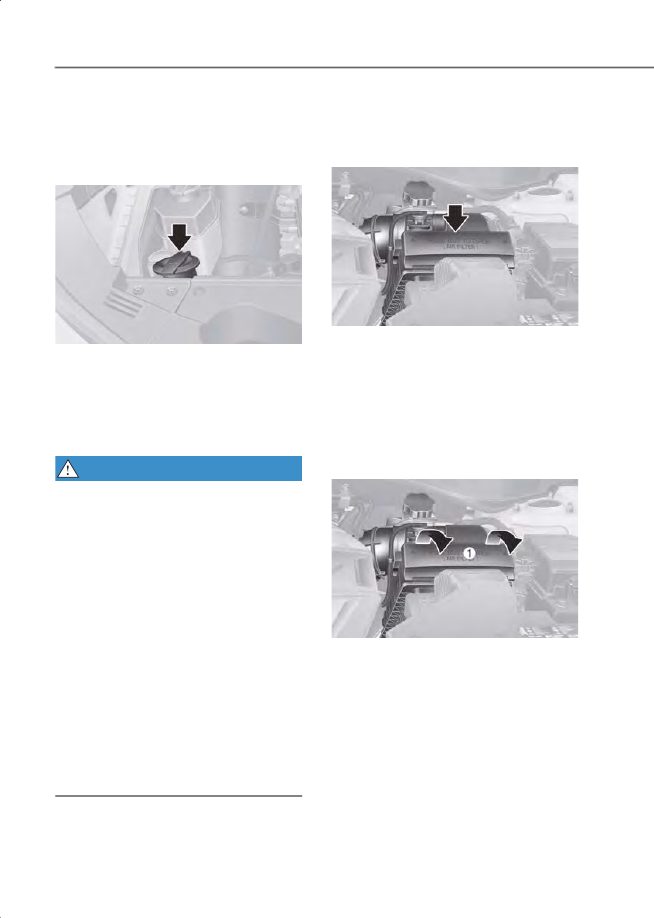

Washer Fluid

Checking the Washer Fluid

Level

B0439KO01

Check the fluid level in the washer fluid

reservoir and add fluid if necessary. Plain

water may be used if washer fluid is not

available. However, use washer solvent

with antifreeze characteristics in cold

climates to prevent freezing.

WARNING

To prevent serious injury or death, take

the following safety precautions when

using washer fluid:
• Do not use engine coolant or antifreeze

in the washer fluid reservoir. Engine

coolant can severely obscure visibility

when sprayed on the windshield and

may cause loss of vehicle control

resulting in an accident or damage to

paint and body trim.

• Do not allow sparks or flame to contact

the washer fluid or the washer fluid

reservoir. Washer fluid may contain

alcohol and can be flammable.

• Do not drink washer fluid and avoid

contact with skin. Washer fluid is

harmful to humans and animals.

• Keep washer fluid away from children

and animals.

Air Cleaner

Filter Replacement

B0446KO01

The air cleaner filter can be cleaned for

inspection using compressed air.
Do not attempt to wash or to rinse it, as

water will damage the filter.
If soiled, the air cleaner filter must be

replaced.
Replace the filter according to the

Maintenance Schedule.

B0446KO02

1. Pull down the air cleaner filter cover (1).

CarManuals2.com

9-23

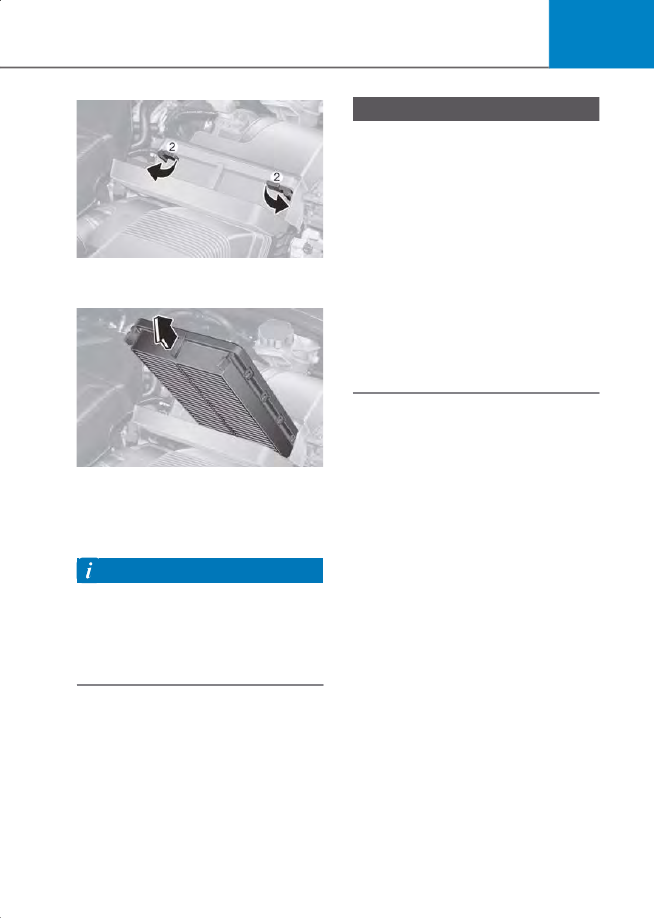

B0446KO03

2. Pull down the lever (2) to the UNLOCK

position.

B0446KO04

3. Replace the air cleaner filter.
4. Reassemble the air cleaner cover in the

reverse order.

5. Check that the cover is firmly installed.

Information

If the vehicle is operated in extremely

dusty or sandy areas, replace the air

cleaner filter more often than the usual

recommended intervals (Refer to

“Maintenance Under Severe Usage

Conditions” section in this chapter).

NOTICE

• Do not drive with the air cleaner filter

removed. This will result in excessive

engine wear.

• When removing the air cleaner filter, be

careful that dust or dirt does not enter

the air intake, or damage may result.

• Use HYUNDAI genuine parts. Use of

non-genuine parts could damage the

engine.

• Do not blow the inner part of the air

filter with compressed air. Dust or dirt

may enter the air intake.

• Check that the replaced filter is firmly

fixed when reassembling the air cleaner

filter, and that the clamps are firmly

assembled.

CarManuals2.com

Maintenance

9-24

Cabin Air Filter

Filter Inspection

The cabin air filter should be replaced

according to the Maintenance Schedule.

If the vehicle is operated in severely

air-polluted cities or on dusty rough roads

for a long period, it should be inspected

more frequently and replaced sooner.

Replace the cabin air filter by following

the procedure below and be careful to

avoid damaging other components.

Filter Replacement

B0449KO01

1. Open the glove box and remove the

support rod (1).

B0449KO02

2. Remove the stoppers on both sides to

allow the glove box to hang freely on

the hinges.

B0449KO03

3. Press and hold the lock on the left side

of the cover.

4. Pull out the cover.
5. Replace the cabin air filter.
6. Reassemble in the reverse order of

disassembly.

NOTICE

B0449KO04

Install a new cabin air filter in the correct

direction with the arrow symbol (↓) facing

downwards, to prevent noise and reduce

effectiveness.

CarManuals2.com

9-25

Wiper Blades

Blade Inspection

Contamination of either the windshield or

the wiper blades with foreign matter can

reduce the effectiveness of the

windshield wipers.
Common sources of contamination are

insects, tree sap, and hot wax treatments

used by some commercial car washes. If

the blades are not wiping properly, clean

both the window and the blades with a

good cleaner or mild detergent, and rinse

thoroughly with clean water.

NOTICE

To prevent damage to the wiper blades,

arms or other components, do not:
• Use gasoline, kerosene, paint thinner,

or other solvents on or near them.

• Attempt to move the wipers manually.
• Use non-specified wiper blades.

Information

Commercial hot waxes applied by

automatic car washes have been known

to make the windshield difficult to clean.

Information

Wiper blades are consumable items.

Normal wear of the wipers may not be

covered by your vehicle warranty.

Blade Replacement

When the wipers no longer clean

adequately, the blades may be worn or

cracked, and require replacement.

NOTICE

• In order to prevent damage to the hood

and the wiper arms, the wiper arms

should only be lifted when in the top

wiping position.

• Always return the wiper arms to the

windshield before driving.

Front windshield wiper blade

replacement

B0452KO01

1. Within 20 seconds of turning off the

engine, lift up and hold the wiper lever

to the MIST position for about 2

seconds until the wipers move to the

top wipe position.

2. At this time you can lift the wipers off

the windshield.

Information

This vehicle has a “hidden” wiper

design which means that the wipers

cannot be lifted manually when they

are in their bottom resting position.

CarManuals2.com

Maintenance

9-26

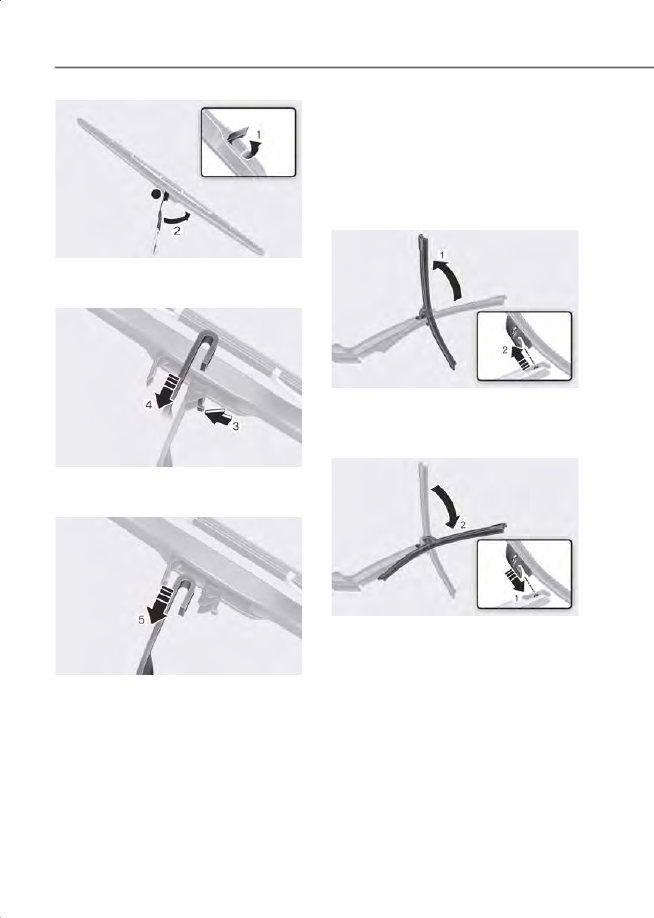

B0452KO02

3. Lift up the wiper blade clip (1). Then lift

up the wiper blade (2).

B0452KO03

4. While pushing the lock (3), pull down

the wiper blade (4).

B0452KO04

5. Remove the wiper blade from the wiper

arm (5).

6.Install a new wiper blade assembly in

the reverse order of removal.

7. Gently put the wipers back down onto

the windshield.

8. With the ignition switch or Engine

Start/Stop button in the ON position,

turn the wiper switch to any ON

position to return the wipers to the

bottom resting position.

Rear window wiper blade

replacement

B0452KO05

1. Raise the wiper arm and then rotate the

wiper blade assembly (1).

2. Pull out the wiper blade assembly (2).

B0452KO06

3. Install the new blade assembly by

inserting the center part into the slot in

the wiper arm until it clicks into place

(1).

4. Make sure the blade assembly is

installed firmly by trying to pull it

slightly.

5. Rotate back the blade assembly so that

it aligns with the wiper arm.

To prevent damage to the wiper arms or

other components, have the wiper blades

replaced by an authorized HYUNDAI

dealer.

CarManuals2.com

9-27

Battery

WARNING

To prevent SERIOUS INJURY or DEATH to

you or bystanders, always follow these

precautions when working near or

handling the battery:

D0455KO02

Always read and follow instructions

carefully when handling a battery.

D0455KO07

Wear eye protection designed to protect

the eyes from acid splashes.

D0455KO03

Keep all flames, sparks, or smoking

materials away from the battery.

D0455KO04

Hydrogen is always present in battery

cells, is highly combustible, and may

explode if ignited.

D0455KO05

Keep batteries out of reach of children.

D0455KO06

Batteries contain sulfuric acid which is

highly corrosive. Do not allow acid to

contact your eyes, skin or clothing.
If acid gets into your eyes, flush your eyes

with clean water for at least 15 minutes

and get immediate medical attention. If

acid gets on your skin, thoroughly wash

the area. If you feel pain or a burning

sensation, get medical attention

immediately.
• When lifting a plastic-cased battery,

excessive pressure on the case may

cause battery acid to leak. Lift with a

battery carrier or with your hands on

opposite corners.

• Do not attempt to jump start your

vehicle if your battery is frozen.

• NEVER attempt to recharge the battery

when the vehicle’s battery cables are

connected to the battery.

• The electrical ignition system works

with high voltage. NEVER touch these

components with the engine running or

when the Engine Start/Stop button is in

the ON position.

WARNING

CALIFORNIA PROPOSITION 65 WARNING
Battery posts, terminals, and related

accessories contain lead and lead

compounds, chemicals known to the

State of California to cause cancer, birth

defects and reproductive harm. Batteries

also contain other chemicals known to

the State of California to cause cancer.

Wash hands after handling.

CarManuals2.com

Maintenance

9-28

NOTICE

Always follow these instructions when

handling your vehicle’s battery to prevent

damage to your battery:
• When you do not use the vehicle for a

long time in a low temperature area,

disconnect the battery and keep it

indoors.

• Always charge the battery fully to

prevent battery case damage in low

temperature areas.

• Prevent liquid from wetting the battery

terminals. The performance of the

battery may be degraded, and may

cause injury. Be cautious when loading

liquid in the liftgate.

• Do not tilt the battery.
• If you connect unauthorized electronic

devices to the battery, the battery may

be discharged. Never use unauthorized

devices.

For Best Battery Service

B0455KO01

• Keep the battery securely mounted.
• Keep the battery top clean and dry.
• Keep the terminals and connections

clean, tight, and coated with petroleum

jelly or terminal grease.

• Rinse any spilled acid from the battery

immediately with a solution of water

and baking soda.

Information

For vehicles with power liftgate, note that

the power liftgate needs to be reset after

the battery has been replaced. For more

details, refer to “Power Liftgate” section

in chapter 5.

CarManuals2.com

Content .. 16 17 18 19 ..
