Hyundai Palisade (2024 year). Manual in english

3-31

• Manual temperature control Each time

you push the switch, the temperature

setting of the seat is changed as follow :
- Front seat

Table_text_Arrow_2-29_CNA_E

- Rear seat

Table_text_Arrow_2-29_CNA_E

• Automatic temperature control The

seat warmer starts to automatically

control the seat temperature in order to

prevent low-temperature burns after

being manually turned ON.
- Front seat

Table_text_Arrow_2-29-1_CAN_E

- 2

row seat

Table_text_Arrow_2-29-1_CAN_E

• Settings for Auto-Adjustment (for

driver’s seat, if equipped)
The seat warmer automatically controls

the seat temperature depending on the

ambient temperature when the vehicle

is running. To use this function, it must

be enabled from the Settings menu in

the infotainment system screen.
Select:
-

Setup

Vehicle

Seat

Warmer/Ventilation Features

Driver Seat Warmer/Ventilation

• When pressing the switch for more than

1.5 seconds with the seat warmer

operating, the seat warmer will turn off.

• The seat warmer defaults to the OFF

position whenever the ignition switch is

placed to the ON position.

Information

The infotainment system may change

after software updates. For more

information, refer to the user's manual

provided in the infotainment system and

the quick reference guide.

OFF → HIGH ( ) → MEDIUM ( ) → LOW ( )

30 min

60 min

OFF → HIGH ( ) → MEDIUM ( ) → LOW ( )

30 min

60 min

CarManuals2.com

Seats & Safety System

3-32

if equipped

Air Ventilation Seats

The air ventilation seats are provided to

cool the front seats by blowing air

through small vent holes on the surface of

the seat cushions and seatbacks.
When the operation of the air ventilation

seat is not needed, keep the air

ventilation seats OFF.

NOTICE

To prevent damage to the air ventilation

seats:
• Never use a solvent such as paint

thinner, benzene, alcohol or gasoline to

clean the seats.

• Avoid spilling liquids on the surface of

the front seats and seatbacks; this may

cause the air vent holes to block and

not work properly.

• Do not place materials such as plastic

bags or newspapers under the seats.

They may block the air intake causing

malfunction of the air vent.

• Do not change the seat covers. It may

damage the air ventilation seat.

• If the air vents do not operate, restart

the vehicle. If there is no change, have

your vehicle inspected by an authorized

HYUNDAI dealer.

B0057KO01

B0057KO02

[A] : Front seat

[B] : Rear seat

• Each time you push the switch, the

temperature setting of the seat

changed as shown below:

• Front seat

Table_text_Arrow_2-29_CNA_E

• 2

row seat

Table_text_Arrow_2-29_CNA_E

• If the air ventilation seat is positioned at

HIGH, the airflow speed will increase

according to vehicle speed.

• Use the air ventilation seat with the air

conditioning on for more effective

ventilation.

• It may take 3-5 minutes after switch

operation to feel the temperature

change.

OFF → HIGH ( ) → MEDIUM ( ) → LOW ( )

CarManuals2.com

3-33

• When pressing the switch for more than

1.5 seconds with the air ventilation seat

operating, the operation will turn OFF.

• The air ventilation seats defaults to the

OFF position whenever the ignition

switch is placed to the ON position.

• Climate Settings for Auto-Adjustment

(for driver’s seat)
The air ventilation seat automatically

controls the seat temperature

depending on the ambient temperature

when the vehicle is running. To use this

function, it must be enabled from the

Settings menu in the infotainment

system screen.
Select:
-

Setup

Vehicle

Seat

Warmer/Ventilation Features

Driver Seat Warmer/Ventilation

Information

The infotainment system may change

after software updates. For more

information, refer to the user's manual

provided in the infotainment system and

the quick reference guide.

Information

• If the outside temperature is under

approximately 33 °F (2 °C), the air

ventilation seat may not operate.

• Use the air ventilation seat when the

climate control system is on. Using the

air ventilation seat for prolonged

periods of time with the climate control

system off could cause the climate

control seat performance to be

reduced.

NOTICE

To prevent damage to the air ventilation

seat:
• Use the air ventilation seat ONLY when

the climate control system is on. Using

the air ventilation seat for prolonged

periods of time with the climate control

system off could cause the air

ventilation seat to malfunction.

• Never use a solvent such as paint

thinner, benzene, alcohol or gasoline to

clean the seats.

• Avoid spilling liquids on the surface of

the front seats and seatbacks; this may

cause the air vent holes to become

blocked and not work properly.

• Do not place materials such as plastic

bags or newspapers under the seats.

They may block the air intake causing

the air vents to not work properly.

• Do not change the seat covers. It may

damage the air ventilation seat.

• If the air vents do not operate, restart

the vehicle. If there is no change, have

the vehicle inspected by an authorized

HYUNDAI dealer.

CarManuals2.com

Seats & Safety System

3-34

Seat Belts

This section describes how to use the seat

belts properly. It also describes some of

the things not to do when using seat belts.

Seat Belt Safety Precautions

Always fasten your seat belt and make

sure all passengers have fastened their

seat belts before starting any trip. Air bags

are designed to supplement the seat belt

as an additional safety device, not a

replacement. Most states require all

occupants of a vehicle to wear seat belts.

WARNING

Seat belts must be used by ALL

passengers whenever the vehicle is

moving. Take the following precautions

when adjusting and wearing seat belts:
• ALWAYS properly restrain children

under age 13 in the rear seats.

• NEVER allow children to ride in the

front passenger seat. If a child age 13 or

older must be seated in the front seat,

move the seat as far back as possible

and properly restrain them in the seat.

• NEVER allow an infant or child to be

carried on an occupant’s lap.

• NEVER ride with the seatback reclined

when the vehicle is moving.

• Do not allow children to share a seat or

seat belt.

• Do not wear the shoulder belt under

your arm or behind your back.

• Always wear both the shoulder portion

and lap portion of the lap/shoulder belt.

• NEVER wear a seat belt over fragile

objects. If there is a sudden stop or

impact, the seat belt can damage it.

• Do not use the seat belt if it is twisted. A

twisted seat belt will not protect you

properly in an accident.

• Do not use a seat belt if the webbing or

hardware is damaged.

• Do not latch the seat belt into the

buckles of other seats.

• NEVER unfasten the seat belt while

driving. This may cause loss of vehicle

control resulting in an accident.

• Make sure there is nothing in the buckle

interfering with the seat belt latch

mechanism. This may prevent the seat

belt from fastening securely.

• No modifications or additions should

be made by the user which will either

prohibit the seat belt adjusting devices

from operating to remove slack, or

prohibit the seat belt assembly from

being adjusted to remove slack.

WARNING

Damaged seat belts and seat belt

assemblies will not operate properly.

Always replace:
• Frayed, contaminated, or damaged

webbing.

• Damaged hardware.
• The entire seat belt assembly after it

has been worn in an accident, even if

damage to webbing or assembly is not

apparent.

CarManuals2.com

3-35

Seat Belt Warning Light

Front seat belt warning

Instrument cluster

B0059KO02

As a reminder to the driver, the seat belt

warning light will illuminate for

approximately 6 seconds each time the

ignition switch is in the ON position

regardless of belt fastening.
If you continue not to fasten the seat belt

and you drive over 6 mph (9 km/h), the

warning light will stay illuminated.
If you continue not to fasten the seat belt

and you drive over 12 mph (20 km/h) the

seat belt warning chime will sound for

approximately 100 seconds and the

corresponding warning light will blink.
If you unfasten the seat belt while driving

under 12 mph (20 km/h), the seat belt

warning light will illuminate until the seat

belt is fastened.
If you unfasten the seat belt while driving

over 12 mph (20 km/h), the seat belt

warning chime will sound for

approximately 100 seconds and the

corresponding warning light will blink.

Rear passenger's seat belt warning

B0059KO04

[A] : 7-seater vehicle

[B] : 8-seater vehicle

With the ignition switch ON, if the second

row center seat passenger’s seat belt is

not fastened, the corresponding seat belt

warning light will illuminate for 70

seconds. But, if the seatbelt is fastened

after 6 seconds, the corresponding seat

belt warning light will immediately turn

off.
If the seat belt is fastened, and then

unfastened while driving below 12 mph

(20 km/h), the corresponding seat belt

warning light will illuminate for 70

seconds.
If the seat belt is fastened, and then

unfastened while driving above 12 mph

(20 km/h), the corresponding seat belt

warning light will blink and the warning

chime will sound for approximately 35

seconds.

WARNING

Riding in an improper position adversely

affects the front passenger’s seat belt

warning system. It is important for the

driver to instruct the passenger to

properly be seated as instructed in this

manual.

CarManuals2.com

Seats & Safety System

3-36

Information

• Although the front passenger seat is not

occupied, the seat belt warning light

will blink or illuminate for 6 seconds.

• The front passenger’s seat belt warning

may operate when luggage is placed on

the front passenger seat.

Seat Belt Restraint System

WARNING

Improperly positioned seat belts may

increase the risk of serious injury in an

accident. Take the following precautions

when adjusting the seat belt:
• Position the lap portion of the seat belt

as low as possible across your hips, not

on your waist, so that it fits snugly.

• Position one arm under the shoulder

belt and the other over the belt, as

shown in the illustration.

• Always position the shoulder belt

anchor into the locked position at the

appropriate height.

• Never position the shoulder belt across

your neck or face.

Front Seat Belt - Driver’s 3point

system with emergency locking

retractor

B0059KO05

To fasten your seat belt:

Pull the seat belt out of the retractor and

insert the metal tab (1) into the buckle (2).

There will be an audible “click” when the

tab locks into the buckle.

CarManuals2.com

3-37

B0059KO06

You should place the lap belt portion

across your hips and the shoulder belt

portion across your chest.
The seat belt automatically adjusts to the

proper length after the lap belt portion is

adjusted manually so that it fits snugly

around your hips. If you lean forward in a

slow, easy motion, the belt will extend

and move with you.
If there is a sudden stop or impact, the

belt will lock into position. It will also lock

if you try to lean forward too quickly.

Information

If you are not able to smoothly pull

enough of the seat belt out from the

retractor, firmly pull the seat belt out and

release it. After release, you will be able to

pull the belt out smoothly.

Height adjustment

You can adjust the height of the shoulder

belt anchor to one of the four different

positions for maximum comfort and

safety.
The shoulder portion should be adjusted

so it lies across your chest and midway

over your shoulder nearest the door, not

over your neck.

Front seat

B0059KO07

To adjust the height of the seat belt

anchor, lower or raise the height adjuster

into an appropriate position.
To raise the height adjuster, pull it up (1).

To lower it, push it down (3) while

pressing the height adjuster button (2).
Release the button to lock the anchor into

position. Try sliding the height adjuster to

make sure that it has locked into position.

CarManuals2.com

Seats & Safety System

3-38

B0059KO11

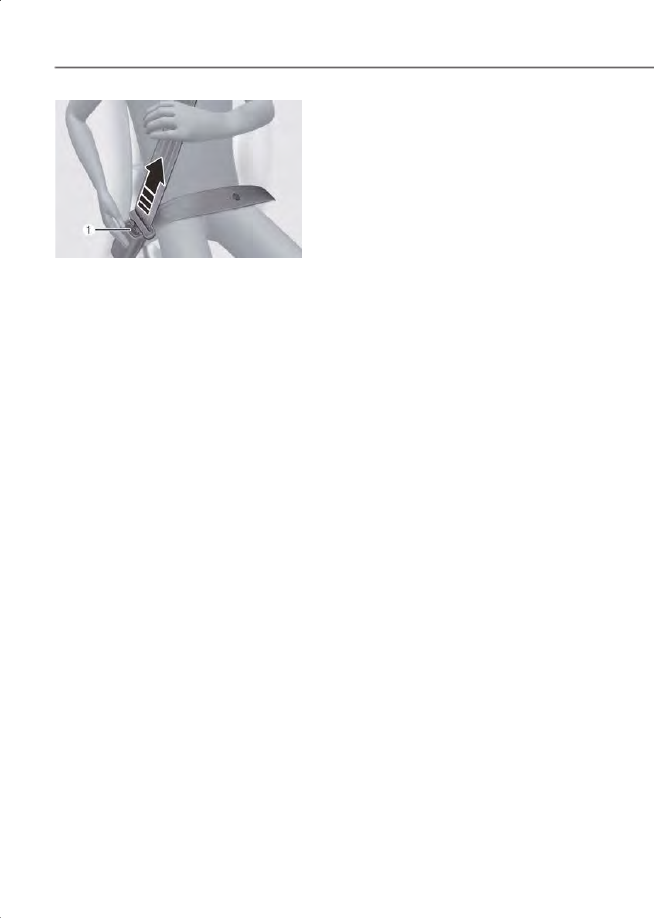

To release your seat belt:

Press the release button (1) in the locking

buckle.
Once it is released, the belt should

automatically draw back into the

retractor. If this does not happen, check

the belt to be sure it is not twisted, then

try again.

Rear Seat Belt - Passenger’s 3point

system with convertible locking

retractor

This type of seat belt combines the

features of both an emergency locking

retractor seat belt and an automatic

locking retractor seat belt. Convertible

retractor type seat belts are installed in

the rear seat positions to help

accommodate the installation of child

restraint systems. Although a convertible

retractor is also installed in the front

passenger seat position, NEVER place any

infant/child restraint system in the front

seat of the vehicle.

To fasten your seat belt:

Pull the seat belt out of the retractor and

insert the metal tab into the buckle. There

will be an audible “click” when the tab

locks into the buckle. When not securing

a child restraint, the seat belt operates in

the same way as the driver’s seat belt

(Emergency Locking Retractor Type). It

automatically adjusts to the proper length

only after the lap belt portion of the seat

belt is adjusted manually so that it fits

snugly across your hips.
When the seat belt is fully extended from

the retractor to allow the installation of a

child restraint system, the seat belt

operation changes to allow the belt to

retract, but not to extend (Automatic

Locking Retractor Type). Refer to the

“Child Restraint System (CRS)” section in

this chapter.

CarManuals2.com

3-39

B0059KO11

To release your seat belt:

Press the release button (1) in the locking

buckle.
When it is released, the belt should

automatically draw back into the

retractor. If this does not happen, check

the belt to be sure it is not twisted, then

try again.

NOTICE

Although the seat belt retractor provides

the same level of protection for seated

passengers in either emergency or

automatic locking modes, the emergency

locking mode allows seated passengers

to move freely in their seat while keeping

some tension on the belt. During a

collision or sudden stop, the retractor

automatically locks the belt to help

restrain your body.
To deactivate the automatic locking

mode, unbuckle the seat belt and allow

the belt to fully retract.

Second row center seatbelt (3-point

rear center seat belt)

B0059KO12

1. Take out the buckle (B), which is stored

between the seat/seatback cushions.

2. Insert the metal plate (A) into the

buckle (B), until it clicks.
You can make sure its secure fastening

by pulling the seatbelt webbing. The

buckle with 'CENTER' mark should be

used for the 3-point seatbelt.

3. Restore the buckle between the

seat/seatback cushion after

unfastening the seatbelt.

Rear center seatbelt (3rd row)

B0059KO08

To fasten your seatbelt:

1. Extract the tongue plate (A) from the

hole on the belt assembly cover.

CarManuals2.com

Seats & Safety System

3-40

B0059KO09

2. Insert the tongue plate (A) into the

buckle (B) until an audible “click” is

heard, indicating the latch is locked.

Make sure the belt is not twisted.

B0059KO10

3. Pull out the tongue plate (C) from the

pocket. Pull the tongue plate (C) and

insert it into the buckle (D) until an

audible “click” is heard, indicating the

latch is locked. Make sure the belt is not

twisted.

When using the rear center seat belt, the

buckle with the “CENTER” mark must be

used.

Information

If you are not able to pull out the safety

belt from the retractor, firmly pull the belt

out and release it. After release, you will

be able to pull the belt out smoothly.

B0059KO13

To release your seatbelt:
1. Press the release button on the buckle

(D) and remove the tongue plate (C).

B0059KO14

2. To retract the rear center seatbelt,

insert the tongue (C) plate into the web

release hole (B). Pull up on the seat belt

web and allow the webbing to retract

automatically. Insert the tongue plate

(A) into the hole on the belt assembly

cover.

CarManuals2.com

3-41

Stowing the rear seat belt

B0059KO15

B0059KO16

[A] : 2

row seat (8-seater)

[B] : 3

seat

The rear seat belt buckles can be stowed

in the pocket between the rear seatback

and cushion when not in use.

B0059KO17

Routing the seat belt webbing through

the rear seat belt guides will help keep the

belts from being trapped behind or under

the seats.
After inserting the seat belt, tighten the

belt webbing by pulling it up.

CAUTION

When using the seat belt, use it after

taking it out of the guides.
If you pull the seat belt when it is stored in

the guides, it may damage the guides

and/or belt webbing.

Pre-tensioner seat belt (Drive and

front passenger)

B0060KO01

Your vehicle is equipped with driver’s and

front passenger’s Pre-tensioner Seat

Belts (Retractor Pre-tensioner). The

purpose of the pre-tensioner is to make

sure the seat belts fit tightly against the

occupant’s body in certain frontal or side

collision(s). The pre-tensioner seat belts

may be activated in crashes where the

frontal or side collision(s) is severe

enough, together with the air bags.
When the vehicle stops suddenly, or if the

occupant tries to lean forward too

quickly, the seat belt retractor will lock

into position.
In certain frontal collisions, the

pre-tensioner will activate and pull the

seat belt into tighter contact against the

occupant’s body.
If the system senses excessive tension on

the driver or passenger’s seat belt when

the pre-tensioner system activates, the

load limiter inside the retractor

pre-tensioner will release some of the

pressure on the affected seat belt.

CarManuals2.com

Seats & Safety System

3-42

WARNING

Pre-tensioner Seat Belts that malfunction

may not protect you properly during an

accident. Take the following precautions:
• Always wear your seat belt and sit

properly in your seat.

• Do not use the seat belt if it is loose or

twisted. A loose or twisted seat belt will

not protect you properly in an accident.

• Do not place anything near the buckle.

This may adversely affect the buckle

and cause it to function improperly.

• Always replace your pre-tensioners

after activation or an accident.

• NEVER inspect, service, repair or

replace the pre-tensioners by yourself.

This must be done by an authorized

HYUNDAI dealer.

• Do not hit the seat belt assemblies.

WARNING

Do not touch the pre-tensioner seat belt

assemblies for several minutes after they

have been activated. When the

pre-tensioner seat belt mechanism

deploys during a collision, the

pre-tensioner can become hot and can

burn you.

CAUTION

Body work on the front area of the vehicle

may damage the pre-tensioner seat belt

system. Therefore, have the system be

serviced by an authorized HYUNDAI

dealer.

The Pre-Tensioner Seat Belt System

consists mainly of the following

components. Their locations are shown in

the illustration:

OHL038175L

(1) SRS air bag warning light
(2) Retractor pre-tensioner
(3) SRS control module

NOTICE

The sensor that activates the SRS control

module is connected with the

pre-tensioner seat belts. The SRS air bag

warning light on the instrument cluster

will illuminate for approximately 3-6

seconds after the ignition switch is in the

ON position, and then it should turn off.
If the pre-tensioner is not working

properly, the warning light will illuminate

even if the SRS air bag is not

malfunctioning. If the warning light does

not illuminate, stays illuminated or

illuminates when the vehicle is being

driven, have the pre-tensioner seat belts

and/or SRS control module inspected by

an authorized HYUNDAI dealer as soon as

possible.

CarManuals2.com

3-43

Information

• Both the driver's and front passenger's

pre-tensioner seat belts may be

activated in certain frontal or side

collisions or rollovers.

• When the pre-tensioner seat belts are

activated, a loud noise may be heard

and fine dust, which may appear to be

smoke, may be visible in the passenger

compartment. These are normal

operating conditions and are not

hazardous.

• Although it is non-toxic, the fine dust

may cause skin irritation and should not

be inhaled for prolonged periods. Wash

all exposed skin areas thoroughly after

an accident in which the pre-tensioner

seat belts were activated.

• The pre-tensioner seat belt system may

get adversely affected by installing an

audio system to the center console or

welding/painting the frontal vehicle

body.
In this case, consult an authorized

HYUNDAI dealer. The air bag warning

light illuminates, if there is a

malfunction with the pre-tensioner seat

belt system.

• In following situations, immediately

have the air bag system and the

pre-tensioner seat belt system checked

by an authorized HYUNDAI dealer.
- The air bag warning light does not

illuminate at all after turning ON the

engine

- The air bag warning light remains ON

over 3-6 seconds after turning ON

the engine

Additional Seat Belt Safety

Precautions

Seat belt use during pregnancy

The seat belt should always be used

during pregnancy. The best way to

protect your unborn child is to protect

yourself by always wearing the seat belt.
Pregnant women should always wear a

lap-shoulder seat belt. Place the shoulder

belt across your chest, routed between

your breasts and away from your neck.

Place the lap belt below your belly so that

it fits SNUGLY across your hips and pelvic

bone, under the rounded part of the belly.

WARNING

• A pregnant woman or a patient is more

vulnerable to any impacts on the

abdomen during an abrupt stop or

accident. If you are in an accident while

pregnant, we recommend you consult

your doctor.

• To reduce the risk of serious injury or

death to an unborn child during an

accident, pregnant women should

NEVER place the lap portion of the seat

belt above or over the area of the

abdomen where the unborn child is

located.

CarManuals2.com

Seats & Safety System

3-44

Seat belt use and children

Infant and small children

All 50 states have Child Restraint System

laws which require children to travel in

approved Child Restraint System devices,

including booster seats. The age at which

seat belts can be used instead of Child

Restraint System differs among states, so

you should be aware of the specific

requirements in your state, and where

you are traveling. Infant and Child

Restraint System must be properly placed

and installed in a rear seat.
For more information refer to the “Child

Restraint System (CRS)” section in this

chapter.

WARNING

ALWAYS properly restrain infants and

small children in a Child Restraint System

appropriate for the child’s height and

weight.
To reduce the risk of serious injury or

death to a child and other passengers,

NEVER hold a child in your lap or arms

when the vehicle is moving. The violent

forces created during an accident will tear

the child from your arms and throw the

child against the interior of the vehicle.

Small children are best protected from

injury in an accident when properly

restrained in the rear seat by a Child

Restraint System that meets the

requirements of the Federal Motor

Vehicle Safety Standards. Before buying

any Child Restraint System, make sure

that it has a label certifying that it meets

Federal Motor Vehicle Safety Standard

FMVSS 213.
The Child Restraint System must be

appropriate for your child’s height and

weight. Check the label on the Child

Restraint System for this information.

Refer to “Child Restraint System (CRS)”

section in this chapter.

Larger children

Children under age 13 and who are too

large for a booster seat must always

occupy the rear seat and use the available

lap/shoulder belts. A seat belt should lie

across the upper thighs and be snug

across the shoulder and chest to restrain

the child safely. Check belt fit

periodically. Children are afforded the

most safety in the event of an accident

when they are restrained by a proper

restraint system and/or seat belts in the

rear seat. Always have the LATCH system

inspected by your authorized HYUNDAI

dealer after an accident. An accident can

damage the LATCH system and may not

properly secure the child restraint.
If a larger child over age 13 must be seated

in the front seat, the child must be

securely restrained by the available

lap/shoulder belt and the seat should be

placed in the rearmost position.
If the shoulder belt portion slightly

touches the child’s neck or face, try

placing the child closer to the center of

the vehicle. If the shoulder belt still

touches their face or neck, they need to

be returned to an appropriate booster

seat in the rear seat.

WARNING

• Always make sure larger children’s seat

belts are worn and properly adjusted.

• NEVER allow the shoulder belt to

contact the child’s neck or face.

• Do not allow more than one child to use

a single seat belt.

Transporting an injured person

A seat belt should be used when an

injured person is being transported.

Consult a physician for specific

recommendations.

CarManuals2.com

3-45

One person per belt

Two people (including children) should

never attempt to use a single seat belt.

This could increase the severity of injuries

in case of an accident.

Do not lie down

Sitting in a reclined position when the

vehicle is in motion can be dangerous.

Even when buckled up, the protections of

your restraint system (seat belts and/or

air bags) is greatly reduced by reclining

your seatback.
To reduce the chance of injuries in the

event of an accident and to achieve the

maximum effectiveness of the restraint

system, all passengers should be sitting

up and the front and rear seats should be

in an upright position when the car is

moving.
A seat belt cannot provide proper

protection if the person is lying down in

the rear seat or if the front or rear seats

are in a reclined position.

WARNING

• NEVER ride with a reclined seatback

when the vehicle is moving.

• Riding with a reclined seatback

increases your chance of serious or

fatal injuries in the event of a collision or

sudden stop.

• Driver and passengers should always sit

well back in their seats, properly belted,

and with the seatbacks upright.

Care of Seat Belts

Seat belt systems should never be

disassembled or modified. In addition,

care should be taken to assure that seat

belts and belt hardware are not damaged

by seat hinges, doors or other abuse.

Periodic inspection

All seat belts should be inspected

periodically for wear or damage of any

kind. Any damaged parts should be

replaced as soon as possible by an

authorized HYUNDAI dealer.

Keep belts clean and dry

Seat belts should be kept clean and dry. If

belts become dirty, they can be cleaned

by using a mild soap solution and warm

water. Bleach, dye, strong detergents or

abrasives should not be used because

they may damage and weaken the fabric.

When to replace seat belts

The entire seat belt assembly or

assemblies should be replaced if the

vehicle has been involved in an accident.

This should be done even if no damage is

visible. Additional questions concerning

seat belt operation should be directed to

an authorized HYUNDAI dealer.

CarManuals2.com

Seats & Safety System

3-46

Child Restraint System

(CRS)

Children Always in the Rear

WARNING

Always properly restrain children in the

vehicle. Children of all ages are safer

when restrained in the rear seat. A child

riding in the front passenger seat can be

forcefully struck by an inflating air bag

resulting in SERIOUS INJURY or DEATH.

Children under age 13 should always ride

in the rear seats and must always be

properly restrained to minimize the risk of

injury in an accident, sudden stop or

sudden maneuver.
According to accident statistics, children

are safer when properly restrained in the

rear seats than in the front seat.

Even

with air bags, children can be seriously

injured or killed.

Children too large for a

Child Restraint System must use the seat

belts provided.
All 50 states have child restraint laws

which require children to travel in

approved Child Restraint Systems.
The laws governing the age or

height/weight restrictions at which seat

belts can be used instead of Child

Restraint System differs among states, so

you should be aware of the specific

requirements in your state, and where

you are travelling.
Child Restraint Systems must be properly

placed and installed in the rear seat. You

must use a commercially available Child

Restraint System that meets the

requirements of the Federal Motor

Vehicle Safety Standards (FMVSS 213).

Child Restraint Systems are generally

designed to be secured in a vehicle seat

by lap belt portion of a lap/shoulder belt,

or by a LATCH system in the rear seats of

the vehicle.

Child Restraint System (CRS)

Infants and younger children must be

restrained in an appropriate

rearward-facing or forward-facing CRS

that has first been properly secured to the

seat of the vehicle. Read and comply with

the instructions for installation and use

provided by the manufacturer of the Child

Restraint System.

WARNING

An improperly secured child restraint can

increase the risk of SERIOUS INJURY or

DEATH in an accident. Always take the

following precautions when using a Child

Restraint System:
• NEVER install a child or infant restraint

in the front passenger's seat.

• Always properly secure the child

restraint to a rear seat of the vehicle.

• Always follow the child restraint system

manufacturer's instructions for

installation and use.

• Always properly restrain your child in

the child restraint.

• If the vehicle head restraint prevents

proper installation of a child seat (as

described in the child restraint system

manual), the head restraint of the

respective seating position shall be

readjusted or entirely removed.

• Do not use an infant carrier or a child

safety seat that “hooks” over a

seatback, it may not provide adequate

protection in an accident.

• After an accident, have a HYUNDAI

dealer check the child restraint system,

seat belts, tether anchors and lower

anchors.

CarManuals2.com

3-47

Selecting a Child Restraint

System (CRS)

When selecting a Child Restraint System

for your child, always:
• Make sure the Child Restraint System

has a label certifying that it meets

applicable Federal Motor Vehicle

Safety Standards (FMVSS 213).

• Select a Child Restraint System based

on your child’s height and weight. The

required label or the instructions for use

typically provide this information.

• Select a Child Restraint System that fits

the vehicle seating position where it will

be used.

• Read and comply with the warnings

and instructions for installation and use

provided with the Child Restraint

System.

Child Restraint System types

There are three main types of Child

Restraint Systems: rearward-facing,

forward-facing and booster Child

Restraint Systems.
They are classified according to the

child’s age, height and weight.

B0065KO01

Rearward-facing Child Restraint System

A rearward-facing Child Restraint System

provides restraint with the seating

surface against the back of the child.
The harness system holds the child in

place, and in an accident, acts to keep the

child positioned in the Child Restraint

Systems and reduce the stress to the

fragile neck and spinal cord.
All children under the age of one year

must always ride in a rearward-facing

Child Restraint System. Convertible and

3-in-1 Child Restraint Systems typically

have higher height and weight limits for

the rearward-facing position, allowing

you to keep your child rearward-facing

for a longer period of time.
Continue using Child Restraint Systems in

the rearward-facing position as long as

children fit within the height and weight

limits allowed by the Child Restraint

System’s manufacturer. It's the best way

to keep them safe. Once your child has

outgrown the rearward-facing Child

Restraint System, your child is ready for a

forward-facing Child Restraint System

with a harness.

WARNING

NEVER install a child or infant restraint in

the front passenger's seat.
Placing a rearward-facing child restraint

in the front seat can result in SERIOUS

INJURY or DEATH if the child restraint is

struck by an inflating air bag.

CarManuals2.com

Seats & Safety System

3-48

B0065KO02

Forward-facing Child Restraint System

A forward-facing Child Restraint System

provides restraint for the child’s body

with a harness. Keep children in a

forward-facing Child Restraint System

with a harness until they reach the top

height or weight limit allowed by your

Child Restraint System’s manufacturer.
Once your child outgrows the

forward-facing Child Restraint System,

your child is ready for a booster seat.

Booster seats

A booster seat is a Child Restraint System

designed to improve the fit of the

vehicle’s seat belt system. A booster seat

positions the seat belt so that it fits

properly over the lap of your child. Keep

your children in booster seats until they

are big enough to fit in a seat belt

properly.
For a seat belt to fit properly, the lap belt

must lie comfortable across the upper

thighs, not the stomach. The shoulder

belt should lie comfortable across the

shoulder and chest and not across the

neck or face. Children under age 13 must

always be properly restrained to minimize

the risk of injury in an accident, sudden

stop or sudden maneuver.

Installing a Child Restraint

System (CRS)

WARNING

Before installing your Child Restraint

System always:
• Read and follow the instructions

provided by the manufacturer of the

Child Restraint System.

• Read and follow the instructions

regarding child restraint systems in this

manual.

Failure to follow all warnings and

instructions could increase the risk of the

SERIOUS INJURY or DEATH if an accident

occurs.

WARNING

If the vehicle head restraint prevents

proper installation of a Child Restraint

System, the head restraint of the

respective seating position shall be

readjusted or entirely removed.

After selecting a proper Child Restraint

System for your child and checking that

the Child Restraint System fits properly

on the seating position, there are three

general steps for a proper installation:
•

Properly secure the Child Restraint

System to the vehicle.

All Child

Restraint Systems must be secured to

the vehicle with the lap part of a

lap/shoulder belt or with the LATCH

system.

CarManuals2.com

3-49

•

Make sure the Child Restraint System

is firmly secured.

After installing a

Child Restraint System to the vehicle,

push and pull the seat forward and from

side-to-side to verify that it is securely

attached to the seat. A Child Restraint

System secured with a seat belt should

be installed as firmly as possible.

However, some side-to-side

movement can be expected.
When installing a Child Restraint

System, adjust the vehicle seat and

seatback (up and down, forward and

rearward) so that your child fits in the

Child Restraint System in a comfortable

manner.

•

Secure the child in the Child Restraint

System.

Make sure the child is properly

strapped in the Child Restraint System

according to the Child Restraint System

manufacturer’s instructions.

CAUTION

A Child Restraint System in a closed

vehicle can become very hot. To prevent

burns, check the seating surface and

buckles before placing your child in the

Child Restraint System.

Lower Anchors and Tether for

Children (LATCH System)

The LATCH system holds a Child Restraint

System during driving and in an accident.

This system is designed to make

installation of the Child Restraint System

easier and reduce the possibility of

improperly installing your Child Restraint

System. The LATCH system uses anchors

in the vehicle and attachments on the

Child Restraint System. The LATCH

system eliminates the need to use seat

belts to secure the Child Restraint System

to the rear seats.
Lower anchors are metal bars built into

the vehicle. There are two lower anchors

for each LATCH seating position that will

accommodate a Child Restraint System

with lower attachments.
To use the LATCH system in your vehicle,

you must have a Child Restraint System

with LATCH attachments.
The Child Restraint System manufacturer

will provide you with instructions on how

to use the Child Restraint System with its

attachments for the LATCH lower

anchors.

CarManuals2.com

Seats & Safety System

3-50

B0065KO09

LATCH anchors have been provided in the

left and right outboard rear seating

positions. Their locations are shown in the

illustration.
There are no LATCH anchors provided for

the center rear seating position.

WARNING

Do not attempt to install a Child Restraint

System using LATCH anchors in the rear

center seating position. There are no

LATCH anchors provided for this seat.

Using the outboard seat anchors can

damage the anchors which may break or

fail in a collision resulting in serious injury

or death.

B0065KO10

[A] : Lower Anchor Position Indicator

[B] : Lower Anchor

The lower anchor position indicator

symbols are located on the left and right

rear seat backs to identify the position of

the lower anchors in your vehicle (see

arrows in illustration).
The LATCH anchors are located between

the seatback and the seat cushion of the

rear seat left and right outboard seating

positions.

WARNING

Before installing the Child Restraint

System, make sure that there are no

objects (e.g. toy, pen, wire) around the

lower anchor area. Those objects may

damage either the seat belt system or the

Child Restraint System during the

installment procedure. If necessary, have

the vehicle inspected by an authorized

HYUNDAI dealer.

CarManuals2.com

3-51

Securing a Child Restraint System

with the “LATCH Anchors System”

To install a LATCH-compatible Child

Restraint System in either of the rear

outboard seating positions:
1. Move the seat belt buckle away from

the lower anchors.

2. Move any other objects away from the

anchors that could prevent a secure

connection between the Child Restraint

System and the lower anchors.

3. Place the Child Restraint System on the

vehicle seat, then attach the seat to the

lower anchors according to the

instructions provided by the Child

Restraint System manufacturer.

4. Follow the instructions of the Child

Restraint System’s manufacturer for

proper installation and connection of

the lower attachments on the Child

Restraint System to the lower anchors.

WARNING

Take the following precautions when

using the LATCH system:
• Read and follow all installation

instructions provided with your Child

Restraint System.

• To prevent the child from reaching and

taking hold of unretracted seat belts,

buckle all unused rear seat belts and

retract the seat belt webbing behind

the child. Children can be strangled if a

shoulder belt becomes wrapped

around their neck and the seat belt

tightens.

• NEVER attach more than one Child

Restraint System to a single anchor.

This could cause the anchor or

attachment to come loose or break.

• Always have the LATCH system

inspected by your authorized HYUNDAI

dealer after an accident. An accident

can damage the LATCH system and

may not properly secure the child

restraint.

NOTICE

The recommended weight for the LATCH

system is under 65 lb. (30 kg).
How to determine an appropriate child

restraint weight: Child weight + Child

restraint weight < 65 lb. (30kg)

Securing a Child Restraint System

seat with “Tether Anchor” system

B0065EU02

B0065EU01

[A] : 2

row passenger seat

[B] : 3

row passenger seat

First secure the child restraint with the

LATCH lower anchors or the seat belt. If

the child restraint manufacturer

recommends that the top tether strap be

attached, attach and tighten the top

tether strap to the top tether strap

anchor.
Child restraint hook holders are located

on the rear of the seatbacks.

CarManuals2.com

Seats & Safety System

3-52

B0065KO08

To install the tether anchor:
1. Route the Child Restraint System

top-tether strap over the seatback.

Route the tether strap under the head

restraint and between the head

restraint posts, or route the tether strap

over the top of the vehicle seatback.

Make sure the strap is not twisted.

2. Connect the tether strap hook to the

tether anchor, then tighten the

top-tether strap according to the

instructions of your Child Restraint

System’s manufacturer to firmly attach

the Child Restraint System to the seat.

3. Check that the Child Restraint System

is securely attached to the seat by

pushing and pulling the seat

forward-and-back and side-to-side.

WARNING

Take the following precautions when

installing the tether strap:
• Read and follow all installation

instructions provided with your Child

Restraint System.

• NEVER attach more than one Child

Restraint System to a single tether

anchor. This could cause the anchor or

attachment to come loose or break.

• Do not attach the tether strap to

anything other than the correct

top-tether anchor. It may not work

properly if attached to something else.

• Child Restraint System anchors are

designed to withstand only those loads

imposed by correctly fitted Child

Restraint System.
Under no circumstances are the

anchors to be used for adult seat belts

or harnesses or for attaching other

items or equipment to the vehicle.

Securing a Child Restraint System

with a lap/shoulder belt

When not using the LATCH system, all

Child Restraint Systems must be secured

to a rear seat with the lap part of a

lap/shoulder belt.

WARNING

ALWAYS place a rearward-facing Child

Restraint System in the rear seat of the

vehicle.
Placing a rearward-facing child restraint

in the front seat can result in serious injury

or death if the Child Restraint System is

struck by an inflating air bag.

CarManuals2.com

3-53

B0065KO08

Automatic locking mode

Since all passenger seat belts move freely

under normal conditions and only lock

under extreme or emergency conditions

(emergency locking mode), you must

manually pull the seat belt all the way out

to shift the retractor to the “Automatic

Locking” mode to secure a Child Restraint

System.
The “Automatic Locking” mode will help

prevent the normal movement of the

child in the vehicle from causing the seat

belt to loosen and compromise the Child

Restraint System. To secure a Child

Restraint System, use the following

procedure.
To install a Child Restraint System on the

rear seats, do the following:
1. Place the Child Restraint System on a

rear seat and route the lap/shoulder

belt around or through the Child

Restraint System, following the Child

Restraint System manufacturer’s

instructions. Make sure the seat belt

webbing is not twisted.

Information

When using the rear center seat belt,

you should also refer to the “Rear Seat

Belt - Passenger’s 3point system with

convertible locking retractor” section in

this chapter.

B0065KO03

2. Fasten the lap/shoulder belt latch into

the buckle. Listen for the distinct “click”

sound.

Information

Position the release button so that it is

easy to access in case of an emergency.

B0065KO04

3. Pull the shoulder portion of the seat belt

all the way out. When the shoulder

portion of the seat belt is fully

extended, it will shift the retractor to

the “Automatic Locking” (child

restraint) mode.

CarManuals2.com

Seats & Safety System

3-54

B0065KO05

4. Slowly allow the shoulder portion of the

seat belt to retract and listen for an

audible “clicking” or “ratcheting”

sound. This indicates that the retractor

is in the “Automatic Locking” mode. If

no distinct sound is heard, repeat steps

3 and 4.

5. Remove as much slack from the belt as

possible by pushing down on the Child

Restraint System while feeding the

shoulder belt back into the retractor.

B0065KO06

6.Push and pull on the Child Restraint

System to confirm that the seat belt is

holding it firmly in place. If it is not,

release the seat belt and repeat steps 2

through 6.

7. Double check that the retractor is in the

“Automatic Locking” mode by

attempting to pull more of the seat belt

out of the retractor. If you cannot, the

retractor is in the “Automatic Locking”

mode.

If your Child Restraint System

manufacturer instructs or recommends

you to use a tether anchor with the lap/

shoulder belt, refer to the previous pages

for more information.

Information

When the seat belt is allowed to retract to

its fully stowed position, the retractor will

automatically switch from the “Automatic

Locking” mode to the emergency lock

mode for normal adult usage.

WARNING

If the retractor is not in the “Automatic

Locking” mode, the child restraint can

move when your vehicle turns or stops

suddenly. A child can be seriously injured

or killed if the child restraint is not

properly anchored in the car, including

manually pulling the seat belt all the way

out to shift the retractor to the

“Automatic Locking” mode.

To remove the Child Restraint System,

press the release button on the buckle

and then pull the lap/shoulder belt out of

the Child Restraint System and allow the

seat belt to retract fully.

CarManuals2.com

Seats & Safety System

3-56

The vehicles are equipped with an Advanced Supplemental Air Bag System for the

driver’s seat and front passenger’s seats.
The front air bags are designed to supplement the three-point seat belts. For these air

bags to provide protection, the seat belts must be worn at all times when driving.
You can be severely injured or killed in an accident if you are not wearing a seat belt. Air

bags are designed to supplement seat belts, but do not replace them. Also, air bags are

not designed to deploy in every collision. In some accidents, the seat belts are the only

restraint protecting you.

WARNING

AIR BAG SAFETY PRECAUTIONS
ALWAYS use seat belts and Child Restraint Systems - every trip, every time, everyone!

Even with air bags, you can be seriously injured or killed in a collision if you are improperly

belted or not wearing your seat belt when the air bag inflates.
NEVER place a child in any Child Restraint System or booster seat in the front passenger

seat, unless the air bag is deactivated.
An inflating air bag could forcefully strike the infant or child causing serious or fatal

injuries.
ABC - Always Buckle Children under age 13 in the back seat. It is the safest place for

children of any age to ride. If a child age 13 or older must be seated in the front seat, he

or she must be properly belted and the seat should be moved as far back as possible.
All occupants should sit upright with the seatback in an upright position, centered on the

seat cushion with their seat belt on, legs comfortably extended and their feet on the floor

until the vehicle is parked and the vehicle is turned off. If an occupant is out of position

during an accident, the rapidly deploying air bag may forcefully contact the occupant

causing serious or fatal injuries.
You and your passengers should never sit or lean unnecessarily close to the air bags or

lean against the door or center console.
Move your seat as far back as possible from front air bags, while still maintaining control

of the vehicle. The U.S. National Highway Traffic Safety Administration (NHTSA)

recommends that drivers allow at least 10 inches (25 cm) between the center of the

steering wheel and the chest.

CarManuals2.com

3-57

Where Are the Air Bags?

Driver’s and passenger’s front air

bags

B0071KO01

B0071KO02

B0072EE01

[A] : Driver’s front air bag

[B] : Driver’s knee air bag

[C] : Passenger’s front air bag

Your vehicle is equipped with an

Advanced Supplemental Restraint

System (SRS) and lap/shoulder belts at

both the driver and passenger seating

positions.

The SRS consists of air bags which are

located in the center of the steering

wheel, in the driver’s side lower crash pad

below the steering wheel, and the

passenger’s side front panel pad above

the glove box.
The air bags are labeled with the letters

“AIR BAG” embossed on the pad covers.
The purpose of the SRS is to provide the

vehicle’s driver and front passengers with

additional protection than that offered by

the seat belt system alone in case of a

frontal impact of sufficient severity.
The SRS uses sensors to gather

information about the driver’s and front

passenger's seat belt usage and impact

severity.
The seat belt buckle sensors determine if

the driver and front passenger's seat belts

are fastened. These sensors provide the

ability to control the SRS deployment

based on whether or not the seat belts are

fastened, and how severe the impact is.
The advanced SRS offers the ability to

control the air bag inflation within two

levels. A first stage level is provided for

moderate-severity impacts. A second

stage level is provided for more severe

impacts.
According to the impact severity, and

seat belt usage, the SRS Control Module

(SRSCM) controls the air bag inflation.

Failure to properly wear seat belts can

increase the risk or severity of injury in an

accident.

CarManuals2.com

Seats & Safety System

3-58

WARNING

To reduce the risk of serious injury or

death from inflating front air bags, take

the following precautions:
• Seat belts must be worn at all times to

help keep occupants positioned

properly.

• Move your seat as far back as possible

from front air bags, while still

maintaining control of the vehicle.

• Never lean against the door or center

console.

• Do not allow the front passenger to

place their feet or legs on the

dashboard.

• No objects (such as crash pad cover,

mobile phone holder, cup holder,

perfume or stickers) should be placed

over or near the air bag modules on the

steering wheel, instrument panel,

windshield glass, and the front

passenger’s panel above the glove box.

Such objects could cause harm if the

vehicle is in a crash severe enough to

cause the air bags to deploy.

• Do not attach any objects on the front

windshield and inside mirror.

Side air bags

B0074EU01

B0070EU01

Your vehicle is equipped with a side air

bag in each front seat. The purpose of the

air bag is to provide the vehicle’s

additional protection than that offered by

the seat belt alone.

CarManuals2.com

3-59

The side air bags are designed to deploy

during certain side impact collisions,

depending on the crash severity.
The side and/or curtain air bags and

pre-tensioners on both sides of the

vehicle may deploy if a rollover or

possible rollover is detected.
The side air bags are not designed to

deploy in all side impact or rollover

situations.

WARNING

To reduce the risk of serious injury or

death from an inflating side air bag take

the following precautions:
• Seat belts must be worn at all times to

help keep occupants positioned

properly.

• Do not allow passengers to lean their

heads or bodies onto doors, put their

arms on the doors, stretch their arms

out of the window, or place objects

between the doors and seats.

• Hold the steering wheel at the 9 o’clock

and 3 o’clock positions, to minimize the

risk of injuries to your hands and arms.

• Do not use any accessory seat covers.

This could reduce or prevent the

effectiveness of the system.

• Do not hang other objects except

clothes. In an accident it may cause

vehicle damage or personal injury

especially when air bag is inflated.

• Do not place any objects over the air

bag or between the air bag and

yourself. Also, do not attach any objects

around the area the air bag inflates

such as the door, side door glass, front

and rear pillar.

• Do not place any objects between the

door and the seat. They may become

dangerous projectiles if the side air bag

inflates.

• Do not install any accessories on the

side or near the side air bags.

• Do not cause impact to the doors when

the ignition switch is in the ON or START

position as this may cause the side air

bags to inflate.

• If the seat or seat cover is damaged,

have the vehicle checked and repaired

by an authorized HYUNDAI dealer.

Curtain air bags

B0075KO01

B0076EU01

Curtain air bags are located along both

sides of the roof rails above the front and

rear doors.
They are designed to help protect the

heads of the front seat occupants and the

rear outboard seat occupants in certain

side impact collisions.
The curtain air bags are designed to

deploy during certain side impact

collisions, depending on the crash

severity.

CarManuals2.com

Seats & Safety System

3-60

The side and/or curtain air bags and

pre-tensioners on both sides of the

vehicle may deploy if a rollover or

possible rollover is detected.
The curtain air bags are not designed to

deploy in all side impact or rollover

situations.

WARNING

To reduce the risk of serious injury or

death from an inflating curtain air bag,

take the following precautions:
• All seat occupants must wear seat belts

at all times to help keep occupants

positioned properly.

• Properly secure Child Restraint System

as far away from the door as possible.

• Do not place any objects over the air

bag. Also, do not attach any objects

around the area the air bag inflates

such as the door, side door glass, front

and rear pillar, roof side rail.

• Do not hang other objects except

clothes, especially hard or breakable

objects.
In an accident, it may cause vehicle

damage or personal injury.

• Do not allow passengers to lean their

heads or bodies onto doors, put their

arms on the doors, stretch their arms

out of the window, or place objects

between the doors and seats.

• Do not open or repair the side curtain

air bags.

How Does the Air Bags System

Operate?

B0067EU05

The SRS consists of the following

components:
(1) Driver’s front air bag module
(2) Passenger’s front air bag module
(3) Side air bag modules
(4) Curtain air bag modules
(5) Front retractor pre-tensioner
(6) Air bag warning light
(7) SRS control module (SRSCM) /

Rollover sensor

(8) Front impact sensors
(9) Side impact sensors (acceleration)
(10)Side impact sensors (pressure)
(11) Driver’s knee air bag module
(12)Occupant Classification System (OCS)

Information

Front passenger’s air bag OFF lamp is

located on the overhead console.

CarManuals2.com

3-61

The SRSCM (Supplemental Restraint

System Control Module) continually

monitors all SRS components while the

ignition switch is ON to determine if a

crash impact is severe enough to require

air bag deployment or pre-tensioner seat

belt deployment.

SRS warning light

C0087KO02

The SRS (Supplemental Restraint System)

air bag warning light on the instrument

panel displays the air bag symbol

depicted in the illustration. The system

checks the air bag electrical system for

malfunctions. The light indicates that

there is a potential problem with your air

bag system, which could include your

side and curtain air bags used for rollover

protection.

WARNING

If your SRS malfunctions, the air bag may

not inflate properly during an accident

increasing the risk of serious injury or

death.
If any of the following conditions occur,

your SRS is malfunctioning:
• The light does not turn on for

approximately three to six seconds

when the ignition switch is in the ON

position.

• The light stays on after illuminating for

approximately three to six seconds.

• The light comes on while the vehicle is

in motion.

• The light blinks when the engine is

running.

Have an authorized HYUNDAI dealer

inspect the SRS as soon as possible if any

of these conditions occur.

During a moderate to severe frontal

collision, sensors will detect the vehicle’s

rapid deceleration. If the rate of

deceleration is high enough, the control

unit will inflate the front air bags, at the

time and with the force needed.
The front air bags help protect the driver

and front passenger by responding to

frontal impacts in which seat belts alone

cannot provide adequate restraint. When

needed, the side air bags help provide

protection in the event of a side impact or

rollover by supporting the side upper

body area.
• Air bags are activated (able to inflate if

necessary) only when the ignition

switch is in the ON or START position,

and it can be activated within about 3

minutes after the engine is turned off.

• Air bags inflate in the event of certain

frontal or side collisions to help protect

the occupants from serious physical

injury.

• Generally, air bags are designed to

inflate based upon the severity of a

collision, its direction, or etc. These two

factors determine whether the sensors

produce an electronic

deployment/inflation signal.

• The front air bags will completely

inflate and deflate in an instant. It is

virtually impossible for you to see the

air bags inflate during an accident. It is

much more likely that you will simply

see the deflated air bags hanging out of

their storage compartments after the

collision.

• In addition to inflating in serious side

collisions, vehicles equipped with a

rollover sensor, side and curtain air

bags will inflate if the sensing system

detects a rollover.
When a rollover is detected, curtain air

bags will remain inflated longer to help

provide protection from ejection,

especially when used in conjunction

with the seat belts.

CarManuals2.com

Seats & Safety System

3-62

• To help provide protection, the air bags

must inflate rapidly. The speed of air

bag inflation is a consequence of

extremely short time in which to inflate

the air bag between the occupant and

the vehicle structures before the

occupant impacts those structures.

This speed of inflation reduces the risk

of serious or life-threatening injuries

and is thus a necessary part of air bag

design.
However, the rapid air bag inflation can

also cause injuries which can include

facial abrasions, bruises and broken

bones because the inflation speed also

causes the air bags to expand with a

great deal of force.

• There are even circumstances under

which contact with the air bag can

cause fatal injuries, especially if the

occupant is positioned excessively

close to the air bag.

You can take steps to reduce the risk of

being injured by an inflating air bag. The

greatest risk is sitting too close to the air

bag. An air bag needs about 10 in. (25 cm)

of space to inflate. NHTSA recommends

that drivers allow at least 10 in. (25 cm)

between the center of the steering wheel

and the chest.

WARNING

To reduce the risk of serious injury or

death from an inflating air bag, take the

following precautions:
• NEVER place a child restraint in the

front passenger seat.
Always properly restrain children under

age 13 in the rear seats of the vehicle.

• Adjust the front passenger’s and

driver's seats as far to the rear as

possible while allowing you to maintain

full control of the vehicle.

• Hold the steering wheel with hands at

the 9 o'clock and 3 o'clock positions.

• Never place anything or anyone

between the air bag and the seat

occupant.

• Do not allow the front passenger to

place their feet or legs on the

dashboard.

CarManuals2.com

Hyundai Palisade (2024 year). Manual in english - page 3
