OWNER’S MANUAL

Operation
Maintenance
Specifications

All information in this Owner’s Manual is current at the time of

publication. However, HYUNDAI reserves the right to make

changes at any time so that our policy of continual product

improvement may be carried out.

This manual applies to all HYUNDAI models and includes

descriptions and explanations of optional as well as standard

equipment. As a result, you may find material in this manual that

does not apply to your specific vehicle.

CarManuals2.com

Introduction

CAUTION: MODIFICATIONS TO YOUR HYUNDAI

Your HYUNDAI should not be modified in any way. Such modifications may adversely

affect the performance, safety or durability of your HYUNDAI and may, in addition,

violate conditions of the limited warranties covering the vehicle. Certain modifications

may also be in violation of regulations established by the U.S. Department of

Transportation and other federal or state agencies.

TWO-WAY RADIO INSTALLATION

Your vehicle is equipped with a Tire Pressure Monitoring System, Passenger Occupant

Classification System and other CAN bus systems. It is possible for an improperly

installed/adjusted high powered two-way radio to adversely affect electronic systems.

For this reason, we recommend that you carefully follow the radio manufacturer’s

instructions if you choose to install one of these devices.

CarManuals2.com

SAFETY AND VEHICLE DAMAGE WARNING

This manual includes information titled as DANGER, WARNING, CAUTION and NOTICE.
These titles indicate the following:

DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or

serious injury.

WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or

serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or

moderate injury.

NOTICE

NOTICE indicates a situation which, if not avoided, could result in vehicle damage.

CarManuals2.com

Introduction

HYUNDAI VEHICLE OWNER PRIVACY POLICY

Your Hyundai vehicle may be equipped with technologies and services that use

information collected, generated, recorded or stored by the vehicle. Hyundai has created

a Vehicle Owner Privacy Policy to explain how these technologies and services collect

use and share this information.

You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website at:

https://www.hyundaiusa.com/owner-privacy-policy.aspx
If you would like to receive a hard copy of our Vehicle Owner Privacy Policy, please

contact the Hyundai Customer Care Center at:

Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraffairs@hmausa.com

Hyundai’s Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST and Saturday between 6:30 AM and 3:00

PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available

Monday through Friday between 6:30 AM and 3:00 PM PST.

CarManuals2.com

Table of contents

Introduction

Vehicle Information, Consumer Information
and Reporting Safety Defects

Seats & Safety System

Instrument Cluster

Convenience Features

Driving Your Vehicle

Driver Assistance System

1. Introduction

Introduction

1-2

Introduction

Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome you

to the growing number of discerning people who drive HYUNDAIs. We are very proud of

the advanced engineering and high-quality construction of each HYUNDAI we build.
Your Owner’s Manual will introduce you to the features and operation of your new

HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it,

read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to

familiarize you with your vehicle’s controls and safety features so you can safely operate

your vehicle.
This manual also contains information on maintenance designed to enhance safe

operation of the vehicle. It is recommended that all service and maintenance on your car

be performed by an authorized HYUNDAI dealer. HYUNDAI dealers are prepared to

provide high-quality service, maintenance and any other assistance that may be

required.
This Owner’s Manual should be considered a permanent part of your vehicle, and should

be kept in the vehicle so you can refer to it at any time. The manual should stay with the

vehicle if you sell it to provide the next owner with important operating, safety and

maintenance information.

HYUNDAI Motor America

CAUTION

Severe engine and transmission damage may result from the use of poor quality fuels and

lubricants that do not meet HYUNDAI specifications. You must always use high quality

fuels and lubricants that meet the specifications listed on Page 2-12 in the Vehicle

Specifications section of the Owner’s Manual.

may be reproduced, stored in any retrieval system or transmitted in any form or by any

means without the prior written permission of HYUNDAI Motor America.

CarManuals2.com

1-3

Guide to Hyundai Genuine Parts

What are HYUNDAI Genuine Parts?

HYUNDAI Genuine Parts are the same parts used by HYUNDAI Motor Company to

manufacture vehicles. They are designed and tested for the optimum safety,

performance, and reliability for our customers.

A100A01L

A100A02L

Why Hyundai Genuine Parts?

HYUNDAI Genuine Parts are engineered and built to meet rigid manufacturing

requirements. Damage caused by using imitation, counterfeit or used salvage parts is

not covered under the HYUNDAI New Vehicle Limited Warranty or any other HYUNDAI

warranty.
In addition, any damage to or failure of HYUNDAI Genuine Parts caused by the

installation or failure of an imitation, counterfeit or used salvage part is not covered by

any HYUNDAI Warranty.

CarManuals2.com

Introduction

1-4

A100A04L

How can you tell if you are purchasing HYUNDAI Genuine Parts?

Look for the HYUNDAI Genuine Parts Logo on the package (see below).
HYUNDAI Genuine Parts exported to the U.S. are packaged with labels written only in

English.
HYUNDAI Genuine Parts are only sold through authorized HYUNDAI Dealerships.

A100A03L

CarManuals2.com

1-5

How to Use this Manual

We want to help you get the greatest possible driving pleasure from your vehicle. Your

Owner’s Manual can assist you in many ways. To gain an overview of the contents of your

Owner’s Manual, use the Table of Contents in the front of the manual. The first page of

each Chapter includes a detailed Table of Contents of the topics in that Chapter.
To quickly locate information about your vehicle, use the Index in the back of the manual.

It is an alphabetical list of what is in this manual and the page number where it can be

found.
For your convenience, we have incorporated tabs on the right-hand page edges. These

tabs are coded with the Chapter titles to assist you with navigating through the manual.

Safety Messages

Your safety, and the safety of others, is very important. This Owner’s Manual provides you

with many safety precautions and operating procedures. This information alerts you to

potential hazards that may hurt you or others, as well as damage your vehicle.
Safety messages found on vehicle labels and in this manual describe these hazards and

what to do to avoid or reduce the risks.
Warnings and instructions contained in this manual are for your safety. Failure to follow

safety warnings and instructions can lead to serious injury or death.
Throughout this manual DANGER, WARNING, CAUTION, NOTICE and the SAFETY ALERT

SYMBOL will be used.

This is the safety alert symbol. It is used to alert you to potential physical injury

hazards. Obey all safety messages that follow this symbol to avoid possible

injury or death. The safety alert symbol precedes the signal words DANGER,

WARNING and CAUTION.

DANGER

DANGER indicates a hazardous situation

which, if not avoided, will result in death

or serious injury.

WARNING

WARNING indicates a hazardous situation

which, if not avoided, could result in

death or serious injury.

CAUTION

CAUTION indicates a hazardous situation

which, if not avoided, could result in

minor or moderate injury.

NOTICE

NOTICE indicates a situation which, if not

avoided, could result in vehicle damage.

CarManuals2.com

Introduction

1-6

Fuel Requirements

Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL, as

well as minimize exhaust emissions and spark plug fouling.
Your new vehicle is designed to perform optimally using unleaded fuel having an octane

number ((R+M)/2) of 87 (Research Octane Number 91) or higher. (Do not use methanol

blended fuels)

NOTICE

To prevent damage to the engine and engine components, never add any fuel system

cleaning agents to the fuel tank other than what has been specified.
Consult an authorized HYUNDAI dealer for additional information.

WARNING

• Do not “top off” after the nozzle automatically shuts off when refueling.
• Always check that the fuel cap is installed securely to prevent fuel spillage in the event

of an accident.

Gasoline containing alcohol or methanol

Gasohol, a mixture of gasoline and ethanol (also known as grain alcohol) are being

marketed along with or instead of leaded or unleaded gasoline. For example, “E15” is a

gasohol comprised of 15% ethanol and 85% gasoline.
Do not use gasohol containing more than 15% ethanol, and do not use gasoline or gasohol

containing any methanol. Either of these fuels may cause drivability problems and

damage to the fuel system, engine control system and emission control system.
Discontinue using gasohol of any kind if drivability problems occur.
“E85” fuel is an alternative fuel comprised of 85 percent ethanol and 15 percent gasoline,

and is manufactured exclusively for use in Flexible Fuel Vehicles. “E85” is not compatible

with your vehicle. Use of “E85” may result in poor engine performance and damage to

your vehicle’s engine and fuel system. HYUNDAI recommends that customers do not use

fuel with an ethanol content exceeding 15 percent.

NOTICE

To prevent damage to your vehicle’s engine and fuel system:
• Never use gasohol which contains methanol.
• Never use gasohol containing more than 15% ethanol.
• Never use leaded fuel or leaded gasohol.
• Never use “E85” fuel.
Your New Vehicle Limited Warranty does not cover damage to the fuel system or any

performance problems caused by the use of “E85” fuel.

CarManuals2.com

1-7

Using Fuel Additives (except Detergent Fuel Additives)

Using fuel additives such as:
• Silicone fuel additive
• Ferrocene (iron-based) fuel additive
• Other metallic-based fuel additives
may result in cylinder misfire, poor acceleration, engine stalling, damage to the catalyst,

or abnormal corrosion, and may cause damage to the engine resulting in a reduction in

the overall life of the powertrain.
The Malfunction Indicator Lamp (MIL) may illuminate.

NOTICE

Damage to the fuel system or performance problem caused by the use of these fuels or

fuel additives may not be covered by your New Vehicle Limited Warranty.

Gasoline containing MMT

Some gasoline contains harmful manganese-based fuel additives such as MMT

(Methylcyclopentadienyl Manganese Tricarbonyl).
HYUNDAI does not recommend the use of gasoline containing MMT.
This type of fuel can reduce vehicle performance and affect your emission control

system.
The malfunction indicator lamp on the cluster may come on.

Detergent Fuel Additives

HYUNDAI recommends that you use good quality gasolines treated with detergent

additives such as TOP TIER Detergent Gasoline, which help prevent deposit formation in

the engine. These gasolines will help the engine run cleaner and enhance performance

of the Emission Control System. For more information on TOP TIER Detergent Gasoline,

please go to the website (www.toptiergas.com).
For customers who do not use TOP Tier Detergent Gasoline regularly, and have problems

starting or the engine does not run smoothly, detergent-based fuel additives that you can

purchase separately may be added to the gasoline. If TOP TIER Detergent Gasoline is not

available, one bottle of additive added to the fuel tank according to the maintenance

schedule is recommended (refer to the Scheduled Maintenance Services in chapter 9).
Additives are available from your authorized HYUNDAI dealer along with information on

how to use them. Do not mix other additives.

Operation in foreign countries

If you are going to drive your vehicle in another country, be sure to:
• Observe all regulations regarding registration and insurance.
• Determine that acceptable fuel is available.

CarManuals2.com

Introduction

1-8

Vehicle Modifications

• This vehicle should not be modified. Modification of your vehicle could affect its

performance, safety or durability and may even violate governmental safety and

emissions regulations.

• In addition, damage or performance problems resulting from any modification may not

be covered under warranty.

• If you use unauthorized electronic devices, it may cause the vehicle to operate

abnormally, wire damage, battery discharge and fire. For your safety, do not use

unauthorized electronic devices.

NOTICE

Some warning sounds (including welcome/good-bye sound, etc.) are generated from

the interior speakers or amplifiers. If necessary, we recommend you to purchase

HYUNDAI Part to replace an interior speaker or amplifier. Any unauthorized product may

cause a malfunction of the interior speakers or amplifiers.

Vehicle Break-in Process

• Do not race the engine.
• While driving, keep your engine speed (RPM, or revolutions per minute) between 2,000

RPM and 4,000 RPM.

• Do not maintain a single speed for long periods of time, either fast or slow. Varying

engine speed is needed to properly break-in the engine.

• Avoid hard stops, except in emergencies, to allow the brakes to seat properly.
• Fuel economy and engine performance may vary depending on vehicle break-in

process and be stabilized after 4,000 miles (6,000 km). New engines may consume

more oil during the vehicle break-in period.

• Do not tow a trailer during the first 1,200 miles (2,000 km) of operation.

NOTICE

CALIFORNIA PROPOSITION 65 WARNING
Items contained in motor vehicles or emitted from them are known to the State of

California to cause cancer and birth defects or reproductive harm. These include:
• Gasoline and its vapors
• Engine exhaust
• Used engine oil
• Interior passenger compartment components and materials
• Component parts which are subject to heat and wear
In addition, battery posts, terminals and related accessories contain lead, lead

compounds and other chemicals known to the State of California to cause cancer and

reproductive harm.

CarManuals2.com

1-9

Vehicle Data Collection and Event Data Recorders

This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR

is to record, in certain crash or near crash-like situations, such as an air bag deployment

or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems

performed. The EDR is designed to record data related to vehicle dynamics and safety

systems for a short period of time, typically 30 seconds or less.The EDR in this vehicle is

designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which

crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a

non-trivial crash situation occurs; no data are recorded by the EDR under normal driving

conditions and no personal data (for example, name, gender, age, and crash location) are

recorded. However, other parties, such as law enforcement, could combine the EDR data

with the type of personally identifying data routinely acquired during a crash

investigation.
To read data recorded by an EDR, special equipment is required, and access to the

vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such

as law enforcement, that have the special equipment, can read the information if they

have access to the vehicle or the EDR.

CarManuals2.com

2. Vehicle Information,

Consumer Information and

Reporting Safety Defects

CarManuals2.com

Vehicle Information, Consumer Information and Reporting Safety Defects

2-2

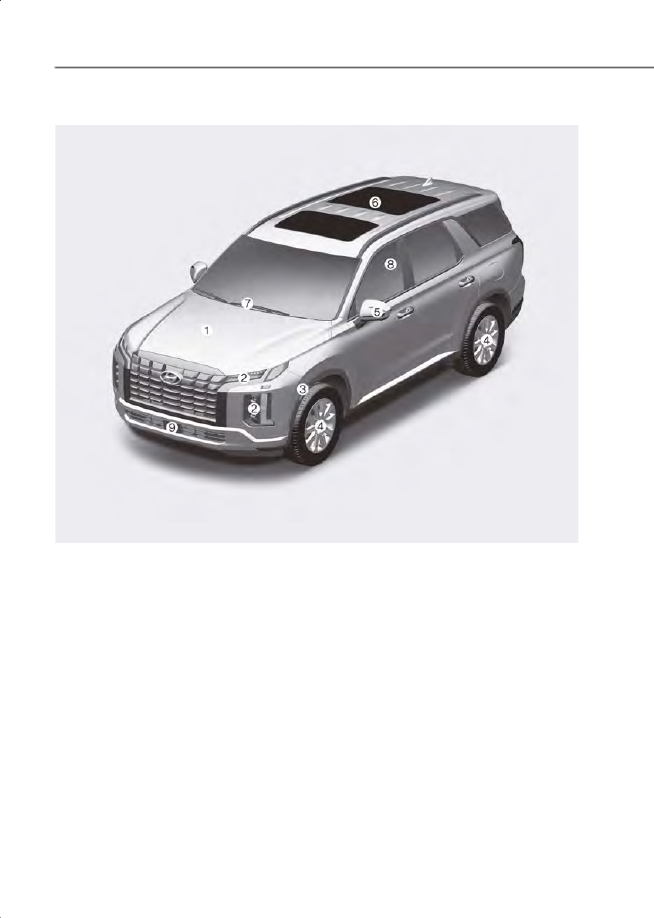

Exterior Overview (Front View)

A0001EU02

The actual shape may differ from the illustration.

CarManuals2.com

2-3

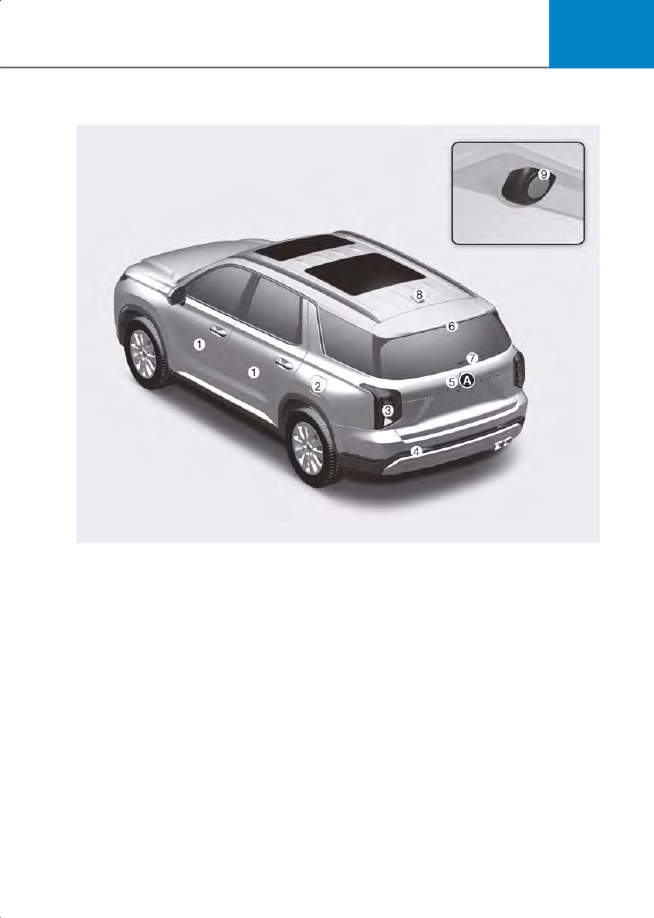

Exterior Overview (Rear View)

A0002EU02

The actual shape may differ from the illustration.

CarManuals2.com

Vehicle Information, Consumer Information and Reporting Safety Defects

2-4

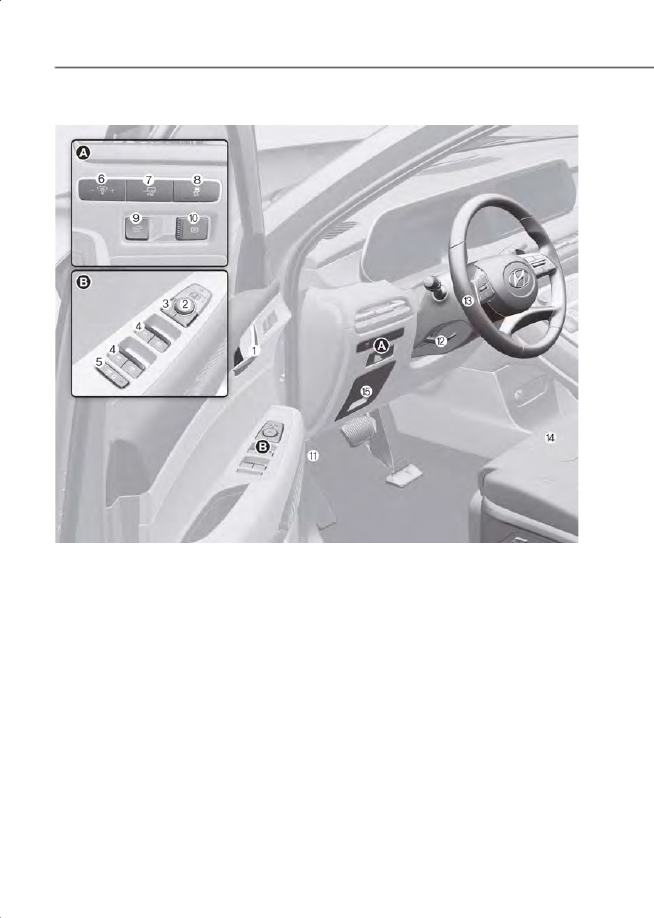

Interior Overview

A0003EU01

The actual shape may differ from the illustration.

CarManuals2.com

2-5

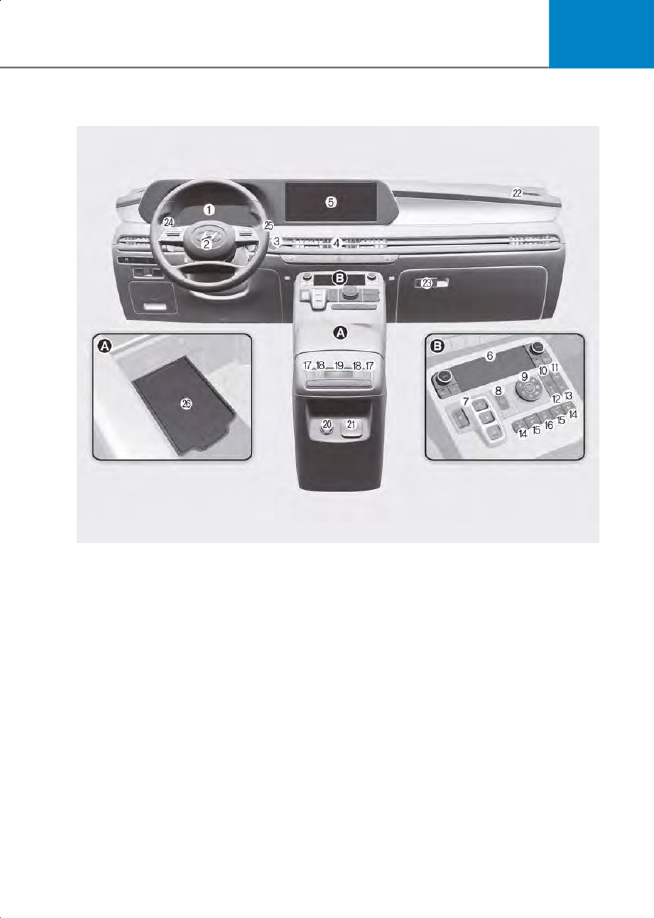

Center Console Overview

A0004KO01

The actual shape may differ from the illustration.

CarManuals2.com

Vehicle Information, Consumer Information and Reporting Safety Defects

2-6

CarManuals2.com

2-7

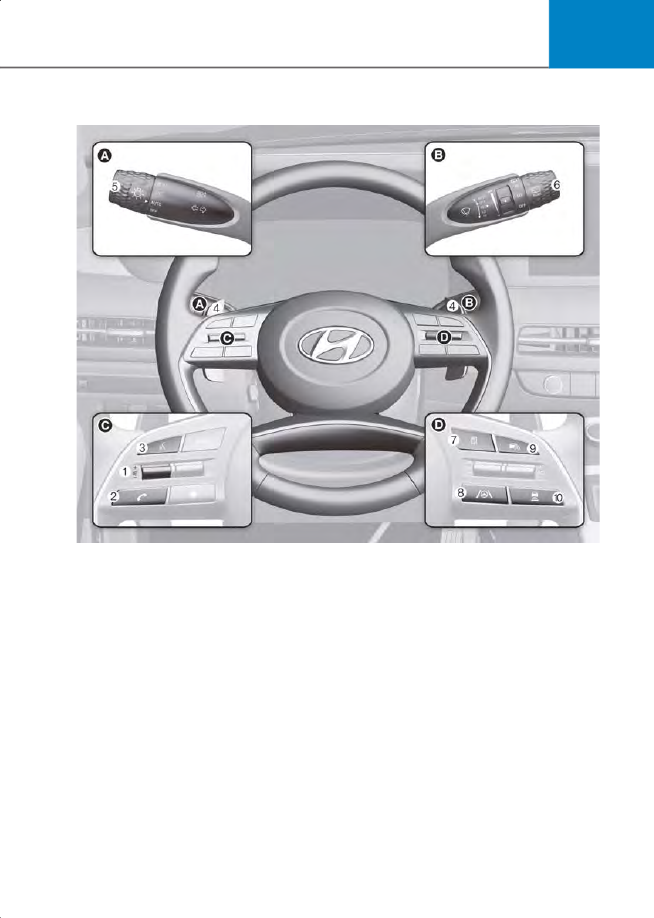

Steering Wheel Control Overview

A0005KO01

The actual shape may differ from the illustration.

CarManuals2.com

Vehicle Information, Consumer Information and Reporting Safety Defects

2-8

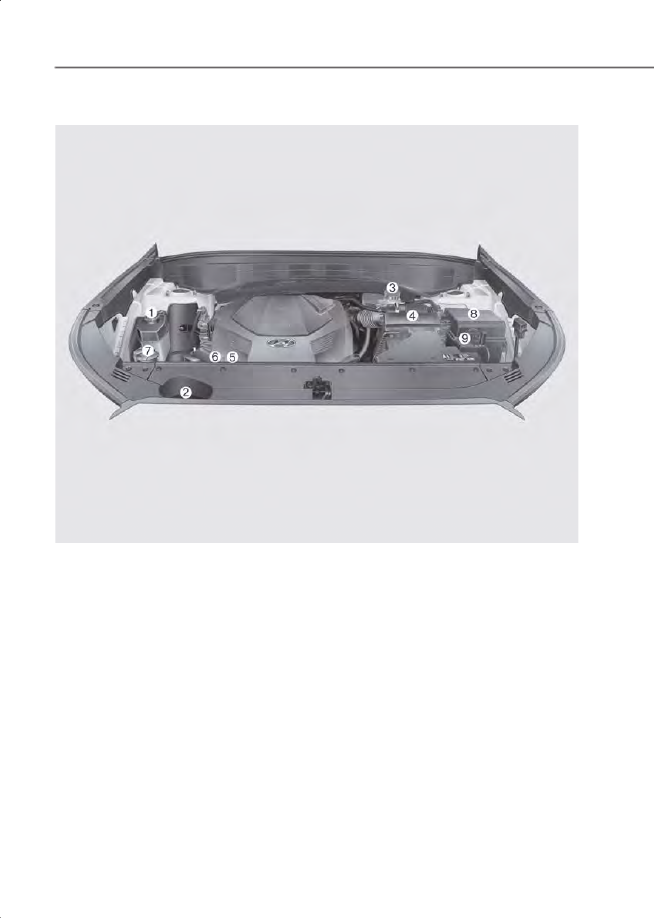

Engine Compartment Overview

A0419KO02

The actual engine compartment in the vehicle may differ from the illustration.

CarManuals2.com

2-9

Dimensions

Engine

Items

in (mm)

Overall length

196.65 (4,995)

Overall width

77.75 (1,975)

Overall height

68.89 (1,750)

Front tread

245/60 R18

67.24 (1,708)

245/50 R20

67.24 (1,708)

Rear tread

245/60 R18

67.56 (1,716)

245/50 R20

67.56 (1,716)

Wheelbase

114.17 (2,900)

Engine

Displacement

cu. in (cc)

Bore x Stroke in.

(mm)

No. of cylinders

Firing order

3.8 GDI

230.55 (3,778)

3.78 x 3.43

(96 x 87)

1-2-3-4-5-6

CarManuals2.com

Vehicle Information, Consumer Information and Reporting Safety Defects

2-10

Bulb Wattage

Light bulb

Bulb type

Wattage

Front

Headlight

Low

LED

High, Low beam

assist

LED

Daytime running light/Position lamp

LED

Turn signal lamp

LED

Side repeater lamp

LED

Side marker lamp

LED

Rear

Tail lamp

Type A

P28/8W

28/8

Type B

LED

Tail/Stop lamp

Type A

P28/8W

28/8

Stop lamp

Type B

LED

Turn signal lamp

Type A

P28/8W

28/8

Type B

LED

Side marker lamp

LED

Revers lamp

W16W

High mounted stop lamp

LED

License plate lamp

W5W

Interior

Map lamp

Type A

W8W

Type B

LED

Room lamp

Type A

W8W

Type B

LED

Luggage compartment lamp

Type A

FESTOON

Type B

LED

Vanity mirror lamp

Type A

Type B

LED

Glove box lamp

LED

CarManuals2.com

2-11

Tires And Wheels

NOTICE

• Ambient temperature affects tire pressure (about 1 psi (7 kPa) for every 12 °F (7 °C)

change). If colder temperatures are anticipated, it is permissible to increase cold tire

inflation pressure by up to 3 psi (20 kPa) over the specification. If extreme temperature

changes are expected, be sure to check and adjust tire pressure accordingly.

• Tire inflation pressure decreases with higher elevation, and increases with lower

elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change). Be sure

to check and adjust tire pressure accordingly when driving through changing

elevations.

• Do not exceed the maximum inflation pressure, as found on the sidewall of the tire(s).

CAUTION

When replacing tires, ALWAYS use the same size, type, brand, construction and tread

pattern supplied with the vehicle. If not, it can damage the related parts or make it work

irregularly.

Items

Tire size

Wheel size

Inflation pressure

psi (kPa)

Wheel nut

torque lbf·ft

(kgf·m, N·m)

Normal load

Maximum load

Front

Rear

Front

Rear

Full size tire

245/60

R18

7.5J X 18

35 (240)

79-94

(11-13, 107-127)

245/50

R20

7.5J X 20

Compact

spare tire

T155/90

R18

4.0B X 18

60 (420)

CarManuals2.com

Vehicle Information, Consumer Information and Reporting Safety Defects

2-12

Air Conditioning System

Contact an authorized HYUNDAI dealer for more details.

Vehicle Weight And Luggage Volume

Item

Weight of volume

Classification

Refrigerant

oz. (g)

29.98 ± 0.88 (850 ± 25)

R-1234yf

Compressor lubricant

oz. (cc)

6.35 (180)

PAG

Item

3.8 GDI

2WD

AWD

Gross vehicle weight

7 Seater

lbs. (kg)

5,732 (2,570)

5,871 (2,660)

8 Seater

lbs. (kg)

5,732 (2,630)

5,871 (2,660)

Luggage volume (SAE)

cu. ft (ℓ)

Behind 1st row: 86.4 (2,447)

Behind 2nd row: 45.8 (1,297)

Behind 3rd row: 18 (509)

CarManuals2.com

2-13

Recommended Lubricants And Capacities

To help achieve proper engine and power train performance and durability, use only

lubricants of the proper quality. The correct lubricants also help promote engine

efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.

*1 Refer to the recommended SAE viscosity numbers on the next page.
*2 Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they

contribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these

improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost

and energy savings.

*3 Requires <API Latest (or ILSAC Latest) or ACEA A5/B5 Full synthetic> grade engine oil. If a lower grade engine

oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine oil filter must be replaced as

indicated for severe maintenance conditions.

*4 To maintain the best braking performance and ABS/ESC performance, we recommend that you use genuine

brake fluid that conform to specifications.

*5 If the rear differential is submerged, have you visit an authorized retailer of HYUNDAI genuine products to

replace the differential oil.

Lubricant

Volume

Classification

Engine oil

*1*2

Recommends

6.86 US qt. (6.5 ℓ)

ACEA A5 or above

/ 5W-30 /

(SAE Viscosity Number)

Automatic transmission fluid

7.39 US qt. (7.0 ℓ)

SK ATF SP4M-1, MICHANG ATF

SP4M-1, S-OIL ATF SP4M-1,

Hyundai Genuine ATF SP4M-1 or

other brands meeting the above

specification approved by

HYUNDAI Motor Co.

Engine

coolant

Without

trailer

12.44 US qt. (11.79 ℓ)

Mixture of antifreeze and water

(Phosphate-based Ethylene glycol

coolant for aluminum radiator)

With trailer

12.65 US qt. (11.98 ℓ)

Brake fluid

As required

SAE J1704 DOT-4LV, FMVSS116

DOT-4, ISO4925 CLASS-6

Rear differential oil

0.73 US qt. (0.7 ℓ)

HYPIO GEAR OIL API GL-5, SAE

75W/85 (SK HCT-5 GEAR OIL

75W/85 or EQUIVALENT)

Transfer case oil (AWD)

0.73 US qt. (0.7 ℓ)

Fuel

18.75 US gal. (71 ℓ)

Refer to “Fuel Requirements” in

chapter 1.

CarManuals2.com

Vehicle Information, Consumer Information and Reporting Safety Defects

2-14

Recommended SAE Viscosity Number

NOTICE

• Always be sure to clean the area around any filler plug, drain plug, or dipstick before

checking or draining any lubricant. This is especially important in dusty or sandy areas

and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick areas

will prevent dirt and grit from entering the engine and other mechanisms that could be

damaged.

• Never add any additives to the engine oil. Engine oil additives can change the

properties of engine oil and may cause serious engine failure.

Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating

(engine start and engine oil flowability). Lower viscosity engine oils can provide better

fuel economy and cold weather performance, however, higher viscosity engine oils are

required for satisfactory lubrication in hot weather. Using oils of any viscosity other than

those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated in

before the next oil change. Proceed to select the recommended oil viscosity from the

chart.

An engine oil displaying this American Petroleum Institute (API) Certification

Mark conforms to the International Lubricant Specification Advisory

Committee (ILSAC). It is recommended to only use engine oils that uphold

this API Certification Mark.

Temperature Range for SAE Viscosity Numbers

Temperature

°C

-30

-20

-10

(°F)

-10

100

120

Gasoline Engine Oil

5W-30

CarManuals2.com

2-15

Vehicle Identification

if equipped

Number (VIN)

Frame number (if equipped)

B0015KO01

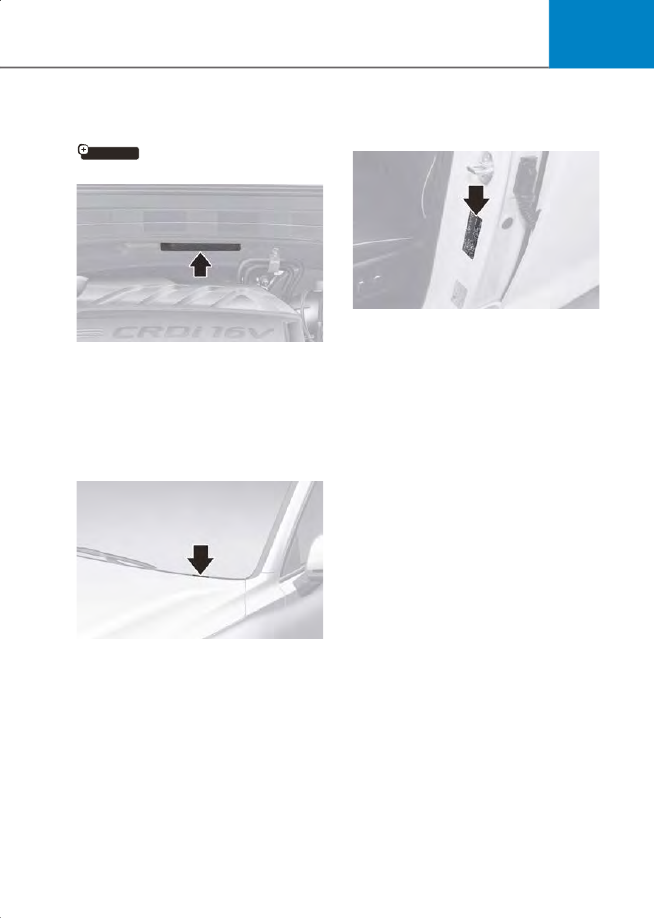

The vehicle identification number (VIN) is

the number used in registering your

vehicle and in all legal matters pertaining

to its ownership, etc.
The number is punched on the engine

compartment frame and backside of the

engine.

VIN label (if equipped)

B0015EU01

The VIN is also on a plate attached to the

top of the left side dashboard. The

number on the plate can easily be seen

through the windshield from outside.

Vehicle Certification

Label

B0016KO01

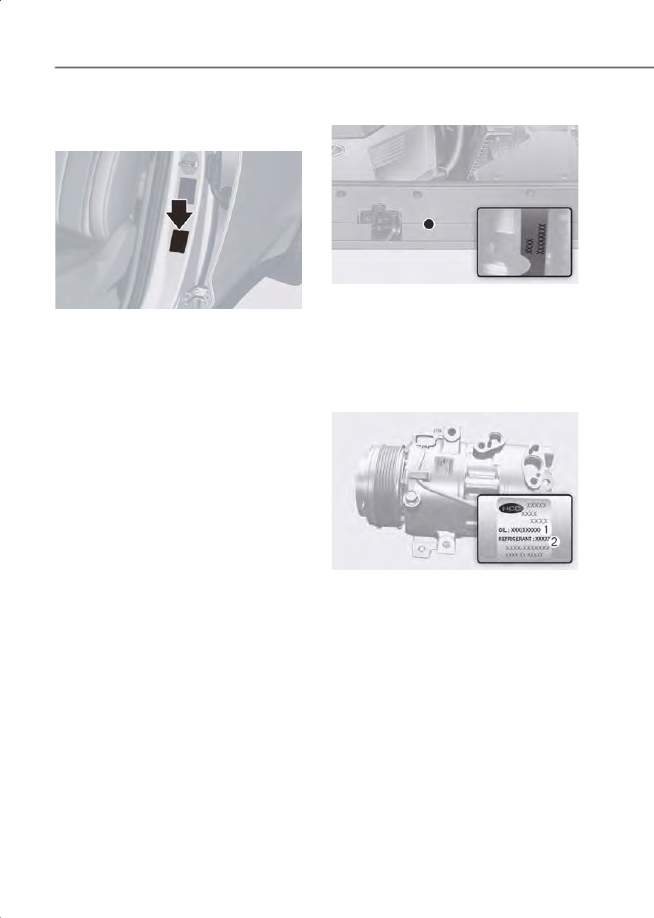

The vehicle certification label attached on

the driver’s (or front passenger’s) side

center pillar gives the vehicle

identification number (VIN).

CarManuals2.com

Vehicle Information, Consumer Information and Reporting Safety Defects

2-16

Tire Specification And

Pressure Label

B0502EU01

The tires supplied on your new vehicle are

chosen to provide the best performance

for normal driving.
The tire label located on the driver’s side

center pillar gives the tire pressures

recommended for your vehicle.

Engine Number

B0017KO01

The engine number is stamped on the

engine block as shown in the drawing.

Air Conditioner

Compressor Label

B0501EU01

A compressor label informs you the type

of compressor your vehicle is equipped

with such as model, supplier part number,

production number, refrigerant (1) and

refrigerant oil (2).

CarManuals2.com

Content .. 1 2 ..

//////////////////////////////////////////
