After adjustment, move the lever (1)
Folding the outside rearview
■ Left-hand drive
to the middle to prevent inadvertent
mirror
adjustment.
NOTICE
•
The mirrors stop moving when
they reach the maximum adjust-
3
ing angles, but the motor contin-
ues to operate while the switch
is pressed. Do not press the
OAD045017
switch longer than necessary,
■ Right-hand drive
the motor may be damaged.
•
Do not attempt to adjust the out-
side rearview mirror by hand or
OAD045016
the motor may be damaged.
Manual type
To fold the outside rearview mirror,
grasp the housing of the mirror and
then fold it toward the rear of the
vehicle.
OAD045017R
Electric type (if equipped)
Left : The mirror will unfold.
Right : The mirror will fold.
3-29
Convenient features of your vehicle
Center (AUTO) :
NOTICE
The mirror will fold or unfold auto-
The electric type outside rearview
matically as follows:
mirror operates even though the
•
Without smart key system
ignition switch is in the OFF posi-
- The mirror will fold or unfold when
tion. However, to prevent unnec-
the door is locked or unlocked by
essary battery discharge, do not
the transmitter.
adjust the mirrors longer than
necessary while the engine is not
•
With smart key system
running.
- The mirror will fold or unfold when
the door is locked or unlocked by
NOTICE
the smart key.
- The mirror will fold or unfold when
Do not fold the electric type out-
the door is locked or unlocked by
side rearview mirror by hand. It
the button on the outside door
could cause motor failure.
handle.
- The mirror will unfold when you
approach the vehicle (all doors
closed and locked) with a smart
key in possession. (if equipped)
3-30
WINDOWS
Power windows (if equipped)
■ Left-hand drive

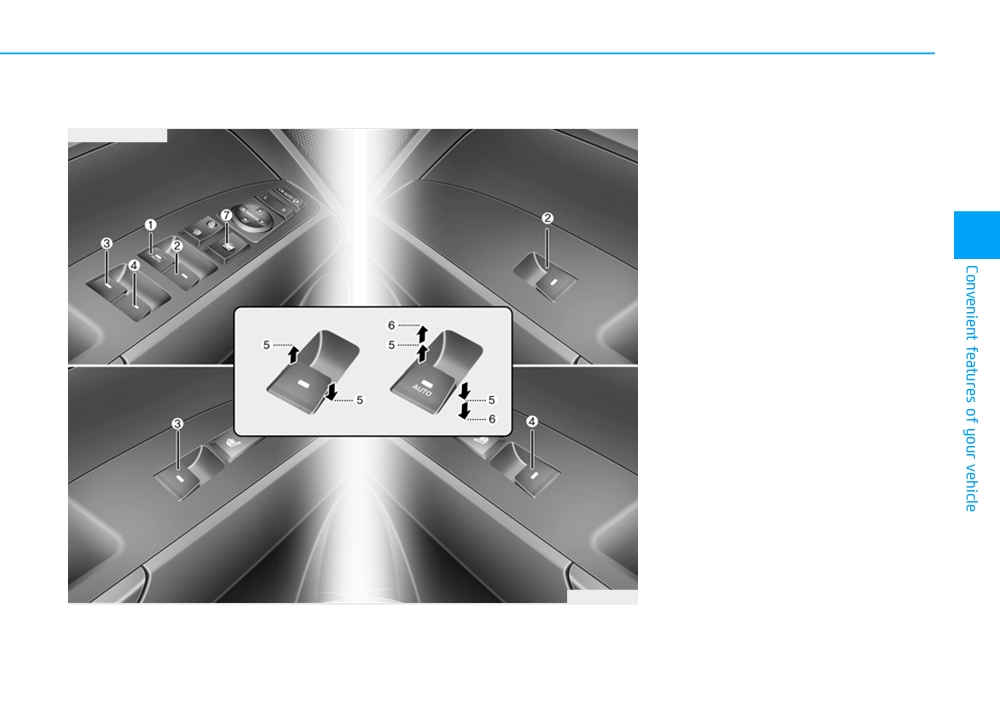

(1) Driver’s door power window
switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window
switch
3
(4) Rear door (right) power window
switch
(5) Window opening and closing
(6) Automatic power window*
(7) Power window lock switch
* : if equipped
OAD045020
3-31
Convenient features of your vehicle
■ Right-hand drive

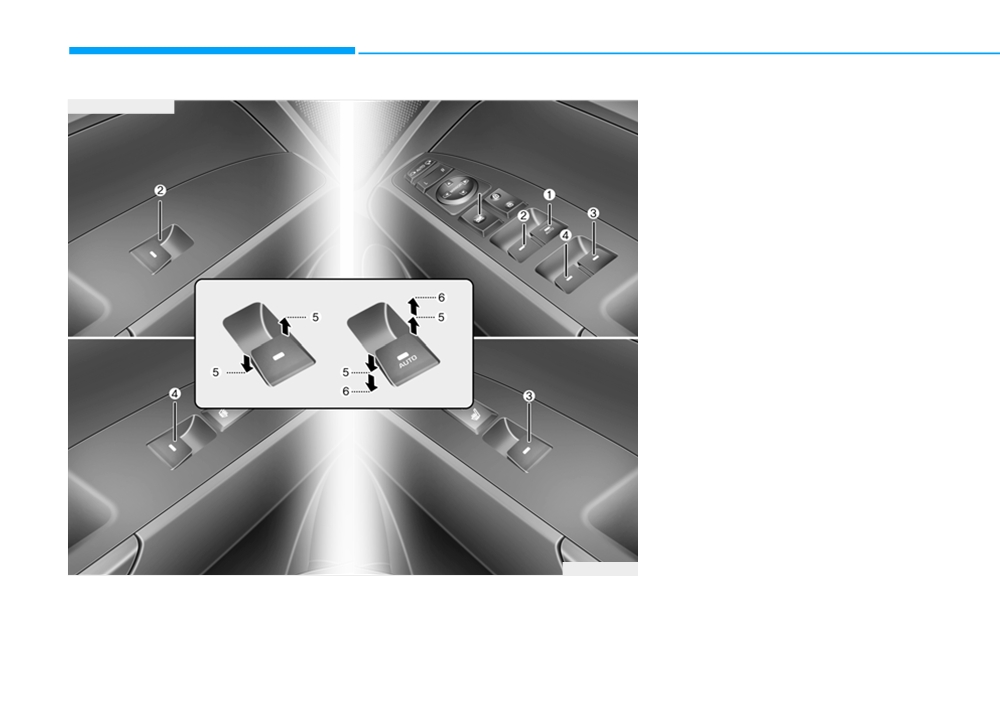

(1) Driver’s door power window
switch
(2) Front passenger’s door power
window switch
(3) Rear door (right) power window
switch
(4) Rear door (left) power window
switch
(5) Window opening and closing
(6) Automatic power window*
(7) Power window lock switch
* : if equipped
OAD045020R
3-32
The ignition switch must be in the ON
Window opening and closing
i
Information
position to be able to raise or lower
the windows. Each door has a Power
•
In cold and wet climates, power win-
Window switch to control that door's
dows may not work properly due to
window. The driver has a Power
freezing conditions.
Window Lock switch which can block
•
While driving with the rear win-
the operation of passenger windows.
dows down or with the sunroof (if
The power windows will operate for
equipped) opened
(or partially
3
approximately 30 seconds after the
opened), your vehicle may demon-
ignition switch is placed in the ACC
strate a wind buffeting or pulsation
or OFF position. However, if the front
noise. This noise is normal and can
doors are opened, the Power
be reduced or eliminated by taking
Windows cannot be operated even
the following actions. If the noise
within the 30 second period.
occurs with one or both of the rear
OAD045038
windows down, partially lower both
To open:
front windows approximately one
WARNING
Press the window switch down to the
inch. If you experience the noise
first detent position (5). Release the
with the sunroof open, slightly close
To avoid serious injury or death,
switch when you want the window to
the sunroof.
do not extend your head, arms
stop.
or body outside the windows
while driving.
To close:
Pull the window switch up to the first
detent position (5). Release the win-
dow switch when you want the win-
dow to stop.
3-33
Convenient features of your vehicle
Auto down window (if equipped)
To reset the power windows
Automatic reversal (if equipped)
Pressing the power window switch
If the power windows do not operate
momentarily to the second detent
normally, the automatic power win-
position
(6) completely lowers the
dow system must be reset as follows:
window even when the switch is
1. Place the ignition switch to the ON
released. To stop the window at the
position.
desired position while the window is
2. Close the window and continue
in operation, pull up or press down
pulling up on the power window
and release the switch.
switch for at least one second.
If the power windows do not operate
Auto up/down window
properly after resetting, it is recom-
(if equipped)
mended that the system be checked
Pressing or pulling up the power win-
by an authorized HYUNDAI dealer.
OLF044032
dow switch momentarily to the sec-

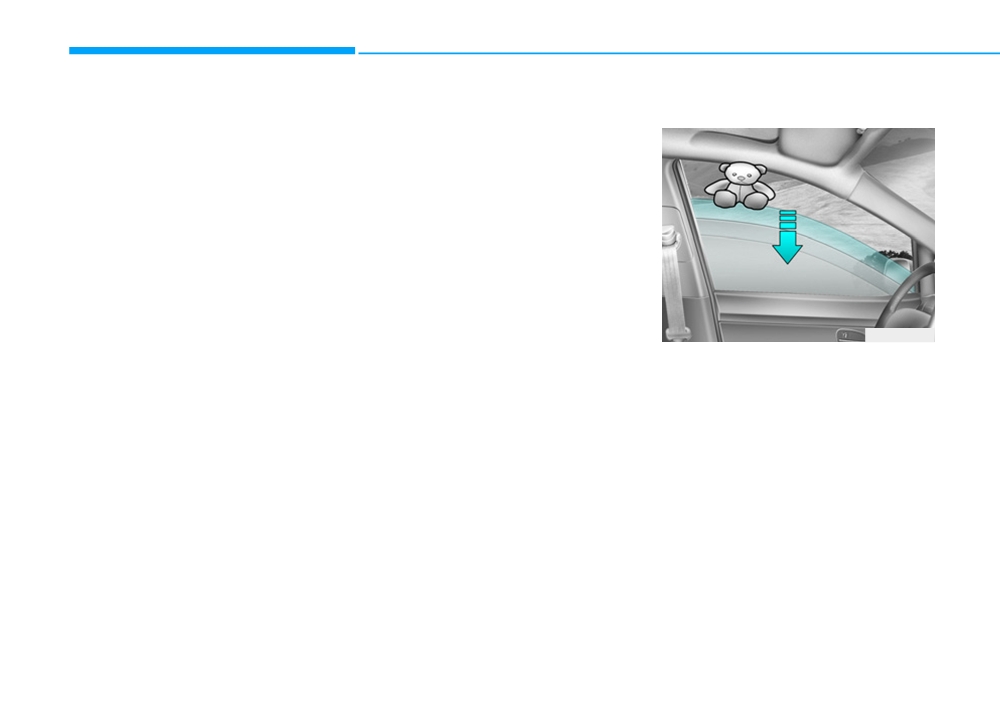

If a window senses any obstacle
ond detent position
(6) completely
while it is closing automatically, it will
lowers or lifts the window even when
stop and lower approximately 30 cm
the switch is released. To stop the
(12 inches) to allow the object to be
window at the desired position while
cleared.
the window is in operation, pull up or
If the window detects the resistance
press down and release the switch.
while the power window switch is
pulled up continuously, the window
will stop upward movement then
lower approximately 2.5 cm (1 inch).
If the power window switch is pulled
up continuously again within 5 sec-
onds after the window is lowered by
the automatic window reversal fea-
ture, the automatic window reversal
will not operate.
3-34
Power window lock switch
When the power window lock switch
i
Information
is pressed:
■ Left-hand drive
The automatic reverse feature is only
• The driver's master control can only
active when the “Auto Up” feature is
operate the driver’s power window.
used by fully pulling up the switch to
• The front passenger's control can
the second detent.
operate the front passenger's
power window.
WARNING
3
• The rear passenger's control can-
not operate the rear passengers'
Make sure body parts or other
power window.
objects are safely out of the way
before closing the windows to
OAD045021
avoid injuries or vehicle damage.
■ Right-hand drive
WARNING
Objects less than 4 mm (0.16
inch) in diameter caught between
Do not allow children to play
the window glass and the upper
with the power windows. Keep
window channel may not be
the driver’s door power window
detected by the automatic reverse
lock switch in the LOCK posi-
window and the window will not
tion. Serious injury or death can
stop and reverse direction.
result from unintentional win-
dow operation by a child.
OAD045021R
The driver can disable the power
window switches on the rear passen-
gers' doors by pressing the power
window lock switch.
3-35
Convenient features of your vehicle
NOTICE
WARNING
•
To prevent possible damage to
the power window system, do
•
NEVER leave the keys in your
not open or close two windows
vehicle with unsupervised
or more at the same time. This
children, when the engine is
will also ensure the longevity of
running.
the fuse.
•
NEVER leave any child unat-
•
Never try to operate the main
tended in the vehicle. Even
switch on the driver's door and
very young children may inad-
the individual door window
vertently cause the vehicle to
switch in opposite directions at
move, entangle themselves in
the same time. If this is done, the
the windows, or otherwise
window will stop and cannot be
injure themselves or others.
opened or closed.
•
Always double check to make
sure all arms, hands, head
and other obstructions are
safely out of the way before
closing a window.
•
Do not allow children to play
with the power windows. Keep
the driver’s door power window
lock switch in the LOCK posi-
tion
(pressed). Serious injury
can result from unintentional
window operation by the child.
•
Do not extend your head,
arms or body outside the win-
dows while driving.
3-36
SUNROOF (IF EQUIPPED)
Sunroof opening and closing
Sliding the sunroof
Pressing the sunroof control lever
backward or forward momentarily to
the second detent position completely
opens or closes the sunroof even
when the switch is released. To stop
the sunroof at the desired position
while the sunroof is in operation, press
3
the sunroof control lever backward or
forward and release the switch.
OAD045022
i
Information
If your vehicle is equipped with a
OAD045023
To reduce wind noise while driving, it
sunroof, you can slide or tilt your
To open:
is recommended that you drive with
sunroof with the sunroof control
the sunroof slightly closed (stop the
switch located on the overhead con-
Press the sunroof control lever back-
sunroof about 5 cm before the maxi-
sole.
ward to the first detent position.
mum slide open position).
The sunroof can only be opened,
Release the switch when you want
closed, or tilted when the ignition
the sunroof to stop.
NOTICE
switch is in the ON position.
To close:
Press the sunroof control lever back-
To prevent damage to the sunroof
ward to the first detent position.
and the motor, do not continue to
Release the switch when you want
press the sunroof control lever
the sunroof to stop.
after the sunroof is in the fully
open, closed or tilt position(s).
3-37
Convenient features of your vehicle
Automatic reversal
Tilting the sunroof
WARNING
•
Make sure heads, other body
parts or other objects are
safely out of the way before
closing the sunroof to avoid
injuries or vehicle damage.
•
Never adjust the sunroof or
sunshade while driving. This
may cause loss of vehicle
control resulting in an acci-
dent.
OLFC044035CN
OAD045024
•
To avoid serious injury or
If the sunroof senses any obstacle
Tilt the sunroof open:
death, do not extend your
while it is closing automatically, it will
head, arms or body outside
Push the sunroof control lever
reverse direction then stop to allow
the sunroof while driving.
upward until the sunroof moves to
the object to be cleared.
the desired position.
The auto reverse function does not
work if a small obstacle is between
To close the sunroof:
the sliding glass and the sunroof
sash.
Press the sunroof lever forward until
the sunroof moves to the desired
You should always check that all pas-
position.
sengers and objects are away from
the sunroof before closing it.
3-38
NOTICE
Sunshade
NOTICE
• Periodically remove any dirt that
The sunroof is made to slide
may accumulate on the sunroof
together with the sunshade. Do
guide rail or between the sun-
not leave the sunshade closed
roof and roof panel, which can
while the sunroof is open.
make a noise.
• Do not try to open the sunroof
3
when the temperature is below
freezing or when the sunroof is
covered with snow or ice, the
motor could be damaged. In
cold and wet climates, the sun-
roof may not work properly.
OAD045037
The sunshade will open automatical-
i
Information
ly with the sunroof when the glass
panel moves. If you want it closed,
After washing the vehicle or after a
move the sunshade manually.
rain, be sure to wipe off the water on
the sunroof before operating the sun-
roof.
3-39
Convenient features of your vehicle
Resetting the sunroof
4. Push the control lever forward
6. Release the sunroof control lever
about 10 seconds.
after all operation has completed.
Sunroof needs to be reset if (in the fol-
(The sunroof system has been
lowings)
- When the sunroof is in the close
reset.)
position :
- Battery is discharged or disconnect-
ed or the related fuse has been
The glass will tilt and slightly move
up and down.
i
Information
replaced or disconnected
- The one-touch sliding function of the
- When the sunroof is in the tilt posi-
• If the sunroof does not reset when
tion:
the vehicle battery is disconnected
sunroof does not normally operate
or discharged, or related fuse is
1. Place the ignition switch to the ON
The glass will slightly move up
and down.
blown, the sunroof may not operate
position or start the engine. It is rec-
normally.
ommended to reset the sunroof
while the engine is running.
Do not release the lever until the
• For more detailed information, we
recommend that you contact an
2. Push the control lever forward. The
operation is completed.
authorized HYUNDAI dealer.
sunroof will close completely or tilt
If you release the lever during opera-
depending on the condition of the
tion, try again from step 2.
sunroof.
3. Release the control lever until the
5. Within 3 seconds, push the control
sunroof does not move.
lever forward until the sunroof
operates as follows:
Tilt down → Slide Open → Slide
Close.
Do not release the lever until the
operation is completed.
If you release the lever during opera-
tion, try again from step 2.
3-40
EXTERIOR FEATURES
Hood
Opening the hood
■ Left-hand drive
3
OAD045026
OAD045039L
OAD045025

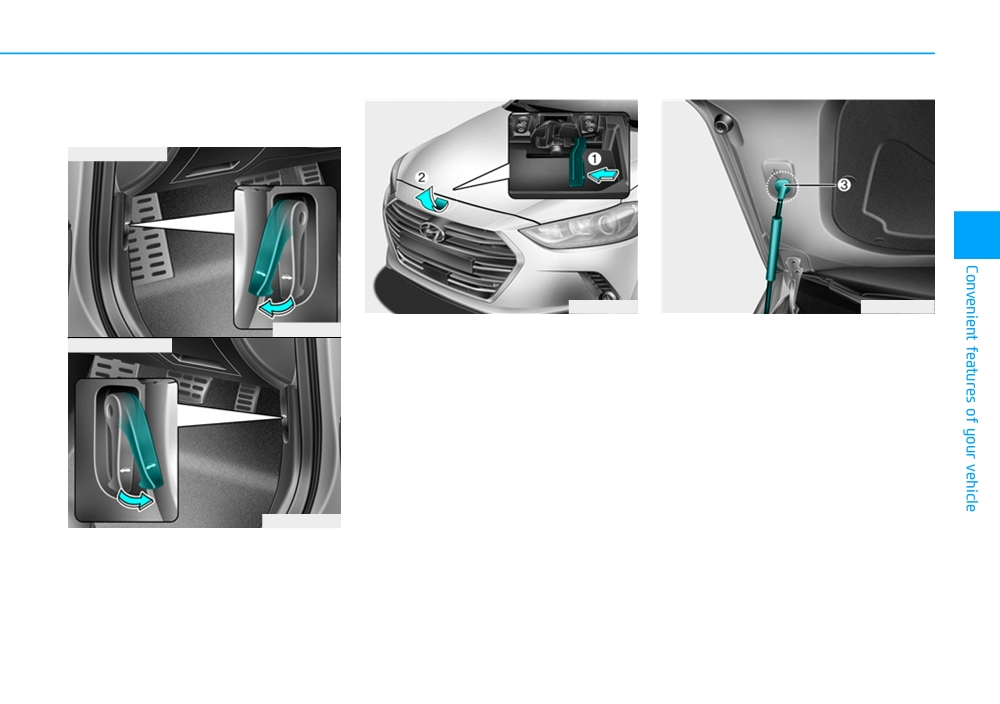

3. Go to the front of the vehicle, raise
5. Hold the hood opened with the
■ Right-hand drive
the hood slightly, push the second-
support rod (3).
ary latch up (1) inside of the hood
center and lift the hood (2).
4. Pull out the support rod.
OAD045025R
1. Park the vehicle and set the park-
ing brake.
2. Pull the release lever to unlatch
the hood. The hood should pop
open slightly.
3-41
Convenient features of your vehicle
Closing the hood
WARNING
WARNING
1. Before closing the hood, check the
following:
Support rod
•
Before closing the hood,
• All filler caps in engine compart-
ensure all obstructions are
•
Grasp the support rod in the
ment must be correctly installed.
removed from around hood
area wrapped in rubber. The
• Gloves, rags or any other com-
opening.
rubber will help prevent you
bustible material must be removed
•
Always double check to be
from being burned by hot
from the engine compartment.
sure that the hood is firmly
metal when the engine is hot.
2. Return the support rod to its clip to
latched before driving away. If
•
The support rod must be
prevent it from rattling.
it is not latched, the hood
inserted completely into the
could open while the vehicle
hole provided whenever you
3. Lower the hood halfway and let it
is being driven, causing a
inspect the engine compart-
drop. Make sure that it locks into
total loss of visibility, which
ment. This will prevent the
place.
might result in an accident.
hood from falling and possi-
bly injuring you.
•
Do not move the vehicle with
the hood in the raised posi-
tion, as vision is obstructed,
which might result in an acci-
dent, and the hood could fall
or be damaged.
3-42
Trunk
■ Inside
Closing the trunk
• Left-hand drive
Opening the trunk
Lower the trunk lid and press down
until it locks. To be sure the trunk lid
1. Make sure the shift lever is in P
is securely fastened, always check
(Park, for automatic transmission)
by trying to pull it up again.
or first gear or R
(Reverse, for
manual transmission) and set the
parking brake.
WARNING
3
■ Outside
Always keep the trunk lid com-
OAD045028
pletely closed while the vehicle is
• Right-hand drive
in motion. If it is left open or ajar,
poisonous exhaust gases con-
taining carbon monoxide (CO)
may enter the vehicle and seri-
ous illness or death may result.
WARNING
OAD045027L
Make sure there are no people
2. Then do one of the following :
OAD045028R
or objects around the trunk
- Press the Remote key or Smart
- Use the trunk release lever.
before opening or closing the
Power Trunk. Wait until the trunk
Key Trunk Unlock button for more
3. Lift the trunk lid up.
is open fully and stopped
than one second.
before loading or unloading
- Press the button on the trunk
cargo from the vehicle.
itself with the Smart Key in your
possession.
- Use the mechanical key.
3-43
Convenient features of your vehicle
Smart trunk (if equipped)
i
Information
WARNING
To prevent damage to the trunk lift
cylinders and the attached hardware,
•
NEVER allow anyone to occu-
always close the trunk before driving.
py the trunk of the vehicle at
any time. If the trunk is par-
NOTICE
tially or totally latched and the
person is unable to get out,
In cold and wet climates, trunk
serious injury or death could
lock and trunk mechanisms may
occur due to lack of ventila-
not work properly due to freezing
tion, exhaust fumes and rapid
conditions.
heat build-up, or because of
exposure to cold weather con-
ditions. The trunk is also a
OAD045030
highly dangerous location in
On a vehicle equipped with a smart
the event of a crash because it
key, the trunk can be opened using
is not a protected occupant
the Smart Trunk system.
space but is a part of the vehi-
cle’s crush zone.
•
Your vehicle should be kept
locked and keys should be
kept out of the reach of chil-
dren. Parents should teach
their children about the dan-
gers of playing in trunks.
•
Use the release lever for
emergencies only.
3-44
How to use the Smart Trunk
1. Setting
The trunk can be opened with no-
To activate the Smart Trunk, go to
touch activation satisfying all the
User Settings Mode and select
conditions below.
Smart Trunk on the LCD display.
• After
15 seconds when all doors
For more details, refer to "LCD
are closed and locked
Display" in this chapter.
• Positioned in the detecting area for
3
more than 3 seconds.
i Information
OAD045031
•
The Smart Trunk does not operate
when:
2. Detect and Alert
- The smart key is detected within
If you are positioned in the detecting
15 seconds after the doors are
area (50 ~100 cm behind the vehi-
closed and locked, and is continu-
cle) carrying a smart key, the hazard
ously detected.
warning lights will blink and chime
will sound for about
3 seconds to
- The smart key is detected within
alert you the smart key has been
15 seconds after the doors are
detected and the trunk will open.
closed and locked, and 1.5 m from
the front door handles. (for vehi-
cles equipped with Welcome Light)
i Information
- A door is not locked or closed.
Do not approach the detecting area if
you do not want the trunk to open. If
- The smart key is in the vehicle.
you have unintentionally entered the
detecting area and the hazard warn-
ing lights and chime starts to operate,
leave the detecting area with the
smart key. The trunk will stay closed.
3-45
