Hyundai Elantra (2017 year). Instruction

Safety system of your vehicle

Air bag inflation conditions

Although the driver’s and front pas-

senger’s air bags are designed to

inflate only in frontal collisions, they

also may inflate in other types of col-

lisions if the front impact sensors

detect a sufficient impact. Side and

curtain air bags are designed to

inflate only in side impact collisions,

but they may inflate in other colli-

sions if the side impact sensors

detect a sufficient impact.

OAD035045

If the vehicle chassis is impacted by

bumps or objects on unimproved

OLF034050

roads, the air bags may deploy. Drive

Front air bags

carefully on unimproved roads or on

surfaces not designed for vehicle

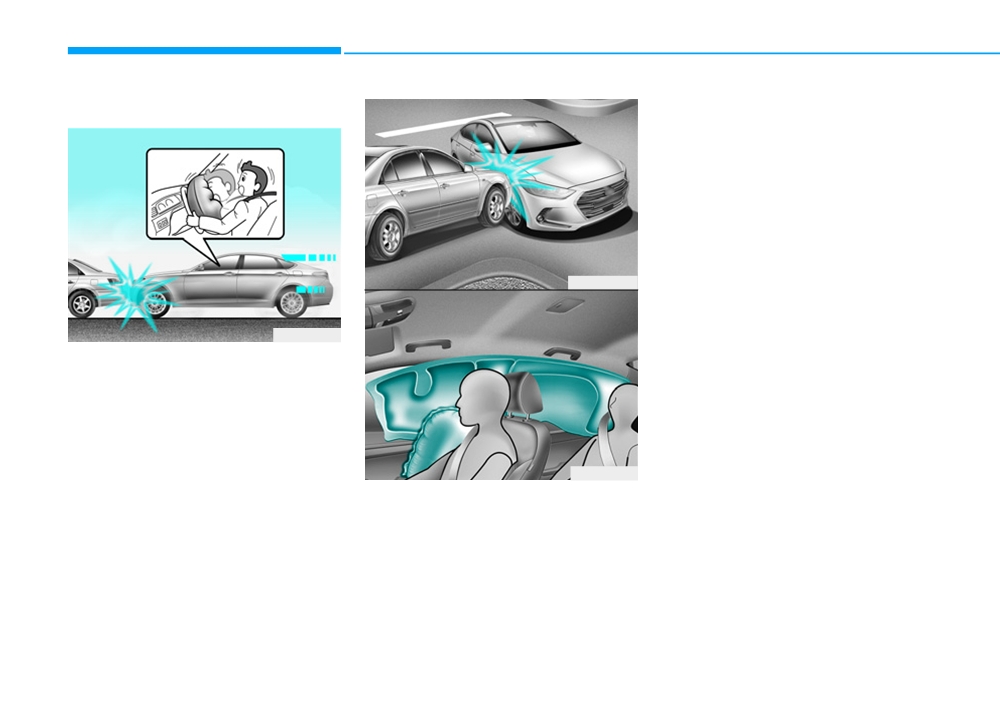

Front air bags are designed to inflate

traffic to prevent unintended air bag

in a frontal collision depending on

deployment.

the severity of impact of the front col-

lision.

OAD035046

Side and curtain air bags

Side and curtain air bags are

designed to inflate when an impact is

detected by side collision sensors

depending on the severity of impact

resulting from a side impact collision.

2-60

Air bag non-inflation conditions

OAD035048

OAD035049

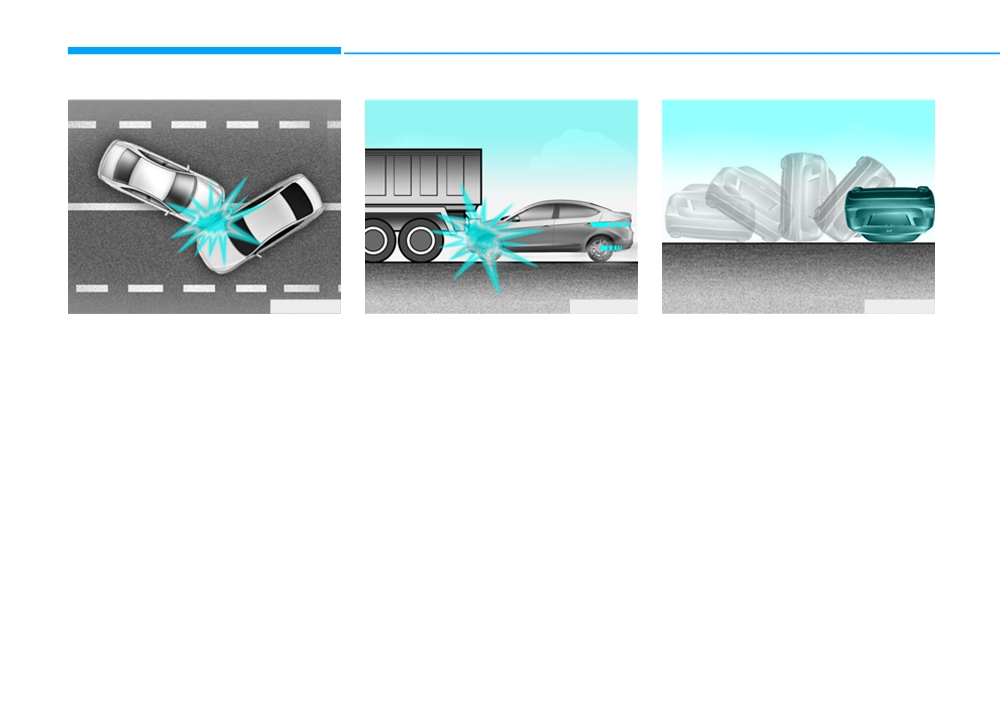

Front air bags are not designed to

Front air bags may not inflate in side

OAD035047

inflate in rear collisions, because

impact collisions, because occupants

In certain low-speed collisions the air

occupants are moved backward by

move in the direction of the collision,

bags may not deploy. The air bags

the force of the impact. In this case,

and thus in side impacts, front air bag

are designed not to deploy in such

inflated air bags would not provide

deployment would not provide addi-

cases because they may not provide

any additional benefit.

tional occupant protection.

benefits beyond the protection of the

However, side and curtain air bags

seat belts.

may inflate depending on the severity

of impact.

2-61

Safety system of your vehicle

ODH033076

OAD035050

OLF034057

In an angled collision, the force of

Just before impact, drivers often

Front air bags may not inflate in

impact may direct the occupants in a

brake heavily. Such heavy braking

rollover accidents because front air

direction where the air bags would

lowers the front portion of the vehicle

bag deployment would not provide

not be able to provide any additional

causing it to “ride” under a vehicle

additional occupant protection.

benefit, and thus the sensors may

with a higher ground clearance. Air

not deploy any air bags.

bags may not inflate in this "under-

ride" situation because deceleration

forces that are detected by sensors

may be significantly reduced by such

“underride” collisions.

2-62

SRS care

WARNING

The SRS is virtually maintenance-

free and there are no parts you can

To reduce the risk of serious

safely service by yourself. If the SRS

injury or death take the follow-

air bag warning light does not illumi-

ing precautions:

nate when the ignition switch is in the

•

Do not attempt to modify or

ON position, or continuously remains

disconnect the SRS compo-

on, we recommend that the system

nents or wiring, including the

be immediately inspected by an

addition of any kind of badges

authorized HYUNDAI dealer.

to the pad covers or modifica-

We recommend any work on the

tions to the body structure.

OLF034058

SRS system, such as removing,

•

Do not place objects over or

Air bags may not inflate if the vehicle

installing, repairing, or any work on

near the air bag modules on

collides with objects such as utility

the steering wheel, the front passen-

the steering wheel, instrument

poles or trees, where the point of

ger's panel, front seats and roof rails

panel, and the front passen-

impact is concentrated and the colli-

be performed by an authorized

ger's panel above the glove

sion energy is absorbed by the vehi-

HYUNDAI dealer. Improper handling

box.

cle structure.

of the SRS system may result in seri-

ous personal injury.

•

Clean the air bag pad covers

with a soft cloth moistened

with plain water. Solvents or

cleaners could adversely

affect the air bag covers and

proper deployment of the sys-

tem.

•

We recommend that inflated

air bags be replaced by an

authorized HYUNDAI dealer.

(Continued)

2-63

Safety system of your vehicle

Additional safety precautions

Do not place items under the front

(Continued)

seats. Placing items under the front

Passengers should not move out of

•

If components of the air bag

seats could interfere with the opera-

or change seats while the vehicle is

system must be discarded, or if

tion of the supplemental restraint sys-

moving. A passenger who is not

the vehicle must be scrapped,

tem sensing components and wiring

wearing a seat belt during a crash or

certain safety precautions

harnesses.

emergency stop can be thrown

must be observed. Consult an

against the inside of the vehicle,

Do not cause impact to the doors.

authorized HYUNDAI dealer for

against other occupants, or be ejected

Impact to the doors when the ignition

the necessary information.

from the vehicle.

switch is in the ON position may cause

Failure to follow these precau-

the air bags to inflate.

tions could increase the risk of

Do not use any accessories on seat

personal injury.

belts. Devices claiming to improve

occupant comfort or reposition the

Adding equipment to or modify-

seat belt can reduce the protection

ing your air bag equipped vehicle

provided by the seat belt and increase

If you modify your vehicle by changing

the chance of serious injury in a crash

your vehicle's frame, bumper system,

Do not modify the front seats.

front end or side sheet metal or ride

Modification of the front seats could

height, this may affect the operation of

interfere with the operation of the sup-

your vehicle's air bag system.

plemental restraint system sensing

components or side air bags.

2-64
