Driving your vehicle

VEHICLE LOAD LIMIT

Tire and loading information

Vehicle capacity weight:

label

5 seater

5 seater

904 lbs. (410 kg)

4 seater

754 lbs. (342 kg)

The maximum weight capacity

includes occupant weights and load

weights.

Seating capacity:

5 seater

OVI052200N

4 seater

Total : 5 persons

(Front seat : 2 persons,

Rear seat : 3 persons)

4 seater

Total : 4 persons

(Front seat : 2 persons,

Rear seat : 2 persons)

Seating capacity is the maximum

number of occupants including a

driver, your vehicle may carry.

OVI052201N

However, the seating capacity may

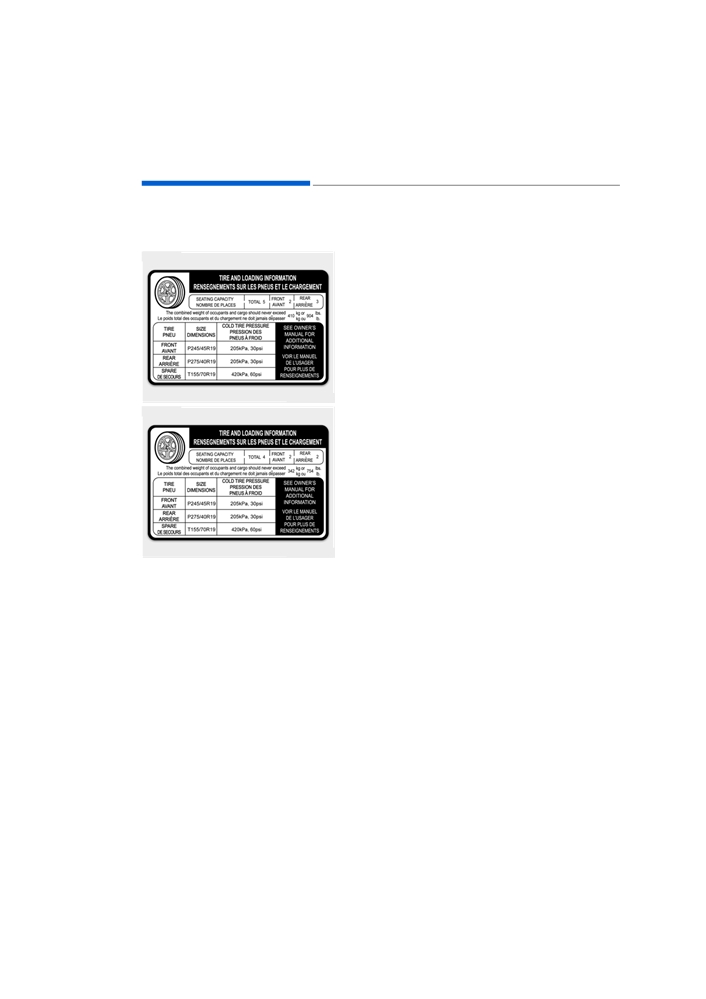

The label on the driver's door sill

be reduced based upon the weight of

gives the original tire size, the rec-

all of the occupants, and the weight

ommended cold tire pressure, the

of the cargo being carried.

seating capacity

(the number of

Do not overload the vehicle as there

occupants), and load weight capaci-

is a limit to the total weight, or load

ty.

limit including occupants and cargo,

the vehicle can carry.

Towing capacity:

We do not recommend using this

vehicle for trailer towing.

5-76

Driving your vehicle

5 seater

Example 1

Example 3

A

B

C

A

B

C

C190F01JM

C190F03JM

Item

Description

Total

Item

Description

Total

Vehicle Capacity

904 lbs

Vehicle Capacity

904 lbs

A

A

Weight

(410 kg)

Weight

(410 kg)

Subtract Occupant

Subtract Occupant

300 lbs

860 lbs

B

Weight

B

Weight

(136 kg)

(390 kg)

150 lbs (68 kg) × 2

172 lbs (78 kg) × 5

Available Cargo and

604 lbs

Available Cargo and

44 lbs

C

C

Luggage weight

(274 kg)

Luggage weight

(20 kg)

Example 2

Refer to the label of the tire/loading

information for more specific infor-

mation about the weight capacity

and seating positions. The total

weight of the driver, occupants and

load should never exceed your vehi-

cle's weight capacity.

A

B

C

C190F02JM

Item

Description

Total

Vehicle Capacity

904 lbs

A

Weight

(410 kg)

Subtract Occupant

750 lbs

B

Weight

(340 kg)

150 lbs (68 kg) × 5

Available Cargo and

154 lbs

C

Luggage weight

(70 kg)

5-78

Driving your vehicle

05

4 seater

Example 1

Example 3

A

B

C

C190F01JM

OBK059034N

Item

Description

Total

Item

Description

Total

Vehicle Capacity

754 lbs

Vehicle Capacity

754 lbs

A

A

Weight

(342 kg)

Weight

(342 kg)

Subtract Occupant

Subtract Occupant

300 lbs

688 lbs

B

Weight

B

Weight

(136 kg)

(312 kg)

150 lbs (68 kg) × 2

172 lbs (78 kg) × 4

Available Cargo and

454 lbs

Available Cargo and

66 lbs

C

C

Luggage weight

(206 kg)

Luggage weight

(30 kg)

Example 2

Refer to the label of the tire/loading

information for more specific infor-

mation about the weight capacity

and seating positions. The total

weight of the driver, occupants and

load should never exceed your vehi-

cle's weight capacity.

OBK059035N

Item

Description

Total

Vehicle Capacity

754 lbs

A

Weight

(342 kg)

Subtract Occupant

600 lbs

B

Weight

(272 kg)

150 lbs (68 kg) × 4

Available Cargo and

154 lbs

C

Luggage weight

(70 kg)

5-79

Driving your vehicle

Certification label

WARNING

- Over loading

• Never exceed the GVWR or

the GAWR of your vehicle.

Overloading above those lim-

its may cause an accident or a

vehicle damage. You can cal-

culate the load weight capaci-

ty by weighing the items (or

people), before putting them

in the vehicle. Be careful not

OBH059070

to overload your vehicle.

• Do not overload your vehicle

The certification label is located on

above the GVWR, the

right side of the driver's door sill.

front/rear GAWRs or the vehi-

This label shows the maximum

cle weight capacity. When

weight capacity, or called GVWR

overloading, including tires,

(Gross Vehicle Weight Rating). The

parts may break. Even, it may

GVWR includes the weight of the

adversely affects the vehicle

vehicle, all occupants, fuel, and load.

handling and braking per-

This label also tells you the maxi-

formance. You may lose con-

mum weight that can be supported

trol and crash. Also, overload-

by the front and rear axles, called

ing may shorten the life span

Gross Axle Weight Rating (GAWR).

of your vehicle.

To find out the actual load weight of

the front and rear axles, you need to

weigh your vehicle. Your dealer can

The label will help you decide how

help you with this. Equally and even-

much loads and installed equipment

ly spread out the loads across the

your vehicle can carry.

centerline.

When your vehicle carries items

inside, such as suitcases, tools and

packages, those loads move as fast

as your vehicle. When stopping or

sharply turning, or if there is a crash,

those loads may throw forwards

under the influence of inertia, and

cause an injury by hitting with the

driver or an occupant.

5-80

Driving your vehicle

05

WARNING

WARNING

• Overloading your vehicle may

- Unsecured loads

overheat the tires and cause

Items you carry inside your

tire failure, possibly leading to

vehicle may hit and injure an

a crash.

occupant in a sudden stop or

• Overloading your vehicle may

turn, or in a crash.

increase a stopping distance,

• Put items in the trunk. Try to

possibly leading to a crash.

evenly spread the weight.

• A crash, which is resulted

• Never stack up items, like

from poor handling, vehicle

suitcases, inside the vehicle,

damage, tire failure, or a

especially above the seat-

longer stopping distance, may

backs.

result in a serious injury or

• Do not leave an unsecured

death.

child restraint in your vehicle.

• When you carry something

NOTICE

inside the vehicle, secure it.

• Overloading may damage your

vehicle. Repairs are not covered

by your warranty. Do not over-

load your vehicle.

• Heavier suspension compo-

nents for higher durability may

not change the weight capacity.

Ask your dealer to help you load

your vehicle the right way.

5-81
