Hyundai Equus (2016 year). Instruction - part 18

Driving your vehicle

To resume the cruising speed:

To turn OFF the Smart Cruise

Control, do one of the follow-

ings:

OVI055030N

When any actions other than press-

ing the CRUISE switch are taken to

OVI055028N

cancel the cruising speed, and when

• While driving

the system is still ON, the most

- Push the CRUISE button

recently set speed will be automati-

cally resumed by pressing the RES+

• While stopping, with the system

switch.

ON

It will not be resumed, however,

- Depress the brake pedal and

when the vehicle speed is lower than

push the CRUISE button

approximately 6 mph (10 km/h) with

Both of these actions cancel the

a sensor detection of a vehicle in

Smart Cruise Control operation.

front, or when the vehicle speed is

When you want to resume the Smart

lower than approximately 19 mph (30

Cruise Control operation, refer to “To

km/h) without a vehicle in front.

set cruise control speed” on the pre-

vious page.

i

Information

Always check the road conditions

before pressing the RES+ switch to

resume the cruising speed.

5-42

Driving your vehicle

05

Smart Cruise Control vehicle-

Each time the button is pressed, the

to-vehicle distance

vehicle to vehicle distance changes

as follows:

To set a vehicle-to-vehicle dis-

tance:

Distance 4 → Distance 3 → Distance 2

Distance 1

For example, if you drive at 56 mph

(90 km/h), the vehicle-to-vehicle dis-

tance maintains as follows:

Distance 4 - approximately 170 feet

Distance 3 - approximately 131 feet

Distance 2 - approximately 106 feet

Distance 1 - approximately 82 feet

OVI055118N

This function sets your vehicle to

i

Information

maintain a safe distance from a vehi-

The 'Distance 4' is the default vehicle-

cle in front without depressing the

to-vehicle distance, when the system is

accelerator or brake pedal.

first turned ON, after starting the

The vehicle-to-vehicle distance will

engine.

automatically activate, when the

Smart Cruise Control system is ON.

Select the appropriate distance

according to road conditions and

vehicle speed.

5-43

Driving your vehicle

When there is no vehicle in

(Continued)

front:

• When the warning alarm

sounds, actively adjust the vehi-

cle speed, as well as the dis-

tance from the vehicle in front by

depressing the accelerator or

brake pedal.

• Even when there is no warning

alarm, always pay attention to

the driving conditions to prevent

dangerous situations from

occurring.

OVI055313/OVI055301

OVI055304

OVI055302/OVI055303

CAUTION

• The vehicle will maintain the set

speed.

When a vehicle in front (vehicle

• Your vehicle speed will slow down

speed: less than 20 mph (30

or go up to maintain the selected

km/h)) change a lane to the

distance.

next, a warning message will

• When a vehicle in front speeds up,

appear with a warning alarm.

your vehicle will drive at a steady

Adjust your vehicle speed for

cruising speed after accelerating to

any sudden appearance of a

the set speed.

vehicle or an object in front by

depressing the brake pedal

according to the road and driv-

NOTICE

ing conditions.

• The warning alarm sounds and

the malfunction indicator flash-

es, when the vehicle is unable to

maintain the selected distance

from the vehicle in front.

(Continued)

5-44

Driving your vehicle

05

In traffic situation

Vehicle-to-vehicle Distance

Sensor

OVI055305

OVI055058N

In traffic, your vehicle will stop, when

a vehicle in front stops. Also, when a

The sensor measures a distance

vehicle in front starts moving, your

from a vehicle in front.

vehicle will start as well. However,

When this sensor is covered with dirt

when your vehicle stops for more

or other foreign substances, the vehi-

than 3 seconds, you must depress

cle-to-vehicle distance measurement

the accelerator or press the RES+

may not be correct.

switch to start driving.

Always keep the sensor clean.

SCC (Smart cruise control)

malfunction indicator

OVINDR5923

The warning message is

displayed, when the vehi-

cle-to-vehicle distance

control system abnormal-

ly operates.

Have the system checked

by an authorized EQUUS

dealer.

5-45

Driving your vehicle

To convert to the Cruise

CAUTION

Control mode:

•

Do not install accessories

around the sensor and do not

replace the bumper by your-

self. It may interfere with the

sensor performance.

•

Always keep the sensor and

bumper clean.

•

To prevent sensor cover from

being damaged, use a soft

cloth to clean your vehicle.

•

Do not strike the sensor or the

OVI055306

sensor area with a strong

impact. When the sensor

The driver may choose to only use

moves slightly off position,

the Cruise Control mode (speed con-

the Smart Cruise Control sys-

trol function) by following the direc-

tem will not correctly operate.

tions below:

If this occurs, immediately

1.Turn the smart cruise control sys-

have your vehicle checked by

tem ON (the cruise indicator will

an authorized EQUUS dealer.

illuminate, but the system will not

•

Use only an authorized

be active).

HYUNDAI sensor cover for

2.Press the vehicle-to-vehicle dis-

your vehicle.

tance switch for more than 2 sec-

onds.

3.Choose between "Smart Cruise

Control(SCC) mode" and "Cruise

Control(CC) mode".

WARNING

When using the Cruise Control

mode, you must check the dis-

tance from other vehicles for

yourself, as the system will not

automatically brake to slow

down.

5-46

Driving your vehicle

05

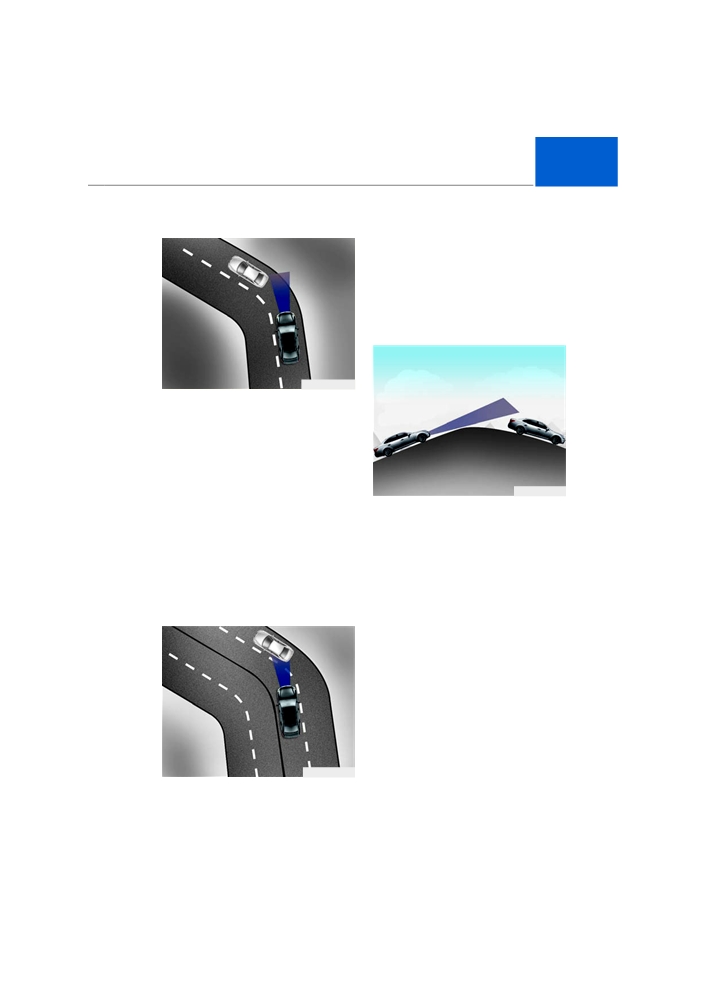

Limitations of the system

• Your vehicle speed may slow down

due to an adjacent vehicle in the

next lane. Depress the accelerator

and select an appropriate set

speed. Make sure that the road

conditions are safe to operate the

Smart Cruise Control.

On a slope

OVI055200N

The Smart Cruise Control system

may have limits to its ability to meas-

ure a distance from a vehicle in front

due to road and traffic conditions.

On curves

• On curves, the Smart Cruise

OVI055202N

Control system may not detect a

moving vehicle in front in your lane.

• When driving uphill or downhill, the

Then, your vehicle may accelerate

Smart Cruise Control system may

to the set speed. Also, the vehicle

not detect a moving vehicle in your

speed will abruptly slow down,

lane, and cause your vehicle to

when suddenly recognizing a vehi-

accelerate to the set speed. Also,

cle in front.

the vehicle speed will slow down,

when the system suddenly detects

• Select an appropriate set speed on

a vehicle in front.

curves and depress the brake or

the accelerator, if necessary.

• Select an appropriate set speed for

a slope and depress the brake or

the accelerator, if necessary.

OVI055201N

5-47

Driving your vehicle

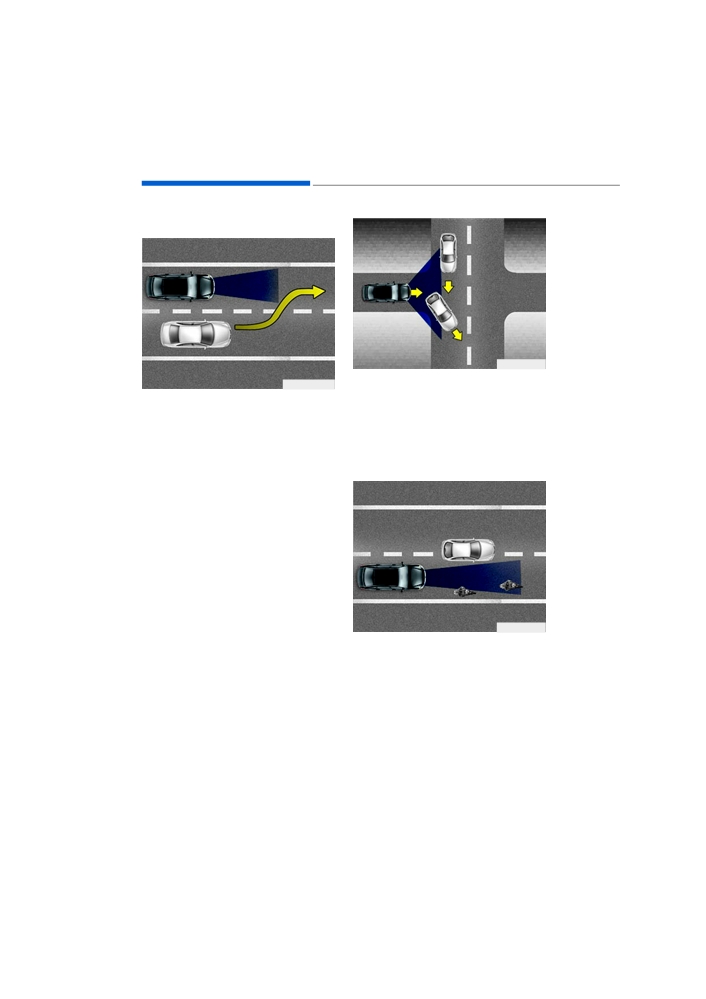

Lane changing

OVI055205N

• Your vehicle may accelerate, when

OVI055203N

a vehicle in front disappears.

•

A vehicle, which moves into your

• When you are warned that a vehi-

lane from the next, may not be rec-

cle in front is undetectable, drive

ognized by the sensor until it

with caution.

moves within the sensor's detec-

tion range.

•

The sensor may not immediately

Vehicle recognition

detect a vehicle in front, when a

vehicle suddenly cuts in. Always

pay attention to the traffic, road

and driving conditions.

•

When a vehicle, which moves into

your lane, drives slower than

yours, your speed may decrease to

maintain a safe distance from a

vehicle in front.

•

When a vehicle, which moves into

your lane, drives faster than yours,

and when that vehicle drives slow-

OVI055204N

er than the set speed, your speed

Some vehicles in front in your lane

may accelerate.

may not be recognized by the sensor

in the following conditions:

- Small and narrow vehicles, such as

motorcycles or bicycles

- Vehicles going astray to one side of

a lane

- Slowly moving or suddenly deceler-

ating vehicles

- Stopped vehicles

- Vehicles with a small and narrow

rear profile, such as an unloaded

trailer

5-48

Driving your vehicle

05

A vehicle may be unrecognized by

the sensor, when;

- The vehicle points upwards due to

overloading in the trunk,

- The steering wheel is operated,

- The vehicle drives astray to one

side of a lane, and

- The vehicle drives in a narrow lane

or on a curve.

If necessary, depress the brake

pedal or the accelerator.

OVI055207N

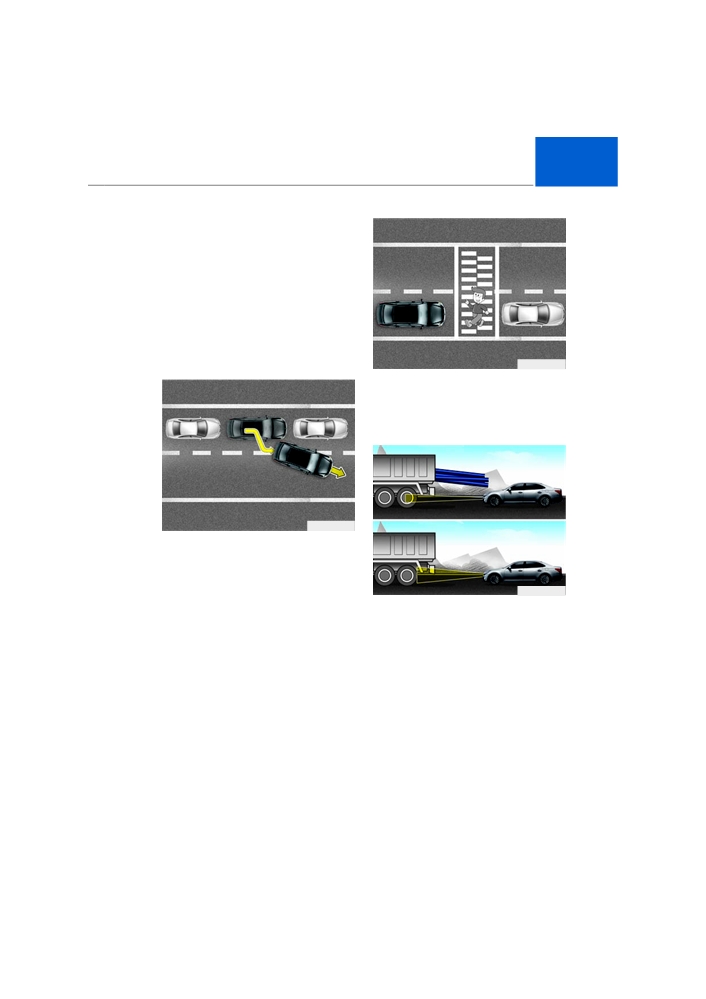

• Always look out for abrupt appear-

ance of any passers-by, while your

vehicle system automatically con-

trols and maintains a safe distance

from a vehicle in front.

OVI055206N

• When vehicles are parked in a line,

and when a vehicle in front drives

out of the line, the system may not

recognize other parked vehicles in

the line. Thus, be careful, when you

OVI055208N

start to drive.

• Always be cautious for vehicles

with higher height or vehicles car-

rying loads that sticks out from the

back of the vehicle.

5-49

Driving your vehicle

05

LANE DEPARTURE WARNING SYSTEM (LDWS) (IF EQUIPPED)

(Continued)

•

When the sensor cannot

detect lane lines, or when the

vehicle speed does not

exceed 43 mph (70 km/h), the

LDWS warnings will not be

given, even while driving out

of lane lines.

•

When the front windshield is

tinted or coated, the LDWS

may not properly operate.

OVI055012N

•

Keep the LDWS sensor off

water or any liquid to prevent

damage.

•

Do not disassemble the

LDWS, nor damage the sensor

with a strong impact.

•

Do not put reflective objects

on the dash board.

•

Always check the road condi-

tions, as you may not hear the

warning alarm due to audio or

OVI055013N

other external noises.

This system detects lane lines with

the sensor located on the front wind-

shield, and warns the driver of driv-

ing out of lane lines (lane departure).

WARNING

• The LDWS does not automati-

cally control the driving direc-

tion. It is the driver's responsi-

bility to always check the road

conditions.

• Do not abruptly turn the steer-

ing wheel, upon getting the

LDWS warnings.

(Continued)

5-51

Driving your vehicle

LDWS operation

• When the sensor detects the lane line

To turn ON the LDWS,

pull the switch with the

Engine Start/Stop button

ON. The indicator illumi-

nates on the cluster. To

turn OFF the LDWS, pull

the switch again.

LDWS indicator illuminate in 3

colors as follows:

OVI055307

•

[Green]

• When the sensor doesn’t detect the lane line

When the system operating condi-

tions are satisfied.

•

[White]

- The system operating conditions

are not satisfied

(The driving

speed is below

43 mph

(70

km/h)).

- The sensor does not detect lane

lines.

•

[Yellow]

OVI055308

There is a malfunction with the

When the LDWS operates, when

LDWS. In this case, have your vehi-

your vehicle drives out of the lane

cle inspected by an authorized

lines, and when your driving speed

EQUUS dealer.

exceeds

43 mph (70 km/h), the

warnings will be given as follows:

Left

Right

OVI055309/OVI055310

1. Visual warning

When driving out of the lane lines, a

lane line, which you drive out of, will

flash in yellow on the LCD display.

5-52

Driving your vehicle

05

2. Auditory warning

The LDWS does not operate in

When driving out of the lane lines,

following conditions:

the warning alarm will sound.

• The turn signal is turned ON before

changing the lanes.

(When the hazard warning flasher

is pressed ON, the LDWS excep-

tionally operates.)

• The vehicle drives on lane lines.

i

Information

Before changing the lanes, turn the

turn signal ON.

OVI055063N

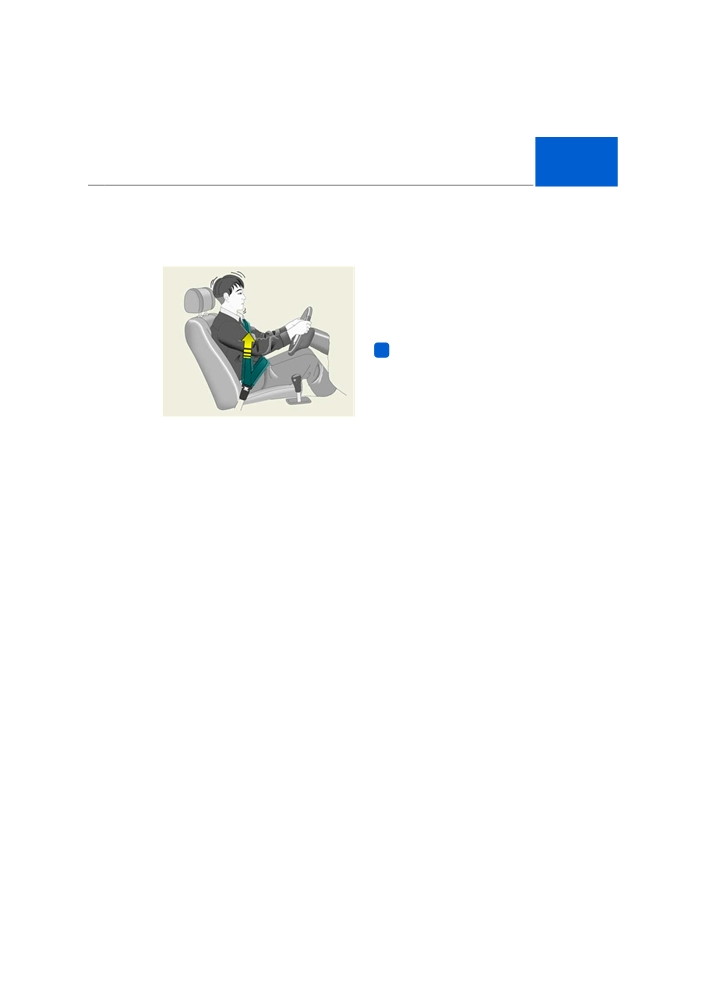

3. Tactual warning (if equipped with

pre-safe seat belt)

When driving out of the lane lines for

approximately 3 seconds, the pre-

safe seat belt provides haptic warn-

ing.

You can activate or deactivate this

tactual warning function. For this,

refer to the "User Settings Mode" in

chapter 3.

5-53

Driving your vehicle

05

ADVANCED VEHICLE SAFETY MANAGEMENT (AVSM)

(IF EQUIPPED)

The AVSM measures a distance

Brake operation

from a vehicle in front with the sen-

• When the AVSM senses an object

sor, warns you of a possible collision

in front is too close, the brake sys-

with a vehicle in front, and protects

tem enters into a standard mode to

you in certain hazardous situations

promptly react against the driver's

by giving a warning message, a

possible depressing of the brake

warning alarm and seatbelt vibration

pedal.

(if equipped).

• When the driver releases the

accelerator after the warning, the

AVSM automatically and gently

decelerates the vehicle.

• When the driver depresses the

brake pedal to reduce vehicle

speed, the brake assistant system

is activated to raise braking effi-

ciency.

• When an object in front is away at

a safe distance, and when the driv-

er depresses the accelerator or

releases the brake pedal, the brak-

OVI055311

ing will stop.

• When the AVSM detects that an

object in front is too close from

WARNING

your vehicle, or when the driver

needs to depress brake pedal or to

The AVSM does not completely

turn the steering wheel, the warn-

stop the vehicle and does not

ing light illuminates.

totally avoid a collision. Always

cautiously look around the front

Immediately reduce your speed.

to prevent unexpected and sud-

• When the AVSM senses a danger,

den situations from occurring.

the warning alarm will also sounds

with the seatbelt vibration.

Immediately reduce your speed.

NOTICE

Always check the road conditions

to prevent any danger, even when

the warning light does not illumi-

nate, the warning alarm does not

sound, or the seatbelt does not

vibrate.

5-55

Driving your vehicle

Seat belt operating

Malfunction indicator

The seat belt tightens when the vehi-

• The AVSM OFF indicator illumi-

cle senses a collision.

nates, when the Engine Start/Stop

button is pressed ON. However, it

goes OFF in approximately 3 sec-

WARNING

onds. When the indicator does not

The AVSM is activated depend-

illuminate, or continuously remains

ON even after 3 seconds, with the

ing on the vehicle-to-vehicle

distance, relative velocity and

Engine Start/Stop button ON, or

when the indicator remains ON

driver's brake pedal/accelerator

operation. Do not recklessly

while driving, the AVSM does not

properly operate. Take your vehicle

drive on purpose to activate the

AVSM.

to an authorized EQUUS dealer

and have the system checked.

• The AVSM OFF indicator may illu-

NOTICE

minate, when the ESC indicator or

SCC indicator illuminates. It does

• When the AVSM is activated or

not indicate a malfunction of the

deactivated, make sure that the

AVSM.

vehicle is stopped.

• When the engine runs, the AVSM

is automatically turned ON. If

WARNING

unnecessary, select the AVSM

OFF in the User Settings mode.

The AVSM is not a substitute for

your safe driving practices, but

• Even when the AVSM ON is

only a supplementary system. It

selected in the User Settings

is the driver's responsibility to

mode, but when the ESC is

always check the speed and the

turned OFF by pressing the ESC

vehicle-to-vehicle distance.

OFF button, the AVSM is auto-

matically deactivated. Then, it is

impossible to manually control

the AVSM.

5-56

Driving your vehicle

05

(Continued)

WARNING

•

The AVSM braking operation

•

Even if there is a malfunction

in inoperable, when the driver

in AVSM braking, the brake is

does not release the accelera-

normally

operable

by

tor nor depress the brake

depressing the brake pedal.

pedal.

The AVSM braking does not

operate in certain hazardous

situations.

•

The AVSM is designed to be

active, while driving above

approximately

9.3 mph

(15

km/h) and below approximate-

ly 111.8 mph (180 km/h).

•

The AVSM does not react to:

- A person or animal

- An oncoming vehicle in

lanes of the opposite direc-

tion or a vehicle in an inter-

section

- A stopped object

•

The AVSM cannot detect an

object in below conditions:

- The sensors are stained or

covered with dirt.

- There is heavy rain or heavy

snow.

- There is interference from

electromagnetic waves.

- There are strong radar

reflections.

- The vehicle drives in a curve.

- The vehicle drives uphill or

downhill.

- The vehicle drives in a con-

struction area.

- An object in front is very nar-

row, such as a motorcycle or

bicycle.

- A vehicle suddenly cuts in

front.

(Continued)

5-57

Driving your vehicle

BLIND SPOT DETECTION SYSTEM (BSD) (IF EQUIPPED)

(1) BSD (Blind spot detection)

The warning range varies in

accordance with a driving speed.

When your vehicle drives 6 mph

(10 km/h) faster than the other

vehicles, the system will not warn

you.

(2) LCA (Lane change assist)

When a vehicle approaches you

at a high speed, the system will

warn you.

OVI055119N

(3) RCTA (Rear cross traffic alert)

When your vehicle drives back-

wards, and when the sensor

detects the approaching vehicle

in the left and right side, the sys-

tem will warn you.

WARNING

• Always check the road condi-

tion while driving for unex-

pected situations even with

the BSD system ON.

• The BSD system is designed

for your convenience. Do not

solely rely on the system.

Always concentrate on driv-

OVI055129N

ing for your safety.

The BSD (Blind spot detection) sys-

tem uses a radar sensor to alert the

driver while driving.

It monitors the rear area of the vehi-

cle and provides information to the

driver.

5-58

Content   ..  16  17  18  19   ..
