Convenient features of your vehicle

03

Do not attempt to modify this system

Restrictions in Handling Keys

or add other devices. Other electric

problems may result, making your

vehicle inoperable.

i

Information

ALWAYS take the Smart Key with

you, when leaving the vehicle.

This device complies with Part 15

of the FCC rules.

Operation is subject to the following

OVI045006N

two conditions:

When leaving keys with parking and

1. This device may not cause harmful

valet-parking attendants, make sure

interference, and

that your trunk and glove box can be

2. This device must accept any inter-

opened only with the mechanical key,

ference received, including inter-

by following the below procedures.

ference that may cause undesired

operation.

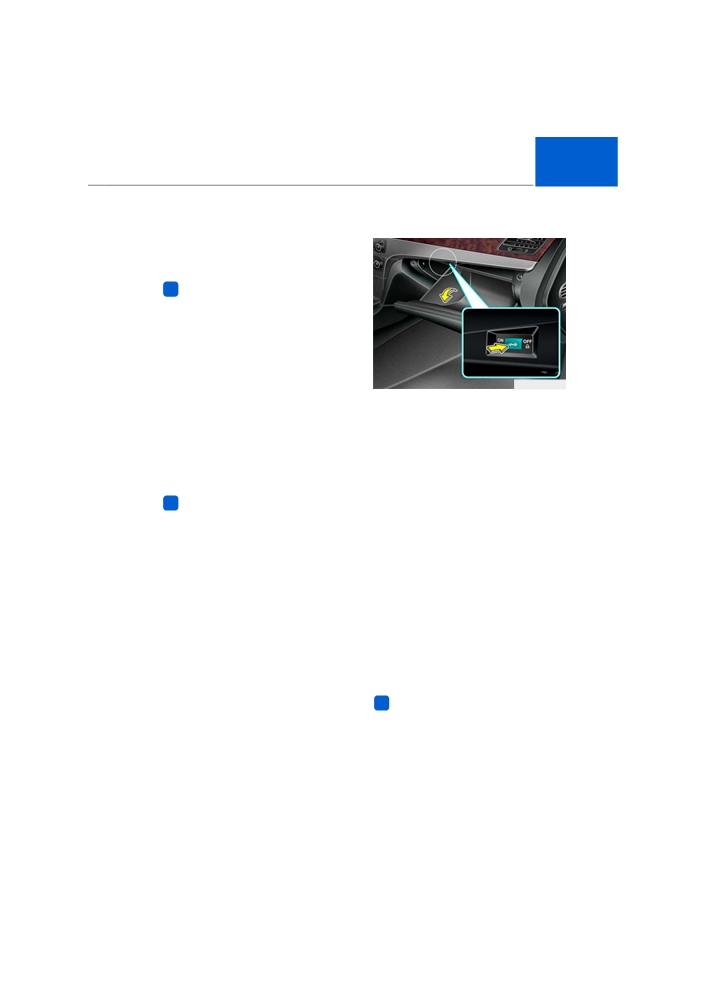

To lock:

1. Pull the mechanical key out of the

i

Information

Smart Key.

Changes or modifications not express-

2. Unlock the glove box with the

ly approved by the party responsible

mechanical key, and then open it.

for compliance could void the user's

3. Set the Trunk Lid Control button to

authority to operate the device.

the OFF position (not pressed).

4. Close and lock the glove box with

the mechanical key.

5. Leave the Smart Key with the

attendant and keep the mechani-

cal key with you.

The Smart Key can be used only for

the engine starting and the door

locking/unlocking.

i

Information

Once the trunk lid control button sets

OFF, the automatic opening function

of Smart Trunk system (if equipped)

will be also deactivated.

3-11

Convenient features of your vehicle

To release:

Battery Replacement of the

1. Open the glove box with the

Card-type Smart Key

mechanical key.

2. Set the Trunk Lid Control button to

the ON position (depressed).

In this position, the trunk lid will open

with the Trunk Lid button of the Smart

Key.

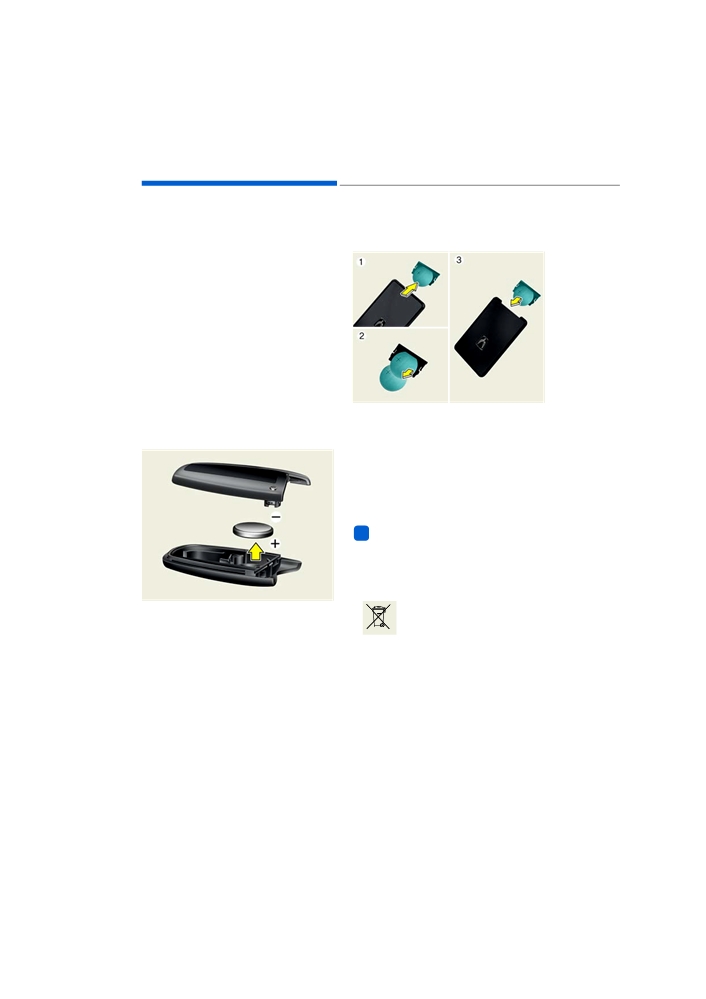

Battery Replacement

When the Smart Key does not prop-

erly operate, replace the battery with

a new one.

OVI045004N

Battery Type: CR2412

Battery Replacement of the

To Replace the Battery:

Conventional-type Smart Key

1. Open the sliding battery cover.

2. Remove the old battery and insert

a new one. Make sure the battery

is in the correct position.

3. Close the sliding battery cover.

i

Information

• When your Smart Key is suspected

to be damaged, or when your Smart

Key does not properly operate, con-

tact an authorized EQUUS dealer.

OVI045603N

•

An inappropriate disposal

Battery Type: CR2032

of the battery can be harm-

To Replace the Battery:

ful to the environment and

1. Open the rear cover of the Smart

human health.

Key.

Dispose of the battery in

2. Remove the old battery and insert

accordance with your local

a new one. Make sure the battery

law(s) and regulation(s).

is in the correct position.

3. Close the rear cover of the Smart

Key.

3-12

Convenient features of your vehicle

DOOR LOCKS

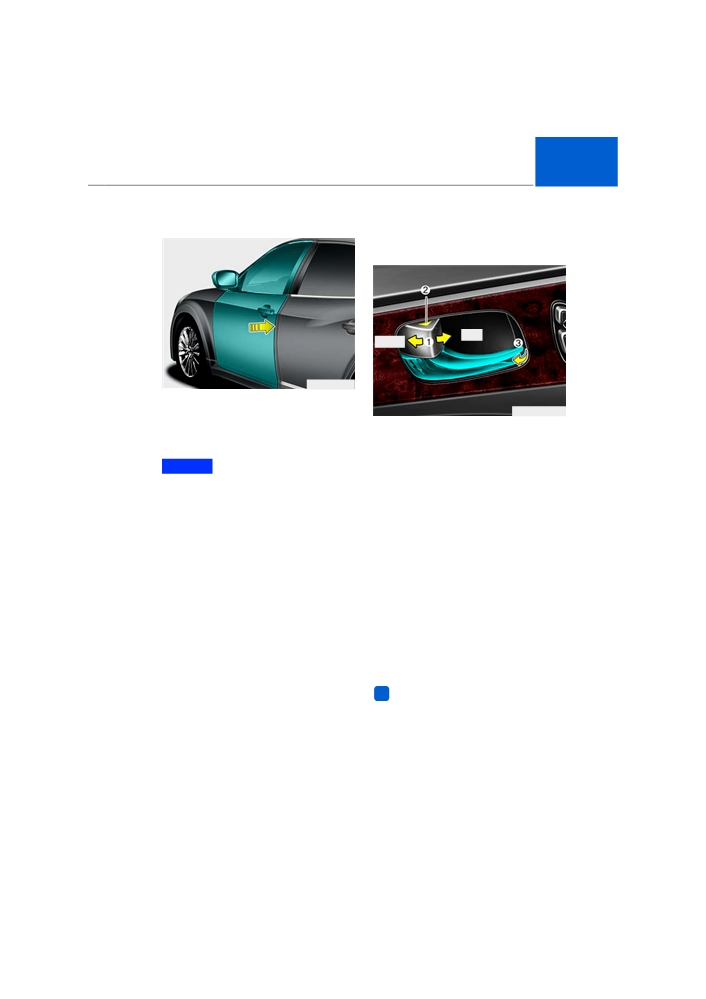

Operating Door Locks From

When closing the door, push the

Outside the Vehicle

door with your hand. Make sure that

doors are securely closed.

■ Type A

i

Information

You can control the door unlock mode

in the User Settings menu on the LCD

display. You can unlock all doors by

simply pressing the unlock button.

Lock

Unlock

i

Information

• In a cold and wet climate, door locks

and door mechanisms may not

OVI045008N-1

properly operate due to freezing

■ Type B

conditions.

• When the door is locked and

unlocked multiple times in a rapid

and consecutive manner with either

the vehicle key or door lock switch,

the system operation may temporar-

ily stop in order to protect the cir-

cuit and prevent component dam-

ages.

Door Lock

Door Unlock

OVI045081N

WARNING

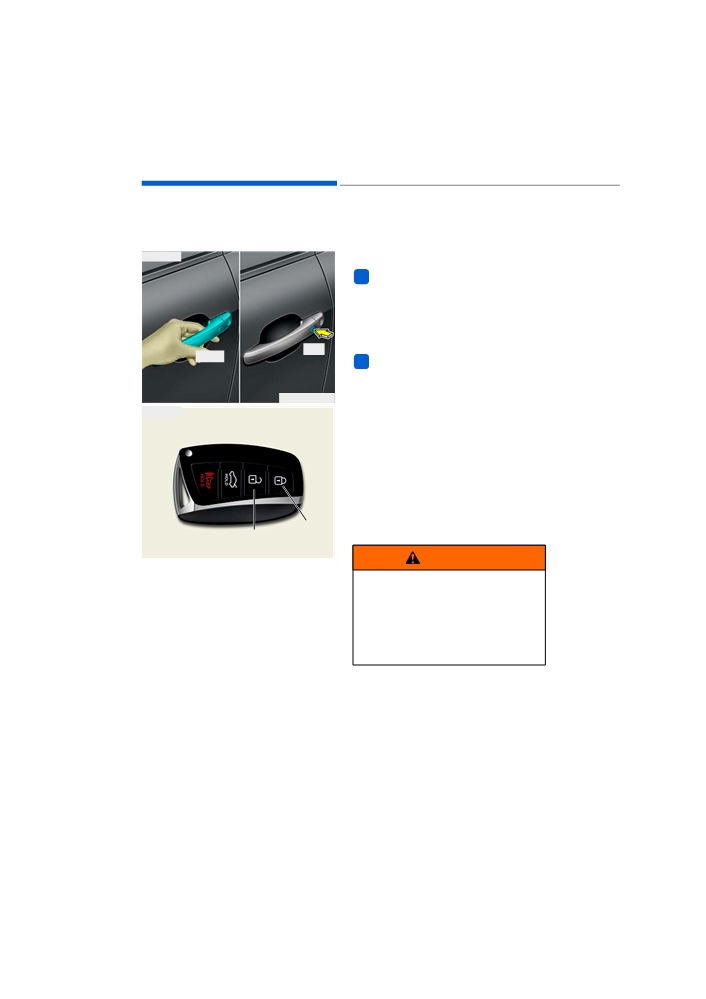

To lock the doors, press the button

on the outside door handle while car-

• If you don't close the door

rying the Smart Key with you or

securely, the door may open

press the Door Lock button on the

again.

Smart Key.

• Be careful that someone's

Grab the driver’s outside door handle

body and hands are not

while carrying the Smart Key or

trapped when closing the door.

press the Door Unlock button on the

Smart Key to open the driver’s door.

When you touch the door handle of

the front outside doors, all doors will

unlock. When you press the Door

Unlock button on the Smart Key

again within four seconds, then all

the doors will unlock.

Once the doors are unlocked, they

may be opened by pulling the door

handle.

3-14

Convenient features of your vehicle

03

Power Door Latch (if equipped)

Operating Door Locks From

Inside the Vehicle

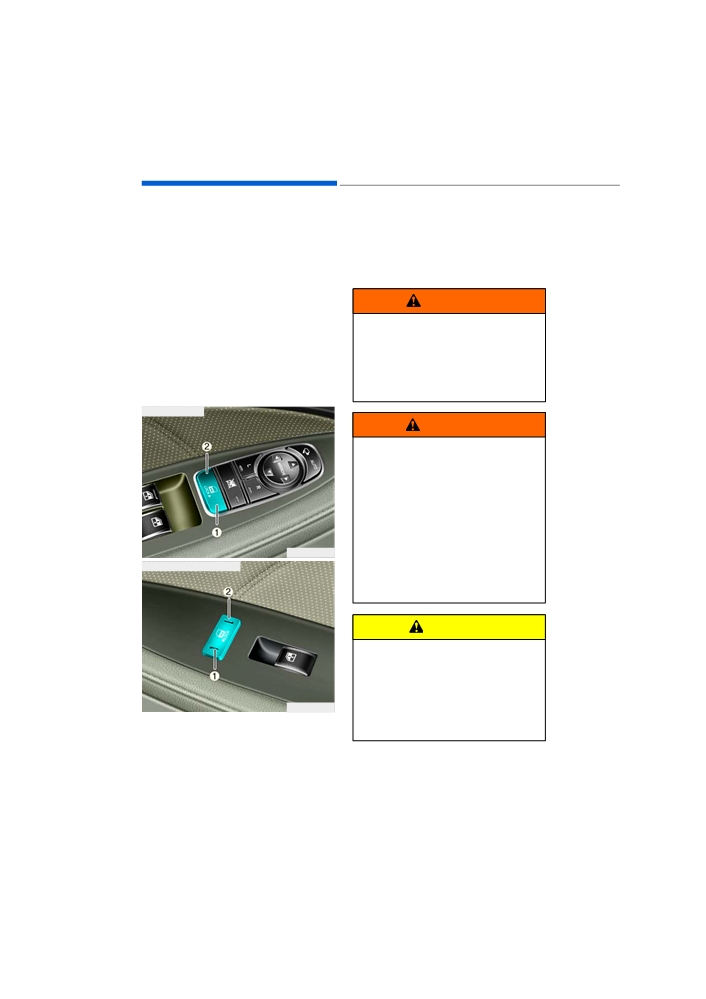

With the Door Lock Button :

Lock

Unlock

OVI045007N

When a door is not completely

OVI045008A

closed, but is just slightly latched in

the first detent position, the door will

• To unlock doors, push the door

automatically close.

lock button

(1) to the

“Unlock”

position. The red mark (2) on the

NOTICE

door lock button will be visible.

• To lock doors, push the door lock

To reduce the risk of injury:

button (1) to the “Lock” position.

• Before closing a door, check

When the door is locked properly,

there are no obstructions in the

the red mark (2) on the door lock

path of the door.

button will be invisible.

• Keep your fingers away from a

• To open a door, pull the door han-

door edge, otherwise they may

dle (3) outwards.

become trapped inside when the

• When the inner door handle of the

power door latch operates.

driver’s (or front passenger’s) door

is pulled when the door lock button

is in the lock position, the button

will be unlocked and doors open.

• Doors cannot be locked, when the

Smart Key is in the vehicle, and

when any door is open.

i

Information

When a power door lock fails to oper-

ate while you are in the vehicle, try

one or more of the following proce-

dures to exit:

(Continued)

3-15

Convenient features of your vehicle

(Continued)

• When the Smart Key is in the vehi-

Repeatedly attempt to unlock a door

cle, or when any door is opened,

(both electronic and manual) while

the doors cannot be locked by

simultaneously pulling out a door

pressing the lock button (1) of the

handle.

central door lock switch.

Operate the locks and handles of

other front/rear doors.

WARNING

Lower a front window and use the

The doors should always be

mechanical key from outside to

securely closed and locked

unlock the door.

while the vehicle is in motion.

When the doors are unlocked,

With the Central Door Lock

the doors are at increasing risk

Switch:

of opening up in a crash.

■ Driver’s door

WARNING

Do not leave children or ani-

mals unattended in your vehi-

cle. An enclosed vehicle may

become extremely hot, causing

death or serious injury to unat-

tended children or animals who

cannot escape the vehicle.

Children may operate the vehi-

cle, injuring themselves or

OVI045009N

encountering other harm from

■ Front passenger’s door

someone entering to the vehi-

cle.

CAUTION

Opening a door when some-

thing is approaching may cause

damage or injury. Carefully

open the doors and watch for

vehicles, motorcycles, bicycles

OVI045010N

or pedestrians approaching to

the vehicle door.

• When pressing the switch (1), all

vehicle doors will lock.

• When pressing the switch (2), all

vehicle doors will unlock.

3-16

Convenient features of your vehicle

03

Child-Protector Rear Door

WARNING

Locks

Always secure your vehicle.

Leaving your vehicle unlocked

increases the potential risk to

you or others from someone

hiding in your vehicle.

To secure your vehicle, depress

the brake pedal, move the shift

lever to P (Park), set the parking

brake, turn OFF the Engine

Start/Stop button, close all win-

dows, lock all doors, and take

the Smart Key with you.

OVI045011N

The child safety lock is equipped to

prevent a child seated in a rear from

Auto Door Lock/Unlock Features

accidentally opening a rear door. The

You can adjust the auto door lock/

rear door safety lock should be used

unlock modes in the User Setting.

whenever a child seats in a vehicle.

Refer to the User Setting Mode in the

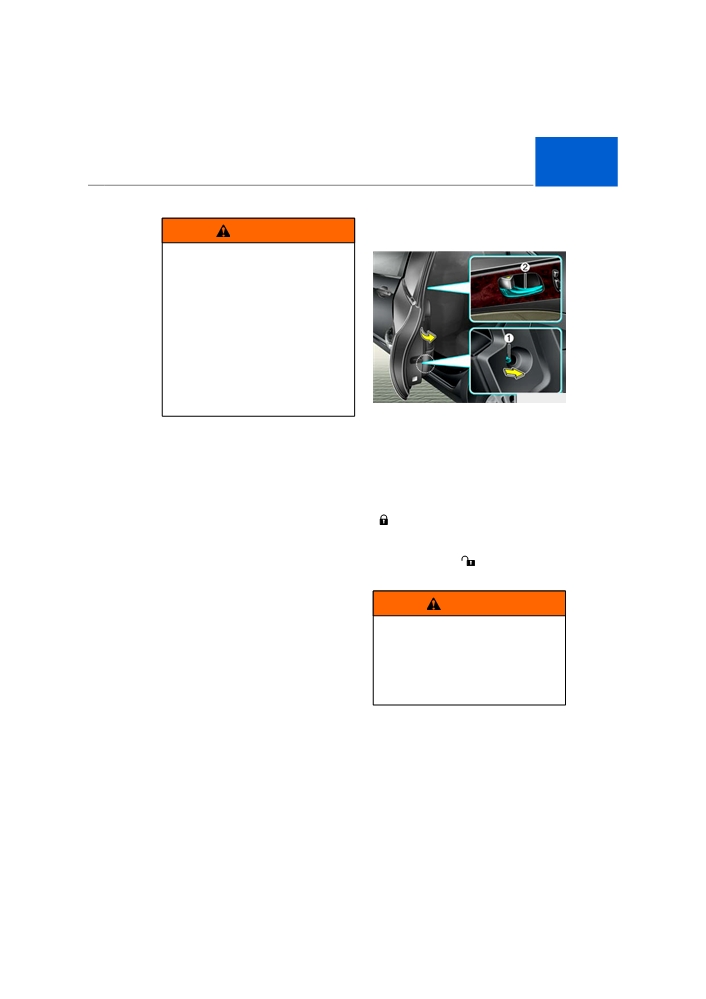

The child safety lock (1) is located on

the edge of each rear door. When the

chapter 3.

child safety lock is in the lock position

(

), that rear door will not open by

pulling the inner door handle (2).

To open a rear door from inside the

vehicle, unlock (

) the child safety

lock.

WARNING

When a child accidently opens

a rear door while driving, the

child may fall out of the vehicle.

The rear door safety locks

should always be used whenev-

er a child is in the vehicle.

3-17

Convenient features of your vehicle

TRUNK

Non-Powered Trunk

To close:

Close the trunk lid and press it down,

until it latches.

WARNING

Always securely close the trunk

lid while the vehicle is in

motion. When it is still open or

ajar, poisonous exhaust gases

containing carbon monoxide

(CO) may enter the vehicle,

OVI045012N

resulting serious illness or

death.

WARNING

The trunk lid swings open

upwards. Make sure there is no

object or people near the trunk

lid area, before opening it.

OVI045013N

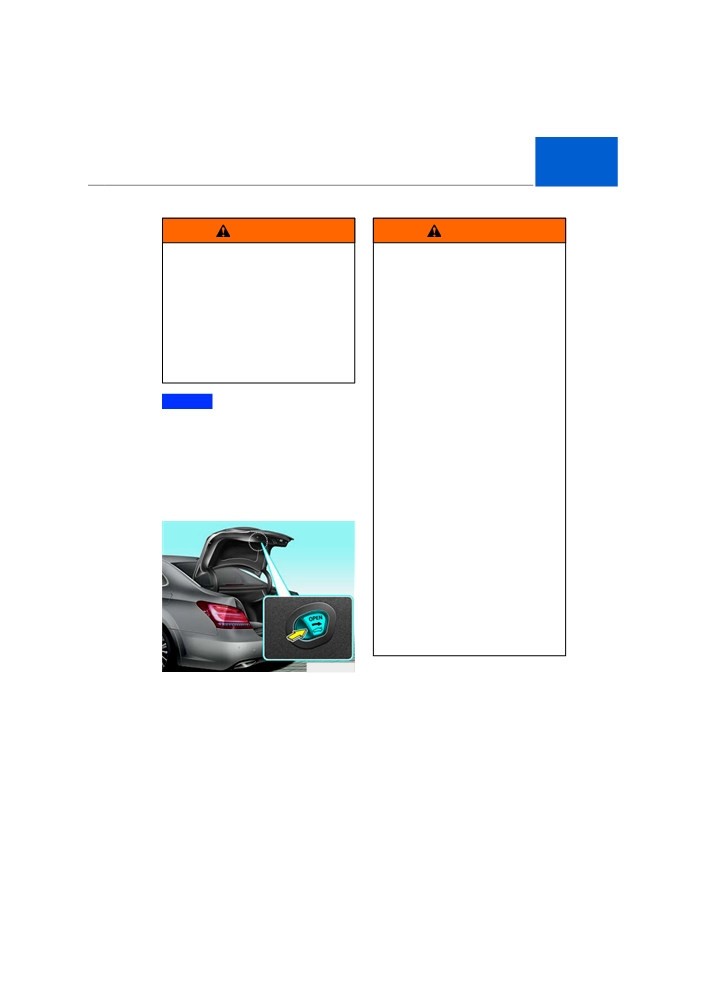

NOTICE

To open:

To prevent the trunk lift cylinders

1. Locate the shift lever in P(Park).

and other attached components

2. Then do one of the followings:

from being damaged, always close

the trunk before driving.

- Press the Smart Key Trunk

Unlock button for one second or

over.

i

Information

- Press the button on the trunk,

In a cold and wet temperature, the

while taking the Smart Key in

trunk lock and trunk mechanisms

your possession.

may not properly operate due to freez-

- Use the mechanical key.

ing conditions.

- Use the trunk release button.

3. Lift up the trunk lid.

3-18

Convenient features of your vehicle

03

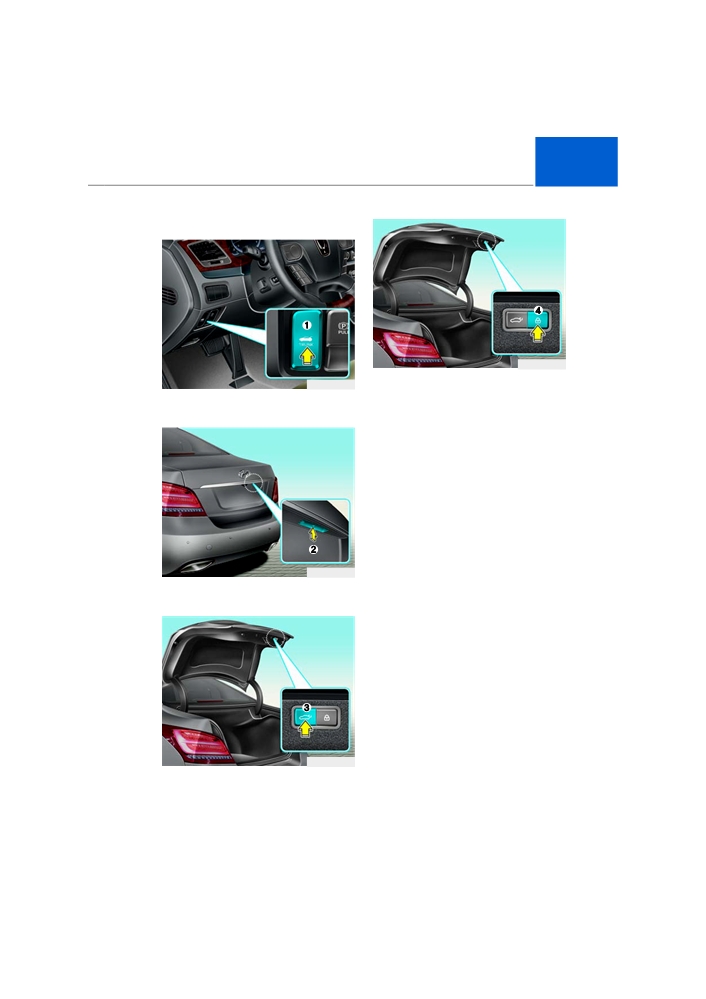

Power Trunk (if equipped)

OVI045016N

OVI045013N

(4) Power Trunk Lock button

(1) Power Trunk Main Control button

To open:

1. Locate the shift lever in P(Park).

2. Then do one of the following:

- Press the Trunk Unlock button on

the Smart Key for one second or

over.

- Press the Power Trunk Open but-

ton on the trunk, taking the

Smart Key in your possession,

with all doors locked.

- Press the Power Trunk Main

OVI045014N

Control button.

To close:

(2) Power Trunk Open button

Do one of the followings:

- Press the Power Trunk Main

Control button until the Power

Trunk is securely closed.

- Press the Power Trunk Close but-

ton on the trunk.

- Press the Lock button on the

trunk, while carrying the Smart

Key, with all doors closed. All

doors will lock and the theft alarm

system sets ON.

Pressing a button or switch, while

OVI045015N

opening or closing the trunk, may

stop the operation. Press any button

(3) Power Trunk Close button

to re-operate the Power Trunk.

3-19

Convenient features of your vehicle

i

Information

NOTICE

The Power Trunk Lock button will

• Do not manually close or open

not operate in one of the following sit-

the Power Trunk. This may dam-

uations:

age the Power Trunk. If neces-

sary, when the battery is drained

-

Any door is open.

or disconnected, do not apply

-

The Engine Start/Stop Button is not

excessive force.

OFF.

• Do not leave the Power Trunk

-

The Smart Key is in the vehicle.

open for a long period of time.

This may drain the battery.

WARNING

• To prevent the trunk lift cylin-

ders and other attached compo-

Never leave children or animals

nents from being damaged,

unattended in your vehicle.

always close the trunk before

Children or animals may oper-

driving.

ate the power trunk, injuring

themselves, others, or vehicle

i

Information

damage.

In a cold and wet temperature, trunk

lock and trunk mechanisms may not

properly operate due to freezing con-

WARNING

ditions.

Always securely close the trunk

lid while the vehicle is in

motion. When it is still open or

ajar, poisonous exhaust gases

containing carbon monoxide

(CO) may enter the vehicle,

resulting serious illness or

death.

WARNING

Make sure there are no people

or objects around the trunk

before opening or closing the

Power Trunk. Wait until the trunk

is fully open, before loading or

unloading.

3-20

Convenient features of your vehicle

03

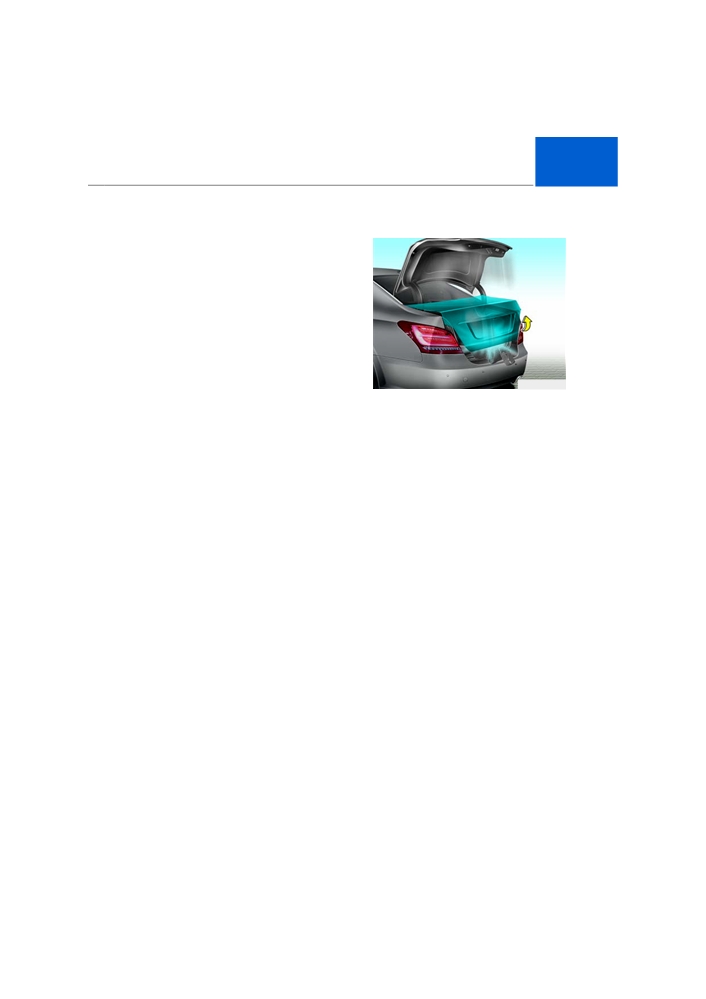

Power Trunk Non-Opening or

Automatic stop and Reverse

Closing Conditions:

•

The Power Trunk will not operate,

when driving faster than 1.8 mph

(3 km/h).

•

The Power Trunk is operable when

the engine is not running.

However, the Power Trunk opera-

tion consumes large amounts of

vehicle electric power. To prevent

the battery from being drained, do

not operate it excessively

(i.e.

more than approximately 10 times

OVI045017N

in a consecutive manner.)

When the trunk lid is blocked by an

•

Do not modify or repair any part of

object or someone’s body, while

the Power Trunk by yourself. This

opening or closing, the power trunk

must be done by an authorized

will detect the resistance, stop the

EQUUS dealer.

operation, or swing open in a reverse

•

Before jacking up the vehicle to

direction to clear the object.

change a tire or repair the vehicle,

However, when the resistance is

open the Power Trunk. Do not

weak with a thin or soft object, or

operate the Power Trunk, when

when the trunk is slightly latched, the

the vehicle is raised up.

Power Trunk may not detect the

Otherwise, this may cause the

resistance, and not swing open to

Power Trunk to improperly oper-

clear an object. In addition, when the

ate.

Power Trunk is applied with strong

•

When there are substances, such

force, the Power Trunk may stop its

as snow, on the Power Trunk, it

operation and swing open in the

may not automatically open. After

reverse direction.

removing the substances, try to

When the Power Trunk stops its

open it again.

operation and swings open in a

reverse direction more than twice in

one opening or closing, the Power

Trunk may stop at that position.

When this occurs, manually close

the trunk lid and re-operate the

Power Trunk.

3-21

Convenient features of your vehicle

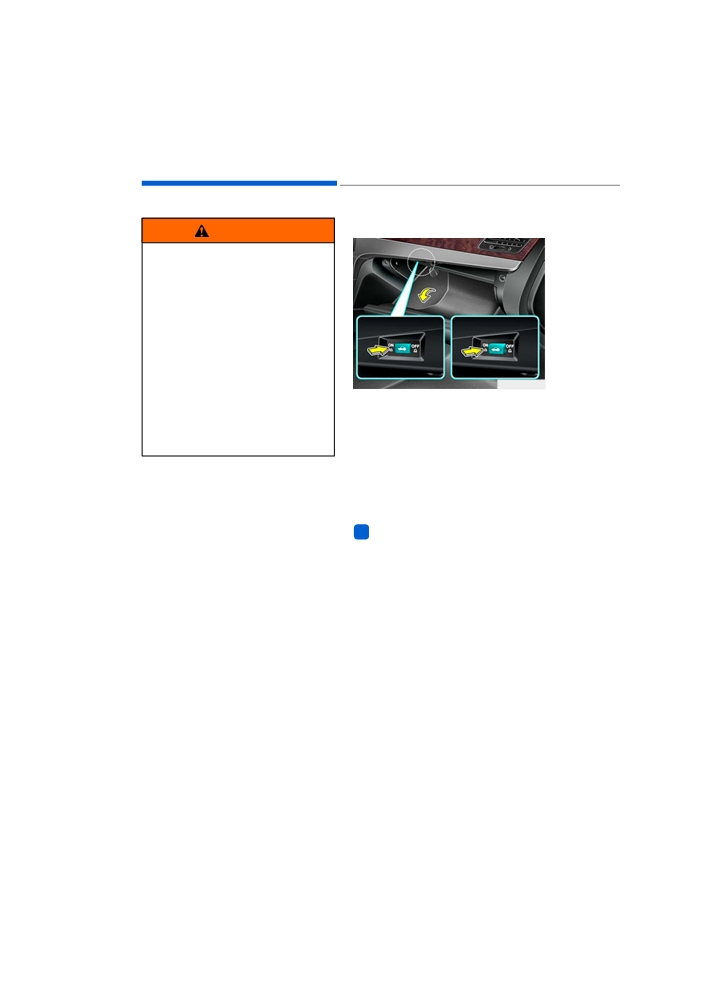

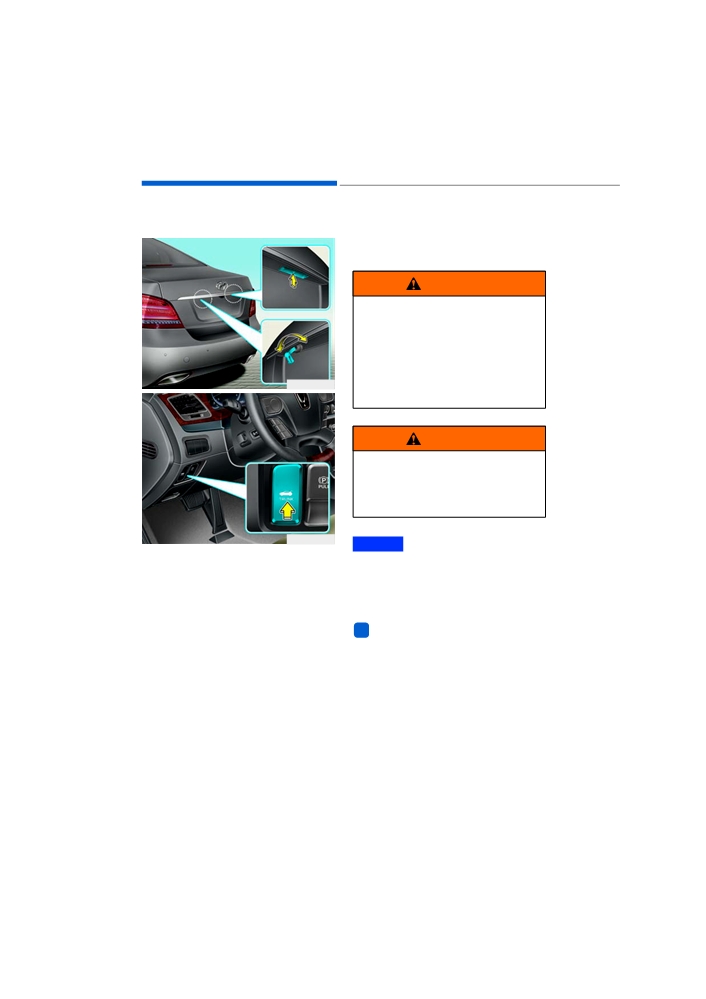

Trunk Lid Control Button

WARNING

To prevent serious injury and

damage, take the following pre-

cautions when operating the

power trunk:

- Keep all faces, hands, arms,

body parts and other objects

away in the path of the Power

Trunk opening.

- Do not intentionally operate

the automatic stop and rever-

sal of the Power Trunk by plac-

OVI045018N

ing any body parts or objects

When the Trunk Lid Control button is

on it.

ON (depressed), the power trunk can

- Do not allow children to play

be controlled with the Power Trunk

with the Power Trunk.

Main Control button, Power Trunk

Open/Close buttons, and the Smart

Key. When this trunk lid control button

To Reset the Power Trunk

is OFF (not depressed), the Power

Trunk operates with the mechanical

When the battery is discharged or

key inside the Smart Key only.

disconnected, or when the related

fuse is replaced or disconnected,

reset the Power Trunk as follows:

i

Information

1. Set the shift lever in P(Park).

Once the trunk lid control button sets

2. Manually close the trunk.

OFF, the automatic opening function

of Smart Trunk system (if equipped)

will be also deactivated.

When the Power Trunk does not

properly operate after following the

above procedures, have the system

Even though the trunk lid control but-

checked by an authorized EQUUS

ton is OFF (not depressed), the trunk

dealer.

still swings open upwards after being

manually open by more than

10

degrees from the fully closed posi-

tion with mechanical force. In addi-

tion, when the trunk is manually

closed to the secondary latch posi-

tion, the trunk will be electrically

closed to the fully latched position.

3-22

Convenient features of your vehicle

03

WARNING

WARNING

• Always keep the Trunk Lid

•

You and your passengers

Control button OFF

(not

must be aware of the location

depressed), if not in use. A

of the Emergency Trunk

child's unintentional opera-

Safety Release lever in this

tion may result serious injury

vehicle and how to open the

or death.

trunk in case you are acciden-

tally locked inside.

• Make sure heads, other body

parts or other obstacles are

•

NEVER allow anyone to sit

safely out of the way before

inside the trunk at any time.

operating the Power Trunk.

When the trunk is slightly or

fully latched, and when the

person is unable to get out,

NOTICE

serious injury or death may

Close the trunk, and keep the

occur due to lack of ventila-

Trunk Lid Control button OFF (not

tion, exhaust fumes and rapid

depressed), before washing the

heat build-up, or exposure to

vehicle in an automatic car wash.

a cold temperature. The trunk

is also a highly dangerous

location in the event of a

Emergency Trunk Safety

crash, because it is not a pro-

Release

tected space, but a vehicle's

crush zone.

•

Your vehicle should be kept

locked and the Smart Key

should be kept away from

children. Parents should

instruct children about the

danger of playing in the trunk.

•

Use the Emergency Trunk

Safety Release lever for emer-

gencies only.

OVI045019N

Your vehicle is equipped with an

Emergency Trunk Safety Release

lever inside the trunk. When some-

one is inadvertently locked inside, he

or she can open the trunk by pulling

the lever in the arrow direction and

pushing the trunk lid upwards.

3-23

Convenient features of your vehicle

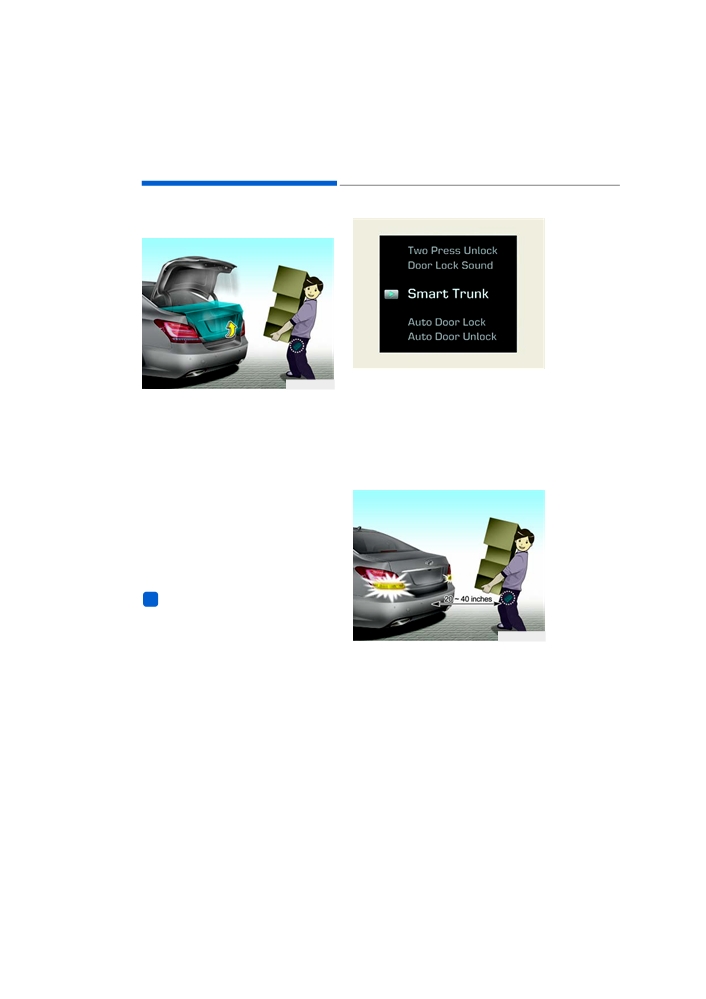

Smart trunk (if equipped)

OVI045756N

1. Setting

OVI045757N

To activate the Smart Trunk, go to

On a vehicle equipped with a smart

User Settings Mode and select

key and power trunk, the trunk can

Smart Trunk on the LCD display.

be opened with no-touch activation

using the Smart Trunk system.

For more details, refer to "LCD

Display" in this chapter.

How to use the Smart Trunk

The trunk can be opened with no-

touch activation satisfying all the

conditions below.

• After 15 seconds when all doors

are closed and locked

• Positioned in the detecting area

for more than 3 seconds.

i

Information

• The Smart Trunk does not operate

when:

OVI045759N

- The smart key is detected within

2. Detect and Alert

15 seconds after the doors are

closed and locked, and is continu-

If you are positioned in the detecting

ously detected.

area (20~40 inches (50 ~100 cm)

behind the vehicle) carrying a smart

- The smart key is detected within

key, the hazard warning lights will

15 seconds after the doors are

blink and chime will sound for about

closed and locked, and within 60

3 seconds to alert you the smart key

inches (1.5 m) from the front door

has been detected and the trunk will

handles.

(for vehicles equipped

open.

with Welcome Light)

- A door is not locked or closed.

- The smart key is in the vehicle.

3-24

Convenient features of your vehicle

03

i

Information

WARNING

Do not approach the detecting area if

you do not want the trunk to open. If

•

Make sure you close the trunk

you have unintentionally entered the

before driving your vehicle.

detecting area and the hazard warn-

•

Make sure there are no people

ing lights and chime starts to operate,

or objects around the trunk

leave the detecting area with the smart

before opening or closing the

key. The trunk will stay closed.

trunk.

•

Make sure objects in the trunk

do not come out when open-

ing the trunk on a slope. It

may cause serious injury.

•

Make sure to deactivate the

Smart Trunk when washing

your vehicle. Otherwise, the

trunk may open inadvertently.

•

The key should be kept out of

reach of children. Children

may inadvertently open the

Smart Trunk while playing

around the rear area of the

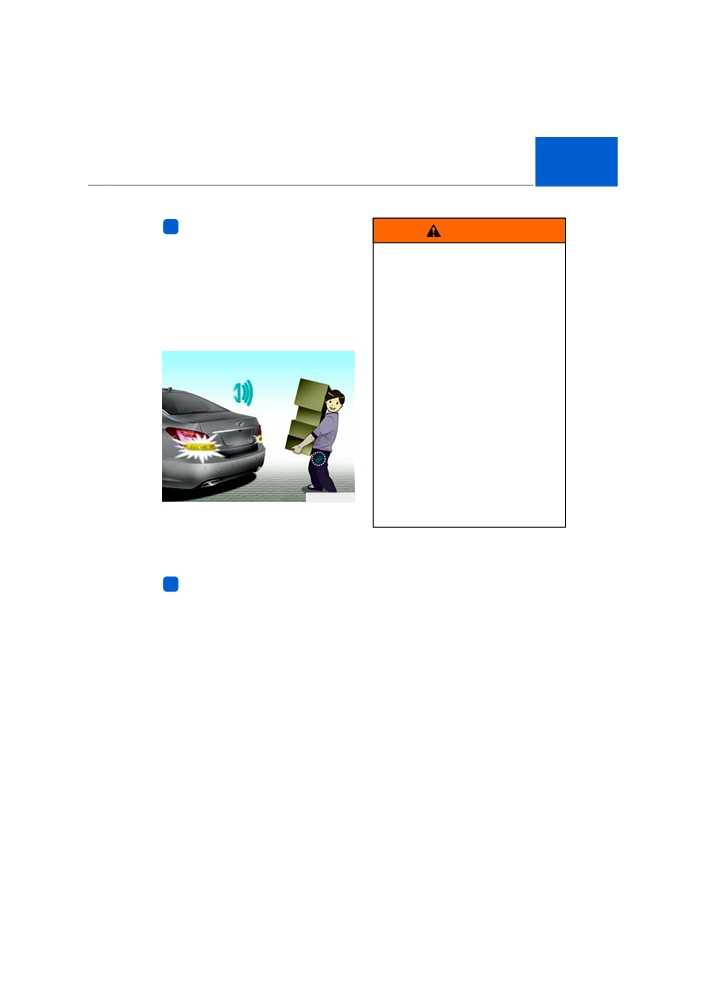

OVI045758N

vehicle.

3. Automatic opening

The hazard warning lights will blink

and chime will sound 2 times and

then the trunk will slowly open.

i

Information

Once the trunk lid control button sets

OFF, the trunk will not open automat-

ically but the welcome and detect alert

will activate for about 3 seconds in

detecting area.

3-25

Convenient features of your vehicle

How to deactivate the Smart

i

Information

Trunk function using the smart

• If you press the door unlock button

key

(2), the Smart Trunk function will

be deactivated temporarily. But, if

you do not open any door for 30 sec-

onds, the smart trunk function will

be activated again.

• If you press the trunk open button

(3) for more than

1 second, the

trunk opens.

• If you press the door lock button (1)

or trunk open button (3) when the

Smart Trunk function is not in the

Detect and Alert stage, the smart

OVI045601N

trunk function will not be deactivat-

1. Door lock

ed.

2. Door unlock

• In case you have deactivated the

Smart Trunk function by pressing

3. Trunk open

the smart key button and opened a

4. Panic

door, the smart trunk function can

be activated again by closing and

If you press any button of the smart

locking all doors.

key during the Detect and Alert

stage, the Smart Trunk function will

be deactivated.

Make sure to be aware of how to

deactivate the Smart Trunk function

for emergency situations.

3-26

Convenient features of your vehicle

03

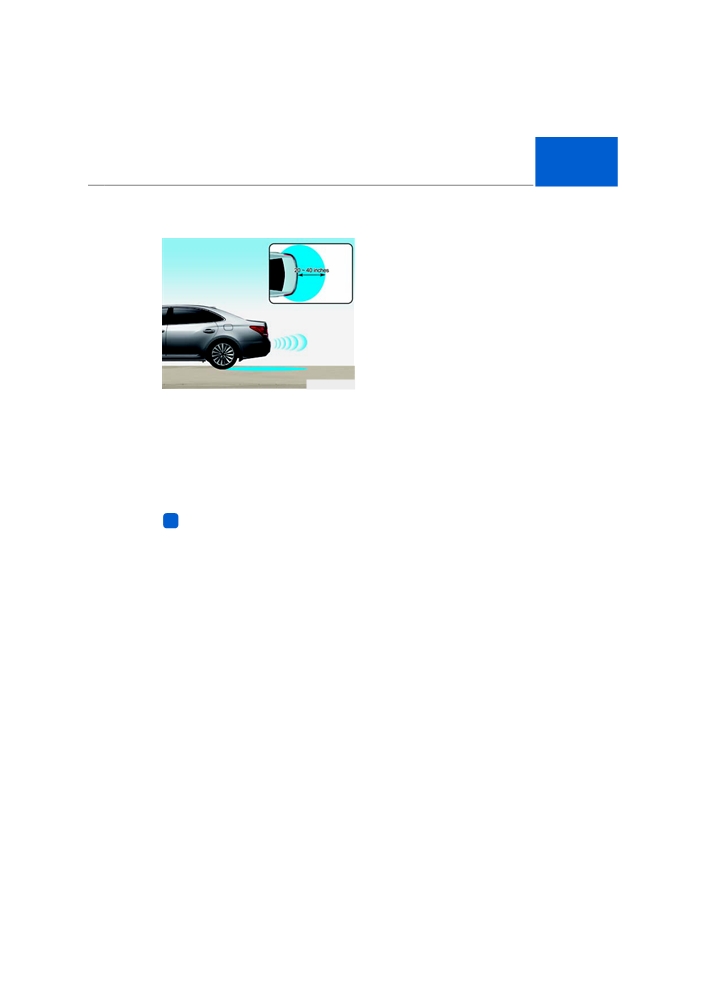

Detecting area

(Continued)

• The detecting range may decrease

or increase when :

- One side of the tire is raised to

replace a tire or to inspect the vehi-

cle.

- The vehicle is slantingly parked on

a slope or unpaved road, etc.

OVI045760N

• The Smart Trunk operates with a

welcome alert if the smart key is

detected within

20~40 inches

(50~100 cm) from the trunk.

• The alert stops at once if the

smart key is positioned outside

the detecting area during the

Detect and Alert stage.

i

Information

• The Smart Trunk function will not

work if any of the following occurs:

- The smart key is close to a radio

transmitter such as a radio station

or an airport which can interfere

with normal operation of the

transmitter.

- The smart key is near a mobile two

way radio system or a cellular

phone.

- Another vehicle's smart key is

being operated close to your vehi-

cle.

(Continued)

3-27

Content   ..  5  6  7  8   ..
