Safety system of your vehicle
Air bag inflation conditions
WARNING
•
Do not hit or allow any objects
to strike the areas where the
air bags or the sensors are
installed.
This may cause unexpected
air bag deployment, resulting
in serious personal injury or
death.
•
When the sensor position or
angle moves out of its default
position, the air bags may
OVI035049N
deploy, or they should

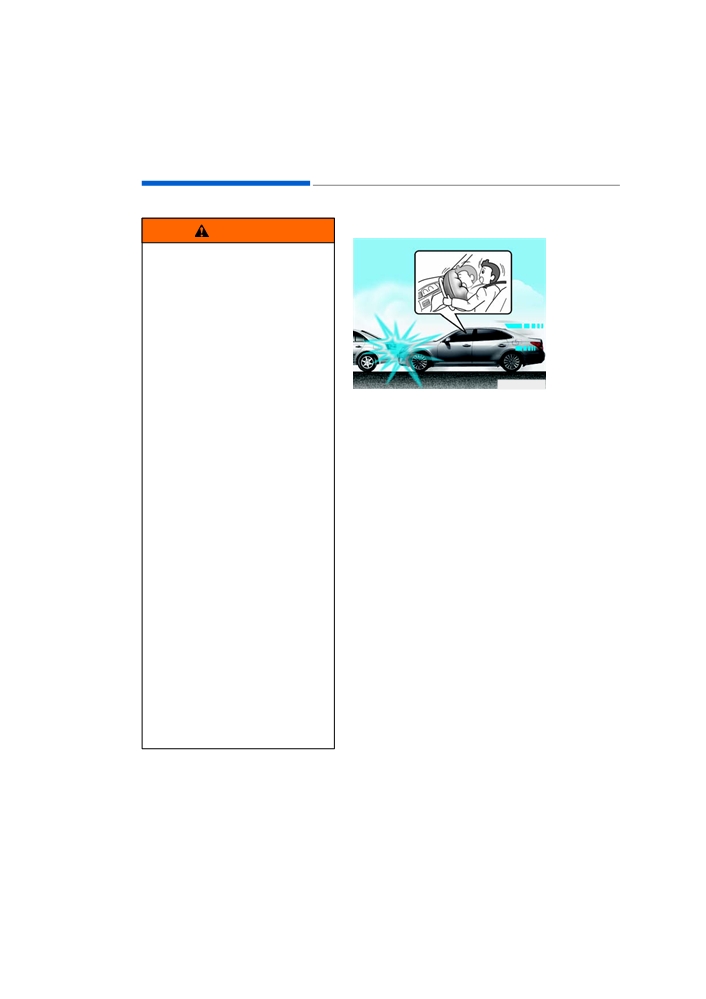

Front air bags
not/may not deploy when they
Front air bags are designed to inflate
should, causing severe injury
in a frontal collision depending on
or death.
impact intensity, a speed or an
Therefore, do not attempt to
impact angle.
modify or repair the air bag
sensors. Have the vehicle
checked and repaired by an
authorized EQUUS dealer.
•
Problems may arise, when the
sensor moves out of its
default position due to the
deformation of the front
bumper, the vehicle body and
the B-and-C pillars, where
side impact sensors are
installed. Have the vehicle
checked and repaired by an
authorized EQUUS dealer.
•
Your vehicle is designed to
absorb impact and deploy the
air bag(s) in a certain colli-
sion.
Installing
bumper
guards or replacing a bumper
with imitated or counterfeit
parts may adversely affect
your vehicle and the air bags.
2-62
Safety system of your vehicle
02
When the vehicle chassis is impact-
ed by a bump or an object on a rough
road, the air bags may deploy. Be
careful to avoid inadvertent air bag
deployment, while driving on a rough
road or on a surface not designed for
the vehicle traffic.

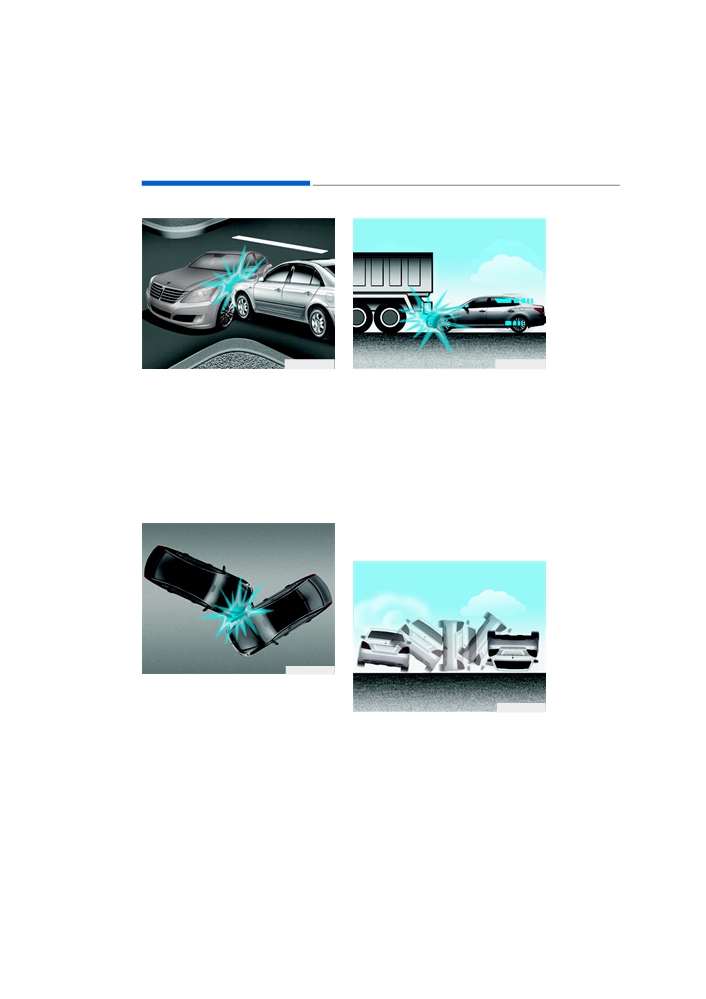

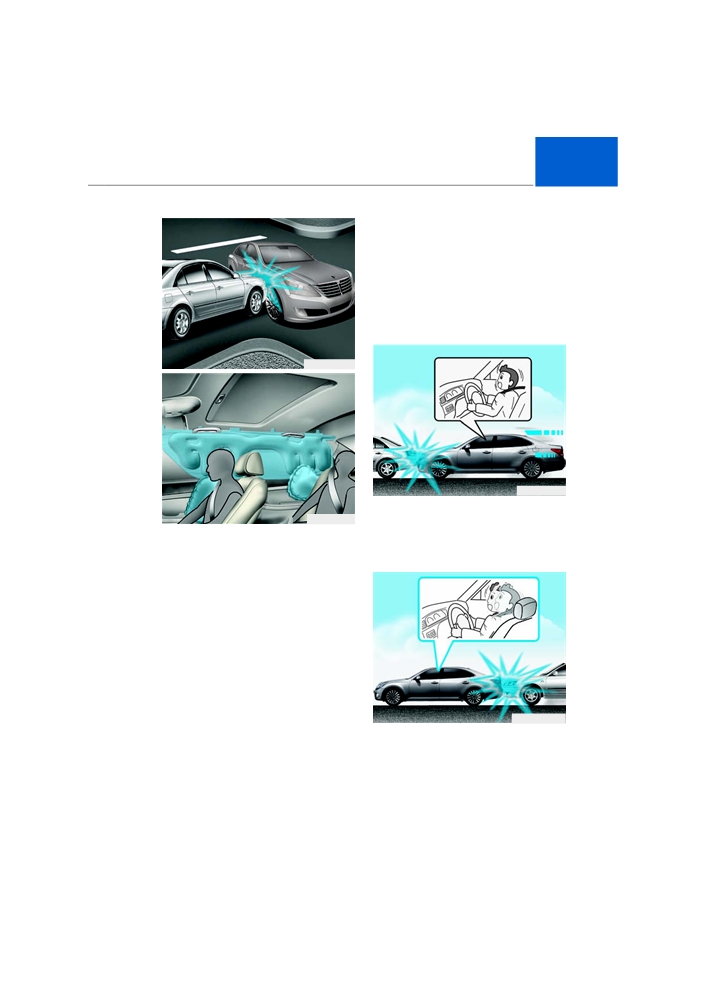

Air bag non-inflation conditions
OVI035050N
OVI035051N
• In a collision at a low speed, air
OVI035074N
bags may not deploy. The air bags
Side and curtain air bags
are designed not to deploy in such
a case, as a seat belt can provide
Side and curtain air bags are
enough protection.
designed to inflate, when a side
impact is detected by the side impact
sensors, depending on an impact
intensity, a speed or angles.
Although the front air bags are
designed to inflate only in a frontal
collision, they also may inflate in
other types of collisions, when the
front impact sensors detect a suffi-
cient impact. Side impact and curtain
air bags are designed to inflate only
in a side impact collision, but they
may inflate in other collisions, when
OVI035052N
the side impact sensors detect a suf-
• Front air bags are not designed to
ficient impact.
inflate in a rear collision, because
occupants are forced to move
backwards by the impact. In this
case, inflated front air bags would
not be able to provide any addition-
al benefit.
2-63
Safety system of your vehicle
OVI035053N
OVI035054N
• Front air bags may not inflate in a
• Just before an impact, drivers tend
side impact collision, because
to heavily depress a brake pedal.
occupants are forced to move
Such heavy braking lowers the
towards an impact direction. In this
front portion of the vehicle, possi-
case, inflated front air bags would
bly causing it to “under-ride” below
not provide additional protection.
a vehicle with a higher ground
clearance.
However, side impact and curtain
air bags may inflate depending on
Air bags may not inflate in this
an impact intensity, a speed,
"under-ride" situation, because the
angles and a direction.
force, which is detected by sen-
sors, may be significantly deceler-
ated in such a “under-ride” colli-
sion.
OVI035128N
• In an angled collision, occupants
are forced to move toward an
OVI035129N
impact direction. In this case, the
air bags would not be able to pro-
• Front air bags may not inflate in a
vide any additional benefit, and
rollover, because air bag deploy-
thus the sensors may not deploy
ment would not provide protection
any air bags.
to occupants.
However, side and curtain air bags
may inflate, when the vehicle rolls
over in a side-impact collision.
2-64
Safety system of your vehicle
02
SRS Care
The SRS is virtually maintenance
free and there are no parts you can
safely maintain by yourself. In case
that the SRS air bag warning light
"
" does not illuminate when turn-
ing ON the Engine Start/Stop button,
or when continuously remains ON,
have your vehicle immediately
inspected by an authorized EQUUS
dealer.
OVI035055N
•

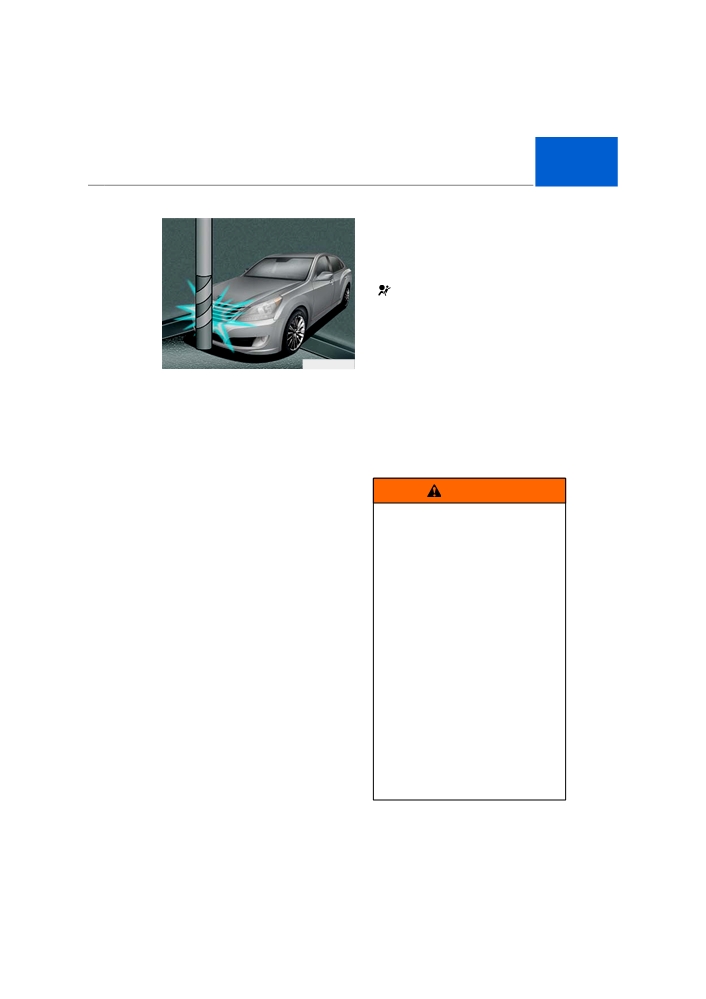

Air bags may not inflate, when a
The SRS system, the steering wheel,
vehicle collides with objects such
the front panel, the front seats and
as utility poles or trees, where the
the roof rails must be installed,
impact point is concentrated and
repaired, maintained or removed
the collision energy is absorbed by
only by an authorized EQUUS deal-
the vehicle.
er. Improper SRS modification may
result in serious personal injury.
WARNING
• Modification to SRS compo-
nents, such as a bandage
addition to the pad covers, or
other modifications to the
body structure may adversely
affect SRS performance and
result in injury.
• Not only the modification of
the area, where the SRS sen-
sor are installed, but also the
modification of other areas
may affect the SRS perform-
ance and result in possible
injury.
• When cleaning the air bag pad
covers, use only a soft and
dry cloth, or the one soaked
with plain water. Solvents or
cleaners may adversely affect
the air bag covers and prevent
its proper deployment.
(Continued)
2-65
Safety system of your vehicle
Additional safety precautions
(Continued)
•
All occupants should sit in an
•
No objects should be placed
upright position, fully back in their
over or near the air bag mod-
seats with their seat belts fastened
ules on the steering wheel,
and their feet rested on the floor.
instrument panel, and the
front panel above the glove
•
Occupants should not take an
box, because such an object
inappropriate seating position,
may cause harm in a crash,
while the vehicle is moving. An
which is severe enough to
unfastened occupant may strike
inflate the air bags.
against the vehicle interior, against
other occupants, or out of the vehi-
•
After the air bags inflate,
cle, in a crash or emergency stop.
those must be replaced by an
authorized EQUUS dealer.
•
Each seat belt is designed to
restrain only one occupant.
•
Do not modify or disconnect
When more than one person fas-
SRS wiring and other compo-
ten the same seat belt, they may
nents. Doing so may result in
be seriously injured or killed in a
injury, due to inadvertent air
collision.
bag inflation or the deactivat-
ed air bag system.
•
Do not put any accessories on
seat belts. Devices, which claims
•
When components of the air
to improve occupants' comfort,
bag system are to be discard-
may reduce the protection of a seat
ed, or when the vehicle must
belt and increase the chance of
be scrapped, certain safety
serious injury in a crash.
precautions
must
be
observed. An authorized
•
Occupants should not place
EQUUS dealer knows these
hard or sharp objects between
precautions and can give you
themselves and the air bags.
the necessary information.
Carrying hard or sharp objects on
Failure to follow these precau-
your laps or in your mouth may
tions and procedures may
result in injuries, when an air bag
increase the risk of personal
inflates.
injury.
•
Keep occupants away from the
•
When your vehicle is flooded
air bags. All occupants should sit
and the floor mats are soaked,
upright, fully back in their seats
you should not attempt to
with their seat belts fastened and
start the engine. Have the
their feet rested on the floor. When
vehicle towed to an author-
the occupants are too close to the
ized EQUUS dealer.
air bag covers, they could be
injured if the air bags inflate.
•
Do not attach or place objects
on or near the air bag covers.
Any object attached to or placed
on the front or side impact air bag
covers could interfere with the
proper operation of the air bags.
2-66
Safety system of your vehicle
02
• Do not modify the front seats.
Adding equipment to or modify-
Modification of the front seats
ing your air bag-equipped vehi-
could interfere with the operation of
cle
the SRS sensing components or
When you modify your vehicle frame,
side impact air bags.
bumper system, front-end or side-
• Do not place items under the
sheet metal or ride height, this may
front seats. Items under the front
adversely affect the operation of your
seats could interfere with the oper-
vehicle's air bag system.
ation of the SRS sensing compo-
nents or wiring harnesses.
• Never hold an infant or child on
your laps. The infant or child may
be seriously injured or killed in the
event of a crash. All infants and
children should be properly
restrained in an appropriate child
restraint or in a rear seat with a
seat belt.
WARNING
• Sitting improperly or out of
position may cause occu-
pants to slant too close
towards a deploying air bag,
strike the interior structure or
be thrown from the vehicle,
resulting in serious injury or
death.
• Always put a seatback
upright, and seat on the cen-
ter of the seat cushion with
your seat belt fastened, legs
comfortably extended and
your feet rested on the floor.
• Be careful not to impact
doors, when the Engine
Start/Stop Button is ON. The
impact may cause the air bags
to inflate.
2-67
Safety system of your vehicle

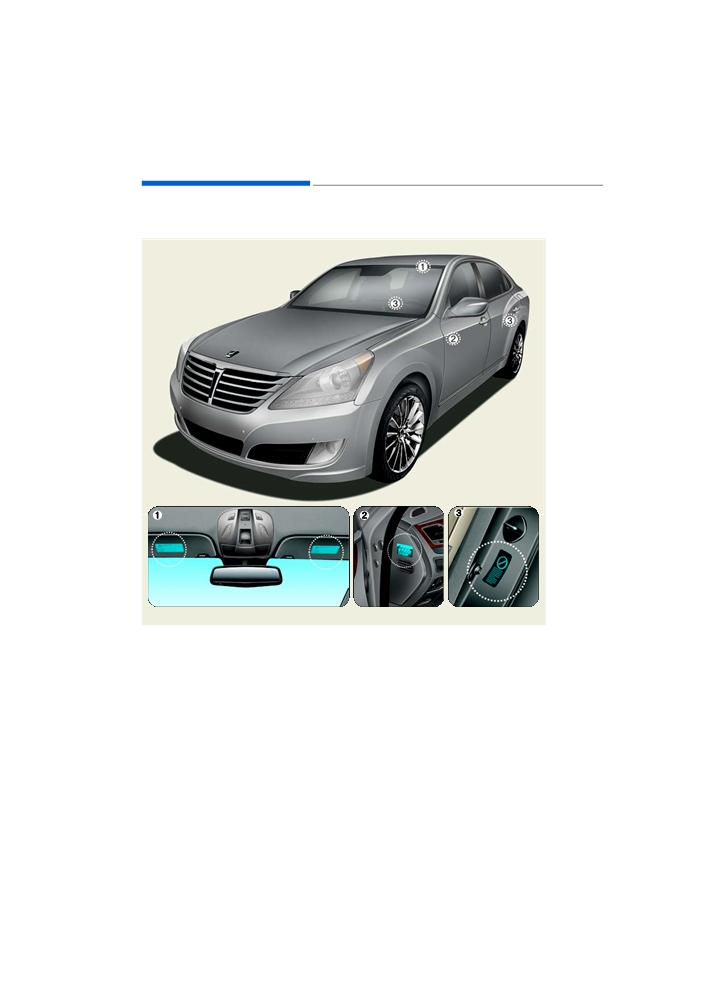

Air bag warning label
OVI035056N/OVI035057N/OVI035058N/OVI035059N
Air bag warning labels, some required by the U.S. National Highway Traffic
Safety Administration (NHTSA), are attached to alert the driver and passen-
gers of potential risks of the air bag system.
2-68
Convenient features of
your vehicle

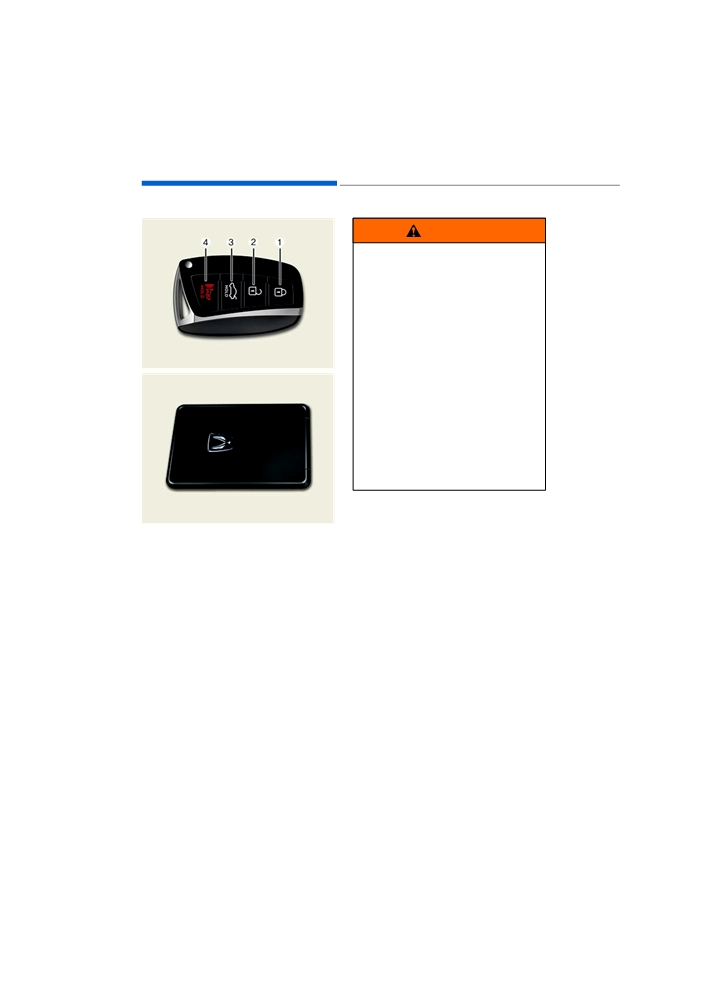

Smart key
3-6
Locking
3-7
Unlocking
3-7
Trunk Unlocking
3-8
Panic Button
3-8
Start-Up
3-8

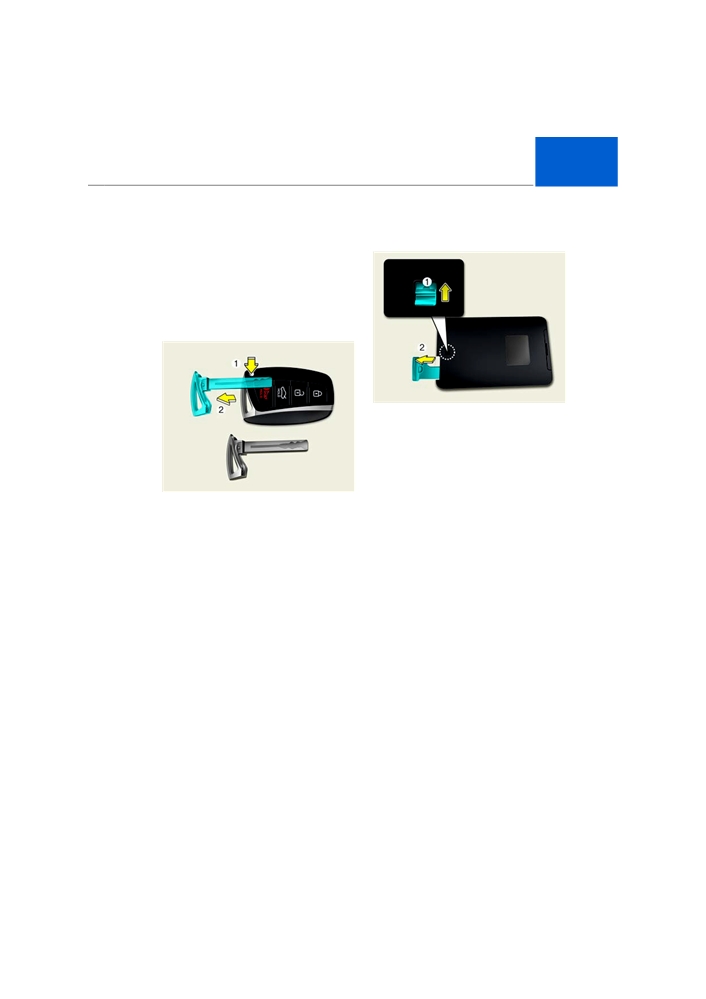

Mechanical Key
3-9
Loss of a Smart Key
3-10
Smart key precautions
3-10
Record your key number
3-10
Immobilizer system
3-10
Restrictions in Handling Keys
3-11
Battery Replacement
3-12
Theft-Alarm system
3-13
Door locks
3-14
Operating Door Locks From Outside the Vehicle ...3-14
Power Door Latch
3-15
Operating Door Locks From Inside the Vehicle
3-15
Auto Door Lock/Unlock Features
3-17
Child-Protector Rear Door Locks
3-17
Trunk
3-18
Non-Powered Trunk
3-18
Power Trunk
3-19
To Reset the Power Trunk
3-22
Trunk Lid Control Button
3-22
Emergency Trunk Safety Release
3-23
Smart Trunk
3-24
Windows
3-28
Power Windows
3-29
Convenient features of
your vehicle
Hood
3-33
Opening the Hood
3-33
Closing the Hood
3-33
Fuel filler lid
3-34
Opening the Fuel Filler Lid
3-34
Closing the Fuel Filler Lid
3-34
Sunroof
3-37
Sliding the Sunroof
3-37
Tilting the Sunroof
3-38
Resetting the Sunroof
3-39
Sunshade
3-39
Driver position memory system
3-40
Storing the Position Memory
3-40
Recalling the Position Memory
3-41
Easy Access Function
3-41
Steering wheel
3-42
Electronic Hydraulic Power Steering (EHPS)
3-42
Tilt Steering/Telescope Steering
3-42
Heated Steering Wheel
3-43
Horn
3-43
Mirrors
3-44
Interior rearview mirrors
3-44
Electric chromic mirror (ECM) with HomeLink®
system and compass
3-44, 3-51
Outside rearview mirror
3-58
Reverse Parking Aid Function
3-61
Instrument cluster
3-62
Instrument Cluster Control
3-64
LCD Display Control
3-64
Gauges
3-65
LCD display
3-69
LCD Modes
3-69
Trip Computer Mode
3-70
ASCC/LDWS Mode
3-70
A/V Mode
3-70
Turn By Turn (TBT) Mode
3-70
Information Mode
3-71
User Settings Mode
3-72
Warning Messages
3-78
Trip computer
3-86
Overview
3-86
Trip A/B
3-86
Fuel Economy
3-87
Warning and indicator lights
3-89
Warning lights
3-89
Indicator Lights
3-96
Head Up Display (HUD)
3-100
Description
3-100
Head Up Display ON/OFF
3-101
Head Up Display Information
3-101
Head Up Display Setting
3-101
Parking assist system
3-102
Operation of the parking assist system
3-103
Inoperable conditions of the Parking Assist
System
3-105
Self-diagnosis
3-106
Convenient features of
your vehicle
Rearview camera
3-107
Multi-view camera system
3-108
Lighting
3-109
Battery saver function
3-109
Headlamp escort function
3-109
Lighting control
3-110
High beam operation
3-111
Turn signals and lane change signals
3-112
Front fog light
3-113
Daytime running light
3-113
Headlight leveling device
3-113
AFLS (Adaptive Front Lighting System)
3-114
Wipers and washer
3-115
Windshield wipers
3-115
Windshield washer
3-117
Interior light
3-118
Front
3-118
Rear
3-119
Trunk room lamp
3-119
Door courtesy lamp
3-119
Glove box lamp
3-120
Vanity mirror lamp
3-120
Welcome system
3-121
Puddle lamp
3-121
Headlamp
3-121
Interior light
3-121
Defroster
3-122
Rear window defroster
3-122
Front wiper deicer
3-122
Automatic climate control system
3-123
Automatic heating and air conditioning
3-124
Manual air heating and cooling
3-126
System operation
3-135
Climate control air filter
3-136
Checking the amount of air conditioner
refrigerant and compressor lubricant
3-137
Windshield defrosting and defogging
3-138
Defogging logic
3-139
Storage compartments
3-141
Center console storage
3-141
Glove box
3-141
Sunglass holder
3-142
Rear console storage
3-142
Cool and warm box
3-143
Interior features
3-145
Ashtray
3-145
Cup holder
3-146
Sunvisor
3-147
Rear vanity mirror
3-147
Power outlet
3-148
Clock
3-149
Clothes hanger
3-150
Bag hanger
3-150
Floor mat anchor(s)
3-150
Luggage net (holder)
3-151
Rear curtain
3-152
AUX, USB and iPod® port
3-153
Convenient features of your vehicle
SMART KEY
■ Conventional smart key
WARNING
- Smart key
Leaving children unattended in
a vehicle with the Smart Key is
more dangerous, when the
Engine Start/Stop button is in
the ACC or ON position.
Children could imitate adults'
behavior and press the Engine
Start/Stop Button.
OVI045601N
■ Card type smart key
The Smart Key enables children
to operate power windows or
other controls, or even make
the vehicle move, which may
result in serious bodily injury or
even death. Never leave the
keys in your vehicle with unsu-
pervised children, when the
Engine is running.
OVI045001N
Your EQUUS is equipped with a
Smart Key to lock/unlock doors (and
a trunk) and even start the engine.
1. Door Lock
2. Door Unlock
3. Trunk Unlock
4. Panic
3-6
Convenient features of your vehicle
03

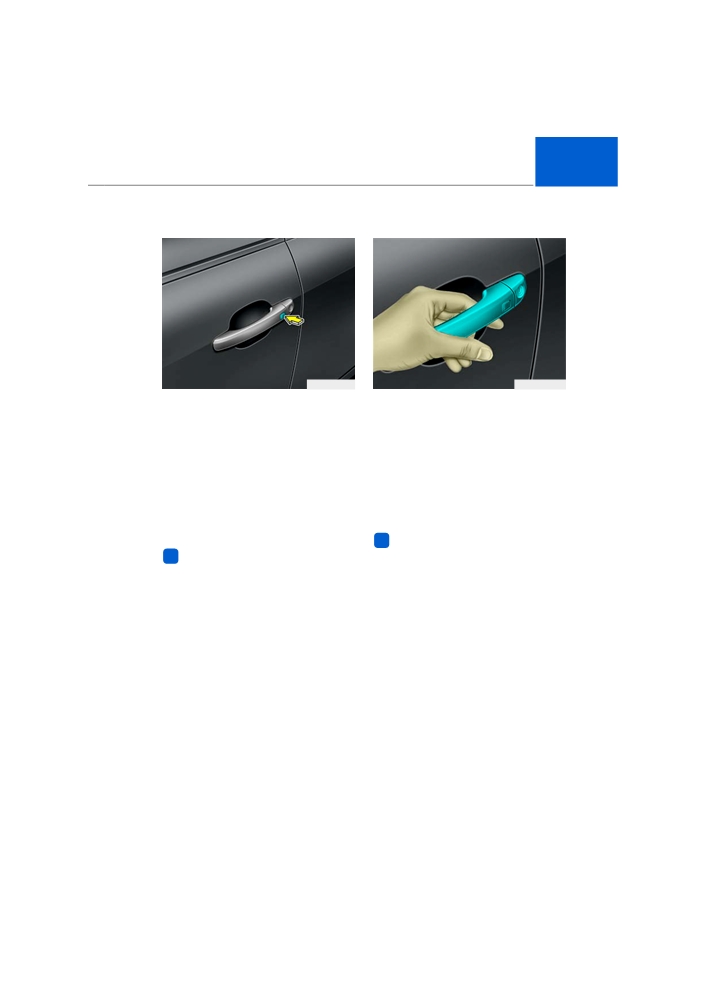

Locking
Unlocking
OVI045003N
OVI045008N
To lock :
To unlock:
1. Close all doors, engine hood and
1. Carry the Smart Key.
trunk.
2. Either grab the driver’s outside
2. Either press the door handle but-
door handle or press the door
ton or press the Door Lock button
unlock button on the Smart Key.
on the Smart Key.
3. The driver's door will unlock. The
3. The hazard warning lights will
hazard warning lights will flash
flash with a chime sound. Also the
two times. Also the outside
outside rearview mirror will fold.
rearview mirror will unfold.
4. Make sure the doors are locked.
i
Information
i
Information
• The door handle unlocking only
operates when the Smart Key is
The door handle button will only
operate when the Smart Key is within
within 28 in. (0.7 m) from the out-
side door handle. When it operates,
28 in. (0.7 m) from the outside door
handle.
other people can also open the
doors.
• When you grab the front passen-
Even though you press the outside
ger's outside door handle, while car-
door handle button, the doors will not
rying the Smart Key, all doors will
lock and the chime will sound for
unlock.
three seconds, when any of the fol-
• When you press the door unlock
lowings occurs:
button again within four seconds, all
• The Smart Key is in the vehicle.
the doors will unlock.
• The Engine Start/Stop button is in
• When a door is closed 30 seconds
the ACC position or ON.
after unlocking, the doors will be
• Any door except the trunk is open.
automatically locked.
(Continued)
3-7
Convenient features of your vehicle
(Continued)
Panic Button
• You can control the door unlock
Press the Panic button (4) for more
mode in the User Settings menu on
than one second. The horn sounds
the LCD display, such as unlocking
and hazard warning lights flash for
all the doors by pressing the unlock
about 30 seconds.
button one time.
To cancel the panic mode, press any
button on the Smart Key.
Trunk Unlocking
To unlock:
Start-Up
1. Carry the Smart Key.
You can start the engine without
2. Press either the trunk handle but-
inserting the key. For detailed infor-
ton or the Trunk Unlock button on
mation, refer to the Engine
the Smart Key for one second or
Start/Stop Button in the chapter 5.
over.
3. The hazard warning lights will
NOTICE
flash two times.
To prevent the Smart Key from
After opening and closing the trunk,
being damaged:
the trunk will automatically lock.
• Keep the Smart Key away from
water or any liquid and fire. If the
i
Information
inside of the Smart Key gets
damp (due to drinks or mois-
The power trunk (if equipped) can be
ture), or is heated, internal cir-
operated even when the engine is not
cuit may malfunction, excluding
running. However, the power trunk
the vehicle from the warranty.
consumes large amounts of vehicle
electric power. To prevent the battery
• Avoid dropping or throwing the
from being discharged, do not operate
Smart Key.
it consecutively (more than approxi-
• Do not keep the Smart Key at an
mately 10 times).
extreme temperature.
3-8
Convenient features of your vehicle
03
Mechanical Key
Mechanical Key inside the Card-
type Smart Key
When the Smart Key does not nor-
mally operate, you can use the
mechanical key to lock or unlock the
doors.
Mechanical Key inside the
Conventional-type Smart Key
OVI045005N
Push and hold the release button (1)
and remove the mechanical key. (2)
Insert the mechanical key into a key
hole on a door.
To reinsert the mechanical key into
OVI045602N
the Smart Key case, push and hold
the release button (1) and put the
Depress and hold the release button
key into the hole and push it until it
(1) and remove the mechanical key.
clicks.
(2) Insert the mechanical key into a
key hole on a door.
To reinsert the mechanical key into
the Smart Key case, put the key into
the hole and push it until it clicks.
3-9
Convenient features of your vehicle
Loss of a Smart Key

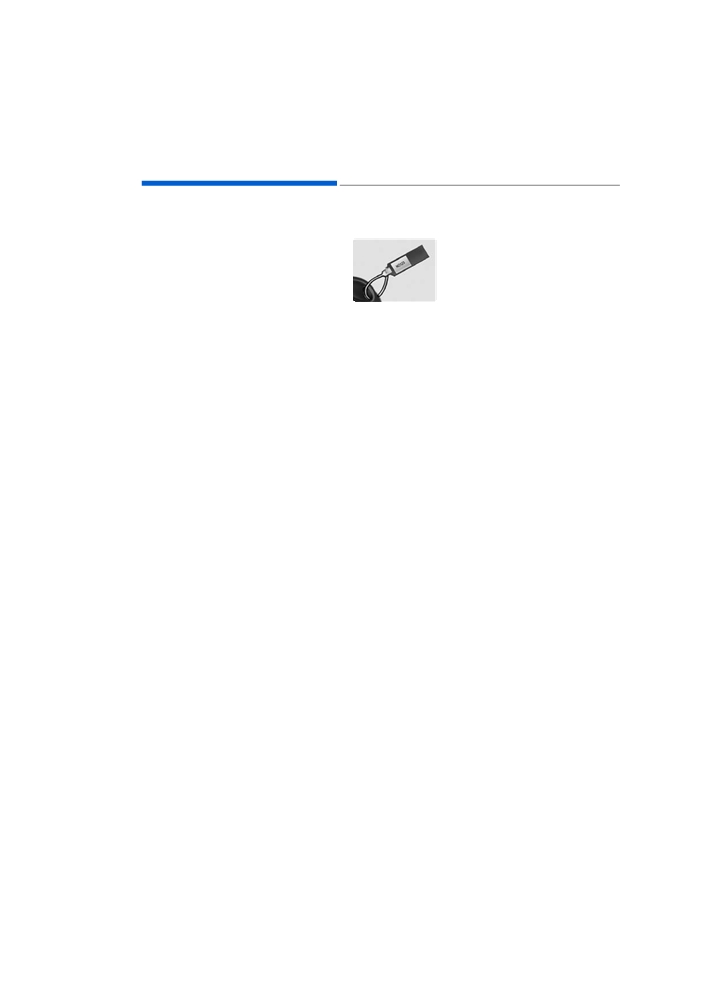

Record your key number
Three Smart Keys can be registered
at maximum to a single vehicle,
including a Card-type Smart Key.
When you happen to lose your Smart
Key, you should immediately take the
vehicle and the remaining keys to
your authorized EQUUS dealer, or
The key code number is stamped or
tow the vehicle, if necessary.
printed on the code tag attached to
the key set. When you lose your
keys, this number will enable an
Smart key precautions
authorized EQUUS dealer to easily
•
The Smart Key will not operate,
duplicate the keys. Remove the key
when any of the followings occurs:
code tag and store it in a safe place.
- The Smart Key is close to radio
Also, record the key code number
transmitters such as a radio sta-
and keep it in a safe and handy
tion or an airport which may
place, but not inside the vehicle.
interfere with normal operation
of the Smart Key.
Immobilizer system
- The Smart Key is near to a
The immobilizer system protects
mobile two-way radio system or
your vehicle from theft. When a key
a mobile phone.
of the wrong code (or other devices)
- Another vehicle’s Smart Key is
is used, the engine fuel system is
being operated close to your
disabled. After turning ON the
vehicle.
Engine Start/Stop button, the
•
When the Smart Key does not nor-
Immobilizer System briefly operates,
mally operate, use the mechanical
and then goes OFF. When the indica-
key to lock/unlock a door and con-
tor flashes, the system does not rec-
tact an authorized EQUUS dealer.
ognize the Smart Key code.
•
When the Smart Key is in close
Press the Engine Start/Stop button
proximity to a mobile phone, the
to turn OFF, and then re-press the
signal may be blocked by the nor-
Engine Start/Stop button to turn ON.
mal signals of your mobile phone.
The system may not recognize your
This is especially important when
Smart Key code, when another
the phone is active, such as mak-
immobilizer key or other metal object
ing/receiving calls, text messag-
(i.e. key chain) is near the Smart Key.
ing, or sending/receiving emails.
The engine may not start, because
Avoid placing the Smart Key and
the transponder signal is interrupted
your mobile phone in the same
by a metal.
pants or the jacket pocket. Always
When the system does not repeated-
try to maintain an adequate dis-
ly recognize the Smart Key code,
tance between the two devices.
contact your EQUUS dealer.
3-10
