GENERAL

SS -23

DETAILED TEST K : VIBRATION

CONDITIONS

DETAILS/RESULTS/ACTIONS

K1 ROAD TEST

Accelerate the vehicle to the speed at which the customer indicated the vibration occured.

Is the vibration present ?

YES

Go to K2.

NO

The vehicle is OK. Go to TROUBLESHOOTING.

K2 INSPECT THE TIRES

1.

Raise and support the vehicle with a frame contact hoist.

2.

Inspect the tires for extreme wear or damage, cupping, or flat spots.

Are the tires OK ?

YES

Go to K3.

NO

Check the suspension components for misalignment, abnormal wear, or damage
that may have contributed to the tire wear.
Correct the suspension concerns and Install new tires.

K3 INSPECT THE WHEEL BEARINGS

Spin the tires by hand to check for wheel bearing rougness.

Is the front wheel bearing OK ?

YES

Go to K4.

NO

Install new front wheel bearings as necessary.
See Ds group - front axle.

K4 TIRE/WHEEL BALANCE

Check the tire/wheel balance.

Are the tires balanced ?

YES

Go to K5.

NO

Balance the tires and wheels as necessary.

SS -24

SUSPENSION SYSTEM

DETAILED TEST K : VIBRATION

K5 MEASURE THE RUNOUTS

For each wheel position measure, locate and mark the following items.
- High point of the tire/wheel assembly total radial runout
- High point of the wheel radial runout
- High point of the wheel lateral runout

Are the runouts as specified ?

YES

Go to K7.

NO

Go to K6.

K6 SUBSTITUTE THE WHEELS AND TIRE

1.

Substitute a known good set of wheels and tires.

2.

Perform a road test.

3.

If the vehicle still exhibits a shake or vibration, note the vehicle speed
and/or engine rpm which it occurs.

Is the vibration felt ?

YES

Engine/transmission imbalance.
See the specification of TR group, EM group, FL group and EC group.

NO

Install the original tire/wheel assemblies one by one, Road testing at each step until the
damaged tire(s)/wheel(s) as necessary. Test the system for normal operation.

GENERAL

SS -25

Wheel /tire noise, vibration and harshness concerns are
directly related to vehicle speed and are not generally
affected by acceleration, coasting or decelerating. Also,
out-of-balance wheel and tires can vibrate at more than
one speed. A vibration that is affected by the engine rpm,
or is eliminated by placing the transmission in Neutral is
not related to the tire and wheel. As a general rule, tire
and wheel vibrations felt in the steering wheel are related
to the front tire and wheel assemblies. Vibrations felt in
the seat or floor are related to the rear tire and wheel

assemblies. This can initially isolate a concern to the front
or rear.
Careful attention must be paid to the tire and wheels.
There are several symptoms that can be caused by
damaged or worn tire and wheels.

Perform a careful

visual inspection of the tires and wheel assemblies. Spin
the tires slowly and watch for signs of lateral or radial
runout. Refer to the tire wear chart to determine the tire
wear conditions and actions

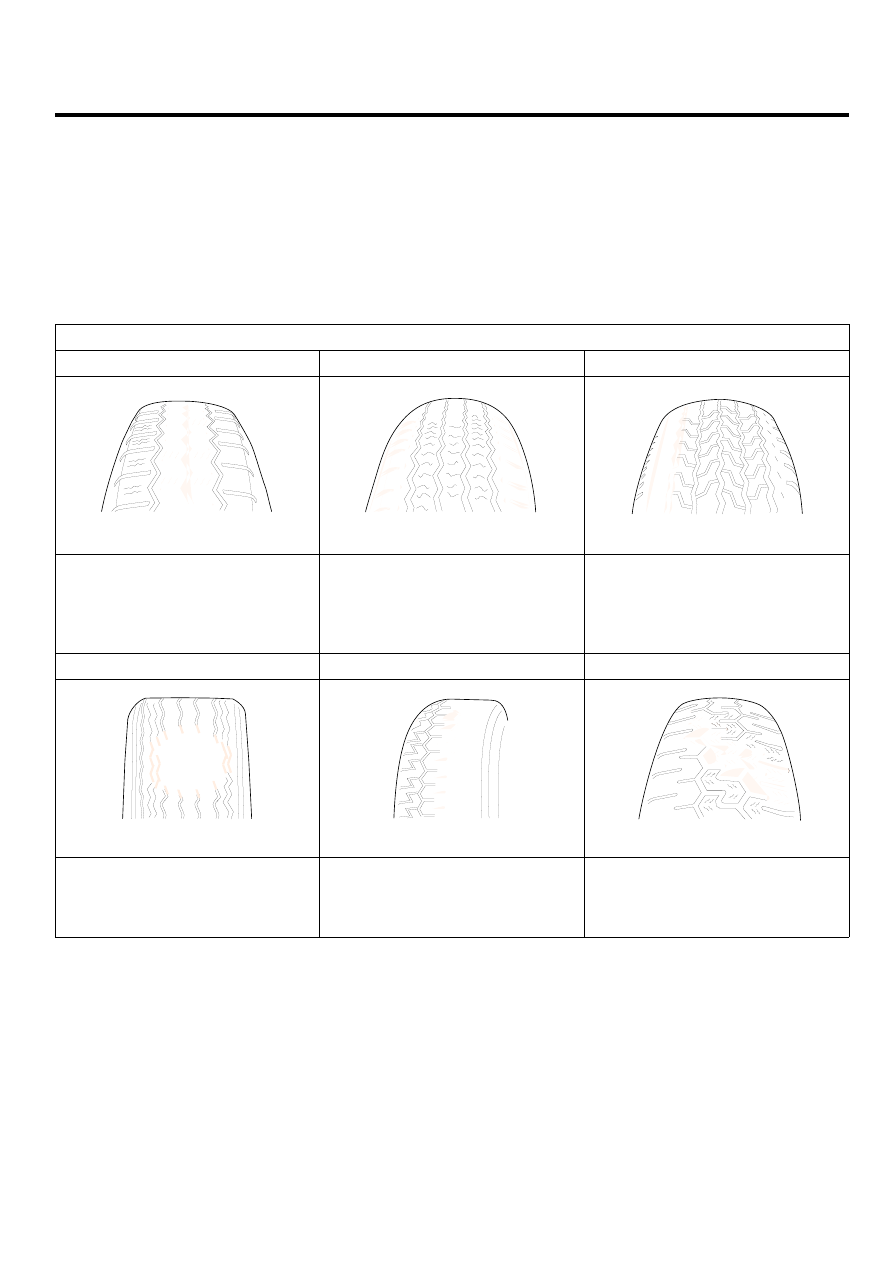

WHEEL AND TIRE DIAGNOSIS

Rapid wear at the center

Rapid wear at both shoulders

Wear at one shoulder

AHIE002A

AHIE002B

AHIE002C

• Center-tread down to fabric due

to excessive over inflated tires

• Lack of rotation
• Excessive toe on drive wheels
• Heavy acceleration on drive

• Under-inflated tires
• Worn suspension components
• Excessive cornering speeds
• Lack of rotation

• Toe adjustment out of

specification

• Camber out of specification
• Damaged strut
• Damaged lower arm

Partial wear

Feathered edge

Wear pattern

AHIE002D

AHIE002F

AHIE002G

• Caused by irregular burrs

on brake drums

• Toe adjustment out of

specification

• Damaged or worn tie rods
• Damaged knuckle

• Excessive toe on non-drive

wheels

• Lack of rotation

SS -26

SUSPENSION SYSTEM

FRONT SUSPENSION
SYSTEM

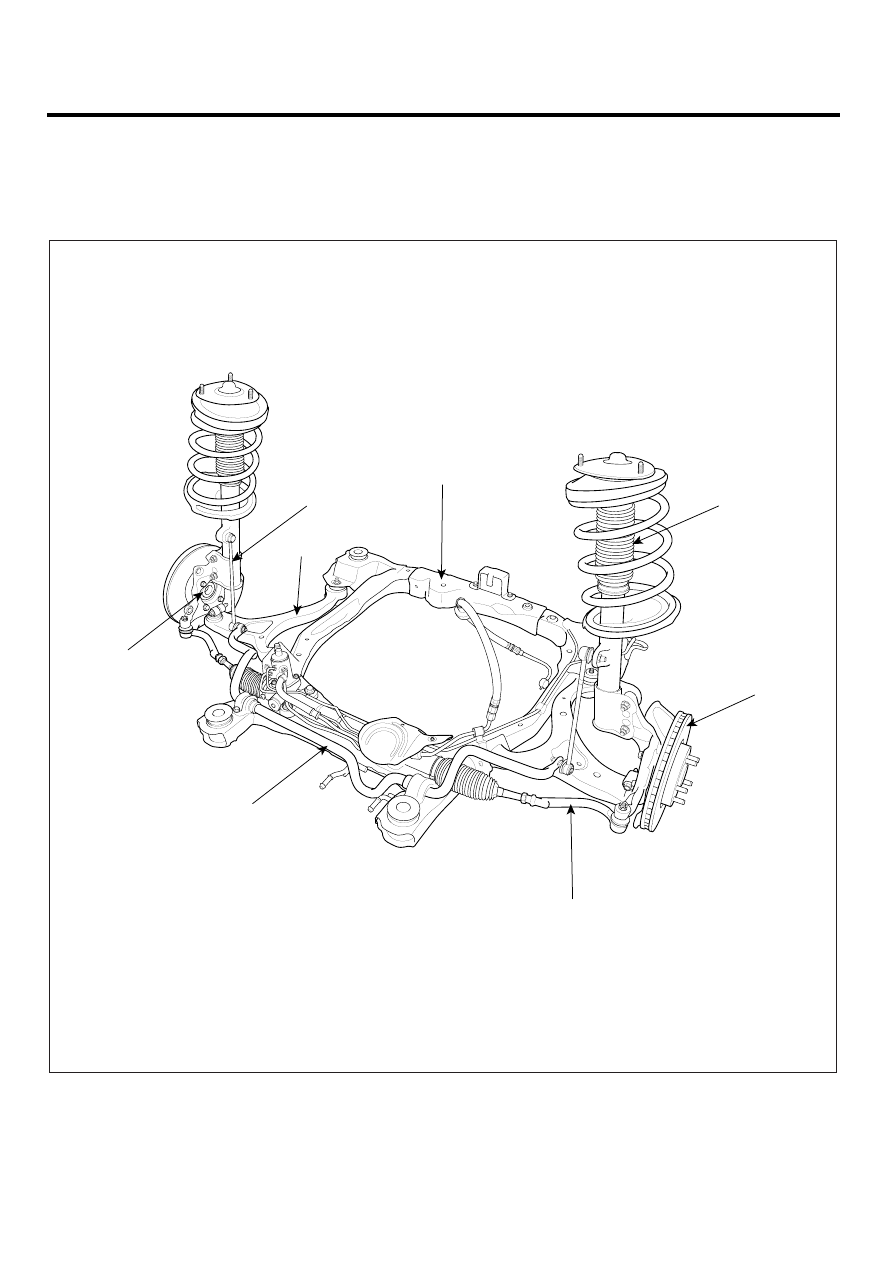

COMPONENTS

EAC2BB36

1. Front strut assembly
2. Front disc
3. Tie rod end assembly
4. Front subframe

5. Front lower arm
6. Front stabilizer bar assembly
7. Front stabilizer link assembly
8. Front knuckle assembly

7

8

5

6

4

1

2

3

SCMSS6500L
