Manual Transaxle

(M5HF2)

GENERAL

MANUAL TRANSAXLE SYSTEM

MANUAL TRANSAXLE

MTA -2

MANUAL TRANSAXLE (M5HF2)

GENERAL

SPECIFICATIONS

EB4D4ABB

Model

M5HF2

Related engine

D2.2

Torque [Nm (kgf.m, lb-ft)

350 (35, 253)

Full length [mm(in)]

392.5 (15.45)

Weight [N(kgf, lbf)]

673.7 (68.7, 151)

Oil capacity

1.85ℓ

Normal

No Need

Private use

Severe(※)

100,000 Km

Oil replacement

Business use

100,000 Km

1st

3.875

2nd

2.130

3rd

1.205

4th

0.848

5th

0.827

Reverse

4.413

Gear ratio

Reduction gear ratio

4.500/3.706

Lubricant

SAE 75W/85, API GL - 4

※Severe(marked ’※’) is definde as:

1.

Driving on rough road(bumpy road, gravel road,
snowy road, unpaved road etc.).

2.

Driving on mountain road, ascent/descent.

3.

Repetition of short distance driving.

4.

More than 50％ operation in heavy city traffic during
hot weather above 32 C(89.6 F).

5.

Police car, Taxi, Commercial type operation of trailer
towing, etc.

TIGHTENING TORQUE

Item

Nm

kgf.m

lb-ft

Oil drain plug

40~60

4.0~6.0

28.9~43.4

Shift control cable bracket

15~22

1.5~2.2

10.9~16

Oil filler plug

30~35

3.0~3.5

21.7~25.3

Back up lamp switch

30~35

3.0~3.5

21.7~25.3

Transaxle mounting bracket assembly

60~80

6.0~8.0

43.6~58.2

Transaxle and engine mounting bolt

80~100

8.0~10.0

57.9~72.3

’N’ Position switch

30~35

3.0~3.5

21.7~25.3

GENERAL

MTA -3

SERVICE STANDARD

Item

Specification [mm(in)]

Differential end play

0.05T-0.10T

Input shaft end play

0.01L-0.12L

Output shaft end play

0-0.05T

1st gear end play

0.11L-0.22L

2nd gear end play

0.11L-0.22L

3rd gear end play

0.11L-0.22L

4th gear end play

0.11L-0.22L

5th gear end play

0.11L-0.22L

Reverse gear end play

0.11L-0.22L

LUBRICANTS

ECE1FD06

Item

Lubricant

Quantity

Transaxle input shaft splin

CASMOLY L9508

0.2 gr.

Transaxle case gasket

LOCTITE 587

As required

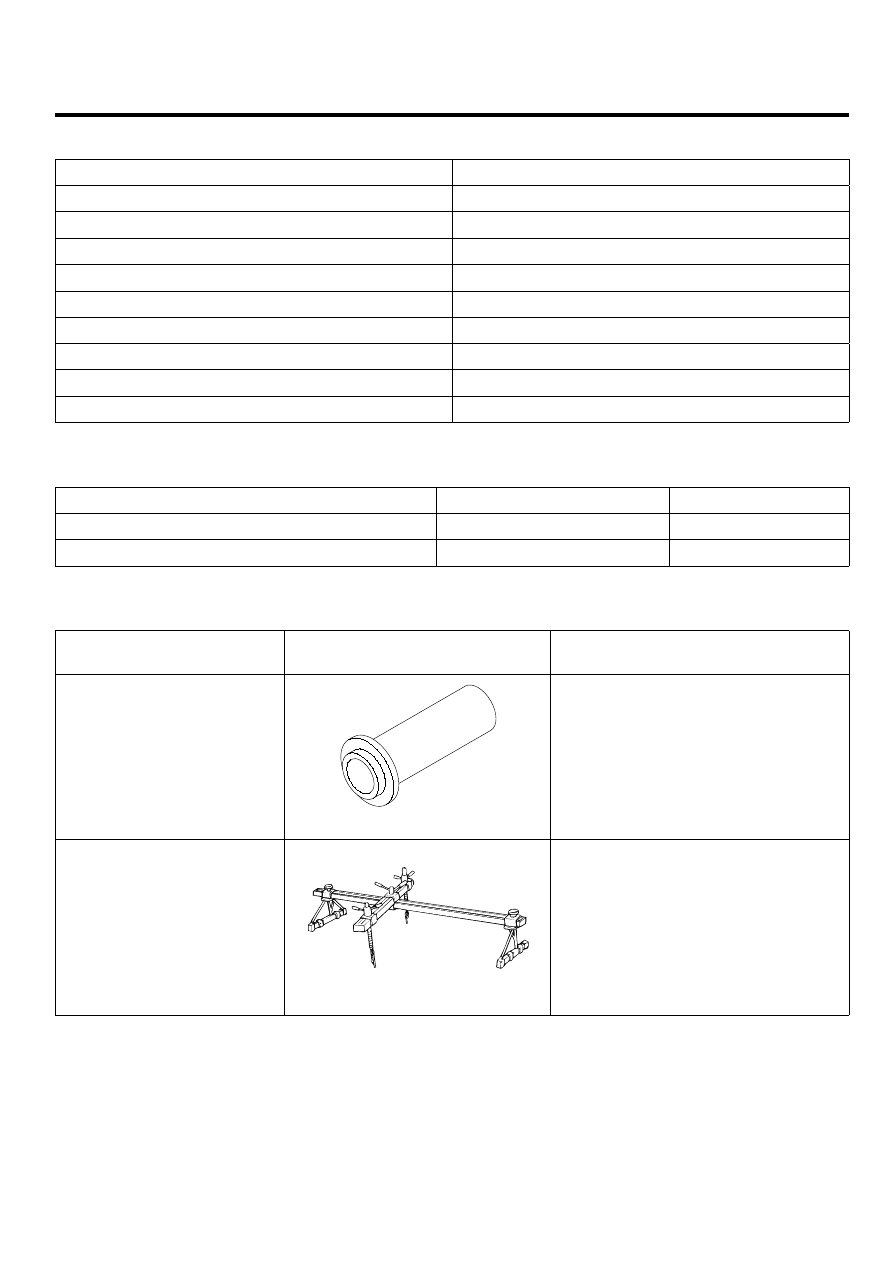

SPECIAL TOOLS

E43B86CA

Item

(Number＆Name)

Illustration

Use

09452-21200
Oil seal installer

AMJF002A

Oil seal installation

09200-38001
Engine supporting fisture

AMJF002B

Removal and installation of transaxle

MTA -4

MANUAL TRANSAXLE (M5HF2)

MANUAL TRANSAXLE
SYSTEM

DESCRIPTION

E0C8C4CC

CM Diesel (D2.2) model has the manual transaxle
(M5HF2).

IMPROVEMENT

ITEM

Improvement

Better shift feeling

1.

New shift pattern

2.

Multi cone synchronizer system

3.

Module of control system

4.

New type of poppet ball

Better duability

1.

Optimizing strength of shift control system

2.

Optimizing strength of housing and cases (for NVH)

3.

Carbonized material for synchronized rings

Cost saving ＆ Convenience

1.

Permanent oil (low viscosity)

This new shift pattern has the same shift direction for both
1st and Reverse which is convenient when on traffic jam
or parking (1↔R).
You should pull the lower part of the shift lever to shift in
reverse.
