MT -80

MANUAL TRANSAXLE (M5GF2)

14. Using a flat head screw driver, remove the transfer

from the transaxle by moving the driver to left and right
directions.

DISASSEMBLY

E1E594D1

1.

Drain the transfer oil through drain plug hole.

2.

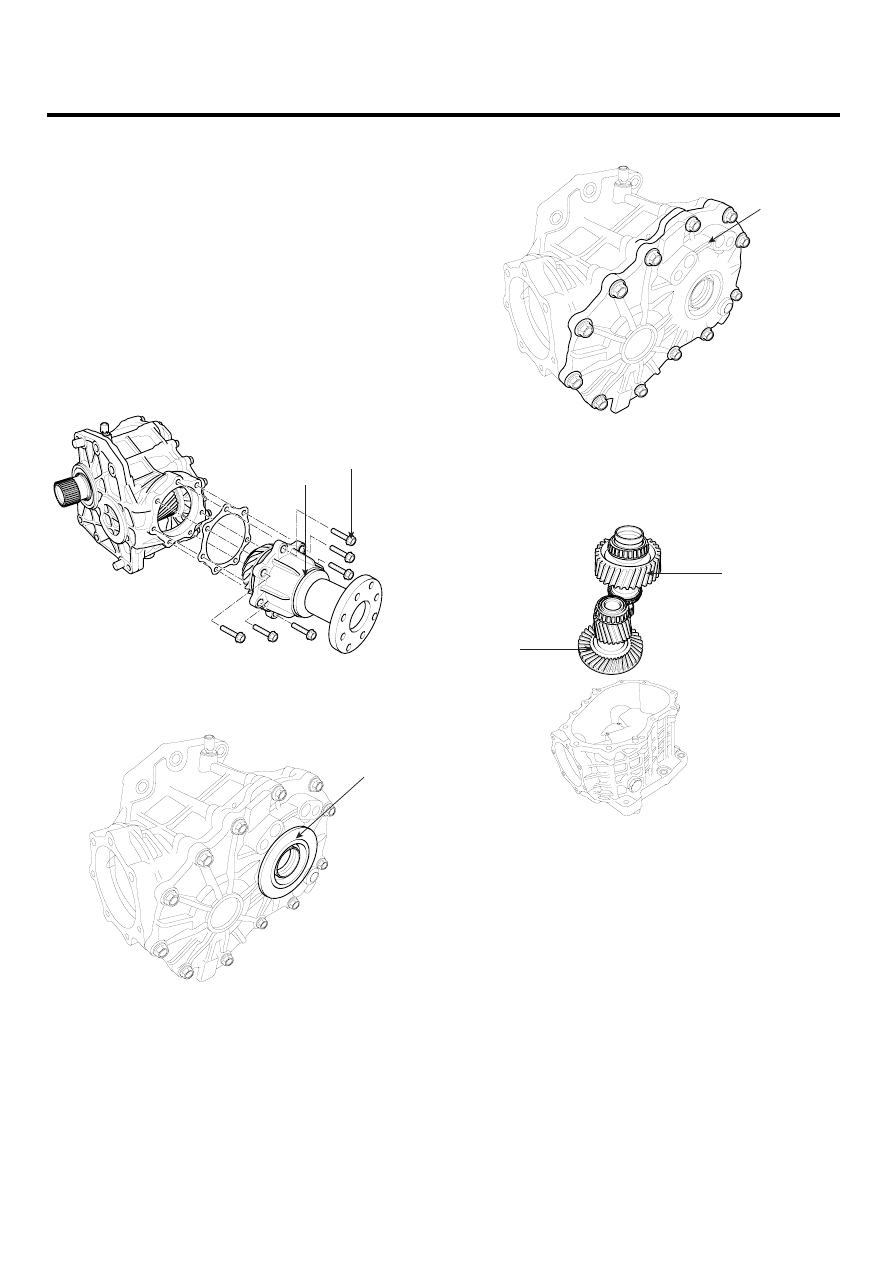

Remove the pinion assembly mounting bolts (7EA)
and then remove the pinion assembly(A).

NOTE

This assembly can be removed with a propella shaft
assembly in ’REMOVAL’ step.

A

B

SCMMT6070D

3.

Remove the dust cover(A).

A

SCMMT6071D

4.

Remove the transfer cover(A).

A

SCMMT6077D

5.

Remove the transfer drive gear assembly(A) and the
hypoid gear shaft assembly(B) from the trasfer hous-
ing.

A

B

SCMMT6072D

6.

Remove the oil seal(A)(47452-39000, transfer drive
gear left hand side).

NOTE

When reassembling the transfer, be sure to always
replace the oil seal(47452-39000) with new part.

TRANSFER CASE ASSEMBLY

MT -81

A

SCMMT6073D

7.

Remove the oil seal(47352-39300) inside the transfer
cover.

8.

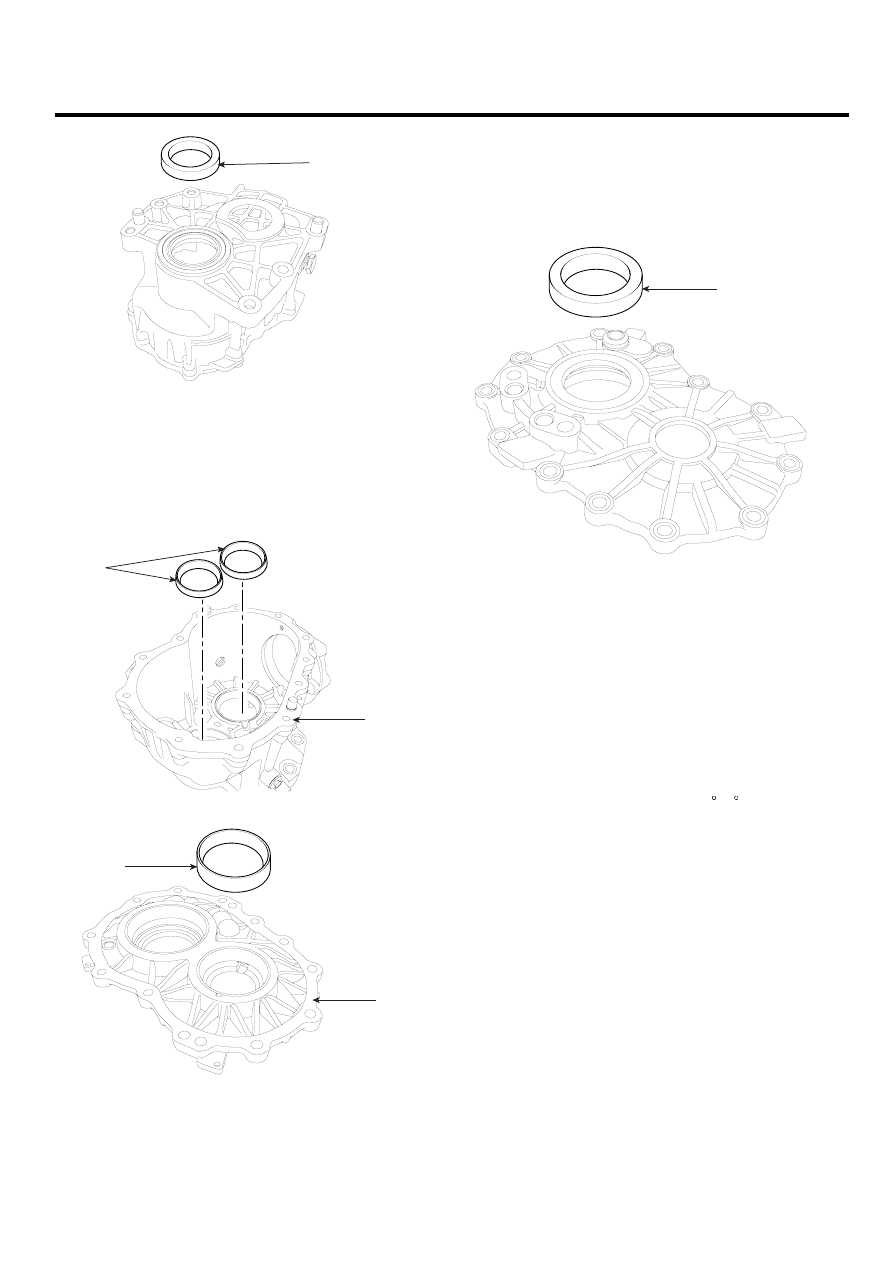

Using a sliding hammer, remove the taper roller
bearing outer races(C) from the transfer cover(A) and
housing(B).

B

C

SCMMT6074D

A

C

SCMMT6075D

9.

Remove the oil seal(A) from the transfer cover.

NOTE

When reassembling the transfer, be sure to always
replace the oil seal(47350-39300) with new part.

A

SCMMT6076D

REASSEMBLY

E6E29444

NOTE

1.

Clean all parts except the taper roller bearings.
Be careful about the direction of seals.

2.

Oil bearings with hypoid gear oil API GL5.

3.

Smear involute splines all covering with high
pressure grease "Klueber microlube GNY202".

4.

Measuring temperature: 20 ±5 C.

5.

O-ring has to be dipped into hypoid gear oil API
GL5. Allow excess oil to drain.

6.

Contact surface of the transfer housing to be
coated with "SEALANT 732" or equivalent
(silicon type sealing agent) prior to mounting.
Coating thickness: 0.1mm MIN. Prior to coating,
mating surfaces must be clean and free from oil
and grease.

7.

Transfer oil specification : Hypoid gear oil "API
GL5, SAE 75W/90 SHELL SPIRAX EQUIVA-
LENT". Filled up to lower filler plug thread level(
Approx. 0.8L)

8.

The hypoid gear set must be managed as a
pair. Whenever installing or replacing a hypoid
gear shaft assembly(47339-39300) or a pinion
shaft(47311-39300).

Make sure to install or

replace as a pair.

9.

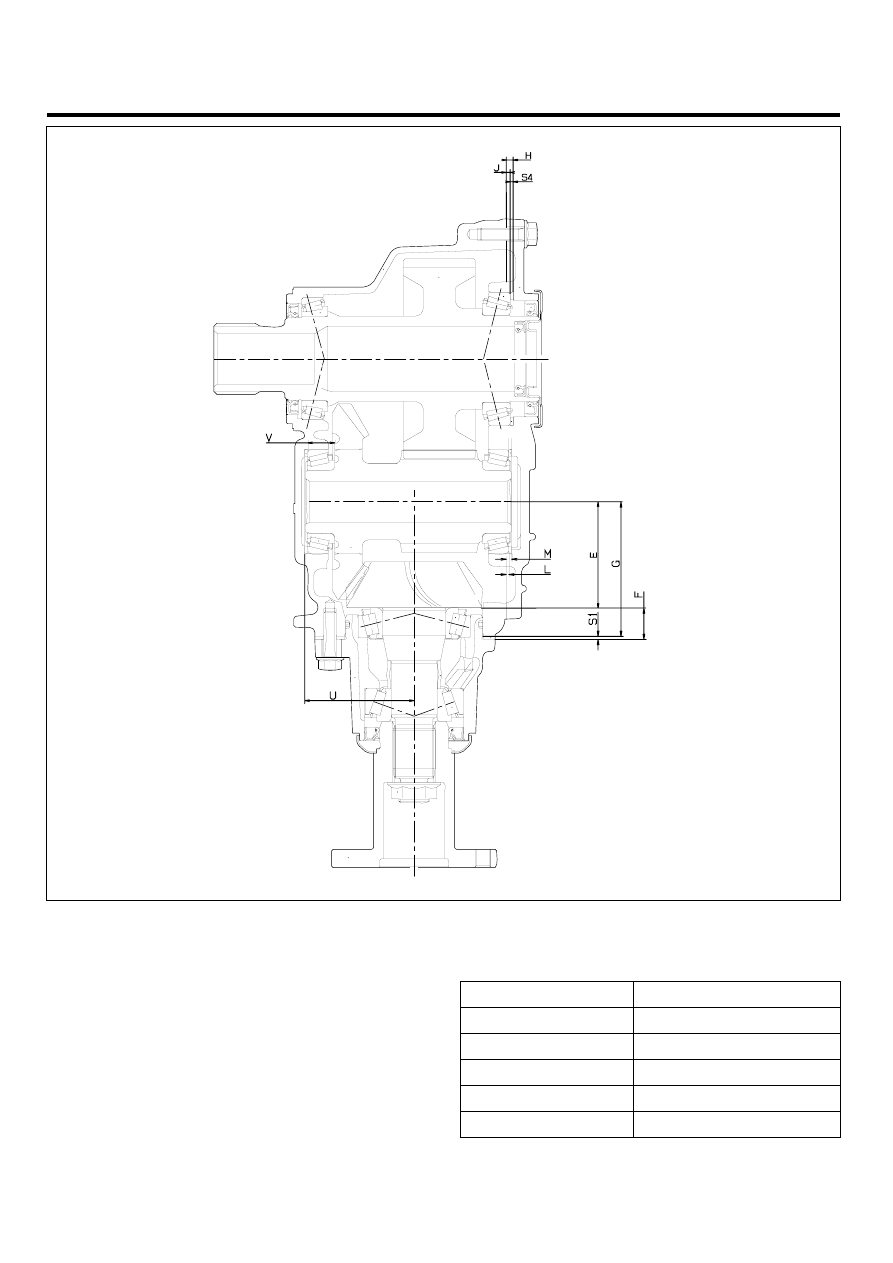

In reassembling, refer to the two figures below.

MT -82

MANUAL TRANSAXLE (M5GF2)

SCMMT6042D

1.

Install the transfer drive gear with the taper roller
bearings(47366-39000 and 47465-39000) into trans-
fer housing.

2.

Applying the preload(100 to 200N) to bearings, mea-
sure the dimension J.

3.

Measure the dimension H on transfer cover(47314-
39200).

4.

Select the spacer thickness from the chart below.
Thickness S4= H-J+K. (K: Bearing preload = 0.07 to
0.11mm. )

Corresponding preload torque(measured without
seals) : 120 to 180Ncm.

PART NUMBER

SPACER THICKNESS (mm)

47383-39152

1.520-1.539

47383-39154

1.540-1.559

47383-39156

1.560-1.579

47383-39158

1.580-1.599

47383-39160

1.600-1.619

TRANSFER CASE ASSEMBLY

MT -83

PART NUMBER

SPACER THICKNESS (mm)

47383-39162

1.620-1.639

47383-39164

1.640-1.659

47383-39166

1.660-1.679

47383-39168

1.680-1.699

47383-39170

1.700-1.719

47383-39172

1.720-1.739

47383-39174

1.740-1.759

47383-39176

1.760-1.779

47383-39178

1.780-1.779

47383-39180

1.800-1.819

47383-39182

1.820-1.839

47383-39185

1.85-1.88

47383-39189

1.89-1.92

47383-39193

1.93-1.96

47383-39197

1.97-2.00

47383-39201

2.01-2.04

47383-39205

2.05-2.08

47383-39209

2.09-2.12

47383-39213

2.13-2.16

47383-39217

2.17-2.20

47383-39221

2.21-2.24

47383-39225

2.25-2.28

47383-39229

2.29-2.32

47383-39233

2.33-2.36

5.

Reassemble the selected spacer above.

6.

Measure the dimension U and V.
U. Finished dimension of transfer housing.
V
. Distance from back of the hypoid gear to
bearing measured under 100 to 200N preload.

7.

Select the spacer thickness from the chart below.
Thickness S2=U-(V + mounting distance 52.0 mm).

PART NUMBER

SPACER

THICKNESS(mm)

47384-39130

1.300-1.319

47384-39132

1.320-1.339

47384-39134

1.340-1.359

47384-39136

1.360-1.379

47384-39138

1.380-1.399

47384-39140

1.400-1.419

PART NUMBER

SPACER

THICKNESS(mm)

47384-39142

1.420-1.439

47384-39144

1.440-1.459

47384-39146

1.460-1.479

47384-39148

1.480-1.499

47384-39150

1.500-1.519

47384-39152

1.520-1.539

47384-39154

1.540-1.559

47384-39156

1.560-1.579

47384-39158

1.580-1.599

47384-39160

1.600-1.619

47384-39162

1.620-1.639

47384-39164

1.640-1.659

47384-39166

1.660-1.679

47384-39168

1.680-1.699

47384-39170

1.700-1.719

47384-39172

1.720-1.739

47384-39174

1.740-1.759

47384-39176

1.760-1.779

47384-39178

1.780-1.799

47384-39180

1.800-1.819

47384-39182

1.820-1.839

47384-39184

1.840-1.859

47384-39186

1.860-1.879

47384-39188

1.880-1.899

47384-39190

1.900-1.919

47384-39192

1.920-1.939

47384-39194

1.940-1.959

47384-39196

1.960-1.979

47384-39198

1.980-1.999

47384-39200

2.000-2.019

47384-39202

2.020-2.039

47384-39204

2.040-2.059

47384-39206

2.060-2.079

47384-39208

2.080-2.099

47384-39210

2.100-2.119

47384-39212

2.120-2.139

47384-39214

2.140-2.159

47384-39216

2.160-2.179
