MT -20

MANUAL TRANSAXLE (M5GF2)

8.

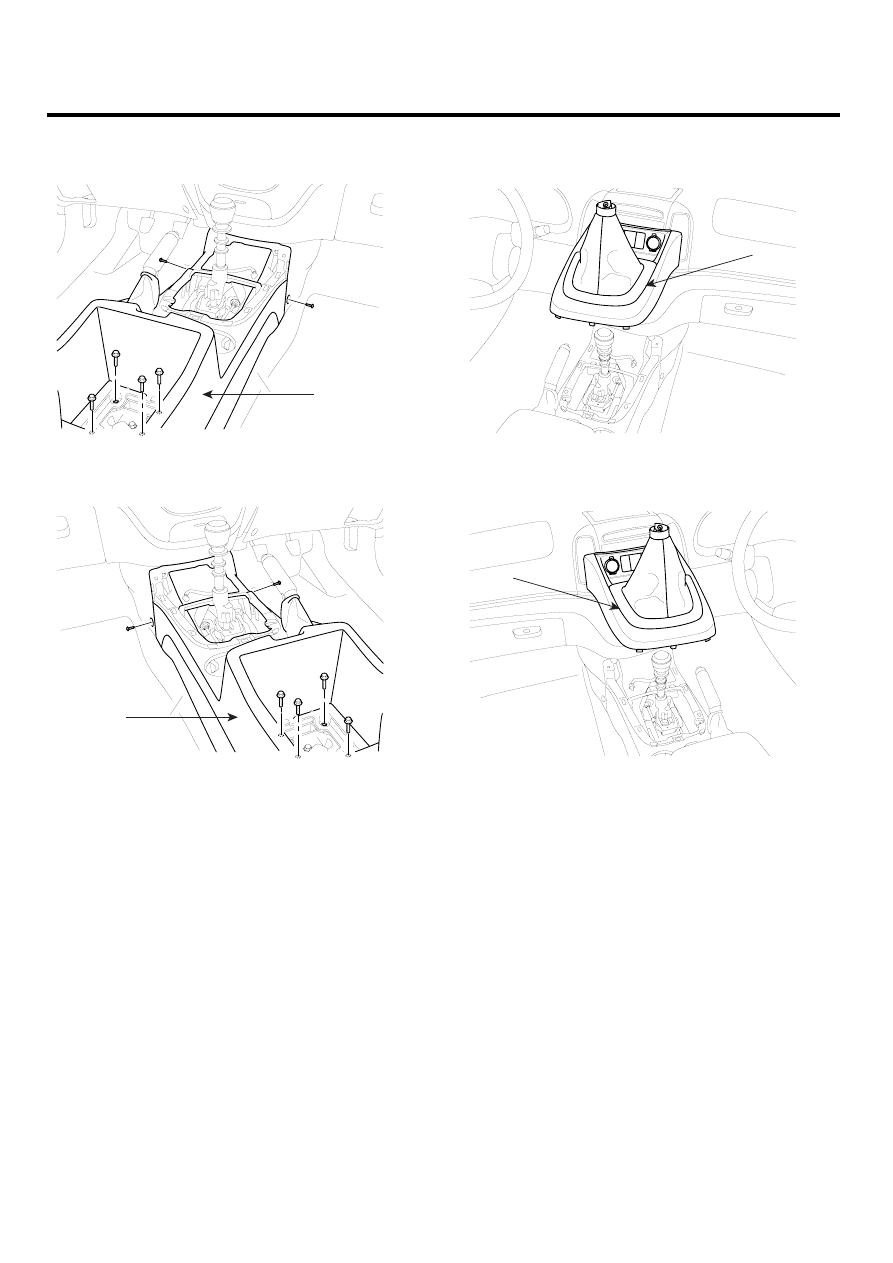

Install the center console(A).
[LHD]

A

SCMMT6029D

[RHD]

A

SCMMT6029R

9.

Install the upper cover(A) to the center conole.
[LHD]

A

SCMMT6028D

[RHD]

A

SCMMT6028R

TRANSFER CASE ASSEMBLY

MT -21

TRANSFER CASE
ASSEMBLY

POWER FLOW MECHANISM

E2A1A036

• Normal driving situation: 2WD base driving
• 4WD driving in driving situations (rapid activation, cor-

nering etc.)

1.

Input the information from each sensor in vehicle

-

Input torque (Throttle position sensor)

-

Cornering situation (Steering angle sensor)

-

Vehicle speed and different wheel speed front &
rear (Wheel speed sensor)

-

Braking situation (Brake signal and ABS signal)

2.

Distributed the required driving force after 4WD ECU
operates.

3.

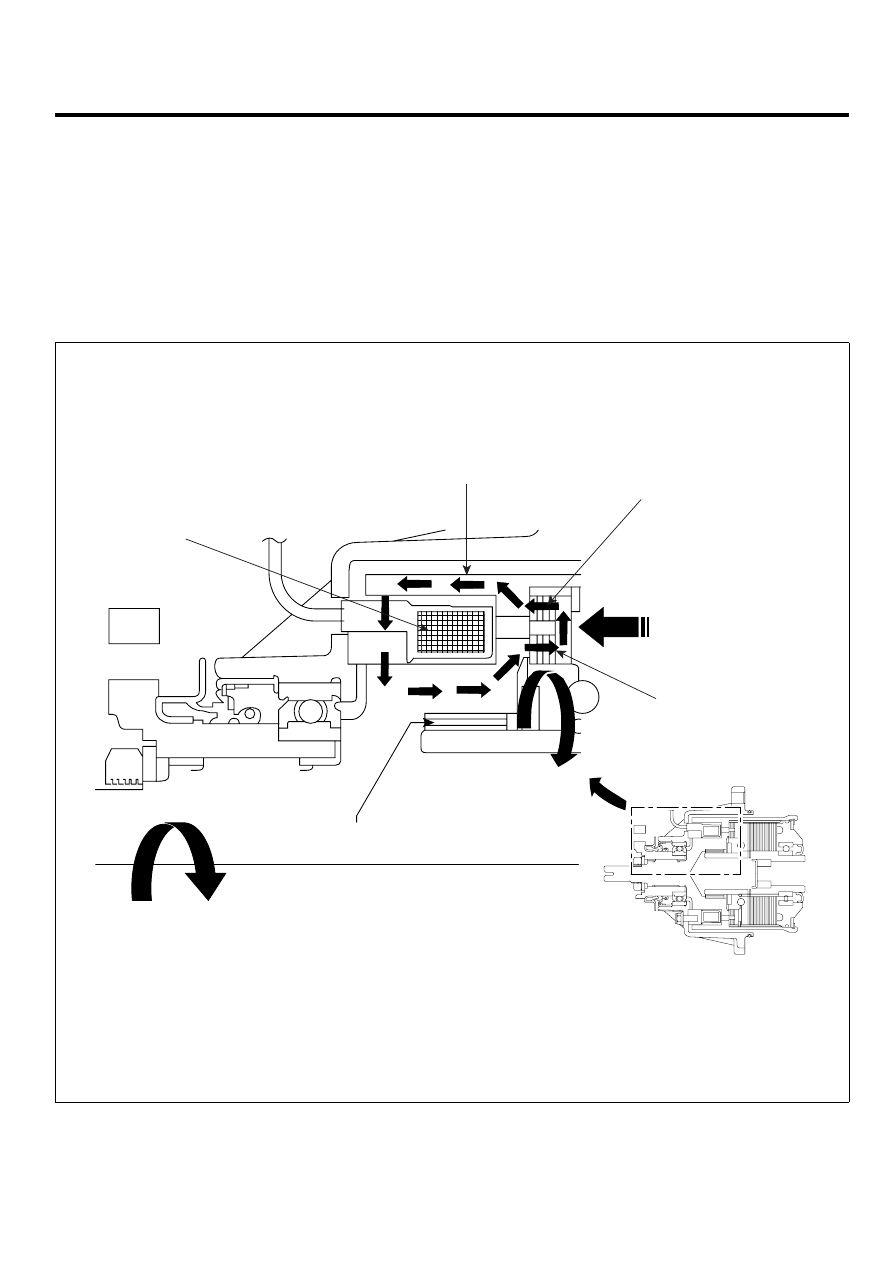

EMC (Electric Magnetic Clutch) operates the primary
clutch.

Input torque
from propellar shaft

Magnetic field

Armature

Compress primary

Clutch plates

Clutch housing

Coil

EKQE003C

MT -22

MANUAL TRANSAXLE (M5GF2)

4.

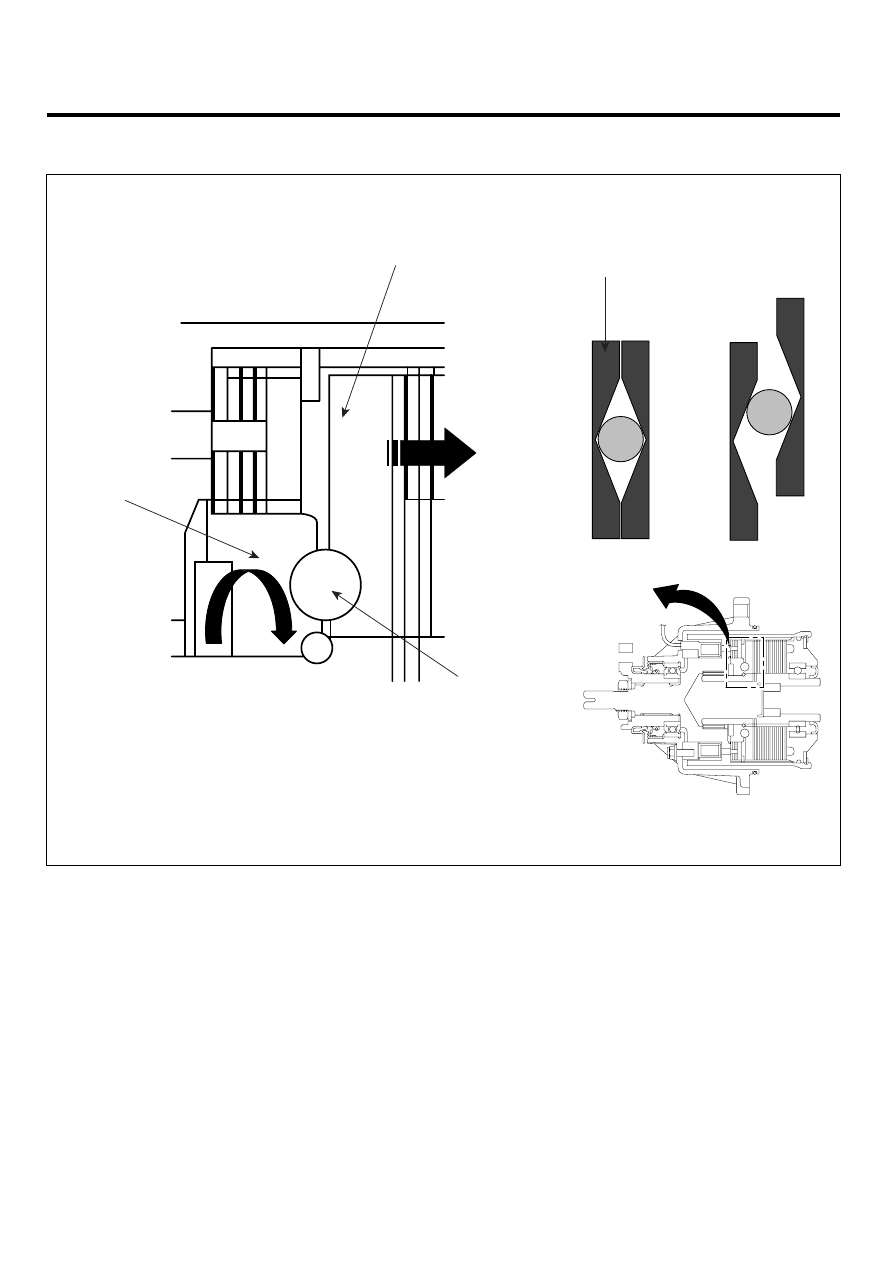

Control the cam’s opening gap by operation of pri-
mary clutch.

Apply cam

Base cam

Base cam

Apply force

Ball

Primary torque
in base cam

Not applying

Ball cam applying

EKQE004C

TRANSFER CASE ASSEMBLY

MT -23

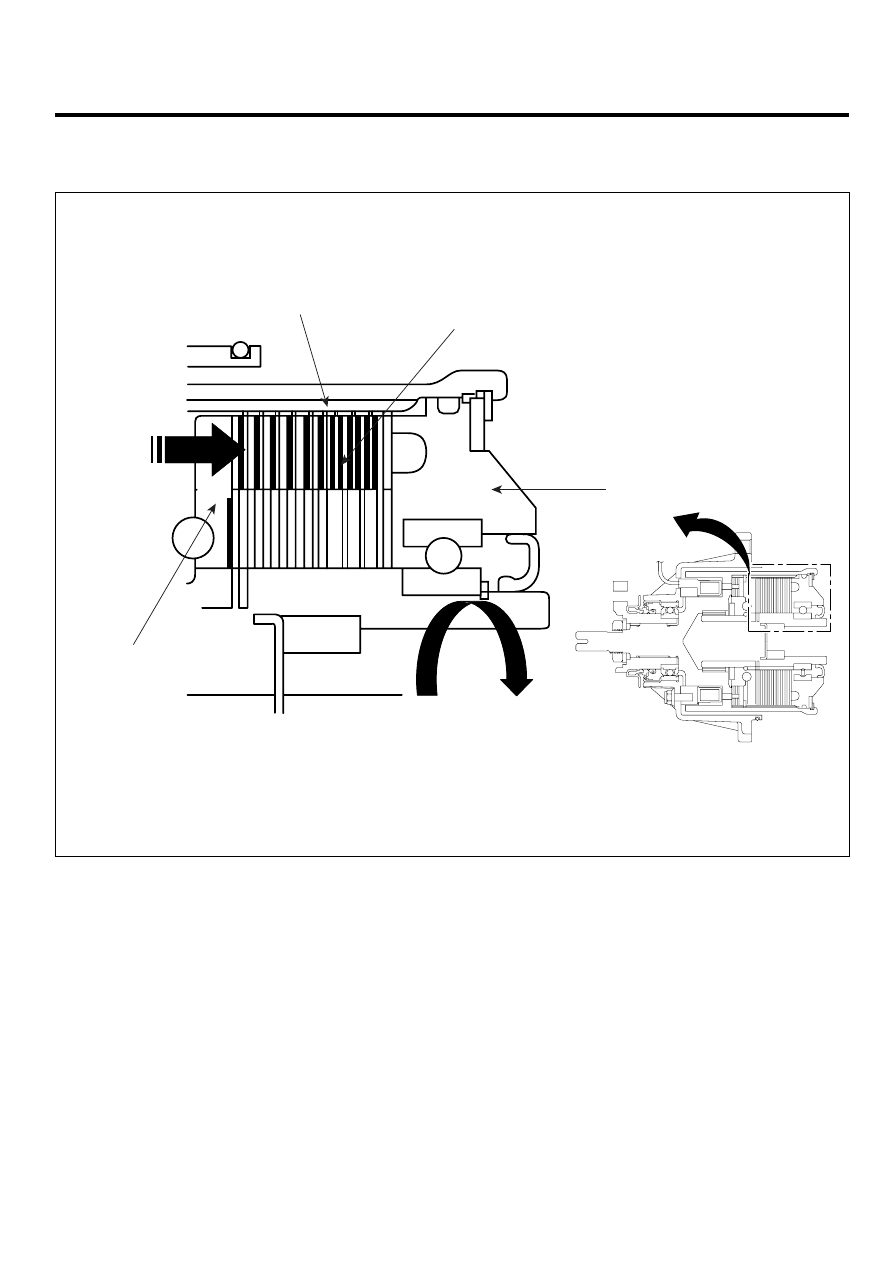

5.

Control the slip of inner & outer plate.
Control variably the driving force distribution to opti-
mize front & rear driving force.

Clutch housing

Compress
secondary

Apply cam

Output torque to rear axle

Clutch plates

Back plate

EKQE005C
