HEATING, VENTILATION AND AIR CONDITIONING

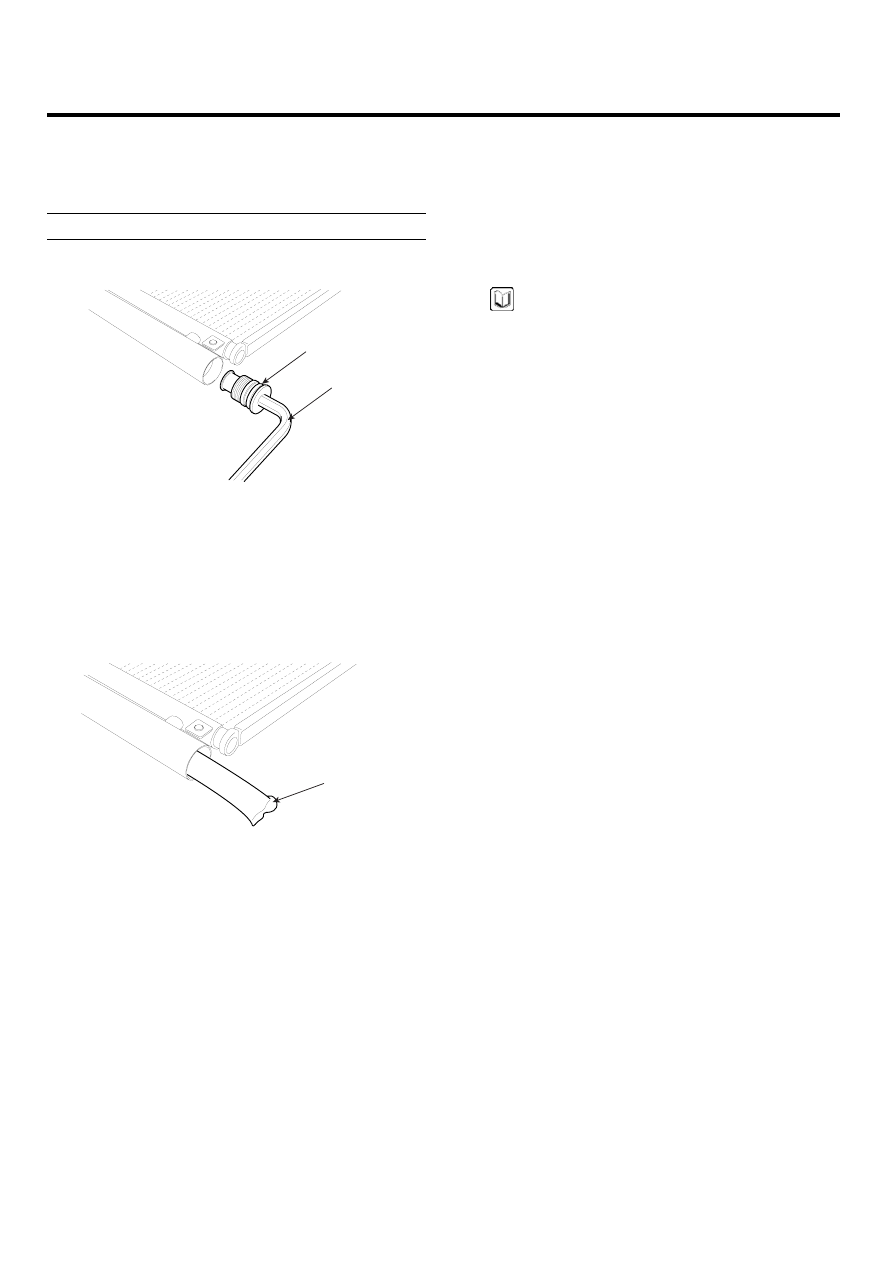

DESICCANT
1.

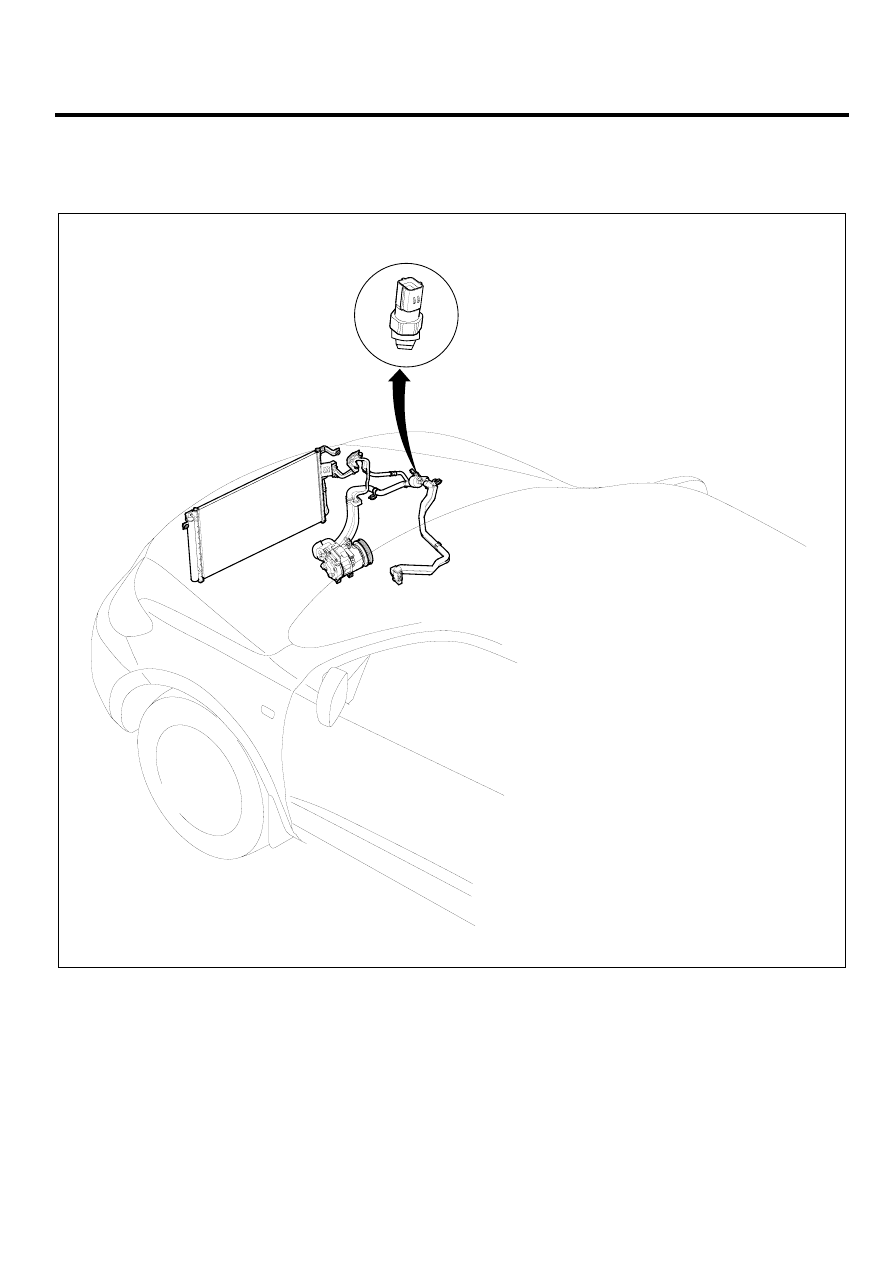

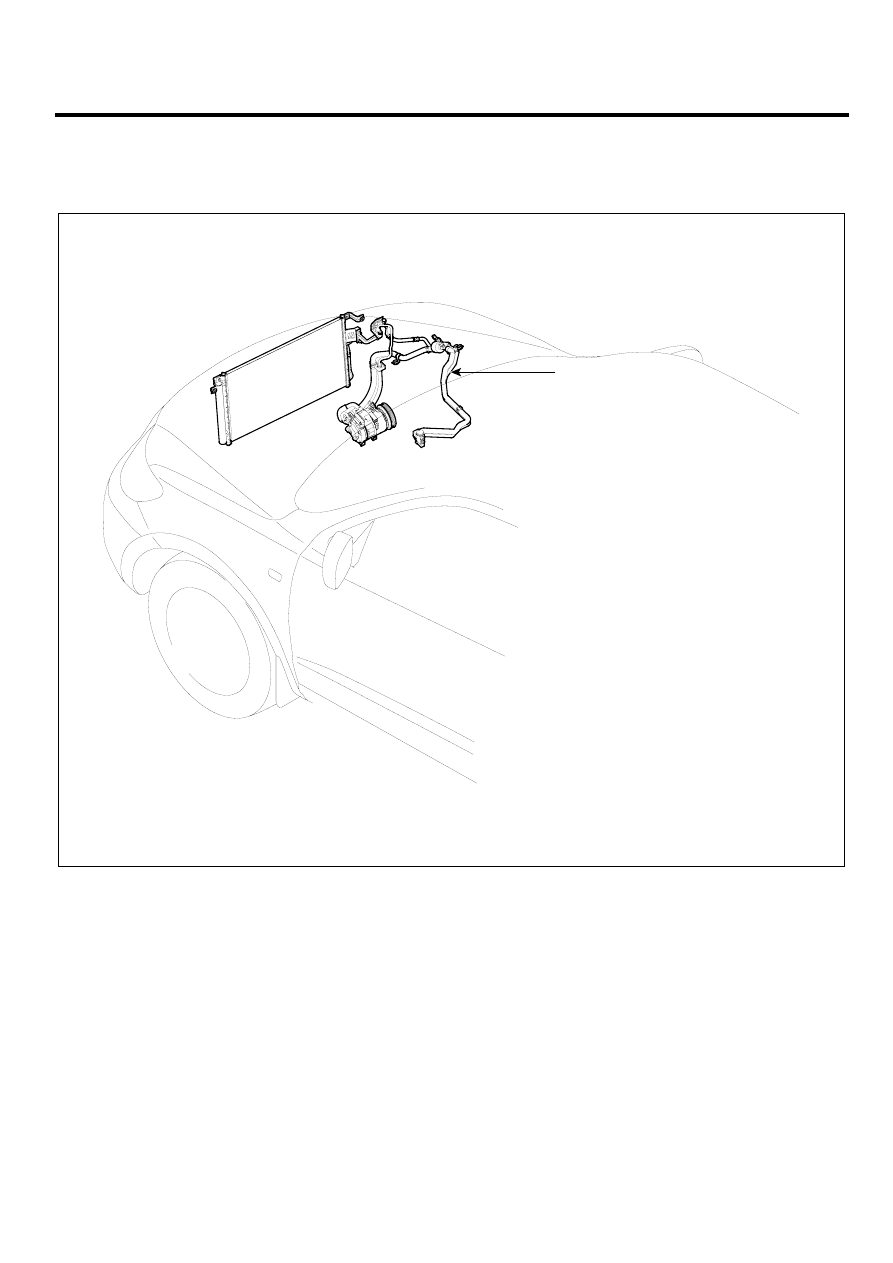

Remove the condenser, and then remove the bottom
cap (B) with L wrench (A) from the condenser.
TORQUE: 20~25N.m (2.0~2.5kgf-m, 14.5~18.2lb-ft)
B
A
KQRE108D
2.
Remove the desiccant (A) from condenser using a
long nose plier. Check for crumbled desiccant and
clogged bottom cap filter.
A
KQRE108E
3.
Apply air conditioning compressor oil along the
O-rings and threads of the new bottom cap.
4.
Insert the new desiccant into the receiver drier tank.
The desiccant must be sealed in vacuum before it is
exposed to air for use.
5.
Install the new bottom cap to the condenser.
NOTE
-
Always replace the desiccant and bottom cap at
the same time.
-
Replace the O-rings with new ones at each fit-
ting, and apply a thin coat of refrigerant oil before
installing them. Be sure to use the right O-rings
for R-134a to avoid leakage.
-
Be careful not to damage the radiator and con-
denser fins when installing the condenser.
-
Be sure to install the lower mount cushions of
condenser securely into the holes.
-
Charge the system, and test its performance.
