GENERAL
GI -13

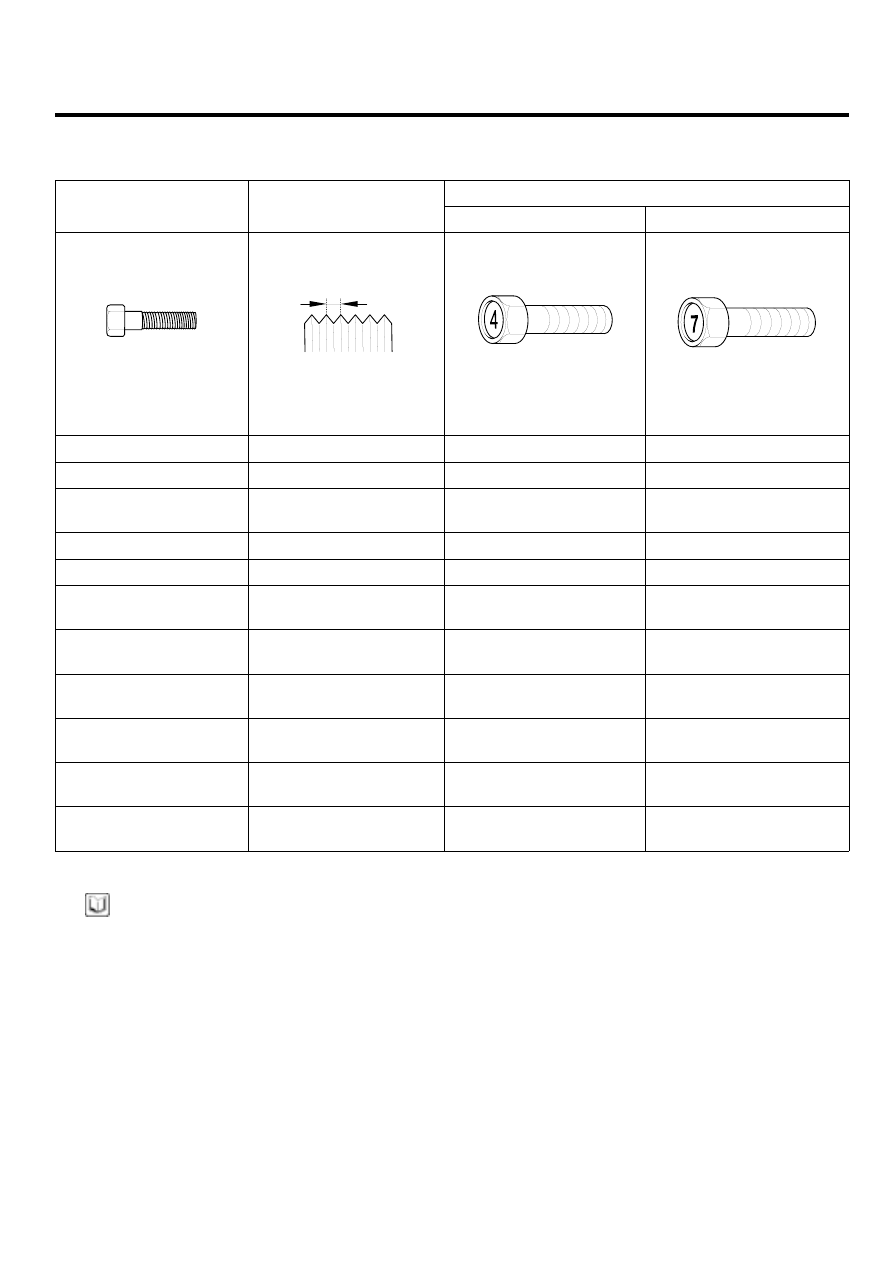

TIGHTENING TORQUE TABLE OF STANDARD
PARTS
Torque Nm (kg.cm, lb.ft)
Bolt niminal diameter
(mm)
Pich (mm)
Head Mark 4
Head Mark 7
EAKE004E
KASD100Y
EAKE004F
EAKE004G
M5
0.8
3 ~ 4 (30 ~ 40, 2.2 ~ 2.9)
5 ~ 6 (50 ~ 60, 3.6 ~ 4.3)
M6
1.0
5 ~ 6 (50 ~ 50, 3.6 ~ 4.3)
9 ~ 11 (90 ~ 110, 6.5 ~ 8.0)
M8
1.25
12 ~ 15 (120 ~ 150, 9 ~ 11)
20 ~ 25 (200 ~ 250,
14.5 ~ 18.0 )
M10
1.25
25 ~ 30 (250 ~ 300, 18 ~ 22)
30 ~ 50 (300 ~ 500, 22 ~ 36)
M12
1.25
35 ~ 45 (350 ~ 450, 25 ~ 33)
60 ~ 80 (600 ~ 800, 43 ~ 58)
M14
1.5
75 ~ 85 (750 ~ 850, 54 ~ 61)
120 ~ 140 (1,200 ~ 1,400,
85 ~ 100)
M16
1.5
110 ~ 130 (1,100 ~ 1,300,
80 ~ 94)
180 ~ 210 (1,800 ~ 2,100,
130 ~ 150)
M18
1.5
160 ~ 180 (1,600 ~ 1,800,
116 ~ 130)
260 ~ 300 (2,600 ~ 3,000,
190 ~ 215)
M20
1.5
220 ~ 250 (2,200 ~ 2,500,
160 ~ 180)
360 ~ 420 (3,600 ~ 4,200,
260 ~ 300)
M22
1.5
290 ~ 330 (2,900 ~ 3,300,
210 ~ 240)
480 ~ 550 (4,800 ~ 5,500,
350 ~ 400)
M24
1.5
360 ~ 420 (3,600 ~ 4,200,
260 ~ 300)
610 ~ 700 (6,100 ~ 7,000,
440 ~ 505)
NOTE
1.
The torques shown in the table are standard val-
ues under the following conditions :
• Nuts and bolts are made of galvanized steel
bar.
• Galvanized plain steel washers are inserted.
• All nuts, bolts and plain washers are dry.
2.
The torques shown in the table are not applicable
:
• When spring washers, toothed washers and
the like are inserted.
• If plastic parts are fastened.
• If self-tapping screws or self-locking nuts are
used.
• If threads and surfaces are coated with oil.
3.
If you reduce the torques in the table to the per-
centage indicated below, under the following con-
ditions, if will be the standard value.
• If spring washers are used : 85%
• If threads and bearing sufaces are stained
with oil : 85%
