FLA -314

FUEL SYSTEM

DTC P0198 ENGINE OIL TEMP. SENSOR HIGH INPUT

COMPONENT LOCATION

E42E33E2

Refer to DTC P0196.

GENERAL DESCRIPTION

E64334B1

Refer to DTC P0196.

DTC DESCRIPTION

E4558250

Checking output signals from oil temperture sensor every 15 sec. under detecting condition, if an signal is high for more
than 12.5 sec., PCM sets P0198. MIL(Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive
2 driving cycle.

DTC DETECTING CONDITION

EE0B5425

Item

Detecting Condition

Possible cause

DTC Strategy

• Signal low

Case 1

• Engine running state 〉60 sec
• Coolant temperature 〈 110 ℃(230℉)

Enable

Condi-

tions

Case 2

• Engine running state 〉90 sec.

Thresh old value

• Oil temperature sensor’s signal 〉4.9V

Diagnosis Time

• Continuous

(More than 12.5 sec.failure for every 15 sec.test)

MIL On Condition

• 2 Driving Cycles

• Poor connection
• Open or short to battery

in signal harness

• Open in ground harness
• Oil temp.sensor
• PCM

SPECIFICATION

E8CC49CD

Refer to DTC P0196.

SCHEMATIC DIAGRAM

EAD51BEB

Refer to DTC P0196.

MONITOR DTC STATUS

E6142301

Refer to DTC P0196.

TERMINAL AND CONNECTOR INSPECTION

E23DAE00

Refer to DTC P0196.

SIGNAL CIRCUIT INSPECTION

E3ECF421

1.

Check Voltage

1)

IG "OFF" & ENG "OFF"

DTC TROUBLESHOOTING PROCEDURES

FLA -315

2)

Disconnect OTS connector

3)

IG "ON" & ENG "OFF"

4)

Measure voltage between harness terminal 1 of OTS and chassis ground.

Specification : Approx. 5V

5)

Is the measured voltage within specification ?

YES

▶ Go to "Ground Circuit Inspection" procedure.

NO

▶ Go to "Check open in harness" as follow.

2.

Check open in harness

1)

IG "OFF" & ENG "OFF"

2)

Disconnect OTS and PCM connector.

3)

Measure resistance between terminal 1 of OTS harness connector and terminal C30-B (4) of PCM harness
connector.

Specification : Approx. below 1Ω

4)

Is the measured resistance within specification ?

YES

▶ Go to "Ground Circuit Inspection" procedure.

NO

▶ Repair or replace open in harness, and then go to "Verification of Vehicle Repair" procedure.

GROUND CIRCUIT INSPECTION

E9529310

1.

IG "OFF" & ENG "OFF"

2.

Disconnect OTS connector

3.

Measure voltage between terminal 1 of OTS harness connector and chassis ground.

4.

Measure voltage between terminals 1 and 2 of OTS harness connector.

Specification : Measurement "A" - Measurement ’B’ = Approx. below 200mV

5.

Is the measured voltage within specification ?

YES

▶ Go to "Component Inspection" procedure

FLA -316

FUEL SYSTEM

NO

▶ Repair or replace contact resistance or open in harness and then, go to "Verification of Vehicle Repair" procedure.

COMPONENT INSPECTION

E406B793

1.

Check resistance of OTS

1)

IG "ON" & ENG "OFF"

2)

Monitor Oil Temperature parameter on the scantool

3)

IG "OFF" & ENG "OFF"

4)

Disconnect OTS connector.

5)

Measure resistance between terminal 1 and 2 of OTS connector(Component Side)

SPECIFICATION :

Temperature(℃/℉)

Resistance(kΩ )

-20℃/ -4℉

16.52kΩ

20℃/ 68℉

2.45kΩ

80℃/ 176℉

0.29kΩ

2

1

1. OTS Signal
2. OTS Ground

C93

SCMF16241L

6)

Is the measured resistance within specification ?

YES

▶ Go to "Check PCM" as follows.

NO

▶ Substitute with a known - good OTS and check for proper operation. If the problem is corrected, replace OTS
and go to "Verification of Vehicle Repair" procedure.

2.

Check PCM

1)

Ignition "OFF" and Connect Scantool

2)

Ignition"ON " & Engine "OFF"

3)

Select simulation function on scantool.

DTC TROUBLESHOOTING PROCEDURES

FLA -317

4)

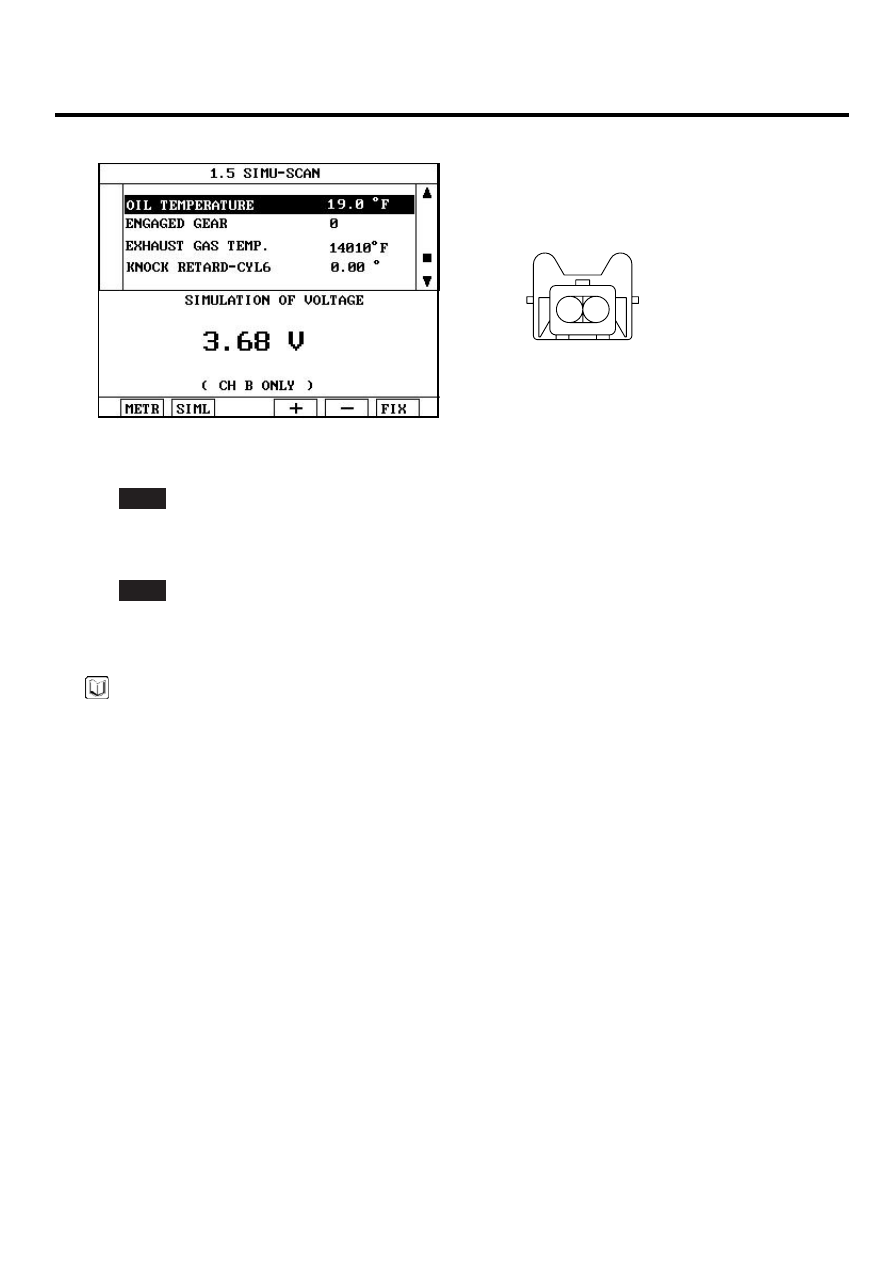

Simulate voltage at terminal "1" of OTS signal harness connector.

1

2

1. OTS Signal
2. OTS Ground

C93

SCMF16242L

5)

Does the OTS signal value changes according to simulation voltage ?

YES

▶ Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deteriora-
tion, or damage. Repair or replace if necessary and go to "Verification of Vehicle Repair" procedure

NO

▶ Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM
and go to "Verification of Vehicle Repair" procedure.

NOTE

There is a memory reset function on scantool that can erase optional parts automatically detected and memorized
by PCM. After testing PCM on the vehicle, use this function to reuse the PCM on the others

VERIFICATION OF VEHICLE REPAIR

E344162C

Refer to DTC P0196.
