FLA -54

FUEL SYSTEM

COMPONENT INSPECTION

1.

Turn ignition switch OFF.

2.

Disconnect OTS connector.

3.

Remove the OTS.

4.

After immersing the thermistor of the sensor into wa-
ter (or engine coolant), measure resistance between
OTS terminals 1 and 2.

2

1

SCMF16118L

5.

Check that the resistance is within the specification.

Specification: Refer to SPECIFICATION.

GASOLINE ENGINE CONTROL SYSTEM

FLA -55

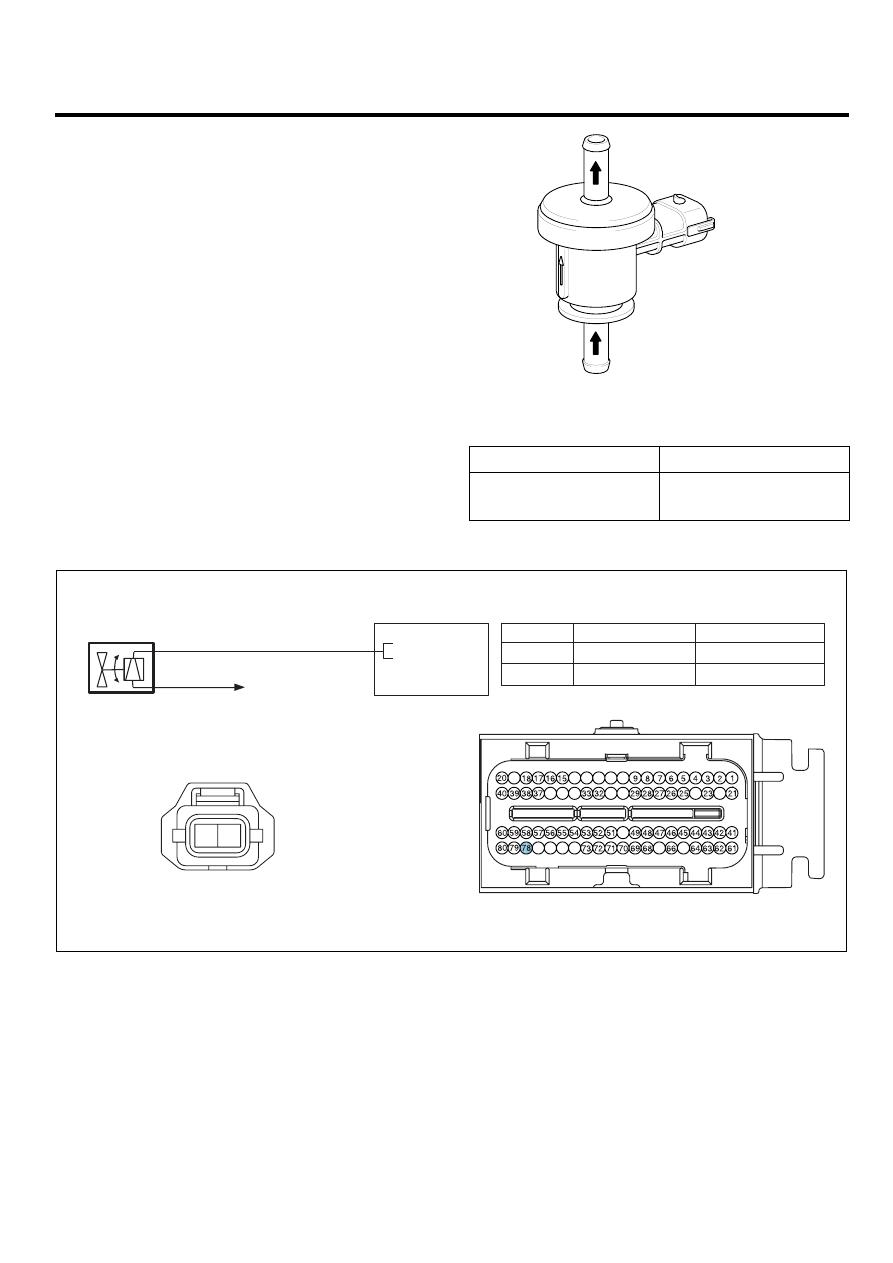

PURGE CONTROL SOLENOID
VALVE (PCSV)

INSPECTION

EDCE4B32

FUNCTION AND OPERATION PRICIPLE

Purge Control Solenoid Valve (PCSV) is installed on the
surge tank and controls the passage between the canister
and the intake manifold. It is a solenoid valve and is open
when the PCM grounds the valve control line. When the
passage is open (PCSV ON), fuel vapors stored in the
canister is transferred to the intake manifold.

KGBF004W

SPECIFICATION

Item

Specification

Coil Resistance (Ω )

14.0 ~ 18.0Ω at 20℃

(68℉)

CIRCUIT DIAGRAM

PCSV

C94

1

2

PCM C30-A (78)

Battery Voltage (B+)

PCSV Control

Main Relay

[CIRCUIT DIAGRAM]

[HARNESS CONNECTORS]

[CONNECTION INFORMATION]

Terminal

Connected to

Function

PCM

C30-A

19

14 13 12 11

31

34

35

36

30

10

24

22

65

67

50

74

75

76

77

1

2

78 - PCSV Control

PCM (C30-A)

PCSV

(C94)

Main Relay

2

1

SCMF16119L

FLA -56

FUEL SYSTEM

COMPONENT INSPECTION

1.

Turn ignition switch OFF.

2.

Disconnect PCSV connector.

3.

Measure resistance between PCSV terminals 1 and
2.

2

1

SCMF16120L

4.

Check that the resistance is within the specification.

Specification: Refer to SPECIFICATION.

GASOLINE ENGINE CONTROL SYSTEM

FLA -57

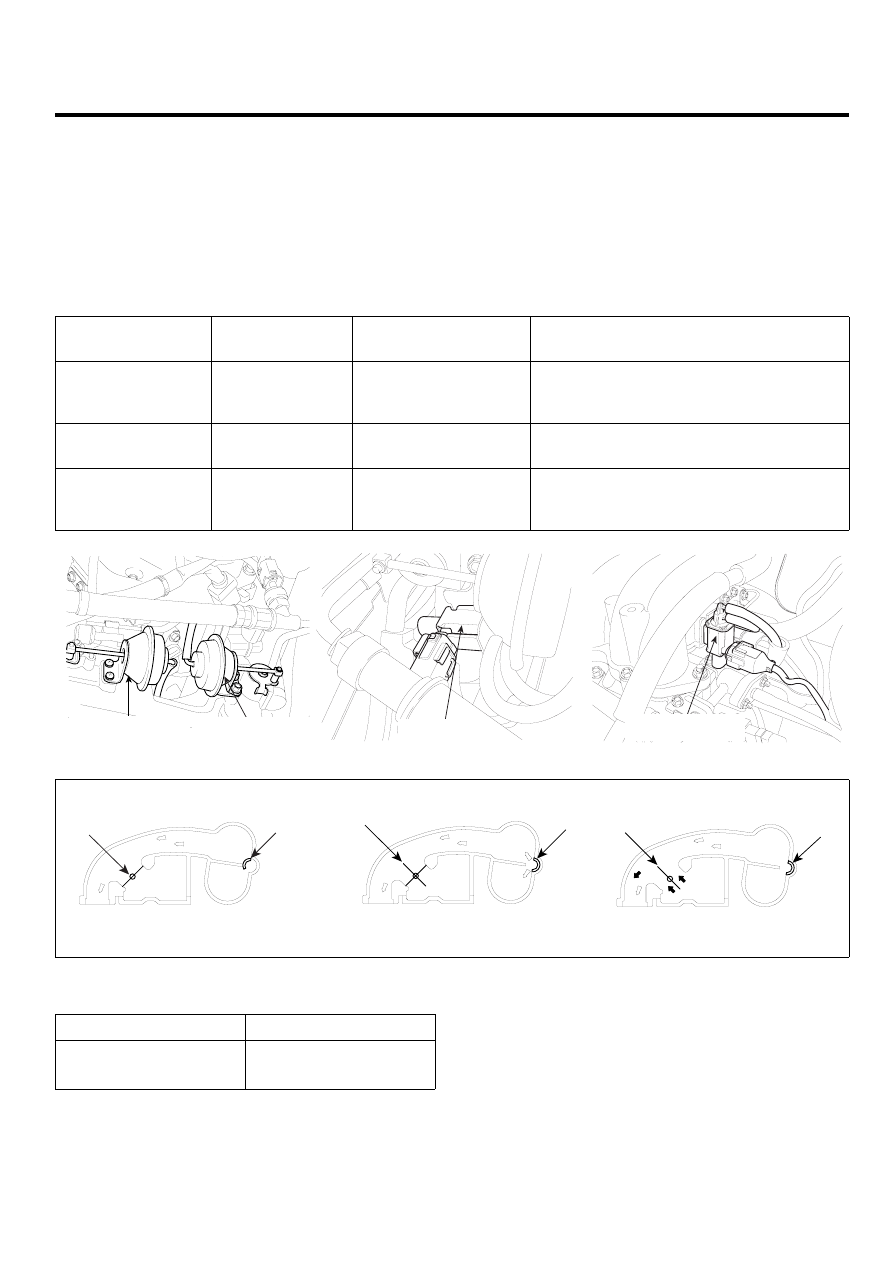

VARIABLE INTAKE SOLENOID
(VIS) VALVE

INSPECTION

E7DF6662

FUNCTION AND OPERATION PRICIPLE

Variable Intake manifold Solenoid (VIS) valves are in-
stalled on surge tank (VIS Valve #1) and intake manifold

(VIS Valve #2). These VIS valve #1 and #2 control vac-
uum modulators which activate valves in surge tank and
intake manifold. These valves are opened or closed by
PCM according to engine condition (Refer to below table).

Engine Condition

VIS Valve #1

(Surge Tank)

VIS Valve #2
(In-manifold)

Operation

Low

Speed

Closed

Closed

Increasing engine performance in low engine
speed by reducing intake interference
among cylinders

Medium

Speed

Open

Open or closed

Increasing intake efficiency

High

Speed

Open

Open

Minimizing intake resistance by shortening
intake manifold length and increasing
area of air entrance

Vacuum Modulator #1

(Intake Manifold)

Vacuum Modulator #1

(Surge Tank)

VIS Valve #1

(Surge Tank Side)

VIS Valve #2

(Intake Manifold Side)

LGLG002K

Valve #2

[CLOSED]

Valve #1

[CLOSED]

Valve #2

[OPEN or CLOSED]

Valve #1

[OPEN]

Valve #2

[OPEN]

Valve #1

[OPEN]

[High Speed]

[Medium Speed]

[Low Speed]

SCMF16004L

SPECIFICATION

Item

Specification

Coil Resistance (Ω )

29.0 ~ 35.0 Ω at 20℃

(68℉)
