FL -46

FUEL SYSTEM

8.

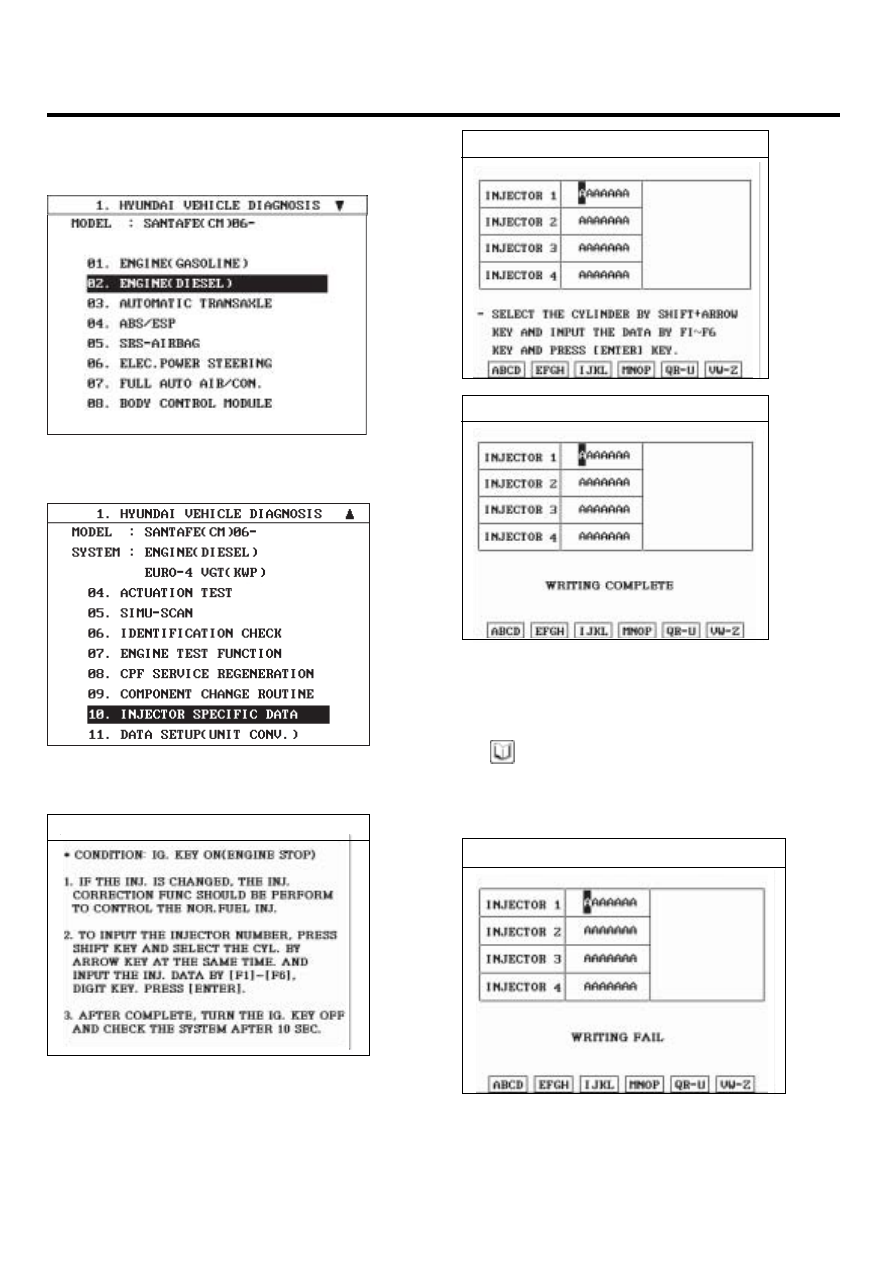

Proceed "INJECTOR SPECIFIC DATA" procedure.

1)

Select "ENGINE (DIESEL)"

SCMFL6125L

2)

Select "INJECTOR SPECFIC DATA".

SCMFL6142L

3)

Press "ENTER" key.

1. HYUNDAL VEHICLE DIAGNOSIS

SCMFL6143L

4)

Input the injector data (7 digit) written on the top
of each injector with function keys ([F1] ~ [F6])
and number keys.

1.10. INJECTOR SPECIFIC DATA

1.10. INJECTOR SPECIFIC DATA

SCMFL6144L

9.

Wait 10 seconds after displaying "WRITING COM-
PLETE", turn ignition switch OFF.

NOTE

When "WRITING FAIL" is displayed on the scan tool,
input injector data (7 digits) of each cylinder into a new
ECM again starting from 7th step.

1.10. INJECTOR SPECIFIC DATA

SCMFL6145L

DIESEL CONTROL SYSTEM

FL -47

MASS AIR FLOW SENSOR
(MAFS)

INSPECTION

E09E1CDA

FUNCTION AND OPERATION PRINCIPLE

MAFS uses a hot-film type sensing element to measure
the mass of intake air entering the engine, and send the
signal to ECM.
A large amount of intake air represents acceleration or
high load conditions while a small amount of intake air rep-
resents deceleration or idle.
The ECM uses this information to control the EGR sole-
noid valve and correct the fuel amount.

MAFS & IATS #1

SCMFL6003D

SPECIFICATION

*At intake air temperature = 20

(68

)

*At intake air temperature = -15

(5

) or 80

(176

)

Air Flow (kg/h)

8

10

15

75

160

310

10

75

160

310

1.97 ~ 1.99

2.71 ~ 2.76

3.34 ~ 3.43

4.39 ~ 4.58

640

800

1.94 ~ 1.96

1.98 ~ 1.99

2.06 ~ 2.07

2.72 ~ 2.75

3.36 ~ 3.41

4.44 ~ 4.53

7.66 ~ 8.01

10.13 ~ 11.17

Frequency (kHz)

Air Flow (kg/h)

Frequency (kHz)

EFQG034A

FL -48

FUEL SYSTEM

CIRCUIT DIAGRAM

MAFS & IATS #1

ECM

C213

C230-A

C230-K

1

2

3

4

Battery Voltage (B+)

5

Sensor Ground

[CIRCUIT DIAGRAM]

[HARNESS CONNECTORS]

[CONNECTION INFORMATION]

Terminal

Connected to

Function

ECM C230-A (44)

ECM C230-K (89)

Main Relay

IATS #1 Signal

 Reference Frequency

ECM C230-A (37)

MAFS Signal

ECM C230-A (42)

89 - IATS #1 Signal

44 - GND

42 - MAFS Signal

Main Relay

MAFS & IATS #1 (C213)

ECM (C230-K)

ECM (C230-A)

37 - Reference Frequency

1

2

4

3

6

5

8 7

12

13

16

17

18

23 22

20

21

19

27 26 25 24

28

29

30

14

9

10

11

15

33 32 31

34

37

41

42

40 39 38

35

36

43

44

47 46

49 48

50

53

56

58 57

54

51

52

55

59

60
45

1

30 29

31

32

38

39

36

37

35

33

34

40

42 41

46 45 44 43

48 47

50 49

2

3

4

6

5

8

7

12 11 10 9

13

14

15

18 17

19

16

22

25

27 26

23

20

21

24

28

51

75 74
53 52

73

79 78 77 76

80

81

83 82

84

86 85

87

89 88

90

92 91

93

94

57

69 68

70

71

64

54

55

56

61

58

59

60

63 62

65

66

67

72

IATS

3

2

5

4

1

1

2

3

4

5

SCMFL6113L

DIESEL CONTROL SYSTEM

FL -49

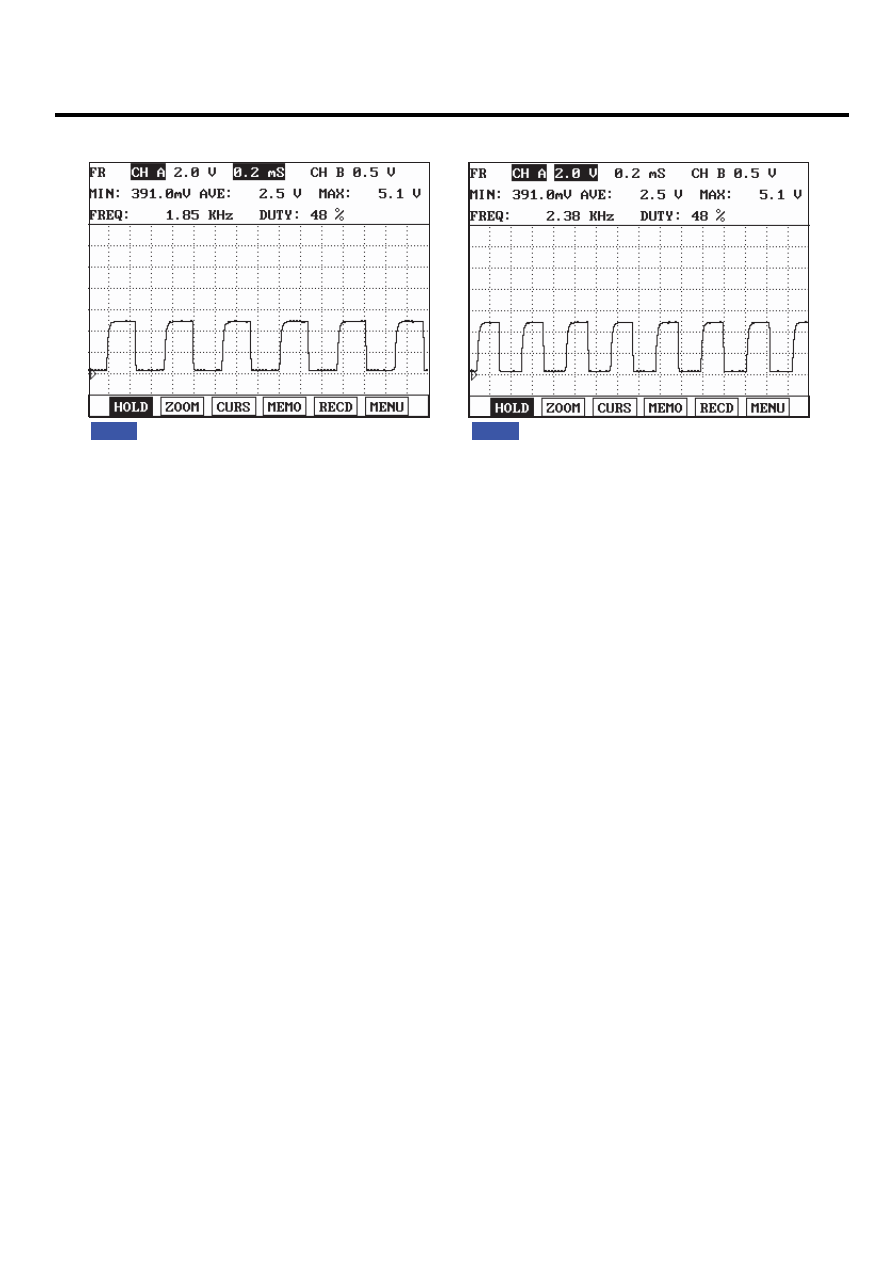

SIGNAL WAVEFORM

Fig.1

Fig.2

Fig.1) AFS signal waveform at IG KEY "ON". It shows digital signal of 50% duty, 1.8KHz.
Fig.2) AFS signal waveform at idle(790RPM, EGR actuator duty 5%, air flow for each cylinder 410mg/st).
          It shows digital signal of 50% duty, 2.2~2.7KHz.

EFQG222A

COMPONENT INSPECTION

1.

Check the MAFS visually.
-

Mounting direction correct.

-

Any contamination, corrosion or damage on con-
nector.

-

Air cleaner’s clogging or wet.

-

MAFS cylinder’s deforming or blocking by any for-
eign material.

2.

Check any leakage on intake system and intercooler
system.
