Hyundai Santa Fe (2006 year). Manual - part 297





STARTING SYSTEM

EEA -29

STARTING SYSTEM

DESCRIPTION

E1CE0D47

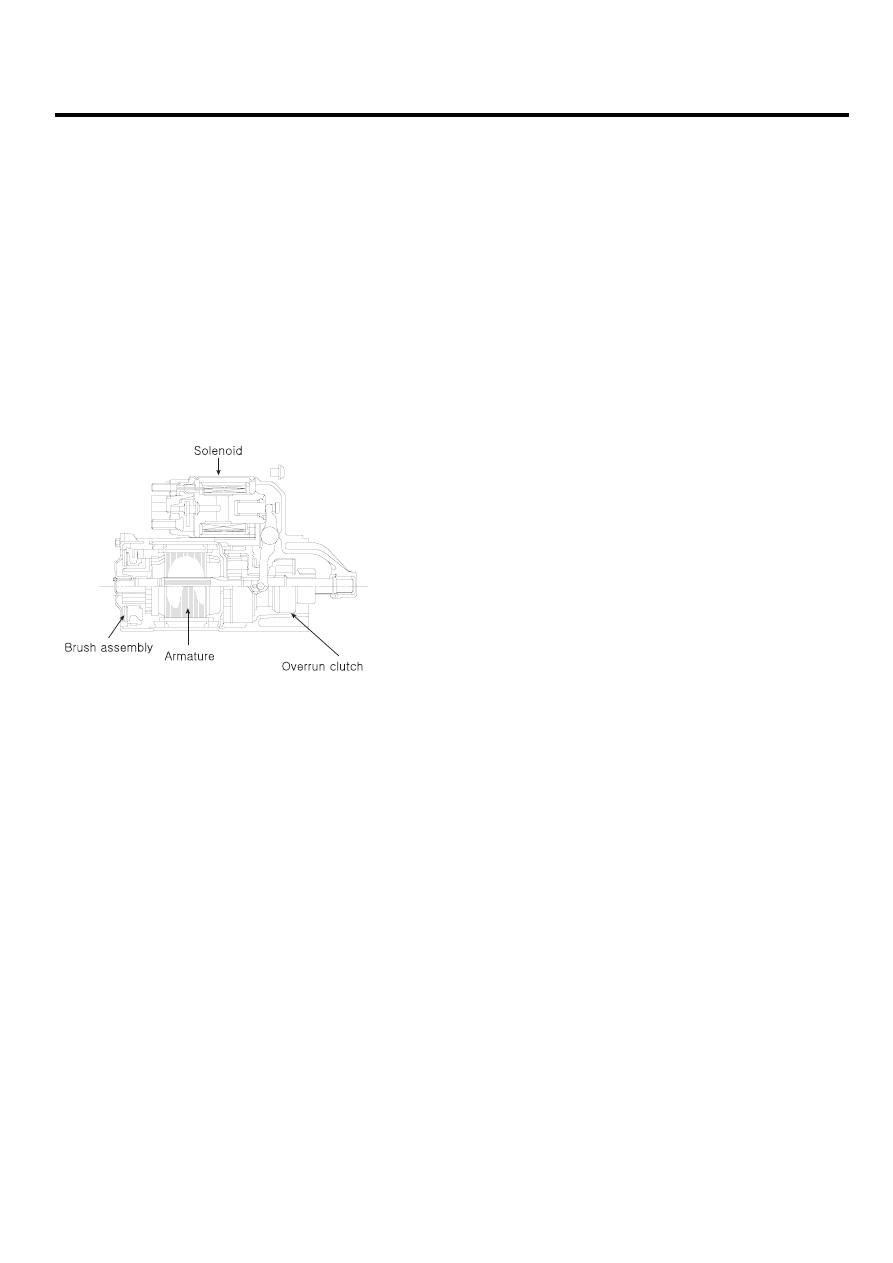

The starting system includes the battery, starter, solenoid
switch, ignition switch, inhibitor switch (A/T), ignition lock
switch, connection wires and the battery cable.
When the ignition key is turned to the start position, current
flows and energizes the starter motor’s solenoid coil.
The solenoid plunger and clutch shift lever are activated,
and the clutch pinion engages the ring gear.
The contacts close and the starter motor cranks. In order
to prevent damage caused by excessive rotation of the
starter armature when the engine starts, the clutch pinion
gear overruns.

LBKG001C

STARTER CIRCUIT

TROUBLESHOOTING

ED0E08BF

NOTE

The battery must be in good condition and fully
charged.

1.

Remove the fuel pump relay(A) from the fuse box.

2.

With the shift lever in N or P (A/T) or clutch pedal
pressed (M/T), turn the ignition switch to "START"

If the starter normally cranks the engine, starting sys-
tem is OK. If the starter will not crank the engine at
all, go to next step.

If it won’t disengage from the ring gear when you re-
lease key, check for the following until you find the
cause.

• Solenoid plunger and switch malfunction.
• Dirty pinion gear or damaged overrunning clutch.

3.

Check the battery condition. Check electrical connec-
tions at the battery, battery negative cable connected
to the body, engine ground cables, and the starter for
looseness and corrosion. Then try starting the engine
again.

If the starter cranks normally the engine, repairing the
loose connection repaired the problem. The starting
system is now OK.

If the starter still does not crank the engine, go to next
step.

4.

Disconnect the connector from the S-terminal of so-
lenoid. Connect a jumper wire from the B-terminal of
solenoid to the S-terminal of solenoid.

If the starter cranks the engine, go to next step.
If the starter still does not crank the engine, remove
the starter, and repair or replace as necessary.

5.

Check the following items in the order listed until you
find the open circuit.

• Check the wire and connectors between the

driver’s under-dash fuse/relay box and the igni-
tion switch, and between the driver’s under-dash
fuse/relay box and the starter.

• Check the ignition switch (Refer to BE group -

ignition system)

• Check the transaxle range switch connector or

ignition lock switch connector.

• Inspect the starter relay.

EEA -30

ENGINE ELECTRICAL SYSTEM

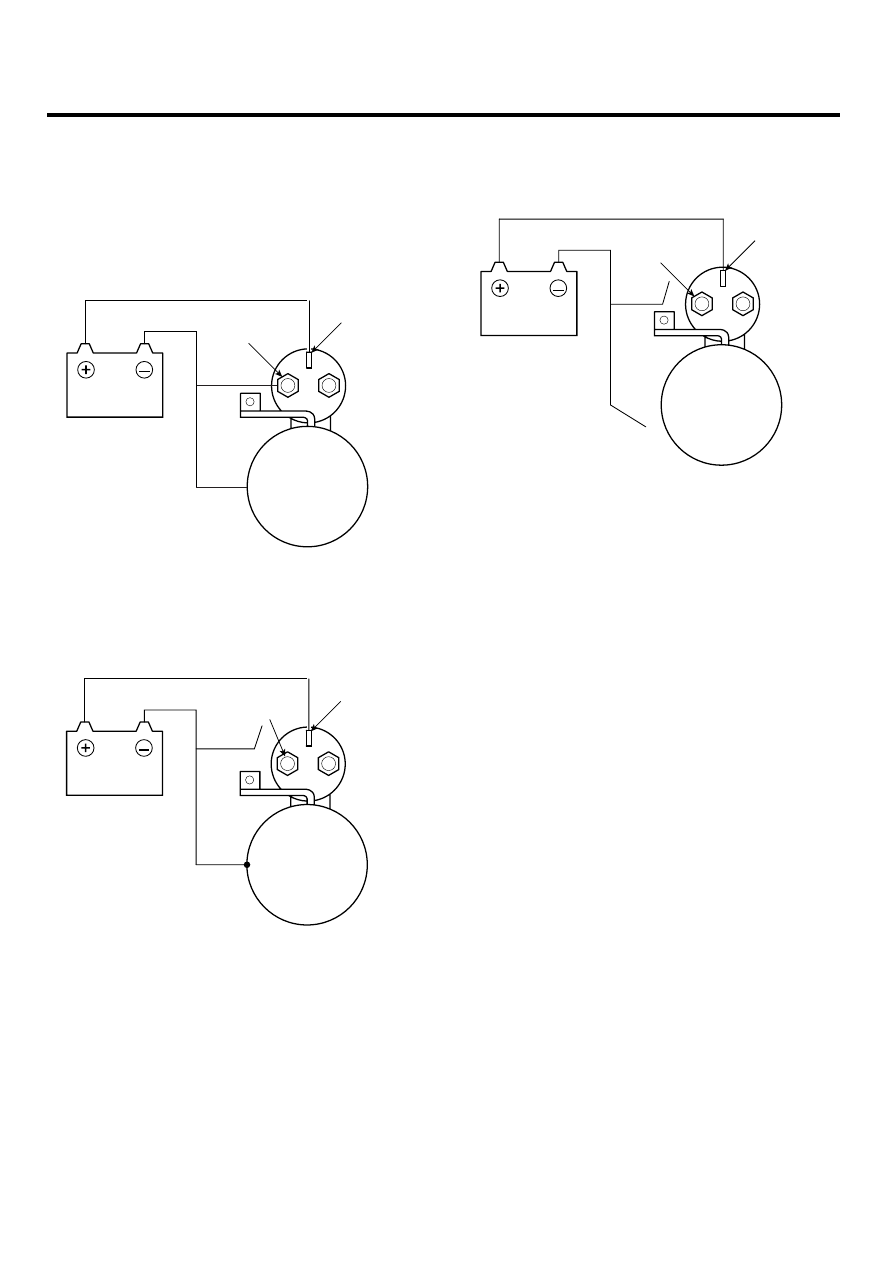

STATER SOLENOID TEST

1.

Disconnect the field coil wire from the M-terminal of
solenoid switch.

2.

Connect the battery as shown. If the starter pinion
pops out, it is working properly. To avoid damaging
the starter, do not leave the battery connected for
more than 10 seconds.

M

S

KBSE203D

3.

Disconnect the battery from the M terminal.
If the pinion does not retract, the hold-in coil is working
properly. To avoid damaging the starter, do not leave
the battery connected for more than 10 seconds.

S

M

KBSE203E

4.

Disconnect the battery also from the body. If the pin-
ion retracts immediately, it is working properly. To
avoid damaging the starter, do not leave the battery
connected for more than 10 seconds.

M

S

KBSE203F

STARTING SYSTEM

EEA -31

FREE RUNNING TEST

1.

Place the starter motor in a vise equipped with soft
jaws and connect a fully-charged 12-volt battery to
starter motor as follows.

2.

Connect a test ammeter (100-ampere scale) and car-
bon pile rheostats shown is the illustration.

3.

Connect a voltmeter (15-volt scale) across starter mo-
tor.

Starter

motor

Voltmeter

Ammeter

Battery

Corbon-pile rheostat

12V

A

V

M

S

B

BBGE005A

4.

Rotate carbon pile to the off position.

5.

Connect the battery cable from battery’s negative post
to the starter motor body.

6.

Adjust until battery voltage shown on the voltmeter
reads 11volts.

7.

Confirm that the maximum amperage is within
the specifications and that the starter motor turns
smoothly and freely.

Current : 90A max
speed : 2,800 rpm

EEA -32

ENGINE ELECTRICAL SYSTEM

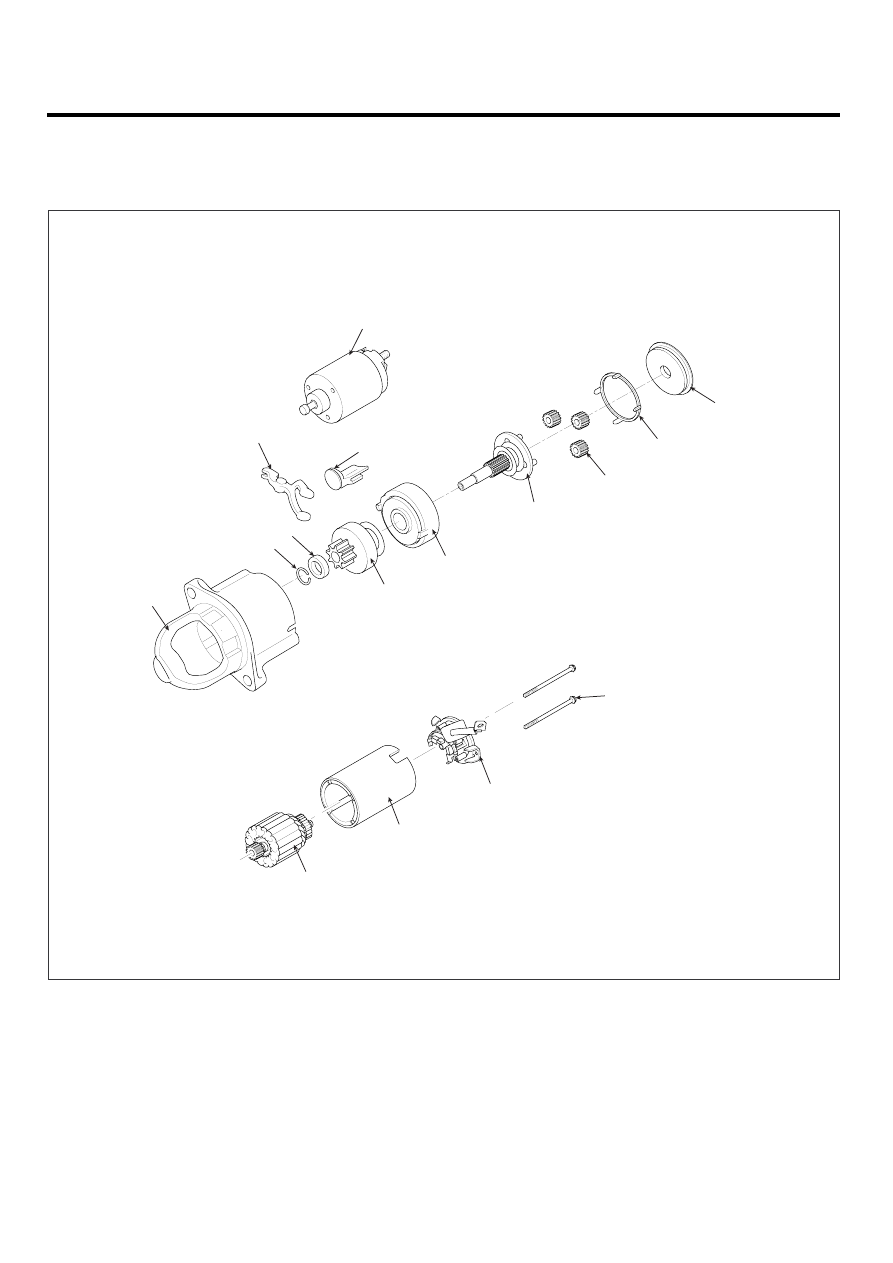

STARTER

COMPONENTS

EEDAEEB0

1.  Front bracket
2.  Stop ring
3.  Stopper
4.  Overrun clutch assembly
5.  Internal gear assembly
6.  Lever
7.  Lever packing
8.  Magnet switch assembly

  9.  Planet shaft assembly
10.  Planetary gear assembly
11.  Packing
12.  Shield
13.  Armature assembly
14.  Yoke assembly
15.  Brush holder assembly
16.  Through bolt

8

6

7

9

12

11

10

5

4

2

3

1

13

14

15

16

EBRF003A
