IGNITION SYSTEM

EEA -13

5.

Ground the spark plug to the engine.

ABGE001A

6.

Check is spark occurs while engine is being cranked.

NOTE

To prevent fuel being injected from injectors while the
engine is being cranked, remove the fuel pump(A) re-
lay from the fuse box.
Crank the engine for no more than 5 ~ 10 seconds.

7.

Inspect all the spark plugs.

8.

Using a spark plug socket, install the spark plug.

9.

Install the ignition coil.

10. Reconnect the ignition coil connector.

EEA -14

ENGINE ELECTRICAL SYSTEM

Spark test

Check connection of ignition coil connector

Connect securely

Replace the ignition coil

Check wiring between ignition switch and
ignition coil

Check the ignition coil.

Try another ignition coil

Check the camshaft position sensor

(Refer to FL group)

Check the crankshaft position sensor

(Refer to FL group)

Check Ignition signal from ECM

(Refer to FL group)

Replace the camshaft position sensor

(Refer to FL group)

Replace the crankshaft position sensor

(Refer to FL group)

Check wiring between ECM and ignition coil,

and then try another ECM

Check power supply to ignition coil
      1.  Turn ignition switch to ON.
      2.  Check that there is battery voltage at
           ignition coil positive (+) terminal.

BAD

BAD

BAD

BAD

BAD

BAD

OK

OK

OK

OK

OK

OK

EBRF001A

IGNITION SYSTEM

EEA -15

INSPECT SPARK PLUG

1.

Inspect the electrodes (A) and ceramic insulator (B).

A

B

EBKD002K

INSPECTION OF ELECTRODES

Condition

Dark deposits

White deposits

Description

-

Fuel mixture
too rich

-

Low air intake

-

Fuel mixture
too lean

-

Advanced
ignition timing

-

Insufficient
plug tightening
torque

2.

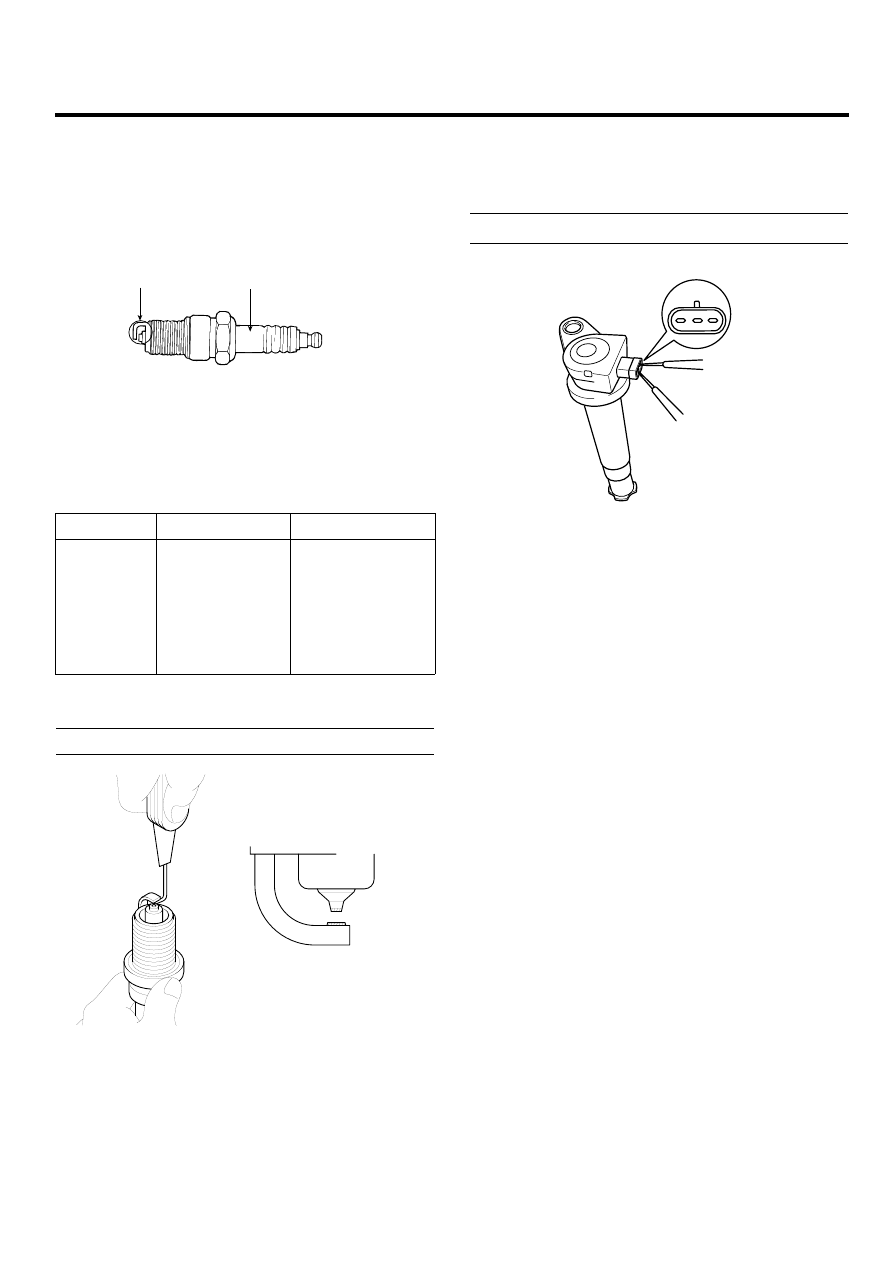

Check the electrode gap (A).

Standard : 1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.)

EBKE002L

INSPECT IGNITION COIL

1.

Measure the primary coil resistance between termi-
nals (+) and (-).

Standard : 00715 ± 0.015Ω

2

3

1

KBBF002A

NOTE

Mesure the resistance between the terminals No.1
and No.3.

EEA -16

ENGINE ELECTRICAL SYSTEM

REMOVAL

E5CED4D1

IGNITION COIL

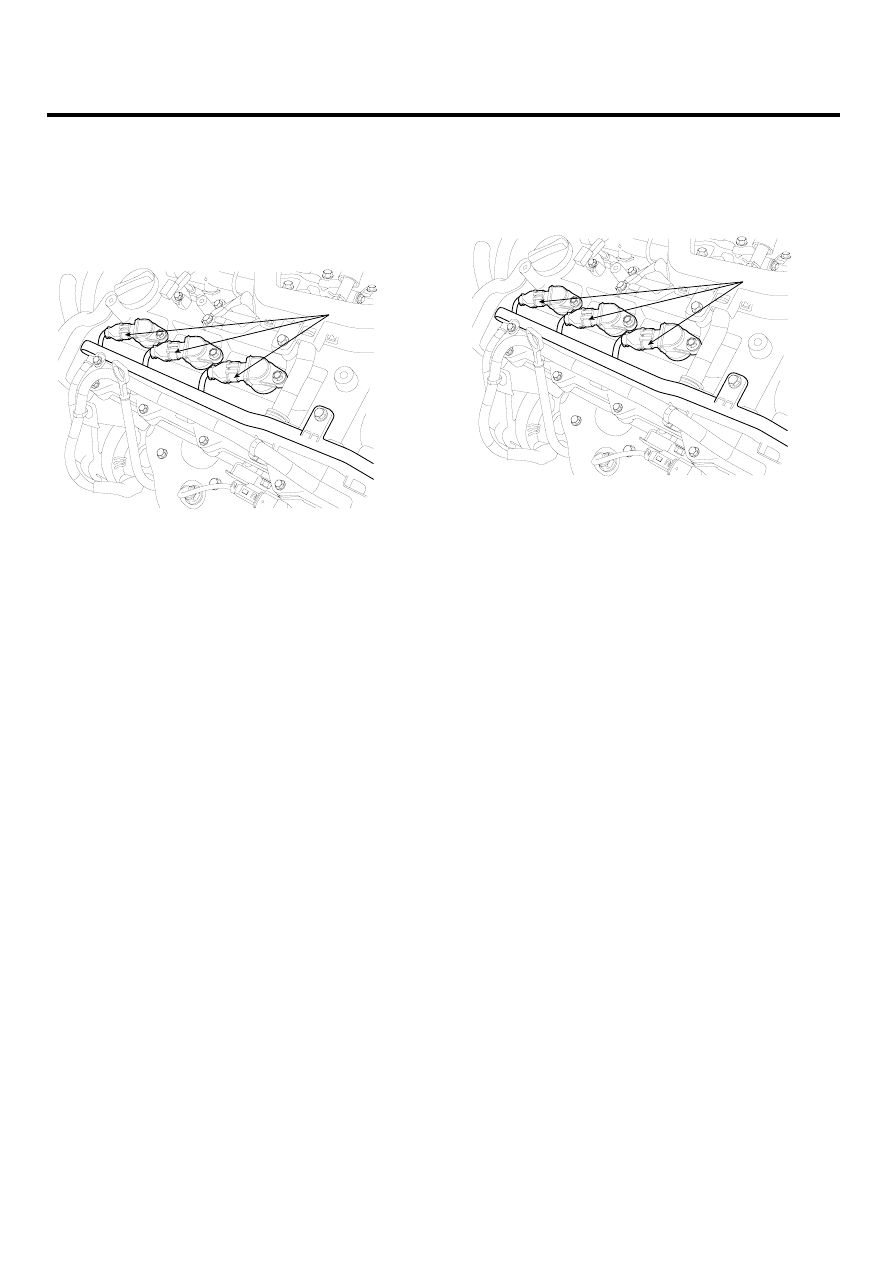

1.

Remove the engine cover.

2.

Remove the ignition coil connector(A).

A

KCBF156A

3.

3. Remove the ignition coil.

4.

Installation is the reverse of removal.

REPLACEMENT

E5CED4D2

SPARK PLUC

1.

Remove the ignition coil connector(A).

A

KCBF156A

2.

Remove the ignition coil.

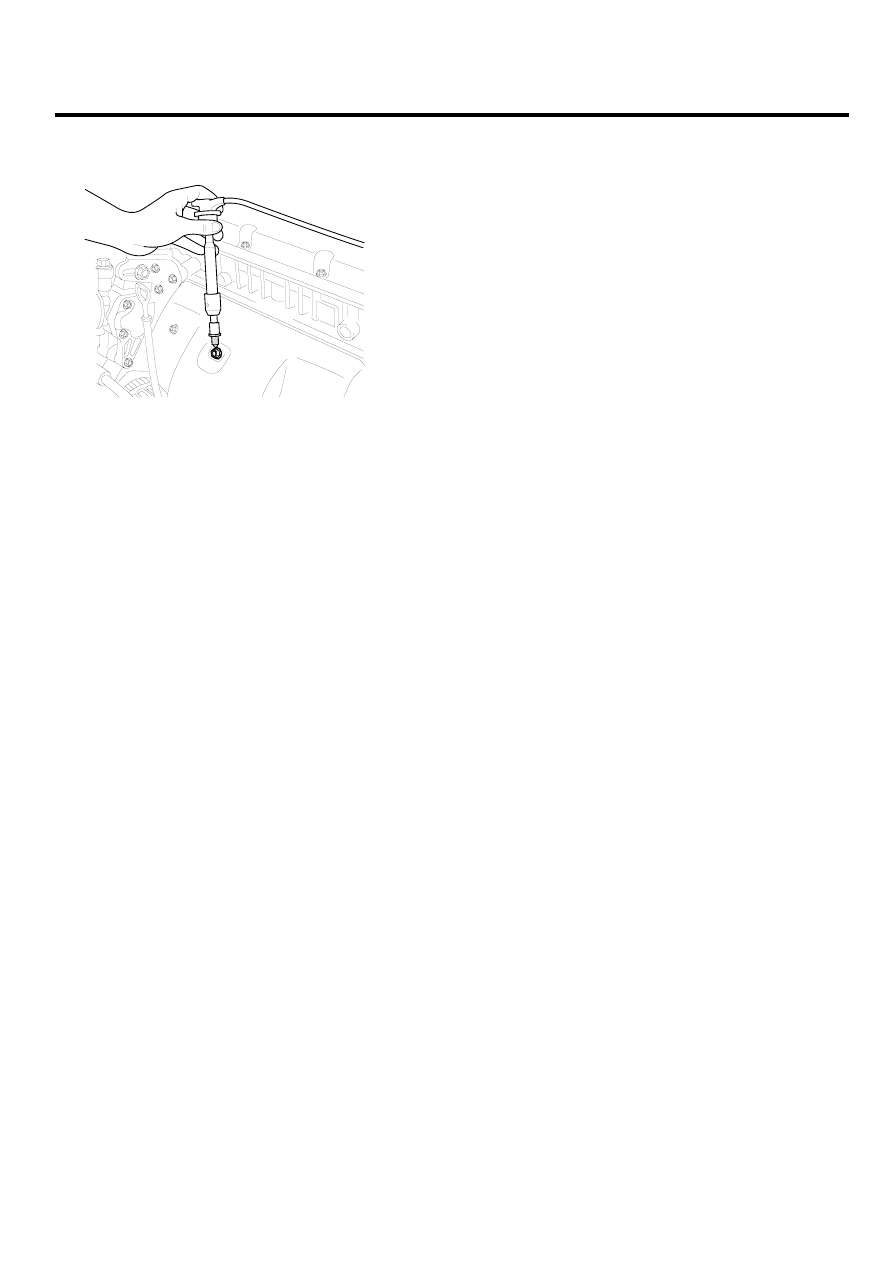

3.

Using a spark plug socket, remove the spark plug.

CAUTION

Be careful that no contaminates enter through the
spark plug holes..

4.

When replacing the spark plug, always use the long
reach type spark plug.
Do not use a short reach type.

1)

Color Marking (Tip).

-

[2.7L]
Unleaded : Yellow Marking
Leaded : Green Marking

-

[Others]
Marking Color is different or does not exist

2)

Length(Tip-Tip / PT Length).

-

2.7L: 83.2mm/ 26.5mm

-

[Others]
The length is different from the specification
above.

3)

Part ID.

-

[2.7L]
Unleaded : ILFR5B11
Leaded : LFR5A
