DS -36

DRIVESHAFT AND AXLE

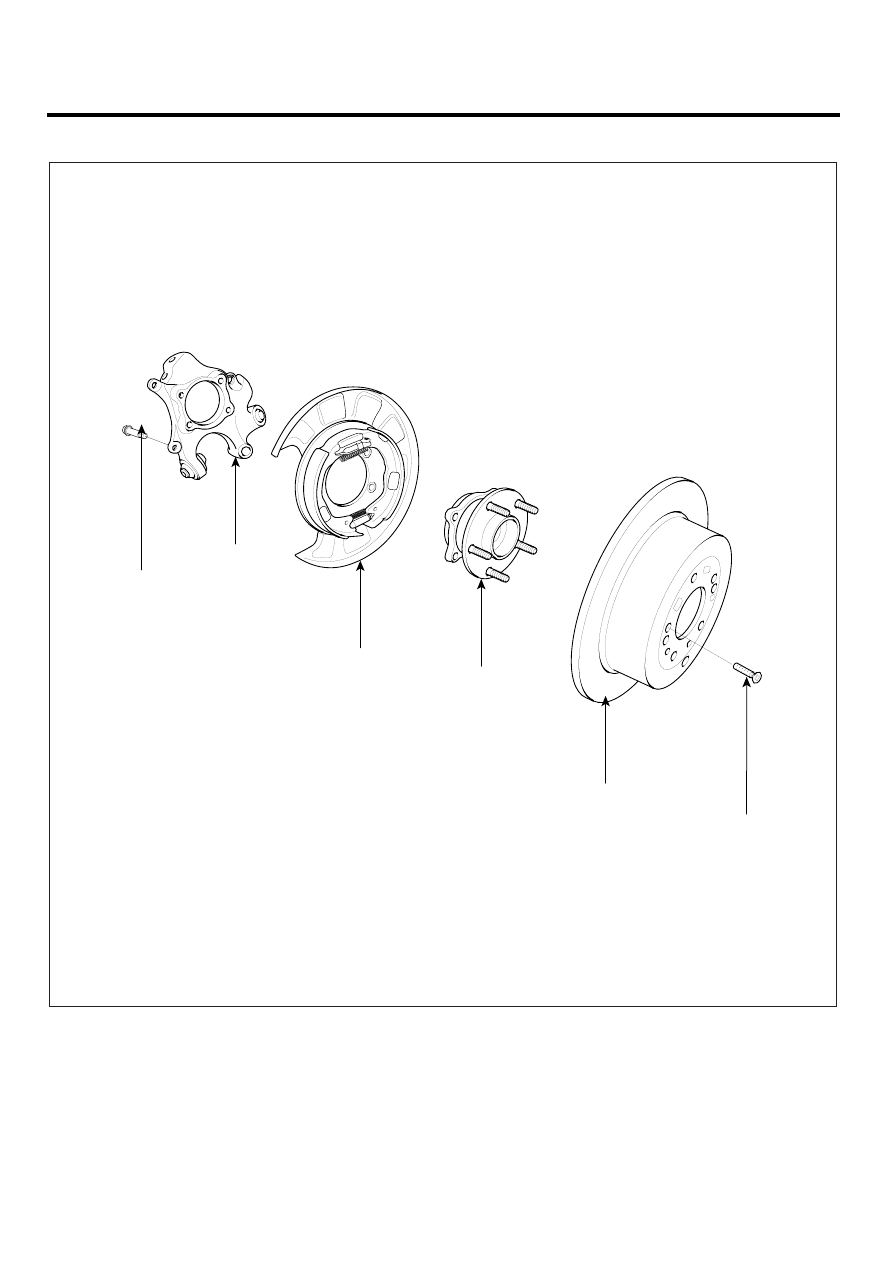

COMPONENT

E5AB35F5

1.

Rear carrier assembly

2. Parking brake assembly

3. Rear hub assembly
4. Rear brake disc

TORQUE : Nm (kgf.m, lb-ft)

78.5 ~ 88.3

(8 ~ 9, 57.9 ~ 65.1)

4.9 ~ 5.9

(0.5 ~ 0.6, 3.6 ~ 4.3)

1

2

3

4

SCMDS6513L

REAR AXLE

DS -37

REMOVAL

EB310E4E

1.

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely sup-
ported.

2.

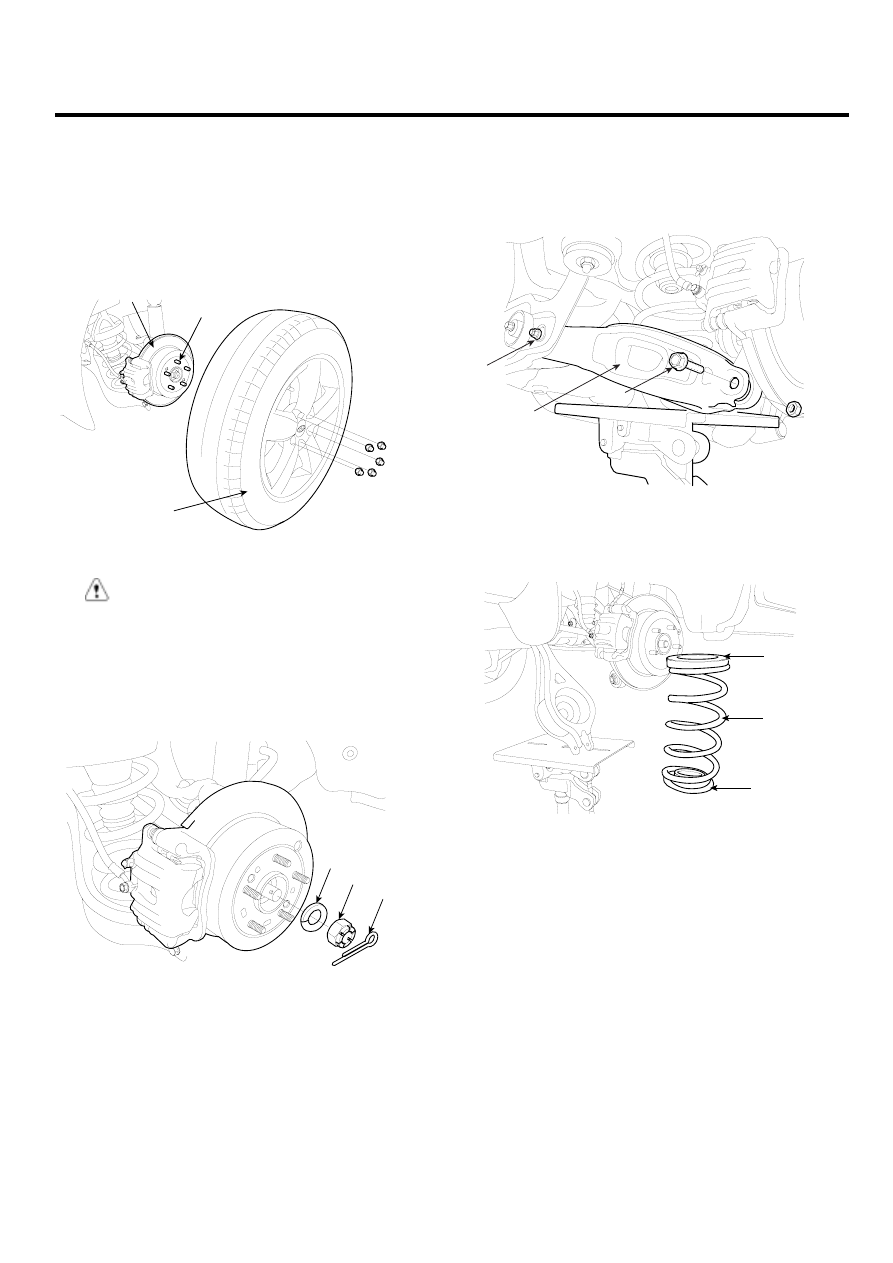

Remove the rear wheel and tire (A) from the rear hub
(B).

A

B

C

SCMDS6019D

CAUTION

Be careful not to damage to the hub bolts (C) when
removing the rear wheel and tire (A).

3.

Remove the split pin (A), then remove castle nut (B)
and washer (C) from the front hub under applying the
brake.

A

B

C

SCMDS6020D

4.

Remove the mounting bolt (B) of the rear lower arm(A)
and the rear carrier, while supporting the lower arm
(A) with a jack as shown in the illustration. Loosen
the mounting bolt (C) of the cross member and the
rear lower arm.

A

C

B

SCMDS6021D

5.

Remove the spring (A), the upper pad (B) and the
lower pad (C).

B

A

C

SCMDS6022D

DS -38

DRIVESHAFT AND AXLE

6.

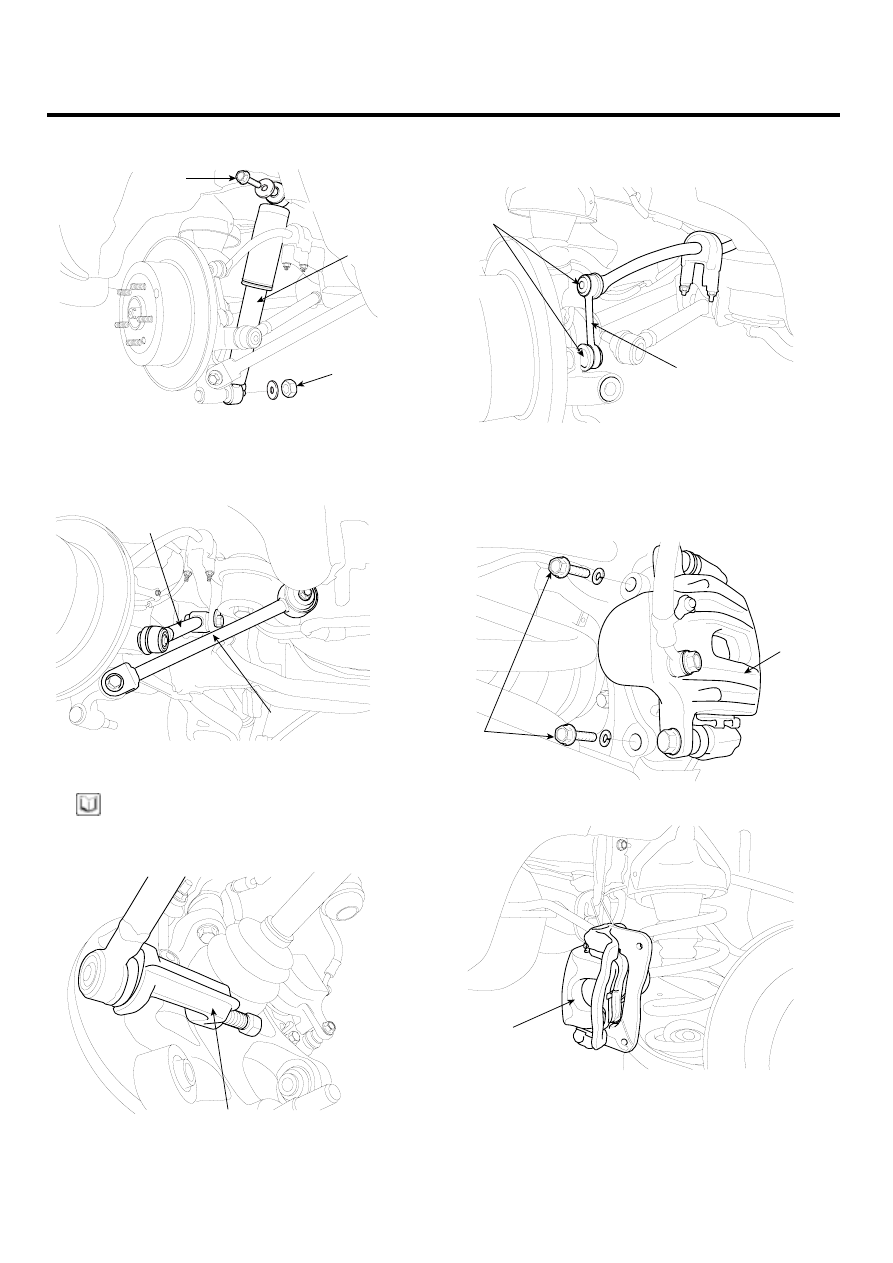

Remove the rear shock absorber (A).

A

C

B

SCMDS6023D

7.

Remove the assist arm (A) and the trailing arm (B)
from the rear axle carrier.

B

A

SCMDS6024D

NOTE

Remove the rear assist arm ball joint by using the
special tool(09568-4A000).

09568-4A000

SCMDS6518L

8.

Remove the rear stabilizer link (A) from the rear axle
carrier.

A

B

SCMDS6026D

9.

Remove the brake caliper mounting bolts (A), and
then place the brake caliper assembly (B) with wire
as shown in the illustration.

A

B

SCMDS6027D

B

SCMDS6028D

REAR AXLE

DS -39

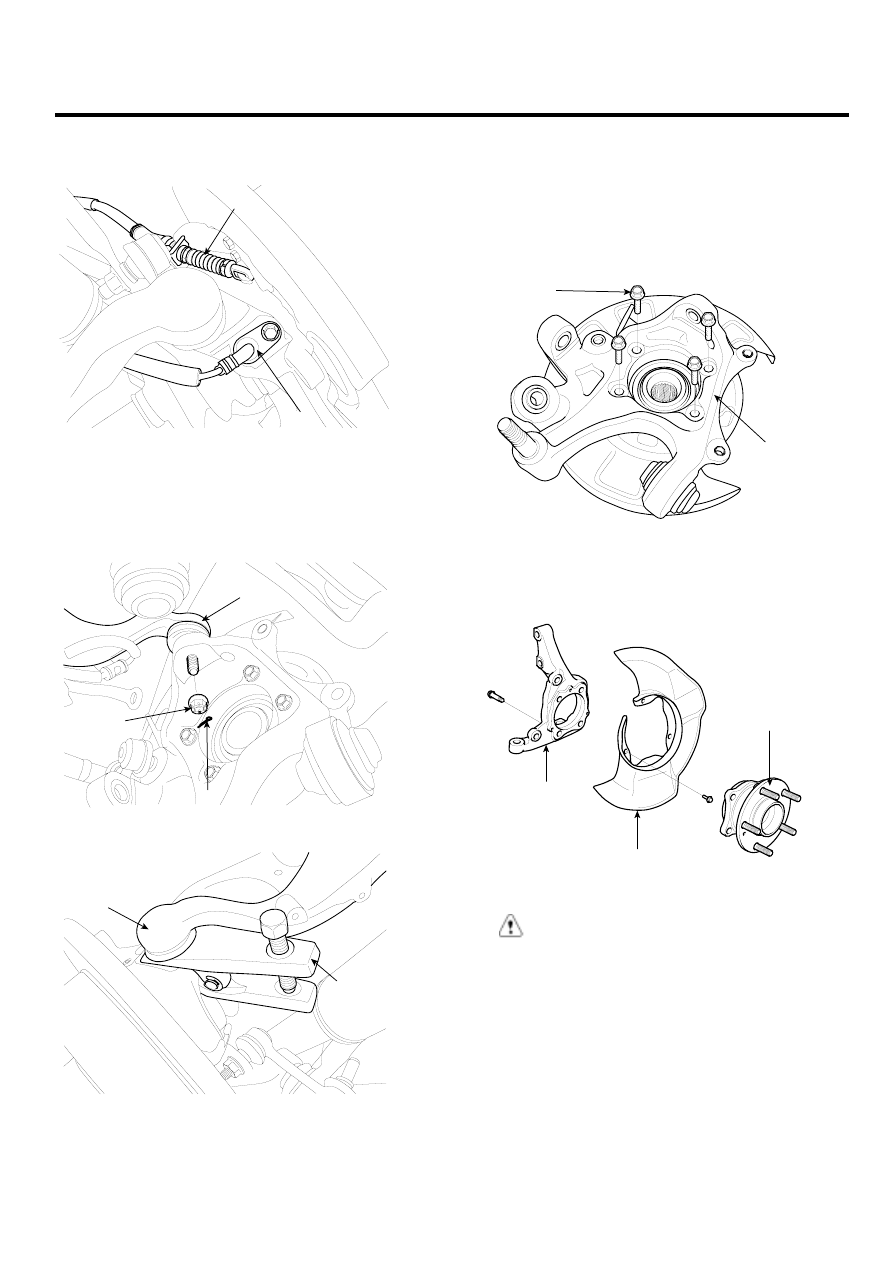

10. Remove the wheel speed sensor (A) and the parking

brake cable (B) from the rear axle carrier.

A

B

SCMDS6029D

11. Remove the split pin (A) and the castle nut (B) from

the rear upper arm ball joint (C), and then remove
the rear upper arm ball joint (C) by using the special
tool(09568-34000).

A

B

C

SCMDS6030D

09568-34000

C

SCMDS6031D

12. Remove the rear axle carrier assembly.

DISASSEMBLY

E17753C8

1.

Remove the brake disc from the rear axle carrier as-
sembly.

2.

Remove the hub assembly mounting bolts (B) from
the rear axle carrier (A).

A

B

SCMDS6032D

3.

Remove the hub assembly (C) and the parking brake
assembly (B) from the rear axle carrier (A).

A

B

C

SCMDS6501D

CAUTION

Do not disassemble the hub assembly.

INSPECTION

E1DDE79F

1.

Check the hub for cracks and the splines for wear.

2.

Check the brake disc for scoring and damage.

3.

Check the rear axle carrier for cracks

4.

Check the bearing for cracks or damage.
