DS -4

DRIVESHAFT AND AXLE

LUBRICANTS

E905F5BE

Items

Lubricants

Quantity

BJ

ROLLUBE BJ

155 ± 10g

Diesel 2.2 M/T 2WD/4WD,
Diesel 2.2 A/T 2WD/4WD,
Gasoline 2.7 A/T 2WD

PTJ

MX13KT

220 ± 10g

BJ

ROLLUBE BJ

155 ± 10g

Front driveshaft

Gasoline 2.7 A/T 4WD,
Gasoline 2.7 M/T 2WD/4WD

SFJ

STAMINA 0233B

220 ± 10g

BJ

ROLLUBE BJ

110 ± 6g

Rear driveshaft

DOJ

Amblygon TA10/2A

100 ± 6g

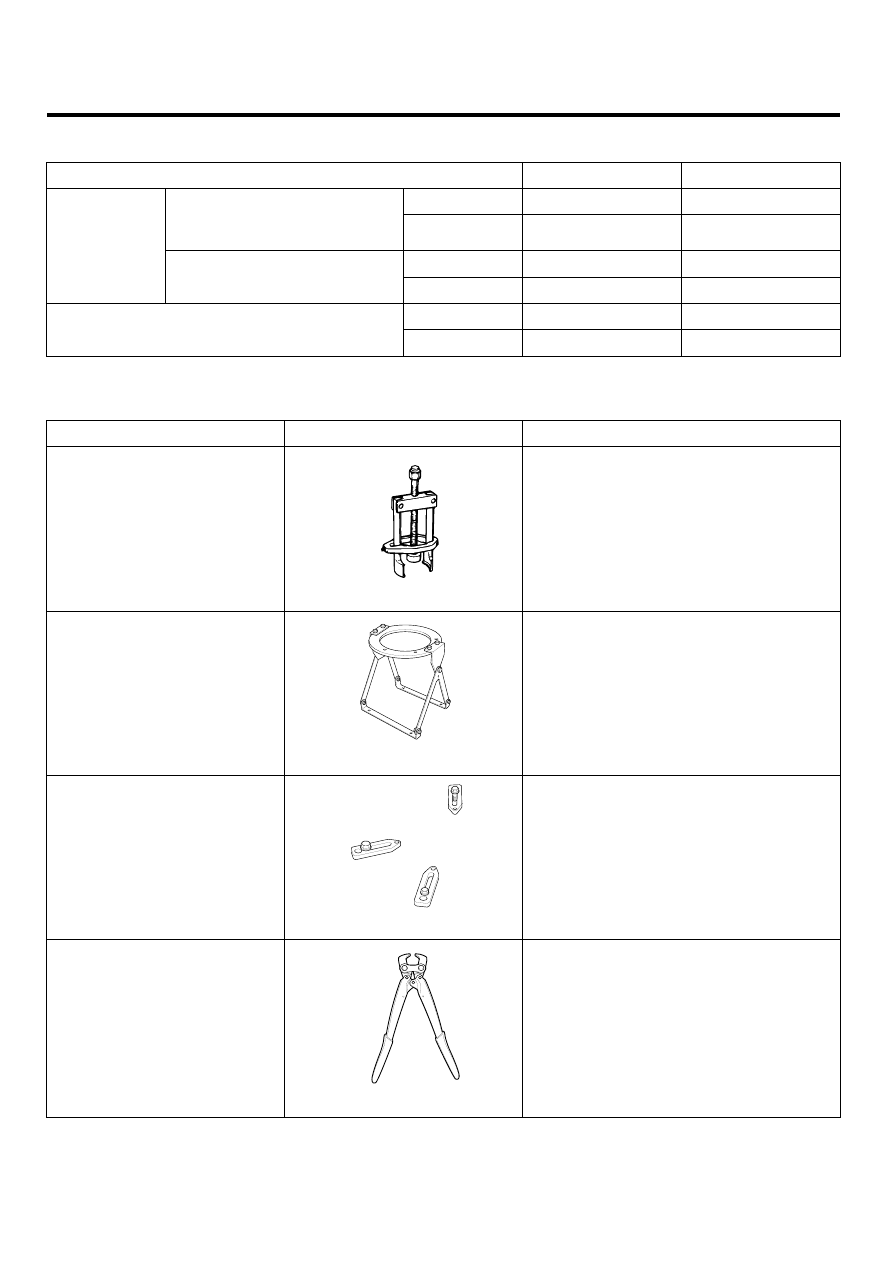

SPECIAL TOOLS

EA6CFD5D

Tool(Number and Name)

Illustration

Use

09495-33000
Puller

D9533000

Removal of spider assembly from a drive shaft.

09517-43101
Working base

E1743101

Support for the differential carrier

09517-43500
Adapter

E1743500

Support for the differential carrier
(Use with 09517-43101)

09495-3K000
Band installer

KINF500C

Installation of ear type boot band

GENERAL

DS -5

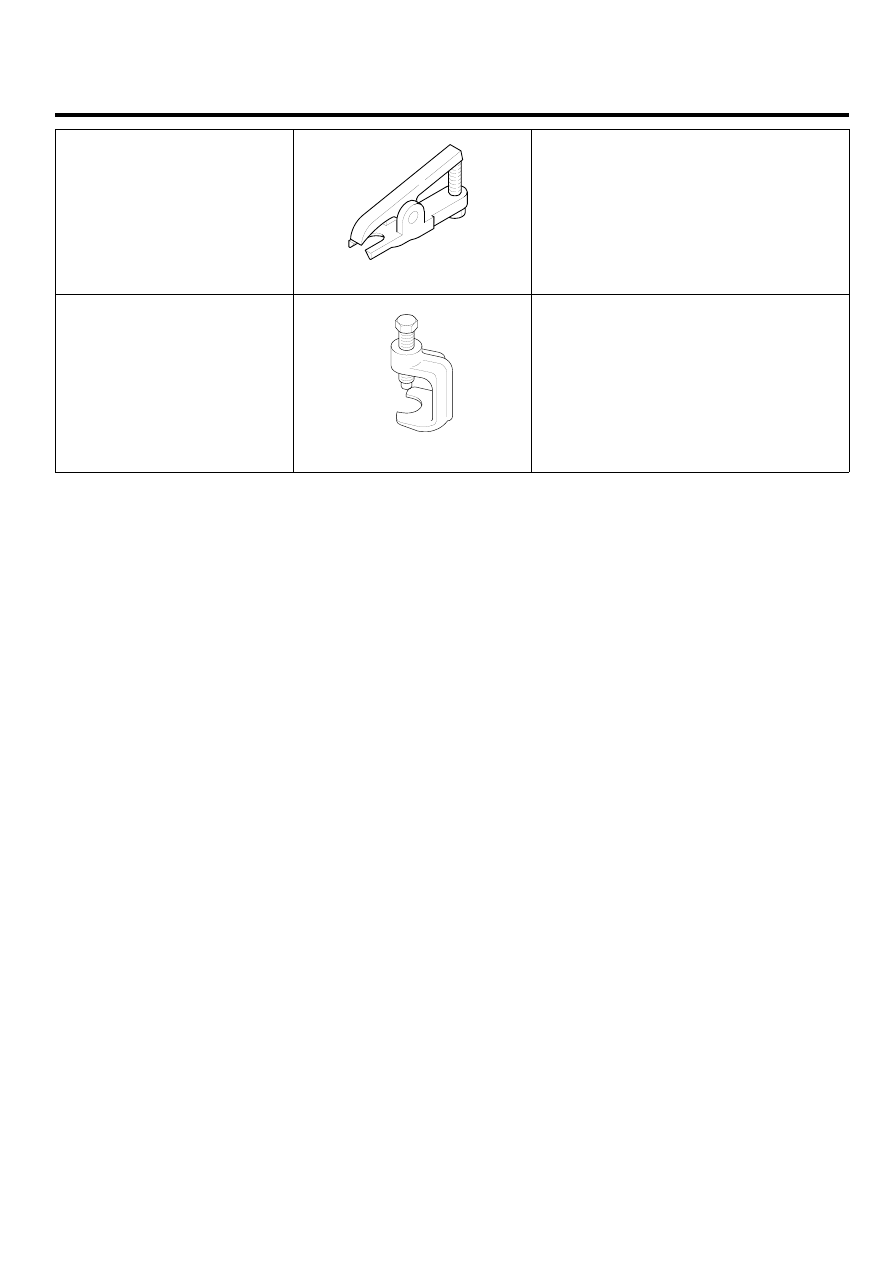

09568-34000
Ball joint remover

E6834000

Removal of the rear upper arm ball joint

09568-4A000
Ball joint remover

KPRE103I

Removal of the front lower arm and
tie rod end ball joint

DS -6

DRIVESHAFT AND AXLE

TROUBLESHOOTING

E9DF00E5

Trouble Symptom

Probable cause

Remedy

Scoring of driveshaft ball joint

Replace

Wear, rattle or scoring of wheel bearing

Replace

Vehicle pulls to
one side

Defective front suspension and steering

Adjustment or
Replace

Wear, damage or bending of driveshaft

Replace

Driveshaft rattle and hub serration

Replace

Vibartion

Wear, rattle or scratching of wheel bearing

Replace

Defective wheel balance

Adjustment or
Replace

Shimmy

Defective front suspension and steering

Adjustment or
Replace

Wear, damage or bending of driveshaft

Replace

Rattle of driveshaft and worn hub splines

Replace

Wear, rattle or scoring of wheel bearing

Replace

Loose hub nut

Adjustment or
Replace

Excessive noise

Defective front suspension and steering

Adjustment or
Replace

FRONT AXLE

DS -7

FRONT AXLE

FRONT HUB / KNUCKLE

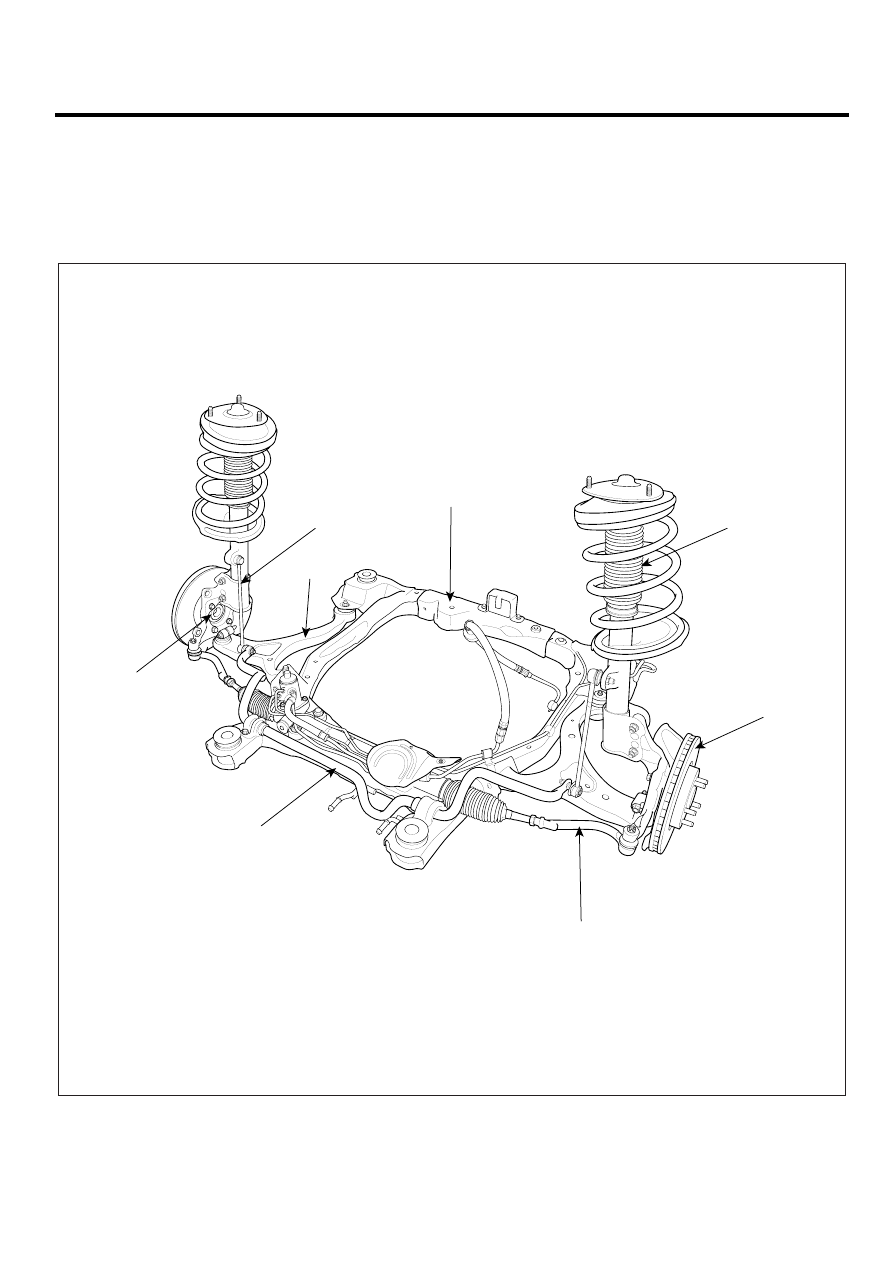

COMPONENT LOCATION

EB2E0DEC

1. Front strut assembly
2. Front disc
3. Tie rod end assembly
4. Front subframe

5. Front lower arm
6. Front stabilizer bar assembly
7. Front stabilizer link assembly
8. Front knuckle assembly

7

8

5

6

4

1

2

3

SCMDS6500L
