CLUTCH SYSTEM

CLUTCH MASTER CYLINDER

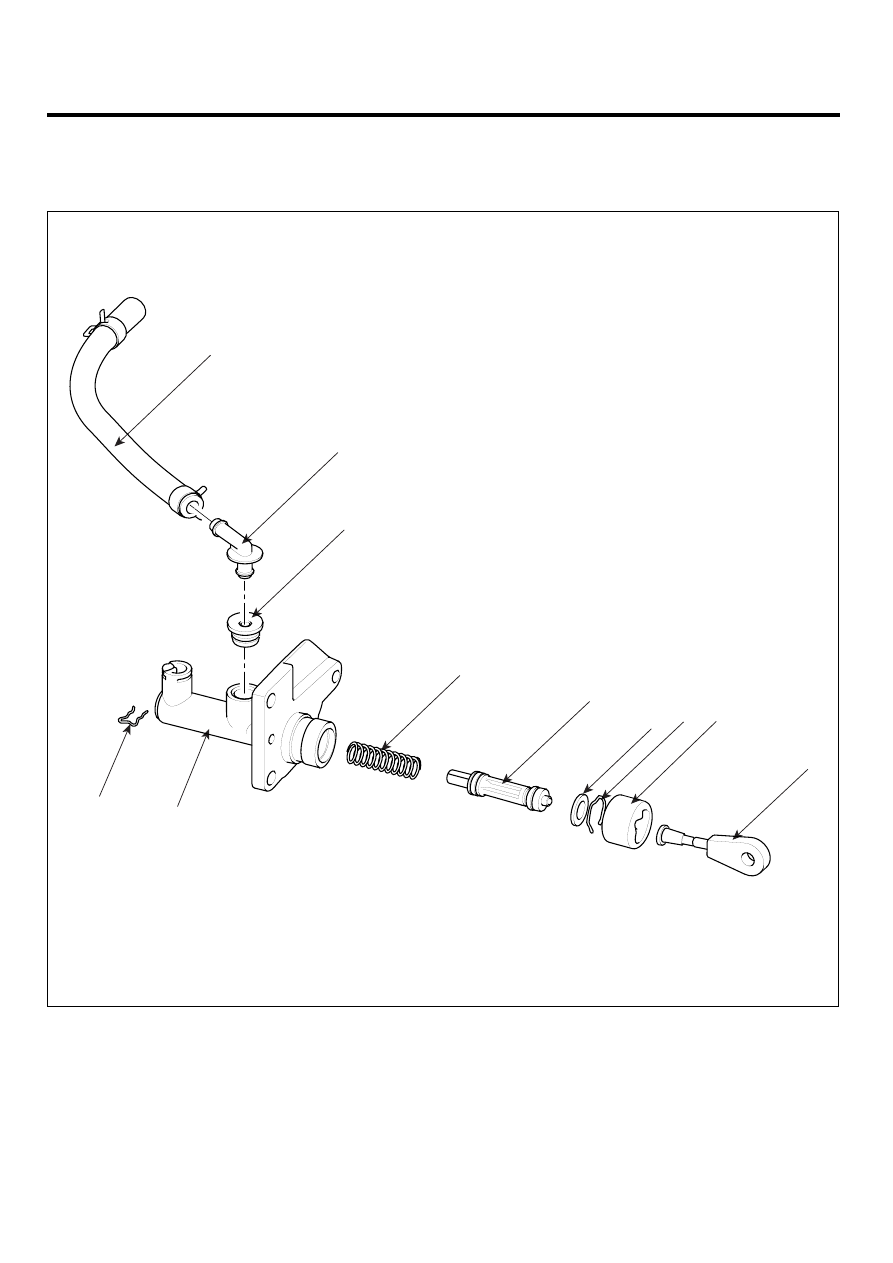

COMPONENTS

EA99ED83

11

10

9

7

8

6

5

4

3

2

1

1.  Rod assembly
2.  Boot
3.  Key
4.  Plate
5.  Piston assembly
6.  Spring

7.  Body assembly
8.  Clip
9.  Rubber
10.  Nipple
11.  Plexible hose

SCMCH6001L

Driveshaft and

Axle

GENERAL

FRONT AXLE

FRONT HUB / KNUCKLE

DRIVESHAFT

FRONT DRIVESHAFT ASSEMBLY
FRONT DRIVESHAFT(PTJ-BJ TYPE)
FRONT DRIVESHAFT (SFJ-BJ TYPE)

REAR AXLE

REAR HUB / CARRIER

REAR DRIVESHAFT ASSEMBLY

REAR DRIVESHAFT (DOJ-BJ TYPE)

PROPELLER SHAFT ASSEMBLY

PROPELLER SHAFT

DIFFERENTIAL CARRIER ASSEMBLY

DIFFERENTIAL CARRIER (4WD)

DS -2

DRIVESHAFT AND AXLE

GENERAL

SPECIFICATION

EDA421A7

Items

Inner side

Outer side

Joint type

PTJ

BJ

Diesel 2.2 M/T 2WD/4WD,
Diesel 2.2 A/T 2WD/4WD,
Gasoline 2.7 A/T 2WD

Max. permissible angle

21

46

Joint type

SFJ

BJ

Front driveshaft

Gasoline 2.7 A/T 4WD,
Gasoline 2.7 M/T 2WD/4WD

Max. permissible angle

21

46

Joint type

DOJ

BJ

Rear driveshaft

Max. permissible angle

22

46

Oil type

Hypoid gear oil

(API GL-5, SAE 75W/90)

Oil capacity (L)

About 0.9

Reduction gear type

Hypoid gear

Reduction gear ratio

3.818

Final drive gear backlash
mm(in.)

0.10 ~ 0.15 (0.0039 ~ 0.0059)

Differential

　

Differential gear backlash
mm(in.)

0 ~ 0.05 (0 ~ 0.0020)

BJ : Birfield Joint
DOJ : Double Offset Joint
PTJ : Pillow journal Tri-pot Joint
SFJ : Shudderless Free-ring Joint

GENERAL

DS -3

TIGHTENING TORQUE

Items

Nm

Kgf-m

lb-ft

Wheel nut

88.3~107.9

9~11

65.1~79.6

Driveshaft castle nut

196.1~255.0

20~26

144.7~188.1

Strut assembly lower mounting bolt

152.0~171.6

15.5~17.5

112.1~126.6

Inner shaft bearing bracket bolt

49.0~68.6

5~7

36.2~50.6

Brake caliper mounting bolt

78.5~98.1

8~10

57.9~72.3

Wheel speed sensor mounting bolt

6.9~10.8

0.7~1.1

5.1~8.0

Brake disc mounting screw

4.9~5.9

0.5~0.6

3.6~4.3

Hub assembly mounting bolt

78.5~98.1

8~10

57.9~72.3

Lower arm ball joint mounting bolt

98.1~117.7

10~12

72.3~86.8

Front

Tie rod end ball joint mounting nut

23.5~33.3

2.4~3.4

17.4~24.6

Wheel nut

88.3~107.9

9~11

65.1~79.6

Driveshaft castle nut

196.1~255.0

20~26

144.7~188.1

Shock absorber upper mounting bolt

137.3~156.9

14~16

101.3~115.7

Shock absorber lower mounting nut

98.1~117.7

10~12

72.3~86.8

Brake caliper mounting bolt

63.7~73.5

6.5~7.5

47.0~54.2

Wheel speed sensor mounting bolt

6.9~10.8

0.7~1.1

5.1~8.0

Brake disc mounting screw

4.9~5.9

0.5~0.6

3.6~4.3

Hub assembly mounting bolt

78.5~88.3

8~9

57.9~65.1

Upper arm ball joint mounting nut

78.5~88.3

8~9

57.9~65.1

Lower arm mounting bolt

137.3~156.9

14~16

101.3~115.7

Assist arm ball joint mounting nut

98.1~117.7

10~12

72.3~86.8

Rear

Trailing arm mounting bolt

137.3~156.9

14~16

101.3~115.7

Front propeller shaft mounting bolt

49.0~68.6

5~7

36.2~50.6

Propeller shaft center bearing bracket
mounting bolt

39.2~49.0

4~5

28.9~36.2

Propeller
shaft

Rear propeller shaft mounting bolt

49.0~68.6

5~7

36.2~50.6

Rear differential mounting bolt

68.6~88.3

7~9

50.6~65.1

Differential

Differential cover mounting bolt

39.2~49.0

4~5

28.9~36.2

CAUTION

Replace self-locking nuts with new ones after re-
moval.
